1. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Kim Kao, Solutions Architect
Mar 13, 2019
Implementing Microservices by DDD
DDD – A collaboration way to go

2. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

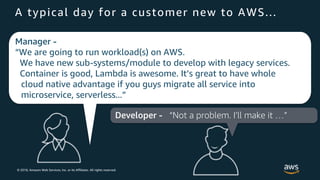

A typical day for a customer new to AWS...
Manager -
“We are going to run workload(s) on AWS.
We have new sub-systems/module to develop with legacy services.
Container is good, Lambda is awesome. It’s great to have whole
cloud native advantage if you guys migrate all service into
microservice, serverless...”
Developer - “Not a problem. I’ll make it …”

3. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Business Wants
https://vaughnvernon.co/tag/event-storming/

4. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
But You Want
https://vaughnvernon.co/tag/event-storming/

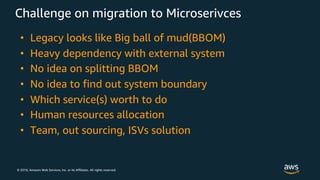

5. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Challenge on migration to Microserivces
• Legacy looks like Big ball of mud(BBOM)
• Heavy dependency with external system
• No idea on splitting BBOM
• No idea to find out system boundary
• Which service(s) worth to do
• Human resources allocation
• Team, out sourcing, ISVs solution

6. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
What are Microservices?

7. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
= Microservices ?

8. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
100/200/300/1000?
LOC

9. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
© 2018, Amazon Web Services, Inc. or Its Affiliates. All rights reserved.

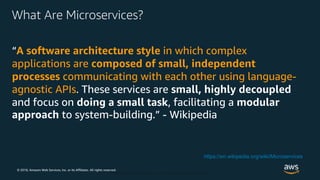

What Are Microservices?
“A software architecture style in which complex
applications are composed of small, independent
processes communicating with each other using language-
agnostic APIs. These services are small, highly decoupled
and focus on doing a small task, facilitating a modular
approach to system-building.” - Wikipedia
https://en.wikipedia.org/wiki/Microservices

10. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

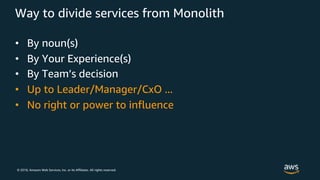

Way to divide services from Monolith
• By noun(s)
• By Your Experience(s)
• By Team’s decision
• Up to Leader/Manager/CxO ...
• No right or power to influence

11. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Case study - Gilt
Problem behind Microservices

12. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

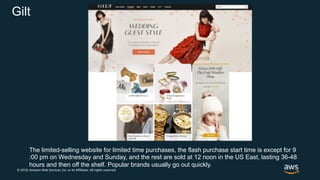

Gilt
The limited-selling website for limited time purchases, the flash purchase start time is except for 9
:00 pm on Wednesday and Sunday, and the rest are sold at 12 noon in the US East, lasting 36-48
hours and then off the shelf. Popular brands usually go out quickly.

13. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Monolith
Load
Balancer
Account Service
Cart Service
Shipping Service
StoreFront UI
Browser
Database
Data Access
Service

14. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Account
Database
Inventory
Database
Shipping
Database

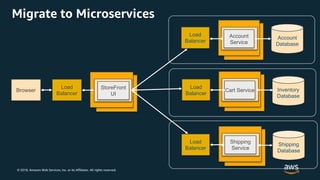

Migrate to Microservices
Load
Balancer
StoreFront
UI
Browser
Account
Service
Cart Service
Shipping
Service
Load
Balancer
Load
Balancer
Load
Balancer

15. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

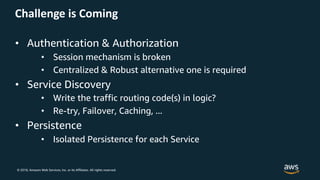

Challenge is Coming
• Authentication & Authorization
• Session mechanism is broken
• Centralized & Robust alternative one is required
• Service Discovery
• Write the traffic routing code(s) in logic?
• Re-try, Failover, Caching, ...
• Persistence
• Isolated Persistence for each Service

16. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
A Classic solution on AWS
Load
Balancer
StoreFront
UI
Browser
Account
Database
Account
Service
Cart Service Inventory
Database
Shipping
Service
API
Gateway
Load
Balancer
Load
Balancer
Load
Balancer
Shipping
Database

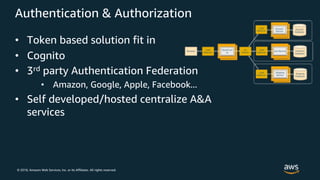

17. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Authentication & Authorization
• Token based solution fit in
• Cognito
• 3rd party Authentication Federation
• Amazon, Google, Apple, Facebook...
• Self developed/hosted centralize A&A
services

18. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

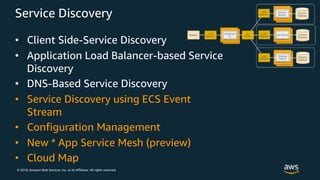

Service Discovery
• Client Side-Service Discovery
• Application Load Balancer-based Service
Discovery
• DNS-Based Service Discovery
• Service Discovery using ECS Event
Stream
• Configuration Management
• New * App Service Mesh (preview)
• Cloud Map

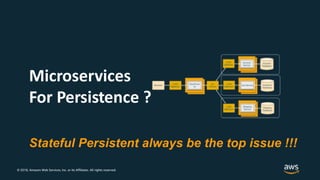

19. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Microservices
For Persistence ?
Stateful Persistent always be the top issue !!!

20. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

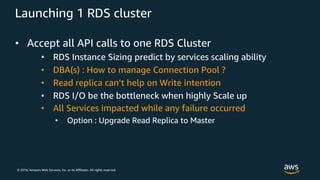

• Accept all API calls to one RDS Cluster
• RDS Instance Sizing predict by services scaling ability
• DBA(s) : How to manage Connection Pool ?
• Read replica can’t help on Write intention
• RDS I/O be the bottleneck when highly Scale up
• All Services impacted while any failure occurred
• Option : Upgrade Read Replica to Master
Launching 1 RDS cluster

21. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Launching N * RDS for Independency?

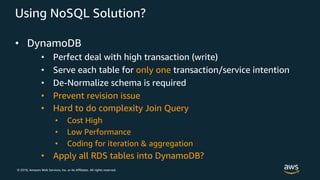

22. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
• DynamoDB
• Perfect deal with high transaction (write)
• Serve each table for only one transaction/service intention
• De-Normalize schema is required
• Prevent revision issue
• Hard to do complexity Join Query
• Cost High
• Low Performance
• Coding for iteration & aggregation
• Apply all RDS tables into DynamoDB?
Using NoSQL Solution?

23. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

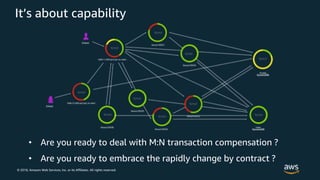

It’s about capability
• Are you ready to deal with M:N transaction compensation ?
• Are you ready to embrace the rapidly change by contract ?

24. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

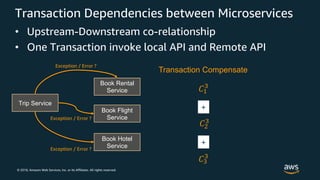

Transaction Dependencies between Microservices
• Upstream-Downstream co-relationship
• One Transaction invoke local API and Remote API
Book Rental
Service
Book Flight
Service
Trip Service
Book Hotel
Service
Exception / Error ?
Exception / Error ?
Exception / Error ?
!"
#
!$
#
!#
#
+
+
Transaction Compensate

25. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Saga : Alternative for 2 Phase -commit

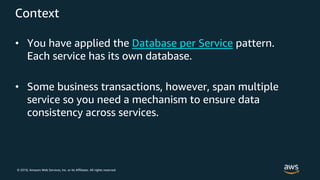

26. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Context
• You have applied the Database per Service pattern.
Each service has its own database.
• Some business transactions, however, span multiple
service so you need a mechanism to ensure data
consistency across services.

27. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Problem
How to maintain data consistency across services?

28. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

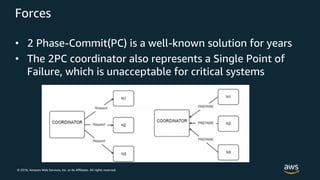

Forces
• 2 Phase-Commit(PC) is a well-known solution for years
• The 2PC coordinator also represents a Single Point of
Failure, which is unacceptable for critical systems

29. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

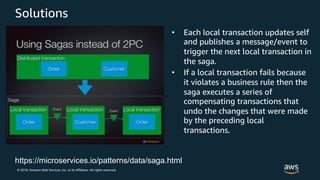

Solutions
• Each local transaction updates self
and publishes a message/event to
trigger the next local transaction in
the saga.
• If a local transaction fails because
it violates a business rule then the
saga executes a series of
compensating transactions that
undo the changes that were made
by the preceding local
transactions.
https://microservices.io/patterns/data/saga.html

30. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

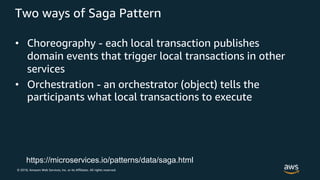

Two ways of Saga Pattern
• Choreography - each local transaction publishes
domain events that trigger local transactions in other
services
• Orchestration - an orchestrator (object) tells the
participants what local transactions to execute
https://microservices.io/patterns/data/saga.html

31. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

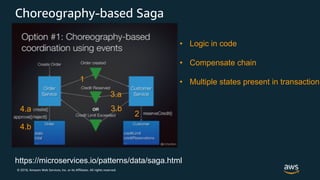

Choreography-based Saga
https://microservices.io/patterns/data/saga.html
2
1
3.b
3.a
4.a
4.b
• Logic in code
• Compensate chain
• Multiple states present in transaction

32. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

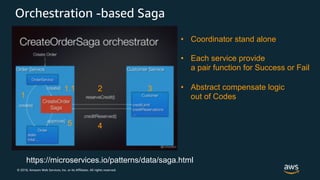

Orchestration -based Saga
https://microservices.io/patterns/data/saga.html
• Coordinator stand alone
• Each service provide
a pair function for Success or Fail
• Abstract compensate logic
out of Codes1
1.1 2 3
45

33. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Resulting Context
• This pattern has the following benefits:
• It enables an application to maintain data consistency across multiple services without
using distributed transactions
• This solution has the following drawbacks:
• The programming model is more complex. For example, a developer must design
compensating transactions that explicitly undo changes made earlier in a saga.
• There are also the following issues to address:
• In order to be reliable, a service must atomically update its database and publish a
message/event. It cannot use the traditional mechanism of a distributed transaction
that spans the database and the message broker. Instead, it must use one of the
patterns listed below.

34. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Implementing Saga on AWS

35. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
AWS Step Functions

36. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

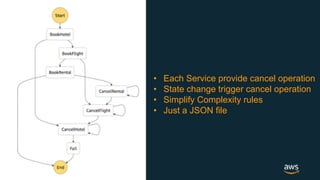

• Each Service provide cancel operation
• State change trigger cancel operation
• Simplify Complexity rules
• Just a JSON file

37. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

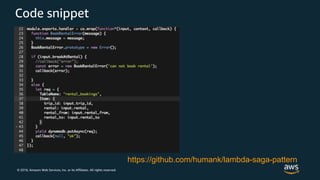

Code snippet
https://github.com/humank/lambda-saga-pattern

38. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

39. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
How to adopt Microservices?

40. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Business operation without whole picture
The Blind Men and the Elephant
Is It correct to all in microservices or serverless ?

41. © 2018, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Precondition to do microservices
Rapid Provisioning
Basic monitoring
Rapid application deployment
Martin
Fowler

42. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Better way to decompose Monolith
Domain
Expert
Matters

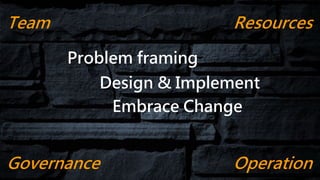

43. &

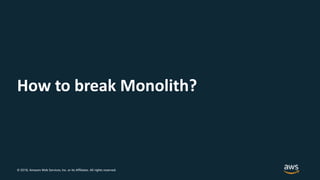

44. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
How to break Monolith?

45. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

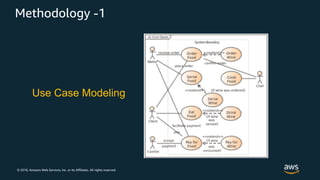

Methodology -1
Use Case Modeling

46. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Methodology -2
ICONIX Processing

47. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

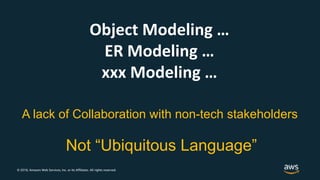

Object Modeling …
ER Modeling …
xxx Modeling …
A lack of Collaboration with non-tech stakeholders
Not “Ubiquitous Language”

48. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Way to collaborate
• Point out the events
• Who send the command
• Find the Noun(s)
• Have all team voices
Commands
Events
Aggregate

49. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Domain Driven Design

50. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

51. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

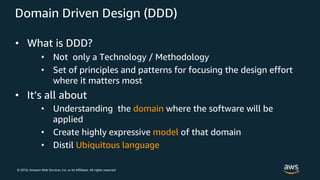

Domain Driven Design (DDD)
• What is DDD?
• Not only a Technology / Methodology
• Set of principles and patterns for focusing the design effort
where it matters most
• It’s all about
• Understanding the domain where the software will be
applied
• Create highly expressive model of that domain
• Distil Ubiquitous language

52. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

53. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

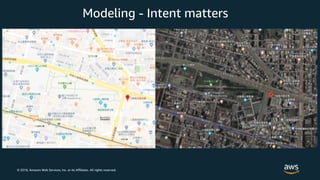

Modeling - Intent matters

54. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Domain (Strategy) Modeling – Basic Terms
• Domain
• Subject area where the software will be applied
• Example : VOD Domain, EC Domain, Banking
Domain
• Subdomain
• Logically separated part of the Domain
• Example : Ingestion, Streaming, Geo Location
• Domain Model
• Software model for solution of a domain
problem
• Bounded Context
• Explicit boundary where Domain Model lives

55. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

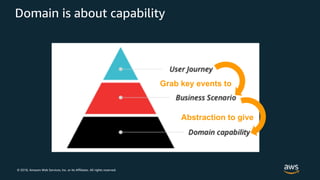

Domain is about capability
Grab key events to
Abstraction to give

56. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

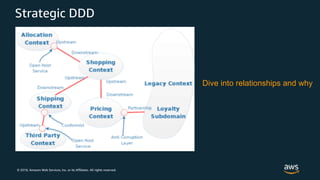

Dive into relationships and why
Strategic DDD

57. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Pattern in Practice
Tactical DDD

58. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

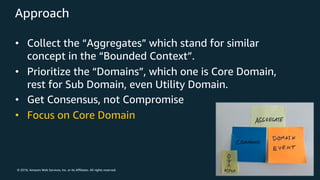

Approach
• Collect the “Aggregates” which stand for similar
concept in the “Bounded Context”.
• Prioritize the “Domains”, which one is Core Domain,
rest for Sub Domain, even Utility Domain.
• Get Consensus, not Compromise
• Focus on Core Domain

59. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Coffee shop experience
DDD by EventStorming

60. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

61. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

62. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

63. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

64. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

65. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

66. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

67. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Go through Event Storming approach
Don’t tell tech only
Don’t sell tech partially
Aim for Core value
Figure out trigger
and result

68. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Seat
occupied
Menu offered
Ordered 2 cups
of Americano
Paid
Order
received
Coffee
made up
Customers
Left
Table
Cleaned
*Key Business Events in Coffeeshop

69. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Event Trigger
• Client
• Server
• Counter
• Barista
ACTORS

70. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Most Valuable / Risky Events

71. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
© 2018, Amazon Web Services, Inc. or Its Affiliates. All rights reserved.

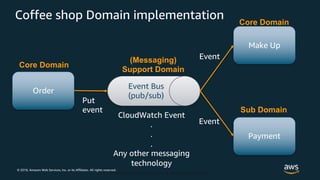

Order
Make Up
Payment
Event Bus
(pub/sub)
Put
event
Event
Event
CloudWatch Event
.
.
.
Any other messaging
technology
Coffee shop Domain implementation Core Domain
Sub Domain
(Messaging)
Support Domain
Core Domain

72. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

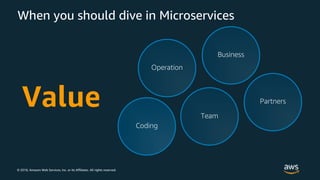

When you should dive in Microservices
Team
Partners
Business
Operation
Coding
Value

73. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

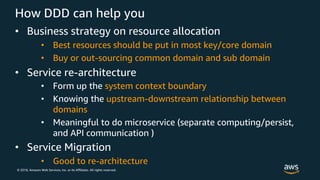

How DDD can help you
• Business strategy on resource allocation
• Best resources should be put in most key/core domain
• Buy or out-sourcing common domain and sub domain
• Service re-architecture
• Form up the system context boundary
• Knowing the upstream-downstream relationship between
domains
• Meaningful to do microservice (separate computing/persist,
and API communication )
• Service Migration
• Good to re-architecture

74. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

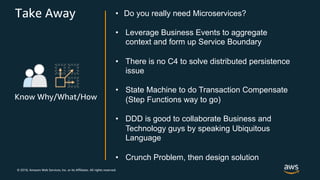

Take Away
Know Why/What/How
• Do you really need Microservices?
• Leverage Business Events to aggregate
context and form up Service Boundary
• There is no C4 to solve distributed persistence
issue
• State Machine to do Transaction Compensate
(Step Functions way to go)
• DDD is good to collaborate Business and
Technology guys by speaking Ubiquitous
Language
• Crunch Problem, then design solution

75. © 2018, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Implementing DDD on AWS
AWS : YikaiKao@amazon.com
Commounty : DDD Taiwan@FB
Telegram : YikaiKao
WeChat : YikaiKao
Twitter : @YikaiKao
GitHub Repos
