The e-MP Series HIGHLY EFFICIENT AND VERSATILE MULTISTAGE RING SECTION PUMPS UP TO 1700hp Applications limited only by your imagination

1. e-MP Series
MPA, MPR, MPD, MPV – 60 Hz
HIGH PRESSURE MULTISTAGE PUMPS ACCORDING TO ISO 5199
TECHNICAL BROCHURE
BeMP R1

2. Intellitronic X

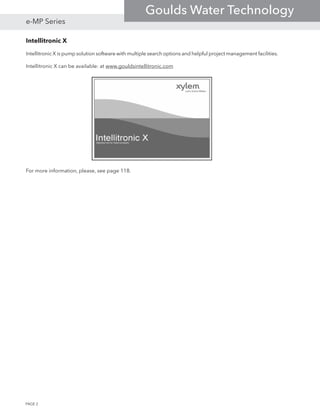

Intellitronic X is pump solution software with multiple search options and helpful project management facilities.
Intellitronic X can be available: at www.gouldsintellitronic.com
For more information, please, see page 118.
PAGE 2
e-MP Series
Goulds Water Technology

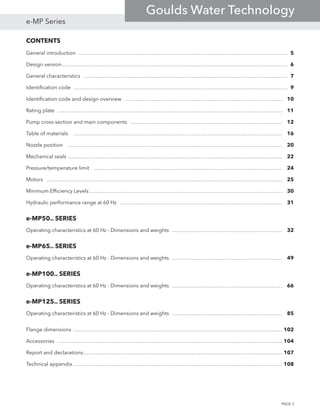

3. CONTENTS
General introduction…………………………………………………………………………………………………………… 5
Design version…………………………………………………………………………………………………………………… 6
General characteristics………………………………………………………………………………………………………… 7
Identification code……………………………………………………………………………………………………………… 9
Identification code and design overview………………………………………………………………………………… 10
Rating plate…………………………………………………………………………………………………………………… 11
Pump cross-section and main components……………………………………………………………………………… 12
Table of materials…………………………………………………………………………………………………………… 16
Nozzle position……………………………………………………………………………………………………………… 20
Mechanical seals……………………………………………………………………………………………………………… 22
Pressure/temperature limit………………………………………………………………………………………………… 24
Motors………………………………………………………………………………………………………………………… 25
Minimum Efficiency Levels…………………………………………………………………………………………………… 30
Hydraulic performance range at 60 Hz…………………………………………………………………………………… 31
e-MP50.. SERIES
Operating characteristics at 60 Hz - Dimensions and weights………………………………………………………… 32
e-MP65.. SERIES
Operating characteristics at 60 Hz - Dimensions and weights………………………………………………………… 49
e-MP100.. SERIES
Operating characteristics at 60 Hz - Dimensions and weights………………………………………………………… 66
e-MP125.. SERIES
Operating characteristics at 60 Hz - Dimensions and weights………………………………………………………… 85
Flange dimensions…………………………………………………………………………………………………………… 102
Accessories…………………………………………………………………………………………………………………… 104
Report and declarations……………………………………………………………………………………………………… 107
Technical appendix…………………………………………………………………………………………………………… 108
PAGE 3
e-MP Series
Goulds Water Technology

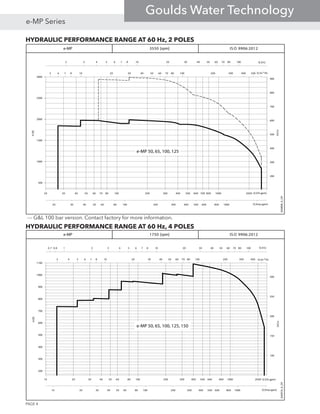

4. HYDRAULIC PERFORMANCE RANGE AT 60 Hz, 2 POLES
HYDRAULIC PERFORMANCE RANGE AT 60 Hz, 4 POLES
Q [US gpm]
005004003002080706050403028765 10 100
H[ft]
200
300
400
600
700
800
900
500
Q [l/s]
008006005004003002080605040302 100 1000
H[m]
500
1000
1500
2000
2500
3000
Q [Imp gpm]
080706050403028765432 10 100
Q [m 3
/h]
000200800700600500400300208070605040302 100 1000
e-MP 2102:6099OSI]mpr[0553
GA0009_A_CH
e-MP 50, 65, 100, 125
00400300208070605040302876543 10 100
H[ft]
100
150
200
250
300
Q [l/s]
00800600500400300208060504030210 100 1000
H[m]
200
300
400
500
600
700
800
900
1000
1100
Q [Imp gpm]
0807060504030287654328.07.0 1 10 100
Q [m 3
/h]
000200800600500400300208060504030210 100 1000
e-MP 2102:6099OSI]mpr[0571
GA0010_A_CH
e-MP 50, 65, 100, 125, 150
Q [US gpm]
--- G&L 100 bar version. Contact factory for more information.
PAGE 4
e-MP Series
Goulds Water Technology

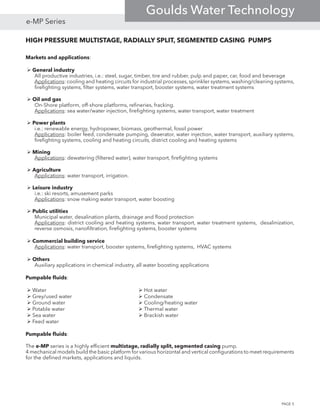

5. HIGH PRESSURE MULTISTAGE, RADIALLY SPLIT, SEGMENTED CASING PUMPS
Markets and applications:
 General industry
All productive industries, i.e.: steel, sugar, timber, tire and rubber, pulp and paper, car, food and beverage
Applications: cooling and heating circuits for industrial processes, sprinkler systems, washing/cleaning systems,
firefighting systems, filter systems, water transport, booster systems, water treatment systems
 Oil and gas
On-Shore platform, off-shore platforms, refineries, fracking.
Applications: sea water/water injection, firefighting systems, water transport, water treatment
 Power plants
i.e.: renewable energy, hydropower, biomass, geothermal, fossil power
Applications: boiler feed, condensate pumping, deaerator, water injection, water transport, auxiliary systems,
firefighting systems, cooling and heating circuits, district cooling and heating systems
 Mining
Applications: dewatering (filtered water), water transport, firefighting systems
 Agriculture
Applications: water transport, irrigation.
 Leisure industry
i.e.: ski resorts, amusement parks
Applications: snow making water transport, water boosting
 Public utilities
Municipal water, desalination plants, drainage and flood protection
Applications: district cooling and heating systems, water transport, water treatment systems, desalinization,
reverse osmosis, nanofiltration, firefighting systems, booster systems
 Commercial building service
Applications: water transport, booster systems, firefighting systems, HVAC systems
 Others
Auxiliary applications in chemical industry, all water boosting applications
Pumpable fluids:
 Water  Hot water
 Grey/used water  Condensate
 Ground water  Cooling/heating water
 Potable water  Thermal water
 Sea water  Brackish water
 Feed water
Pumpable fluids:
The e-MP series is a highly efficient multistage, radially split, segmented casing pump.
4 mechanical models build the basic platform for various horizontal and vertical configurations to meet requirements
for the defined markets, applications and liquids.
PAGE 5
e-MP Series
Goulds Water Technology

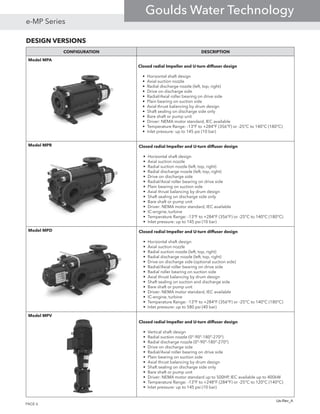

6. DESIGN VERSIONS
CONFIGURATION DESCRIPTION
Model MPA
Closed radial Impeller and U-turn diffuser design
• Horizontal shaft design
• Axial suction nozzle
• Radial discharge nozzle (left, top, right)
• Drive on discharge side
• Radial/Axial roller bearing on drive side
• Plain bearing on suction side
• Axial thrust balancing by drum design
• Shaft sealing on discharge side only
• Bare shaft or pump unit
• Driver: NEMA motor standard, IEC available
• Temperature Range: -13°F to +284°F (356°F) or -25°C to 140°C (180°C)
• Inlet pressure: up to 145 psi (10 bar)
Model MPR Closed radial Impeller and U-turn diffuser design
• Horizontal shaft design
• Axial suction nozzle
• Radial suction nozzle (left, top, right)
• Radial discharge nozzle (left, top, right)
• Drive on discharge side
• Radial/Axial roller bearing on drive side
• Plain bearing on suction side
• Axial thrust balancing by drum design
• Shaft sealing on discharge side only
• Bare shaft or pump unit
• Driver: NEMA motor standard, IEC available
• IC-engine, turbine
• Temperature Range: -13°F to +284°F (356°F) or -25°C to 140°C (180°C)
• Inlet pressure: up to 145 psi (10 bar)
Model MPD Closed radial Impeller and U-turn diffuser design
• Horizontal shaft design
• Axial suction nozzle
• Radial suction nozzle (left, top, right)
• Radial discharge nozzle (left, top, right)
• Drive on discharge side (optional suction side)
• Radial/Axial roller bearing on drive side
• Radial roller bearing on suction side
• Axial thrust balancing by drum design
• Shaft sealing on suction and discharge side
• Bare shaft or pump unit
• Driver: NEMA motor standard, IEC available
• IC-engine, turbine
• Temperature Range: -13°F to +284°F (356°F) or -25°C to 140°C (180°C)
• Inlet pressure: up to 580 psi (40 bar)
Model MPV
Closed radial Impeller and U-turn diffuser design
• Vertical shaft design
• Radial suction nozzle (0°-90°-180°-270°)
• Radial discharge nozzle (0°-90°-180°-270°)
• Drive on discharge side
• Radial/Axial roller bearing on drive side
• Plain bearing on suction side
• Axial thrust balancing by drum design
• Shaft sealing on discharge side only
• Bare shaft or pump unit
• Driver: NEMA motor standard up to 500HP, IEC available up to 400kW
• Temperature Range: -13°F to +248°F (284°F) or -25°C to 120°C (140°C)
• Inlet pressure: up to 145 psi (10 bar)
Us-Rev_A
PAGE 6
e-MP Series
Goulds Water Technology

7. GENERAL CHARACTERISTICS



          
         
         
         
         
         
         
         
         
         
         
MP_models-60-us_a_sc






   
OPERATING DATA
DATA VALUE
Discharge Flange Size 2’’ to 6’’
Power 2-pole operation: 10 HP to 800 HP / 7.5 kW to 630 kW
4-pole operation: 3 HP to 500 HP / 2.2 kW to 400 kW
Heads* up to approx. 2,000 ft / 610 m
Flows* up to approx. 2,600 GPM / 590 m³/h
Temperature -13°F to +284°F (optional to 356°F**) / -25°C to 140°C (optional to 180°C**)
Operating pressures up to 914 psi / 63 bar
* G&L versions available with heads up to 3,100 ft / 950 m and
flows up to 3,750 gpm / 850 m³/h. Consult factory for more information.
Us-Rev_A
** G&L 100 bar version
PAGE 7
e-MP Series
Goulds Water Technology

8. GENERAL CHARACTERISTICS
Note: G&L 100 bar version; consult factory for more information
Operating range by size and design
size
2’’ 2.5’’ 4’’ 5’’ 6’’
Nominalpressure
1450 psi
See note below
100 bar
Nominalpressure
914 psi 63 bar
580 psi 40 bar
363 psi 25 bar
DN50 DN65 DN100 DN125 DN150
size
PAGE 8
e-MP Series
Goulds Water Technology

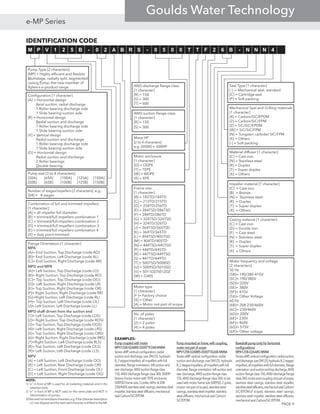

9. Pump Type [2 characters]
[MP] = Highly efficient and flexible
Multistage, radially split, segmented
casing Pump, the new member of
Xylem’s e-product range
Configuration [1 character]
[A] = Horizontal design
Axial suction, radial discharge
1 Roller bearing discharge side
1 Slide bearing suction side
[R] = Horizontal design
Radial suction and discharge
1 Roller bearing discharge side
1 Slide bearing suction side
[V] = Vertical design
Radial suction and discharge
1 Roller bearing discharge side
1 Slide bearing suction side
[D] = Horizontal design
Radial suction and discharge
2 Roller bearings
Double bearing
Pump size [3 to 4 characters]
[50A]
[50B]
[65A]
[65B]
[100A]
[100B]
[125A]
[125B]
[150A]
[150B]
Motor enclosure
[1 character]
[D] = ODPE
[T] = TEPE
[W] = WDPE
[X] = XPE
Motor HP
[2 to 4 characters]
e.g. [0500] = 500HP
No. of poles
[1 character]
[2] = 2 poles
[4] = 4 poles
M P V 1 2 5 B - 0 2 A B R S - 0 5 0 0 T T F 2 6 B - N N N 4
Combination of full and trimmed impellers
[1 character]:
[A] = all impeller full diameter
[B] = trimmed/full impellers combination 1
[C] = trimmed/full impellers combination 2
[D] = trimmed/full impellers combination 3
[E] = trimmed/full impellers combination 4
[X] = duty point trimmed
Motor frequency and voltage
[2 characters]
50 Hz
[5B]= 190/380-415V
[5C]= 190/380V
[5D]= 220V
[5E]= 380V
[5F]= 415V
[5X]= Other Voltage
60 Hz
[6B]= 208-230/460V
[6C]= 230/460V
[6D]= 200V
[6E]= 230V
[6F]= 460V
[6G]= 575V
[6X]= Other voltage
Casing material [1 character]
[C] = Cast iron
[D] = Ductile iron
[F] = Cast steel
[N] = Stainless steel
[R] = Duplex
[T] = Super duplex
[X] = Others
Impeller material [1 character]
[C] = Cast iron
[B] = Bronze
[N] = Stainless steel
[R] = Duplex
[T] = Super duplex
[X] = Others
Mechanical Seal and O-Ring materials
[1 character]
[4] = Carbon/SiC/EPDM
[2] = Carbon/SiC/FPM
[Z] = SiC/SiC/EPDM
[W] = SiC/SiC/FPM
[N] = Tungsten carbide/ SiC/FPM
[X] = Others
[-] = Soft packing
IDENTIFICATION CODE
EXAMPLES:
Pump coupled with motor
MPV125B-02ABRS-0500TTF26B-NNN4
Series eMP,vertical configuration,radial
suction and discharge,size DN125,hydraulic
B,2 stages/impellers,all impellers with full
diameter,flange orientation: left suction and
rear discharge,ANSI suction flange class
150,ANSI discharge flange class 300,500HP
factory choice motor withTEPE enclosure,
5009SD frame size,2 poles,60Hz at 208-
230/460V,stainlesssteelcasings,stainlesssteel
impeller,stainless steel diffusers,mechanical
seal Carbon/SiC/EPDM.
Material diffuser [1 character]
[C] = Cast iron
[N] = Stainless steel
[R] = Duplex
[T] = Super duplex
[X] = Others
Number of stages/impellers [2 characters], e.g.:
[04] = 4 stages
ANSI suction flange class
[1 character]
[R] = 150
[S] = 300
Seal Type [1 character]
[ ] = Mechanical seal, standard
[C] = Cartridge seal
[P] = Soft packing
ANSI discharge flange class
[1 character]
[R] = 150
[S] = 300
[T] = 600
NOTE:
1) “e-” in front of MP is used for all marketing materials and in the
selection tools.
2) “e-” in front of MP is NOT used on the name plate and NOT in
denomination of pumps.
3)Notusednomenclaturecharacters,e.g.ifthecharacterdescription
is[]areskippedandthenextusedcharacterisshiftedtotheleft.
Frame size
[1 character]
[B] = 182TD/184TD
[C] = 213TD/215TD
[D] = 254TD/256TD
[E] = 284TSD/286TSD
[F] = 284TD/286TD
[G] = 324TSD/326TSD
[H] = 324TD/326TD
[J] = 364TSD/365TSD
[K] = 364TD/365TD
[L] = 404TSD/405TSD
[M] = 404TD/405TD
[N] = 444TSD/445TSD
[P] = 444TD/445TD
[R] = 447TSD/449TSD
[S] = 447TD/449TD
[T] = 5007SD/5008SD
[U] = 5009SD/5010SD
[V] = 5011DZ/5012DZ
[W] = G40S
Motor type
[1 character]
[F ]= Factory choice
[X] = Other
[A] = Motor not part of scope
Flange Orientation [1 character]
MPA
[A]= End Suction, Top Discharge (code AO)
[B]= End Suction, Left Discharge (code AL)
[C]= End Suction, Right Discharge (code AR)
MPD and MPR
[A]= Left Suction, Top Discharge (code LO)
[B]= Right Suction, Top Discharge (code RO)
[C]= Top Suction, Top Discharge (code OO)
[D]= Left Suction, Right Discharge (code LR)
[E]= Top Suction, Right Discharge (code OR)
[F]= Right Suction, Right Discharge (code RR)
[G]=Right Suction, Left Discharge (code RL)
[H]= Top Suction, Left Discharge (code OL)
[J]= Left Suction, Left Discharge (code LL)
MPD shaft driven from the suction end
[1]= Left Suction, Top Discharge (code LOS)
[2]= Right Suction, Top Discharge (code ROS)
[3]= Top Suction, Top Discharge (code OOS)
[4]= Left Suction, Right Discharge (code LRS)
[5]= Top Suction, Right Discharge (code ORS)
[6]= Right Suction, Right Discharge (code RRS)
[7]=Right Suction, Left Discharge (code RLS)
[8]= Top Suction, Left Discharge (code OLS)
[9]= Left Suction, Left Discharge (code LLS)
MPV
[A] = Left Suction, Left Discharge (code OO)
[B] = Left Suction, Rear Discharge (code OR)
[C] = Left Suction, Front Discharge (code OL)
[D] = Left Suction, Right Discharge (code OG)
Pump mounted on frame,with coupling,
motor not part of scope
MPV125B-02ABRS-0500TTA26B-NNN4
Series eMP,vertical configuration,radial
suction and discharge,size DN125,hydraulic
B,2 stages/impellers,all impellers with full
diameter,flange orientation: left suction and
rear discharge,ANSI suction flange class
150,ANSI discharge flange class 300,to be
used with motor frame size 5009SD,2 poles
(motor not part of scope),stainless steel
casings,stainless steel impeller,stainless
steel diffusers,mechanical seal Carbon/
SiC/EPDM.
Bareshaft pump (only for horizontal
configurations)
MPA125B-02AARS-NNN4
SerieseMP,verticalconfiguration,radialsuction
anddischarge,sizeDN125,hydraulicB,2stages/
impellers,allimpellerswithfulldiameter,flange
orientation:endsuctionandtopdischarge,ANSI
suctionflangeclass150,ANSIdischargeflange
class300,motorandcouplingnotpartofscope,
stainless steel casings, stainless steel impeller,
stainlesssteeldiffusers,mechanicalsealCarbon/
SiC/EPDM.of scope), stainless steel casings,
stainless steel impeller, stainless steel diffusers,
mechanical seal Carbon/SiC/EPDM.
PAGE 9
e-MP Series
Goulds Water Technology

10. IDENTIFICATION CODE AND DESIGN OVERVIEW
Example: MPV125B-02ABRS-0500TTF26B-NNN4
Characters Description
e-MP Highly efficient and flexible multistage, radially split, segmented casing pump
Various design features for optimized efficiency values over the complete performance range offe-
ring configuration flexibility for a wide range of applications in different markets.
V Configuration
Total 4 models to meeting different installation requirements
3 horizontal models: e-MPA, e-MPR, e-MPD
1 vertical model: e-MPV
Suction and Discharge casings:
Suction casings are available with radial and axial arranged nozzles
Discharge casings are available with radial arranged nozzles
Radial casing nozzles (suction and discharge) can be turned in 90° steps
Sealing: O-rings
Bearings: depending on mechanical model:
Drive end: roller bearing (grease or oil lubricated)
Non-drive end: roller bearing (grease or oil lubricated)
or plain bearing (lubricated by pumped liquid)
Coupling and Coupling Guard:
Horizontal models: flexible coupling with and without spacer
Vertical model: flexible coupling
125B Pump size
Total 5 mechanical sizes:
DN50, DN65, DN100, DN125,
to cover best efficiencies points (BEP) over the flow performance range.
Hydraulic identifier (combine with above)
Total 10 hydraulics:
2 hydraulics (A,B) by size to increase the coverage of best efficiency points
(BEP) over the flow performance range
02A Number of stages and combination of full diameter and trimmed impellers
Up to 18 stages (mechanical size 50)
4 standard impeller trims and optional trims of impellers exactly to the required duty point for an
optimized efficiency.
Impeller design: radial flow impeller, enclosed
B Flange orentation
RS ANSI class for suction and discharge flanges
Flange ratings available: ANSI B16.5 Class 150, 300 and 600
0500 Motor HP
T Motor enclosure
T Frame size
NEMA frame sizes
F Motor type
Factory of customer choice
2 Number of poles
2 or 4 poles
6B Motor frequency and voltage
50Hz and 60Hz
3 phase power supply for various voltages
NNN Material identification for casings (suction, discharge and stage casing), impeller and diffuser
Casings: cast iron, ductile iron, steel, stainless steel (AISI 316), duplex stainless steel, super duplex
stainless steel
Impeller: cast iron, bronze, stainless steel (AISI 316), duplex stainless steel, super duplex stainless steel
Diffuser: cast iron, stainless steel (AISI 316), duplex stainless steel, super duplex stainless steel
4( ) Material identification for mechanical seal and O-ring and type of seal
Elastomers: EPM, FKM
Shaft sealing: mechanical seal (EN 12756), cartridge seal (single, single quench, double), packing.
Us-Rev_A
PAGE 10
e-MP Series
Goulds Water Technology

11. 1 12 8 11 9 27
HP
MAWP psi
Model
gmp ft
lb
10 15
RPM PEICL= BEP%
3 4 6 5 14 13
PUMP ONLY
RATING PLATE

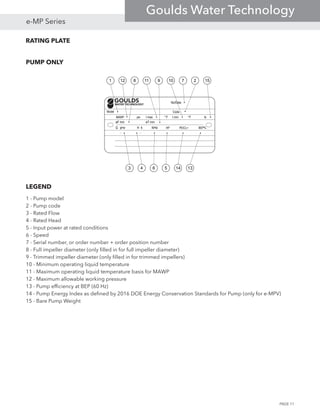

1 - Pump model
2 - Pump code
3 - Rated Flow
4 - Rated Head
5 - Input power at rated conditions
6 - Speed
7 - Serial number, or order number + order position number
8 - Full impeller diameter (only filled in for full impeller diameter)
9 - Trimmed impeller diameter (only filled in for trimmed impellers)
10 - Minimum operating liquid temperature
11 - Maximum operating liquid temperature basis for MAWP
12 - Maximum allowable working pressure
13 - Pump efficiency at BEP (60 Hz)
14 - Pump Energy Index as defined by 2016 DOE Energy Conservation Standards for Pump (only for e-MPV)
15 - Bare Pump Weight
LEGEND
PAGE 11
e-MP Series
Goulds Water Technology

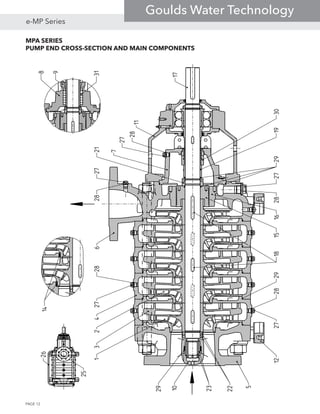

12. MPA SERIES

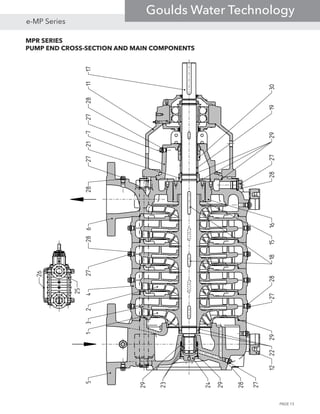

PUMP END CROSS-SECTION AND MAIN COMPONENTS
PAGE 12
e-MP Series
Goulds Water Technology

13. MPR SERIES
PUMP END CROSS-SECTION AND MAIN COMPONENTS
PAGE 13
e-MP Series
Goulds Water Technology

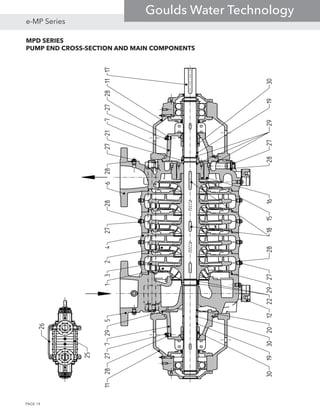

14. MPD SERIES
PUMP END CROSS-SECTION AND MAIN COMPONENTS
PAGE 14
e-MP Series
Goulds Water Technology

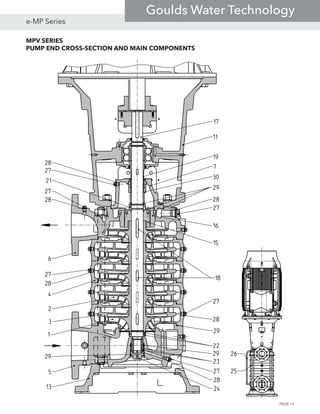

15. MPV SERIES
PUMP END CROSS-SECTION AND MAIN COMPONENTS
PAGE 15
e-MP Series
Goulds Water Technology

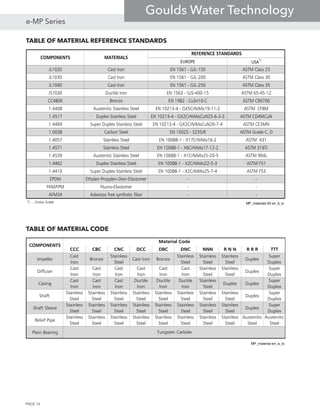

16. TABLE OF MATERIAL REFERENCE STANDARDS


EUROPE USA*)
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
 MP_materials-50-en_b_tc
 

         






 












































 
































































MP_material-en_a_tc



TABLE OF MATERIAL CODE
PAGE 16
e-MP Series
Goulds Water Technology

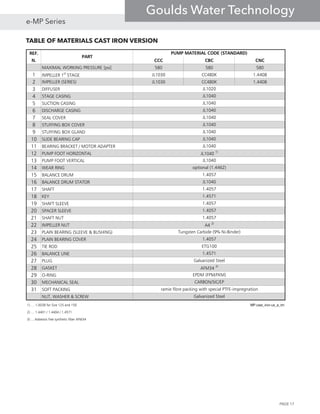

17. TABLE OF MATERIALS CAST IRON VERSION


   
   
 
   
    
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 

 MP-cast_iron-us_a_tm


































PAGE 17
e-MP Series
Goulds Water Technology

18. TABLE OF MATERIALS DUCTILE IRON VERSION


   
   
    
    
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 

 MP-ductile_iron-us_b_tm


































PAGE 18
e-MP Series
Goulds Water Technology

19. TABLE OF MATERIALS STAINLESS STEEL VERSION

 
    
    
 
    
     
     
     
     
     
     
     
  

 
     
 
 
 
     
     
     
     
     
     
     
     
  

 
 
     
 
   
     
 
 
  

   

 MP-stainless_steel-us_a_tm


















PAGE 19
e-MP Series
Goulds Water Technology

20. for MPA:
Code: AO Code: AL Code: AR
for MPD and MPR:
Code: LO Code: RO Code: OO
Code: RRCode: ORCode: LR
Code: RL Code: OL Code: LL
e-MP-NOZ-EN_a_DD
Note: Nozzle position LL, OO, RR is not possible for pumps with 1 and 2 stages

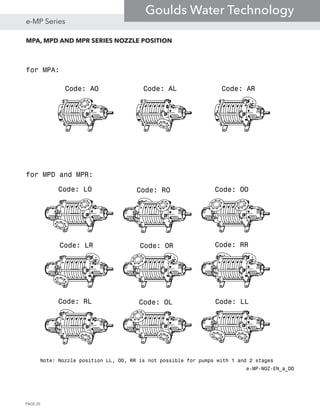

MPA, MPD AND MPR SERIES NOZZLE POSITION
PAGE 20
e-MP Series
Goulds Water Technology

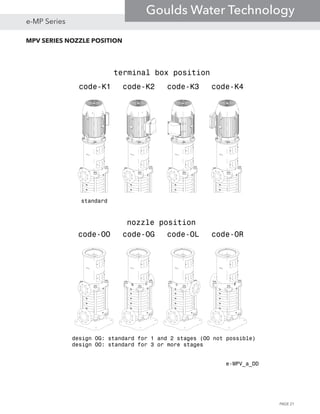

21. MPV SERIES NOZZLE POSITION
terminal box position
code-K1 code-K2 code-K3 code-K4
nozzle position
code-OO code-OG code-OL code-OR
e-MPV_a_DD
standard
design OG: standard for 1 and 2 stages (OO not possible)
design OO: standard for 3 or more stages
PAGE 21
e-MP Series
Goulds Water Technology

22. MECHANICAL SEALS
(Mechanical seal with mounting dimensions according to EN 12756 and ISO 3069 WITH L1K
)
  
 


MP_Mech_Seal-en_a_tm
  

















   
   
    
    
    
    
    
MP_Mech_Seal-us_a_tc


   
    
    
    
    
    
MP_MS_dim-us_a_td



LIST OF MATERIALS
TYPE OF SEAL
TABLE OF DIMENSIONS
PAGE 22
e-MP Series
Goulds Water Technology

23. MECHANICAL SEAL SELECTION DIAGRAM
0
100
200
300
400
500
600
0 50 100 150 200 250 300
pIN[psi]
t [°F] 
Limit - X
Limit - Y
Limit - Z
..............
minimum pressure
on suction flange
C1 C2
A
B
   
    
    
    
    
    
 MP_Limit_Mech_Seal-en_a_td


LIMIT CURVES
DEPENDING ON PUMP HYDRAULICS AND MOTOR SPEED

U



U



U



Up to 580 psi inlet pressure at maximum 176°F (up to 435 psi inlet
pressure at maximum 284°F). 

 MP_Mech_Seal-us_a_td
  
PIN
....Pump inlet pressure at suction flange [psi]
GENERAL CONSIDERATIONS
This diagram and selection table is valid for clean water (solids < 0.0013 oz/US gallon) or water for feeding
boilers, partially or totally demineralized.
If the water temperature exceeds 176 °F, minimum inlet pressure must be guaranteed.
3550 2900 1750 1450
PAGE 23
e-MP Series
Goulds Water Technology

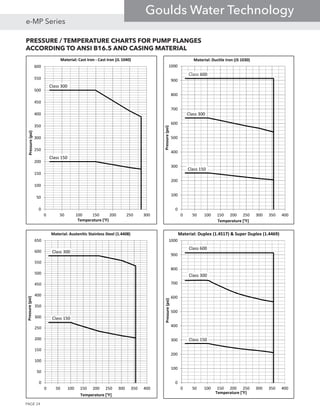

24. PRESSURE / TEMPERATURE CHARTS FOR PUMP FLANGES
ACCORDING TO ANSI B16.5 AND CASING MATERIAL
0
50
100
150
200
250
300
350
400
450
500
550
600
0 50 100 150 200 250 300
Pressure(psi)
Temperature (°F)
Material: Cast Iron - Cast Iron (JL 1040)
Class 300
Class 150
0
100
200
300
400
500
600
700
800
900
1000
0 50 100 150 200 250 300 350 400
Pressure(psi)
Temperature [°F]
Material: Ductile Iron (JS 1030)
Class 150
Class 300
Class 600
0
50
100
150
200
250
300
350
400
450
500
550
600
650
0 50 100 150 200 250 300 350 400
Pressure(psi)
Temperature [°F]
Material: Austenitic Stainless Steel (1.4408)
Class 150
Class 300
0
100
200
300
400
500
600
700
800
900
1000
0 50 100 150 200 250 300 350 400
Pressure(psi)
Temperature [°F]
Material: Duplex (1.4517) & Super Duplex (1.4469)
Class 150
Class 300
Class 600
PAGE 24
e-MP Series
Goulds Water Technology

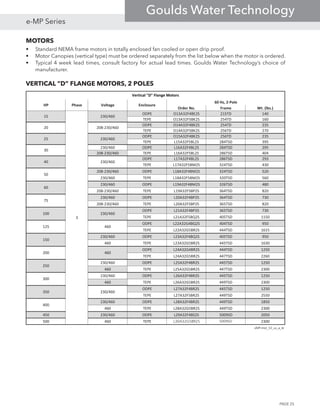

25. MOTORS
• Standard NEMA frame motors in totally enclosed fan cooled or open drip proof.
• Motor Canopies (vertical type) must be ordered separately from the list below when the motor is ordered.
• Typical 4 week lead times, consult factory for actual lead times. Goulds Water Technology’s choice of
manufacturer.
VERTICAL “D” FLANGE MOTORS, 2 POLES
Order No. Frame Wt. (lbs.)
ODPE O13A32F4BE2S 215TD 140
TEPE O13A32F5BK2S 254TD 160
ODPE O14A32F4BK2S 254TD 235
TEPE O14A32F5BK2S 256TD 270
ODPE O15A32F4BK2S 256TD 235
TEPE L15A32F5BL2S 284TSD 395
230/460 ODPE L16A32F4BL2S 284TSD 295
208-230/460 TEPE L16A32F5BL2S 286TSD 404
ODPE L17A32F4BL2S 286TSD 293
TEPE L17A32F5BM2S 324TSD 430
208-230/460 ODPE L18A32F4BM2S 324TSD 520
230/460 TEPE L18A32F5BM2S 320TSD 560
230/460 ODPE L19A32F4BM2S 326TSD 480
208-230/460 TEPE L19A32F5BP2S 364TSD 820
230/460 ODPE L20A32F4BP2S 364TSD 730
208-230/460 TEPE L20A32F5BP2S 365TSD 820
ODPE L21A32F4BP2S 365TSD 730
TEPE L21A32F5BQ2S 405TSD 1150
ODPE L22A32G4BQ2S 404TSD 950
TEPE L22A32G5BR2S 444TSD 1615
230/460 ODPE L23A32F4BQ2S 405TSD 950
460 TEPE L23A32G5BR2S 445TSD 1630
ODPE L24A32G4BR2S 444TSD 1250
TEPE L24A32G5BR2S 447TSD 2260
230/460 ODPE L25A32F4BR2S 445TSD 1250
460 TEPE L25A32G5BR2S 447TSD 2300
230/460 ODPE L26A32F4BR2S 445TSD 1250
460 TEPE L26A32G5BR2S 449TSD 2300
ODPE L27A32F4BR2S 445TSD 1250
TEPE L27A32F5BR2S 449TSD 2550
230/460 ODPE L28A32F4BR2S 449TSD 1850
460 TEPE L28A32G5BR2S 449TSD 2300
450 230/460 ODPE L29A32F4BS2S 5009SD 2050
500 460 TEPE L30A32G5BR2S 5009SD 2300

15
3
230/460
20 208-230/460
25
30
40
230/460
Vertical "D" Flange Motors
HP Phase Voltage Enclosure
60 Hz, 2-Pole
125 460
150
200 460
230/460
50
60
75
100 230/460
250
300
350
400
230/460
PAGE 25
e-MP Series
Goulds Water Technology

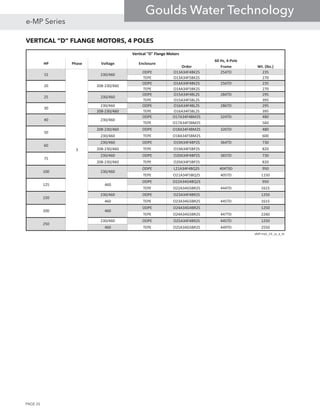

26. VERTICAL “D” FLANGE MOTORS, 4 POLES
Order Frame Wt. (lbs.)
ODPE O13A34F4BK2S 254TD 235
TEPE O13A34F5BK2S 270
ODPE O14A34F4BK2S 256TD 235
TEPE O14A34F5BK2S 270
ODPE O15A34F4BL2S 284TD 295
TEPE O15A34F5BL2S 395
230/460 ODPE O16A34F4BL2S 286TD 295
208-230/460 TEPE O16A34F5BL2S 395
ODPE O17A34F4BM2S 324TD 480
TEPE O17A34F5BM2S 560
208-230/460 ODPE O18A34F4BM2S 326TD 480
230/460 TEPE O18A34F5BM2S 600
230/460 ODPE O19A34F4BP2S 364TD 730
208-230/460 TEPE O19A34F5BP2S 820
230/460 ODPE O20A34F4BP2S 365TD 730
208-230/460 TEPE O20A34F5BP2S 820
ODPE L21A34F4BQ2S 404TSD 950
TEPE O21A34F5BQ2S 405TD 1150
ODPE O22A34G4BQ2S 950
TEPE O22A34G5BR2S 444TD 1615
230/460 ODPE O23A34F4BR2S 1250
460 TEPE O23A34G5BR2S 445TD 1615
ODPE O24A34G4BR2S 1250
TEPE O24A34G5BR2S 447TD 2260
230/460 ODPE O25A34F4BR2S 445TD 1250
460 TEPE O25A34G5BR2S 449TD 2550

Vertical "D" Flange Motors
HP Phase Voltage Enclosure
60 Hz, 4-Pole
15
3
230/460
20 208-230/460
25 230/460
460
250
230/460
125 460
150
200
50
60
75
100
30
40 230/460
PAGE 26
e-MP Series
Goulds Water Technology

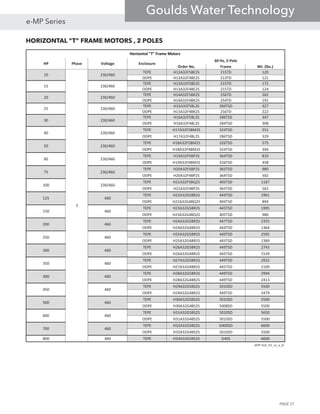

27. HORIZONTAL “T” FRAME MOTORS , 2 POLES
Order No. Frame Wt. (lbs.)
TEPE H12A32F5BE2S 215TD 120
ODPE H12A32F4BE2S 213TD 121
TEPE H13A32F5BE2S 215TD 172
ODPE H13A32F4BE2S 215TD 124
TEPE H14A32F5BK2S 256TD 262
ODPE H14A32F4BK2S 254TD 191
TEPE H15A32F5BL2S 284TSD 327
ODPE H15A32F4BK2S 256TD 222
TEPE H16A32F5BL2S 286TSD 347
ODPE H16A32F4BL2S 284TSD 308
TEPE H17A32F5BM2S 324TSD 551
ODPE H17A32F4BL2S 286TSD 329
TEPE H18A32F5BM2S 326TSD 575
ODPE H18A32F4BM2S 324TSD 394
TEPE H19A32F5BP2S 364TSD 810
ODPE H19A32F4BM2S 326TSD 458
TEPE H20A32F5BP2S 365TSD 980
ODPE H20A32F4BP2S 364TSD 502
TEPE H21A32F5BQ2S 405TSD 1187
ODPE H21A32F4BP2S 365TSD 562
TEPE H22A32G5BR2S 444TSD 1901
ODPE H22A32G4BQ2S 404TSD 894
TEPE H23A32G5BR2S 445TSD 1995
ODPE H23A32G4BQ2S 405TSD 980
TEPE H24A32G5BR2S 447TSD 2355
ODPE H24A32G4BR2S 444TSD 1364
TEPE H25A32G5BR2S 449TSD 2595
ODPE H25A32G4BR2S 445TSD 1389
TEPE H26A32G5BR2S 449TSD 2743
ODPE H26A32G4BR2S 445TSD 1539
TEPE H27A32G5BR2S 449TSD 2922
ODPE H27A32G4BR2S 445TSD 2100
TEPE H28A32G5BR2S 449TSD 2994
ODPE H28A32G4BR2S 449TSD 2413
TEPE H29A32G5BS2S 5010SD 5500
ODPE H29A32G4BR2S 449TSD 2479
TEPE H30A32G5BS2S 5010SD 5500
ODPE H30A32G4BS2S 5008SD 5500
TEPE H31A32G5BS2S 5010SD 5650
ODPE H31A32G4BS2S 5010SD 5500
TEPE H32A32G5BS2S G400SD 6600
ODPE H32A32G4BS2S 5010SD 5500
800 460 TEPE H33A32G5BS2S G40S 6600

700 460
230/460
230/460
230/460
230/460
460
460
460
460
460
460
3
10 230/460
15 230/460
20
25
30
230/460
Horizontal "T" Frame Motors
HP Phase Voltage Enclosure
60 Hz, 2-Pole
100 230/460
125
150 460
230/460
40
50
60
75 230/460
200
250
300
600
460
350
400 460
450
500 460
PAGE 27
e-MP Series
Goulds Water Technology

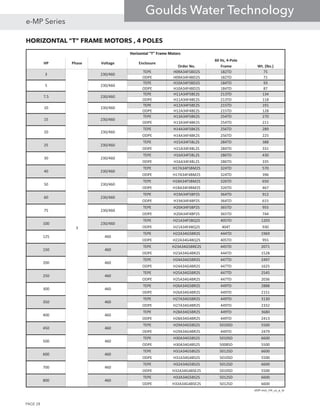

28. Order No. Frame Wt. (lbs.)
TEPE H09A34F5BD2S 182TD 75
ODPE H09A34F4BD2S 182TD 71
TEPE H10A34F5BD2S 184TD 93
ODPE H10A34F4BD2S 184TD 87
TEPE H11A34F5BE2S 213TD 134
ODPE H11A34F4BE2S 213TD 118
TEPE H12A34F5BE2S 215TD 191
ODPE H12A34F4BE2S 215TD 128
TEPE H13A34F5BK2S 254TD 270
ODPE H13A34F4BK2S 254TD 211
TEPE H14A34F5BK2S 256TD 289
ODPE H14A34F4BK2S 256TD 225
TEPE H15A34F5BL2S 284TD 388
ODPE H15A34F4BL2S 284TD 331
TEPE H16A34F5BL2S 286TD 430
ODPE H16A34F4BL2S 286TD 335
TEPE H17A34F5BM2S 324TD 570
ODPE H17A34F4BM2S 324TD 396
TEPE H18A34F5BM2S 326TD 650
ODPE H18A34F4BM2S 326TD 467
TEPE H19A34F5BP2S 364TD 912
ODPE H19A34F4BP2S 364TD 615
TEPE H20A34F5BP2S 365TD 955
ODPE H20A34F4BP2S 365TD 744
TEPE H21A34F5BQ2S 405TD 1203
ODPE H21A34F4BQ2S 404T 930
TEPE H22A34G5BR2S 444TD 1969
ODPE H22A34G4BQ2S 405TD 955
TEPE H23A34G5BRE2S 445TD 2071
ODPE H23A34G4BR2S 444TD 1528
TEPE H24A34G5BR2S 447TD 2497
ODPE H24A34G4BR2S 447TD 1625
TEPE H25A34G5BR2S 447TD 2545
ODPE H25A34G4BR2S 447TD 2036
TEPE H26A34G5BR2S 449TD 2888
ODPE H26A34G4BR2S 449TD 2151
TEPE H27A34G5BR2S 449TD 3130
ODPE H27A34G4BR2S 449TD 2332
TEPE H28A34G5BR2S 449TD 3680
ODPE H28A34G4BR2S 449TD 2413
TEPE H29A34G5BS2S 5010SD 5500
ODPE H29A34G4BR2S 449TD 2479
TEPE H30A34G5BS2S 5010SD 6600
ODPE H30A34G4BS2S 5008SD 5500
TEPE H31A34G5BS2S 5012SD 6600
ODPE H31A34G4BS2S 5010SD 5500
TEPE H32A34G5BS2S 5012SD 6600
ODPE H32A34G4BSE2S 5010SD 5500
TEPE H33A34G5BS2S 5012SD 6600
ODPE H33A34G4BSE2S 5012SD 6600

230/460
20
25
30
40
10
15
230/460
100
230/460
50 230/460
60
75
3 230/460
5 230/460
7.5 230/460
HP Phase Voltage Enclosure
60 Hz, 4-Pole
460
Horizontal "T" Frame Motors
230/460
230/460
230/460
230/460
230/460
230/460
125 460
150 460
200 460
250 460
800 460
3
500 460
600 460
700 460
450 460
300 460
350 460
400
HORIZONTAL “T” FRAME MOTORS , 4 POLES
PAGE 28
e-MP Series
Goulds Water Technology

29. NOISE
• The tables below show the mean sound pressure levels (Lp) measured at 1 meter’s distance in a free field
according to the A curve (ISO 1680 standard).
• The noise values are indicated with a tolerance of 3 dB (A).
NOISE LEVEL OF PUMP WITHOUT MOTOR

  
  
  
  
  
  
  
  
  
  
  
  
  
  
  
  
  
  
  
  
  
  
 
 
 
 

PAGE 29
e-MP Series
Goulds Water Technology

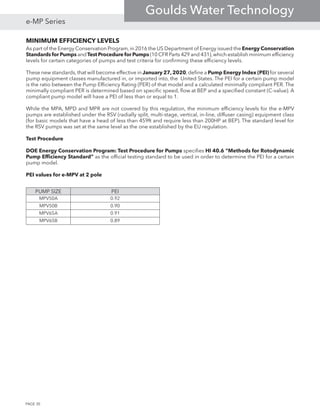

30. MINIMUM EFFICIENCY LEVELS
As part of the Energy Conservation Program,in 2016 the US Department of Energy issued the Energy Conservation
Standards for Pumps andTest Procedure for Pumps (10 CFR Parts 429 and 431),which establish minimum efficiency
levels for certain categories of pumps and test criteria for confirming these efficiency levels.
These new standards,that will become effective in January 27,2020,define a Pump Energy Index (PEI) for several
pump equipment classes manufactured in, or imported into, the United States. The PEI for a certain pump model
is the ratio between the Pump Efficiency Rating (PER) of that model and a calculated minimally compliant PER. The
minimally compliant PER is determined based on specific speed, flow at BEP and a specified constant (C-value). A
compliant pump model will have a PEI of less than or equal to 1.
While the MPA, MPD and MPR are not covered by this regulation, the minimum efficiency levels for the e-MPV
pumps are established under the RSV (radially split, multi-stage, vertical, in-line, diffuser casing) equipment class
(for basic models that have a head of less than 459ft and require less than 200HP at BEP). The standard level for
the RSV pumps was set at the same level as the one established by the EU regulation.
Test Procedure
DOE Energy Conservation Program: Test Procedure for Pumps specifies HI 40.6 “Methods for Rotodynamic
Pump Efficiency Standard” as the official testing standard to be used in order to determine the PEI for a certain
pump model.
PEI values for e-MPV at 2 pole
PUMP SIZE PEI
MPV50A 0.92
MPV50B 0.90
MPV65A 0.91
MPV65B 0.89
PAGE 30
e-MP Series
Goulds Water Technology

31. HYDRAULIC PERFORMANCE RANGE AT 60 Hz, 2 POLES
HYDRAULIC PERFORMANCE RANGE AT 60 Hz, 4 POLES
Q [US gpm]
006005004003002090807060504030298765 10 100
H[ft]
250
350
450
550
200
300
400
500
600
Q [l/s]
20 30 40 50 60 80 200 300 400 500 600 800 2000100 1000
H[m]
500
1000
1500
2000
Q [Imp gpm]
090807060504030298765432 10 100
Q [m 3
/h]
00020090080070060050040030020908070605040302 100 1000
e-MP ~ 3550 [rpm] ISO 9906:2012
GA0007_A_CH
125B125A100B100A65B65A50B50A
Q [US gpm]
00400300208070605040302876543 10 100
H[ft]
100
150
200
250
300
Q [l/s]
00800600500400300208060504030210 100 1000
H[m]
200
300
400
500
600
700
800
900
1000
1100
Q [Imp gpm]
0807060504030287654328,07,0 1 10 100
Q [m 3
/h]
0080060040020806040210 100 1000
e-MP 2102:6099OSI]mpr[0571~
GA0008_A_CH
150B150A125B125A100B100A65B65A50B50A
PAGE 31
e-MP Series
Goulds Water Technology

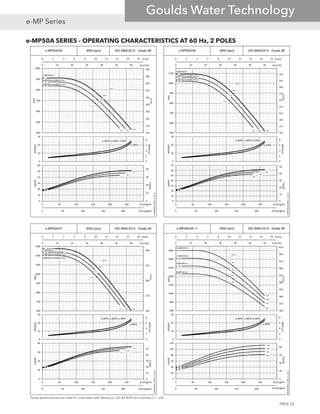

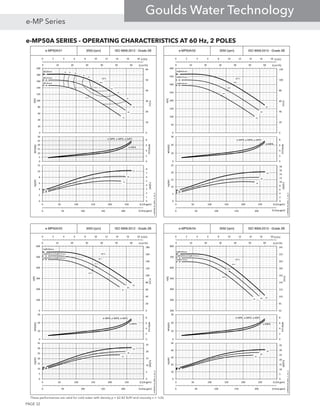

32. e-MP50A SERIES - OPERATING CHARACTERISTICS AT 60 Hz, 2 POLES
e-MP50A/01 3550 [rpm] ISO 9906:2012 - Grade 2B
0 2 4 6 8 10 12 14 16 18
0 50 100 150 200 Q [Imp gpm]
Q [l/s]
1A
1B
1C
68.4
66.8
63.3
67
67
65
65
60
60
5550
0 10 20 30 40 50 60
0
10
20
30
40
50
60
0
20
40
60
80
100
120
140
160
180
200
Q [m3/h]
H[m]
H[ft]
η[%]
0
2
4
6
8
0
5
10
15
20
25
30
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
1A
1B
1C01C
0
1
2
3
4
5
6
7
8
0
2
4
6
8
10
12
0 50 100 150 200 250 300
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50A-01_60Hz_2_US_A
Ø169mm
Ø157mm
Ø145mm
e-MPA
e-MP50A/02 3550 [rpm] ISO 9906:2012 - Grade 2B
0 2 4 6 8 10 12 14 16 18
0 50 100 150 200 Q [Imp gpm]
Q [l/s]
2A
2B
2C
68.4
66.8
63.363.363.3
0 10 20 30 40 50 60
0
20
40
60
80
100
120
0
50
100
150
200
250
300
350
400
Q [m3/h]
H[m]
H[ft]
η[%]
0
2
4
6
8
0
10
20
30
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
2A
2B
2C2C2C
0
2
4
6
8
10
12
14
16
18
0
5
10
15
20
25
0 50 100 150 200 250 300
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50A-02_60Hz_2_US_A
2xØ242mm
2xØ157mm
2xØ145mm
e-MPA
e-MP50A/03 3550 [rpm] ISO 9906:2012 - Grade 2B
0 2 4 6 8 10 12 14 16 18
0 50 100 150 200 Q [Imp gpm]
Q [l/s]
3A
3B
3C3C
68.4
67.3
64.964.964.9
0 10 20 30 40 50 60
0
20
40
60
80
100
120
140
160
180
0
100
200
300
400
500
600
Q [m3/h]
H[m]
H[ft]
η[%]
0
2
4
6
8
0
10
20
30
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
3A
3B
3C3C3C
0
5
10
15
20
25
0
5
10
15
20
25
30
35
0 50 100 150 200 250 300
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50A-03_60Hz_2_US_A
3xØ169mm
1xØ169mm/2xØ157mm
1xØ169mm/2xØ145mm
e-MPA
e-MP50A/04 3550 [rpm] ISO 9906:2012 - Grade 2B
0 2 4 6 8 10 12 14 16 18
0 50 100 150 200 Q [Imp gpm]
Q [l/s]
4A4B4C
68.4
67.6
66.866.866.8
0 10 20 30 40 50 60
61
81
101
121
141
161
181
201
221
241
200
300
400
500
600
700
800
Q [m3/h]
H[m]
H[ft]
η[%]
0
2
4
6
8
0
10
20
30
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
4A
4B
4C4C4C
0
5
10
15
20
25
30
35
0
10
20
30
40
50
0 50 100 150 200 250 300
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50A-04_60Hz_2_US_A
4xØ169mm
2xØ169mm/2xØ157mm
4xØ157mm
e-MPA
These performances are valid for cold water with density ρ = 62.42 lb/ft3
and viscosity ν = 1cSt.
PAGE 32
e-MP Series
Goulds Water Technology

33. e-MP50A SERIES - OPERATING CHARACTERISTICS AT 60 Hz, 2 POLES
e-MP50A/05 3550 [rpm] ISO 9906:2012 - Grade 2B
0 2 4 6 8 10 12 14 16 18
0 50 100 150 200 Q [Imp gpm]
Q [l/s]
5A5B5C
68.4
67.8
67.167.167.1
0 10 20 30 40 50 60
122
142
162
182
202
222
242
262
282
302
400
500
600
700
800
900
1000
Q [m3/h]
H[m]
H[ft]
η[%]
0
2
4
6
8
0
10
20
30
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
5A
5B
5C5C5C
0
10
20
30
40
0
10
20
30
40
50
60
0 50 100 150 200 250 300
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50A-05_60Hz_2_US_A
5xØ169mm
3xØ169mm/2xØ157mm
1xØ169mm/4xØ157mm
e-MPA
e-MP50A/06 3550 [rpm] ISO 9906:2012 - Grade 2B
0 2 4 6 8 10 12 14 16 18
0 50 100 150 200 Q [Imp gpm]
Q [l/s]
6A6B6C
68.4
67.9
67.3
0 10 20 30 40 50 60
152
172
192
212
232
252
272
292
312
332
500
600
700
800
900
1000
1100
Q [m3/h]
H[m]
H[ft]
η[%]
0
2
4
6
8
0
10
20
30
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
6A
6B
6C6C6C
0
10
20
30
40
50
0
10
20
30
40
50
60
70
0 50 100 150 200 250 300
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50A-06_60Hz_2_US_A
6xØ169mm
4xØ169mm/2xØ157mm
2xØ169mm/4xØ157mm
e-MPA
e-MP50A/07 3550 [rpm] ISO 9906:2012 - Grade 2B
0 2 4 6 8 10 12 14 16 18
0 50 100 150 200 Q [Imp gpm]
Q [l/s]
7A7B7C
68.4
67.9
67.5
0 10 20 30 40 50 60
183
233
283
333
383
600
700
800
900
1000
1100
1200
1300
Q [m3/h]
H[m]
H[ft]
η[%]
0
2
4
6
8
0
10
20
30
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
7A
7B
7C7C7C
0
10
20
30
40
50
0
20
40
60
80
0 50 100 150 200 250 300
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50A-07_60Hz_2_US_A
7xØ169mm
5xØ169mm/2xØ157mm
3xØ169mm/4xØ157mm
e-MPA
e-MP50A/08-11 3550 [rpm] ISO 9906:2012 - Grade 2B
0 2 4 6 8 10 12 14 16 18
0 50 100 150 200 Q [Imp gpm]
Q [l/s]
10A
11A
8A
9A
68.4
68.4
68.4
68.4
0 10 20 30 40 50 60
183
233
283
333
383
433
483
533
583
633
600
800
1000
1200
1400
1600
1800
2000
Q [m3/h]
H[m]
H[ft]
η[%]
0
2
4
6
8
0
10
20
30
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
10A
11A
8A
9A
0
20
40
60
80
0
20
40
60
80
100
120
0 50 100 150 200 250 300
PP[kW]
Pp[HP]
Q [US gpm]
MP50A-08-11_60Hz_2_US_A
10xØ169mm
11xØ169mm
9xØ169mm
e-MPA
8xØ169mm
These performances are valid for cold water with density ρ = 62.42 lb/ft3
and viscosity ν = 1cSt.
PAGE 33
e-MP Series
Goulds Water Technology

34. e-MP50B SERIES - OPERATING CHARACTERISTICS AT 60 Hz, 2 POLES
e-MP50B/01 3550 [rpm] ISO 9906:2012 - Grade 2B
0 5 10 15 20 25
0 50 100 150 200 250 300 Q [Imp gpm]
Q [l/s]
1A
1B
1C1C
74.6
72.2
68.8
72
72
70
70
65
65
605555
0 10 20 30 40 50 60 70 80 90
0
10
20
30
40
50
60
0
20
40
60
80
100
120
140
160
180
200
220
Q [m3/h]
H[m]
H[ft]
η[%]
0
2
4
6
8
0
10
20
30
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
1A
1B
1C1C1C
0
2
4
6
8
10
0
5
10
15
0 50 100 150 200 250 300 350 400
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50B-01_60Hz_2_US_A
1xØ173mm
1xØ161mm
1xØ149mm
e-MPA
e-MP50B/02 3550 [rpm] ISO 9906:2012 - Grade 2B
0 5 10 15 20 25
0 50 100 150 200 250 300 Q [Imp gpm]
Q [l/s]
2A
2B
2C
74.6
72.2
68.8
0 10 20 30 40 50 60 70 80 90
0
20
40
60
80
100
120
0
50
100
150
200
250
300
350
400
Q [m3/h]
H[m]
H[ft]
η[%]
0
2
4
6
8
0
10
20
30
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
2A
2B
2C2C2C
0
5
10
15
20
0
5
10
15
20
25
30
0 50 100 150 200 250 300 350 400
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50B-02_60Hz_2_US_A
2xØ242mm
2xØ161mm
2xØ149mm
e-MPA
e-MP50B/03 3550 [rpm] ISO 9906:2012 - Grade 2B
0 5 10 15 20 25
0 50 100 150 200 250 300 Q [Imp gpm]
Q [l/s]
3A
3B
3C3C
74.6
73.0
70.7
0 10 20 30 40 50 60 70 80 90
61
81
101
121
141
161
181
200
250
300
350
400
450
500
550
600
Q [m3/h]
H[m]
H[ft]
η[%]
0
2
4
6
8
0
10
20
30
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
3A
3B
3C3C3C
0
5
10
15
20
25
30
0
5
10
15
20
25
30
35
40
45
0 50 100 150 200 250 300 350 400
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50B-03_60Hz_2_US_A
3xØ173mm
1xØ173mm/2xØ161mm
1xØ173mm/2xØ149mm
e-MPA
e-MP50B/04 3550 [rpm] ISO 9906:2012 - Grade 2B
0 5 10 15 20 25
0 50 100 150 200 250 300 Q [Imp gpm]
Q [l/s]
4A
4B
4C
74.6
73.4
72.2
0 10 20 30 40 50 60 70 80 90
61
81
101
121
141
161
181
201
221
241
200
300
400
500
600
700
800
Q [m3/h]
H[m]
H[ft]
η[%]
0
2
4
6
8
0
10
20
30
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
4A
4B
4C4C4C
0
5
10
15
20
25
30
35
40
0
10
20
30
40
50
60
0 50 100 150 200 250 300 350 400
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50B-04_60Hz_2_US_A
4xØ173mm
2xØ173mm/2xØ161mm
4xØ161mm
e-MPA
These performances are valid for cold water with density ρ = 62.42 lb/ft3
and viscosity ν = 1cSt.
PAGE 34
e-MP Series
Goulds Water Technology

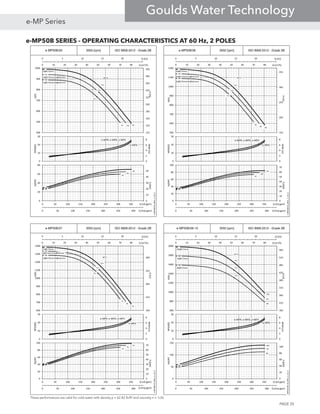

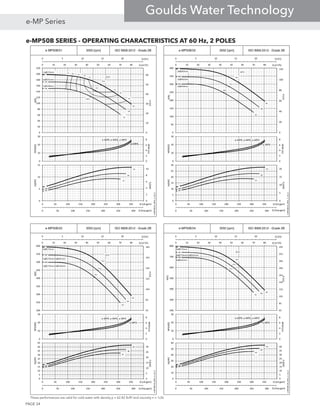

35. e-MP50B SERIES - OPERATING CHARACTERISTICS AT 60 Hz, 2 POLES
e-MP50B/05 3550 [rpm] ISO 9906:2012 - Grade 2B
0 5 10 15 20 25
0 50 100 150 200 250 300 Q [Imp gpm]
Q [l/s]
5A5B5C
74.6
73.6
72.7
0 10 20 30 40 50 60 70 80 90
122
142
162
182
202
222
242
262
282
302
400
500
600
700
800
900
1000
Q [m3/h]
H[m]
H[ft]
η[%]
0
2
4
6
8
0
10
20
30
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
5A
5B
5C5C5C
0
10
20
30
40
50
0
20
40
60
80
0 50 100 150 200 250 300 350 400
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50B-05_60Hz_2_US_A
5xØ173mm
3xØ173mm/2xØ161mm
1xØ173mm/4xØ161mm
e-MPA
e-MP50B/08-10 3550 [rpm] ISO 9906:2012 - Grade 2B
0 5 10 15 20 25
0 50 100 150 200 250 300 Q [Imp gpm]
Q [l/s]
10A
8A
9A
74.6
74.6
74.6
0 10 20 30 40 50 60 70 80 90
183
233
283
333
383
433
483
533
583
600
800
1000
1200
1400
1600
1800
2000
Q [m3/h]
H[m]
H[ft]
η[%]
0
2
4
6
8
0
10
20
30
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
10A
8A
9A
0
20
40
60
80
100
0
50
100
150
0 50 100 150 200 250 300 350 400
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50B-08-10_60Hz_2_US_A
10xØ173mm
8xØ173mm
9xØ173mm
e-MPA
These performances are valid for cold water with density ρ = 62.42 lb/ft3
and viscosity ν = 1cSt.
e-MP50B/06 3550 [rpm] ISO 9906:2012 - Grade 2B
0 5 10 15 20 25
0 50 100 150 200 250 300 Q [Imp gpm]
Q [l/s]
6A
6B
6C
74.6
73.8
73.0
0 10 20 30 40 50 60 70 80 90
152
202
252
302
352
500
600
700
800
900
1000
1100
1200
Q [m3/h]
H[m]
H[ft]
η[%]
0
2
4
6
8
0
10
20
30
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
6A
6B
6C6C6C
0
10
20
30
40
50
60
70
0
20
40
60
80
100
0 50 100 150 200 250 300 350 400
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50B-06_60Hz_2_US_A
6xØ173mm
4xØ173mm/2xØ161mm
2xØ173mm/4xØ161mm
e-MPA
e-MP50B/07 3550 [rpm] ISO 9906:2012 - Grade 2B
0 5 10 15 20 25
0 50 100 150 200 250 300 Q [Imp gpm]
Q [l/s]
7A
7B
7C
74.6
73.9
73.2
0 10 20 30 40 50 60 70 80 90
183
233
283
333
383
600
700
800
900
1000
1100
1200
1300
1400
Q [m3/h]
H[m]
H[ft]
η[%]
0
2
4
6
8
0
10
20
30
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
7A
7B
7C7C7C
0
10
20
30
40
50
60
70
0
20
40
60
80
100
0 50 100 150 200 250 300 350 400
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50B-07_60Hz_2_US_A
7xØ173mm
5xØ173mm/2xØ161mm
3xØ173mm/4xØ161mm
e-MPA
PAGE 35
e-MP Series
Goulds Water Technology

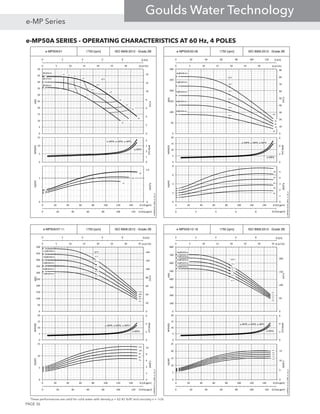

36. e-MP50A SERIES - OPERATING CHARACTERISTICS AT 60 Hz, 4 POLES
e-MP50A/01 1750 [rpm] ISO 9906:2012 - Grade 2B
0 2 4 6 8 10
0 20 40 60 80 100 120 Q [Imp gpm]
Q [l/s]
1A
1B
1C
67.3
64.6
61.161.161.1
65
65
60
60
65
55
55
5050
50
50
0 5 10 15 20 25 30 35
0
2
4
6
8
10
12
14
0
5
10
15
20
25
30
35
40
45
50
Q [m3/h]
H[m]
H[ft]
η[%]
0
1
2
3
4
0
5
10
15
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
1A
1B
1C1C1C
.0
1.0
0
1
0 20 40 60 80 100 120 140 160
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50A-01_60Hz_4_US_A
Ø169mm
Ø157mm
Ø145mm
e-MPA
e-MP50A/02-06 1750 [rpm] ISO 9906:2012 - Grade 2B
0 20 40 60 80 100 120
0 2 4 6 8 10Q [Imp gpm]
Q [l/s]
2A
3A
4A
5A
66.9
66.9
66.9
66.9
66.9
6A
0 5 10 15 20 25 30 35
0
10
20
30
40
50
60
70
80
90
0
50
100
150
200
250
300
Q [m3/h]
H[m]
H[ft]
η[%]
0
2
4
6
0
5
10
15
20
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
2A
3A
4A
5A
6A
0
1
2
3
4
5
0
2
4
6
8
0 20 40 60 80 100 120 140 160
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50A-02-06_60Hz_4_US_A
2xØ169mm
3xØ169mm
4xØ169mm
e-MPA
5xØ169mm
6xØ169mm
These performances are valid for cold water with density ρ = 62.42 lb/ft3
and viscosity ν = 1cSt.
e-MP50A/12-16 1750 [rpm] ISO 9906:2012 - Grade 2B
0 2 4 6 8 10
0 20 40 60 80 100 120 Q [Imp gpm]
Q [l/s]
16A
13A
14A
15A
67.3
67.3
67.3
67.3
67.3
12A
0 5 10 15 20 25 30 35
0
50
100
150
200
0
100
200
300
400
500
600
700
800
Q [m3/h]
H[m]
H[ft]
η[%]
0
2
4
6
0
5
10
15
20
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
16A
13A
14A
15A
12A
0
5
10
15
0
5
10
15
20
25
0 20 40 60 80 100 120 140 160
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50A-12-16_60Hz_4_US_A
16xØ169mm
13xØ169mm
14xØ169mm
e-MPA
15xØ169mm
12xØ169mm
e-MP50A/07-11 1750 [rpm] ISO 9906:2012 - Grade 2B
0 2 4 6 8 10
0 20 40 60 80 100 120 Q [Imp gpm]
Q [l/s]
7A
8A
9A
10A
67.3
67.3
67.3
67.3
67.3
11A
0 5 10 15 20 25 30 35
0
20
40
60
80
100
120
140
0
50
100
150
200
250
300
350
400
450
500
Q [m3/h]
H[m]
H[ft]
η[%]
0
2
4
6
0
5
10
15
20
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
7A
8A
9A
10A
11A
0
2
4
6
8
10
0
5
10
15
0 20 40 60 80 100 120 140 160
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50A-07-11_60Hz_4_US_A
7xØ169mm
8xØ169mm
9xØ169mm
e-MPA
10xØ169mm
11xØ169mm
PAGE 36
e-MP Series
Goulds Water Technology

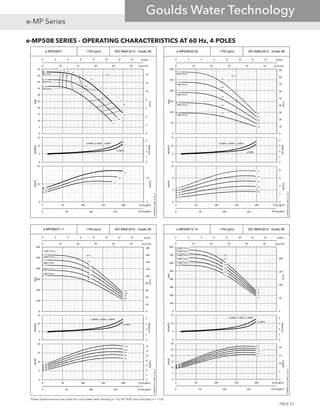

37. e-MP50B SERIES - OPERATING CHARACTERISTICS AT 60 Hz, 4 POLES
These performances are valid for cold water with density ρ = 62.42 lb/ft3
and viscosity ν = 1cSt.
e-MP50B/01 1750 [rpm] ISO 9906:2012 - Grade 2B
0 2 4 6 8 10 12 14
0 50 100 150 200Q [Imp gpm]
Q [l/s]
1A
1B
1C
72.6
69.8
67.067.067.0
70
70
65
65
65
60
60
5550
50
0 10 20 30 40 50
0
2
4
6
8
10
12
14
0
5
10
15
20
25
30
35
40
45
50
Q [m3/h]
H[m]
H[ft]
η[%]
0
1
2
3
4
0
5
10
15
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
1A
1B
1C1C
.0
1.0
.0
1.0
2.0
0 50 100 150 200 250
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50B-01_60Hz_4_US_A
Ø173mm
Ø161mm
Ø149mm
e-MPA
e-MP50B/02-06 1750 [rpm] ISO 9906:2012 - Grade 2B
0 2 4 6 8 10 12 14
0 50 100 150 200Q [Imp gpm]
Q [l/s]
2A
3A
4A
5A
72.6
72.6
72.6
72.6
72.6 6A
0 10 20 30 40 50
0
10
20
30
40
50
60
70
80
90
0
50
100
150
200
250
300
Q [m3/h]
H[m]
H[ft]
η[%]
0
1
2
3
4
0
5
10
15
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
2A
3A
4A
5A
6A
0
2
4
6
8
0
4
8
12
0 50 100 150 200 250
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50B-02-06_60Hz_4_US_A
2xØ173mm
3xØ173mm
4xØ173mm
e-MPA
5xØ173mm
6xØ173mm
e-MP50B/12-16 1750 [rpm] ISO 9906:2012 - Grade 2B
0 2 4 6 8 10 12 14
0 50 100 150 200Q [Imp gpm]
Q [l/s]
16A
13A
14A
15A
72.6
72.6
72.6
72.6
72.6
12A
0 10 20 30 40 50
0
50
100
150
200
0
100
200
300
400
500
600
700
800
Q [m3/h]
H[m]
H[ft]
η[%]
0
1
2
3
4
0
5
10
15
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
16A
13A
14A
15A
12A
0
5
10
15
20
0
5
10
15
20
25
30
0 50 100 150 200 250
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50B-12-16_60Hz_4_US_A
16xØ173mm
13xØ173mm
14xØ173mm
e-MPA
15xØ173mm
12xØ173mm
e-MP50B/07-11 1750 [rpm] ISO 9906:2012 - Grade 2B
0 2 4 6 8 10 12 14
0 50 100 150 200Q [Imp gpm]
Q [l/s]
7A
8A
9A
10A
72.6
72.6
72.6
72.6
72.6
11A
0 10 20 30 40 50
0
20
40
60
80
100
120
140
160
180
0
100
200
300
400
500
600
Q [m3/h]
H[m]
H[ft]
η[%]
0
1
2
3
4
0
5
10
15
NPSH[m]
NPSH[ft]
e-MPR, e-MPD, e-MPV
7A
8A
9A
10A
11A
0
2
4
6
8
10
12
14
0
5
10
15
20
0 50 100 150 200 250
PP[kW]
Pp[HP]
Q [US gpm]
e-MP50B-07-11_60Hz_4_US_A
7xØ173mm
8xØ173mm
9xØ173mm
e-MPA
10xØ173mm
11xØ173mm
PAGE 37
e-MP Series
Goulds Water Technology

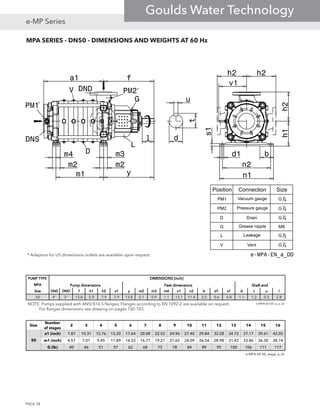

38. MPA SERIES - DN50 - DIMENSIONS AND WEIGHTS AT 60 Hz
a1 f
ym1
m4 m3
m2 m2
d1 b
n2
n1
h1h2
l
s1
v1
u
t
d
h2h2
Position Connection Size
PM1 Vacuum gauge G1
4
PM2 Pressure gauge G1
4
D Drain G1
4
G Grease nipple M8
L Leakage G1
2
V Vent G1
4
G
L
D
V PM2DND
DNS
PM1
e-MPA-EN_a_DD
PUMP TYPEPUMP TYPEPUMP TYPEPUMP TYPE
MPAMPAMPAMPA
SizeSizeSizeSize DNSDNSDNSDNS DNDDNDDNDDND ffff h1h1h1h1 h2h2h2h2 v1v1v1v1 yyyy m2m2m2m2 m3m3m3m3 m4m4m4m4 n1n1n1n1 n2n2n2n2 bbbb d1d1d1d1 s1s1s1s1 dddd tttt uuuu llll
50 4'' 2'' 13.8 5.9 7.9 7.9 13.8 2.1 0.9 1.1 13.1 11.4 3.5 0.6 0.8 1.1 1.2 0.3 2.8
e-MPA-60-50-us_a_td
DIMENSIONS [inch]DIMENSIONS [inch]DIMENSIONS [inch]DIMENSIONS [inch]
Pump dimensionsPump dimensionsPump dimensionsPump dimensions Feet dimensionsFeet dimensionsFeet dimensionsFeet dimensions Shaft endShaft endShaft endShaft end
Size
Number
of stages
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
a1 (inch) 7.87 10.31 12.76 15.20 17.64 20.08 22.52 24.96 27.40 29.84 32.28 34.72 37.17 39.61 42.05
m1 (inch) 4.57 7.01 9.45 11.89 14.33 16.77 19.21 21.65 24.09 26.54 28.98 31.42 33.86 36.30 38.74
G (lb) 40 46 51 57 62 68 73 78 84 89 95 100 106 111 117
e-MPA-60-50_stage_a_td
50
NOTE: Pumps supplied with ANSI B16.5 flanges. Flanges according to EN 1092-2 are available on request.
For flanges dimensions see drawing on pages 102-103.
* Adaptors for US dimensions outlets are available upon request.
*
*
PAGE 38
e-MP Series
Goulds Water Technology

39. MPA SERIES - DN50 - DIMENSIONS AND WEIGHTS AT 60 Hz
e-MPA-AS-EN_a_DD
G
L
D
V
PM2DND
DNS
PM1
a1 f 4
L4
L max.
B2
B1
Hh2
Hmax.
L3 L2 L2
L1
s
h2 h2
Position Connection Size
PM1 Vacuum gauge G1
4
PM2 Pressure gauge G1
4
D Drain G1
4
G Grease nipple M8
L Leakage G1
2
V Vent G1
4
LIFTING HOLES
EARTHING
* Adaptors for US dimensions outlets are available upon request.
*
*
PAGE 39
e-MP Series
Goulds Water Technology

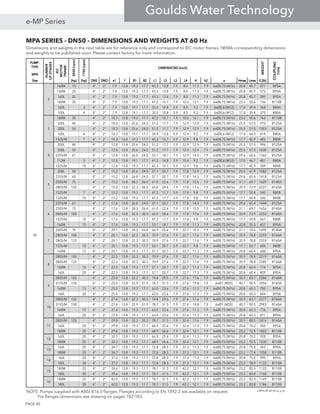

40. MPA SERIES - DN50 - DIMENSIONS AND WEIGHTS AT 60 Hz
PUMP-PUMP-PUMP-PUMP-
TYPETYPETYPETYPE
MPAMPAMPAMPA
SizeSizeSizeSize [hp][hp][hp][hp] [hp][hp][hp][hp] DNSDNSDNSDNS DNDDNDDNDDND a1a1a1a1 ffff B1B1B1B1 B2B2B2B2 L1L1L1L1 L2L2L2L2 L3L3L3L3 L4L4L4L4 HHHH h2h2h2h2 ssss HmaxHmaxHmaxHmax LmaxLmaxLmaxLmax G [lb]G [lb]G [lb]G [lb]
160M 15 4" 2" 7.9 13.8 19.3 17.7 43.3 13.8 7.9 8.0 11.3 7.9 6xØ0,75 (M16) 20.8 45.7 571 B95A
160M 20 4" 2" 7.9 13.8 19.3 17.7 43.3 13.8 7.9 8.0 11.3 7.9 6xØ0,75 (M16) 20.8 45.7 573 B95A
160L 25 4" 2" 7.9 13.8 19.3 17.7 43.3 13.8 7.9 8.0 11.3 7.9 6xØ0,75 (M16) 20.8 45.7 589 B95A
180M 30 4" 2" 7.9 13.8 19.3 17.7 47.2 15.7 7.9 10.5 12.1 7.9 6xØ0,75 (M16) 23.2 50.6 736 B110B
100L 3 4" 2" 7.9 13.8 19.1 17.7 33.5 10.8 5.9 8.0 9.2 7.9 6xØ0,6 (M12) 17.0 39.4 368 B80A
100L 4 4" 2" 7.9 13.8 19.1 17.7 33.5 10.8 5.9 8.0 9.2 7.9 6xØ0,6 (M12) 17.0 39.4 375 B80A
180M 30 4" 2" 10.3 13.8 19.3 17.7 47.2 15.7 7.9 10.5 12.1 7.9 6xØ0,75 (M16) 23.2 50.6 763 B110B
200L 40 4" 2" 10.3 13.8 25.6 24.0 51.2 17.7 7.9 12.9 12.9 7.9 6xØ0,75 (M16) 25.5 57.0 970 B125A
200L 50 4" 2" 10.3 13.8 25.6 24.0 51.2 17.7 7.9 12.9 12.9 7.9 6xØ0,75 (M16) 25.5 57.0 1003 B125A
100L 4 4" 2" 10.3 13.8 19.1 17.7 39.4 13.8 5.9 12.9 9.2 7.9 6xØ0,6 (M12) 17.0 44.3 414 B80A
132S/M 7 4" 2" 10.3 13.8 19.3 17.7 43.3 15.7 5.9 12.9 9.8 7.9 6xØ0,75 (M16) 17.7 45.9 483 B80B
200L 40 4" 2" 12.8 13.8 25.6 24.0 51.2 17.7 7.9 12.9 12.9 7.9 6xØ0,75 (M16) 25.5 57.0 996 B125A
200L 50 4" 2" 12.8 13.8 25.6 24.0 51.2 17.7 7.9 12.9 12.9 7.9 6xØ0,75 (M16) 25.5 57.0 1030 B125A
225S/M 61 4" 2" 12.8 13.8 26.0 24.0 53.1 18.7 7.9 12.9 14.5 7.9 6xØ0,75 (M16) 29.6 60.6 1362 B125A
112M 5 4" 2" 12.8 13.8 19.1 17.7 41.3 14.8 5.9 15.4 9.2 7.9 6xØ0,6 (M12) 17.0 46.7 481 B80A
132S/M 10 4" 2" 12.8 13.8 19.3 17.7 43.3 15.7 5.9 12.9 9.8 7.9 6xØ0,75 (M16) 17.7 45.9 509 B80B
200L 50 4" 2" 15.2 13.8 25.6 24.0 57.1 20.7 7.9 17.8 12.9 7.9 6xØ0,75 (M16) 25.5 61.9 1082 B125A
225S/M 60 4" 2" 15.2 13.8 26.0 24.0 57.1 20.7 7.9 17.8 14.5 7.9 6xØ0,75 (M16) 29.6 65.4 1418 B125A
250S/M 75 4" 2" 15.2 13.8 28.3 26.4 61.0 22.6 7.9 17.8 15.5 7.9 6xØ0,75 (M16) 31.1 69.7 1629 B140A
280S/M 102 4" 2" 15.2 13.8 32.3 30.3 65.0 24.6 7.9 17.8 17.6 7.9 6xØ0,75 (M16) 35.9 73.9 2227 B160A
132S/M 7 4" 2" 15.2 13.8 19.3 17.7 47.2 17.7 5.9 17.8 9.8 7.9 6xØ0,75 (M16) 17.7 50.8 540 B80B
132S/M 10 4" 2" 15.2 13.8 19.3 17.7 47.2 17.7 5.9 17.8 9.8 7.9 6xØ0,75 (M16) 17.7 50.8 540 B80B
225S/M 61 4" 2" 17.6 13.8 26.0 24.0 57.1 20.7 7.9 17.8 14.5 7.9 6xØ0,75 (M16) 29.6 65.4 1444 B125A
250S/M 75 4" 2" 17.6 13.8 28.3 26.4 61.0 22.6 7.9 17.8 15.5 7.9 6xØ0,75 (M16) 31.1 69.7 1656 B140A
280S/M 100 4" 2" 17.6 13.8 32.3 30.3 65.0 24.6 7.9 17.8 17.6 7.9 6xØ0,75 (M16) 35.9 73.9 2253 B160A
132S/M 10 4" 2" 17.6 13.8 19.3 17.7 47.2 17.7 5.9 17.8 9.8 7.9 6xØ0,75 (M16) 17.7 50.8 567 B80B
160M 15 4" 2" 17.6 13.8 19.3 17.7 53.1 18.7 7.9 17.8 11.3 7.9 6xØ0,75 (M16) 20.8 55.5 657 B95A
250S/M 75 4" 2" 20.1 13.8 28.3 26.4 66.9 25.6 7.9 22.7 15.5 7.9 6xØ0,75 (M16) 31.1 74.6 1695 B140A
280S/M 100 4" 2" 20.1 13.8 32.3 30.3 70.9 27.6 7.9 22.7 17.6 7.9 6xØ0,75 (M16) 35.9 78.8 2293 B160A
280S/M 125 4" 2" 20.1 13.8 32.3 30.3 70.9 27.6 7.9 22.7 17.6 7.9 6xØ0,75 (M16) 35.9 78.8 2359 B160A
132S/M 10 4" 2" 20.1 13.8 19.3 17.7 53.1 20.7 5.9 22.7 9.8 7.9 6xØ0,75 (M16) 17.7 55.7 600 B80B
160M 15 4" 2" 20.1 13.8 19.3 17.7 57.1 20.7 7.9 22.7 11.3 7.9 6xØ0,75 (M16) 20.8 60.4 688 B95A
280S/M 100 4" 2" 22.5 13.8 32.3 30.3 70.9 27.6 7.9 22.7 17.6 7.9 6xØ0,75 (M16) 35.9 78.8 2319 B160A
280S/M 125 4" 2" 22.5 13.8 32.3 30.3 70.9 27.6 7.9 22.7 17.6 7.9 6xØ0,75 (M16) 35.9 78.8 2385 B160A
160M 15 4" 2" 22.5 13.8 19.3 17.7 57.1 20.7 7.9 22.7 11.3 7.9 6xØ0,75 (M16) 20.8 60.4 714 B95A
160L 20 4" 2" 22.5 13.8 19.3 17.7 57.1 20.7 7.9 22.7 11.3 7.9 6xØ0,75 (M16) 20.8 60.4 809 B95A
280S/M 102 4" 2" 25.0 13.8 32.3 30.3 74.8 29.5 7.9 27.6 17.6 7.9 6xØ0,75 (M16) 35.9 83.7 2284 B160A
315S/M 150 4" 2" 25.0 13.8 33.9 31.9 78.7 31.5 7.9 27.6 19.8 7.9 6xØ1 (M20) 40.7 90.5 2956 B160A
160M 15 4" 2" 25.0 13.8 19.3 17.7 63.0 23.6 7.9 27.6 11.3 7.9 6xØ0,75 (M16) 20.8 65.3 750 B95A
160L 20 4" 2" 25.0 13.8 19.3 17.7 63.0 23.6 7.9 27.6 11.3 7.9 6xØ0,75 (M16) 20.8 65.3 844 B95A
280S/M 122 4" 2" 27.4 13.8 32.3 30.3 74.8 29.5 7.9 27.6 17.6 7.9 6xØ0,75 (M16) 35.9 83.7 2377 B160A
315S/M 150 4" 2" 27.4 13.8 33.9 31.9 78.7 31.5 7.9 27.6 19.8 7.9 6xØ1 (M20) 40.7 90.5 2983 B160A
160M 15 4" 2" 27.4 13.8 19.3 17.7 63.0 23.6 7.9 27.6 11.3 7.9 6xØ0,75 (M16) 20.8 65.3 776 B95A
160L 20 4" 2" 27.4 13.8 19.3 17.7 63.0 23.6 7.9 27.6 11.3 7.9 6xØ0,75 (M16) 20.8 65.3 871 B95A
280S/M 125 4" 2" 29.8 13.8 32.3 30.3 78.7 31.5 7.9 32.4 17.6 7.9 6xØ0,75 (M16) 35.9 88.5 2476 B160A
160L 20 4" 2" 29.8 13.8 19.3 17.7 66.9 25.6 7.9 32.4 11.3 7.9 6xØ0,75 (M16) 20.8 70.2 902 B95A
180M 25 4" 2" 29.8 13.8 19.3 17.7 68.9 26.6 7.9 32.4 12.1 7.9 6xØ0,75 (M16) 23.2 72.5 1003 B110B
160L 20 4" 2" 32.3 13.8 19.3 17.7 66.9 25.6 7.9 32.4 11.3 7.9 6xØ0,75 (M16) 20.8 70.2 928 B95A
180M 25 4" 2" 32.3 13.8 19.3 17.7 68.9 26.6 7.9 32.4 12.1 7.9 6xØ0,75 (M16) 23.2 72.5 1030 B110B
160L 20 4" 2" 34.7 13.8 19.3 17.7 72.8 28.5 7.9 37.3 11.3 7.9 6xØ0,75 (M16) 20.8 75.0 963 B95A
180M 25 4" 2" 34.7 13.8 19.3 17.7 72.8 28.5 7.9 37.3 12.1 7.9 6xØ0,75 (M16) 23.2 77.4 1058 B110B
160L 20 4" 2" 37.2 13.8 19.3 17.7 72.8 28.5 7.9 37.3 11.3 7.9 6xØ0,75 (M16) 20.8 75.0 990 B95A
180L 30 4" 2" 37.2 13.8 19.3 17.7 72.8 28.5 7.9 37.3 12.1 7.9 6xØ0,75 (M16) 23.2 78.9 1122 B110B
180M 25 4" 2" 39.6 13.8 19.3 17.7 78.7 31.5 7.9 42.2 12.1 7.9 6xØ0,75 (M16) 23.2 82.3 1122 B110B
180L 30 4" 2" 39.6 13.8 19.3 17.7 78.7 31.5 7.9 42.2 12.1 7.9 6xØ0,75 (M16) 23.2 83.8 1160 B110B
180M 25 4" 2" 42.0 13.8 19.3 17.7 78.7 31.5 7.9 42.2 12.1 7.9 6xØ0,75 (M16) 23.2 82.3 1149 B110B
180L 30 4" 2" 42.0 13.8 19.3 17.7 78.7 31.5 7.9 42.2 12.1 7.9 6xØ0,75 (M16) 23.2 83.8 1186 B110B
e-MPA-AS-60-50-us_a_td
COUPLINGCOUPLINGCOUPLINGCOUPLING
TYPETYPETYPETYPE
2
3
NUMBERNUMBERNUMBERNUMBER
OFSTAGESOFSTAGESOFSTAGESOFSTAGES
IECIECIECIEC
MOTORMOTORMOTORMOTOR
FRAMEFRAMEFRAMEFRAME
3550[rpm]3550[rpm]3550[rpm]3550[rpm]
1750[rpm]1750[rpm]1750[rpm]1750[rpm]
16
DIMENSIONS [inch]DIMENSIONS [inch]DIMENSIONS [inch]DIMENSIONS [inch]
WEIGHTWEIGHTWEIGHTWEIGHT
15
50
4
5
6
7
10
9
8
14
11
12
13
NOTE: Pumps supplied with ANSI B16.5 flanges. Flanges according to EN 1092-2 are available on request.
For flanges dimensions see drawing on pages 102-103.
Dimensions and weights in the next table are for reference only and correspond to IEC motor frames. NEMA corresponding dimensions
and weights to be published soon. Please contact factory for more information.
PAGE 40
e-MP Series
Goulds Water Technology

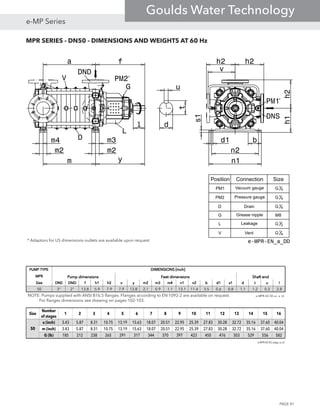

41. MPR SERIES - DN50 - DIMENSIONS AND WEIGHTS AT 60 Hz
a f
ym
m4 m3
m2 m2
d1 b
n2
n1
h1h2
h2
l
s1
v
u
t
d
h2
Position Connection Size
PM1 Vacuum gauge G1
4
PM2 Pressure gauge G1
4
D Drain G1
4
G Grease nipple M8
L Leakage G1
2
V Vent G1
4
G
L
D
V PM2
DNS
DND
PM1
e-MPR-EN_a_DD
PUMP TYPEPUMP TYPEPUMP TYPEPUMP TYPE
MPRMPRMPRMPR
SizeSizeSizeSize DNSDNSDNSDNS DNDDNDDNDDND ffff h1h1h1h1 h2h2h2h2 vvvv yyyy m2m2m2m2 m3m3m3m3 m4m4m4m4 n1n1n1n1 n2n2n2n2 bbbb d1d1d1d1 s1s1s1s1 dddd tttt uuuu llll
50 3" 2" 13.8 5.9 7.9 7.9 13.8 2.1 0.9 1.1 13.1 11.4 3.5 0.6 0.8 1.1 1.2 0.3 2.8
e-MPR-60-50-us_a_td
DIMENSIONS [inch]DIMENSIONS [inch]DIMENSIONS [inch]DIMENSIONS [inch]
Pump dimensionsPump dimensionsPump dimensionsPump dimensions Feet dimensionsFeet dimensionsFeet dimensionsFeet dimensions Shaft endShaft endShaft endShaft end
Size
Number
of stages
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
a (inch) 3.43 5.87 8.31 10.75 13.19 15.63 18.07 20.51 22.95 25.39 27.83 30.28 32.72 35.16 37.60 40.04
m (inch) 3.43 5.87 8.31 10.75 13.19 15.63 18.07 20.51 22.95 25.39 27.83 30.28 32.72 35.16 37.60 40.04
G (lb) 185 212 238 265 291 317 344 370 397 423 450 476 503 529 556 582
e-MPR-60-50_stage_a_td
50
NOTE: Pumps supplied with ANSI B16.5 flanges. Flanges according to EN 1092-2 are available on request.
For flanges dimensions see drawing on pages 102-103.
* Adaptors for US dimensions outlets are available upon request.
*
*
PAGE 41
e-MP Series
Goulds Water Technology

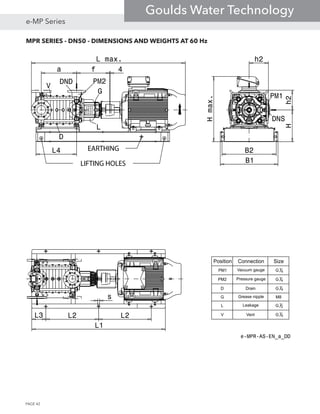

42. MPR SERIES - DN50 - DIMENSIONS AND WEIGHTS AT 60 Hz
e-MPR-AS-EN_a_DD
G
L
D
V
PM2DND
DNS
PM1
a f 4
L4
L max.
B2
B1
Hh2
Hmax.
L3 L2 L2
L1
s
h2
Position Connection Size
PM1 Vacuum gauge G1
4
PM2 Pressure gauge G1
4
D Drain G1
4
G Grease nipple M8
L Leakage G1
2
V Vent G1
4
LIFTING HOLES
EARTHING
PAGE 42
e-MP Series
Goulds Water Technology

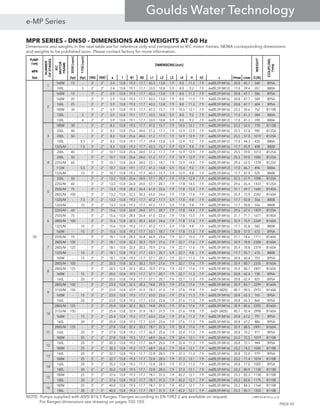

43. MPR SERIES - DN50 - DIMENSIONS AND WEIGHTS AT 60 Hz
PUMP-PUMP-PUMP-PUMP-
TYPETYPETYPETYPE
MPRMPRMPRMPR
SizeSizeSizeSize [hp][hp][hp][hp] [hp][hp][hp][hp] DNSDNSDNSDNS DNDDNDDNDDND aaaa ffff B1B1B1B1 B2B2B2B2 L1L1L1L1 L2L2L2L2 L3L3L3L3 L4L4L4L4 HHHH h2h2h2h2 ssss HmaxHmaxHmaxHmax LmaxLmaxLmaxLmax G [lb]G [lb]G [lb]G [lb]
160M 15 - 3" 2" 3.4 13.8 19.3 17.7 43.3 13.8 7.9 8.0 11.3 7.9 6xØ0,59 (M16) 20.8 45.7 560 B95A
100L - 3 3" 2" 3.4 13.8 19.1 17.7 33.5 10.8 5.9 8.0 9.2 7.9 6xØ0,59 (M12) 17.0 39.4 357 B80A
160M 15 - 3" 2" 5.9 13.8 19.3 17.7 43.3 13.8 7.9 8.0 11.3 7.9 6xØ0,59 (M16) 20.8 47.7 586 B95A
160M 20 - 3" 2" 5.9 13.8 19.3 17.7 43.3 13.8 7.9 8.0 11.3 7.9 6xØ0,59 (M16) 20.8 47.7 589 B95A
160L 25 - 3" 2" 5.9 13.8 19.3 17.7 43.3 13.8 7.9 8.0 11.3 7.9 6xØ0,59 (M16) 20.8 47.7 604 B95A
180M 30 - 3" 2" 5.9 13.8 19.3 17.7 47.2 15.7 7.9 10.5 12.1 7.9 6xØ0,59 (M16) 23.2 50.6 752 B110B
100L - 3 3" 2" 5.9 13.8 19.1 17.7 33.5 10.8 5.9 8.0 9.2 7.9 6xØ0,59 (M12) 17.0 41.3 384 B80A
100L - 4 3" 2" 5.9 13.8 19.1 17.7 33.5 10.8 5.9 8.0 9.2 7.9 6xØ0,59 (M12) 17.0 41.3 390 B80A
180M 30 - 3" 2" 8.3 13.8 19.3 17.7 47.2 15.7 7.9 10.5 12.1 7.9 6xØ0,59 (M16) 23.2 52.5 778 B110B
200L 40 - 3" 2" 8.3 13.8 25.6 24.0 51.2 17.7 7.9 12.9 12.9 7.9 6xØ0,59 (M16) 25.5 57.0 985 B125A
200L 50 - 3" 2" 8.3 13.8 25.6 24.0 51.2 17.7 7.9 12.9 12.9 7.9 6xØ0,59 (M16) 25.5 57.0 1019 B125A
100L - 5.5 3" 2" 8.3 13.8 19.1 17.7 39.4 13.8 5.9 12.9 9.2 7.9 6xØ0,59 (M12) 17.0 44.3 430 B80A
132S/M - 7.5 3" 2" 8.3 13.8 19.3 17.7 43.3 15.7 5.9 12.9 9.8 7.9 6xØ0,59 (M16) 17.7 45.9 498 B80B
200L 40 - 3" 2" 10.7 13.8 25.6 24.0 51.2 17.7 7.9 12.9 12.9 7.9 6xØ0,59 (M16) 25.5 59.0 1012 B125A
200L 50 - 3" 2" 10.7 13.8 25.6 24.0 51.2 17.7 7.9 12.9 12.9 7.9 6xØ0,59 (M16) 25.5 59.0 1045 B125A
225S/M 60 - 3" 2" 10.7 13.8 26.0 24.0 53.1 18.7 7.9 12.9 14.5 7.9 6xØ0,59 (M16) 29.6 62.5 1378 B125A
112M - 5.5 3" 2" 10.7 13.8 19.1 17.7 41.3 14.8 5.9 15.4 9.2 7.9 6xØ0,59 (M12) 17.0 46.7 496 B80A
132S/M - 10 3" 2" 10.7 13.8 19.3 17.7 43.3 15.7 5.9 12.9 9.8 7.9 6xØ0,59 (M16) 17.7 47.9 525 B80B
200L 50 - 3" 2" 13.2 13.8 25.6 24.0 57.1 20.7 7.9 17.8 12.9 7.9 6xØ0,59 (M16) 25.5 61.9 1098 B125A
225S/M 60 - 3" 2" 13.2 13.8 26.0 24.0 57.1 20.7 7.9 17.8 14.5 7.9 6xØ0,59 (M16) 29.6 65.4 1433 B125A
250S/M 75 - 3" 2" 13.2 13.8 28.3 26.4 61.0 22.6 7.9 17.8 15.5 7.9 6xØ0,59 (M16) 31.1 69.7 1645 B140A
280S/M 100 - 3" 2" 13.2 13.8 32.3 30.3 65.0 24.6 7.9 17.8 17.6 7.9 6xØ0,59 (M16) 35.9 73.9 2242 B160A
132S/M - 7.5 3" 2" 13.2 13.8 19.3 17.7 47.2 17.7 5.9 17.8 9.8 7.9 6xØ0,59 (M16) 17.7 50.8 556 B80B
132S/M - 10 3" 2" 13.2 13.8 19.3 17.7 47.2 17.7 5.9 17.8 9.8 7.9 6xØ0,59 (M16) 17.7 50.8 556 B80B
225S/M 60 - 3" 2" 15.6 13.8 26.0 24.0 57.1 20.7 7.9 17.8 14.5 7.9 6xØ0,59 (M16) 29.6 67.4 1459 B125A
250S/M 75 - 3" 2" 15.6 13.8 28.3 26.4 61.0 22.6 7.9 17.8 15.5 7.9 6xØ0,59 (M16) 31.1 71.7 1671 B140A
280S/M 100 - 3" 2" 15.6 13.8 32.3 30.3 65.0 24.6 7.9 17.8 17.6 7.9 6xØ0,59 (M16) 35.9 75.9 2269 B160A
132S/M - 10 3" 2" 15.6 13.8 19.3 17.7 47.2 17.7 5.9 17.8 9.8 7.9 6xØ0,59 (M16) 17.7 52.8 582 B80B
160M - 15 3" 2" 15.6 13.8 19.3 17.7 53.1 18.7 7.9 17.8 11.3 7.9 6xØ0,59 (M16) 20.8 57.5 672 B95A
250S/M 75 - 3" 2" 18.1 13.8 28.3 26.4 66.9 25.6 7.9 22.7 15.5 7.9 6xØ0,59 (M16) 31.1 74.6 1711 B140A
280S/M 100 - 3" 2" 18.1 13.8 32.3 30.3 70.9 27.6 7.9 22.7 17.6 7.9 6xØ0,59 (M16) 35.9 78.8 2308 B160A
280S/M 125 - 3" 2" 18.1 13.8 32.3 30.3 70.9 27.6 7.9 22.7 17.6 7.9 6xØ0,59 (M16) 35.9 78.8 2374 B160A
132S/M - 10 3" 2" 18.1 13.8 19.3 17.7 53.1 20.7 5.9 22.7 9.8 7.9 6xØ0,59 (M16) 17.7 55.7 615 B80B
160M - 15 3" 2" 18.1 13.8 19.3 17.7 57.1 20.7 7.9 22.7 11.3 7.9 6xØ0,59 (M16) 20.8 60.4 703 B95A
280S/M 100 - 3" 2" 20.5 13.8 32.3 30.3 70.9 27.6 7.9 22.7 17.6 7.9 6xØ0,59 (M16) 35.9 80.7 2335 B160A
280S/M 125 - 3" 2" 20.5 13.8 32.3 30.3 70.9 27.6 7.9 22.7 17.6 7.9 6xØ0,59 (M16) 35.9 80.7 2401 B160A
160M - 15 3" 2" 20.5 13.8 19.3 17.7 57.1 20.7 7.9 22.7 11.3 7.9 6xØ0,59 (M16) 20.8 62.4 730 B95A
160L - 20 3" 2" 20.5 13.8 19.3 17.7 57.1 20.7 7.9 22.7 11.3 7.9 6xØ0,59 (M16) 20.8 62.4 825 B95A
280S/M 100 - 3" 2" 23.0 13.8 32.3 30.3 74.8 29.5 7.9 27.6 17.6 7.9 6xØ0,59 (M16) 35.9 83.7 2299 B160A
315S/M 150 - 3" 2" 23.0 13.8 33.9 31.9 78.7 31.5 7.9 27.6 19.8 7.9 6xØ1 (M20) 40.7 90.5 2972 B160A
160M - 15 3" 2" 23.0 13.8 19.3 17.7 63.0 23.6 7.9 27.6 11.3 7.9 6xØ0,59 (M16) 20.8 65.3 765 B95A
160L - 20 3" 2" 23.0 13.8 19.3 17.7 63.0 23.6 7.9 27.6 11.3 7.9 6xØ0,59 (M16) 20.8 65.3 860 B95A
280S/M 125 - 3" 2" 25.4 13.8 32.3 30.3 74.8 29.5 7.9 27.6 17.6 7.9 6xØ0,59 (M16) 35.9 85.6 2392 B160A
315S/M 150 - 3" 2" 25.4 13.8 33.9 31.9 78.7 31.5 7.9 27.6 19.8 7.9 6xØ1 (M20) 40.7 92.4 2998 B160A
160M - 15 3" 2" 25.4 13.8 19.3 17.7 63.0 23.6 7.9 27.6 11.3 7.9 6xØ0,59 (M16) 20.8 67.2 791 B95A
160L - 20 3" 2" 25.4 13.8 19.3 17.7 63.0 23.6 7.9 27.6 11.3 7.9 6xØ0,59 (M16) 20.8 67.2 886 B95A
280S/M 125 - 3" 2" 27.8 13.8 32.3 30.3 78.7 31.5 7.9 32.4 17.6 7.9 6xØ0,59 (M16) 35.9 88.5 2491 B160A
160L - 20 3" 2" 27.8 13.8 19.3 17.7 66.9 25.6 7.9 32.4 11.3 7.9 6xØ0,59 (M16) 20.8 70.2 917 B95A
180M - 25 3" 2" 27.8 13.8 19.3 17.7 68.9 26.6 7.9 32.4 12.1 7.9 6xØ0,59 (M16) 23.2 72.5 1019 B110B
160L - 20 3" 2" 30.3 13.8 19.3 17.7 66.9 25.6 7.9 32.4 11.3 7.9 6xØ0,59 (M16) 20.8 72.1 944 B95A
180M - 25 3" 2" 30.3 13.8 19.3 17.7 68.9 26.6 7.9 32.4 12.1 7.9 6xØ0,59 (M16) 23.2 74.5 1045 B110B
160L - 20 3" 2" 32.7 13.8 19.3 17.7 72.8 28.5 7.9 37.3 11.3 7.9 6xØ0,59 (M16) 20.8 75.0 979 B95A
180M - 25 3" 2" 32.7 13.8 19.3 17.7 72.8 28.5 7.9 37.3 12.1 7.9 6xØ0,59 (M16) 23.2 77.4 1074 B110B
160L - 20 3" 2" 35.2 13.8 19.3 17.7 72.8 28.5 7.9 37.3 11.3 7.9 6xØ0,59 (M16) 20.8 77.0 1005 B95A
180L - 30 3" 2" 35.2 13.8 19.3 17.7 72.8 28.5 7.9 37.3 12.1 7.9 6xØ0,59 (M16) 23.2 80.9 1138 B110B
180M - 25 3" 2" 37.6 13.8 19.3 17.7 78.7 31.5 7.9 42.2 12.1 7.9 6xØ0,59 (M16) 23.2 82.3 1138 B110B
180L - 30 3" 2" 37.6 13.8 19.3 17.7 78.7 31.5 7.9 42.2 12.1 7.9 6xØ0,59 (M16) 23.2 83.8 1175 B110B
180M - 25 3" 2" 40.0 13.8 19.3 17.7 78.7 31.5 7.9 42.2 12.1 7.9 6xØ0,59 (M16) 23.2 84.3 1164 B110B
180L - 30 3" 2" 40.0 13.8 19.3 17.7 78.7 31.5 7.9 42.2 12.1 7.9 6xØ0,59 (M16) 23.2 85.7 1202 B110B
e-MPR-AS-60-50-us_a_td
13
15
16
DIMENSIONS [inch]DIMENSIONS [inch]DIMENSIONS [inch]DIMENSIONS [inch]
9
10
11
12
WEIGHTWEIGHTWEIGHTWEIGHT
14
COUPLINGCOUPLINGCOUPLINGCOUPLING
TYPETYPETYPETYPE
50
1
2
3
4
5
6
7
8
NUMBERNUMBERNUMBERNUMBER
OFSTAGESOFSTAGESOFSTAGESOFSTAGES
IECIECIECIEC
MOTORMOTORMOTORMOTOR
FRAMEFRAMEFRAMEFRAME
3550[rpm]3550[rpm]3550[rpm]3550[rpm]
1750[rpm]1750[rpm]1750[rpm]1750[rpm]
NOTE: Pumps supplied with ANSI B16.5 flanges. Flanges according to EN 1092-2 are available on request.
For flanges dimensions see drawing on pages 102-103.
Dimensions and weights in the next table are for reference only and correspond to IEC motor frames. NEMA corresponding dimensions
and weights to be published soon. Please contact factory for more information.
PAGE 43
e-MP Series
Goulds Water Technology

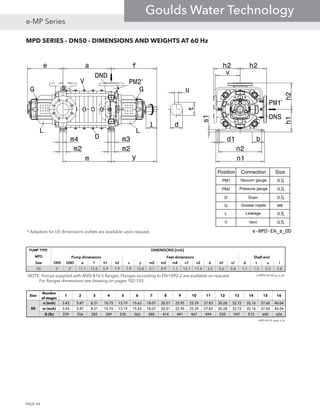

44. MPD SERIES - DN50 - DIMENSIONS AND WEIGHTS AT 60 Hz
e a f
ym
m4 m3
m2 m2
d1 b
n2
n1
h1h2
h2
l
s1
v
u
t
d
h2
Position Connection Size
PM1 Vacuum gauge G1
4
PM2 Pressure gauge G1
4
D Drain G1
4
G Grease nipple M8
L Leakage G1
2
V Vent G1
4
G G
LL
D
V PM2
DND
PM1
DNS
e-MPD-EN_a_DD
PUMP TYPEPUMP TYPEPUMP TYPEPUMP TYPE
MPDMPDMPDMPD
SizeSizeSizeSize DNSDNSDNSDNS DNDDNDDNDDND eeee ffff h1h1h1h1 h2h2h2h2 vvvv yyyy m2m2m2m2 m3m3m3m3 m4m4m4m4 n1n1n1n1 n2n2n2n2 bbbb d1d1d1d1 s1s1s1s1 dddd tttt uuuu llll
50 3" 2" 11.1 13.8 5.9 7.9 7.9 13.8 2.1 0.9 1.1 13.1 11.4 3.5 0.6 0.8 1.1 1.2 0.3 2.8
e-MPD-60-50-us_a_td
DIMENSIONS [inch]DIMENSIONS [inch]DIMENSIONS [inch]DIMENSIONS [inch]
Pump dimensionsPump dimensionsPump dimensionsPump dimensions Feet dimensionsFeet dimensionsFeet dimensionsFeet dimensions Shaft endShaft endShaft endShaft end
DIMENSIONS AND WEIGHTS e-MPD AT 60Hz [drive on discharge side]DIMENSIONS AND WEIGHTS e-MPD AT 60Hz [drive on discharge side]DIMENSIONS AND WEIGHTS e-MPD AT 60Hz [drive on discharge side]DIMENSIONS AND WEIGHTS e-MPD AT 60Hz [drive on discharge side]
Size
Number
of stages
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
a (inch) 3.43 5.87 8.31 10.75 13.19 15.63 18.07 20.51 22.95 25.39 27.83 30.28 32.72 35.16 37.60 40.04
m (inch) 3.43 5.87 8.31 10.75 13.19 15.63 18.07 20.51 22.95 25.39 27.83 30.28 32.72 35.16 37.60 40.04
G (lb) 229 256 282 309 335 362 388 414 441 467 494 520 547 573 600 626
e-MPD-60-50_stage_a_td
50
NOTE: Pumps supplied with ANSI B16.5 flanges. Flanges according to EN 1092-2 are available on request.
For flanges dimensions see drawing on pages 102-103.
* Adaptors for US dimensions outlets are available upon request.
*
*
PAGE 44
e-MP Series
Goulds Water Technology

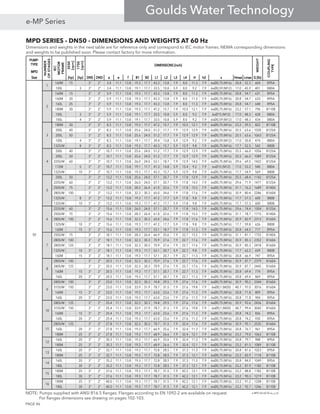

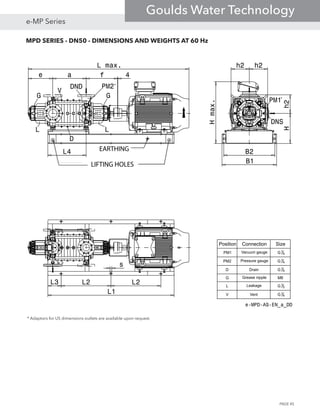

45. MPD SERIES - DN50 - DIMENSIONS AND WEIGHTS AT 60 Hz
e-MPD-AS-EN_a_DD
G
L
D
V
PM2DND
DNS
PM1
G
L
a f 4
L4
L max.
B2
B1
Hh2
Hmax.
L3 L2 L2
L1
s
e
h2h2
EARTHING
LIFTING HOLES
Position Connection Size
PM1 Vacuum gauge G1
4
PM2 Pressure gauge G1
4
D Drain G1
4
G Grease nipple M8
L Leakage G1
2
V Vent G1
4
* Adaptors for US dimensions outlets are available upon request.
*
*
PAGE 45
e-MP Series
Goulds Water Technology
