The Data Driven University
Automating Data Governance & Stewardship in
Autonomous & Decentralized Environments
Pieter De Leenheer, PhD
Cofounder and VP Innovation
What we talk about when we talk about
no Data Governance
Who approved this?
I wish these guys
spoke our
language
I can’t understand
this report !
I’ve never seen this
funding code! Who
introduced this ?
Are we sure this
definition of
‘professor’ is correct
?
The Problem
This rule is
different on our
campus!
Are we allowed to share this
student data with IR?
Glossary Search
• How frequently do you look up a word for your
business?
• To what purpose?
Clarification
Differentiation
• What are your main sources?
• Hierarchy-based navigation or key-word based
search?
• Authoritative Truth or trust?

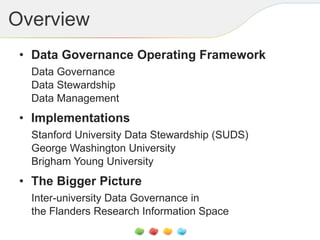

Overview
• Data Governance Operating Framework
Data Governance
Data Stewardship
Data Management
• Implementations
Stanford University Data Stewardship (SUDS)
George Washington University
Brigham Young University
• The Bigger Picture
Inter-university Data Governance in
the Flanders Research Information Space

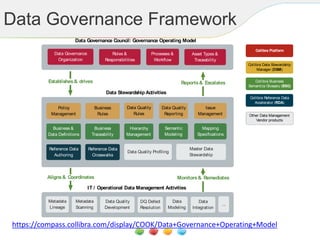

Data Governance Framework
Data Governance Council: Governance Operating Model
Roles &
Responsibilities
Processes &
Workflow
Asset Types &
Traceability
Data Governance
Organization
Data Stewardship Activities
Data Quality
Development
IT / Operational Data Management Activities
Data
Modeling
Metadata
Lineage
Establishes& drives
Aligns& Coordinates
Reports& Escalates
Monitors& Remediates
Metadata
Scanning
Reference Data
Authoring
Data
Integration
Collibra Business
Semantics Glossary (BSG)
Collibra Reference Data
Accelerator (RDA)
Hierarchy
Management
Business &
Data Definitions
Business
Traceability
Semantic
Modeling
Mapping
Specifications
Policy
Management
Business
Rules
Data Quality
Rules
Data Quality
Reporting
Issue
Management
Reference Data
Crosswalks
Master Data
Stewardship
Data Quality Profiling
DQ Defect
Resolution
Collibra Data Stewardship
Manager (DSM)
Collibra Platform
Other Data Management
Vendor products
...
https://compass.collibra.com/display/COOK/Data+Governance+Operating+Model

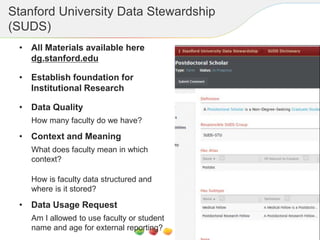

Stanford University Data Stewardship
(SUDS)
• All Materials available here
dg.stanford.edu
• Establish foundation for
Institutional Research
• Data Quality
How many faculty do we have?
• Context and Meaning
What does faculty mean in which
context?
How is faculty data structured and
where is it stored?
• Data Usage Request
Am I allowed to use faculty or student
name and age for external reporting?

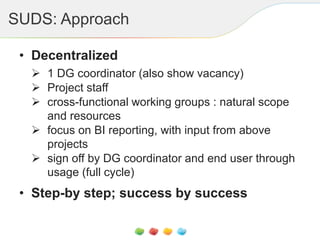

SUDS: Approach
• Decentralized
 1 DG coordinator (also show vacancy)
 Project staff
 cross-functional working groups : natural scope
and resources
 focus on BI reporting, with input from above
projects
 sign off by DG coordinator and end user through
usage (full cycle)
• Step-by step; success by success

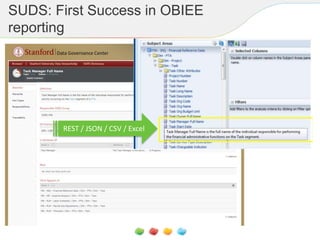

SUDS: First Success in OBIEE
reporting
REST / JSON / CSV / Excel

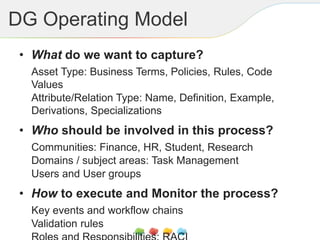

DG Operating Model
• What do we want to capture?
Asset Type: Business Terms, Policies, Rules, Code
Values
Attribute/Relation Type: Name, Definition, Example,
Derivations, Specializations
• Who should be involved in this process?
Communities: Finance, HR, Student, Research
Domains / subject areas: Task Management
Users and User groups
• How to execute and Monitor the process?
Key events and workflow chains
Validation rules

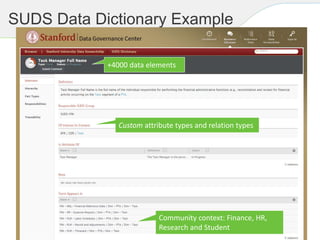

SUDS Data Dictionary Example
+4000 data elements
Community context: Finance, HR,
Research and Student
Custom attribute types and relation types

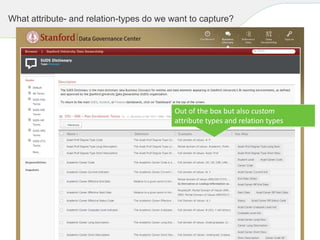

What attribute- and relation-types do we want to capture?
Out of the box but also custom
attribute types and relation types

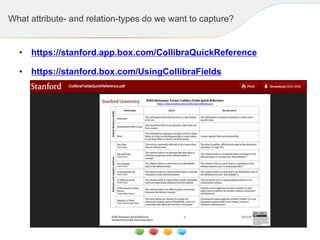

What attribute- and relation-types do we want to capture?
• https://stanford.app.box.com/CollibraQuickReference
• https://stanford.box.com/UsingCollibraFields
Who is involved in the
process?
• https://compass.collibra.com/display/COOK/Role+Ty
pes
ResponsibleAccountable Informed Consulted

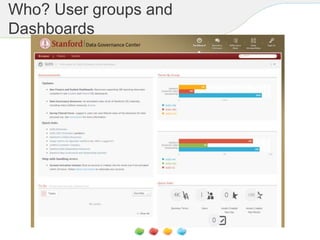

Who? User groups and
Dashboards

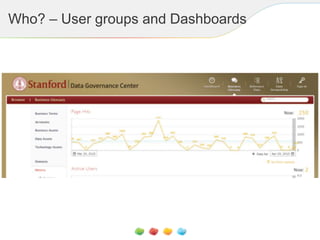

Who? – User groups and Dashboards

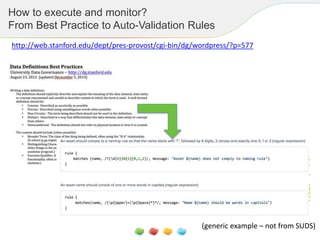

How to execute and monitor?
From Best Practice to Auto-Validation Rules
http://web.stanford.edu/dept/pres-provost/cgi-bin/dg/wordpress/?p=577
(generic example – not from SUDS)

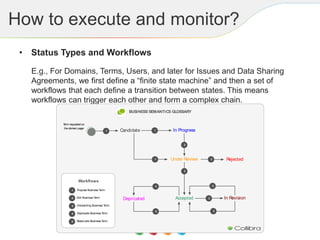

How to execute and monitor?
• Status Types and Workflows
E.g., For Domains, Terms, Users, and later for Issues and Data Sharing
Agreements, we first define a “finite state machine” and then a set of
workflows that each define a transition between states. This means
workflows can trigger each other and form a complex chain.
BUSINESS SEMANTICS GLOSSARY
Candidate In Progress
Under Review
Accepted In Revision
Rejected
Term requested on
the domain page
11
1
2
2
3
3
2
3
Depricated
4
5
Workflows
1
2
Propose Business Term
Edit Business Term
3 Onboarding Business Term
4 Deprecate Business Term
5 Reactivate Business Term

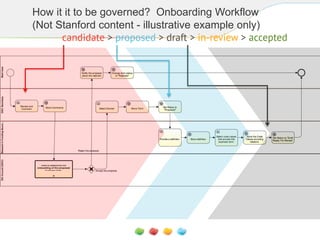

How it it to be governed? Onboarding Workflow
(Not Stanford content - illustrative example only)

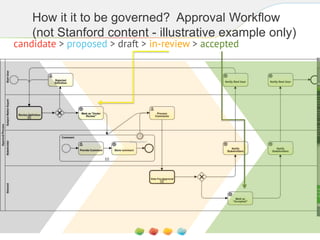

How it it to be governed? Approval Workflow
(not Stanford content - illustrative example only)

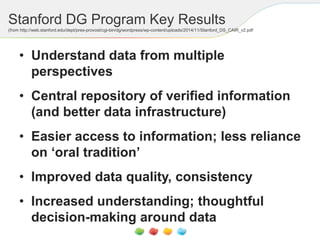

Stanford DG Program Key Results
(from http://web.stanford.edu/dept/pres-provost/cgi-bin/dg/wordpress/wp-content/uploads/2014/11/Stanford_DS_CAIR_v2.pdf
• Understand data from multiple
perspectives
• Central repository of verified information
(and better data infrastructure)
• Easier access to information; less reliance
on ‘oral tradition’
• Improved data quality, consistency
• Increased understanding; thoughtful
decision-making around data

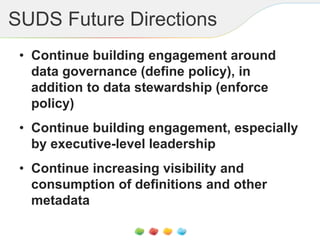

SUDS Future Directions
• Continue building engagement around
data governance (define policy), in
addition to data stewardship (enforce
policy)
• Continue building engagement, especially
by executive-level leadership
• Continue increasing visibility and
consumption of definitions and other
metadata

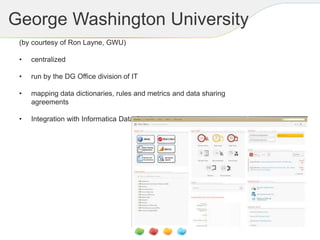

George Washington University
(by courtesy of Ron Layne, GWU)
• centralized
• run by the DG Office division of IT
• mapping data dictionaries, rules and metrics and data sharing
agreements
• Integration with Informatica Data Quality

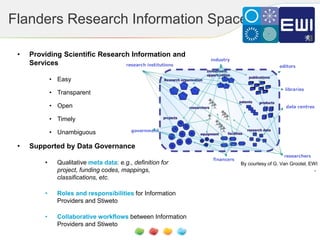

Flanders Research Information Space
• Providing Scientific Research Information and
Services
• Easy
• Transparent
• Open
• Timely
• Unambiguous
• Supported by Data Governance
• Qualitative meta data: e.g., definition for
project, funding codes, mappings,
classifications, etc.
• Roles and responsibilities for Information
Providers and Stiweto
• Collaborative workflows between Information
Providers and Stiweto
By courtesy of G. Van Grootel, EWI

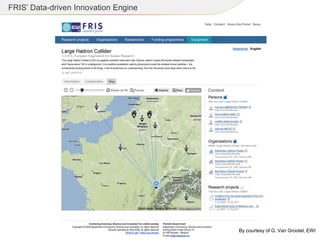

FRIS’ Data-driven Innovation Engine
By courtesy of G. Van Grootel, EWI
The Data providers landscape
25
Universities
Research Institutes
Funders
Others
Strategic Research
Centers
Universitiy Colleges
By courtesy of G. Van Grootel, EWI

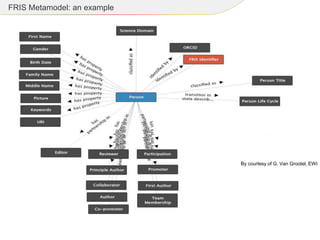

FRIS Metamodel: an example
By courtesy of G. Van Grootel, EWI
Traceability diagram
Node Description
JRC (Joint Research Centre) The Business Term representing the
Funding Source
Zevende Kader Programma.. The Business Term representin the
parent Funding Source
3723 Generation 1 Funding Code Value
258 Generation 2 Funding Code Value
G3 The Funding Stream Code Value
By courtesy of G. Van Grootel, EW
Conclusions
• Case by Case, success by success
• Identify key events and design workflow
‘chains’ to automate governance
• To support your specific use case and the
growing DG platform you need extend
asset, relation, attribute types
• Collaboration and business user
friendliness
• BOK http://compass.collibra.com

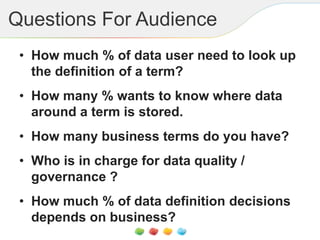

Questions For Audience
• How much % of data user need to look up
the definition of a term?
• How many % wants to know where data
around a term is stored.
• How many business terms do you have?
• Who is in charge for data quality /
governance ?
• How much % of data definition decisions
depends on business?

More Related Content

What's hot

Intuit's Data Mesh - Data Mesh Leaning Community meetup 5.13.2021
Intuit's Data Mesh - Data Mesh Leaning Community meetup 5.13.2021Intuit's Data Mesh - Data Mesh Leaning Community meetup 5.13.2021
Intuit's Data Mesh - Data Mesh Leaning Community meetup 5.13.2021
Tristan Baker

Data Quality Best Practices
Data Quality Best PracticesData Quality Best Practices
Data Quality Best Practices
DATAVERSITY

How to Implement Data Governance Best Practice
How to Implement Data Governance Best PracticeHow to Implement Data Governance Best Practice
How to Implement Data Governance Best Practice
DATAVERSITY

Implementing Effective Data Governance
Implementing Effective Data GovernanceImplementing Effective Data Governance
Implementing Effective Data Governance
Christopher Bradley

Building Modern Data Platform with Microsoft Azure
Building Modern Data Platform with Microsoft AzureBuilding Modern Data Platform with Microsoft Azure
Building Modern Data Platform with Microsoft Azure
Dmitry Anoshin

Data Architecture, Solution Architecture, Platform Architecture — What’s the ...
Data Architecture, Solution Architecture, Platform Architecture — What’s the ...Data Architecture, Solution Architecture, Platform Architecture — What’s the ...
Data Architecture, Solution Architecture, Platform Architecture — What’s the ...
DATAVERSITY

Improving Data Literacy Around Data Architecture
Improving Data Literacy Around Data ArchitectureImproving Data Literacy Around Data Architecture
Improving Data Literacy Around Data Architecture
DATAVERSITY

Data-Ed Slides: Best Practices in Data Stewardship (Technical)
Data-Ed Slides: Best Practices in Data Stewardship (Technical)Data-Ed Slides: Best Practices in Data Stewardship (Technical)
Data-Ed Slides: Best Practices in Data Stewardship (Technical)
DATAVERSITY

Data Governance Best Practices
Data Governance Best PracticesData Governance Best Practices
Data Governance Best Practices
DATAVERSITY

State of Data Governance in 2021
State of Data Governance in 2021State of Data Governance in 2021
State of Data Governance in 2021
DATAVERSITY

Introduction to Data Governance
Introduction to Data GovernanceIntroduction to Data Governance
Introduction to Data Governance
John Bao Vuu

Building a Data Governance Strategy
Building a Data Governance StrategyBuilding a Data Governance Strategy
Building a Data Governance Strategy
Analytics8

Data Architecture Best Practices for Advanced Analytics
Data Architecture Best Practices for Advanced AnalyticsData Architecture Best Practices for Advanced Analytics
Data Architecture Best Practices for Advanced Analytics
DATAVERSITY

Data Governance
Data GovernanceData Governance
Data Governance
SambaSoup

Time to Talk about Data Mesh
Time to Talk about Data MeshTime to Talk about Data Mesh
Time to Talk about Data Mesh
LibbySchulze

Activate Data Governance Using the Data Catalog
Activate Data Governance Using the Data CatalogActivate Data Governance Using the Data Catalog
Activate Data Governance Using the Data Catalog
DATAVERSITY

Data-Ed Webinar: Data Quality Success Stories
Data-Ed Webinar: Data Quality Success StoriesData-Ed Webinar: Data Quality Success Stories
Data-Ed Webinar: Data Quality Success Stories
DATAVERSITY

Data Warehouse or Data Lake, Which Do I Choose?
Data Warehouse or Data Lake, Which Do I Choose?Data Warehouse or Data Lake, Which Do I Choose?
Data Warehouse or Data Lake, Which Do I Choose?
DATAVERSITY

LDM Webinar: Data Modeling & Business Intelligence
LDM Webinar: Data Modeling & Business IntelligenceLDM Webinar: Data Modeling & Business Intelligence
LDM Webinar: Data Modeling & Business Intelligence
DATAVERSITY

Overcoming the Challenges of your Master Data Management Journey
Overcoming the Challenges of your Master Data Management JourneyOvercoming the Challenges of your Master Data Management Journey
Overcoming the Challenges of your Master Data Management Journey
Jean-Michel Franco


What's hot (20)

Intuit's Data Mesh - Data Mesh Leaning Community meetup 5.13.2021
Intuit's Data Mesh - Data Mesh Leaning Community meetup 5.13.2021Intuit's Data Mesh - Data Mesh Leaning Community meetup 5.13.2021
Intuit's Data Mesh - Data Mesh Leaning Community meetup 5.13.2021

Data Quality Best Practices
Data Quality Best PracticesData Quality Best Practices
Data Quality Best Practices

How to Implement Data Governance Best Practice
How to Implement Data Governance Best PracticeHow to Implement Data Governance Best Practice
How to Implement Data Governance Best Practice

Implementing Effective Data Governance
Implementing Effective Data GovernanceImplementing Effective Data Governance
Implementing Effective Data Governance

Building Modern Data Platform with Microsoft Azure
Building Modern Data Platform with Microsoft AzureBuilding Modern Data Platform with Microsoft Azure
Building Modern Data Platform with Microsoft Azure

Data Architecture, Solution Architecture, Platform Architecture — What’s the ...
Data Architecture, Solution Architecture, Platform Architecture — What’s the ...Data Architecture, Solution Architecture, Platform Architecture — What’s the ...
Data Architecture, Solution Architecture, Platform Architecture — What’s the ...

Improving Data Literacy Around Data Architecture
Improving Data Literacy Around Data ArchitectureImproving Data Literacy Around Data Architecture
Improving Data Literacy Around Data Architecture

Data-Ed Slides: Best Practices in Data Stewardship (Technical)
Data-Ed Slides: Best Practices in Data Stewardship (Technical)Data-Ed Slides: Best Practices in Data Stewardship (Technical)
Data-Ed Slides: Best Practices in Data Stewardship (Technical)

Data Governance Best Practices
Data Governance Best PracticesData Governance Best Practices
Data Governance Best Practices

State of Data Governance in 2021
State of Data Governance in 2021State of Data Governance in 2021
State of Data Governance in 2021

Introduction to Data Governance
Introduction to Data GovernanceIntroduction to Data Governance
Introduction to Data Governance

Building a Data Governance Strategy
Building a Data Governance StrategyBuilding a Data Governance Strategy
Building a Data Governance Strategy

Data Architecture Best Practices for Advanced Analytics
Data Architecture Best Practices for Advanced AnalyticsData Architecture Best Practices for Advanced Analytics
Data Architecture Best Practices for Advanced Analytics

Data Governance
Data GovernanceData Governance
Data Governance

Time to Talk about Data Mesh
Time to Talk about Data MeshTime to Talk about Data Mesh
Time to Talk about Data Mesh

Activate Data Governance Using the Data Catalog
Activate Data Governance Using the Data CatalogActivate Data Governance Using the Data Catalog
Activate Data Governance Using the Data Catalog

Data-Ed Webinar: Data Quality Success Stories
Data-Ed Webinar: Data Quality Success StoriesData-Ed Webinar: Data Quality Success Stories
Data-Ed Webinar: Data Quality Success Stories

Data Warehouse or Data Lake, Which Do I Choose?
Data Warehouse or Data Lake, Which Do I Choose?Data Warehouse or Data Lake, Which Do I Choose?
Data Warehouse or Data Lake, Which Do I Choose?

LDM Webinar: Data Modeling & Business Intelligence
LDM Webinar: Data Modeling & Business IntelligenceLDM Webinar: Data Modeling & Business Intelligence
LDM Webinar: Data Modeling & Business Intelligence

Overcoming the Challenges of your Master Data Management Journey
Overcoming the Challenges of your Master Data Management JourneyOvercoming the Challenges of your Master Data Management Journey
Overcoming the Challenges of your Master Data Management Journey


Similar to The Data Driven University - Automating Data Governance and Stewardship in Autonomous and Decentralized University Environments

Business Semantics for Data Governance and Stewardship
Business Semantics for Data Governance and StewardshipBusiness Semantics for Data Governance and Stewardship
Business Semantics for Data Governance and Stewardship
Pieter De Leenheer

Data warehouse 101-fundamentals-
Data warehouse 101-fundamentals-Data warehouse 101-fundamentals-
Data warehouse 101-fundamentals-
AshishGuleria

Data-Ed Online: Trends in Data Modeling
Data-Ed Online: Trends in Data ModelingData-Ed Online: Trends in Data Modeling
Data-Ed Online: Trends in Data Modeling
DATAVERSITY

Data-Ed: Trends in Data Modeling
Data-Ed: Trends in Data ModelingData-Ed: Trends in Data Modeling
Data-Ed: Trends in Data Modeling
Data Blueprint

EPF-datagov-part1-1.pdf
EPF-datagov-part1-1.pdfEPF-datagov-part1-1.pdf
EPF-datagov-part1-1.pdf
cedrinemadera

jgordonres112015
jgordonres112015jgordonres112015
jgordonres112015
Juedienne Gordon

Charles Rygula: Value Beyond Words
Charles Rygula: Value Beyond WordsCharles Rygula: Value Beyond Words
Charles Rygula: Value Beyond Words
Jack Molisani

Seminoles United Consolidated Advancement Project
Seminoles United Consolidated Advancement ProjectSeminoles United Consolidated Advancement Project
Seminoles United Consolidated Advancement Project
Wendy Jaccard

KSU IT Capstone Report 2012-2017.pdf
KSU IT Capstone Report 2012-2017.pdfKSU IT Capstone Report 2012-2017.pdf
KSU IT Capstone Report 2012-2017.pdf
Jack Zheng

User-Centric Design: How to Leverage Use Cases and User Scenarios to Design S...
User-Centric Design: How to Leverage Use Cases and User Scenarios to Design S...User-Centric Design: How to Leverage Use Cases and User Scenarios to Design S...
User-Centric Design: How to Leverage Use Cases and User Scenarios to Design S...
SPTechCon

Cff data governance best practices
Cff data governance best practicesCff data governance best practices
Cff data governance best practices
Beth Fitzpatrick

SPSChicagoBurbs 2019 - What is CDM and CDS?
SPSChicagoBurbs 2019 - What is CDM and CDS?SPSChicagoBurbs 2019 - What is CDM and CDS?
SPSChicagoBurbs 2019 - What is CDM and CDS?
Nicolas Georgeault

Data managementfornonprofits 2014-06-19
Data managementfornonprofits   2014-06-19Data managementfornonprofits   2014-06-19
Data managementfornonprofits 2014-06-19
501 Commons

Why Data Standards?
Why Data Standards?Why Data Standards?
Why Data Standards?
Accounting_Whitepapers

Data-Ed: Unlock Business Value through Data Quality Engineering
Data-Ed: Unlock Business Value through Data Quality EngineeringData-Ed: Unlock Business Value through Data Quality Engineering
Data-Ed: Unlock Business Value through Data Quality Engineering
DATAVERSITY

Data-Ed: Unlock Business Value through Data Quality Engineering
Data-Ed: Unlock Business Value through Data Quality Engineering Data-Ed: Unlock Business Value through Data Quality Engineering
Data-Ed: Unlock Business Value through Data Quality Engineering
Data Blueprint

DGIQ - Case Studies_ Applications of Data Governance in the Enterprise (Final...
DGIQ - Case Studies_ Applications of Data Governance in the Enterprise (Final...DGIQ - Case Studies_ Applications of Data Governance in the Enterprise (Final...
DGIQ - Case Studies_ Applications of Data Governance in the Enterprise (Final...
Enterprise Knowledge

Jgordonres jan262016
Jgordonres jan262016Jgordonres jan262016
Jgordonres jan262016
Juedienne Gordon

jgordonresJan262016
jgordonresJan262016jgordonresJan262016
jgordonresJan262016
Juedienne Gordon

Data-Ed: Data Systems Integration & Business Value PT. 1: Metadata
Data-Ed: Data Systems Integration & Business Value PT. 1: MetadataData-Ed: Data Systems Integration & Business Value PT. 1: Metadata
Data-Ed: Data Systems Integration & Business Value PT. 1: Metadata
Data Blueprint


Similar to The Data Driven University - Automating Data Governance and Stewardship in Autonomous and Decentralized University Environments (20)

Business Semantics for Data Governance and Stewardship
Business Semantics for Data Governance and StewardshipBusiness Semantics for Data Governance and Stewardship
Business Semantics for Data Governance and Stewardship

Data warehouse 101-fundamentals-
Data warehouse 101-fundamentals-Data warehouse 101-fundamentals-
Data warehouse 101-fundamentals-

Data-Ed Online: Trends in Data Modeling
Data-Ed Online: Trends in Data ModelingData-Ed Online: Trends in Data Modeling
Data-Ed Online: Trends in Data Modeling

Data-Ed: Trends in Data Modeling
Data-Ed: Trends in Data ModelingData-Ed: Trends in Data Modeling
Data-Ed: Trends in Data Modeling

EPF-datagov-part1-1.pdf
EPF-datagov-part1-1.pdfEPF-datagov-part1-1.pdf
EPF-datagov-part1-1.pdf

jgordonres112015
jgordonres112015jgordonres112015
jgordonres112015

Charles Rygula: Value Beyond Words
Charles Rygula: Value Beyond WordsCharles Rygula: Value Beyond Words
Charles Rygula: Value Beyond Words

Seminoles United Consolidated Advancement Project
Seminoles United Consolidated Advancement ProjectSeminoles United Consolidated Advancement Project
Seminoles United Consolidated Advancement Project

KSU IT Capstone Report 2012-2017.pdf
KSU IT Capstone Report 2012-2017.pdfKSU IT Capstone Report 2012-2017.pdf
KSU IT Capstone Report 2012-2017.pdf

User-Centric Design: How to Leverage Use Cases and User Scenarios to Design S...
User-Centric Design: How to Leverage Use Cases and User Scenarios to Design S...User-Centric Design: How to Leverage Use Cases and User Scenarios to Design S...
User-Centric Design: How to Leverage Use Cases and User Scenarios to Design S...

Cff data governance best practices
Cff data governance best practicesCff data governance best practices
Cff data governance best practices

SPSChicagoBurbs 2019 - What is CDM and CDS?
SPSChicagoBurbs 2019 - What is CDM and CDS?SPSChicagoBurbs 2019 - What is CDM and CDS?
SPSChicagoBurbs 2019 - What is CDM and CDS?

Data managementfornonprofits 2014-06-19
Data managementfornonprofits   2014-06-19Data managementfornonprofits   2014-06-19
Data managementfornonprofits 2014-06-19

Why Data Standards?
Why Data Standards?Why Data Standards?
Why Data Standards?

Data-Ed: Unlock Business Value through Data Quality Engineering
Data-Ed: Unlock Business Value through Data Quality EngineeringData-Ed: Unlock Business Value through Data Quality Engineering
Data-Ed: Unlock Business Value through Data Quality Engineering

Data-Ed: Unlock Business Value through Data Quality Engineering
Data-Ed: Unlock Business Value through Data Quality Engineering Data-Ed: Unlock Business Value through Data Quality Engineering
Data-Ed: Unlock Business Value through Data Quality Engineering

DGIQ - Case Studies_ Applications of Data Governance in the Enterprise (Final...
DGIQ - Case Studies_ Applications of Data Governance in the Enterprise (Final...DGIQ - Case Studies_ Applications of Data Governance in the Enterprise (Final...
DGIQ - Case Studies_ Applications of Data Governance in the Enterprise (Final...

Jgordonres jan262016
Jgordonres jan262016Jgordonres jan262016
Jgordonres jan262016

jgordonresJan262016
jgordonresJan262016jgordonresJan262016
jgordonresJan262016

Data-Ed: Data Systems Integration & Business Value PT. 1: Metadata
Data-Ed: Data Systems Integration & Business Value PT. 1: MetadataData-Ed: Data Systems Integration & Business Value PT. 1: Metadata
Data-Ed: Data Systems Integration & Business Value PT. 1: Metadata


More from Pieter De Leenheer

TiE DC GovCon Panel on Emerging Technologies: AI/ML/Blockchain/Data Managemen...
TiE DC GovCon Panel on Emerging Technologies: AI/ML/Blockchain/Data Managemen...TiE DC GovCon Panel on Emerging Technologies: AI/ML/Blockchain/Data Managemen...
TiE DC GovCon Panel on Emerging Technologies: AI/ML/Blockchain/Data Managemen...
Pieter De Leenheer

MIT ICIQ 2017 Keynote: Data Governance and Data Capitalization in the Big Dat...
MIT ICIQ 2017 Keynote: Data Governance and Data Capitalization in the Big Dat...MIT ICIQ 2017 Keynote: Data Governance and Data Capitalization in the Big Dat...
MIT ICIQ 2017 Keynote: Data Governance and Data Capitalization in the Big Dat...
Pieter De Leenheer

Data Governance in a big data era
Data Governance in a big data eraData Governance in a big data era
Data Governance in a big data era
Pieter De Leenheer

Data Governance in the Big Data Era
Data Governance in the Big Data EraData Governance in the Big Data Era
Data Governance in the Big Data Era
Pieter De Leenheer

Data Stewardship and Governance: how to reach global adoption and systematic ...
Data Stewardship and Governance: how to reach global adoption and systematic ...Data Stewardship and Governance: how to reach global adoption and systematic ...
Data Stewardship and Governance: how to reach global adoption and systematic ...
Pieter De Leenheer

Business Service Semantics: Ontological Representation & Governance of Busine...
Business Service Semantics: Ontological Representation & Governance of Busine...Business Service Semantics: Ontological Representation & Governance of Busine...
Business Service Semantics: Ontological Representation & Governance of Busine...
Pieter De Leenheer

Open Standards for the Semantic Web: XML / RDF(S) / OWL / SOAP
Open Standards for the Semantic Web: XML / RDF(S) / OWL / SOAPOpen Standards for the Semantic Web: XML / RDF(S) / OWL / SOAP
Open Standards for the Semantic Web: XML / RDF(S) / OWL / SOAP
Pieter De Leenheer


More from Pieter De Leenheer (7)

TiE DC GovCon Panel on Emerging Technologies: AI/ML/Blockchain/Data Managemen...
TiE DC GovCon Panel on Emerging Technologies: AI/ML/Blockchain/Data Managemen...TiE DC GovCon Panel on Emerging Technologies: AI/ML/Blockchain/Data Managemen...
TiE DC GovCon Panel on Emerging Technologies: AI/ML/Blockchain/Data Managemen...

MIT ICIQ 2017 Keynote: Data Governance and Data Capitalization in the Big Dat...
MIT ICIQ 2017 Keynote: Data Governance and Data Capitalization in the Big Dat...MIT ICIQ 2017 Keynote: Data Governance and Data Capitalization in the Big Dat...
MIT ICIQ 2017 Keynote: Data Governance and Data Capitalization in the Big Dat...

Data Governance in a big data era
Data Governance in a big data eraData Governance in a big data era
Data Governance in a big data era

Data Governance in the Big Data Era
Data Governance in the Big Data EraData Governance in the Big Data Era
Data Governance in the Big Data Era

Data Stewardship and Governance: how to reach global adoption and systematic ...
Data Stewardship and Governance: how to reach global adoption and systematic ...Data Stewardship and Governance: how to reach global adoption and systematic ...
Data Stewardship and Governance: how to reach global adoption and systematic ...

Business Service Semantics: Ontological Representation & Governance of Busine...
Business Service Semantics: Ontological Representation & Governance of Busine...Business Service Semantics: Ontological Representation & Governance of Busine...
Business Service Semantics: Ontological Representation & Governance of Busine...

Open Standards for the Semantic Web: XML / RDF(S) / OWL / SOAP
Open Standards for the Semantic Web: XML / RDF(S) / OWL / SOAPOpen Standards for the Semantic Web: XML / RDF(S) / OWL / SOAP
Open Standards for the Semantic Web: XML / RDF(S) / OWL / SOAP


Recently uploaded

GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)
Javier Junquera

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
saastr

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf
Tosin Akinosho

Nordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptxNordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptx
MichaelKnudsen27

leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
alexjohnson7307

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024
Jason Packer

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation
tolgahangng

Choosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptxChoosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptx
Brandon Minnick, MBA

Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Jeffrey Haguewood

Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)
Jakub Marek

Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...
Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...
Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...
Tatiana Kojar

A Comprehensive Guide to DeFi Development Services in 2024
A Comprehensive Guide to DeFi Development Services in 2024A Comprehensive Guide to DeFi Development Services in 2024
A Comprehensive Guide to DeFi Development Services in 2024
Intelisync

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar
Zilliz

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
panagenda

zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
Alex Pruden

Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development ProvidersYour One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
akankshawande

Dandelion Hashtable: beyond billion requests per second on a commodity server
Dandelion Hashtable: beyond billion requests per second on a commodity serverDandelion Hashtable: beyond billion requests per second on a commodity server
Dandelion Hashtable: beyond billion requests per second on a commodity server
Antonios Katsarakis

dbms calicut university B. sc Cs 4th sem.pdf
dbms  calicut university B. sc Cs 4th sem.pdfdbms  calicut university B. sc Cs 4th sem.pdf
dbms calicut university B. sc Cs 4th sem.pdf
Shinana2

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides
Zilliz

FREE A4 Cyber Security Awareness Posters-Social Engineering part 3
FREE A4 Cyber Security Awareness  Posters-Social Engineering part 3FREE A4 Cyber Security Awareness  Posters-Social Engineering part 3
FREE A4 Cyber Security Awareness Posters-Social Engineering part 3
Data Hops


Recently uploaded (20)

GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf

Nordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptxNordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptx

leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation

Choosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptxChoosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptx

Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...

Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)

Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...
Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...
Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...

A Comprehensive Guide to DeFi Development Services in 2024
A Comprehensive Guide to DeFi Development Services in 2024A Comprehensive Guide to DeFi Development Services in 2024
A Comprehensive Guide to DeFi Development Services in 2024

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU

zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...

Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development ProvidersYour One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development Providers

Dandelion Hashtable: beyond billion requests per second on a commodity server
Dandelion Hashtable: beyond billion requests per second on a commodity serverDandelion Hashtable: beyond billion requests per second on a commodity server
Dandelion Hashtable: beyond billion requests per second on a commodity server

dbms calicut university B. sc Cs 4th sem.pdf
dbms  calicut university B. sc Cs 4th sem.pdfdbms  calicut university B. sc Cs 4th sem.pdf
dbms calicut university B. sc Cs 4th sem.pdf

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides

FREE A4 Cyber Security Awareness Posters-Social Engineering part 3
FREE A4 Cyber Security Awareness  Posters-Social Engineering part 3FREE A4 Cyber Security Awareness  Posters-Social Engineering part 3
FREE A4 Cyber Security Awareness Posters-Social Engineering part 3


The Data Driven University - Automating Data Governance and Stewardship in Autonomous and Decentralized University Environments

  • 1. The Data Driven University Automating Data Governance & Stewardship in Autonomous & Decentralized Environments Pieter De Leenheer, PhD Cofounder and VP Innovation
  • 2. What we talk about when we talk about no Data Governance Who approved this? I wish these guys spoke our language I can’t understand this report ! I’ve never seen this funding code! Who introduced this ? Are we sure this definition of ‘professor’ is correct ? The Problem This rule is different on our campus! Are we allowed to share this student data with IR?
  • 3. Glossary Search • How frequently do you look up a word for your business? • To what purpose? Clarification Differentiation • What are your main sources? • Hierarchy-based navigation or key-word based search? • Authoritative Truth or trust?
  • 4. Overview • Data Governance Operating Framework Data Governance Data Stewardship Data Management • Implementations Stanford University Data Stewardship (SUDS) George Washington University Brigham Young University • The Bigger Picture Inter-university Data Governance in the Flanders Research Information Space
  • 5. Data Governance Framework Data Governance Council: Governance Operating Model Roles & Responsibilities Processes & Workflow Asset Types & Traceability Data Governance Organization Data Stewardship Activities Data Quality Development IT / Operational Data Management Activities Data Modeling Metadata Lineage Establishes& drives Aligns& Coordinates Reports& Escalates Monitors& Remediates Metadata Scanning Reference Data Authoring Data Integration Collibra Business Semantics Glossary (BSG) Collibra Reference Data Accelerator (RDA) Hierarchy Management Business & Data Definitions Business Traceability Semantic Modeling Mapping Specifications Policy Management Business Rules Data Quality Rules Data Quality Reporting Issue Management Reference Data Crosswalks Master Data Stewardship Data Quality Profiling DQ Defect Resolution Collibra Data Stewardship Manager (DSM) Collibra Platform Other Data Management Vendor products ... https://compass.collibra.com/display/COOK/Data+Governance+Operating+Model
  • 6. Stanford University Data Stewardship (SUDS) • All Materials available here dg.stanford.edu • Establish foundation for Institutional Research • Data Quality How many faculty do we have? • Context and Meaning What does faculty mean in which context? How is faculty data structured and where is it stored? • Data Usage Request Am I allowed to use faculty or student name and age for external reporting?
  • 7. SUDS: Approach • Decentralized  1 DG coordinator (also show vacancy)  Project staff  cross-functional working groups : natural scope and resources  focus on BI reporting, with input from above projects  sign off by DG coordinator and end user through usage (full cycle) • Step-by step; success by success
  • 8. SUDS: First Success in OBIEE reporting REST / JSON / CSV / Excel
  • 9. DG Operating Model • What do we want to capture? Asset Type: Business Terms, Policies, Rules, Code Values Attribute/Relation Type: Name, Definition, Example, Derivations, Specializations • Who should be involved in this process? Communities: Finance, HR, Student, Research Domains / subject areas: Task Management Users and User groups • How to execute and Monitor the process? Key events and workflow chains Validation rules
  • 10. SUDS Data Dictionary Example +4000 data elements Community context: Finance, HR, Research and Student Custom attribute types and relation types
  • 11. What attribute- and relation-types do we want to capture? Out of the box but also custom attribute types and relation types
  • 12. What attribute- and relation-types do we want to capture? • https://stanford.app.box.com/CollibraQuickReference • https://stanford.box.com/UsingCollibraFields
  • 13. Who is involved in the process? • https://compass.collibra.com/display/COOK/Role+Ty pes ResponsibleAccountable Informed Consulted
  • 14. Who? User groups and Dashboards
  • 15. Who? – User groups and Dashboards
  • 16. How to execute and monitor? From Best Practice to Auto-Validation Rules http://web.stanford.edu/dept/pres-provost/cgi-bin/dg/wordpress/?p=577 (generic example – not from SUDS)
  • 17. How to execute and monitor? • Status Types and Workflows E.g., For Domains, Terms, Users, and later for Issues and Data Sharing Agreements, we first define a “finite state machine” and then a set of workflows that each define a transition between states. This means workflows can trigger each other and form a complex chain. BUSINESS SEMANTICS GLOSSARY Candidate In Progress Under Review Accepted In Revision Rejected Term requested on the domain page 11 1 2 2 3 3 2 3 Depricated 4 5 Workflows 1 2 Propose Business Term Edit Business Term 3 Onboarding Business Term 4 Deprecate Business Term 5 Reactivate Business Term
  • 18. How it it to be governed? Onboarding Workflow (Not Stanford content - illustrative example only)
  • 19. How it it to be governed? Approval Workflow (not Stanford content - illustrative example only)
  • 20. Stanford DG Program Key Results (from http://web.stanford.edu/dept/pres-provost/cgi-bin/dg/wordpress/wp-content/uploads/2014/11/Stanford_DS_CAIR_v2.pdf • Understand data from multiple perspectives • Central repository of verified information (and better data infrastructure) • Easier access to information; less reliance on ‘oral tradition’ • Improved data quality, consistency • Increased understanding; thoughtful decision-making around data
  • 21. SUDS Future Directions • Continue building engagement around data governance (define policy), in addition to data stewardship (enforce policy) • Continue building engagement, especially by executive-level leadership • Continue increasing visibility and consumption of definitions and other metadata
  • 22. George Washington University (by courtesy of Ron Layne, GWU) • centralized • run by the DG Office division of IT • mapping data dictionaries, rules and metrics and data sharing agreements • Integration with Informatica Data Quality
  • 23. Flanders Research Information Space • Providing Scientific Research Information and Services • Easy • Transparent • Open • Timely • Unambiguous • Supported by Data Governance • Qualitative meta data: e.g., definition for project, funding codes, mappings, classifications, etc. • Roles and responsibilities for Information Providers and Stiweto • Collaborative workflows between Information Providers and Stiweto By courtesy of G. Van Grootel, EWI
  • 24. FRIS’ Data-driven Innovation Engine By courtesy of G. Van Grootel, EWI
  • 25. The Data providers landscape 25 Universities Research Institutes Funders Others Strategic Research Centers Universitiy Colleges By courtesy of G. Van Grootel, EWI
  • 26. FRIS Metamodel: an example By courtesy of G. Van Grootel, EWI
  • 27. Traceability diagram Node Description JRC (Joint Research Centre) The Business Term representing the Funding Source Zevende Kader Programma.. The Business Term representin the parent Funding Source 3723 Generation 1 Funding Code Value 258 Generation 2 Funding Code Value G3 The Funding Stream Code Value By courtesy of G. Van Grootel, EW
  • 28. Conclusions • Case by Case, success by success • Identify key events and design workflow ‘chains’ to automate governance • To support your specific use case and the growing DG platform you need extend asset, relation, attribute types • Collaboration and business user friendliness • BOK http://compass.collibra.com
  • 29. Questions For Audience • How much % of data user need to look up the definition of a term? • How many % wants to know where data around a term is stored. • How many business terms do you have? • Who is in charge for data quality / governance ? • How much % of data definition decisions depends on business?

Editor's Notes

  1. Audience from various academic institutions before collibra I was a researcher and assisttant prof in 3 univ In fact collibra is a university spinoff valorising the research on data govenance, ontologies and semantics web.
  2. We should know how universities tick. From my own experience as an employee and as vendor I think I know how university departments thrive as decentralized and autonomous entities. No data governance does not mean data quality can be managed good. It us just that globalization and increased data servicing between university entities that makes quality and truth of data relative, and we more and more have to rely on mutual trust.
  3. Put yourself in the user of your data. An consider these questions ?
  4. Stewardship activities doing: scattered, no unified operatnig model and no clear sight on the results of doing it.
  5. Een goede cae om dit te illustreren is de Vlaamse departement van Economie, Wetenschap en Innovatie.
  6. Logo’s van alle Hogescholen post fusie
  7. Illustrates the implemented FRIS Metamodel in the DGC operational model. Allows for formal named relations between the different FRIS Business leveling model concepts
