Euroclear has been using process mining in their audit projects for several years. Xhentilo shows us what this looks like step-by-step. He starts with a checklist for the applicability of process mining in the Business Understanding phase. He then goes through the Fieldwork, Clearance, and Reporting phases based on a concrete example. In each phase, Xhentilo examines the challenges and opportunities that process mining brings compared to the classical audit approach. For example, traditionally, the analysis in the Fieldwork phase is based on samples and interviews. In contrast, auditors can use process mining to test the entire data population. In the Clearance phase, process mining changes the relationship with the auditee due to fact-based observations.

1. The Challenges of Using Process
Mining in Internal Audit
Xhentilo Karaj
Senior Data Analyst

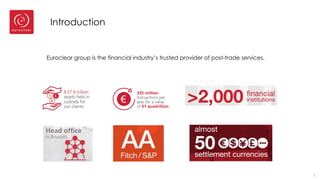

2. Introduction
Euroclear group is the financial industry’s trusted provider of post-trade services.
2

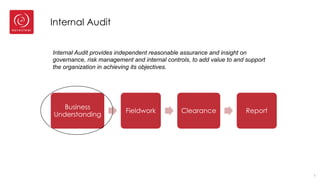

3. Internal Audit
Business
Understanding
Fieldwork Clearance Report
3
Internal Audit provides independent reasonable assurance and insight on
governance, risk management and internal controls, to add value to and support
the organization in achieving its objectives.

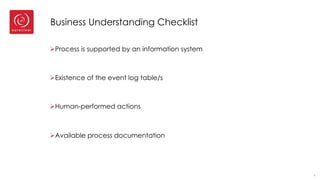

4. Business Understanding Checklist
ØProcess is supported by an information system
ØExistence of the event log table/s
ØHuman-performed actions
ØAvailable process documentation
4

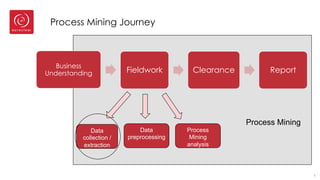

5. Process Mining Journey
Business
Understanding Fieldwork Clearance Report
5
Data
collection /
extraction
Data
preprocessing
Process
Mining
analysis
Process Mining

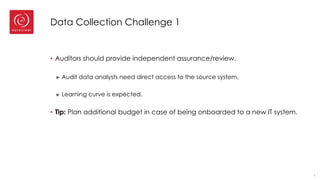

6. Data Collection Challenge 1
• Auditors should provide independent assurance/review.
► Audit data analysts need direct access to the source system.
► Learning curve is expected.
• Tip: Plan additional budget in case of being onboarded to a new IT system.
6

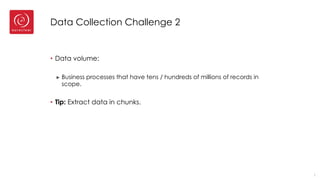

7. Data Collection Challenge 2
• Data volume:
► Business processes that have tens / hundreds of millions of records in
scope.
• Tip: Extract data in chunks.
7

8. Data Collection Challenge 3
• Data completeness:
► Typical example: incomplete activity timestamp (lacking hours/minutes).
– Problem: sequence of activities.
► Usually occurs with SaaS / cloud-based applications.
• Workaround:
► Order the data by an id column (if available), and the process mining
tool will recognize the order.
8

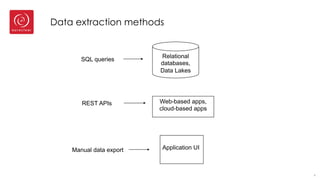

9. Data extraction methods
9
Relational
databases,
Data Lakes
SQL queries
REST APIs Web-based apps,
cloud-based apps
Manual data export Application UI

10. Process Mining Journey
Business
Understanding Fieldwork Clearance Report
10
Data
collection /
extraction
Data
preprocessing
Process
Mining
analysis

11. The Example Process – Client Service
Email from
client
New Case
Assigned
In Progress
Email to client
Closed
11

12. Data Preprocessing
Case
ID
Case
Created
Time
Log ID Field Old
Value
New
Value
Timestamp
245 2021-03-
06
17:21:09
43444 Status New In
Progress
2021-03-07
09:43:56
245 2021-03-
06
17:21:09
43994 Status In
Progress
Closed 2021-03-08
14:12:05
12
Status Changes Log

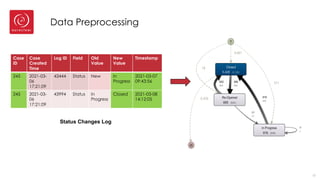

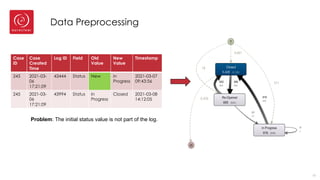

13. Data Preprocessing
Case
ID
Case
Created
Time
Log ID Field Old
Value
New
Value
Timestamp
245 2021-03-
06
17:21:09
43444 Status New In
Progress
2021-03-07
09:43:56
245 2021-03-
06
17:21:09
43994 Status In
Progress
Closed 2021-03-08
14:12:05
13
Problem: The initial status value is not part of the log.

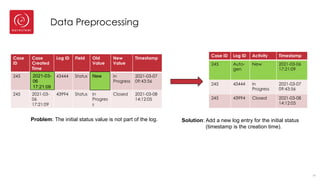

14. Data Preprocessing
Case
ID
Case
Created
Time
Log ID Field Old
Value
New
Value
Timestamp
245 2021-03-
06
17:21:09
43444 Status New In
Progress
2021-03-07
09:43:56
245 2021-03-
06
17:21:09
43994 Status In
Progres
s
Closed 2021-03-08
14:12:05
14
Problem: The initial status value is not part of the log. Solution: Add a new log entry for the initial status
(timestamp is the creation time).
Case ID Log ID Activity Timestamp
245 Auto-
gen
New 2021-03-06
17:21:09
245 43444 In
Progress
2021-03-07
09:43:56
245 43994 Closed 2021-03-08
14:12:05
New
2021-03-
06
17:21:09

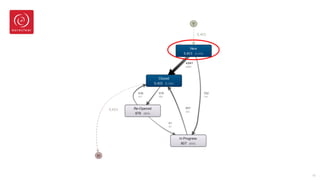

15. 15

16. 16

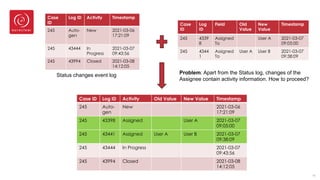

Status changes event log
Case
ID
Log ID Activity Timestamp
245 Auto-
gen
New 2021-03-06
17:21:09
245 43444 In
Progress
2021-03-07
09:43:56
245 43994 Closed 2021-03-08
14:12:05
Problem: Apart from the Status log, changes of the
Assignee contain activity information. How to proceed?
Case
ID
Log
ID
Field Old
Value
New
Value
Timestamp
245 4339
8
Assigned
To
User A 2021-03-07
09:05:00
245 4344
1
Assigned
To
User A User B 2021-03-07
09:38:09
Case ID Log ID Activity Old Value New Value Timestamp
245 Auto-
gen
New 2021-03-06
17:21:09
245 43398 Assigned User A 2021-03-07
09:05:00
245 43441 Assigned User A User B 2021-03-07
09:38:09
245 43444 In Progress 2021-03-07
09:43:56
245 43994 Closed 2021-03-08
14:12:05

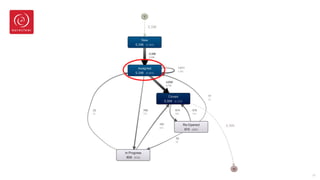

17. 17

18. Sender Receiver CC Email Subject Email Body Case ID Timestamp
client@gmail.co
m
generic@eurocl
ear.com
Broken
functionality
Dears, we
contact
concerning an
issue…
245 2021-03-06
17:21:08
person1@eurocl
ear.com
person2@eurocl
ear.com
person3@e
uroclear.co
m
Ticket 245 Dear, can you
please provide
support on…
245 2021-03-07
16:12:43
person2@eurocl
ear.com
client@gmail.co
m
person3@e
uroclear.co
m,
generic@e
uroclear.co
m
Broken
functionality
Dear, please
note that issue
is resolved…
245 2021-03-08
14:11:01
18
Email info Case ID Timestamp
Email from client 245 2021-03-06
17:21:08
Internal email 245 2021-03-07
16:12:43
Email to client 245 2021-03-08
14:11:01
Data transformation (leverage regular expressions)

19. 19

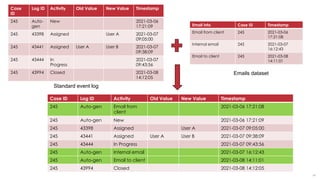

Email info Case ID Timestamp
Email from client 245 2021-03-06
17:21:08
Internal email 245 2021-03-07
16:12:43
Email to client 245 2021-03-08
14:11:01
Case ID Log ID Activity Old Value New Value Timestamp
245 Auto-gen Email from
client
2021-03-06 17:21:08
245 Auto-gen New 2021-03-06 17:21:09
245 43398 Assigned User A 2021-03-07 09:05:00
245 43441 Assigned User A User B 2021-03-07 09:38:09
245 43444 In Progress 2021-03-07 09:43:56
245 Auto-gen Internal email 2021-03-07 16:12:43
245 Auto-gen Email to client 2021-03-08 14:11:01
245 43994 Closed 2021-03-08 14:12:05
Standard event log
Emails dataset
Case
ID
Log ID Activity Old Value New Value Timestamp
245 Auto-
gen
New 2021-03-06
17:21:09
245 43398 Assigned User A 2021-03-07
09:05:00
245 43441 Assigned User A User B 2021-03-07
09:38:09
245 43444 In
Progress
2021-03-07
09:43:56
245 43994 Closed 2021-03-08
14:12:05

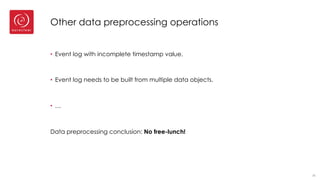

20. Other data preprocessing operations
• Event log with incomplete timestamp value.
• Event log needs to be built from multiple data objects.
• …
Data preprocessing conclusion: No free-lunch!
20

21. Process Mining Journey
Business
Understanding Fieldwork Clearance Report
21
Data
collection /
extraction
Data
preprocessing
Process
Mining
analysis

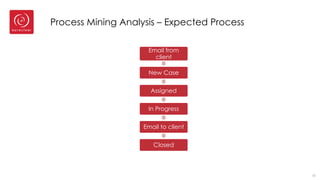

22. Process Mining Analysis – Expected Process
Email from
client
New Case
Assigned
In Progress
Email to client
Closed
22

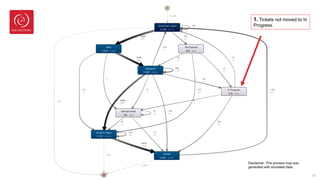

23. 23
1. Tickets not moved to In
Progress.
Disclaimer: This process map was
generated with simulated data.

24. 24

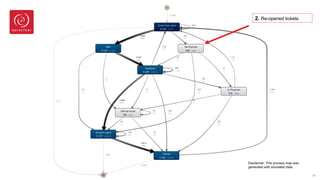

2. Re-opened tickets
Disclaimer: This process map was
generated with simulated data.

25. 25

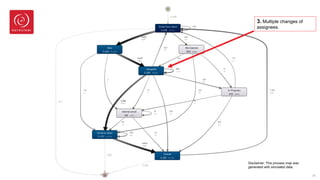

3. Multiple changes of
assignees.
Disclaimer: This process map was
generated with simulated data.

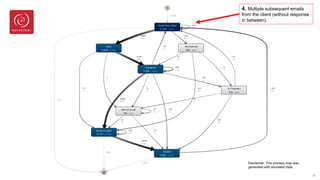

26. 26
4. Multiple subsequent emails
from the client (without response
in between).
Disclaimer: This process map was
generated with simulated data.

27. 27

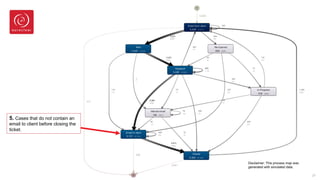

5. Cases that do not contain an
email to client before closing the
ticket.
Disclaimer: This process map was
generated with simulated data.

28. 28

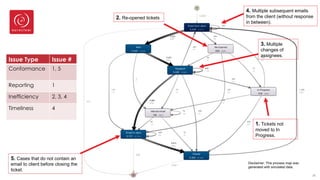

1. Tickets not
moved to In
Progress.
2. Re-opened tickets
3. Multiple
changes of
assignees.
4. Multiple subsequent emails
from the client (without response
in between).
5. Cases that do not contain an
email to client before closing the
ticket.
Issue Type Issue #
Conformance 1, 5
Reporting 1
Inefficiency 2, 3, 4
Timeliness 4
Disclaimer: This process map was
generated with simulated data.

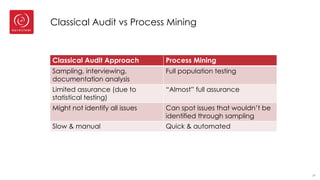

29. Classical Audit vs Process Mining
29
Classical Audit Approach Process Mining
Sampling, interviewing,
documentation analysis
Full population testing
Limited assurance (due to
statistical testing)
“Almost” full assurance
Might not identify all issues Can spot issues that wouldn’t be
identified through sampling
Slow & manual Quick & automated

30. Process Mining Journey
Business
Understanding Fieldwork Clearance Report
30
Data
collection /
extraction
Data
preprocessing
Process
Mining
analysis

31. 31
Auditors Business representatives
(team leaders, middle mgmt.)
Ø Discuss identified issues.
Ø Define the priority of the issue (based on volume of cases, criticality, auditor’s judgement).
Ø Agree on the actions and action owners.

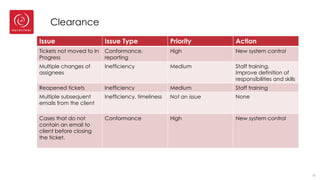

32. Clearance
32
Issue Issue Type Priority Action
Tickets not moved to In
Progress
Conformance,
reporting
High New system control
Multiple changes of
assignees
Inefficiency Medium Staff training,
Improve definition of
responsibilities and skills
Reopened tickets Inefficiency Medium Staff training
Multiple subsequent
emails from the client
Inefficiency, timeliness Not an issue None
Cases that do not
contain an email to
client before closing
the ticket.
Conformance High New system control

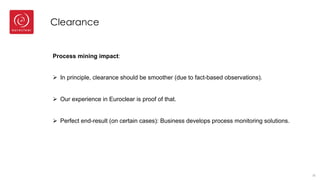

33. Clearance
33
Process mining impact:
Ø In principle, clearance should be smoother (due to fact-based observations).
Ø Our experience in Euroclear is proof of that.
Ø Perfect end-result (on certain cases): Business develops process monitoring solutions.

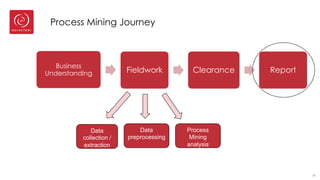

34. Process Mining Journey
Business
Understanding Fieldwork Clearance Report
34
Data
collection /
extraction
Data
preprocessing
Process
Mining
analysis

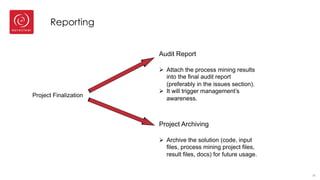

35. Reporting
35
Project Finalization
Audit Report
Ø Attach the process mining results
into the final audit report
(preferably in the issues section).
Ø It will trigger management’s
awareness.
Project Archiving
Ø Archive the solution (code, input
files, process mining project files,
result files, docs) for future usage.

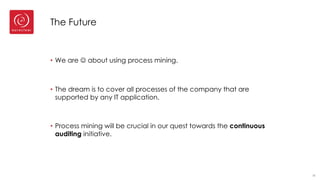

36. The Future
• We are J about using process mining.
• The dream is to cover all processes of the company that are
supported by any IT application.
• Process mining will be crucial in our quest towards the continuous
auditing initiative.
36

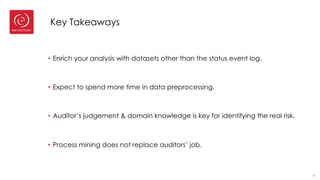

37. Key Takeaways
• Enrich your analysis with datasets other than the status event log.
• Expect to spend more time in data preprocessing.
• Auditor’s judgement & domain knowledge is key for identifying the real risk.
• Process mining does not replace auditors’ job.
37

38. 38
Thank you!
