The Art of Sitecore Upgrades

The Art of Sitecore
Upgrades
Ruud van Falier
Co-founder & Senior Consultant @ ParTech
Sitecore MVP 2013-2017

2
Who am I?
Ruud van Falier
Co-founder ParTech (2011)
Sitecore MVP (2013 – 2017)
E-mail: ruud@partech.nl
Twitter: @BrruuD

3

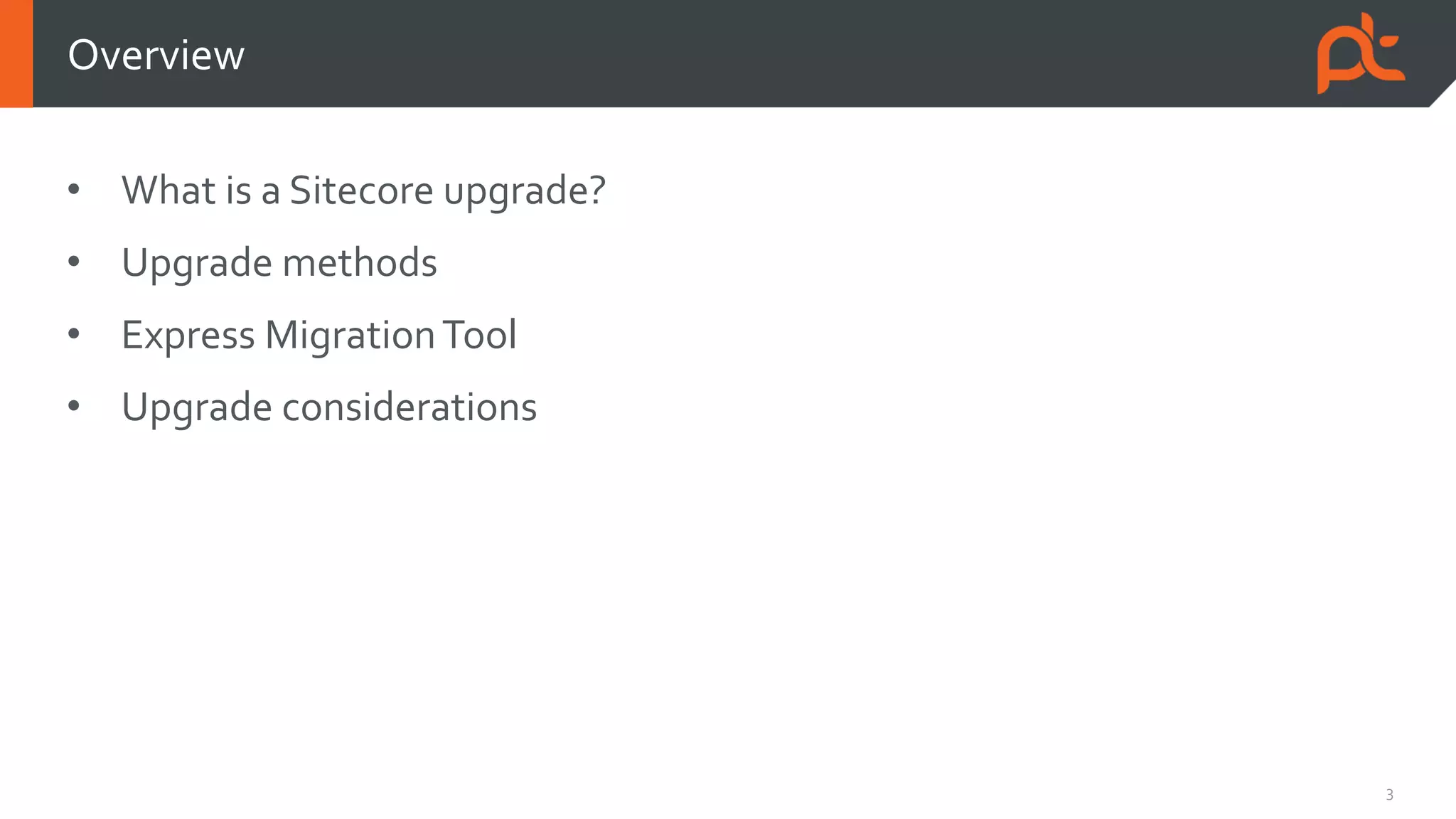

• What is a Sitecore upgrade?
• Upgrade methods
• Express MigrationTool
• Upgrade considerations
Overview

5

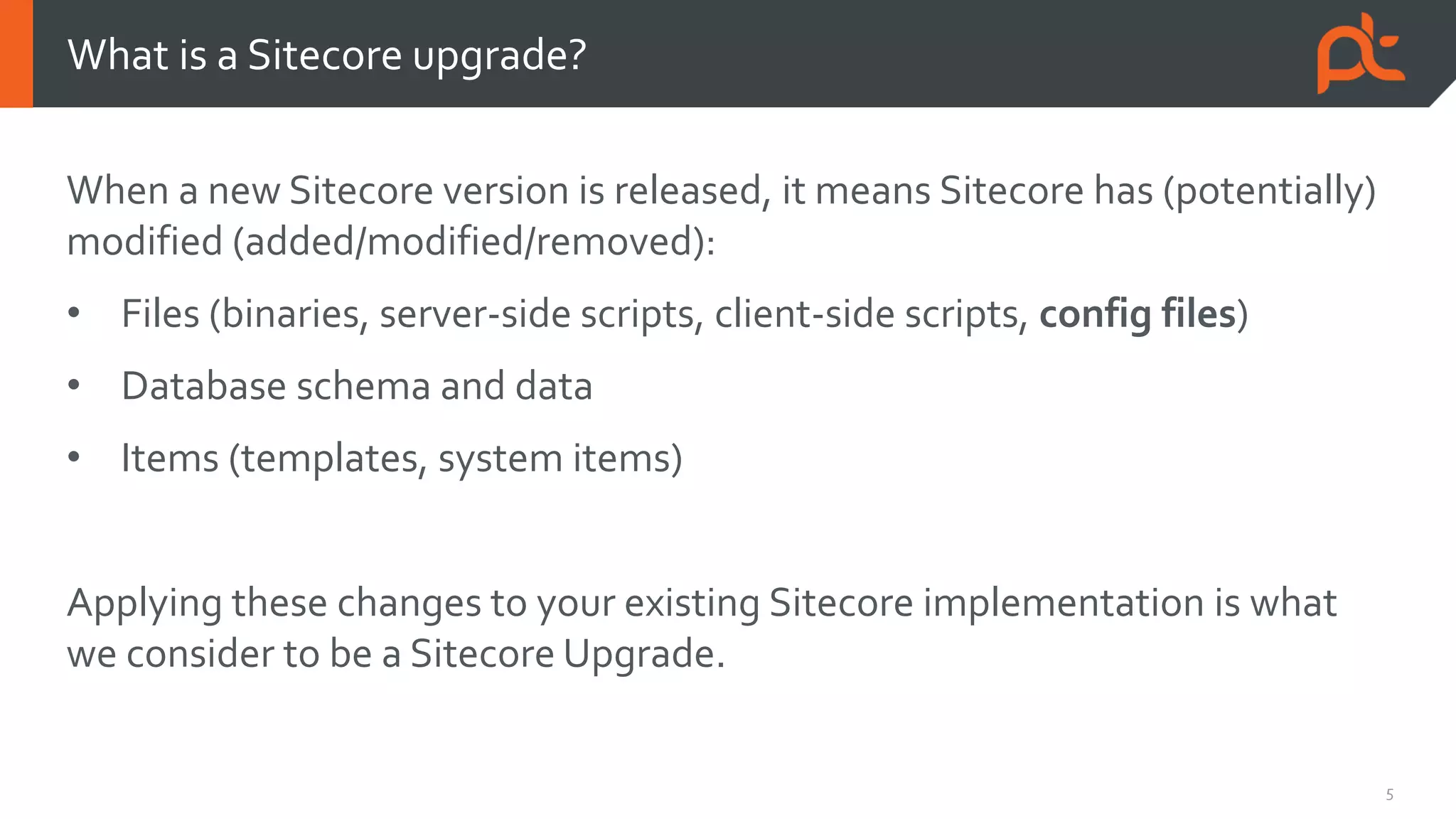

When a new Sitecore version is released, it means Sitecore has (potentially)
modified (added/modified/removed):
• Files (binaries, server-side scripts, client-side scripts, config files)
• Database schema and data
• Items (templates, system items)
Applying these changes to your existing Sitecore implementation is what
we consider to be a Sitecore Upgrade.
What is a Sitecore upgrade?

7

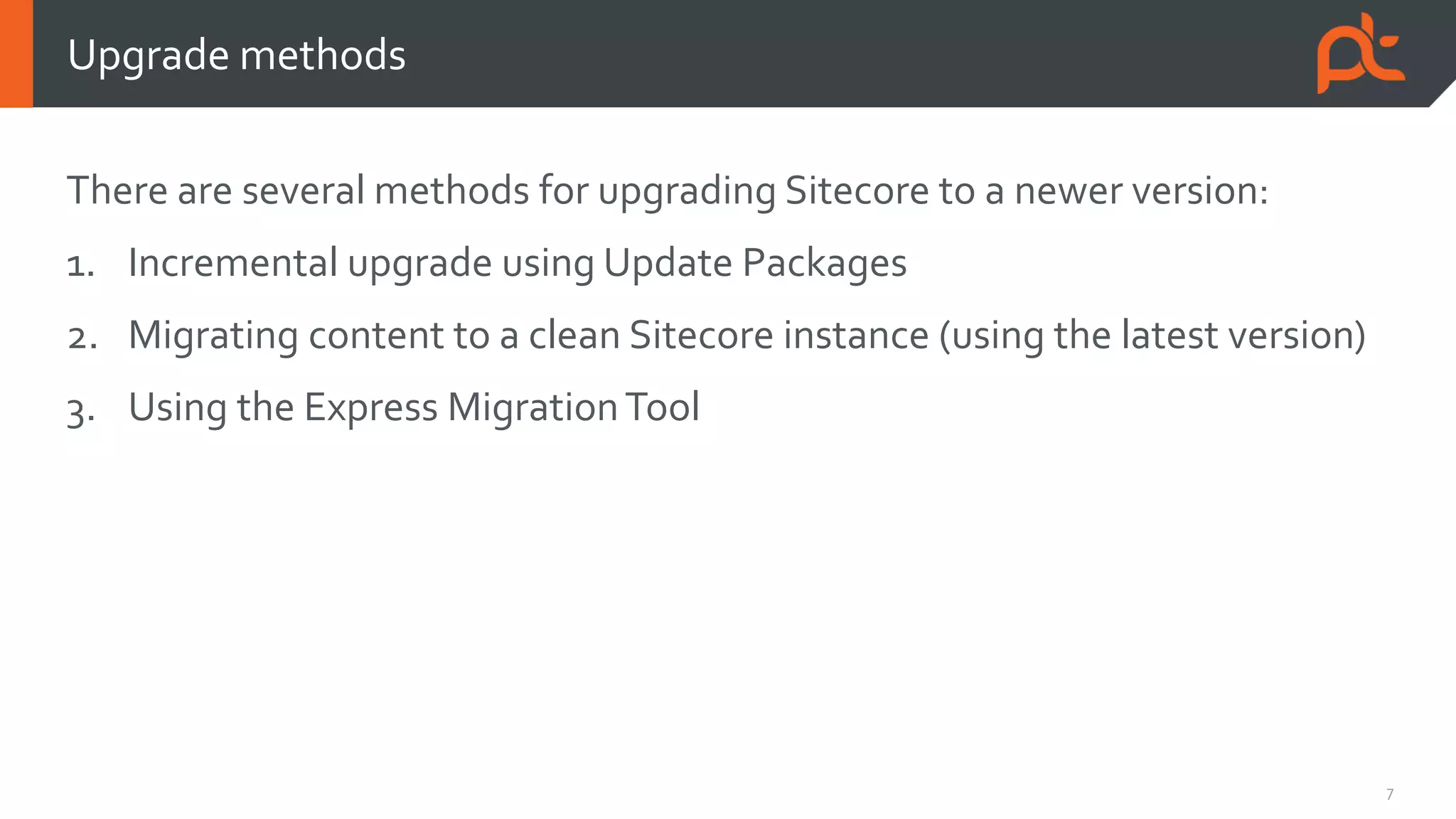

There are several methods for upgrading Sitecore to a newer version:
1. Incremental upgrade using Update Packages
2. Migrating content to a clean Sitecore instance (using the latest version)
3. Using the Express MigrationTool
Upgrade methods

8

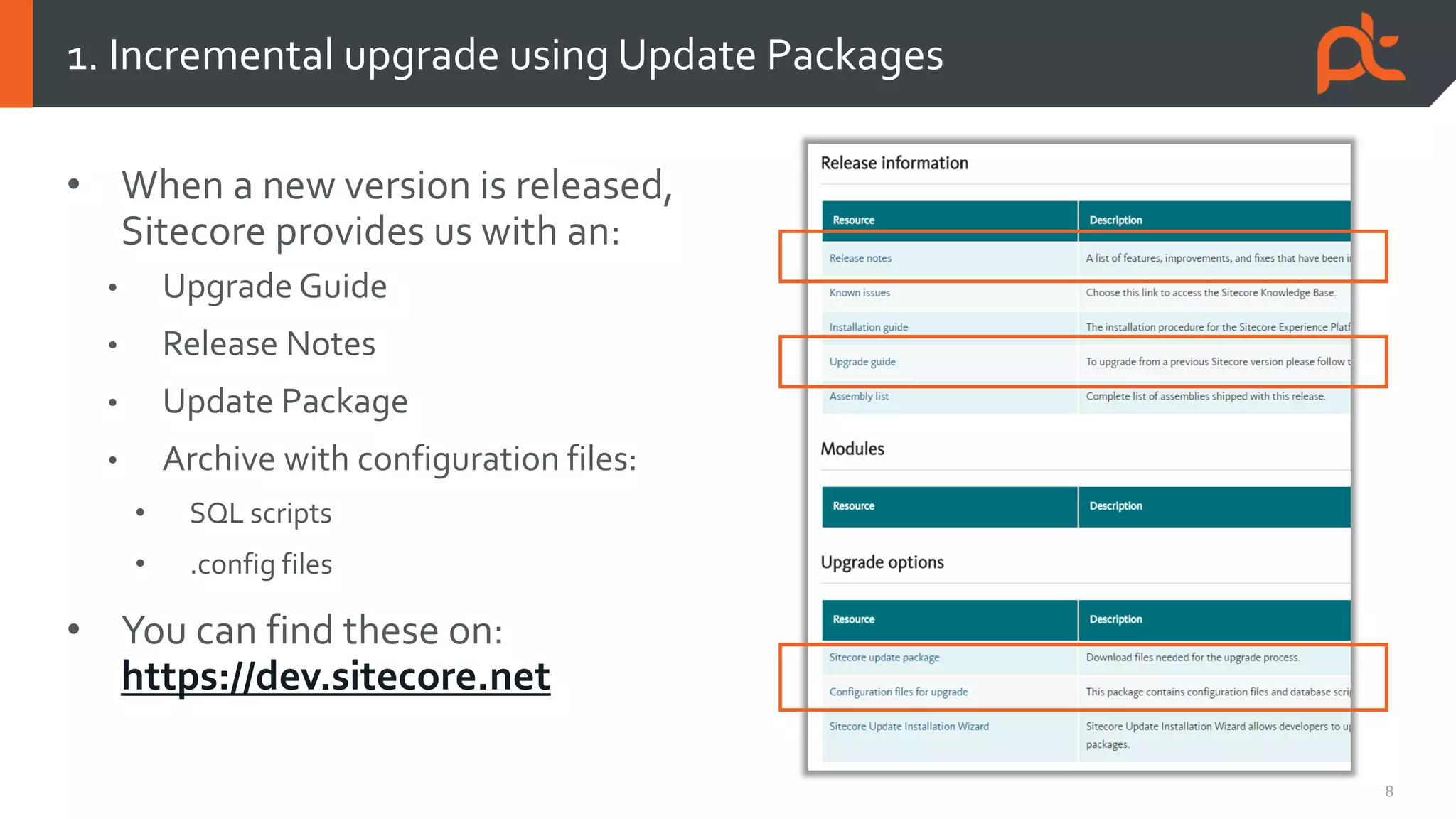

• When a new version is released,
Sitecore provides us with an:
• Upgrade Guide
• Release Notes
• Update Package
• Archive with configuration files:
• SQL scripts
• .config files
• You can find these on:
https://dev.sitecore.net

9

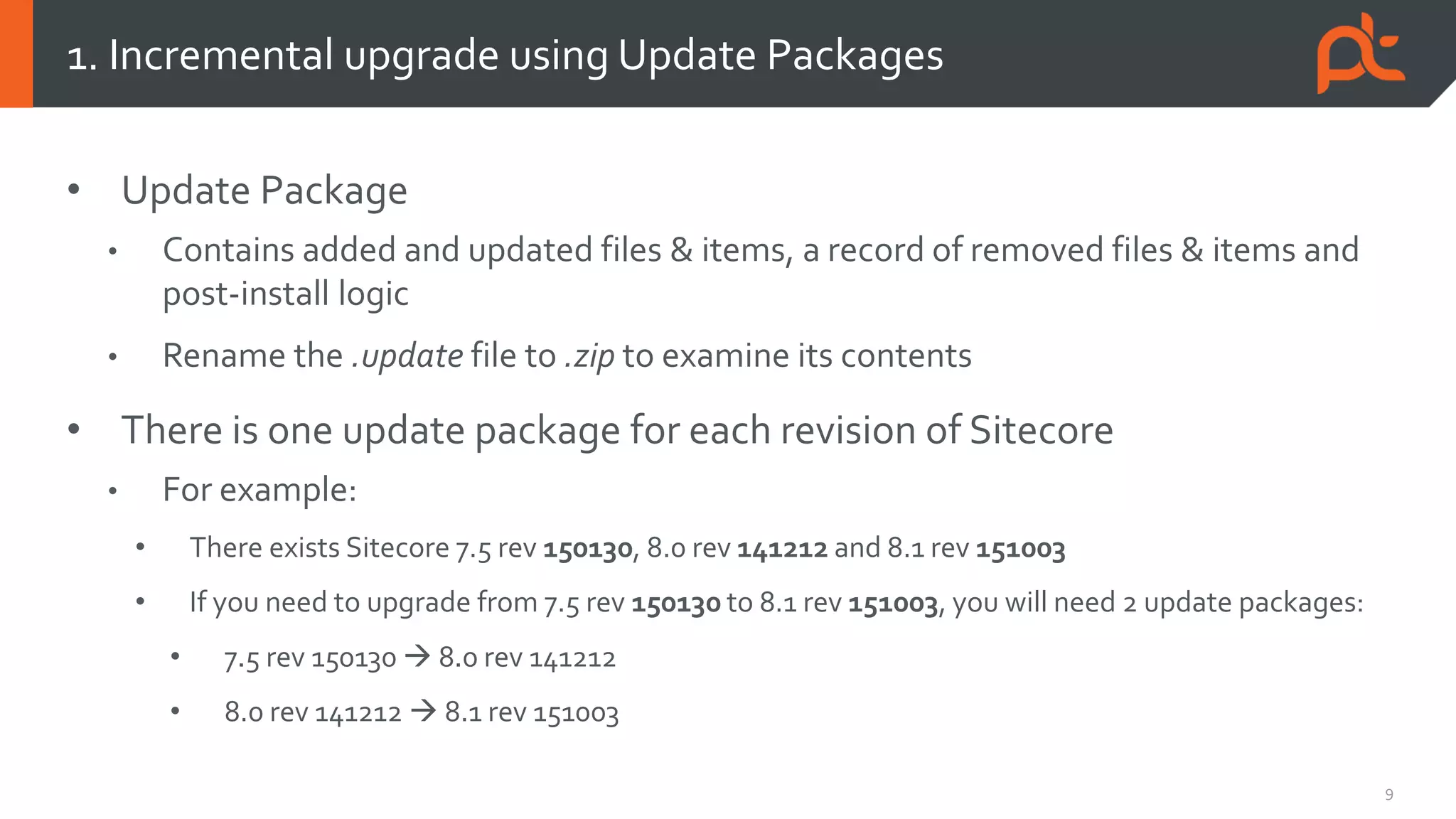

• Update Package
• Contains added and updated files & items, a record of removed files & items and
post-install logic
• Rename the .update file to .zip to examine its contents
• There is one update package for each revision of Sitecore
• For example:
• There exists Sitecore 7.5 rev 150130, 8.0 rev 141212 and 8.1 rev 151003
• If you need to upgrade from 7.5 rev 150130 to 8.1 rev 151003, you will need 2 update packages:
• 7.5 rev 150130  8.0 rev 141212
• 8.0 rev 141212  8.1 rev 151003

10

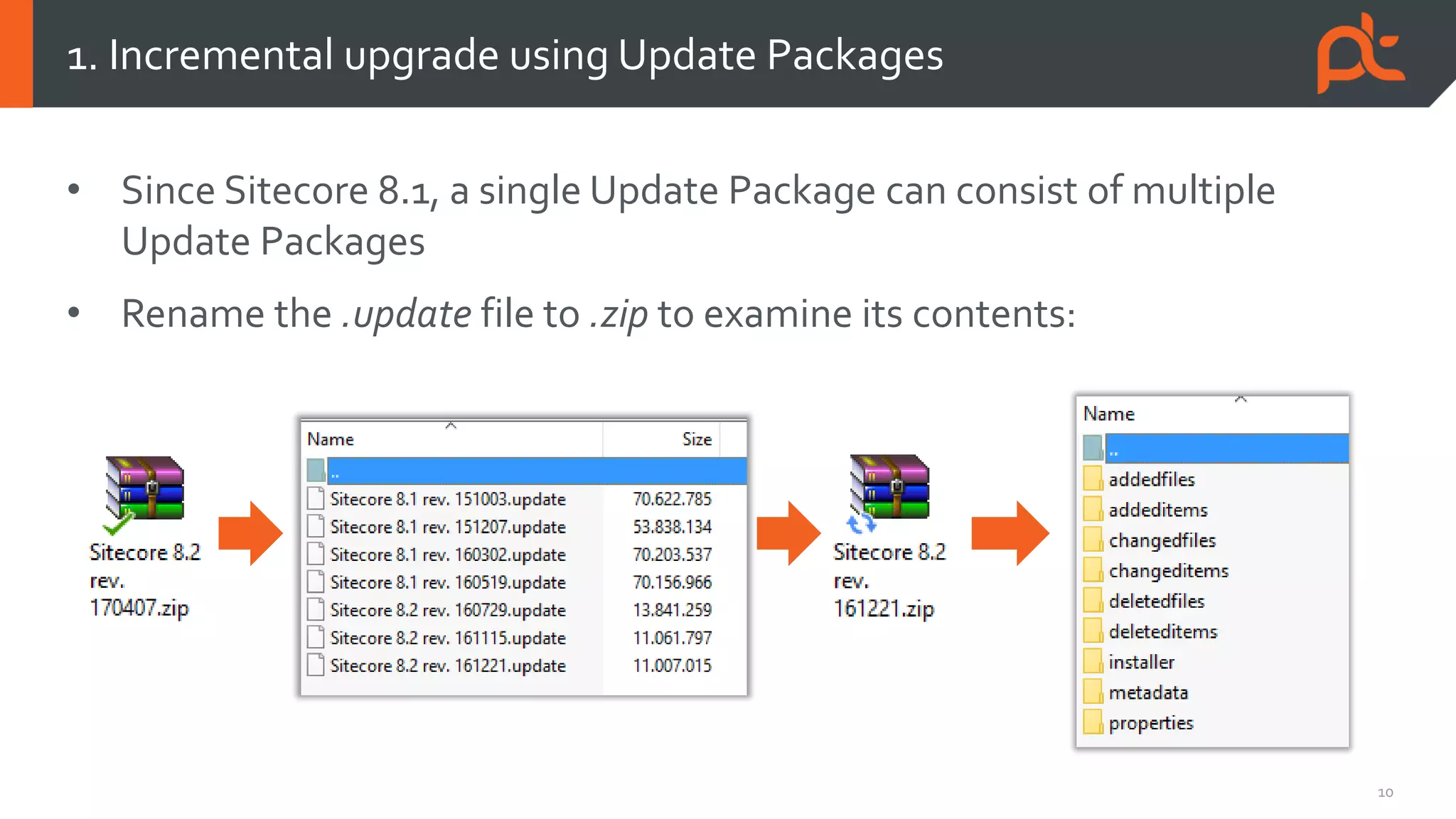

• Since Sitecore 8.1, a single Update Package can consist of multiple
Update Packages
• Rename the .update file to .zip to examine its contents:

11

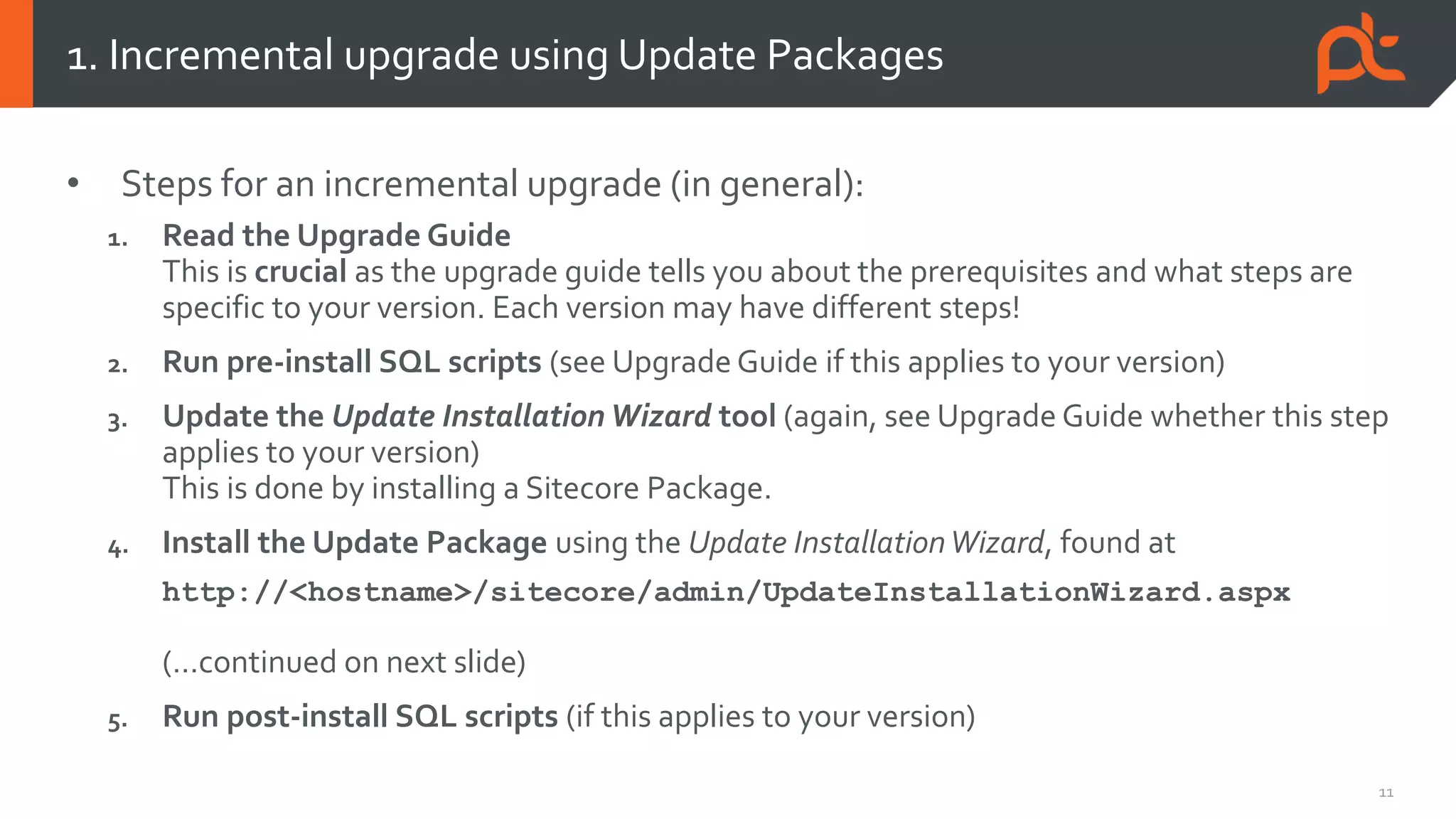

• Steps for an incremental upgrade (in general):
1. Read the Upgrade Guide
This is crucial as the upgrade guide tells you about the prerequisites and what steps are
specific to your version. Each version may have different steps!
2. Run pre-install SQL scripts (see Upgrade Guide if this applies to your version)
3. Update the Update Installation Wizard tool (again, see Upgrade Guide whether this step
applies to your version)
This is done by installing a Sitecore Package.
4. Install the Update Package using the Update InstallationWizard, found at
http://<hostname>/sitecore/admin/UpdateInstallationWizard.aspx
(…continued on next slide)
5. Run post-install SQL scripts (if this applies to your version)

12

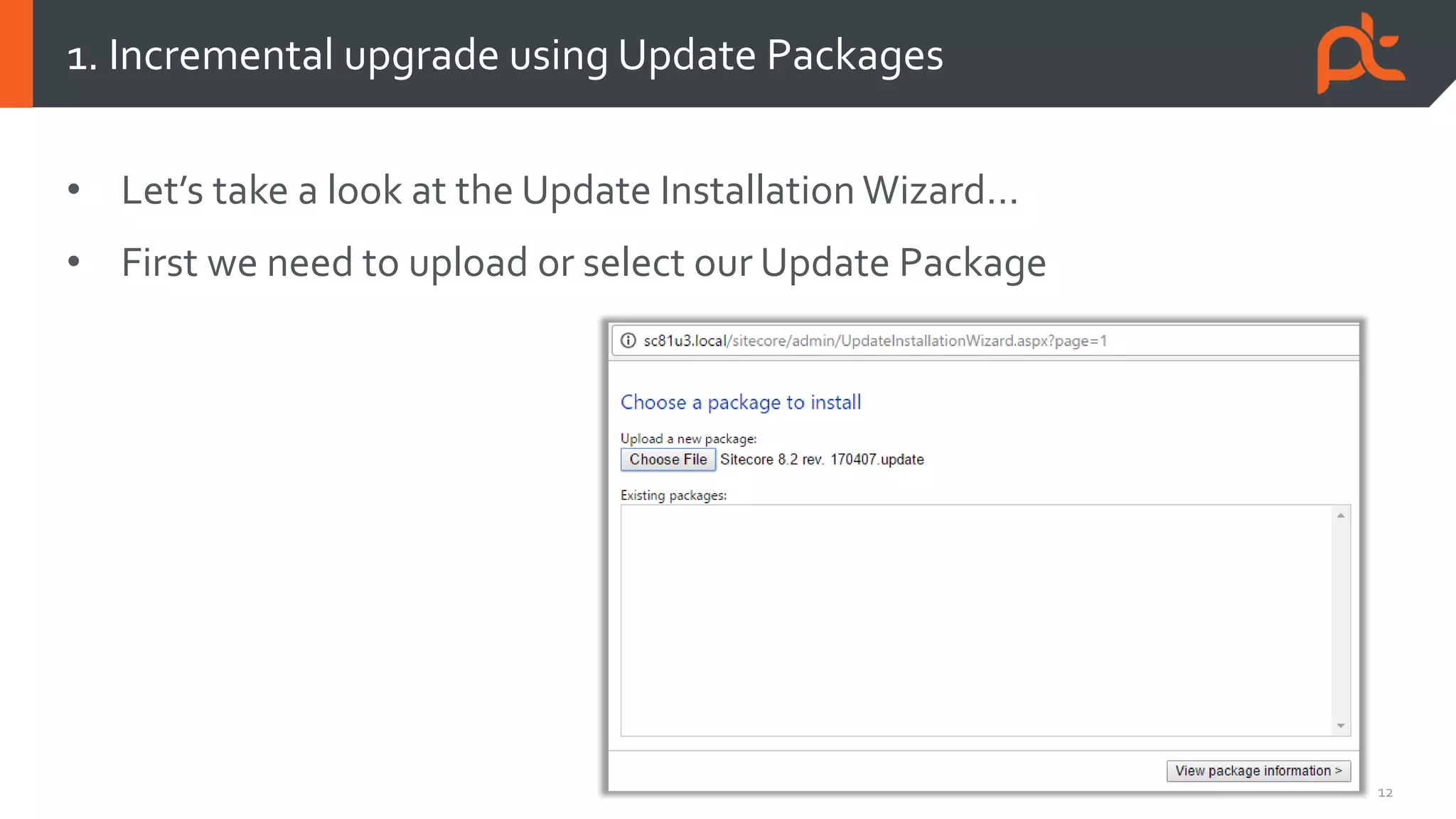

• Let’s take a look at the Update Installation Wizard…
• First we need to upload or select our Update Package

13

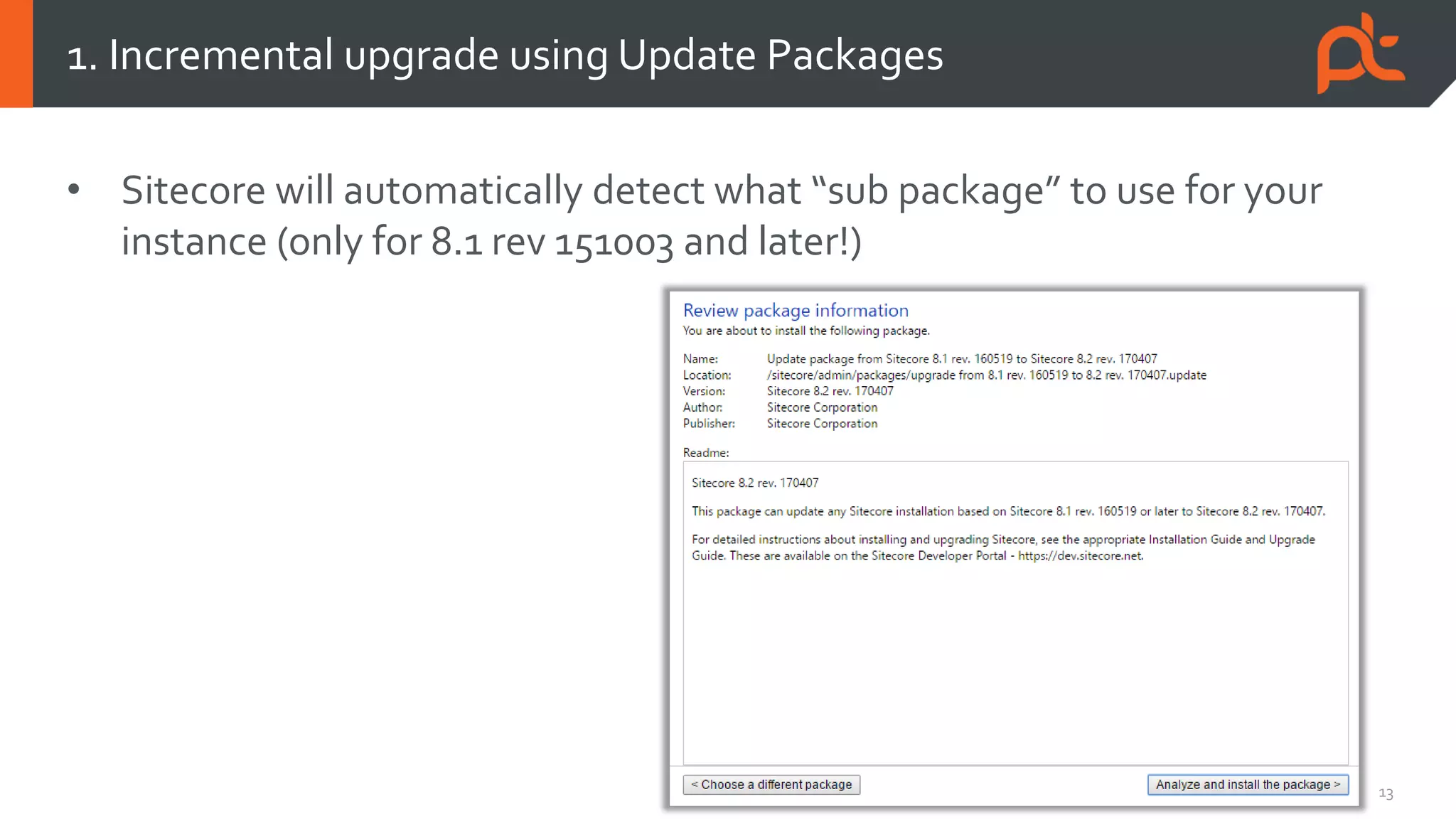

• Sitecore will automatically detect what “sub package” to use for your
instance (only for 8.1 rev 151003 and later!)

14

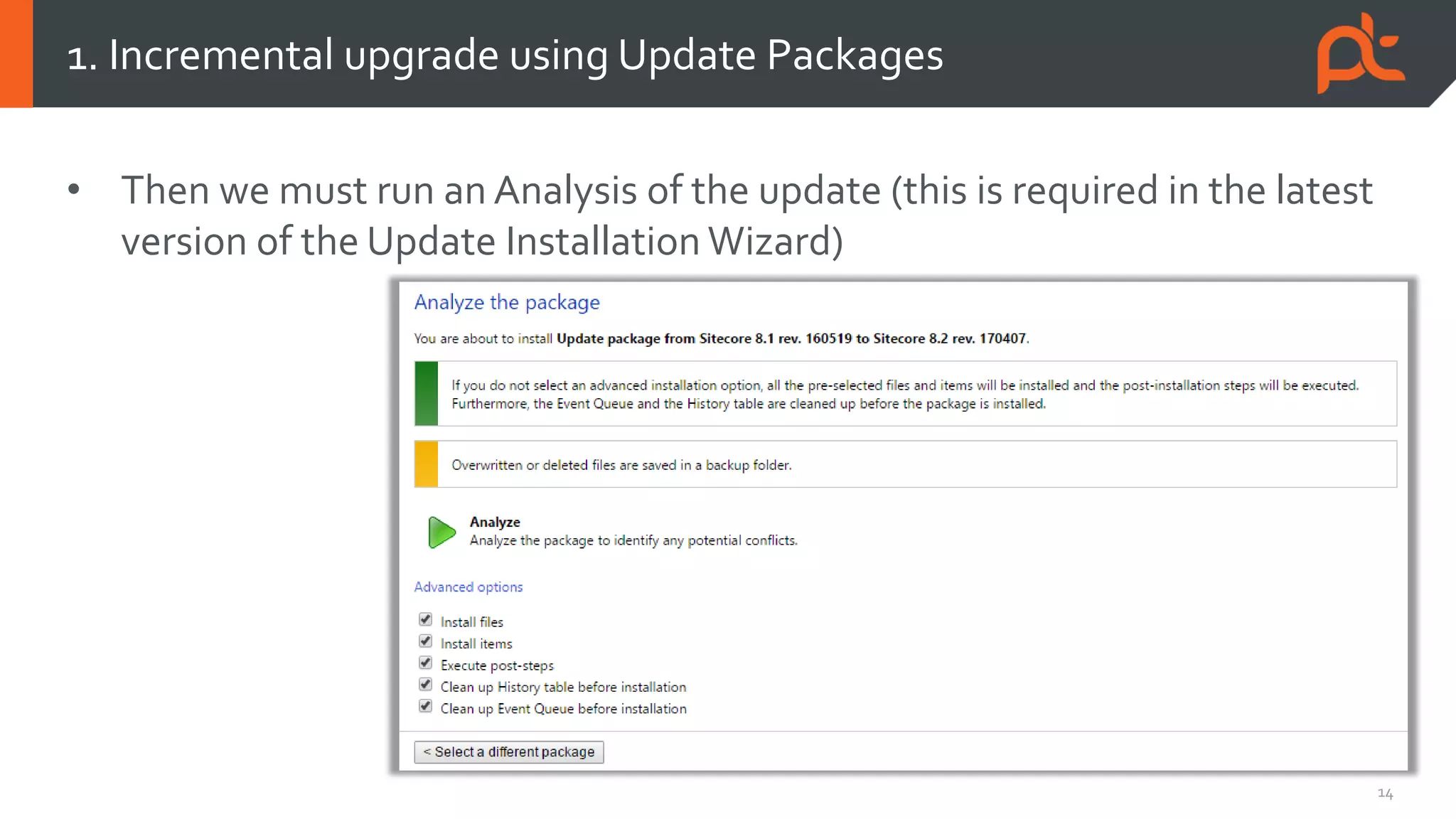

• Then we must run an Analysis of the update (this is required in the latest
version of the Update Installation Wizard)

15

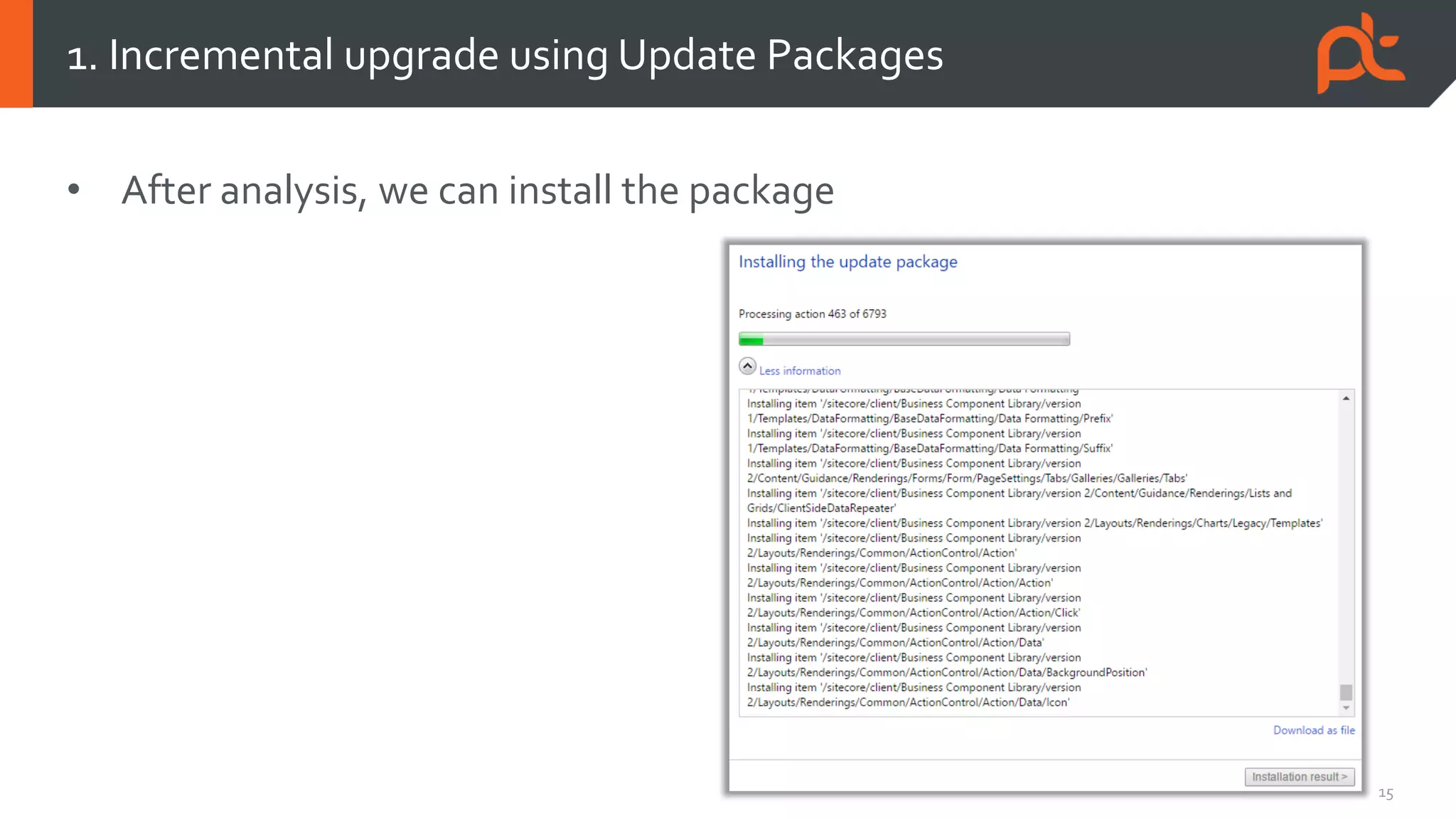

• After analysis, we can install the package

16

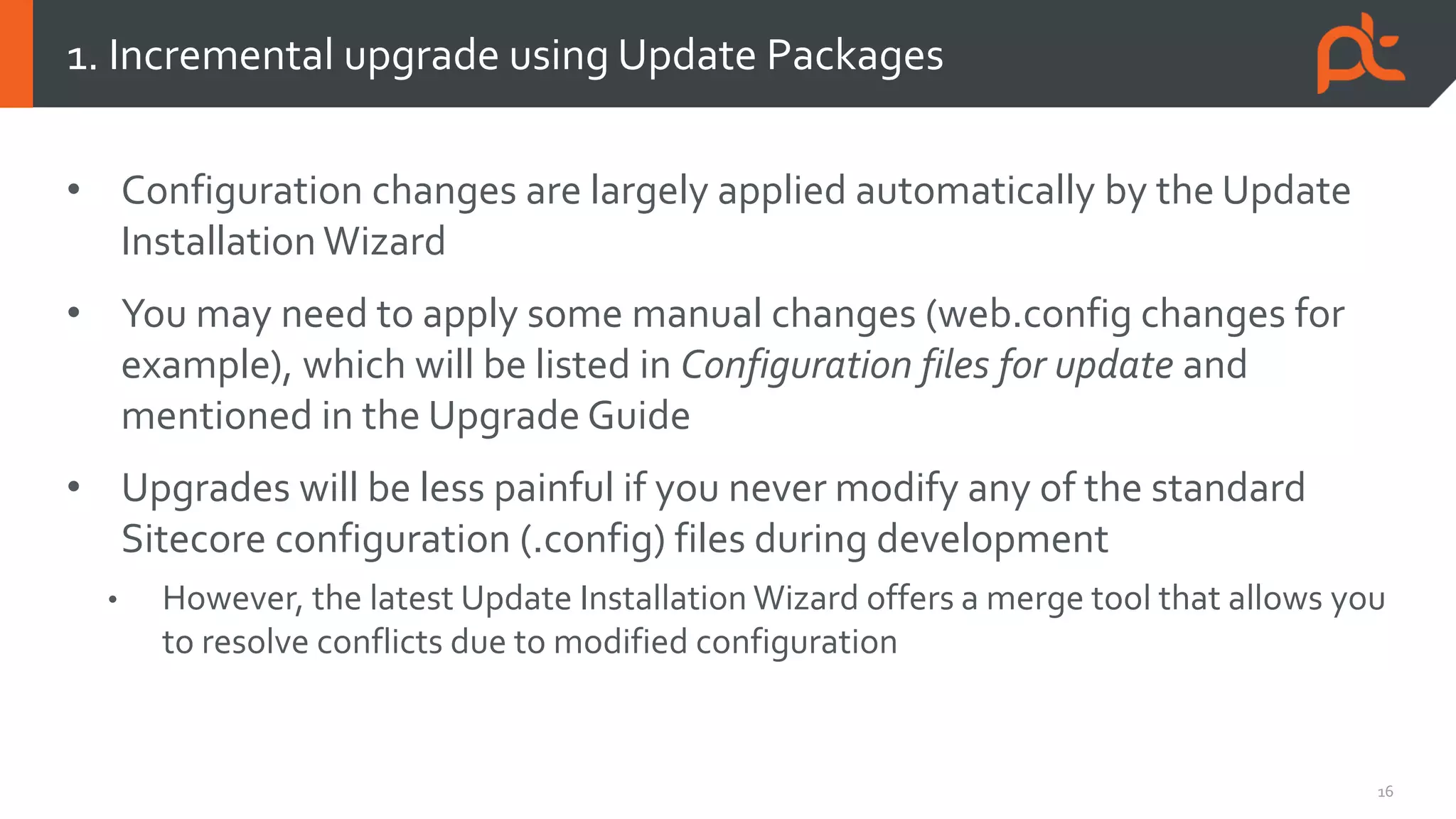

• Configuration changes are largely applied automatically by the Update
Installation Wizard
• You may need to apply some manual changes (web.config changes for
example), which will be listed in Configuration files for update and
mentioned in the Upgrade Guide
• Upgrades will be less painful if you never modify any of the standard
Sitecore configuration (.config) files during development

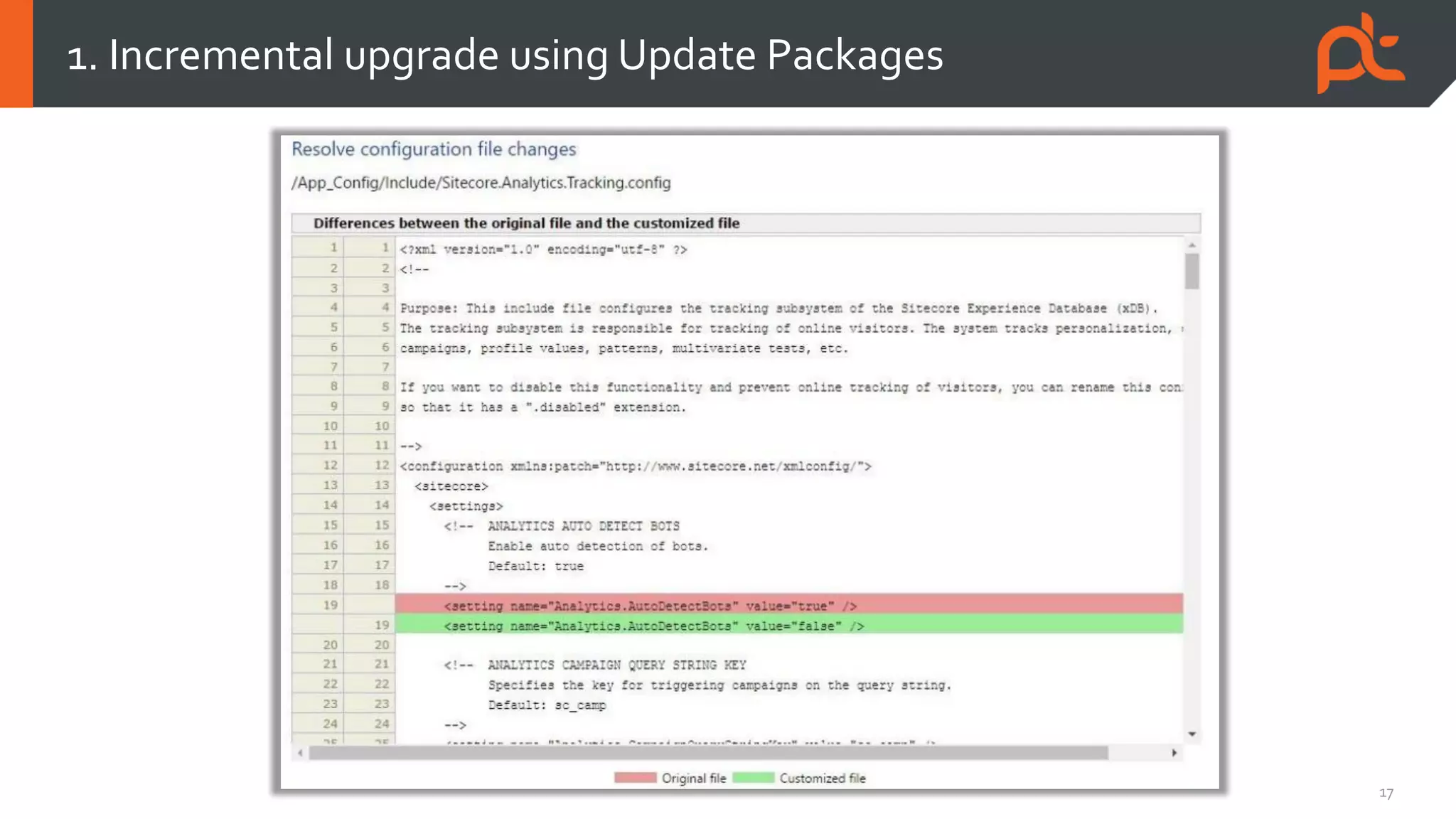

• However, the latest Update Installation Wizard offers a merge tool that allows you
to resolve conflicts due to modified configuration

17

18

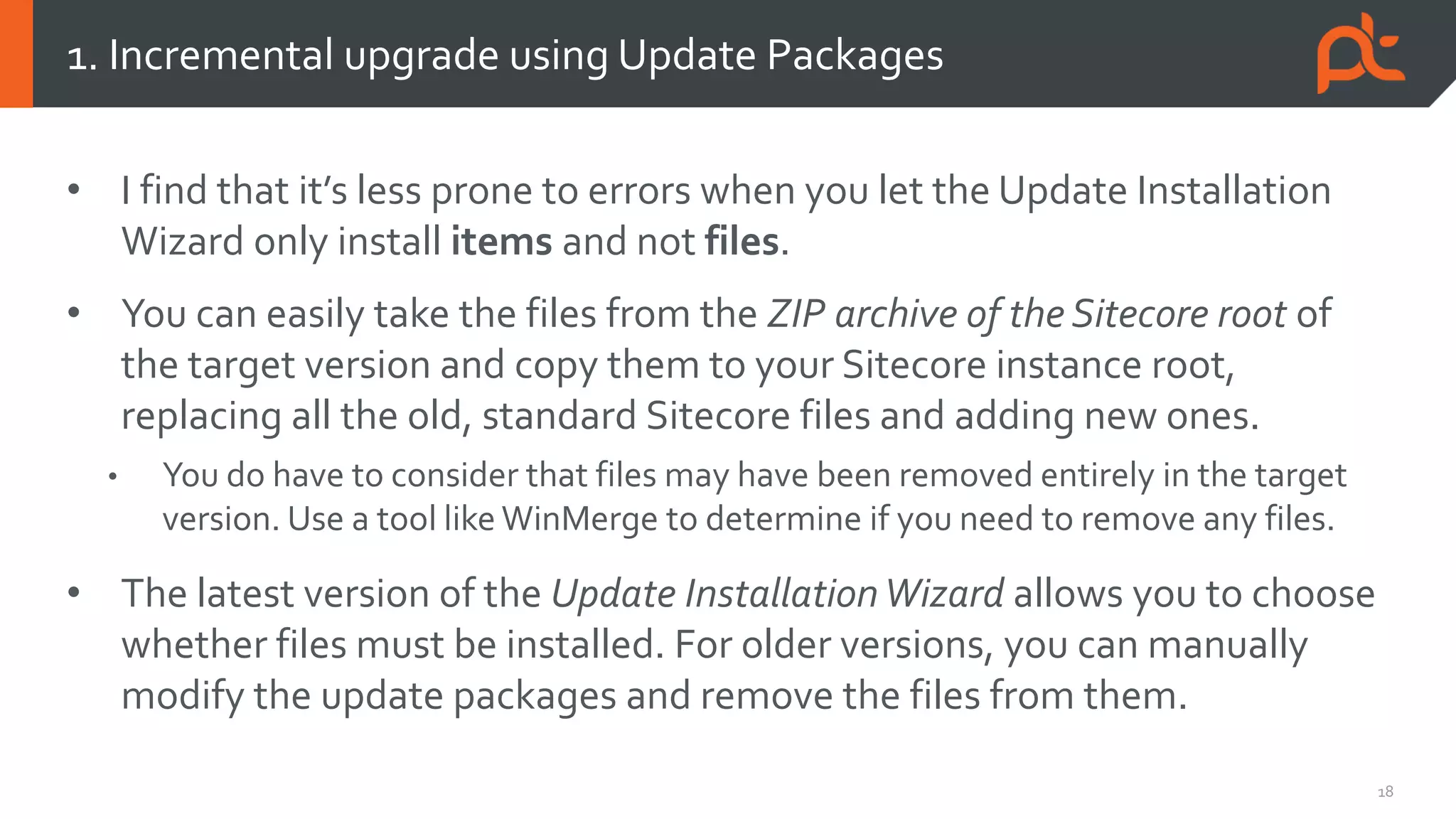

• I find that it’s less prone to errors when you let the Update Installation
Wizard only install items and not files.
• You can easily take the files from the ZIP archive of the Sitecore root of
the target version and copy them to your Sitecore instance root,
replacing all the old, standard Sitecore files and adding new ones.
• You do have to consider that files may have been removed entirely in the target
version. Use a tool like WinMerge to determine if you need to remove any files.
• The latest version of the Update InstallationWizard allows you to choose
whether files must be installed. For older versions, you can manually
modify the update packages and remove the files from them.

19

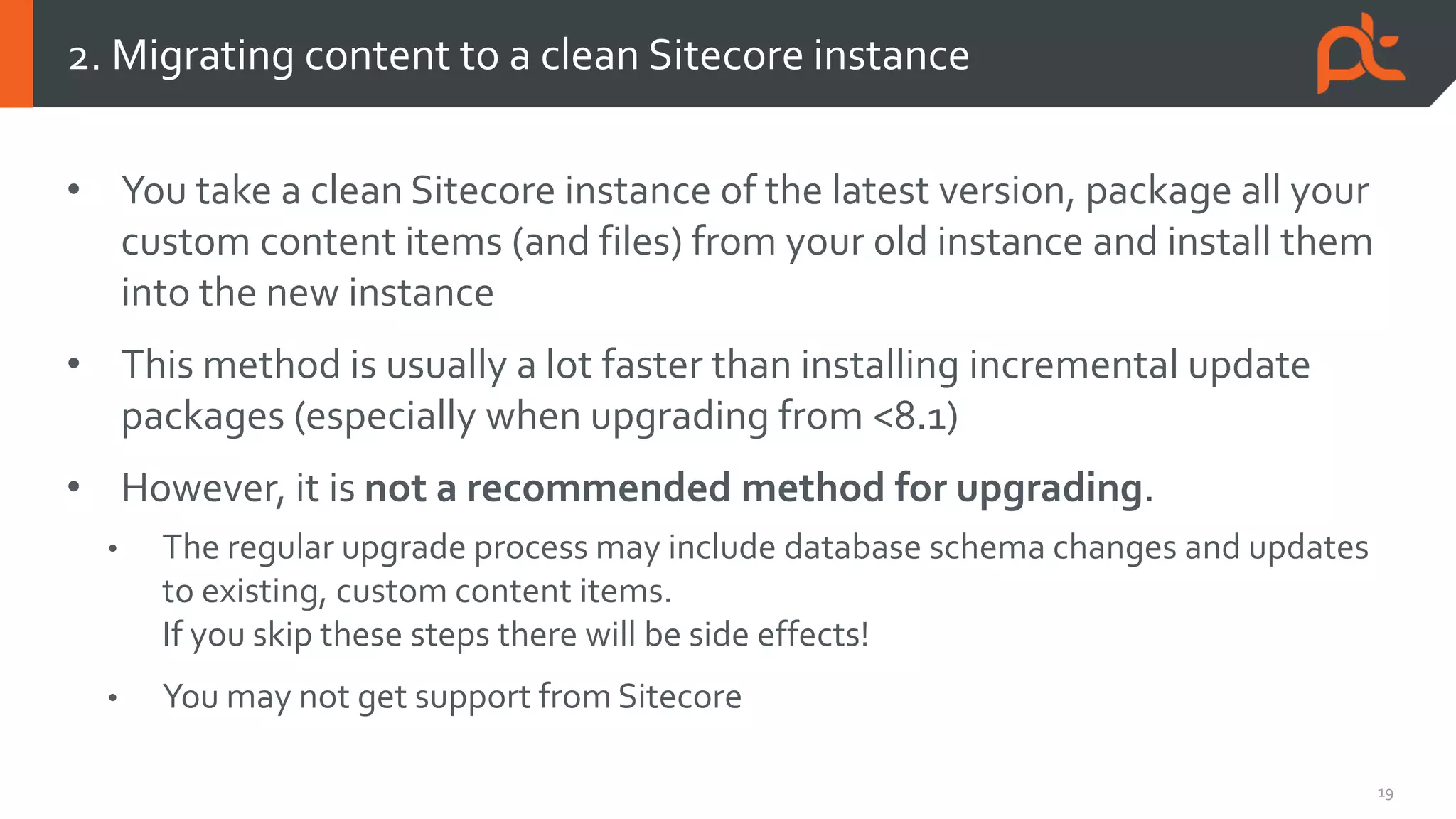

• You take a clean Sitecore instance of the latest version, package all your
custom content items (and files) from your old instance and install them
into the new instance
• This method is usually a lot faster than installing incremental update
packages (especially when upgrading from <8.1)
• However, it is not a recommended method for upgrading.
• The regular upgrade process may include database schema changes and updates
to existing, custom content items.
If you skip these steps there will be side effects!
• You may not get support from Sitecore
2. Migrating content to a clean Sitecore instance

21

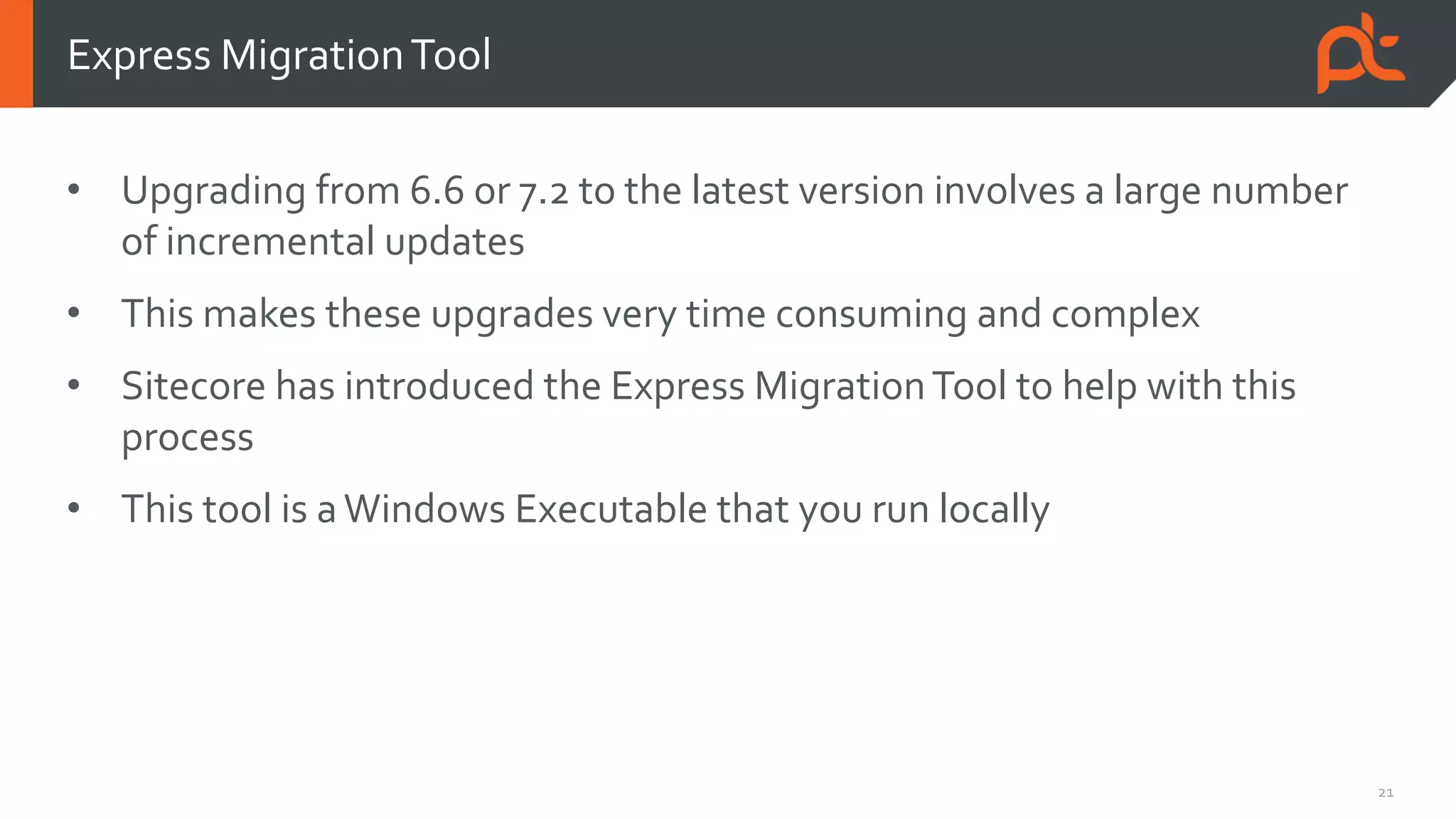

• Upgrading from 6.6 or 7.2 to the latest version involves a large number
of incremental updates
• This makes these upgrades very time consuming and complex
• Sitecore has introduced the Express MigrationTool to help with this
process
• This tool is aWindows Executable that you run locally
Express MigrationTool

22

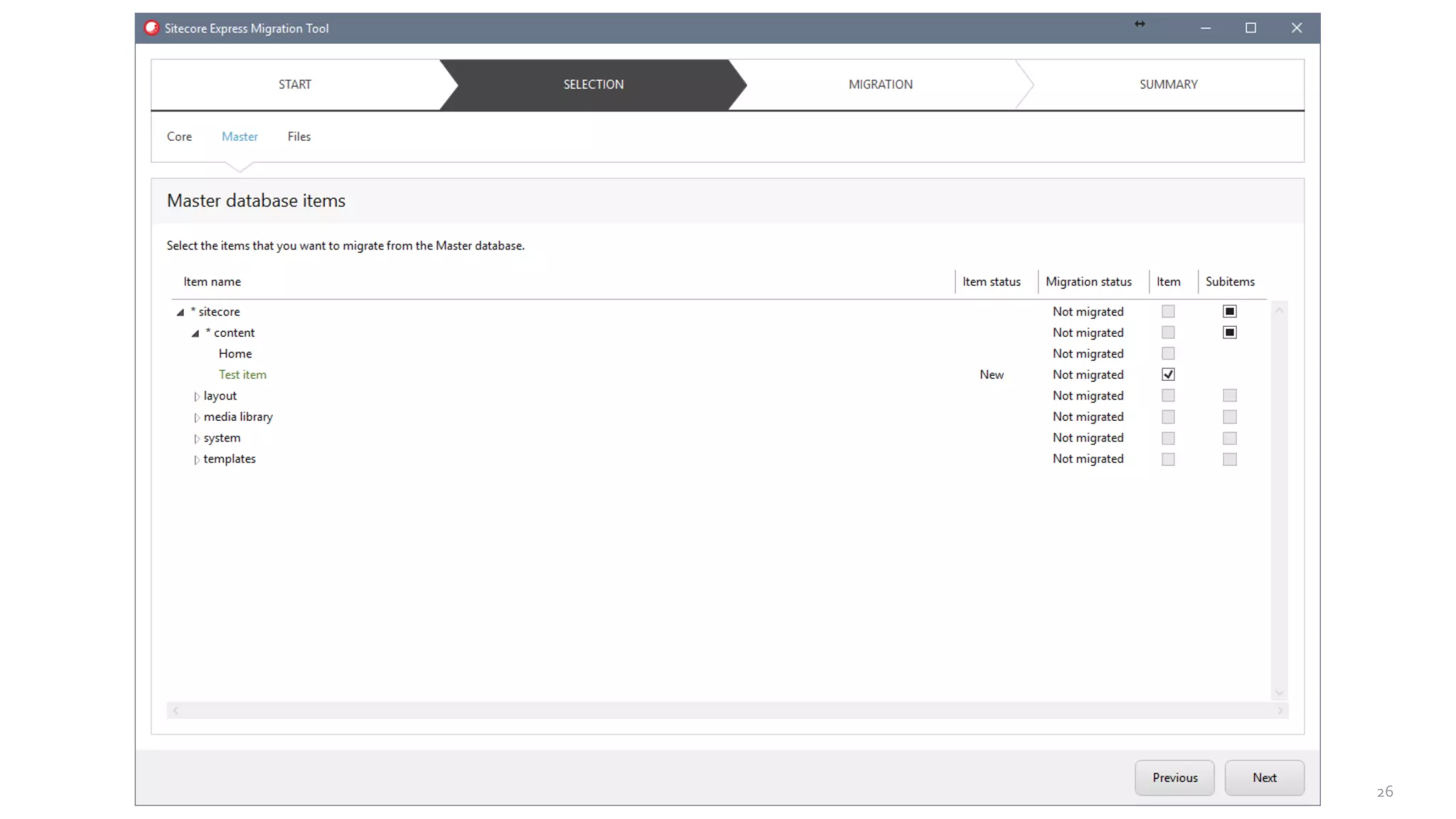

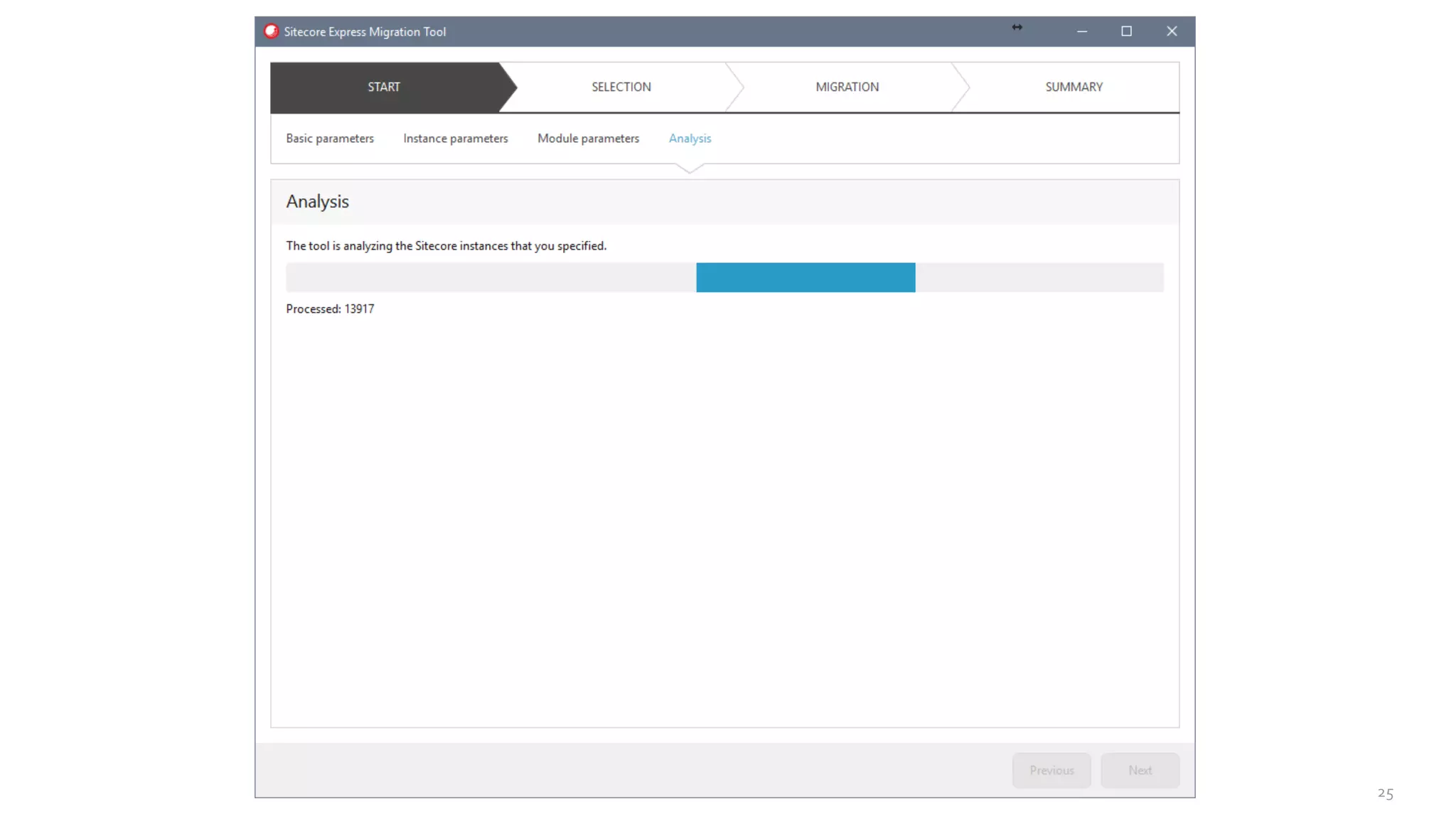

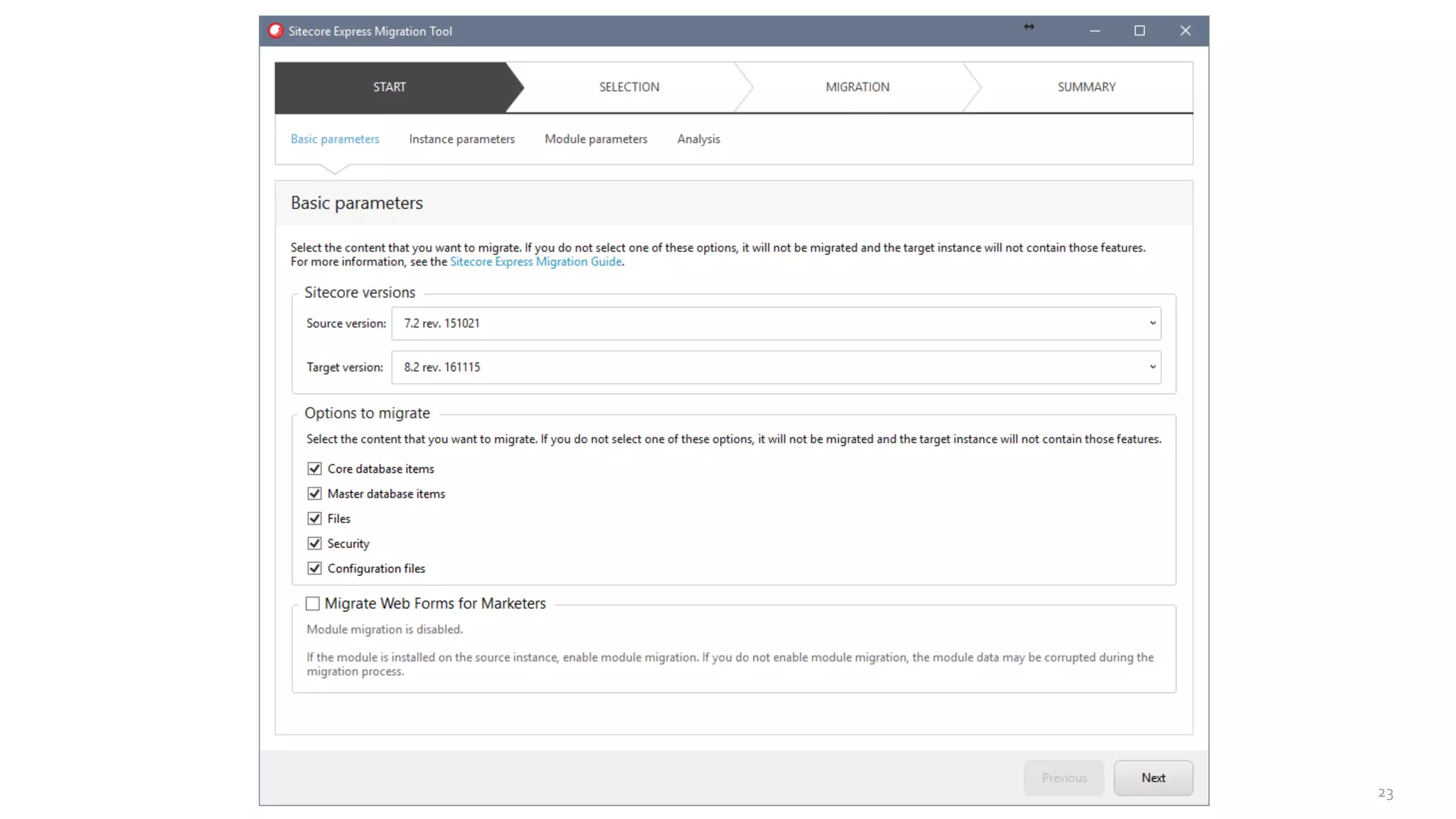

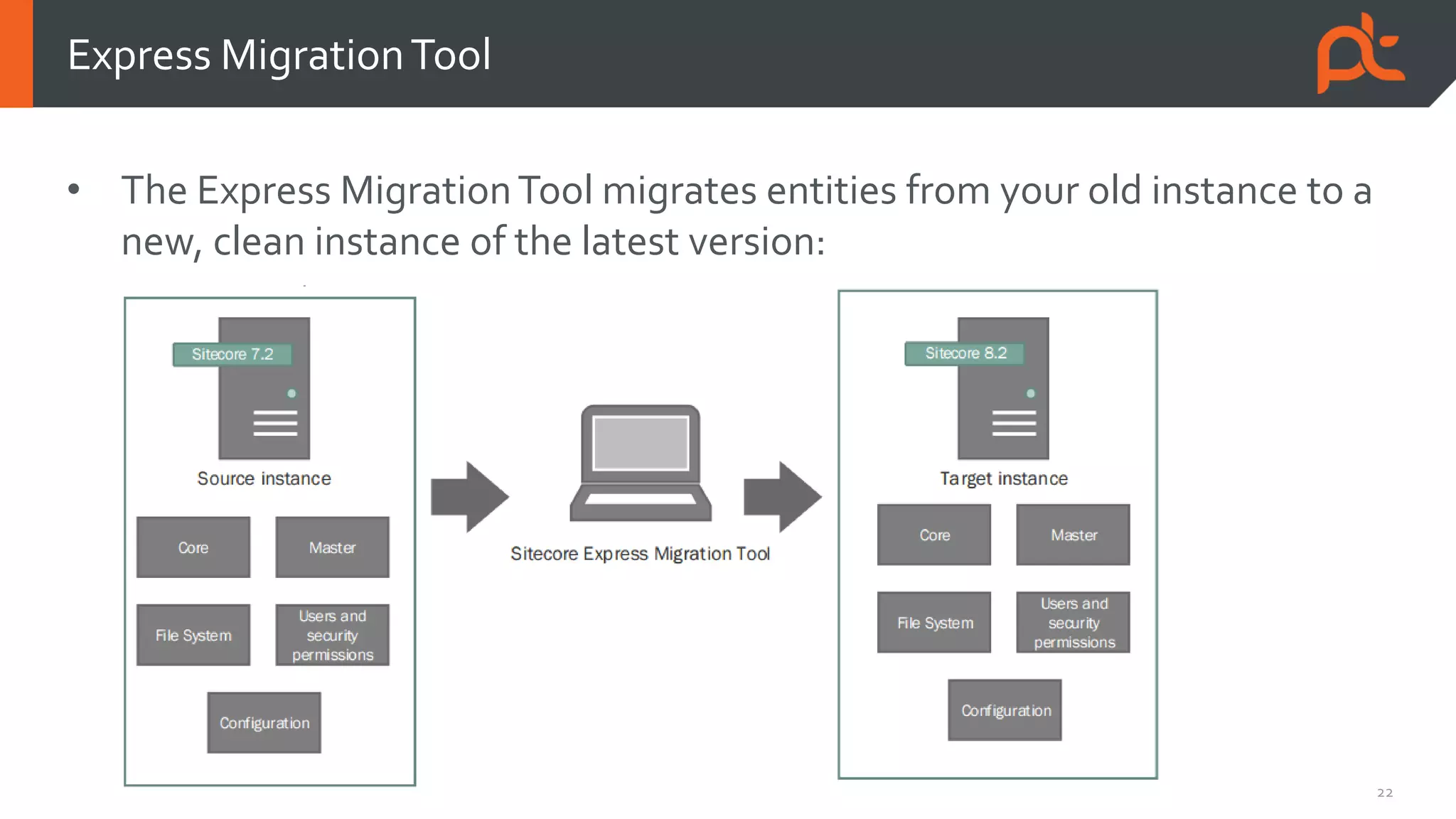

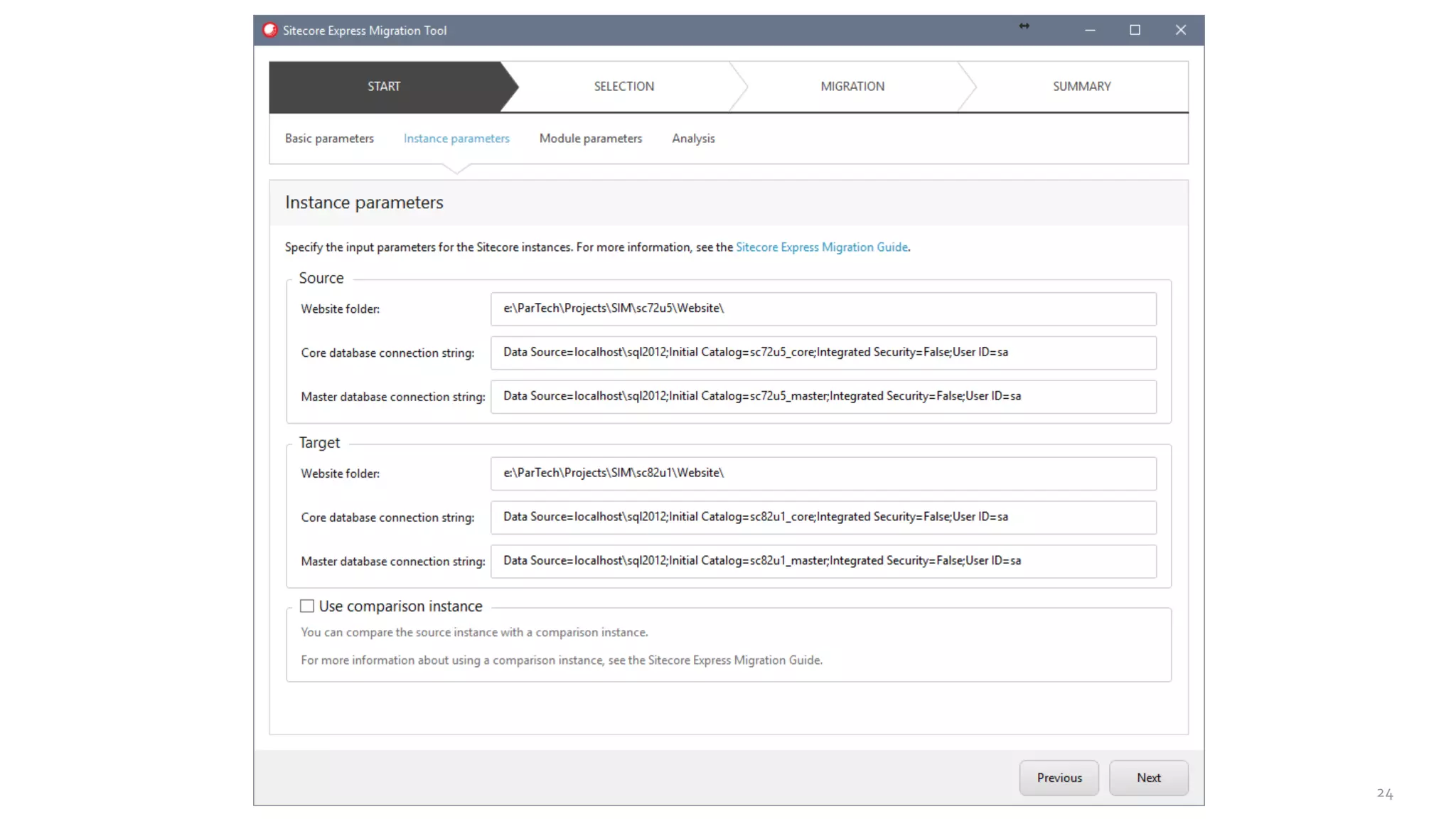

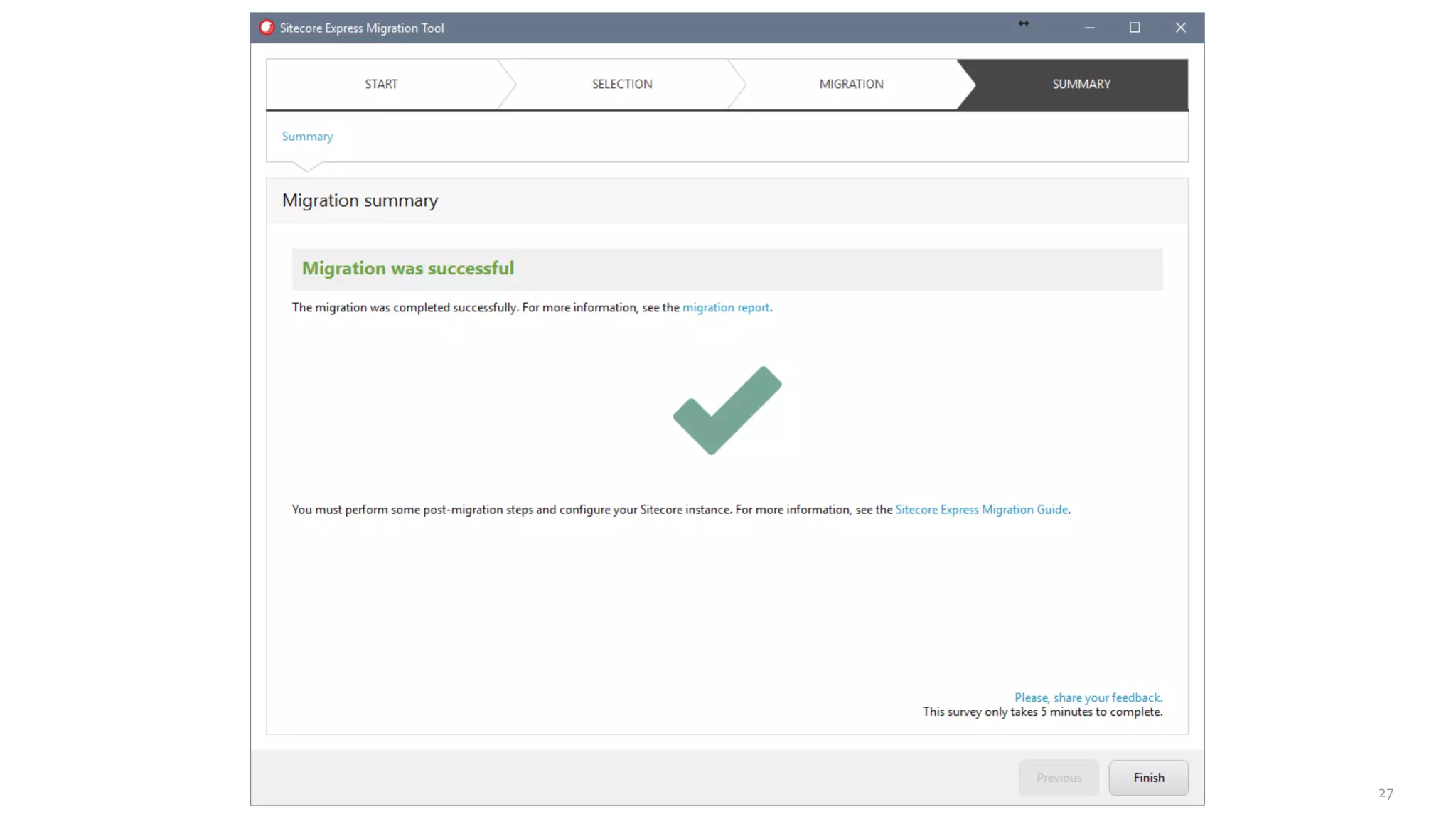

• The Express MigrationTool migrates entities from your old instance to a
new, clean instance of the latest version:

28

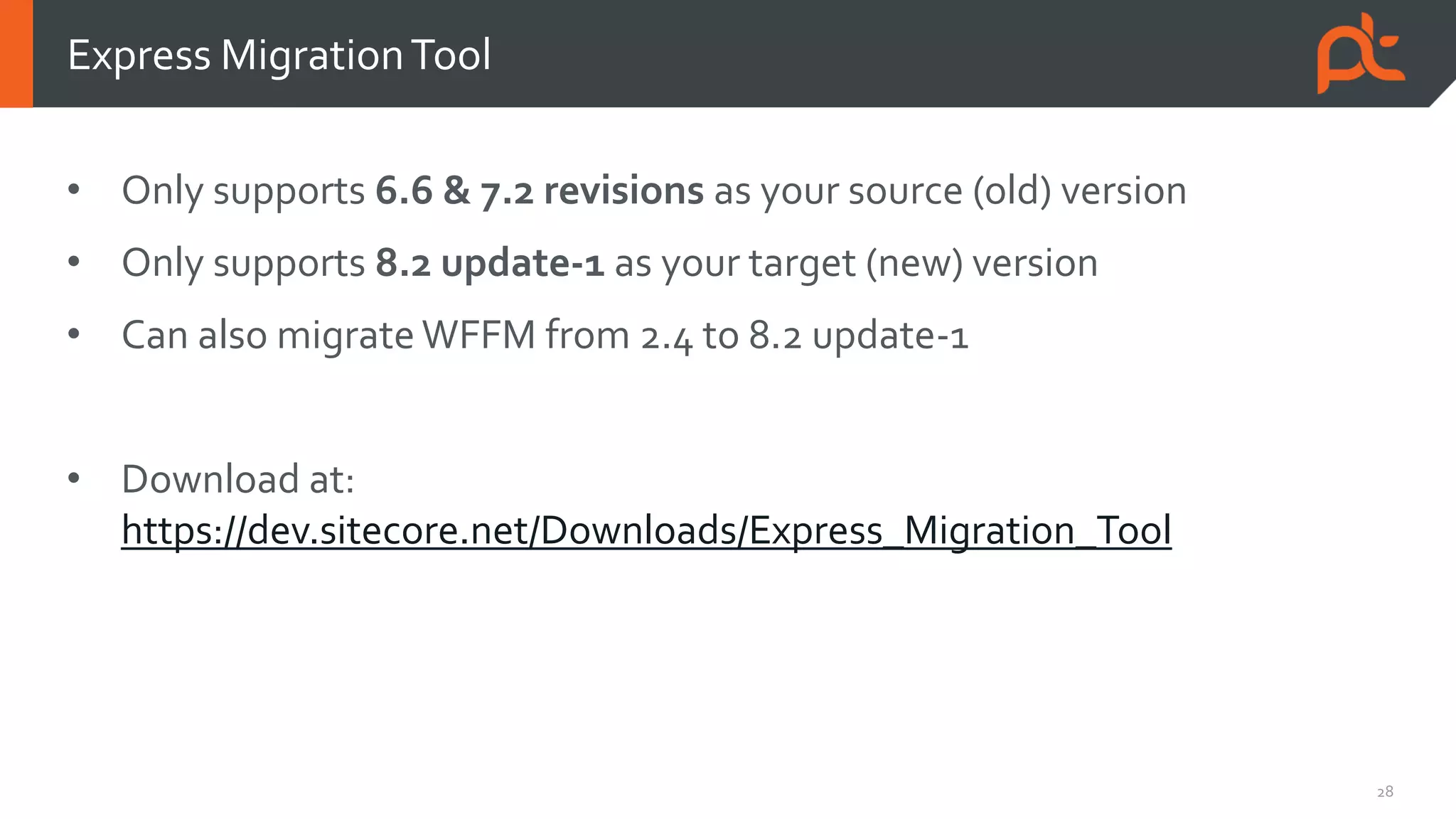

• Only supports 6.6 & 7.2 revisions as your source (old) version
• Only supports 8.2 update-1 as your target (new) version
• Can also migrate WFFM from 2.4 to 8.2 update-1
• Download at:
https://dev.sitecore.net/Downloads/Express_Migration_Tool

30

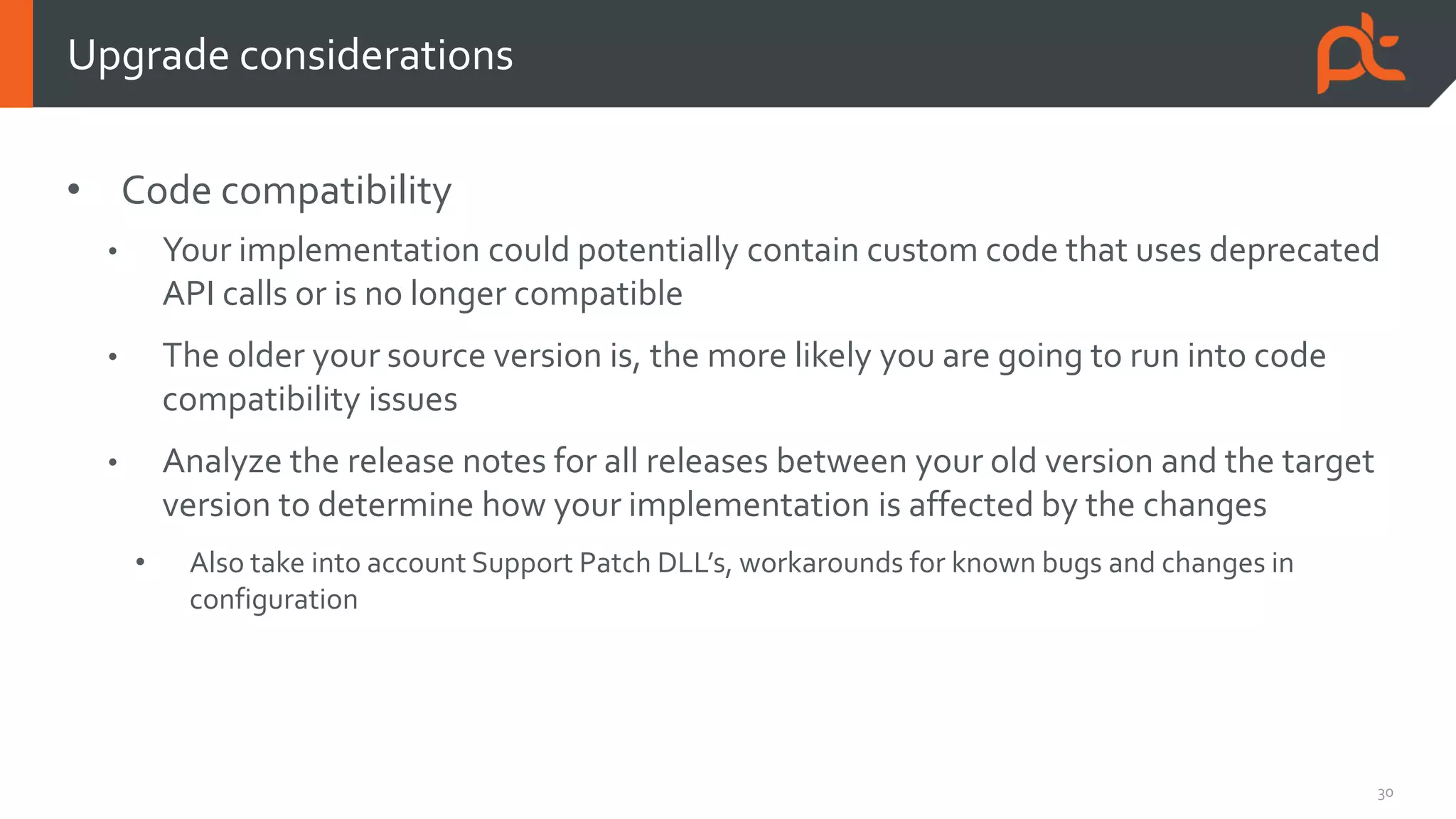

• Code compatibility
• Your implementation could potentially contain custom code that uses deprecated
API calls or is no longer compatible
• The older your source version is, the more likely you are going to run into code
compatibility issues
• Analyze the release notes for all releases between your old version and the target
version to determine how your implementation is affected by the changes
• Also take into account Support Patch DLL’s, workarounds for known bugs and changes in
configuration
Upgrade considerations

31

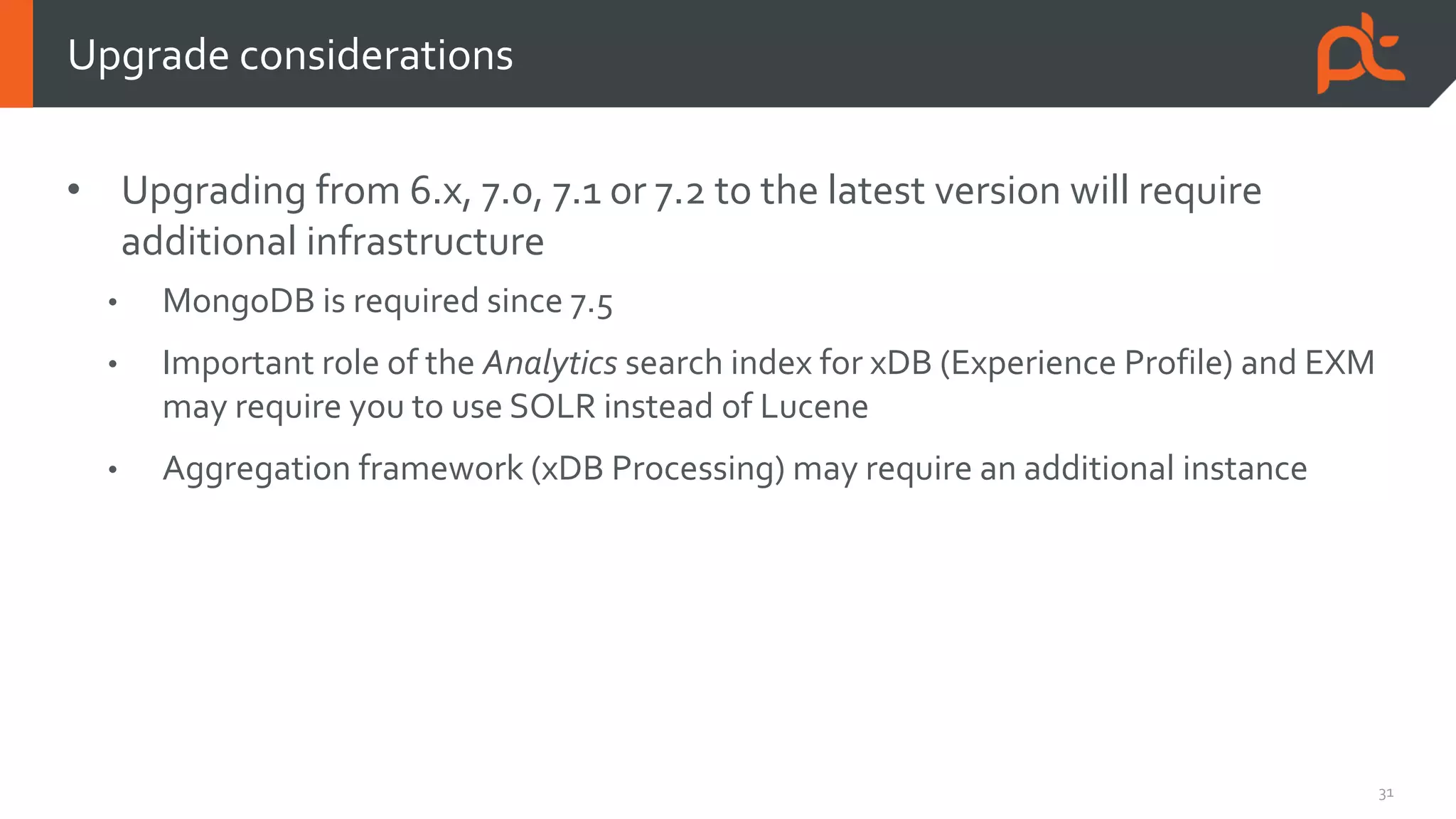

• Upgrading from 6.x, 7.0, 7.1 or 7.2 to the latest version will require
additional infrastructure
• MongoDB is required since 7.5
• Important role of the Analytics search index for xDB (Experience Profile) and EXM
may require you to use SOLR instead of Lucene
• Aggregation framework (xDB Processing) may require an additional instance

32

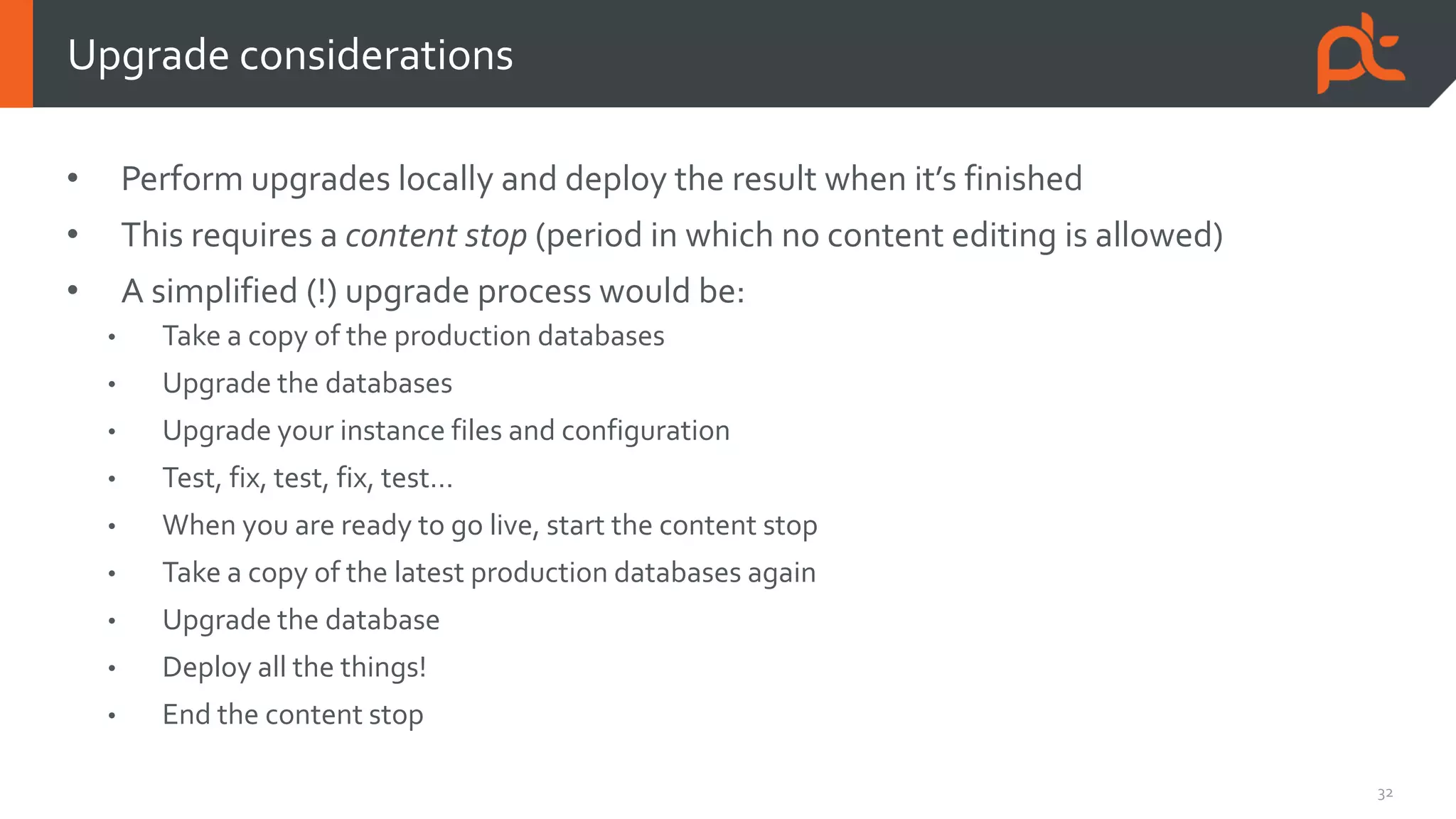

• Perform upgrades locally and deploy the result when it’s finished
• This requires a content stop (period in which no content editing is allowed)
• A simplified (!) upgrade process would be:
• Take a copy of the production databases
• Upgrade the databases
• Upgrade your instance files and configuration
• Test, fix, test, fix, test…
• When you are ready to go live, start the content stop
• Take a copy of the latest production databases again
• Upgrade the database
• Deploy all the things!
• End the content stop

33

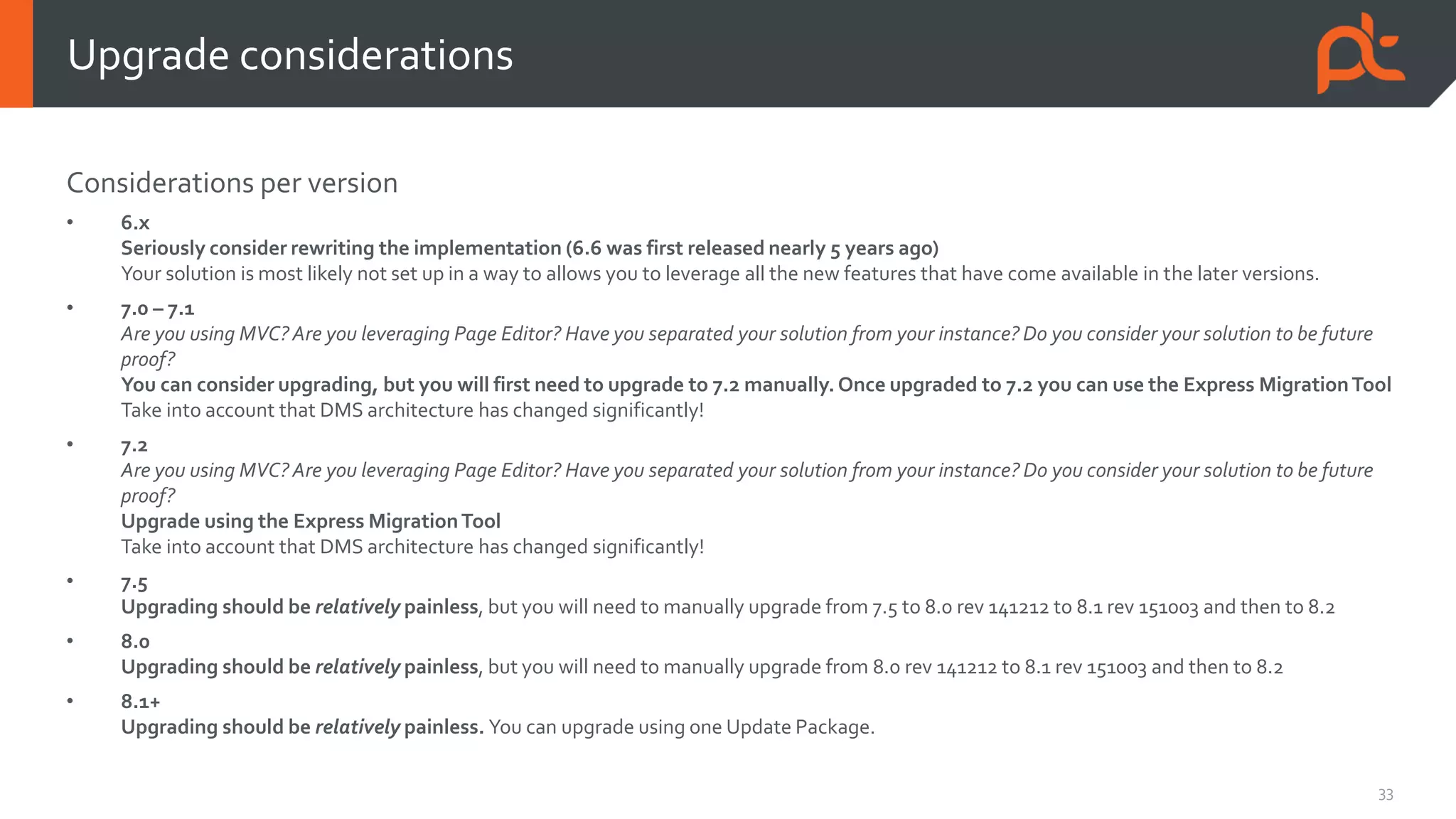

Considerations per version
• 6.x
Seriously consider rewriting the implementation (6.6 was first released nearly 5 years ago)
Your solution is most likely not set up in a way to allows you to leverage all the new features that have come available in the later versions.
• 7.0 – 7.1
Are you using MVC?Are you leveraging Page Editor? Have you separated your solution from your instance? Do you consider your solution to be future
proof?
You can consider upgrading, but you will first need to upgrade to 7.2 manually. Once upgraded to 7.2 you can use the Express MigrationTool
Take into account that DMS architecture has changed significantly!
• 7.2
Are you using MVC?Are you leveraging Page Editor? Have you separated your solution from your instance? Do you consider your solution to be future
proof?
Upgrade using the Express MigrationTool
Take into account that DMS architecture has changed significantly!
• 7.5
Upgrading should be relatively painless, but you will need to manually upgrade from 7.5 to 8.0 rev 141212 to 8.1 rev 151003 and then to 8.2
• 8.0
Upgrading should be relatively painless, but you will need to manually upgrade from 8.0 rev 141212 to 8.1 rev 151003 and then to 8.2
• 8.1+
Upgrading should be relatively painless. You can upgrade using one Update Package.

34

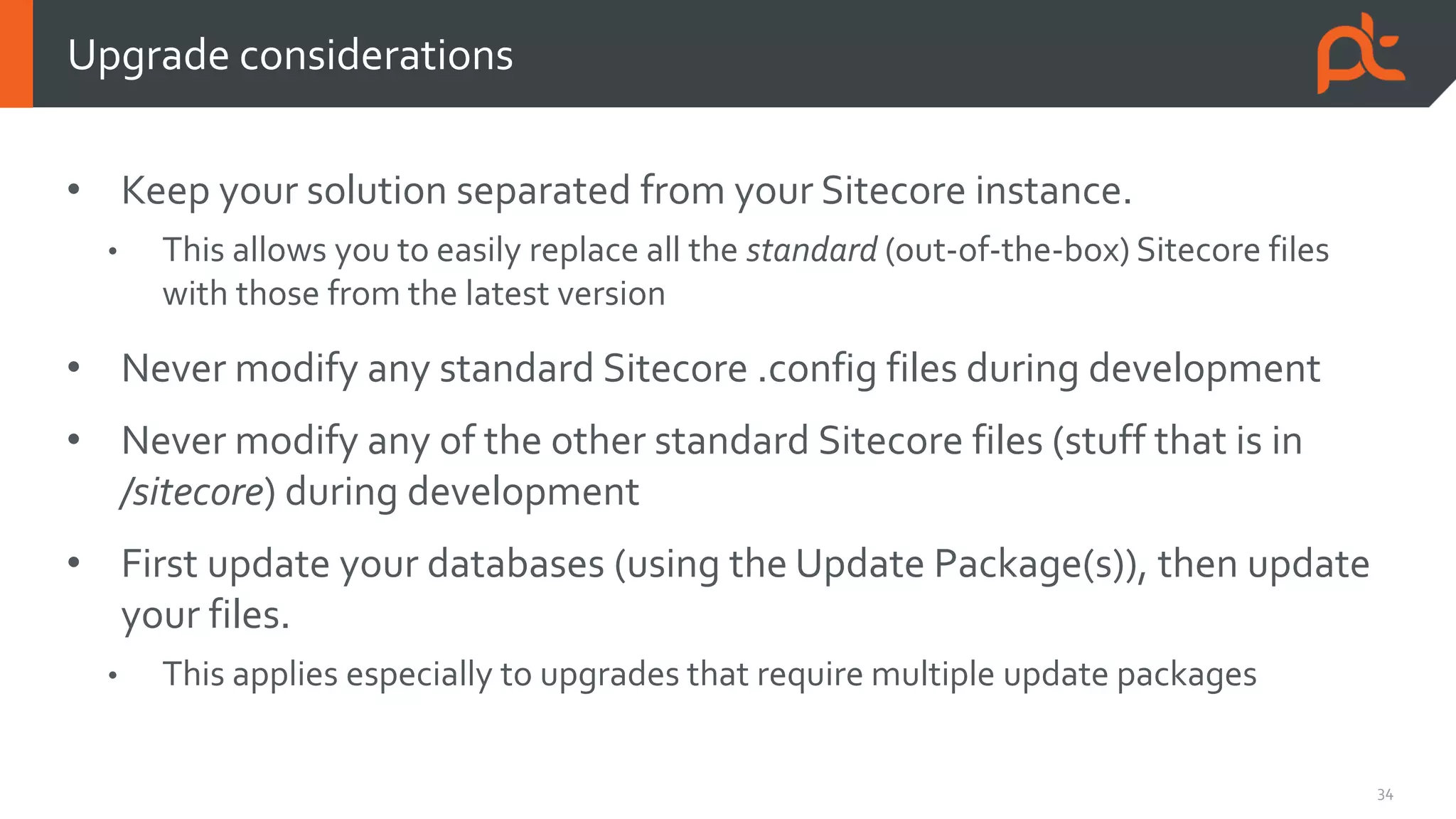

• Keep your solution separated from your Sitecore instance.
• This allows you to easily replace all the standard (out-of-the-box) Sitecore files
with those from the latest version
• Never modify any standard Sitecore .config files during development
• Never modify any of the other standard Sitecore files (stuff that is in
/sitecore) during development
• First update your databases (using the Update Package(s)), then update
your files.
• This applies especially to upgrades that require multiple update packages

35

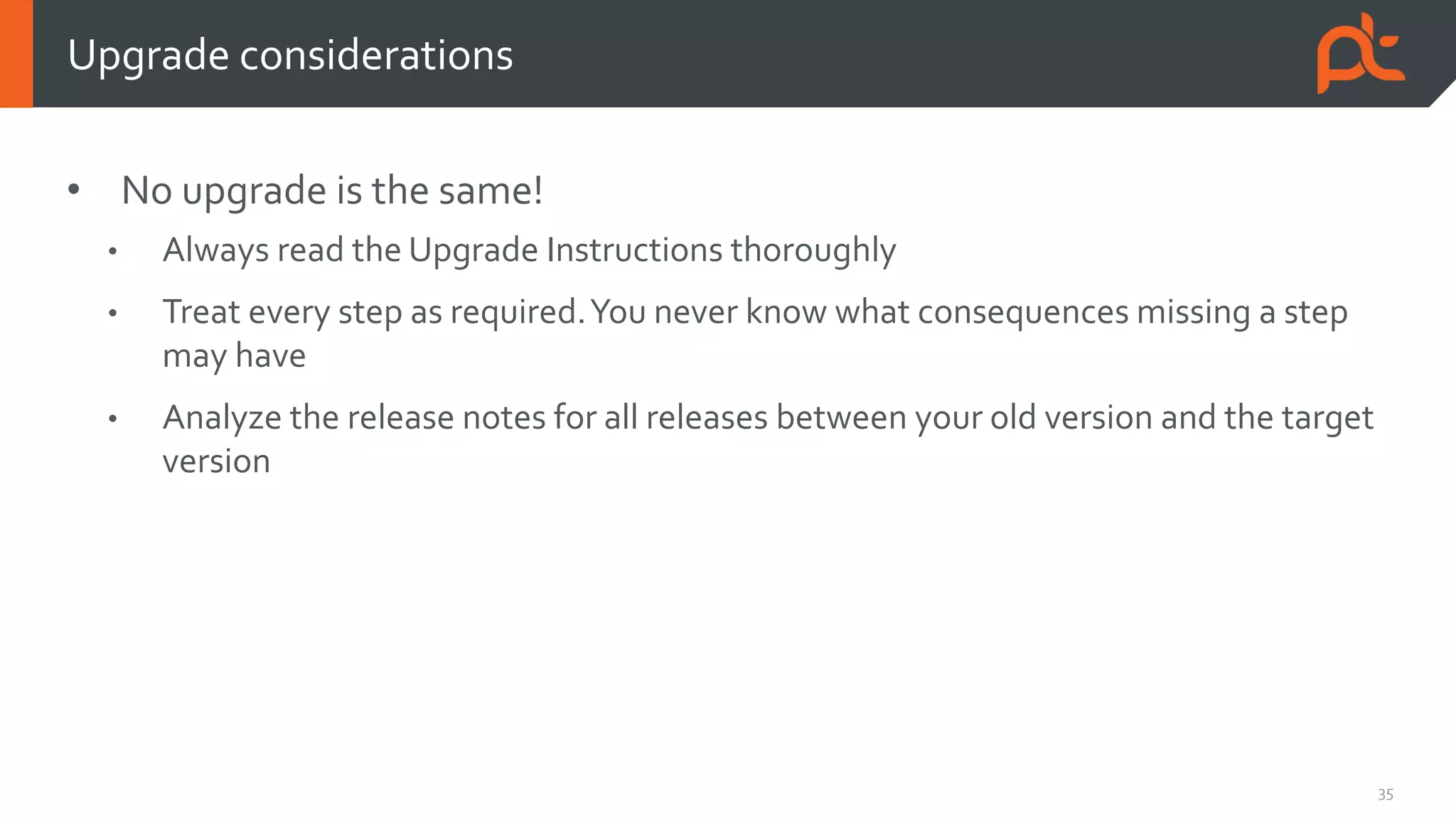

• No upgrade is the same!
• Always read the Upgrade Instructions thoroughly
• Treat every step as required.You never know what consequences missing a step
may have
• Analyze the release notes for all releases between your old version and the target
version

Thanks!
Contact me:
@BrruuD
ruud@partech.nl
