Test Driven Development & CI/CD

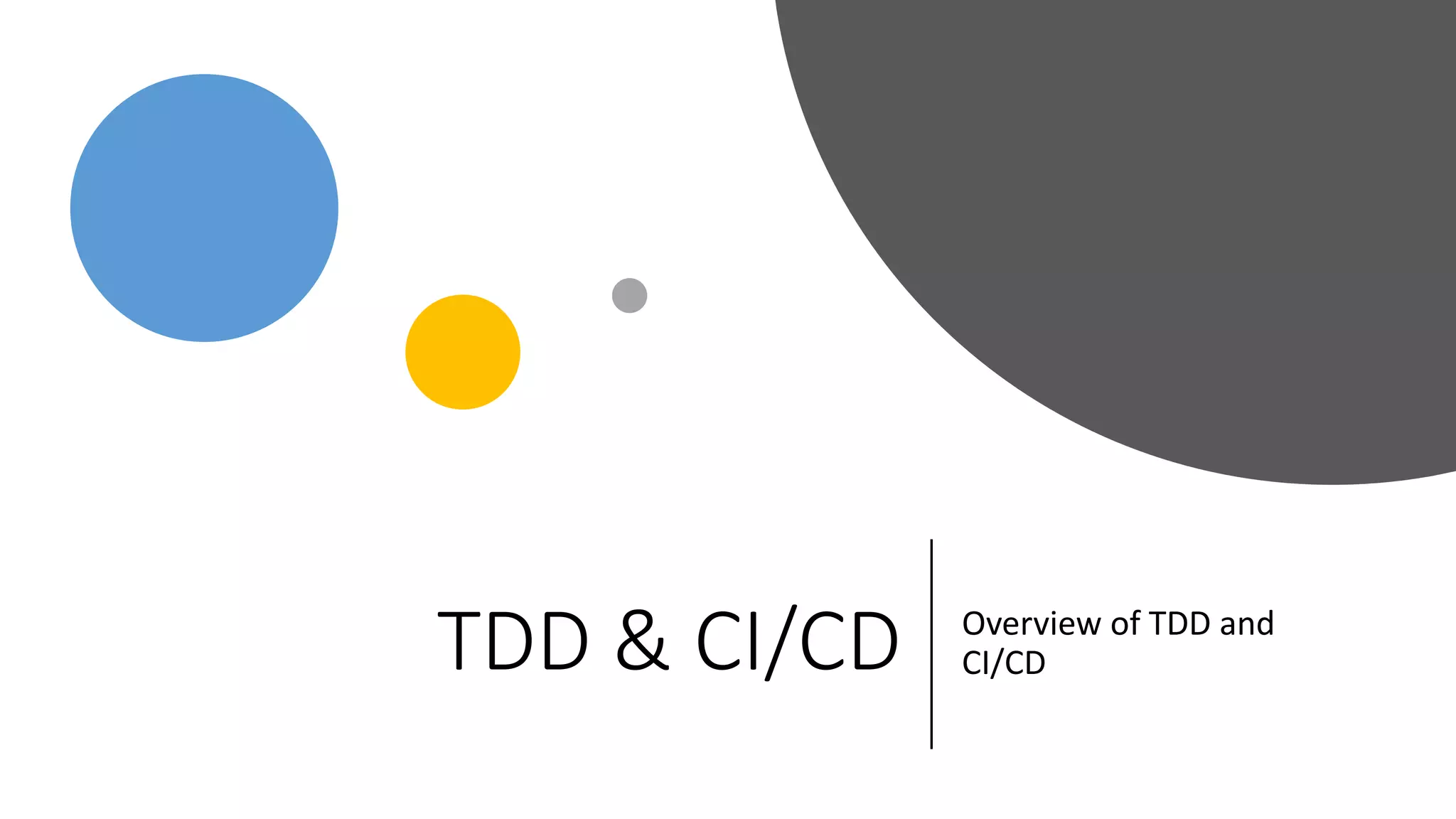

- 1. TDD & CI/CD Overview of TDD and CI/CD
- 2. Agenda • Section: 1 • What is TDD? • Why do we need to use it? • How do we use it? • Section 2: • What is CI? • What Continuous Delivery & Continuous Deployment? • Why do we use CI/CD? • How do we use it? • Section 3: • CI/CD - Demo
- 3. TDD ( Test Driven Development) • “Test Driven Development (TDD) is a technique for building software that guides software development by writing tests” – Martin Fowler’s Definition
- 4. Step 1: Write test that fails • Red - Write a little test that doesn’t work, perhaps doesn’t even compile at first.
- 5. Step 2: Make test pass • Green - Make the test work quickly, committing
- 6. Step 3: Refactor/ Cleanup code • Refactor – Eliminate all the duplication and smells created in just getting the test to work.
- 7. TDD Frameworks • Junit – Assert , Hamcrest • Mockito – Mockito, EasyMock, PowerMock, JMock • Stub • Mock • File • DataSet • Cucumber (BDD – Extensions of TDD) Java: • Rspec • Factorygirl • Mocha • Cucumber Ruby:
- 8. Assertions • Assertions verify that expected conditions are met. Each assertion has different overloaded methods to accespt different parameters. • assertTrue • assertFalse • assertNull • assertNotNull • assertEquals • assertNotEquals • assertArrayEquals • assertIterableEquals • assertSame and assertNotSame • assertAll • assertThrows • assertTimeout • assertLinesMatch • fail
- 9. Different Annotations in Junit and Jupitor JUnit4 Junit Jupitor @Before @BeforeEach @After @AfterEach @BeforeClass @BeforeAll @AfterClass @AfterAll @Ignore @Diabled @Category @Tag @RunWith @ExtendWith
- 10. JUnit – Assert Hamcrest • Using Assert: Assert.assertEquals(“Shan”, user.firstName()); //or Using Assert static imports assertEquals(“Shan”, user.firstName()); • Using Hamcrest MatcherAssert.assertThat(user.firstName().IsEqua l.equalTo(“Shan”)); //Or Using static imports assertThat(user.firstName(), equalTo(“Shan”));
- 11. Mockito EasyMock JMock • Methods under test often leverage dependencies • Test with dependencies created challenges • Live database needed • Multiple developers testing simultaneously • Incomplete dependency implementation • Mocking frameworks give you control • Implement the mocked functionality in a class - Tedious & Obscure • Leverage a mocking framework • Avoid class creation & Leverages the proxy pattern
- 12. Creating Mock Instances • Mockito.mock(Class<?>class) is the core method for creating mocks • @Mock is an alternavtive • Example Class BookServiceTest { protected @Mock BookDao mockBookDao; @Before public void setup(){ MockitoAnnotations.initMocks(this); } }
- 13. Using MockSettings • The MockSettings interface provides added control for mock creation @Test Public void test_getBookDetails { MockSettings settings = Mockito.withSettings(); BookDao mockBookDao = Mockito.mock(BookDao.class, settings); }
- 14. Mockito • Support Unit testing Cycle • Creating the Mock BookDao mockBookDao = Mockito.mock(BookDao.class) • Setup – Method Stubbing Mockito.when(mockBookDao.findByTitle(bookTitle)).thenReturn(BookFixture) • Verification Mockito.verify(mockBookDao).findByTitle(bookTitle) Setup Execution Verification Teardown
- 15. Mockito - Verification • Mockito.verify(..) is used to verify an intended mock operation was called • Example • Setup Mockito.when(mockBookService.getBookDeta ils(bookId)).thenReturn(bookDetail); • Verification Mockito.verify(mockBookService).getBookDet ails(bookId);
- 16. Verification – Cont. • VerificationMode allows extra verification of the operation • Times(n) • atLeastOnce(n) • atLeast(n) • atMost(n) • Never() //setup Mockito.when(mockBookService.getBookDetails(bookId)).thenRe turn(bookDetails); //verification Mockito.verify(mockBookService, VerificationSettings.times(2)).getBookDetails(bookId); • Verifying no interactions globally • Mockito.verify(..).zeroInteractions() • Mockito.verify(..).noMoreInteactions()
- 17. Test Fixtures • A Test fixture is a fixed state of a set of objects used as a baseline for running tests. • Ensure that there is a well known and fixed environment in which tests are run so that results are repeatable. • Type of Fixtures: • Object • Mock • Database – DataSet, Query DataSet, Replacement DataSet • Files – Excel, XML, FlatXML
- 18. Section: 2 CI/CD&CD What is Continuous integration? What is Continuous Delivery? What is Continuos Deployment? Why do we need to use it? How do we use it? CI/CD – What are the frameworks available to do ci/cd? Demo!
- 19. CI/CD – Cont., • Agile • Refactor • Educate Everyone • Be Small • Practice TDD Define Your CD Pipeline As Code • Have a Fast Pipeline • Consider Fixing a Failed Pipeline As Highest Priority • Run the CD Pipeline • Commit only to the Master Branch(Single branching strategy) Or (Use Short-Lived Feature Branch)
- 20. Continuous Integration • Continuous Integration (CI) is development practice that requires developers to integrate code into a shared repository serveral times a day
- 21. CI Principles Have a single place where all the code lives Everyone commits to the mainline every day Automate the build process - Fix the broken build immediately - Make and keep the build fast Every commit triggers a build Automate the testing process Everyone has access to the latest results Everyone can see everything
- 22. CI Benefits: Integration takes less effort Issue will come up more early Automation means less issues The process is more visible Improved team communication Short Integration iterations means more flexibility The code is ready to be delivered more often
- 23. What can CI Accomplish? Higher Quality Faster Delivery Lower Costs More Flexibility
- 24. Integration High Chance of Errors(Bugs & Reworks) Defects are found late(Causing extra works) Lots of effort in integration Difficult to reproduce the release Can only release once per iteration
- 25. Release • High Chance of Errors • Lots of effort in deployment • Difficult to reproduce deployment • Inconsistency in environments • Deployments are scary • slow delivery of functionality
- 26. CI: Summary Continuous Integration • Integrate centrally every day • Automate • Build • Test Higher Quality Faster Delivery Lower Costs More Flexibility
- 27. CD – Continuos Delivery • Continuous Delivery is a Software discipline where software can be released to production at any time
- 28. Continuous Delivery QA Developers Manual Test Release Approval Operations Build Pipeline Release Pipeline SC Build Test deployCreate Test ProdOn DemandAutomated
- 29. CD Principles Have Continuous integration in place Development and Operations should work well together Treat Infrastructure as a code artifact Automate the environment creation process Automate the release process - Automate acceptance tests Include release do definition of done Releasing should be on-demand Everyone has access to the latest result Everyone can see everything
- 30. CD Benefits: Releasing take less effort Releasing is more - Reliable - Repeatable Put control of release in the hands of business Release more often Get feedback earlier
- 31. What can CD Accomplish? Higher Quality Faster Delivery Lower Costs More Flexibility
- 32. Continuous Deployment • Software is automatically deployed to production all the time.
- 33. CD Summary Delivery != Deployment You need Continuous integration Continuous delivery - Release pipeline - Automated release - Automated acceptance tests Higher Quality Faster Delivery Lower Costs More Flexibility
- 34. CI & CD Summary : Cont., Automate everything 1 Developers and operations work together 2 CI& CD are very Powerful 3
- 35. CI/CD Tools: SCM – GitHub, GitLab, BitBucket, SVN, VSS CI & CD– Jenkins, Bamboo, TeamCity, Travis CI, Stash, Azure Pipeline, GC Build, Cirrus CI, Circle CI Ruby: Cloud 66 Container: Docker Platform: K8 AWS – AWS Commit, AWS Code Pipeline, AWS Deploy Cloud: AWS, GCP, Pivotal, Predix
- 36. • Thank you
