This document discusses principles and practices for unit testing legacy code. It covers background on large, old software projects with complex code. The motivation is that unit testing facilitates changes rather than finding bugs. Principles include keeping tests simple, not adding tests to bad code, avoiding assumptions, stopping production of new legacy code, and educating others. Practices include setting up a framework, domain modeling, identifying hot areas to start, using a bottom-up approach, learning functions through tests, and refactoring to make code testable and break dependencies. The document advocates bringing order to chaos and finding fun in deleting code and learning through testing.

1. terry.yinzhe@gmail.com

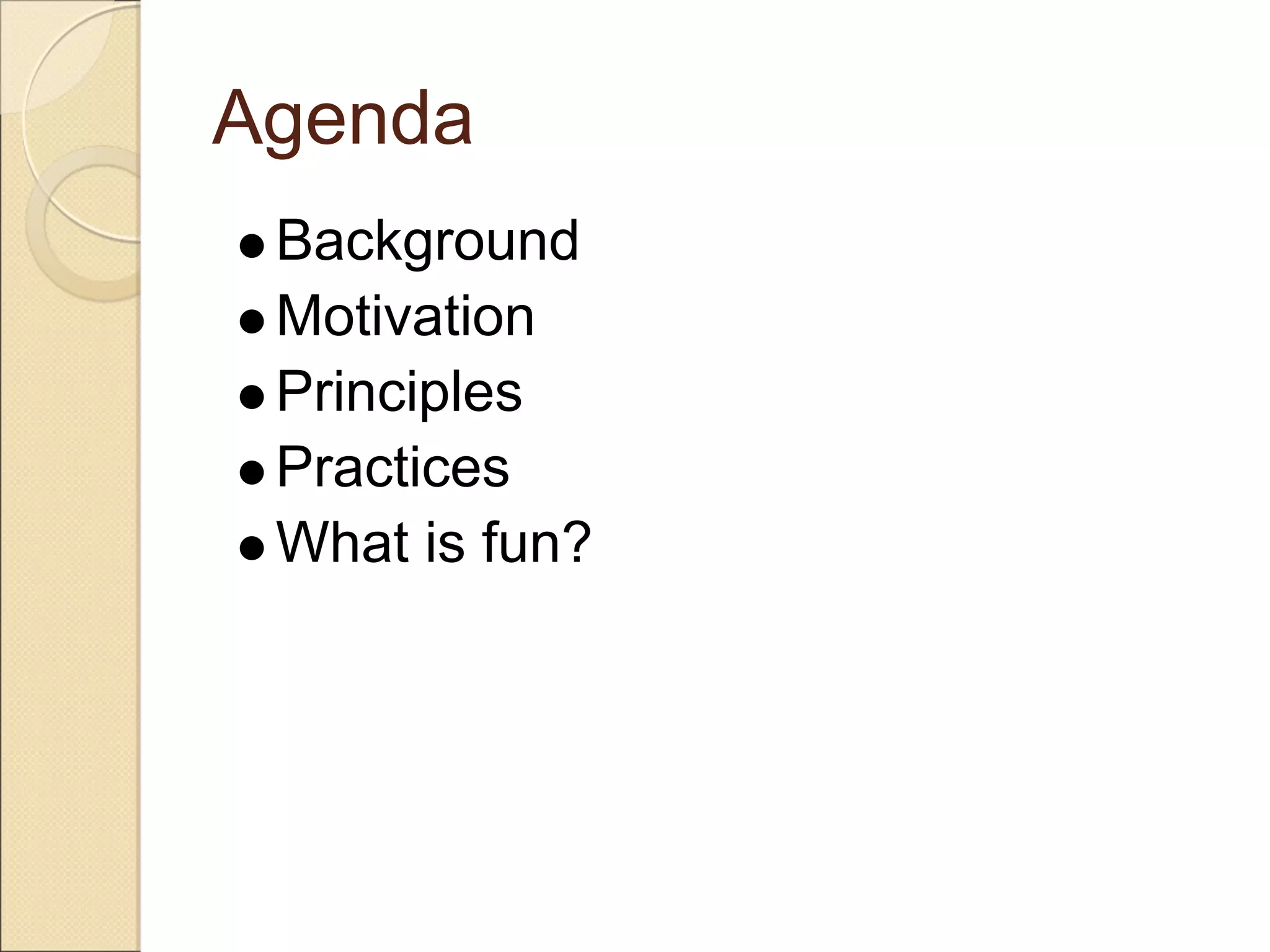

2. Agenda
Background
Motivation
Principles
Practices
What is fun?

3. BACKGROUND

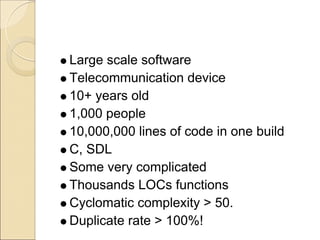

4. Large scale software
Telecommunication device
10+ years old
1,000 people
10,000,000 lines of code in one build
C, SDL
Some very complicated
Thousands LOCs functions
Cyclomatic complexity > 50.
Duplicate rate > 100%!

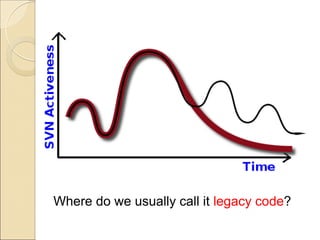

6. Where do we usually call it legacy code?

7. MOTIVATION

8. It's NOT about finding bugs!
The purpose of unit testing is to facilitate
changes

9. You still have the choice and reasons
not to do it.

10. PRINCIPLES

11. BASIC UNIT TESTING
PRINCIPLES

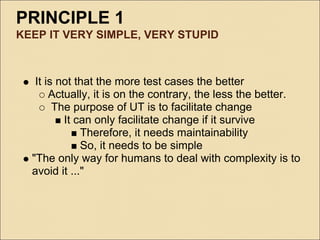

12. PRINCIPLE 1
KEEP IT VERY SIMPLE, VERY STUPID
It is not that the more test cases the better
Actually, it is on the contrary, the less the better.
The purpose of UT is to facilitate change
It can only facilitate change if it survive
Therefore, it needs maintainability
So, it needs to be simple
"The only way for humans to deal with complexity is to
avoid it ..."

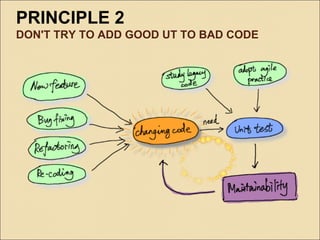

13. PRINCIPLE 2
DON'T TRY TO ADD GOOD UT TO BAD CODE

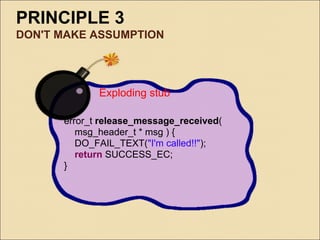

14. PRINCIPLE 3
DON'T MAKE ASSUMPTION
Exploding stub
error_t release_message_received(
msg_header_t * msg ) {
DO_FAIL_TEXT("I'm called!!");
return SUCCESS_EC;
}

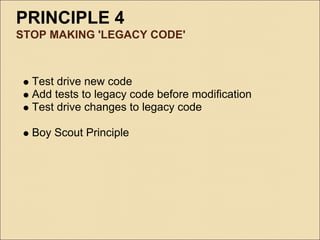

15. PRINCIPLE 4
STOP MAKING 'LEGACY CODE'
Test drive new code
Add tests to legacy code before modification
Test drive changes to legacy code
Boy Scout Principle

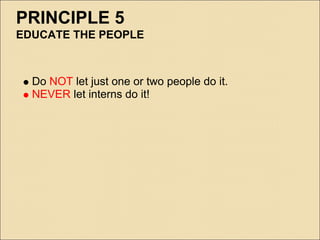

16. PRINCIPLE 5
EDUCATE THE PEOPLE
Do NOT let just one or two people do it.
NEVER let interns do it!

17. WHERE TO START?

18. Setup the framework
To setup the framework for legacy
code can be very challenging.
Choose the test framework
We use CppUTest
Ask for performance

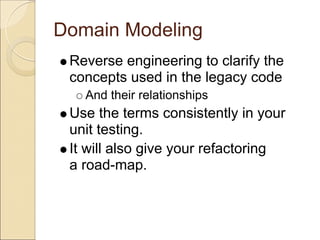

19. Domain Modeling
Reverse engineering to clarify the
concepts used in the legacy code
And their relationships
Use the terms consistently in your
unit testing.
It will also give your refactoring
a road-map.

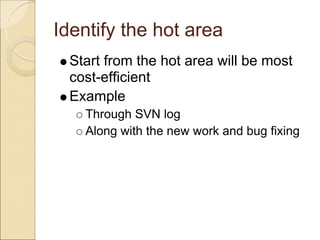

20. Identify the hot area
Start from the hot area will be most
cost-efficient
Example
Through SVN log
Along with the new work and bug fixing

21. Bottom-up?
Have some integration test first
Then,
One practical approach is bottom-up
Get a higher level of abstraction

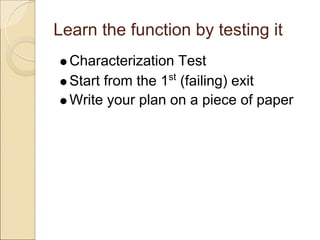

22. Learn the function by testing it
Characterization Test
Start from the 1st (failing) exit
Write your plan on a piece of paper

23. Make the legacy code testable
Use safe refactoring techniques to
change the legacy code without unit
testing.
Extract function
If you are using C
‘Data injection’ to break the dependency on
globals.

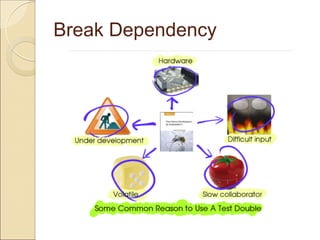

24. Break Dependency

25. WHAT IS FUN

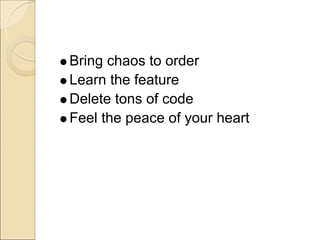

26. Bring chaos to order
Learn the feature
Delete tons of code
Feel the peace of your heart

27. REFERENCES

28. Acknowledgement
