The document provides information and guidelines for inspecting septic systems. It discusses several key areas of inspection including the pretreatment vessel, septic tank components, effluent levels, baffles, disposal fields, and evidence of issues like cracks, roots or ponding. Maintaining septic systems is important to prevent wastewater from contaminating the environment.

1. Inspection Tales
FROM THE CRYPT

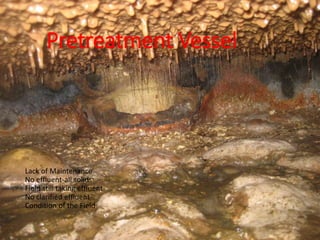

2. Pretreatment Vessel
Lack of Maintenance
No effluent-all solids
Field still taking effluent
No clarified effluent
Condition of the Field

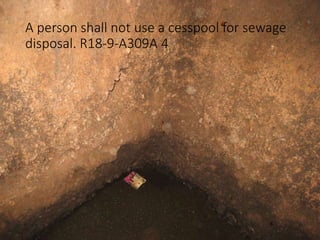

3. A person shall not use a cesspool for sewage
disposal. R18-9-A309A 4

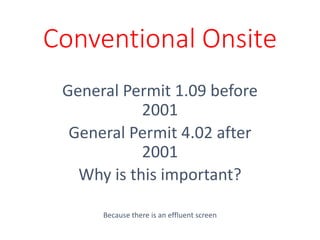

4. Conventional Onsite
General Permit 1.09 before
2001
General Permit 4.02 after
2001
Why is this important?
Because there is an effluent screen

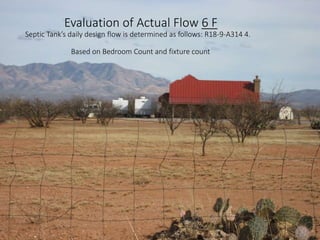

6. Evaluation of Actual Flow 6 F
Septic Tank’s daily design flow is determined as follows: R18-9-A314 4.
Based on Bedroom Count and fixture count

7. • No person shall
discharge sewage or
wastewater that
contains sewage
from an on-site
wastewater
treatment facility
except under an
Aquifer Protection
Permit issued by the
Director.
R18-9-A309

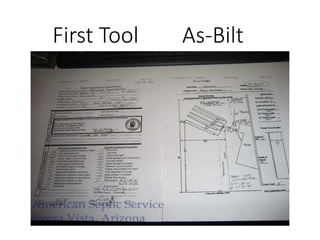

8. First Tool As-Bilt

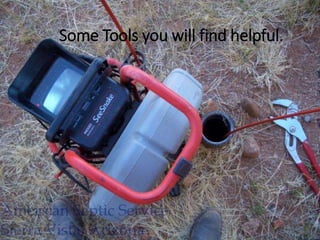

9. Some Tools you will find helpful.

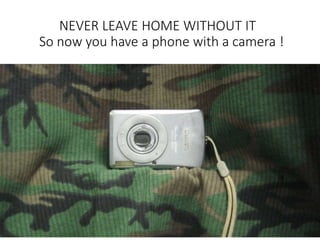

10. NEVER LEAVE HOME WITHOUT IT
So now you have a phone with a camera !

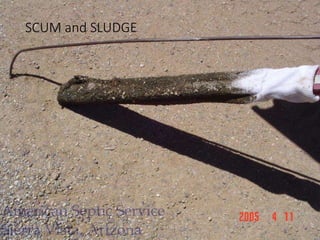

11. SCUM and SLUDGE

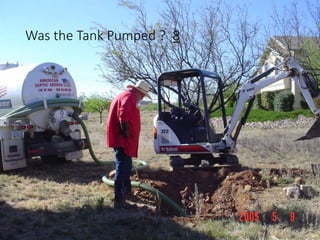

12. Was the Tank Pumped ? 8

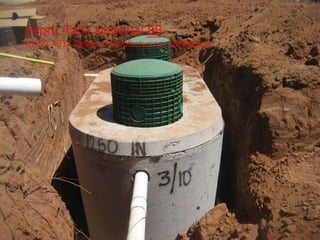

13. Septic Tank Material 8B
R18-9-A314 Design, Manufacturing, Installation.

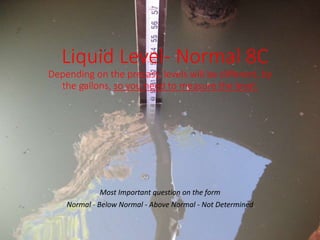

14. Liquid Level- Normal 8C
Depending on the precast, levels will be different, by
the gallons, so you need to measure the level.
Most Important question on the form
Normal - Below Normal - Above Normal - Not Determined

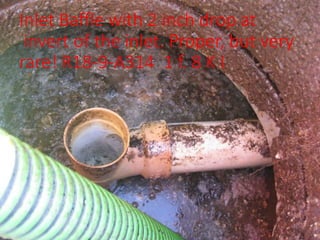

15. Inlet Baffle with 2 inch drop at
invert of the inlet. Proper, but very
rare! R18-9-A314 1 f. 8 K I

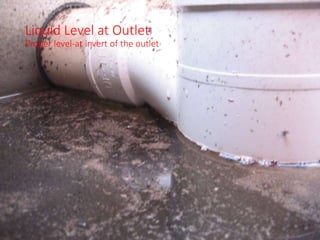

16. Liquid Level at Outlet
Proper level-at invert of the outlet

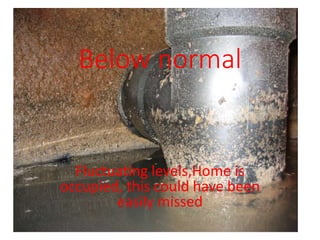

17. Below normal
Fluctuating levels,Home is
occupied, this could have been
easily missed

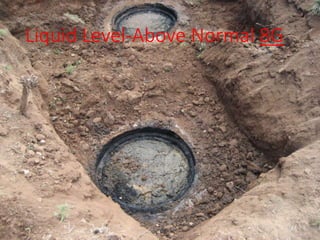

18. Liquid Level-Above Normal 8G

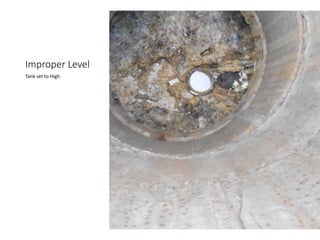

19. Improper Level
Tank set to High

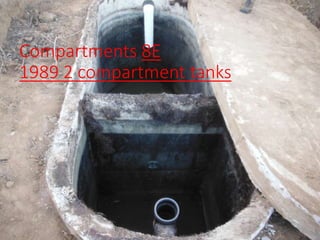

22. Compartments 8E
1989 2 compartment tanks

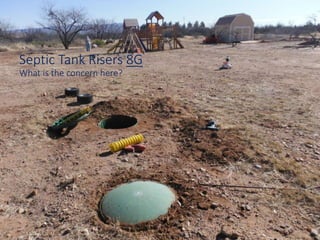

23. Septic Tank Risers 8G
What is the concern here?

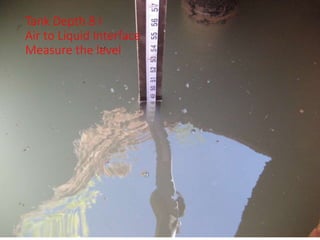

24. Tank Depth 8 I
Air to Liquid Interface
Measure the level

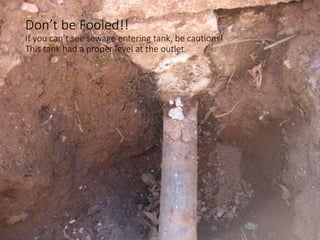

26. Don’t be Fooled!!
If you can’t see sewage entering tank, be cautions!
This tank had a proper level at the outlet.

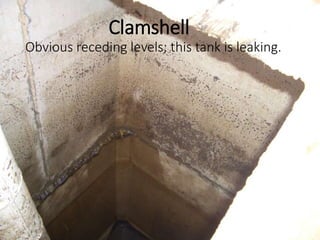

27. Clamshell
Obvious receding levels; this tank is leaking.

28. FOG

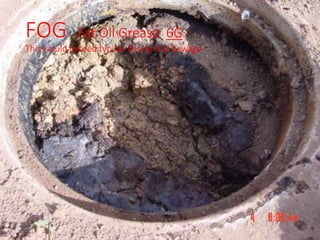

29. FOG Fat Oil Grease 6G
This would exceed typical Residential Sewage

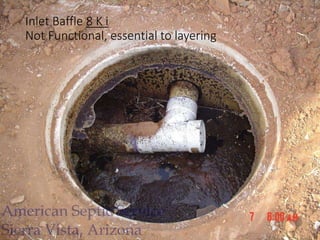

32. Inlet Baffle 8 K i
Not Functional, essential to layering

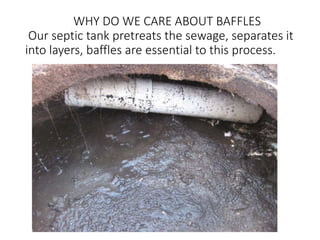

33. WHY DO WE CARE ABOUT BAFFLES
Our septic tank pretreats the sewage, separates it
into layers, baffles are essential to this process.

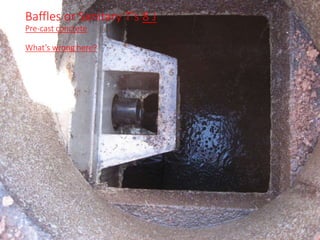

39. Baffles or Sanitary T’s 8 J
Pre-cast concrete
What’s wrong here?

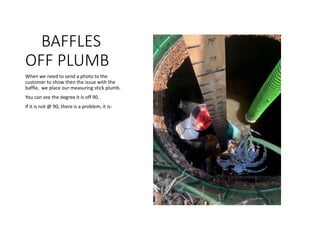

40. BAFFLES
OFF PLUMB
When we need to send a photo to the
customer to show then the issue with the
baffle, we place our measuring stick plumb.
You can see the degree it is off 90.
If it is not @ 90, there is a problem, it is:

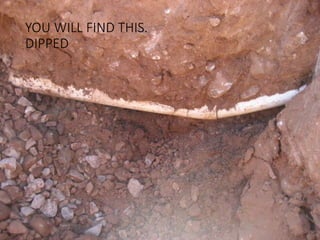

41. YOU WILL FIND THIS.
DIPPED

42. Crimped

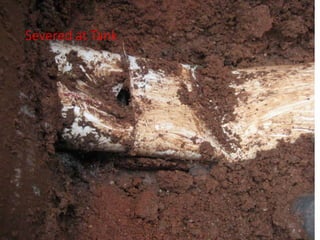

43. Severed at Tank

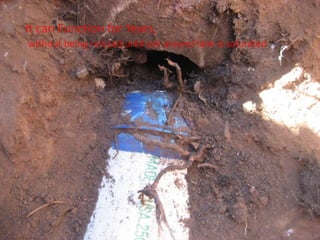

44. It can Function for Years,
without being noticed until soil around tank is saturated.

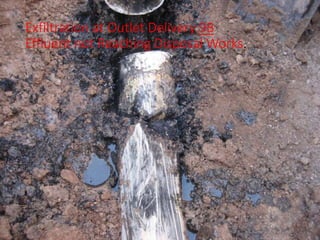

45. Exfiltration at Outlet Delivery 9B
Effluent not Reaching Disposal Works.

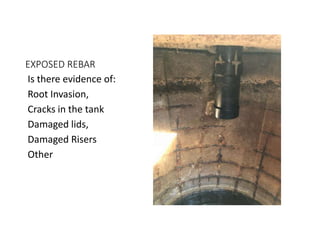

46. EXPOSED REBAR
Is there evidence of:
Root Invasion,
Cracks in the tank
Damaged lids,
Damaged Risers
Other

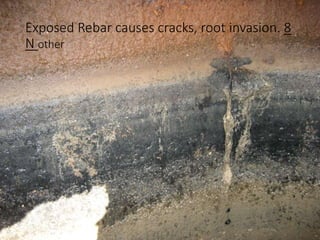

47. Exposed Rebar causes cracks, root invasion. 8
N other

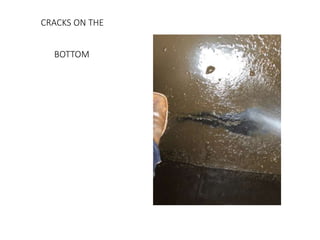

49. CRACKS ON THE
BOTTOM

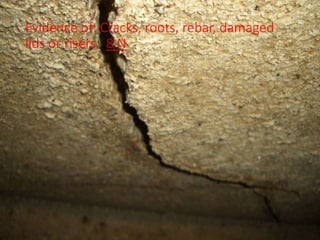

50. Evidence of: Cracks, roots, rebar, damaged
lids or risers. 8 N

51. Drain Flies
Diatomaceous Earth

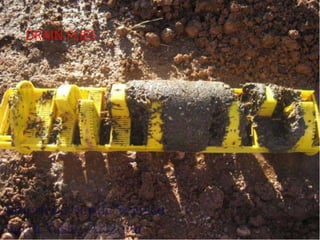

52. DRAIN FLIES

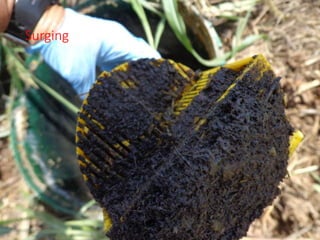

56. Surging

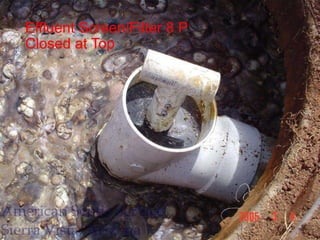

57. Effluent Screen/Filter 8 P
Closed at Top

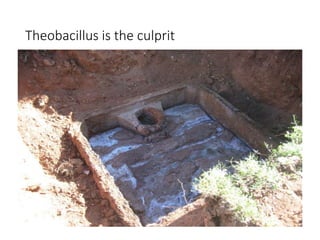

60. Theobacillus is the culprit

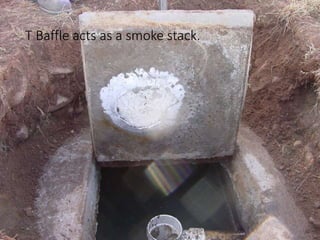

61. T Baffle acts as a smoke stack.

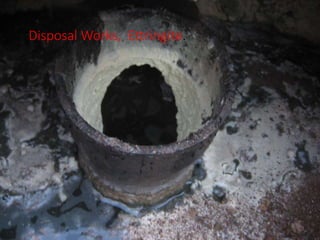

62. Disposal Works, Ettringite.

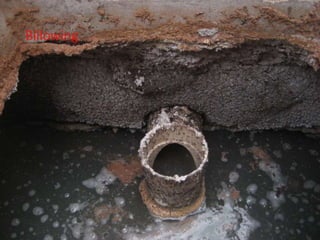

63. Billowing

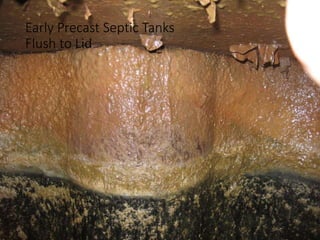

65. Early Precast Septic Tanks
Flush to Lid

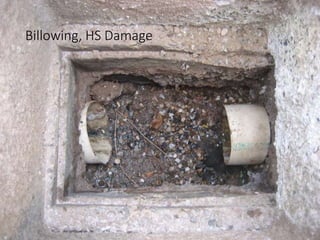

66. Billowing, HS Damage

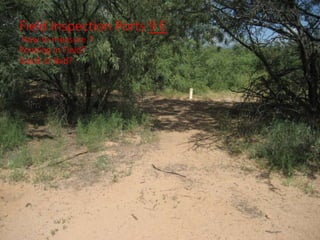

67. Field Inspection Ports 9 E
How to measure ?
Ponding in Field?
Good or Bad?

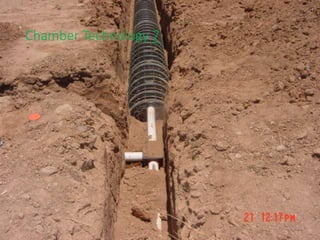

68. Chamber Technology 7

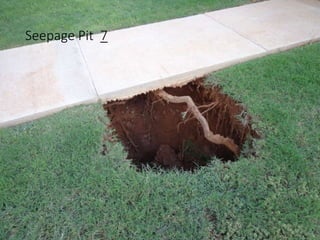

69. Seepage Pit 7

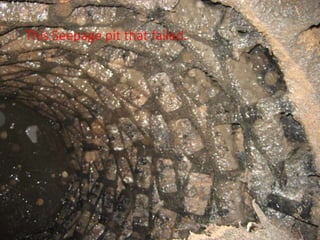

70. This Seepage pit that failed.

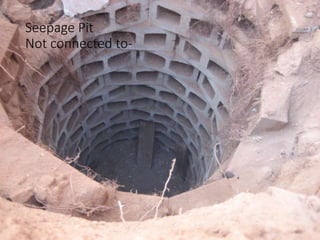

71. Seepage Pit
Not connected to-

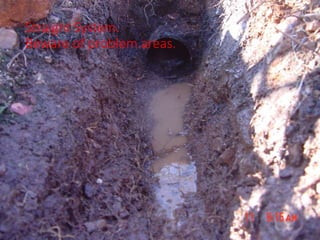

72. Straight System.
Beware of problem areas.

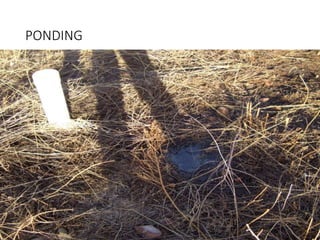

73. PONDING

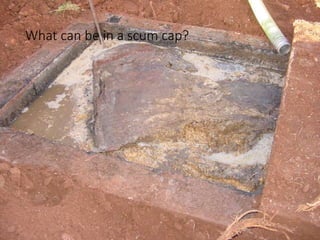

76. What can be in a scum cap?

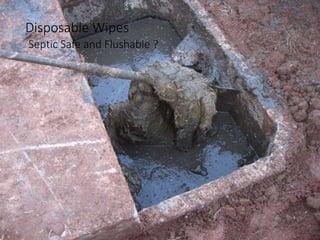

77. Disposable Wipes
Septic Safe and Flushable ?

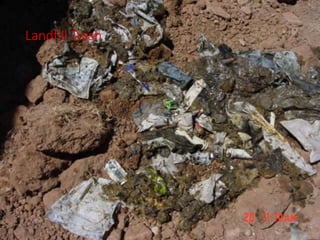

78. Landfill Trash

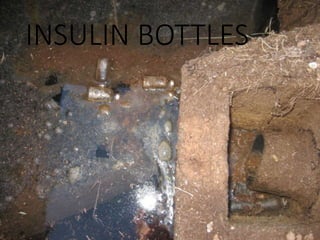

79. INSULIN BOTTLES

86. We Retired
