1. Taking Your GWTApps to Tablets with GXT
4.0
David Chandler
Developer Advocate - GXT

2. CONFIDENTIAL • Sencha
Inc. ©2015

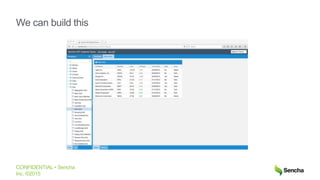

We can build this

3. CONFIDENTIAL • Sencha
Inc. ©2015
Something has changed

4. CONFIDENTIAL • Sencha
Inc. ©2015

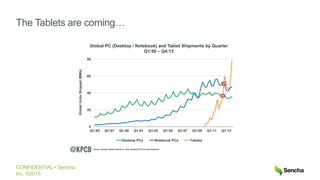

The Tablets are coming…

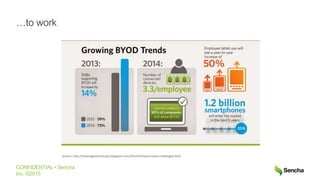

5. CONFIDENTIAL • Sencha
Inc. ©2015
…to work
Source: http://itmanagementstudy.blogspot.com/2014/05/byod-issues-challenges.html

6. CONFIDENTIAL • Sencha
Inc. ©2015

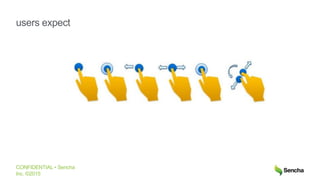

users expect

7. CONFIDENTIAL • Sencha
Inc. ©2015

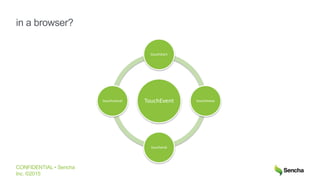

in a browser?
TouchEvent
touchstart
touchmove
touchend
touchcancel

8. CONFIDENTIAL • Sencha
Inc. ©2015
GWT events
• touchstart
• touchmove
• touchend
• touchcancel
Logical events
• TapGestureEvent
• LongPressEvent
• DragGestureStart
/Move/End/Cancel
• RotateGestureEvent
but wait, we need

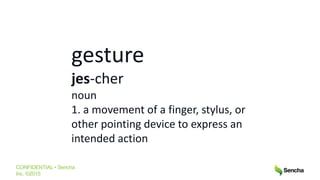

9. CONFIDENTIAL • Sencha
Inc. ©2015
gesture
jes-cher
noun
1. a movement of a finger, stylus, or
other pointing device to express an
intended action

10. CONFIDENTIAL • Sencha
Inc. ©2015
GWT events
• touchstart
• touchmove
• touchend
• touchcancel
GestureRecognizers
• TapGR
• LongPressOrTapGR
• DragGR
• PinchAndRotateGR
GXT events
• TapGestureEvent
• LongPressEvent
• DragGestureStart
/Move/End/Cancel
• RotateGestureEvent
Touch support in GXT 4

11. CONFIDENTIAL • Sencha
Inc. ©2015
GXT 4 Touch Demo
11

12. CONFIDENTIAL • Sencha
Inc. ©2015

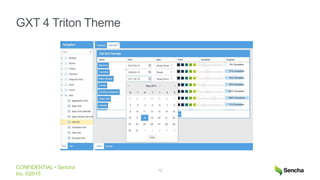

GXT 4 Triton Theme
12

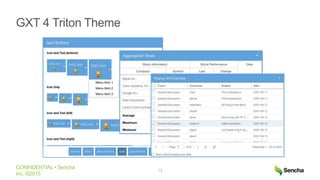

13. CONFIDENTIAL • Sencha
Inc. ©2015
GXT 4 Triton Theme
13

14. CONFIDENTIAL • Sencha
Inc. ©2015

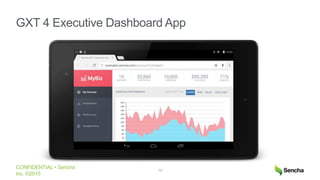

GXT 4 Executive Dashboard App
14

15. Getting started with touch in GXT 4

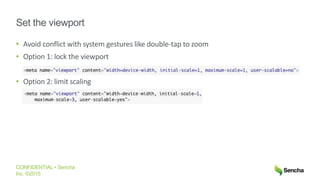

16. CONFIDENTIAL • Sencha
Inc. ©2015
Set the viewport
• Avoid conflict with system gestures like double-tap to zoom
• Option 1: lock the viewport
• Option 2: limit scaling

17. CONFIDENTIAL • Sencha
Inc. ©2015

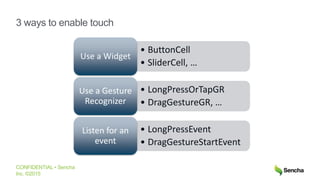

3 ways to enable touch
• ButtonCell
• SliderCell, …
Use a Widget
• LongPressOrTapGR
• DragGestureGR, …
Use a Gesture
Recognizer
• LongPressEvent
• DragGestureStartEvent
Listen for an
event

18. CONFIDENTIAL • Sencha
Inc. ©2015

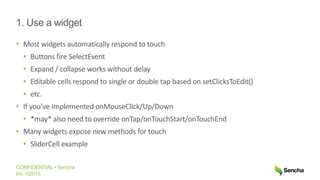

1. Use a widget
• Most widgets automatically respond to touch
• Buttons fire SelectEvent
• Expand / collapse works without delay
• Editable cells respond to single or double tap based on setClicksToEdit()
• etc.
• If you’ve implemented onMouseClick/Up/Down
• *may* also need to override onTap/onTouchStart/onTouchEnd
• Many widgets expose new methods for touch
• SliderCell example

19. CONFIDENTIAL • Sencha
Inc. ©2015

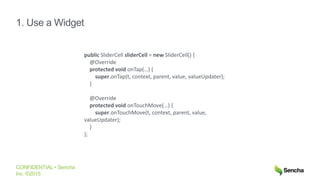

1. Use a Widget
public SliderCell sliderCell = new SliderCell() {
@Override
protected void onTap(…) {
super.onTap(t, context, parent, value, valueUpdater);
}
@Override
protected void onTouchMove(…) {
super.onTouchMove(t, context, parent, value,
valueUpdater);
}
};

20. CONFIDENTIAL • Sencha
Inc. ©2015

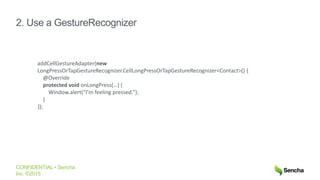

2. Use a GestureRecognizer
addCellGestureAdapter(new
LongPressOrTapGestureRecognizer.CellLongPressOrTapGestureRecognizer<Contact>() {
@Override
protected void onLongPress(…) {
Window.alert(“I’m feeling pressed.”);
}
});

21. CONFIDENTIAL • Sencha
Inc. ©2015

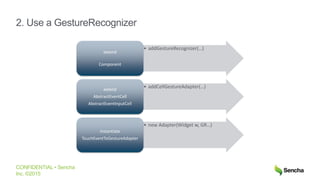

2. Use a GestureRecognizer
• addGestureRecognizer(…)
extend
Component
• addCellGestureAdapter(…)extend
AbstractEventCell
AbstractEventInputCell
• new Adapter(Widget w, GR…)
instantiate
TouchEventToGestureAdapter

22. CONFIDENTIAL • Sencha
Inc. ©2015
2. Use a GestureRecognizer
Where to call addGestureRecognizer(…)
1. Widget constructor (if all vars available)
• Example: SliderCell, Tree, …
2. as soon as you can
• Example: LiveGridView.onAfterRenderView()

23. CONFIDENTIAL • Sencha
Inc. ©2015
2. Use a GestureRecognizer
• Example: in Tree constructor

24. CONFIDENTIAL • Sencha
Inc. ©2015

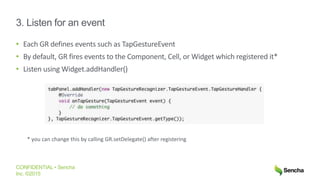

3. Listen for an event
• Each GR defines events such as TapGestureEvent
• By default, GR fires events to the Component, Cell, or Widget which registered it*
• Listen using Widget.addHandler()
* you can change this by calling GR.setDelegate() after registering

25. CONFIDENTIAL • Sencha
Inc. ©2015
Under the covers
• Two pieces required for GestureRecognizers to work
1. must listen for the raw DOM events
2. forward events to the GestureRecognizer
• We’ve wired this for you in Component and AbstractEventCell
1. addGestureRecognizer() sinks the events
2. onBrowserEvent() => recognizer.handle()
• You only have to call addGestureRecognizer/Adapter()

26. CONFIDENTIAL • Sencha
Inc. ©2015

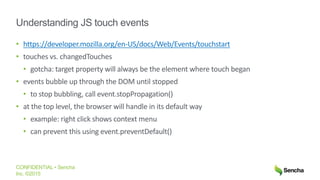

Understanding JS touch events
• https://developer.mozilla.org/en-US/docs/Web/Events/touchstart
• touches vs. changedTouches
• gotcha: target property will always be the element where touch began
• events bubble up through the DOM until stopped
• to stop bubbling, call event.stopPropagation()
• at the top level, the browser will handle in its default way
• example: right click shows context menu
• can prevent this using event.preventDefault()

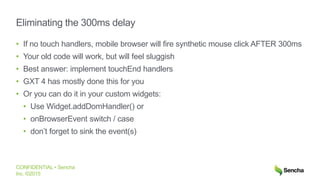

27. CONFIDENTIAL • Sencha
Inc. ©2015
Eliminating the 300ms delay
• If no touch handlers, mobile browser will fire synthetic mouse click AFTER 300ms
• Your old code will work, but will feel sluggish
• Best answer: implement touchEnd handlers
• GXT 4 has mostly done this for you
• Or you can do it in your custom widgets:
• Use Widget.addDomHandler() or
• onBrowserEvent switch / case
• don’t forget to sink the event(s)

28. CONFIDENTIAL • Sencha
Inc. ©2015

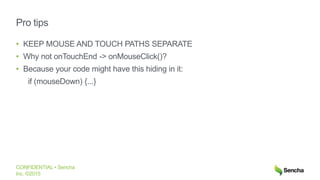

Pro tips
• KEEP MOUSE AND TOUCH PATHS SEPARATE
• Why not onTouchEnd -> onMouseClick()?
• Because your code might have this hiding in it:
if (mouseDown) {...}

29. CONFIDENTIAL • Sencha
Inc. ©2015

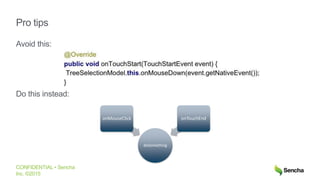

Pro tips
Avoid this:
Do this instead:
doSomething
onMouseClick onTouchEnd

30. CONFIDENTIAL • Sencha
Inc. ©2015

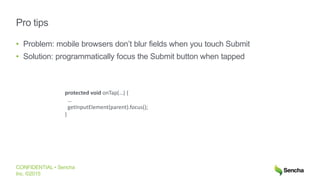

Pro tips
• Problem: mobile browsers don’t blur fields when you touch Submit
• Solution: programmatically focus the Submit button when tapped
protected void onTap(…) {
…
getInputElement(parent).focus();
}

31. CONFIDENTIAL • Sencha
Inc. ©2015

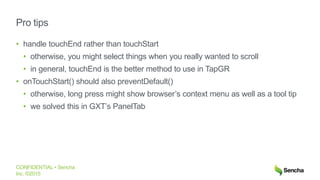

Pro tips
• handle touchEnd rather than touchStart
• otherwise, you might select things when you really wanted to scroll
• in general, touchEnd is the better method to use in TapGR
• onTouchStart() should also preventDefault()
• otherwise, long press might show browser’s context menu as well as a tool tip
• we solved this in GXT’s PanelTab

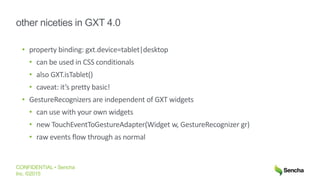

32. CONFIDENTIAL • Sencha
Inc. ©2015
other niceties in GXT 4.0
• property binding: gxt.device=tablet|desktop
• can be used in CSS conditionals
• also GXT.isTablet()
• caveat: it’s pretty basic!
• GestureRecognizers are independent of GXT widgets
• can use with your own widgets
• new TouchEventToGestureAdapter(Widget w, GestureRecognizer gr)
• raw events flow through as normal

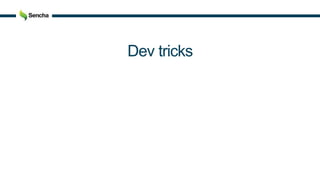

33. Dev tricks

34. CONFIDENTIAL • Sencha
Inc. ©2015

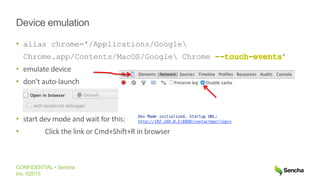

Device emulation
• alias chrome='/Applications/Google
Chrome.app/Contents/MacOS/Google Chrome --touch-events’
• emulate device
• don’t auto-launch
• start dev mode and wait for this:
• Click the link or Cmd+Shift+R in browser

35. CONFIDENTIAL • Sencha
Inc. ©2015

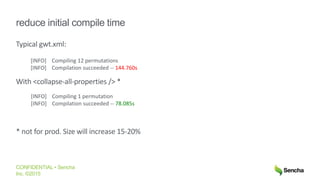

reduce initial compile time
Typical gwt.xml:
With <collapse-all-properties /> *
* not for prod. Size will increase 15-20%
[INFO] Compiling 12 permutations
[INFO] Compilation succeeded -- 144.760s
[INFO] Compiling 1 permutation
[INFO] Compilation succeeded -- 78.085s

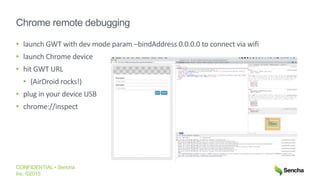

36. CONFIDENTIAL • Sencha
Inc. ©2015
Chrome remote debugging
• launch GWT with dev mode param –bindAddress 0.0.0.0 to connect via wifi
• launch Chrome device
• hit GWT URL
• (AirDroid rocks!)
• plug in your device USB
• chrome://inspect

37. CONFIDENTIAL • Sencha
Inc. ©2015

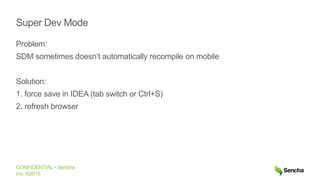

Super Dev Mode
Problem:
SDM sometimes doesn’t automatically recompile on mobile
Solution:
1. force save in IDEA (tab switch or Ctrl+S)
2. refresh browser

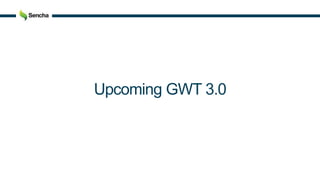

38. Upcoming GWT 3.0

39. CONFIDENTIAL • Sencha
Inc. ©2015

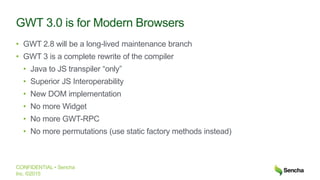

GWT 3.0 is for Modern Browsers
• GWT 2.8 will be a long-lived maintenance branch
• GWT 3 is a complete rewrite of the compiler
• Java to JS transpiler “only”
• Superior JS Interoperability
• New DOM implementation
• No more Widget
• No more GWT-RPC
• No more permutations (use static factory methods instead)

40. CONFIDENTIAL • Sencha
Inc. ©2015

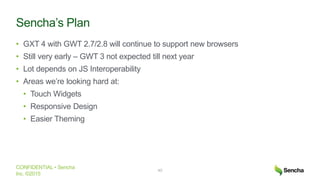

Sencha’s Plan
• GXT 4 with GWT 2.7/2.8 will continue to support new browsers
• Still very early – GWT 3 not expected till next year
• Lot depends on JS Interoperability
• Areas we’re looking hard at:
• Touch Widgets
• Responsive Design
• Easier Theming
40

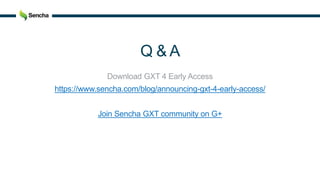

41. Q & A
Download GXT 4 Early Access
https://www.sencha.com/blog/announcing-gxt-4-early-access/
Join Sencha GXT community on G+

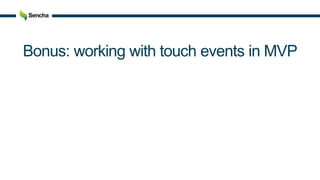

42. Bonus: working with touch events in MVP

43. CONFIDENTIAL • Sencha
Inc. ©2015

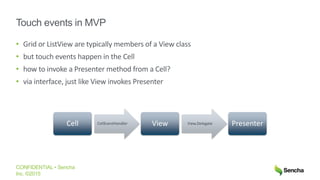

Touch events in MVP
• Grid or ListView are typically members of a View class
• but touch events happen in the Cell
• how to invoke a Presenter method from a Cell?
• via interface, just like View invokes Presenter
Cell CellEventHandler View View.Delegate Presenter

44. CONFIDENTIAL • Sencha
Inc. ©2015

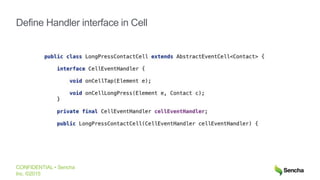

Define Handler interface in Cell

45. CONFIDENTIAL • Sencha
Inc. ©2015

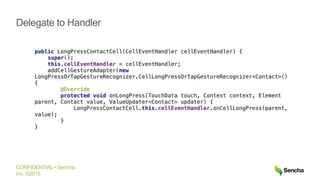

Delegate to Handler

46. CONFIDENTIAL • Sencha
Inc. ©2015

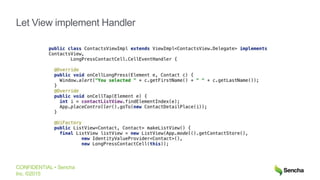

Let View implement Handler
