This document summarizes a presentation about building scalable apps with Google App Engine. It discusses the history and capabilities of App Engine, including how it provides developers with a cloud platform that handles hardware, networking, operating systems, runtimes and more. App Engine automatically scales apps across Google's infrastructure and provides tools to deploy and manage apps with high availability and performance.

1. Building Scalable Apps with
Google App Engine
David Chandler
Developer Programs Engineer
drfibonacci@google.com
CloudDevDay Detroit
Jun 11, 2011
Google Confidential and Proprietary 1
Monday, June 13, 2011 1

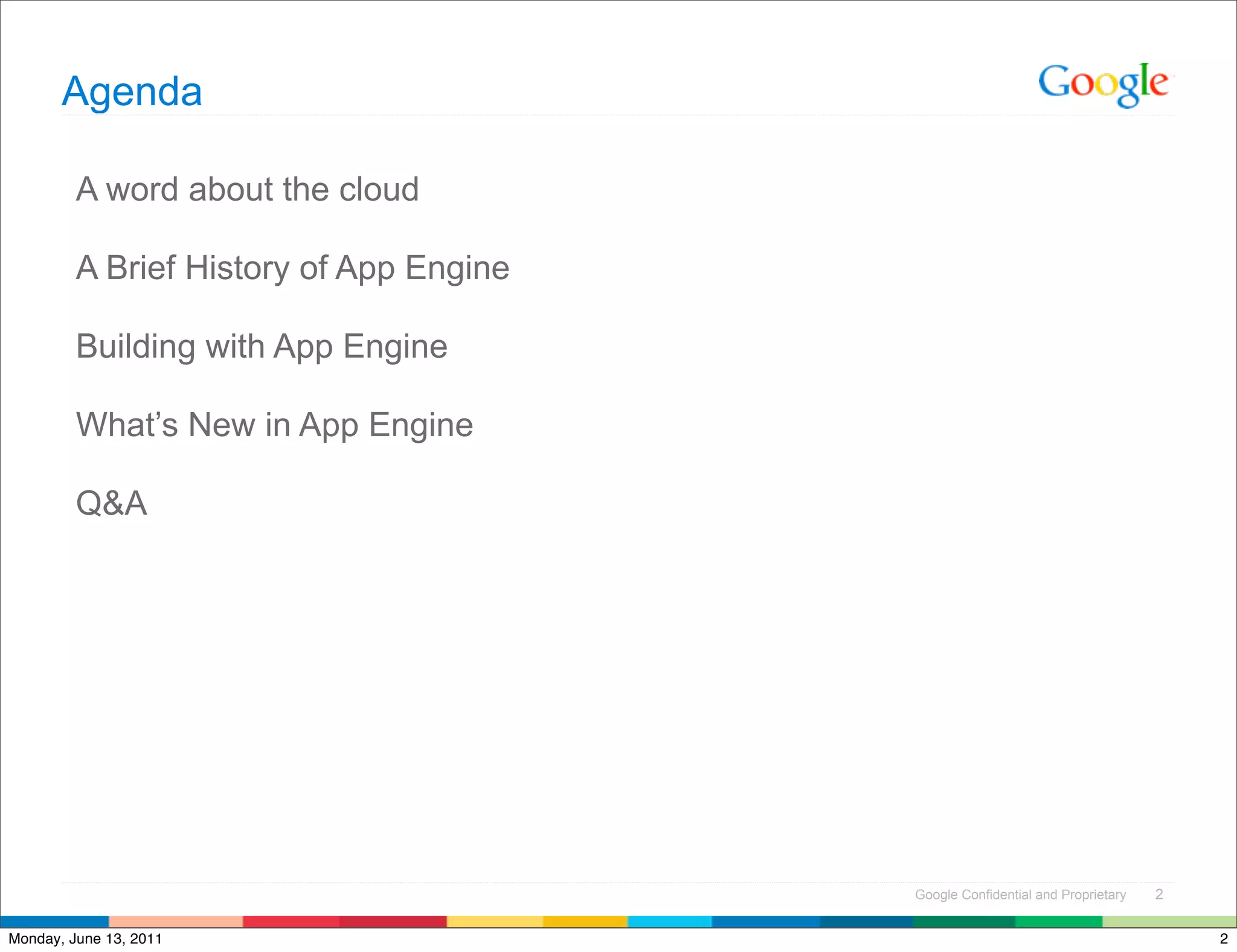

2. Agenda
A word about the cloud
A Brief History of App Engine
Building with App Engine
What’s New in App Engine
Q&A
Google Confidential and Proprietary 2
Monday, June 13, 2011 2

3. 3
Monday, June 13, 2011 3

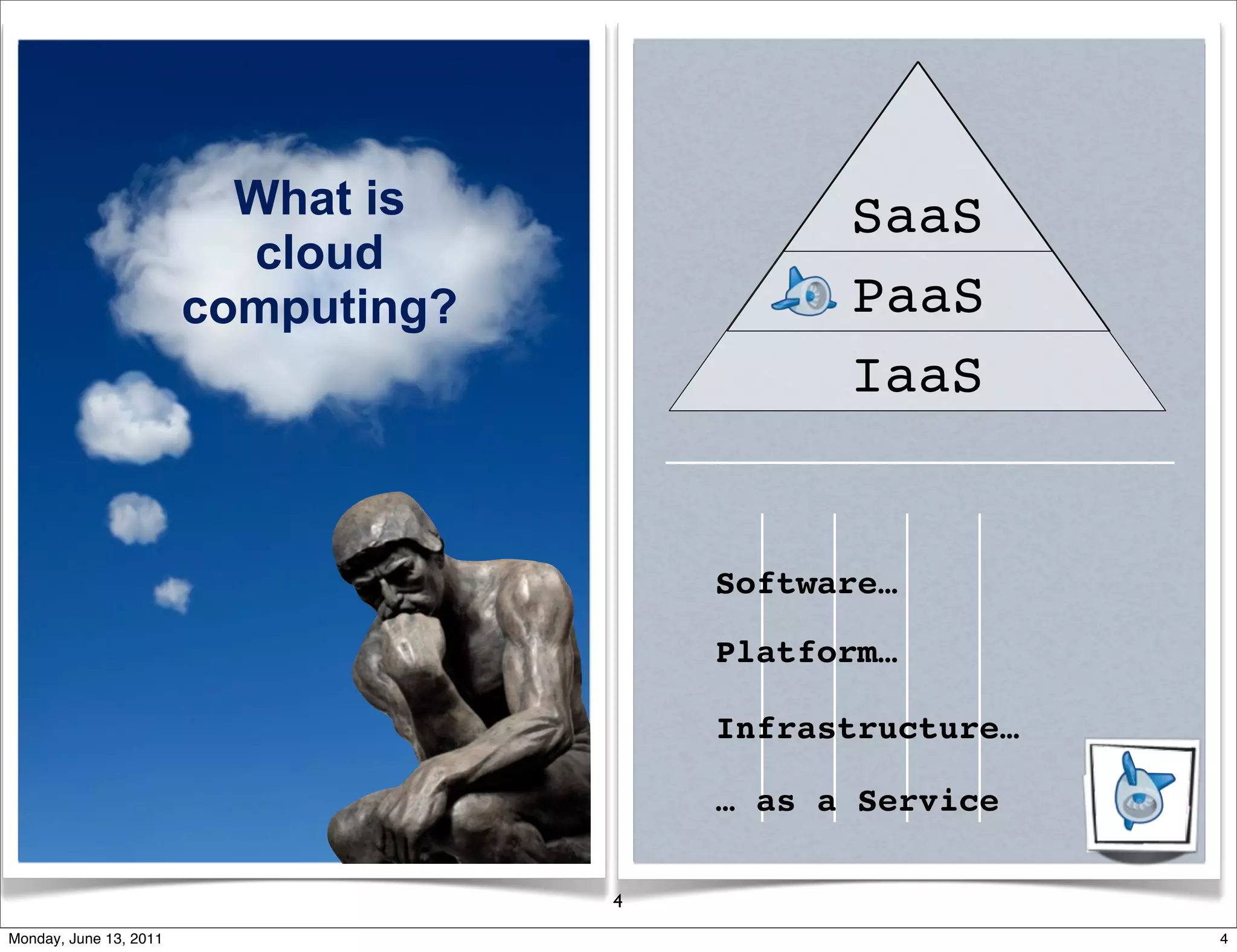

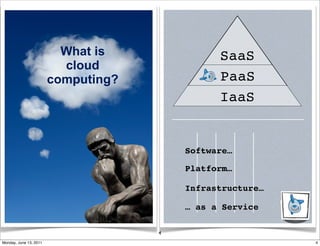

4. What is SaaS
cloud
computing? PaaS
IaaS
Software…
Platform…
Infrastructure…
Postage
Place
Here
… as a Service
4
Monday, June 13, 2011 4

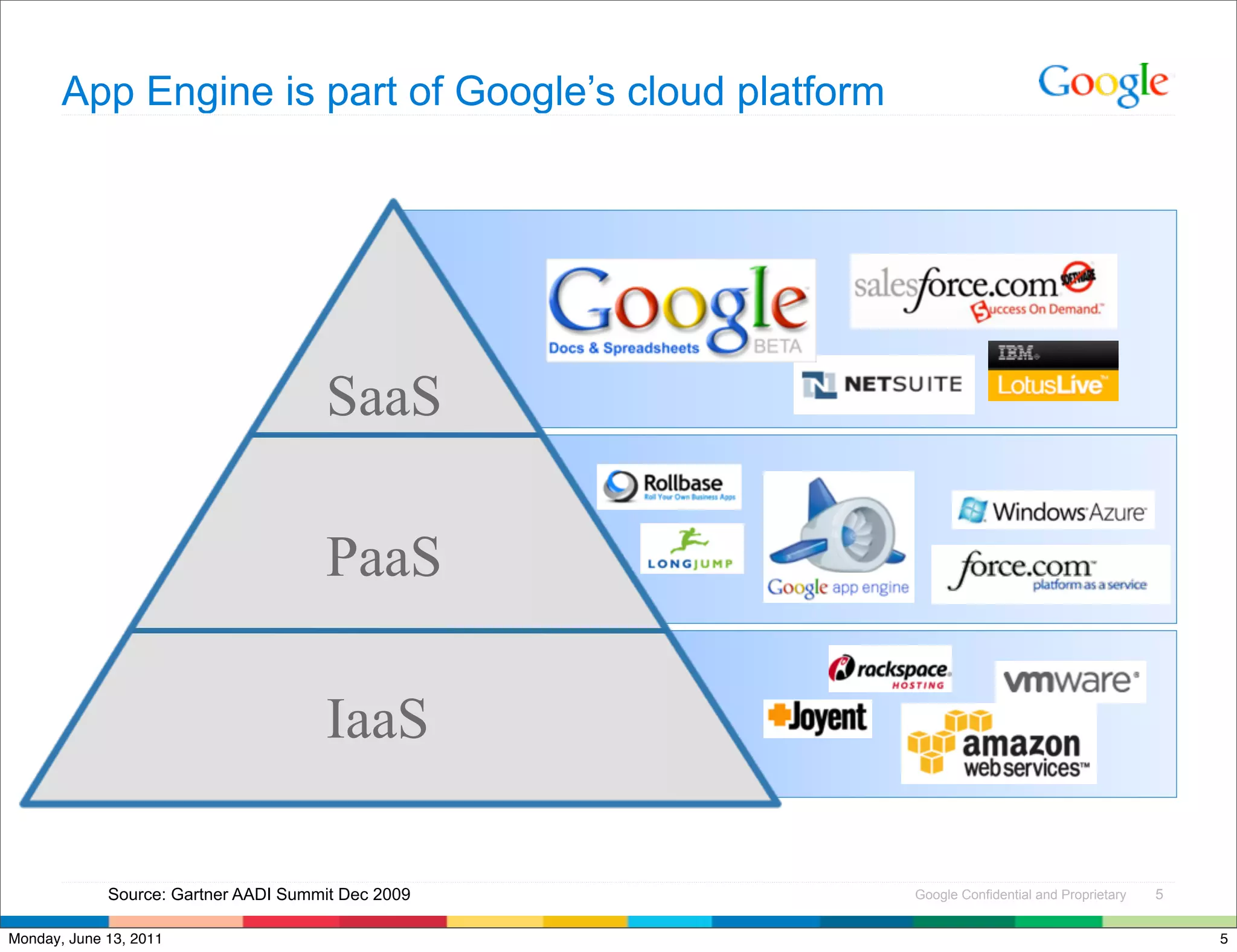

5. App Engine is part of Google’s cloud platform
SaaS
PaaS
IaaS
Source: Gartner AADI Summit Dec 2009 Google Confidential and Proprietary 5
Monday, June 13, 2011 5

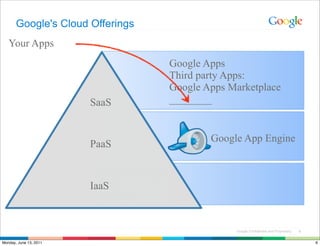

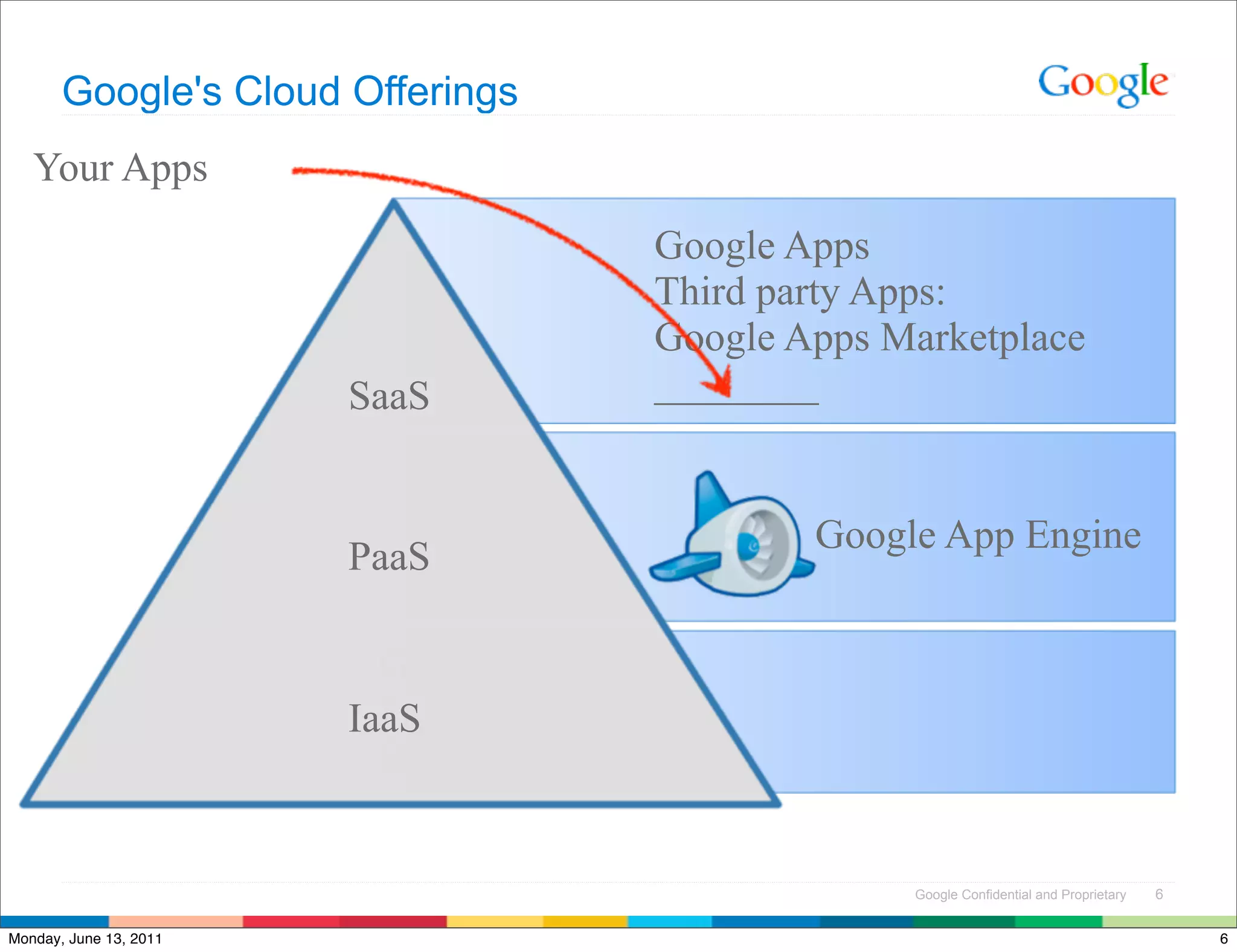

6. Google's Cloud Offerings
Your Apps
Google Apps
Third party Apps:
Google Apps Marketplace
SaaS ________
Google App Engine
PaaS
Google Storage
Prediction API
IaaS
BigQuery
Google Confidential and Proprietary 6
Monday, June 13, 2011 6

7. Not all "Platforms" are alike
Google Confidential and Proprietary
Monday, June 13, 2011 7

8. Cloud development in a box
Hardware
Networking
Operating system
Application runtime
• Java, Python
Static file serving
Services
Fault tolerance
Load balancing
Google Confidential and Proprietary 8
Monday, June 13, 2011 8

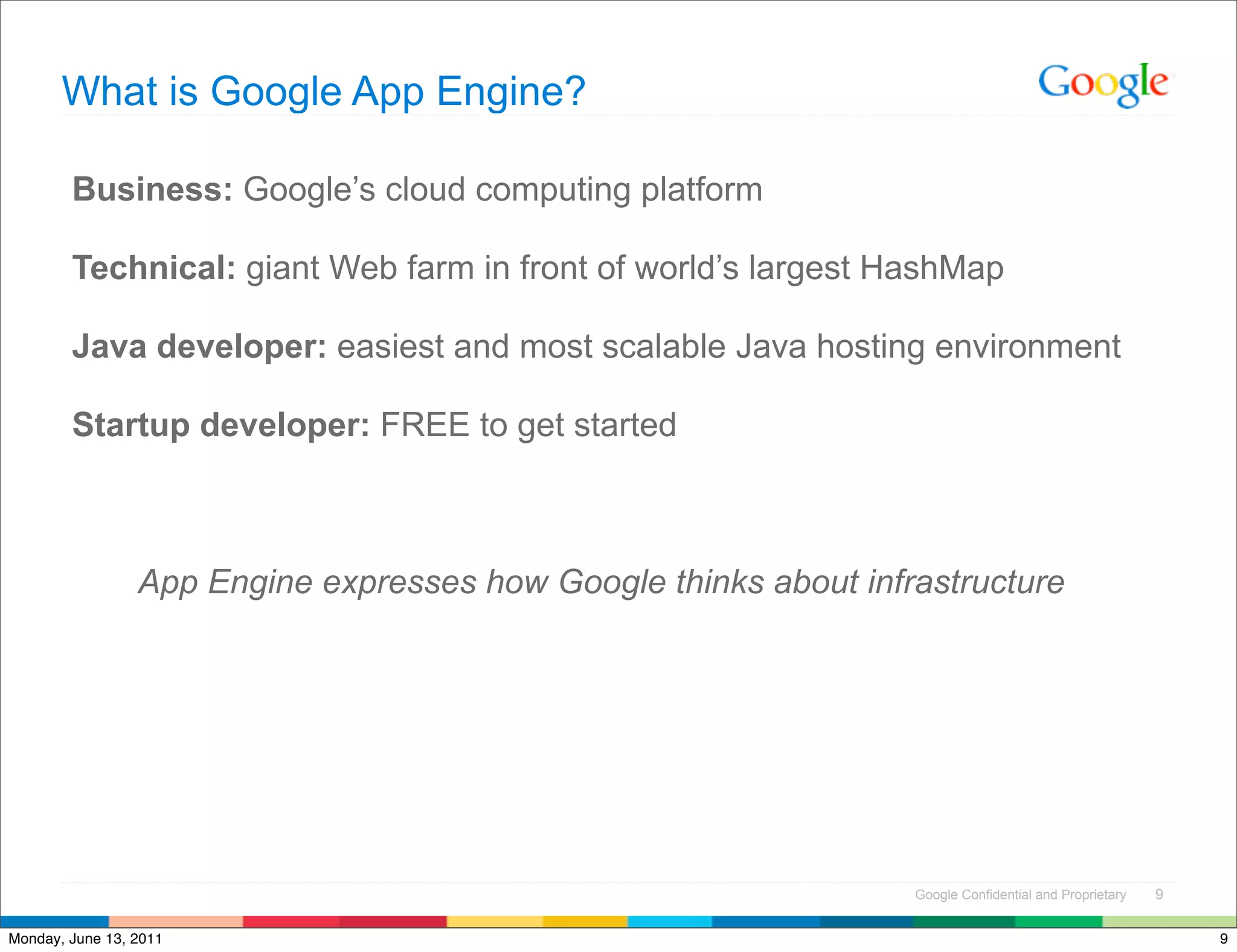

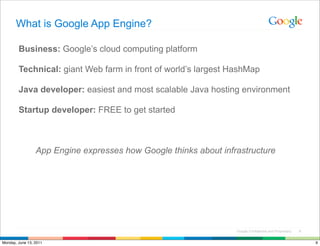

9. What is Google App Engine?
Business: Google’s cloud computing platform
Technical: giant Web farm in front of world’s largest HashMap
Java developer: easiest and most scalable Java hosting environment
Startup developer: FREE to get started
App Engine expresses how Google thinks about infrastructure
Google Confidential and Proprietary 9
Monday, June 13, 2011 9

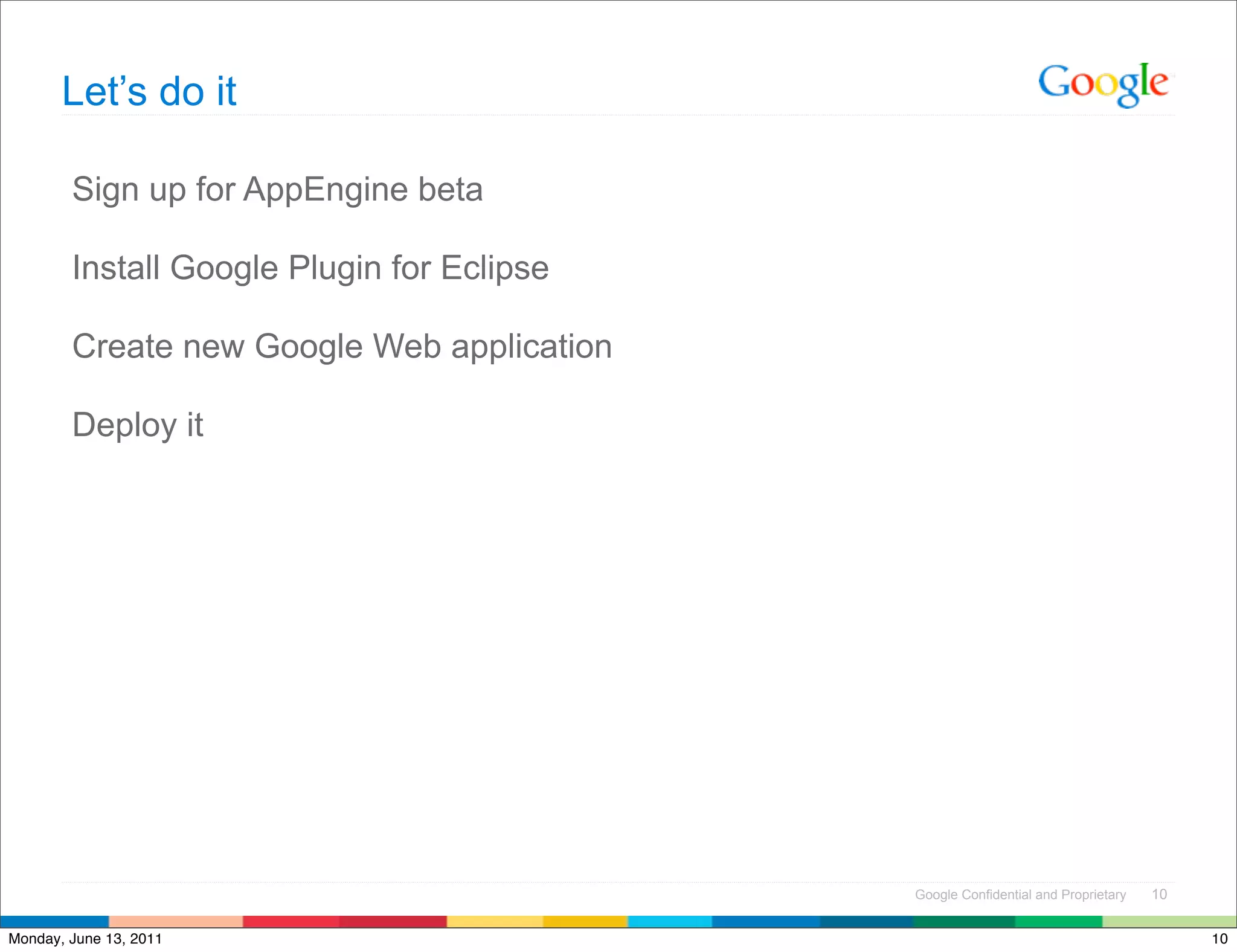

10. Let’s do it
Sign up for AppEngine beta
Install Google Plugin for Eclipse
Create new Google Web application
Deploy it
Google Confidential and Proprietary 10
Monday, June 13, 2011 10

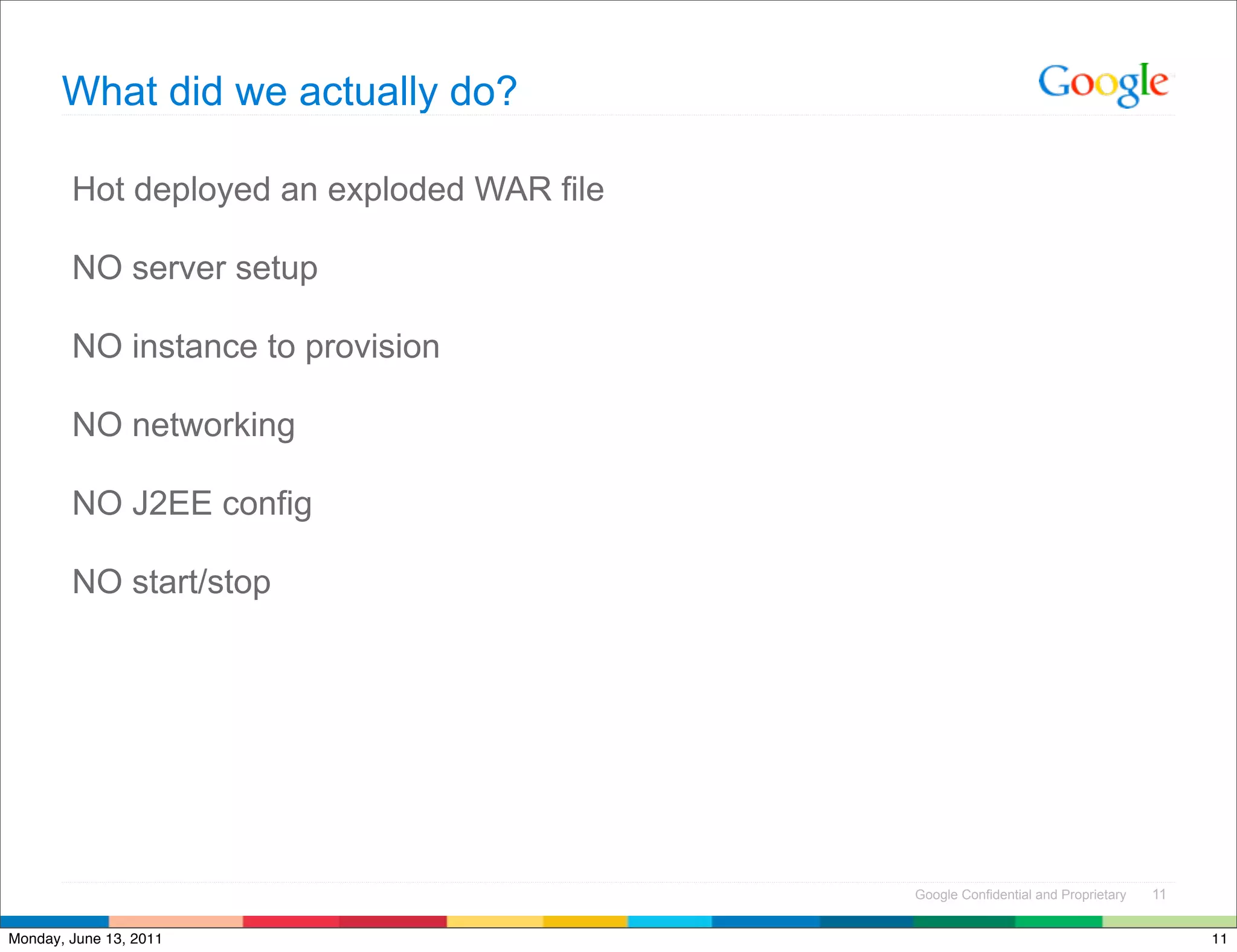

11. What did we actually do?
Hot deployed an exploded WAR file
NO server setup
NO instance to provision
NO networking
NO J2EE config
NO start/stop
Google Confidential and Proprietary 11
Monday, June 13, 2011 11

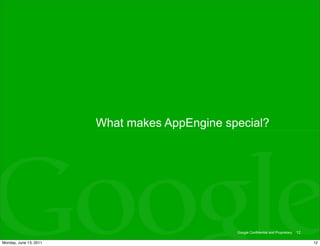

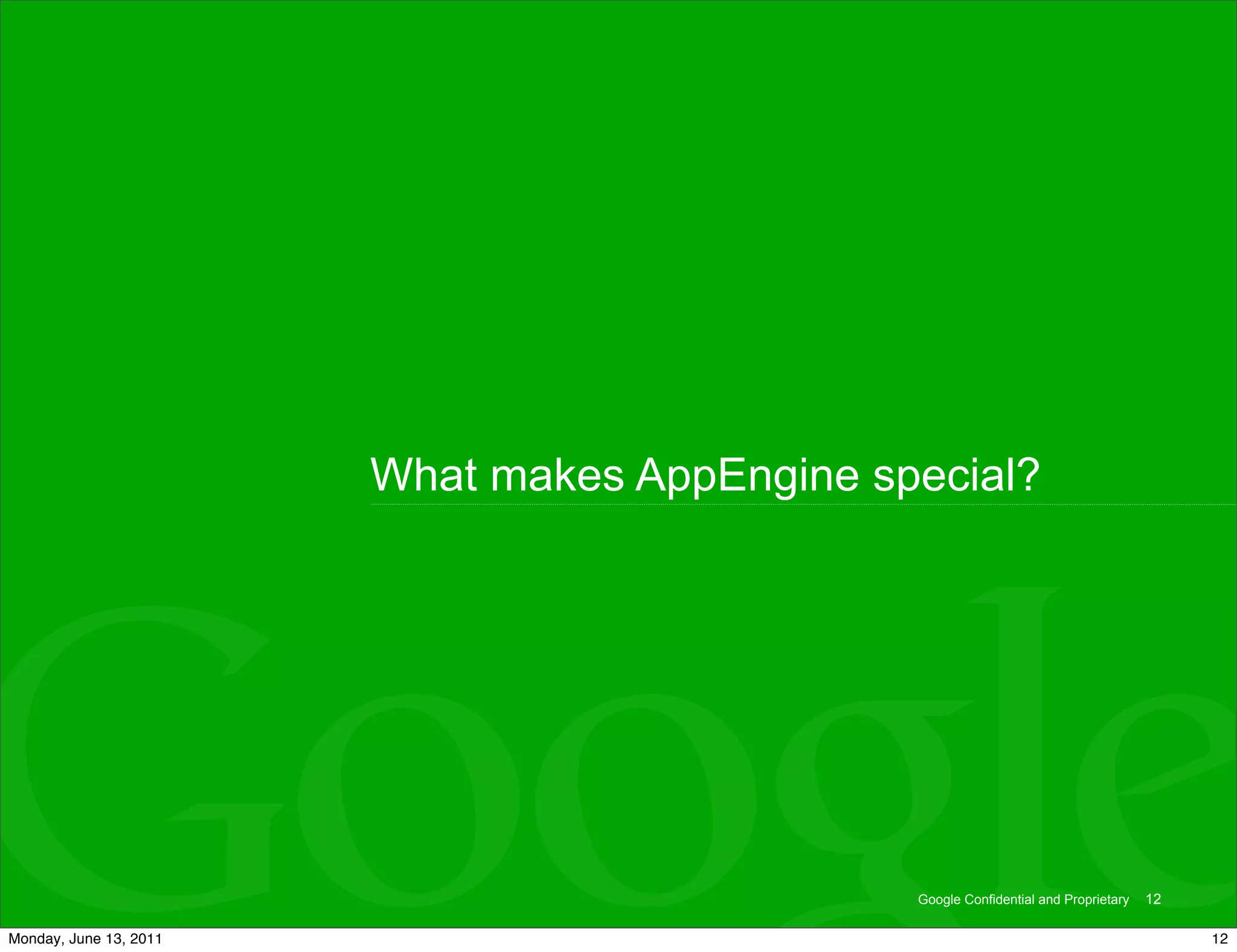

12. What makes AppEngine special?
Google Confidential and Proprietary 12
Monday, June 13, 2011 12

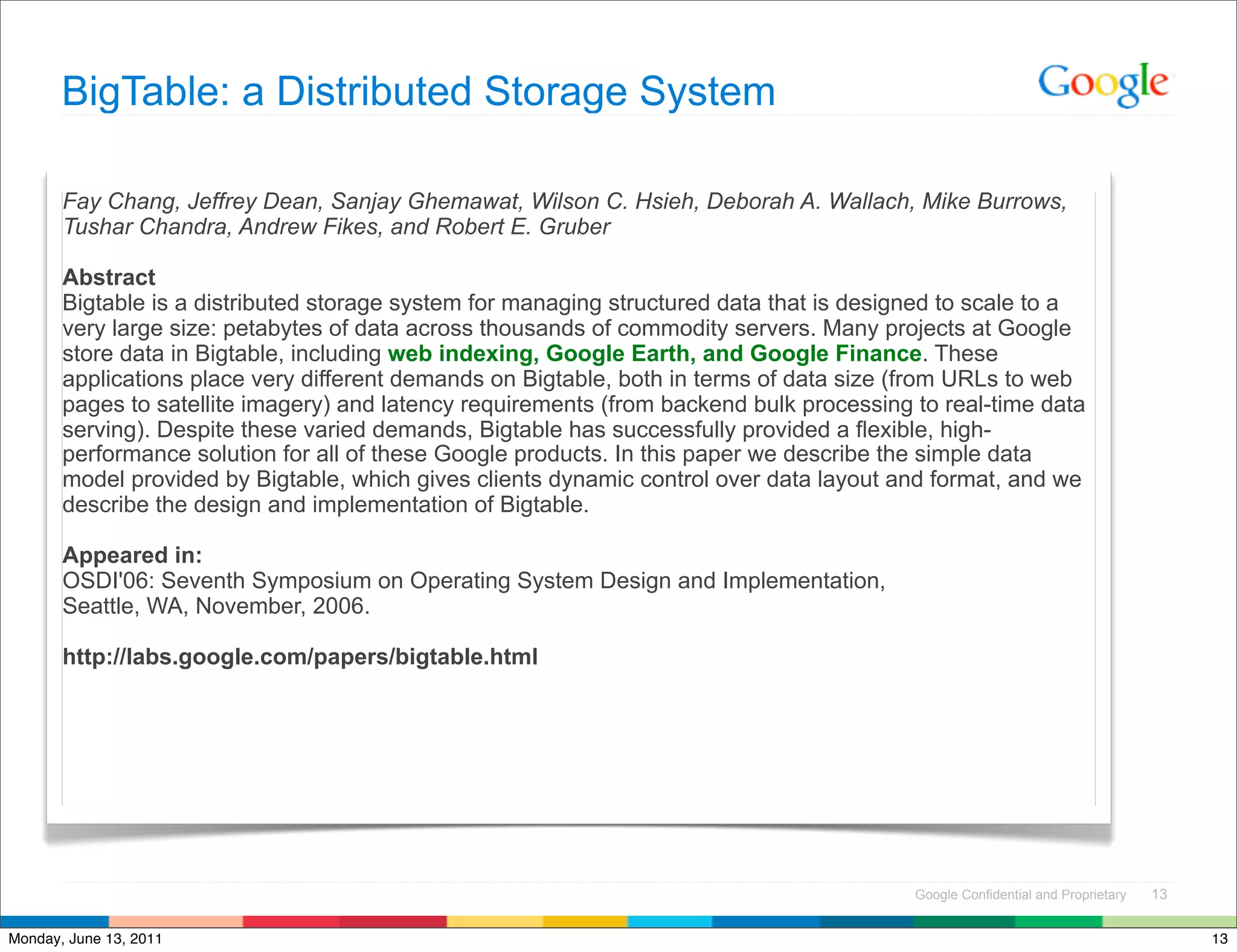

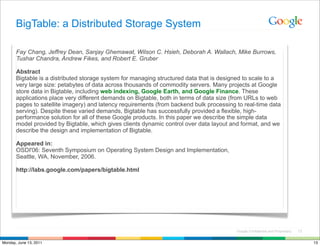

13. BigTable: a Distributed Storage System
Fay Chang, Jeffrey Dean, Sanjay Ghemawat, Wilson C. Hsieh, Deborah A. Wallach, Mike Burrows,
Tushar Chandra, Andrew Fikes, and Robert E. Gruber
Abstract
Bigtable is a distributed storage system for managing structured data that is designed to scale to a
very large size: petabytes of data across thousands of commodity servers. Many projects at Google
store data in Bigtable, including web indexing, Google Earth, and Google Finance. These
applications place very different demands on Bigtable, both in terms of data size (from URLs to web
pages to satellite imagery) and latency requirements (from backend bulk processing to real-time data
serving). Despite these varied demands, Bigtable has successfully provided a flexible, high-
performance solution for all of these Google products. In this paper we describe the simple data
model provided by Bigtable, which gives clients dynamic control over data layout and format, and we
describe the design and implementation of Bigtable.
Appeared in:
OSDI'06: Seventh Symposium on Operating System Design and Implementation,
Seattle, WA, November, 2006.
http://labs.google.com/papers/bigtable.html
Google Confidential and Proprietary 13
Monday, June 13, 2011 13

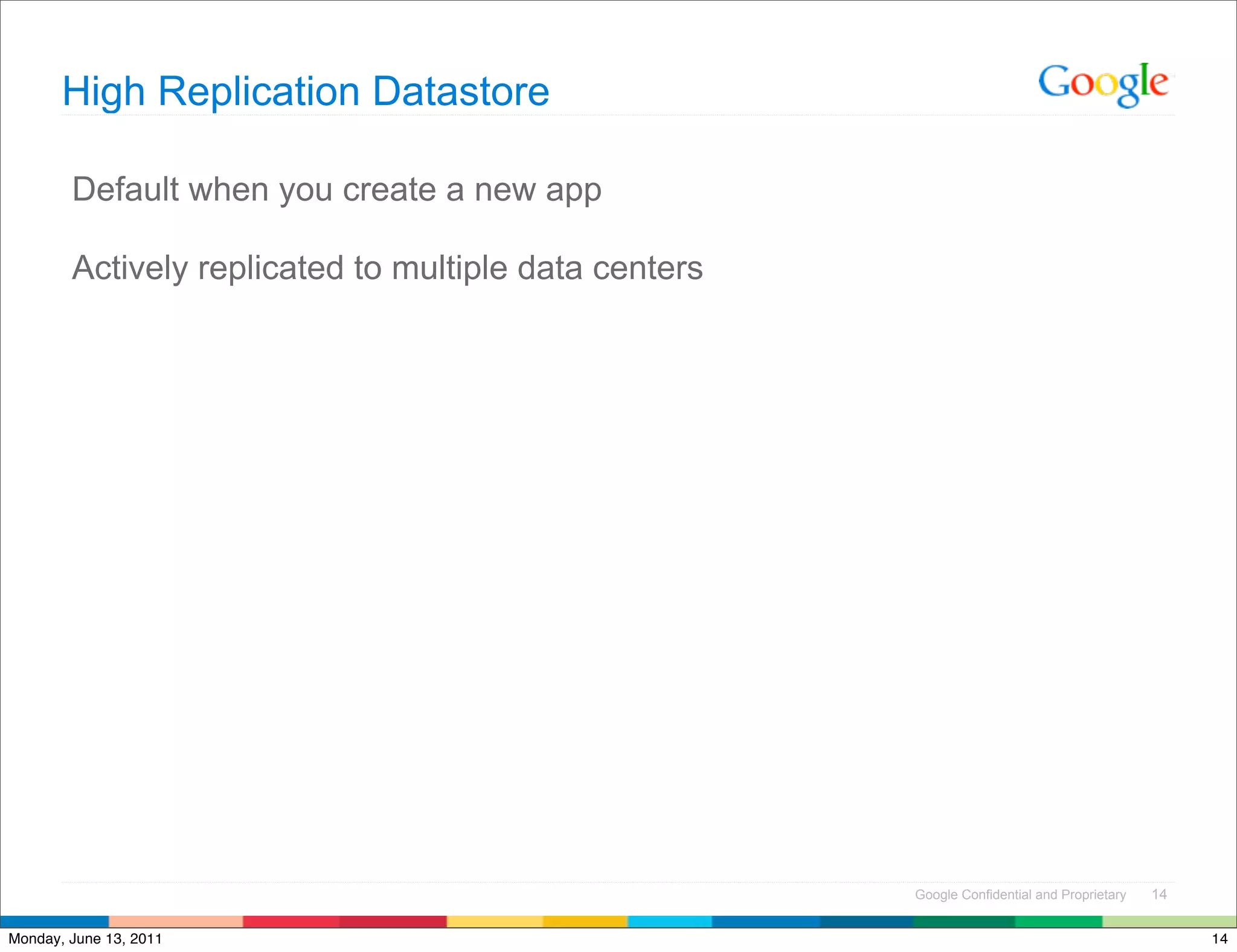

14. High Replication Datastore
Default when you create a new app
Actively replicated to multiple data centers
Google Confidential and Proprietary 14
Monday, June 13, 2011 14

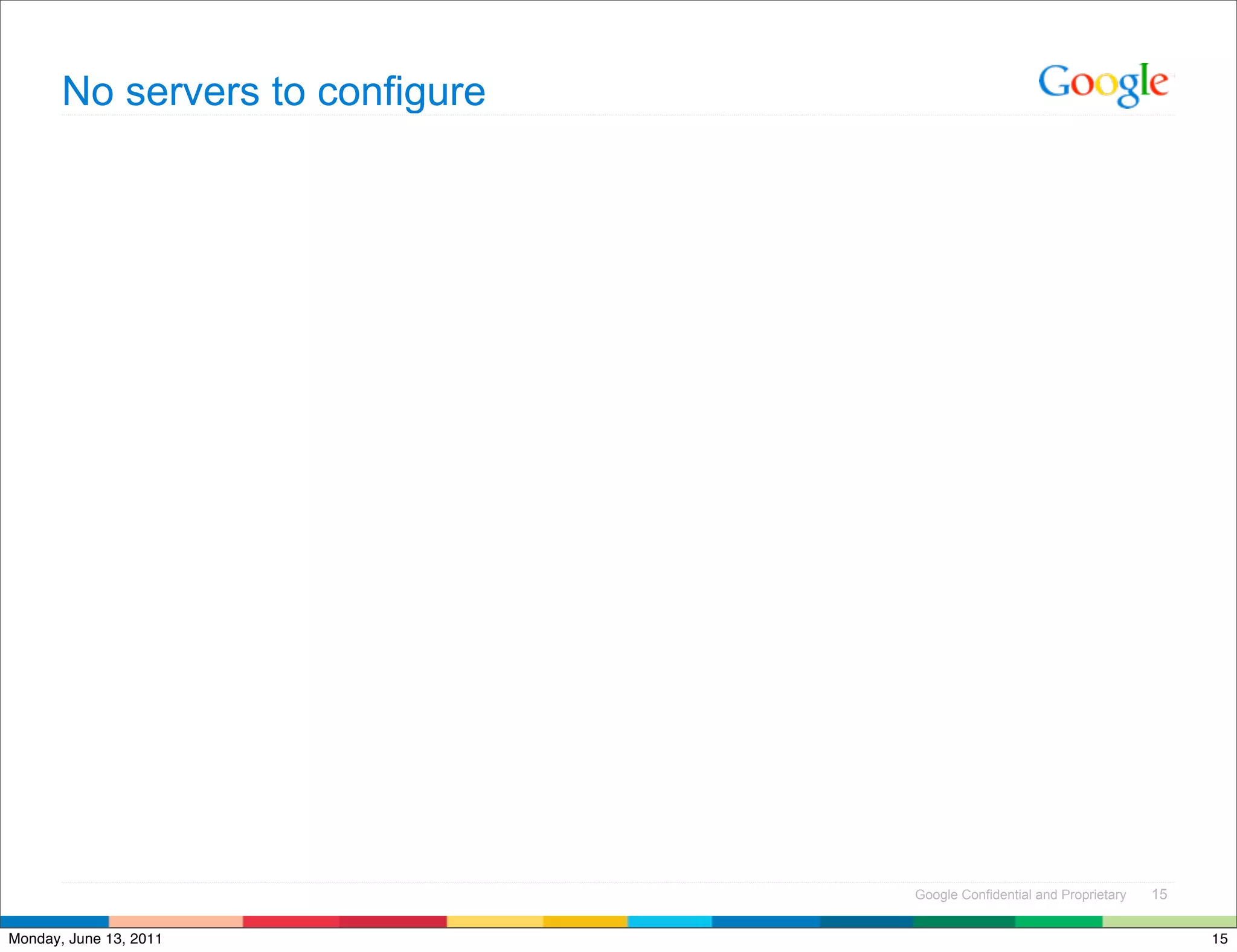

15. No servers to configure
Google Confidential and Proprietary 15
Monday, June 13, 2011 15

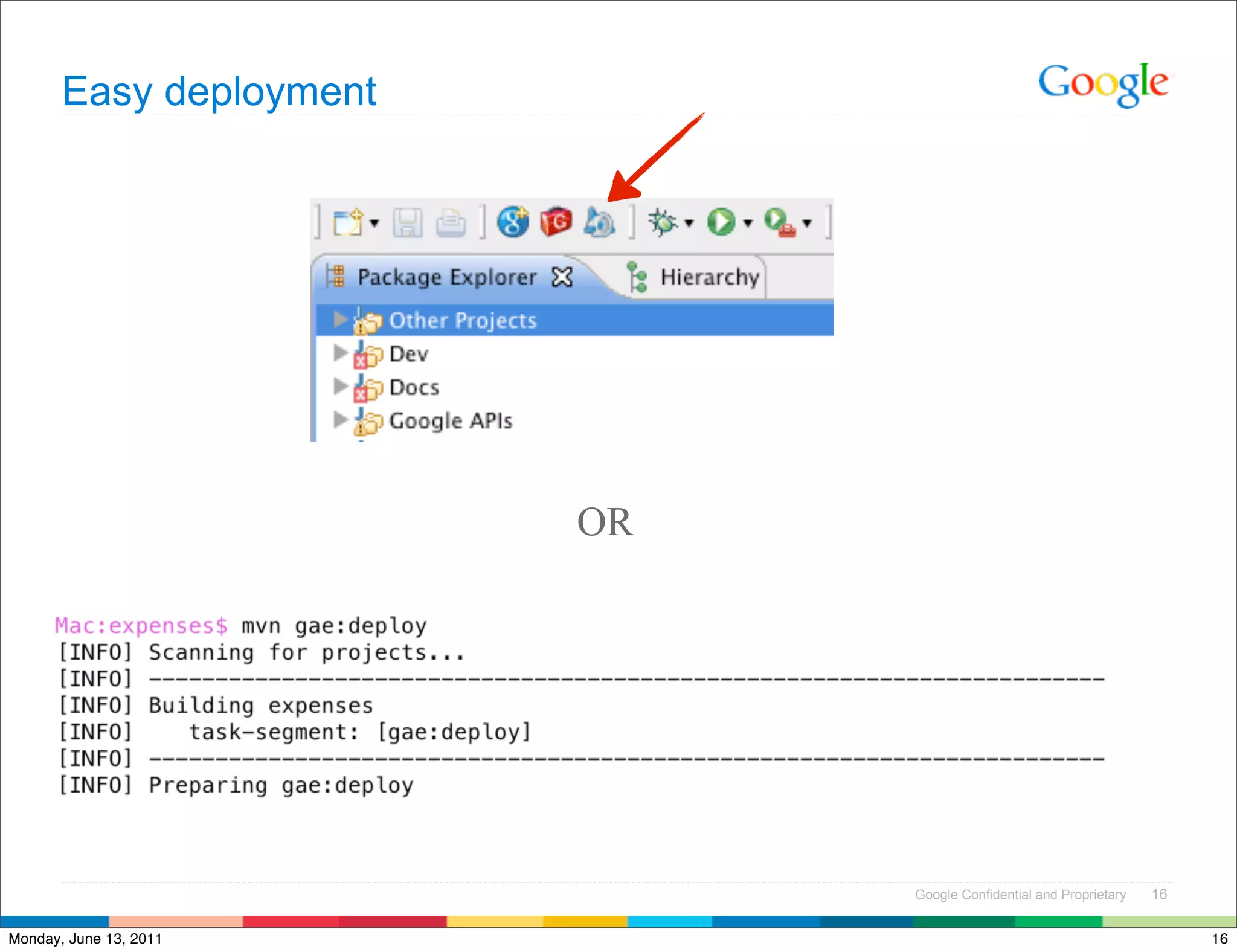

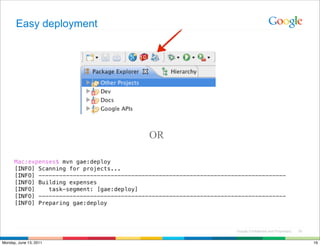

16. Easy deployment
OR
Google Confidential and Proprietary 16
Monday, June 13, 2011 16

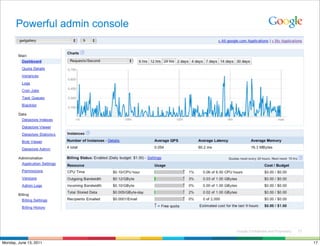

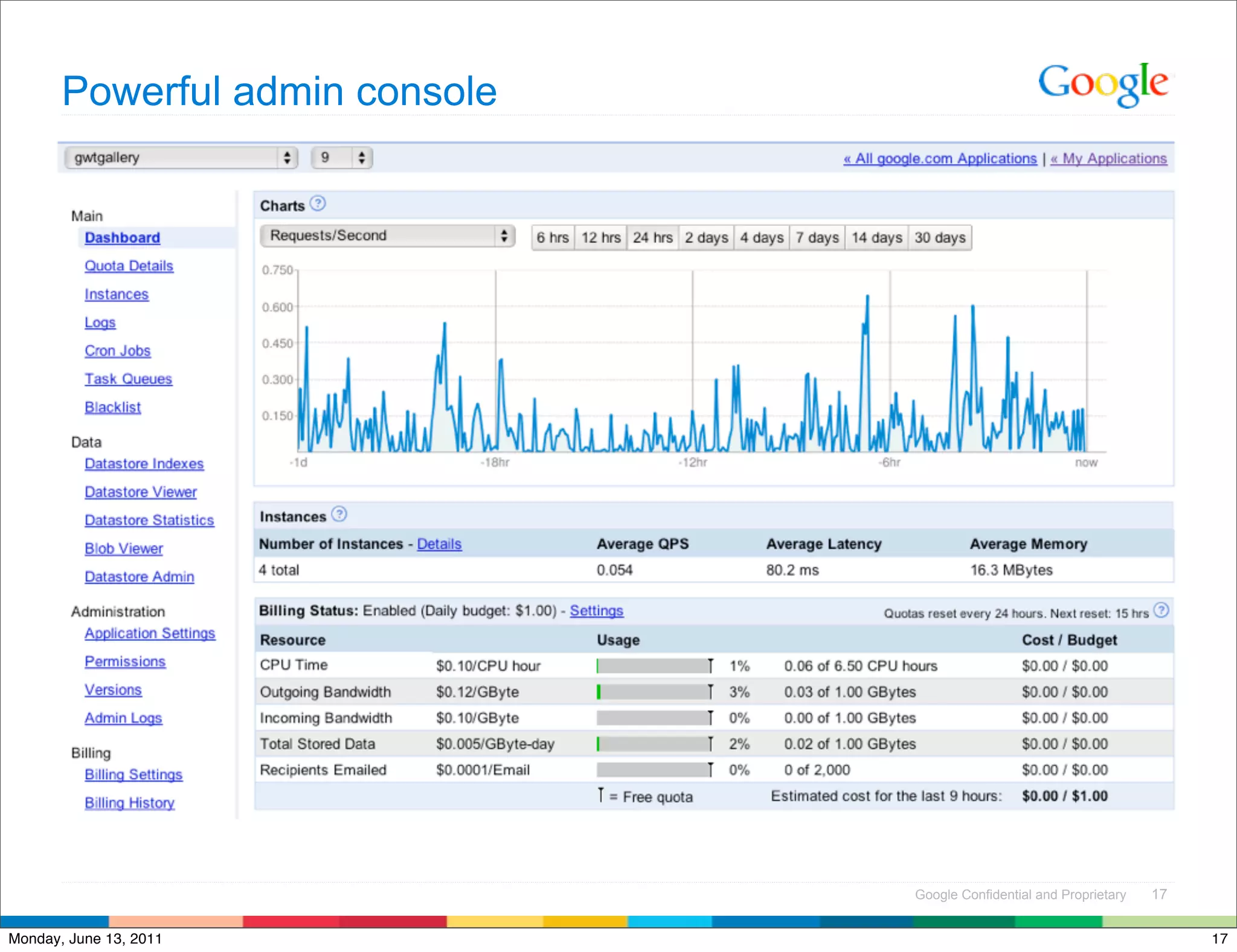

17. Powerful admin console
Google Confidential and Proprietary 17
Monday, June 13, 2011 17

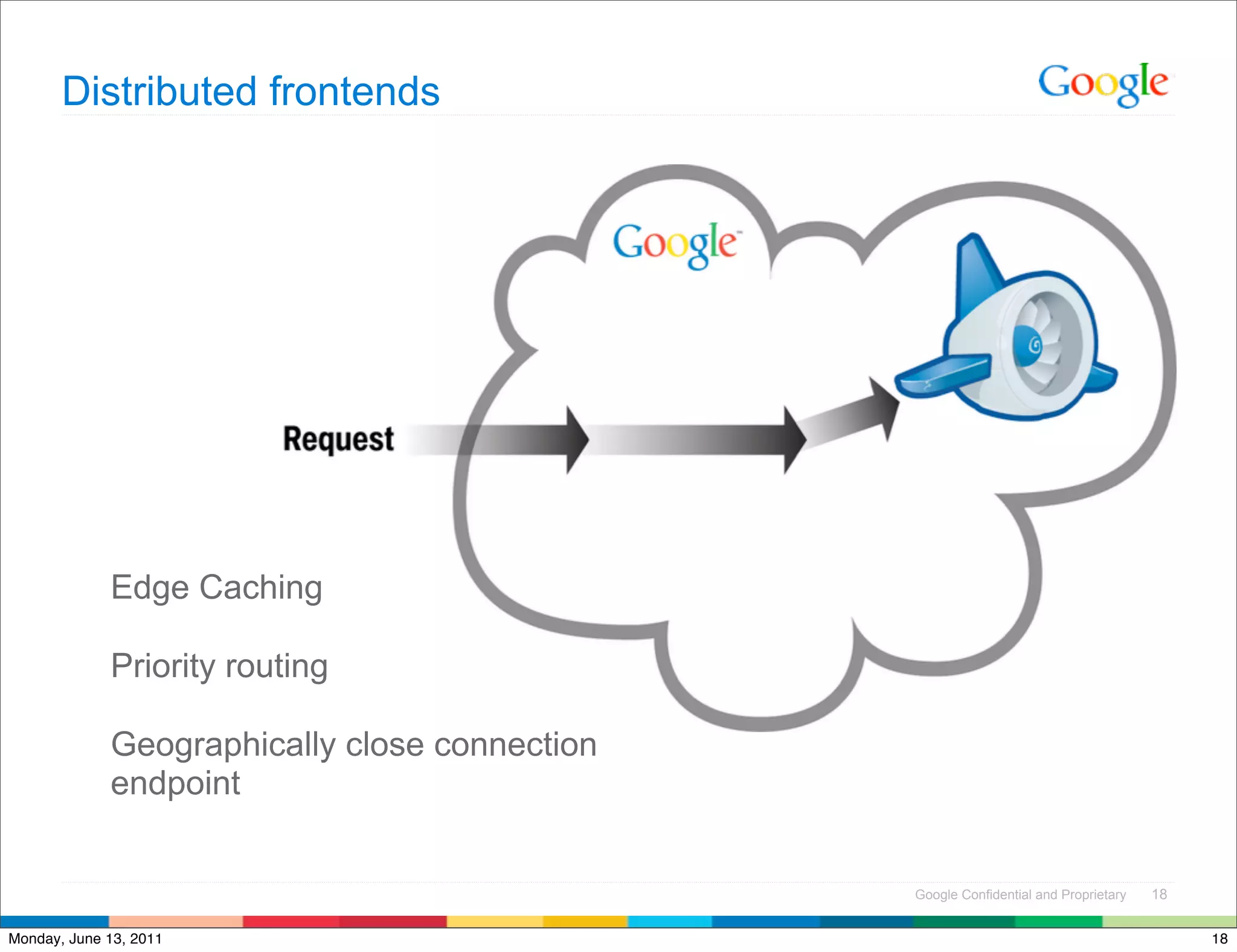

18. Distributed frontends
Edge Caching
Priority routing
Geographically close connection
endpoint
Google Confidential and Proprietary 18
Monday, June 13, 2011 18

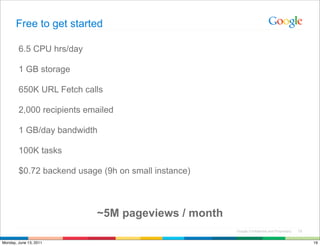

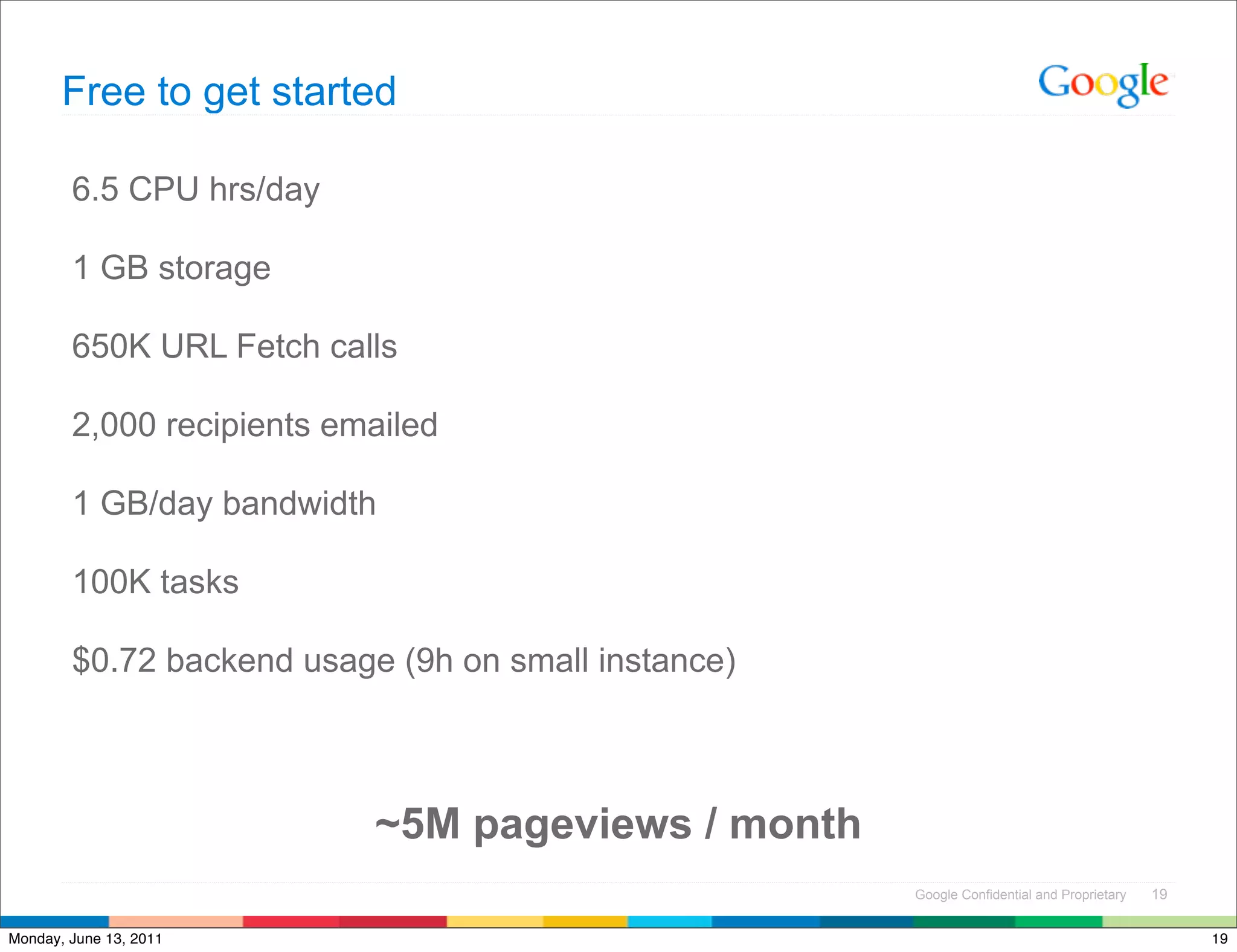

19. Free to get started
6.5 CPU hrs/day
1 GB storage
650K URL Fetch calls
2,000 recipients emailed
1 GB/day bandwidth
100K tasks
$0.72 backend usage (9h on small instance)
~5M pageviews / month
Google Confidential and Proprietary 19
Monday, June 13, 2011 19

20. A Brief History of App Engine
Monday, June 13, 2011 20

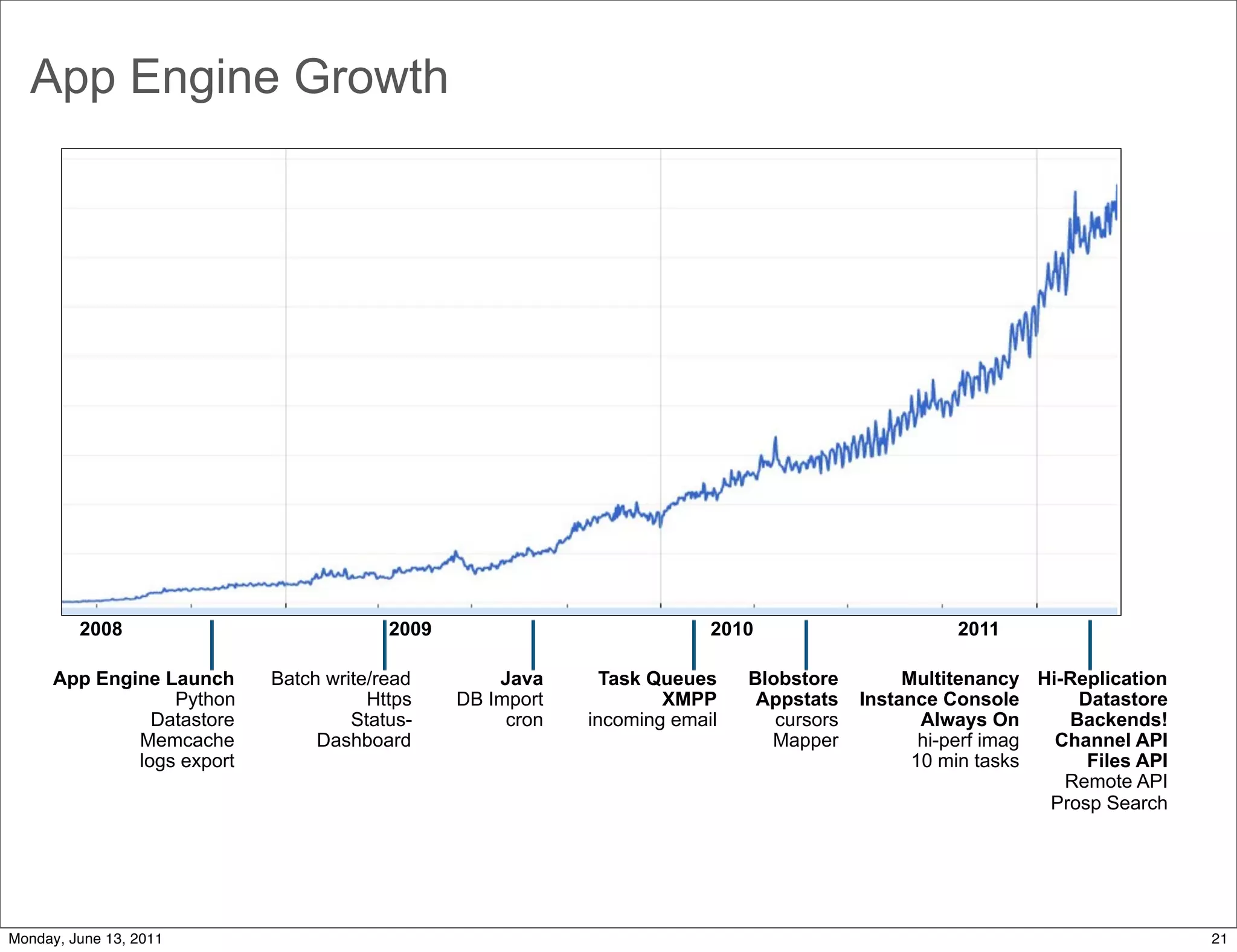

21. App Engine Growth
2008 2009 2010 2011
App Engine Launch Batch write/read Java Task Queues Blobstore Multitenancy Hi-Replication
Python Https DB Import XMPP Appstats Instance Console Datastore
Datastore Status- cron incoming email cursors Always On Backends!
Memcache Dashboard Mapper hi-perf imag Channel API
logs export 10 min tasks Files API
Remote API
Prosp Search
Monday, June 13, 2011 21

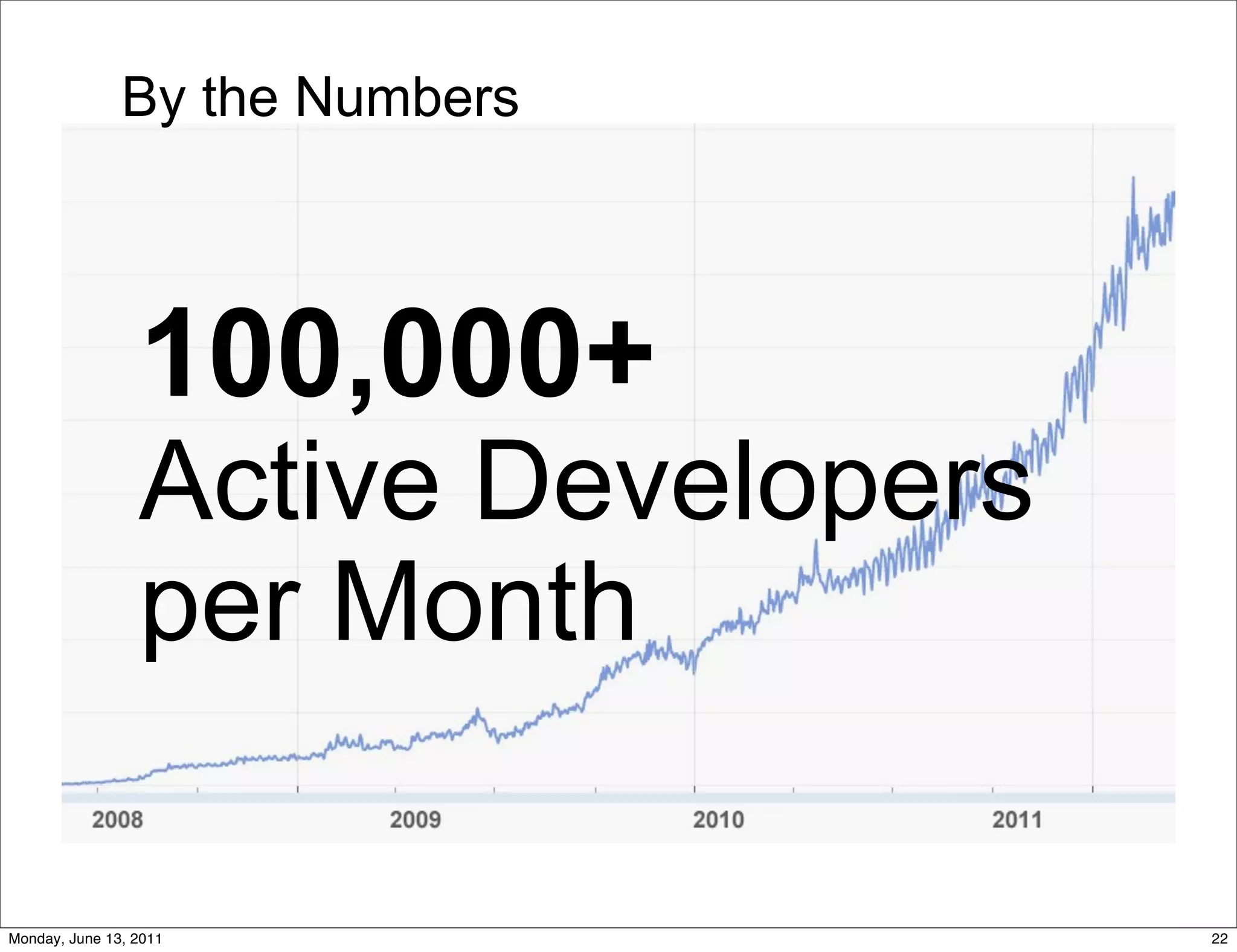

22. By the Numbers
100,000+
Active Developers
per Month
Monday, June 13, 2011 22

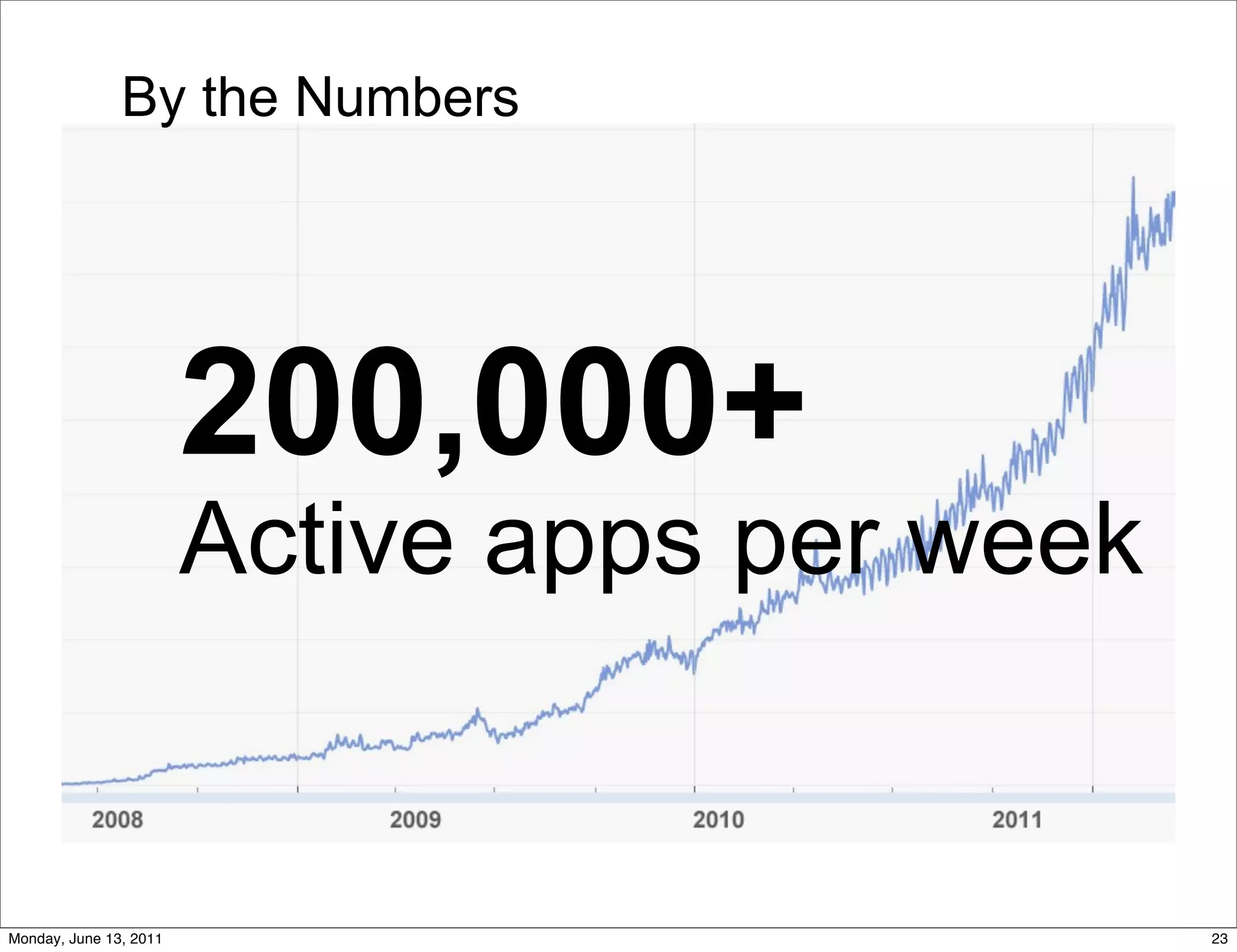

23. By the Numbers
200,000+
Active apps per week
Monday, June 13, 2011 23

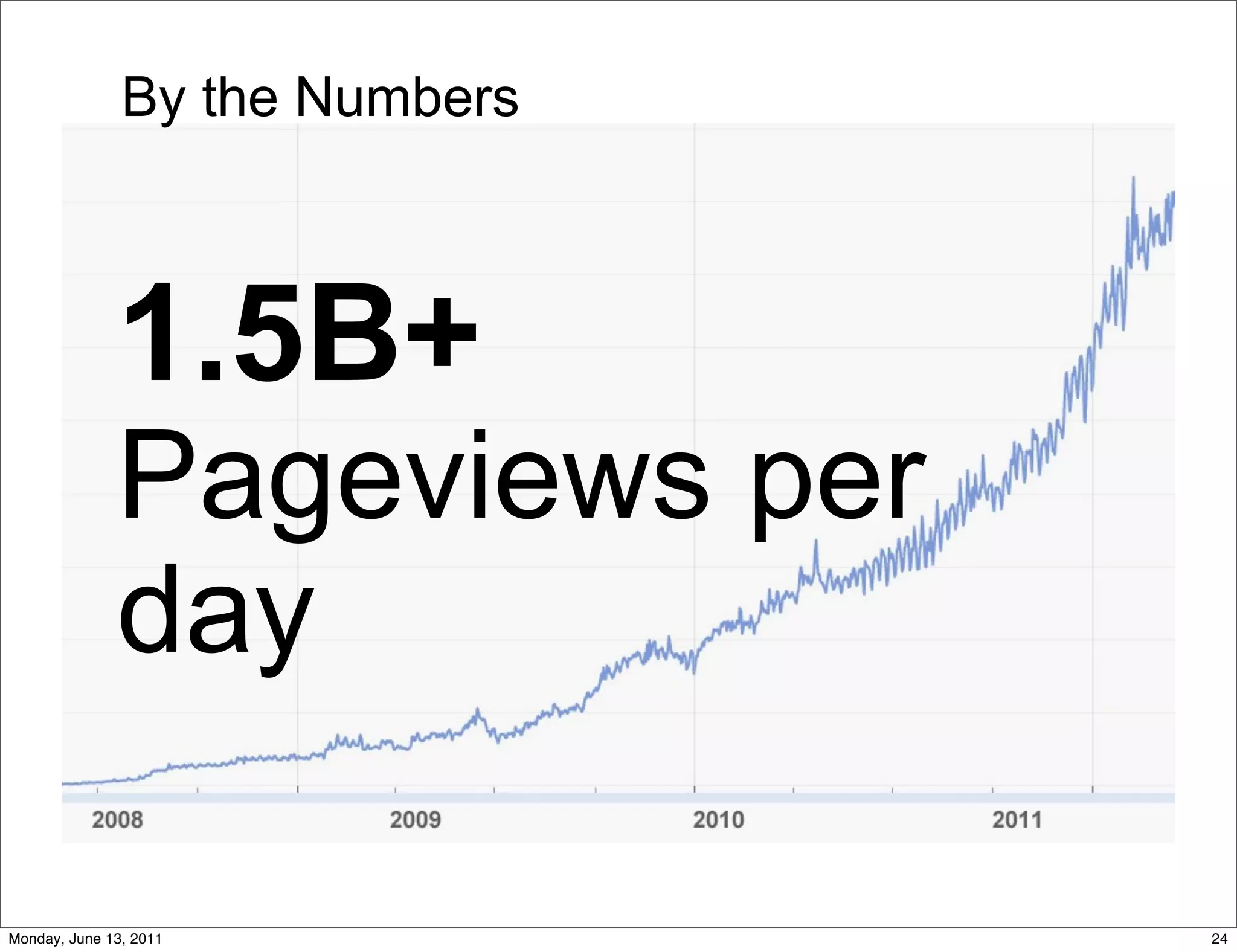

24. By the Numbers
1.5B+
Pageviews per
day
Monday, June 13, 2011 24

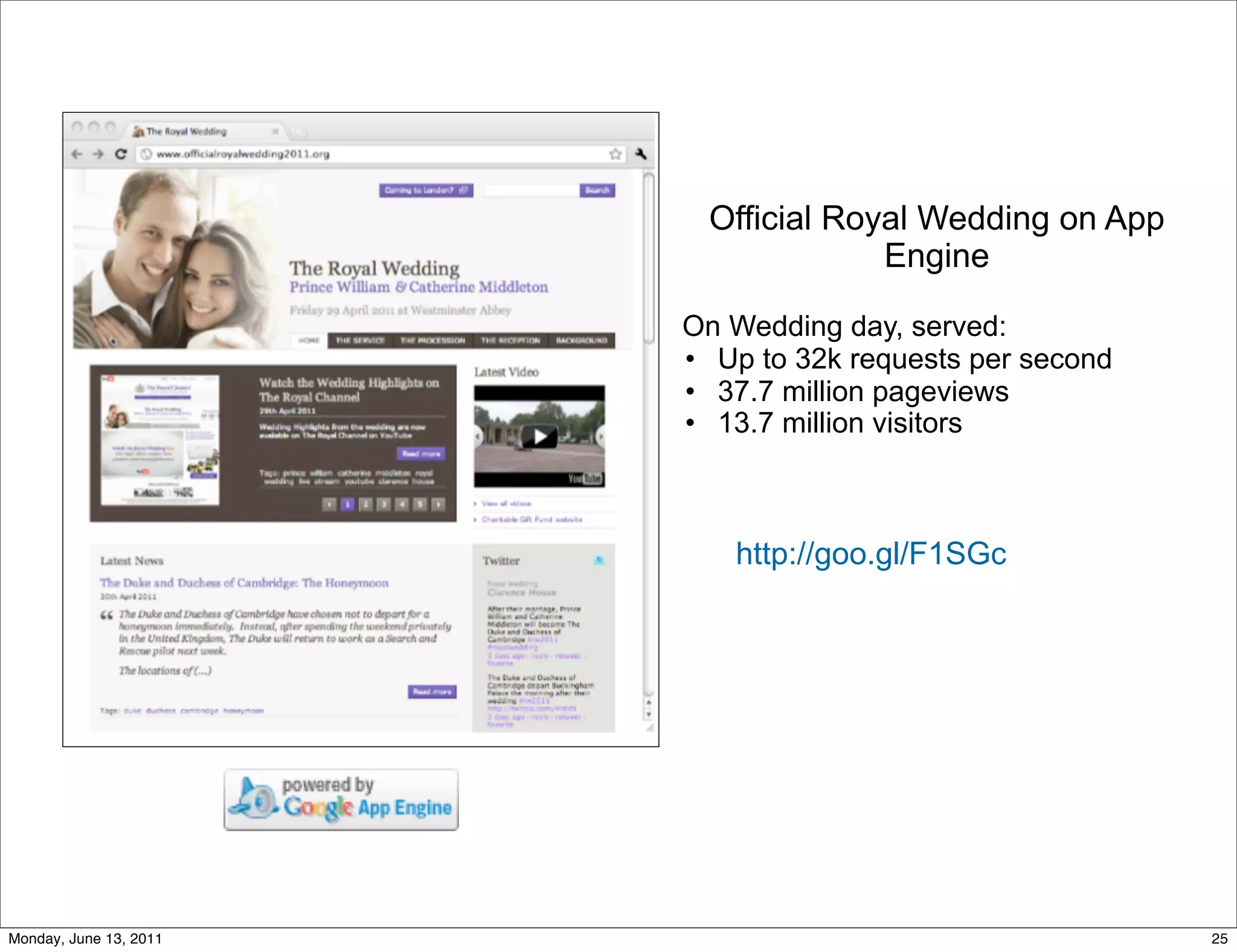

25. Official Royal Wedding on App
Engine
On Wedding day, served:
• Up to 32k requests per second
• 37.7 million pageviews
• 13.7 million visitors
http://goo.gl/F1SGc
Monday, June 13, 2011 25

26. Google Confidential and Proprietary
Monday, June 13, 2011 26

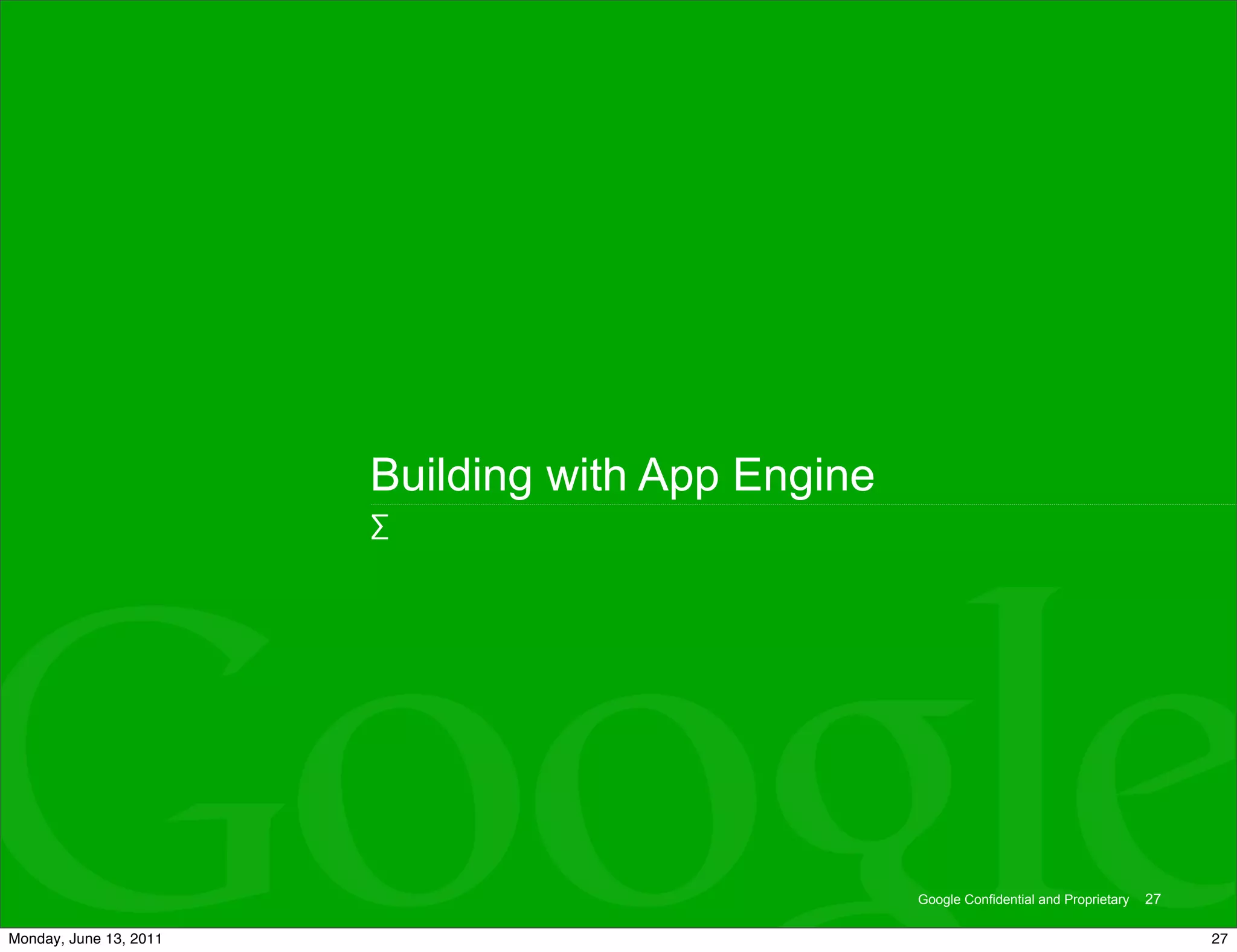

27. Building with App Engine
∑
Google Confidential and Proprietary 27
Monday, June 13, 2011 27

28. Language runtimes
Duke, the Java mascot
Copyright © Sun Microsystems Inc., all rights reserved.
Google Confidential and Proprietary 28
Monday, June 13, 2011 28

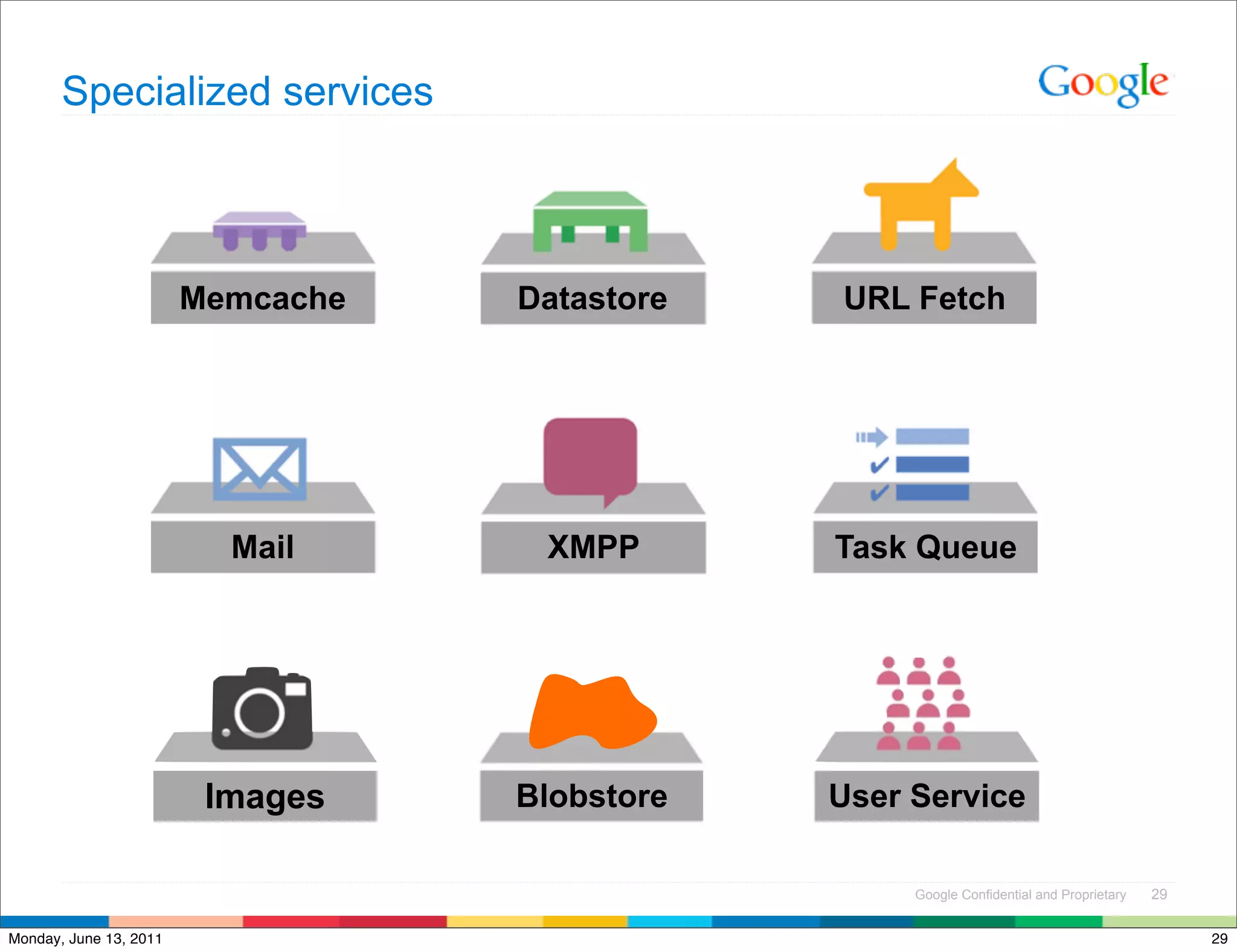

29. Specialized services
Memcache Datastore URL Fetch
Mail XMPP Task Queue
Images Blobstore User Service
Google Confidential and Proprietary 29
Monday, June 13, 2011 29

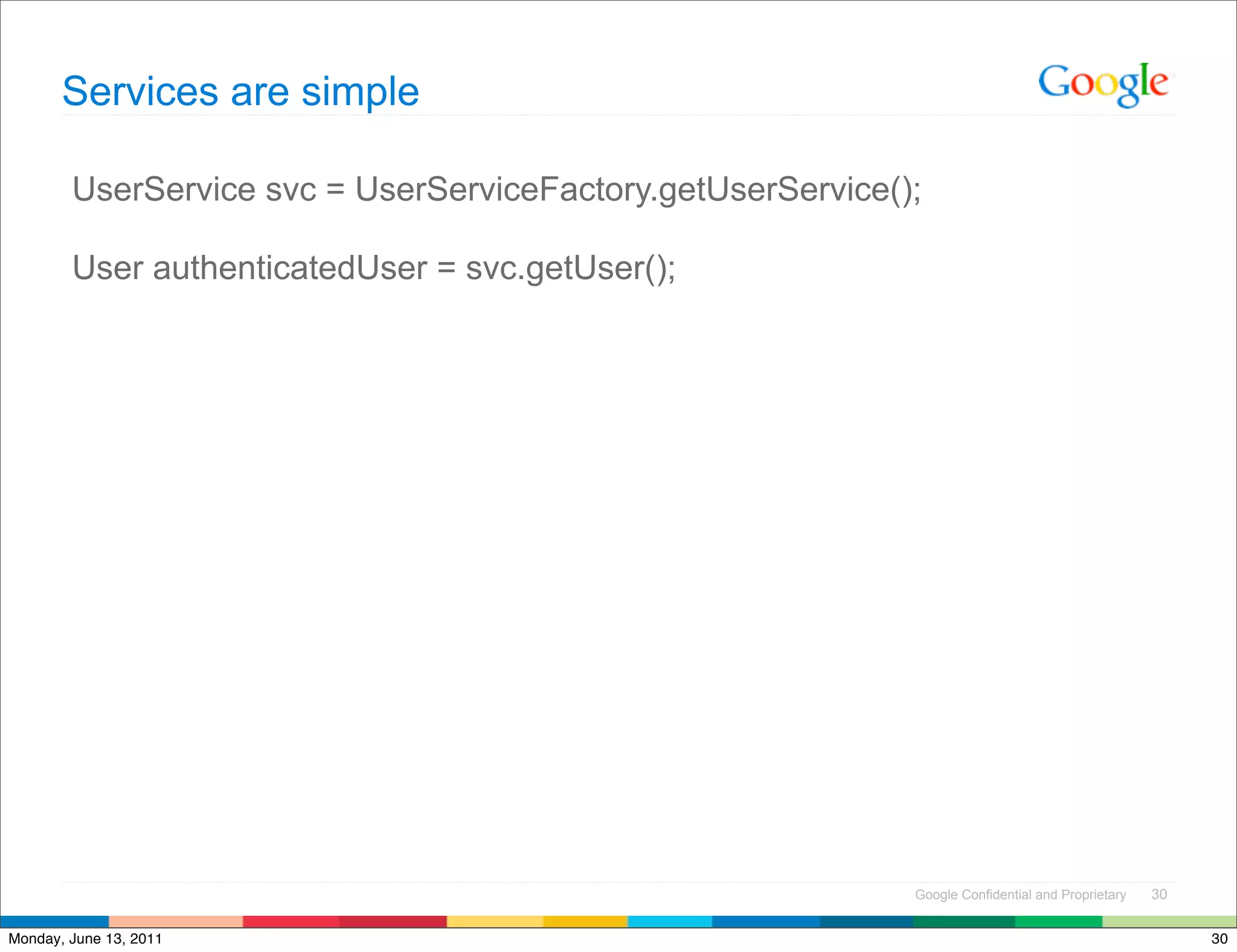

30. Services are simple
UserService svc = UserServiceFactory.getUserService();
User authenticatedUser = svc.getUser();
Google Confidential and Proprietary 30
Monday, June 13, 2011 30

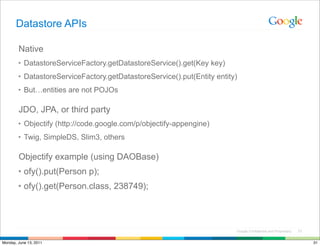

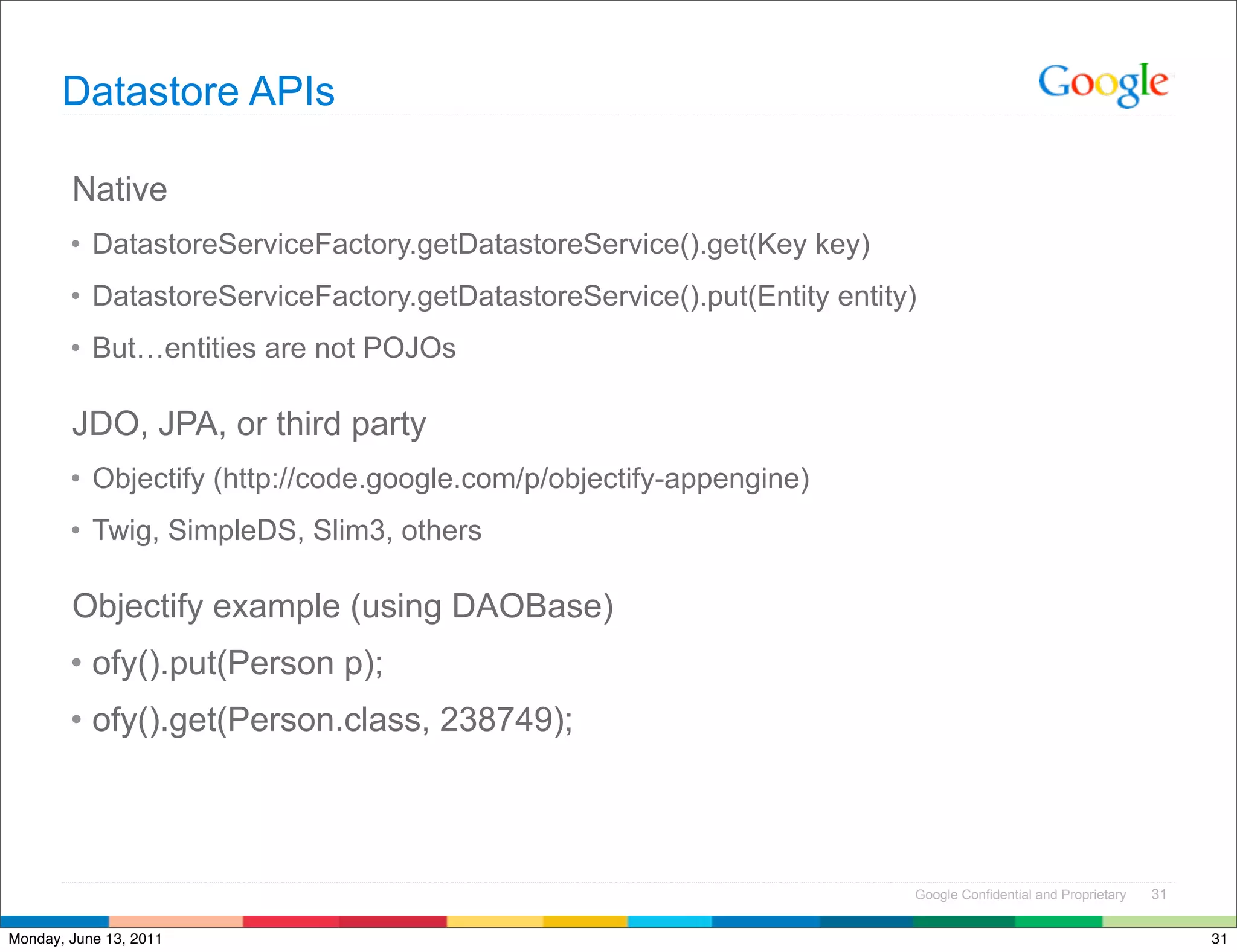

31. Datastore APIs
Native
• DatastoreServiceFactory.getDatastoreService().get(Key key)
• DatastoreServiceFactory.getDatastoreService().put(Entity entity)
• But…entities are not POJOs
JDO, JPA, or third party
• Objectify (http://code.google.com/p/objectify-appengine)
• Twig, SimpleDS, Slim3, others
Objectify example (using DAOBase)
• ofy().put(Person p);
• ofy().get(Person.class, 238749);
Google Confidential and Proprietary 31
Monday, June 13, 2011 31

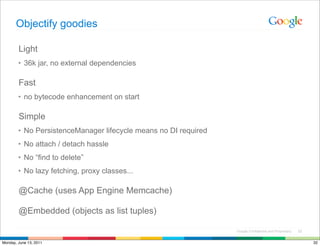

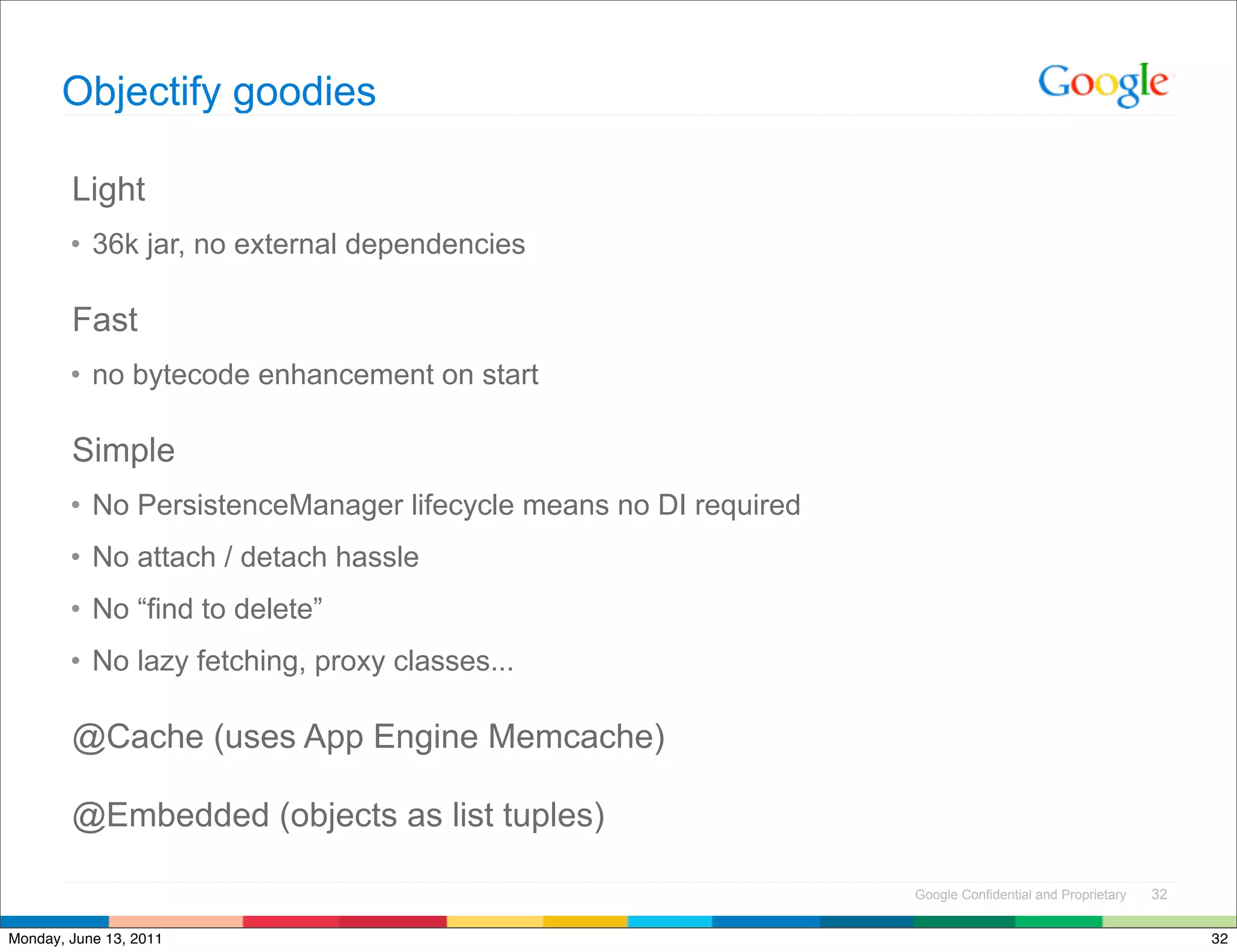

32. Objectify goodies
Light
• 36k jar, no external dependencies
Fast
• no bytecode enhancement on start
Simple
• No PersistenceManager lifecycle means no DI required
• No attach / detach hassle
• No “find to delete”
• No lazy fetching, proxy classes...
@Cache (uses App Engine Memcache)
@Embedded (objects as list tuples)
Google Confidential and Proprietary 32
Monday, June 13, 2011 32

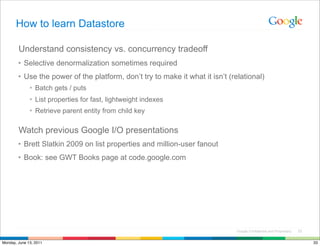

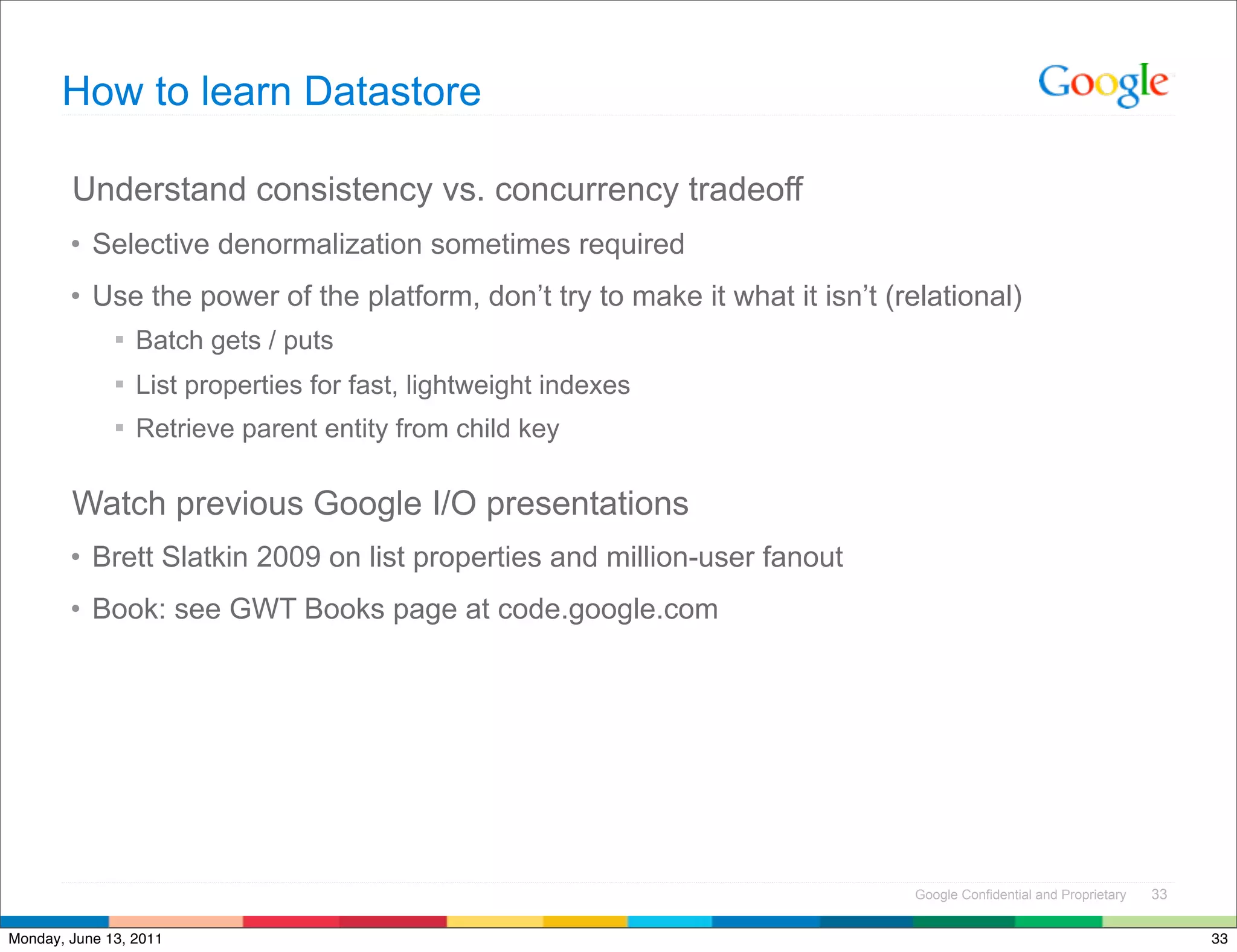

33. How to learn Datastore
Understand consistency vs. concurrency tradeoff
• Selective denormalization sometimes required
• Use the power of the platform, don’t try to make it what it isn’t (relational)
 Batch gets / puts
 List properties for fast, lightweight indexes
 Retrieve parent entity from child key
Watch previous Google I/O presentations
• Brett Slatkin 2009 on list properties and million-user fanout
• Book: see GWT Books page at code.google.com
Google Confidential and Proprietary 33
Monday, June 13, 2011 33

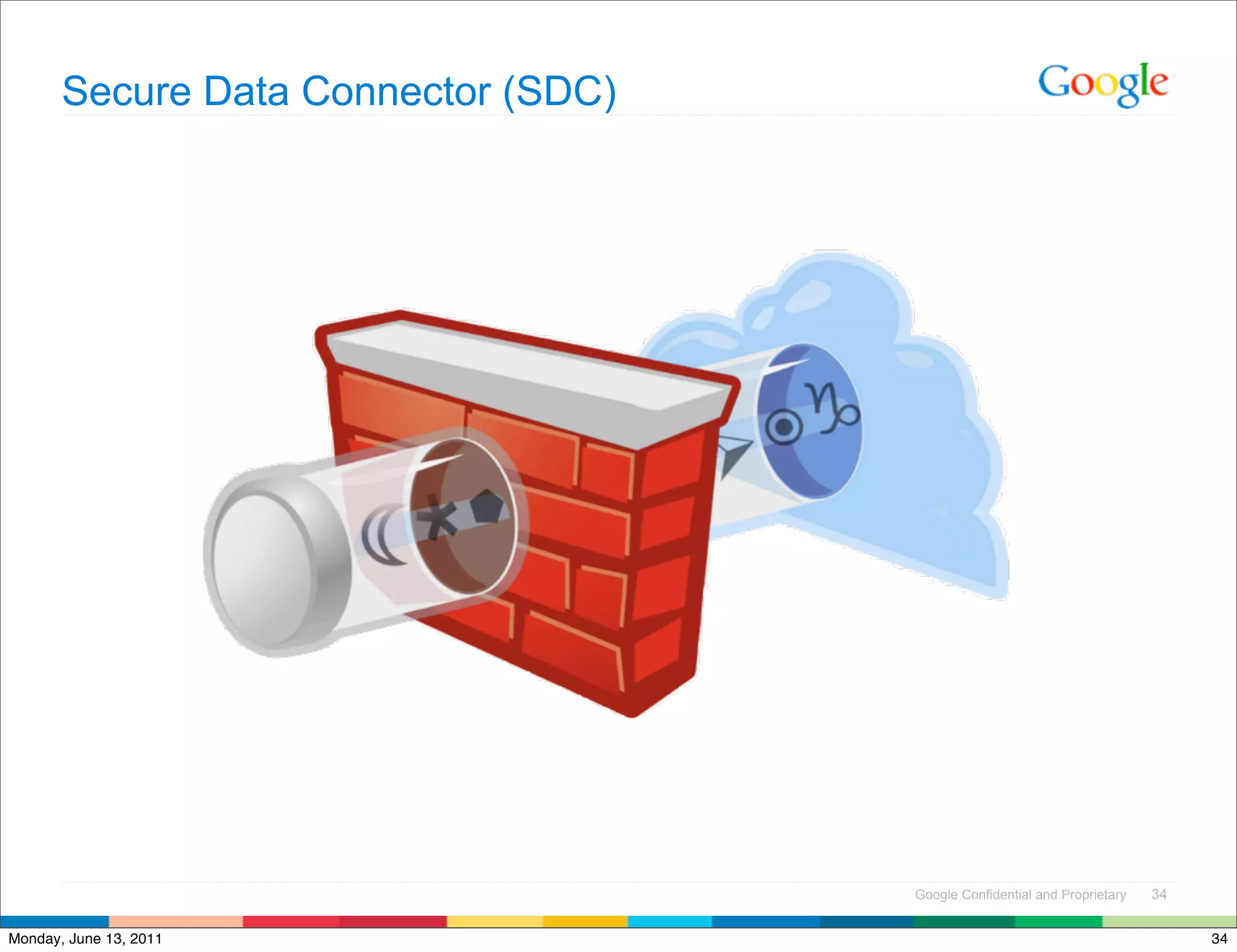

34. Secure Data Connector (SDC)
Google Confidential and Proprietary 34
Monday, June 13, 2011 34

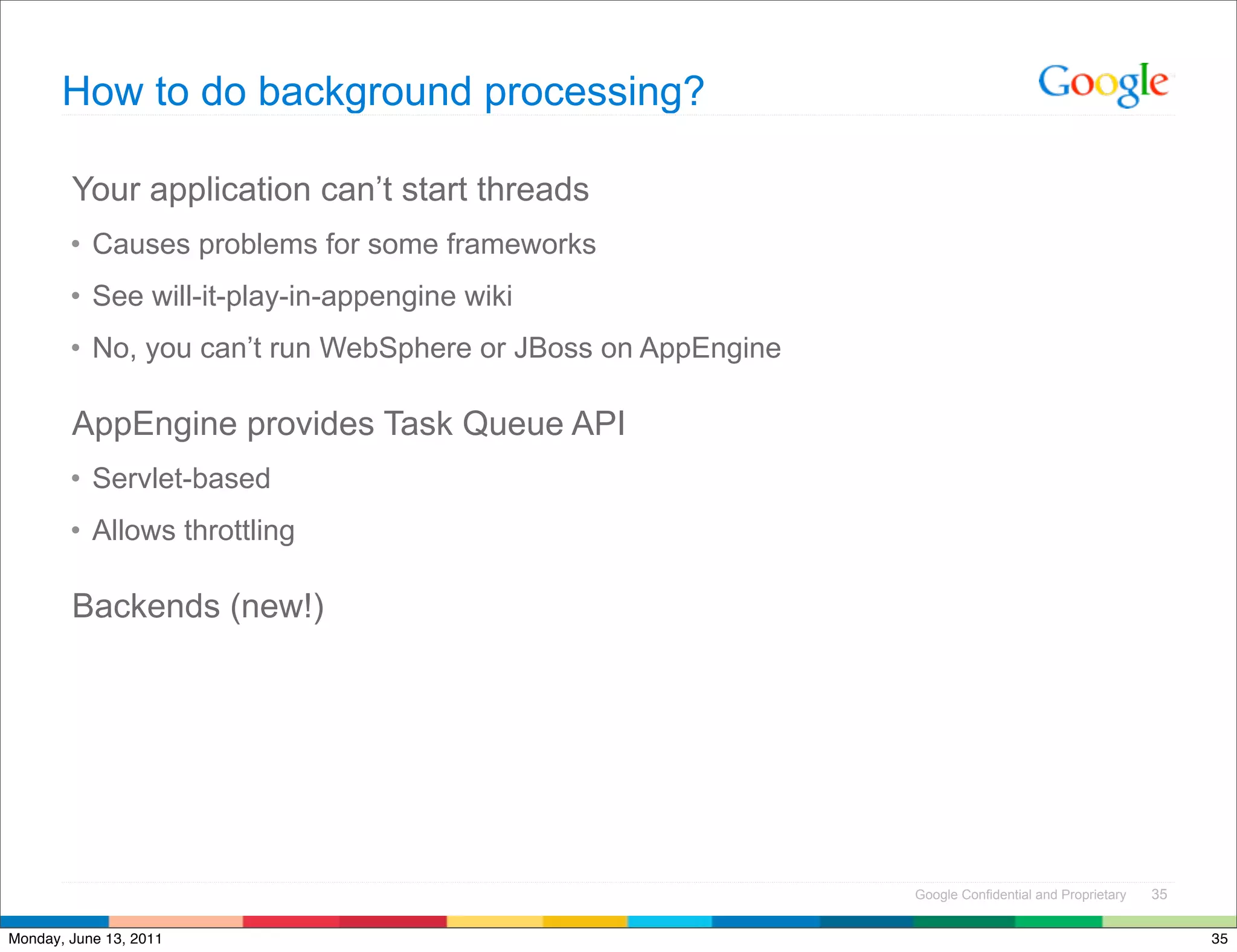

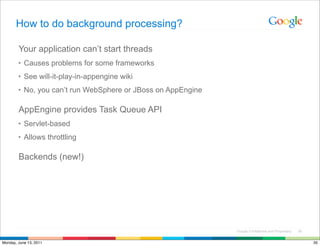

35. How to do background processing?
Your application can’t start threads
• Causes problems for some frameworks
• See will-it-play-in-appengine wiki
• No, you can’t run WebSphere or JBoss on AppEngine
AppEngine provides Task Queue API
• Servlet-based
• Allows throttling
Backends (new!)
Google Confidential and Proprietary 35
Monday, June 13, 2011 35

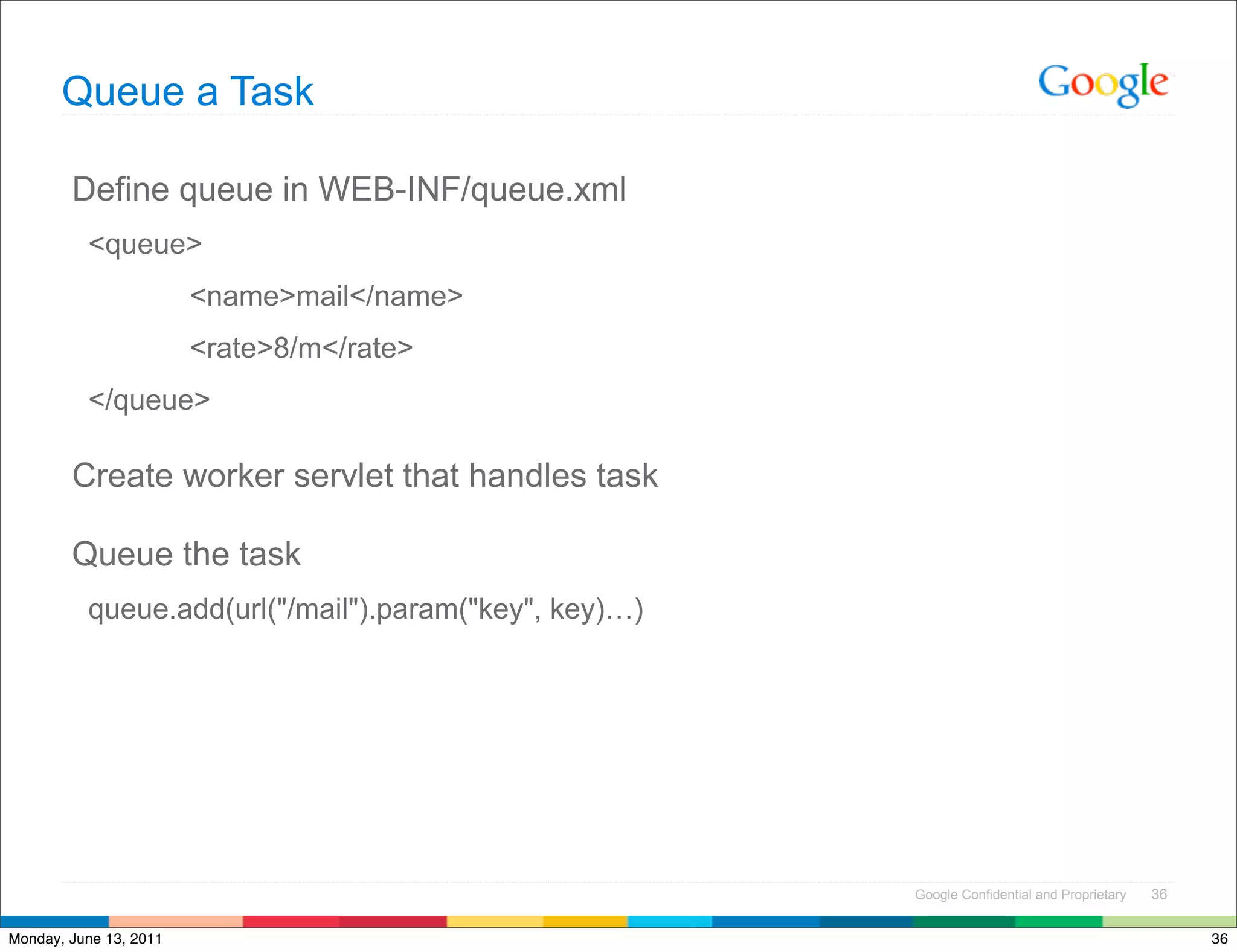

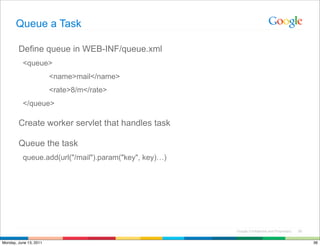

36. Queue a Task
Define queue in WEB-INF/queue.xml
<queue>
<name>mail</name>
<rate>8/m</rate>
</queue>
Create worker servlet that handles task
Queue the task
queue.add(url("/mail").param("key", key)…)
Google Confidential and Proprietary 36
Monday, June 13, 2011 36

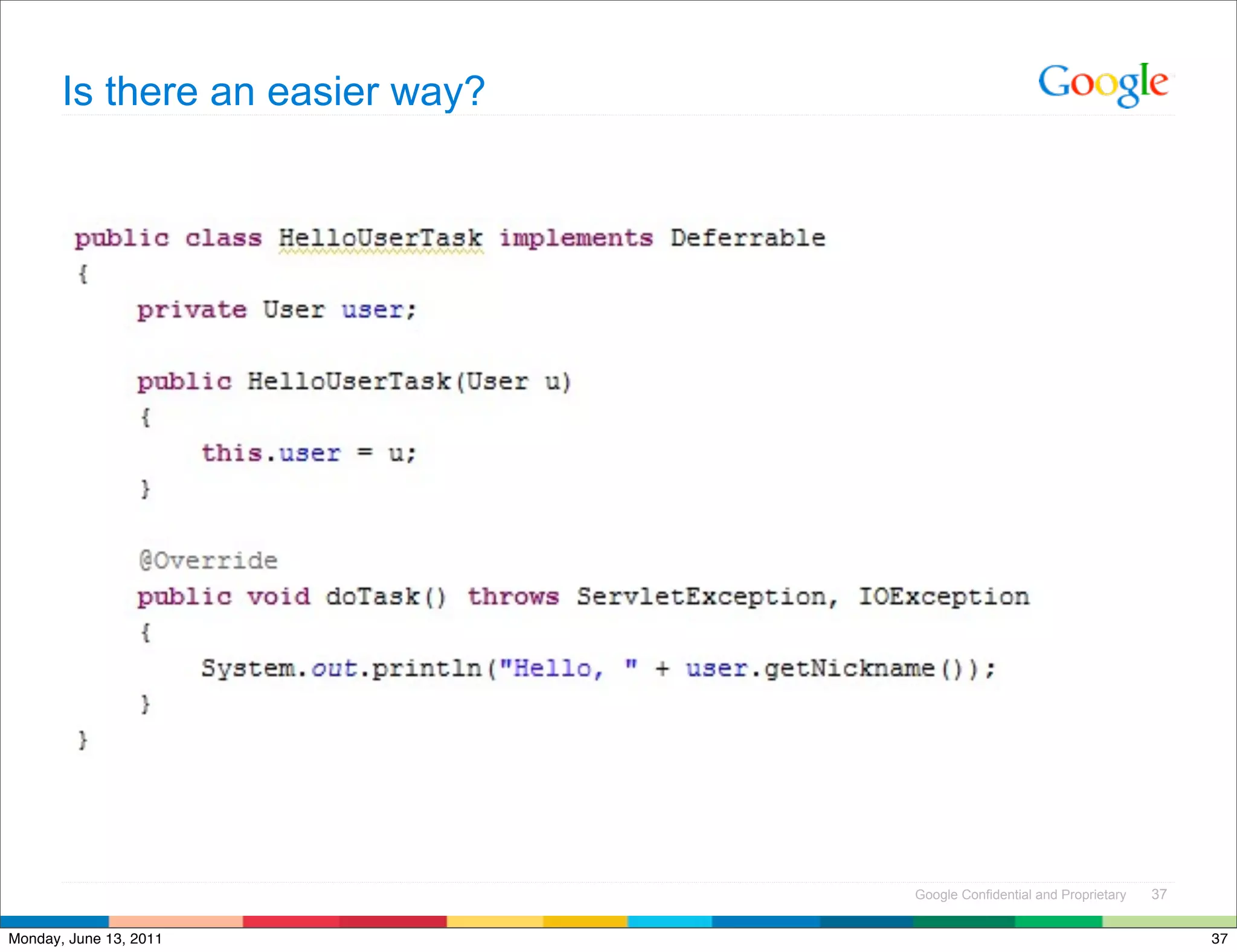

37. Is there an easier way?
Google Confidential and Proprietary 37
Monday, June 13, 2011 37

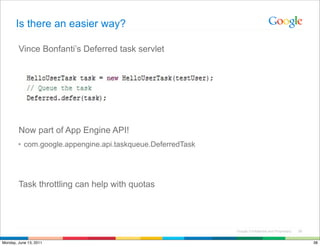

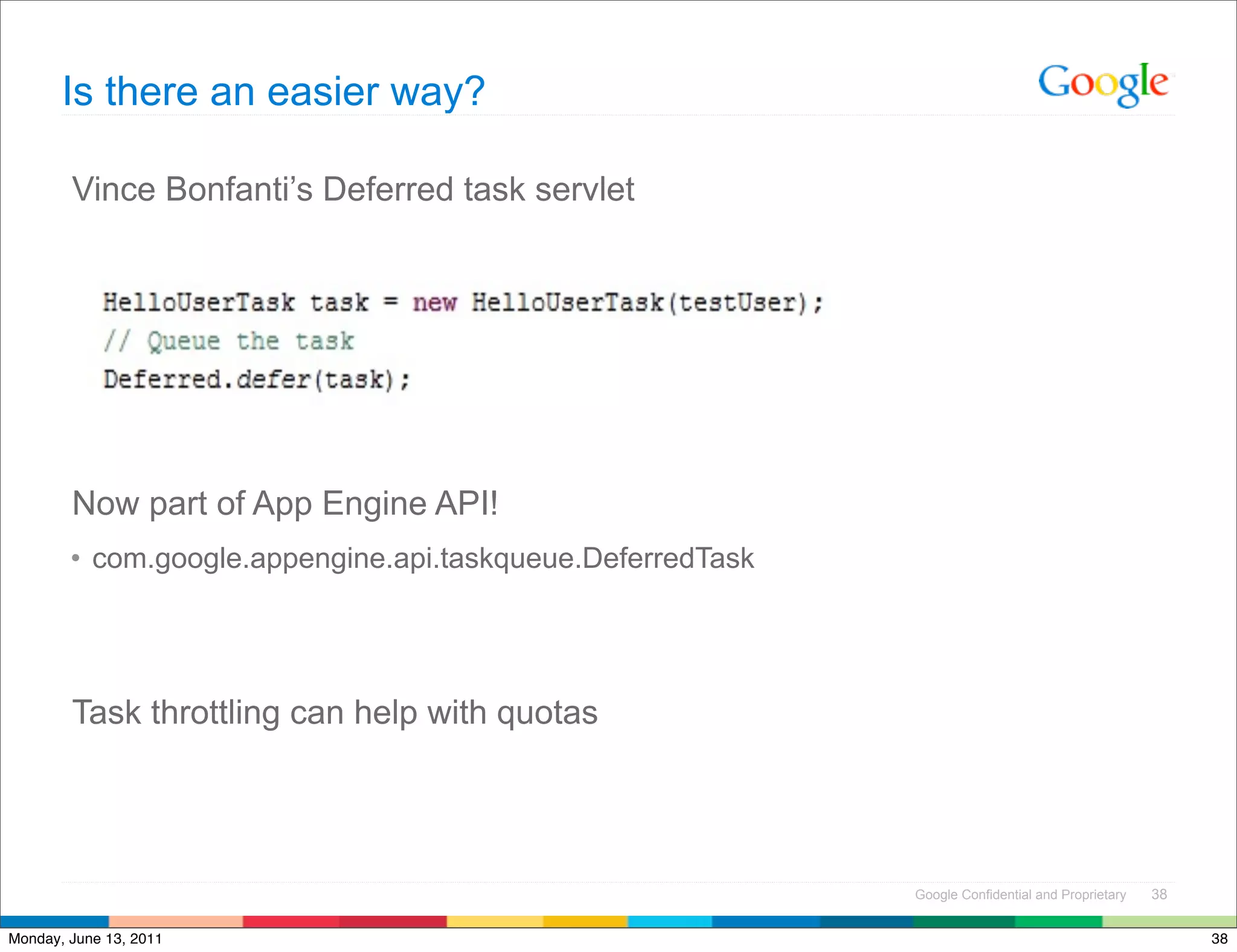

38. Is there an easier way?
Vince Bonfanti’s Deferred task servlet
Now part of App Engine API!
• com.google.appengine.api.taskqueue.DeferredTask
Task throttling can help with quotas
Google Confidential and Proprietary 38
Monday, June 13, 2011 38

39. What’s New In App Engine?
Google Confidential and Proprietary 39
Monday, June 13, 2011 39

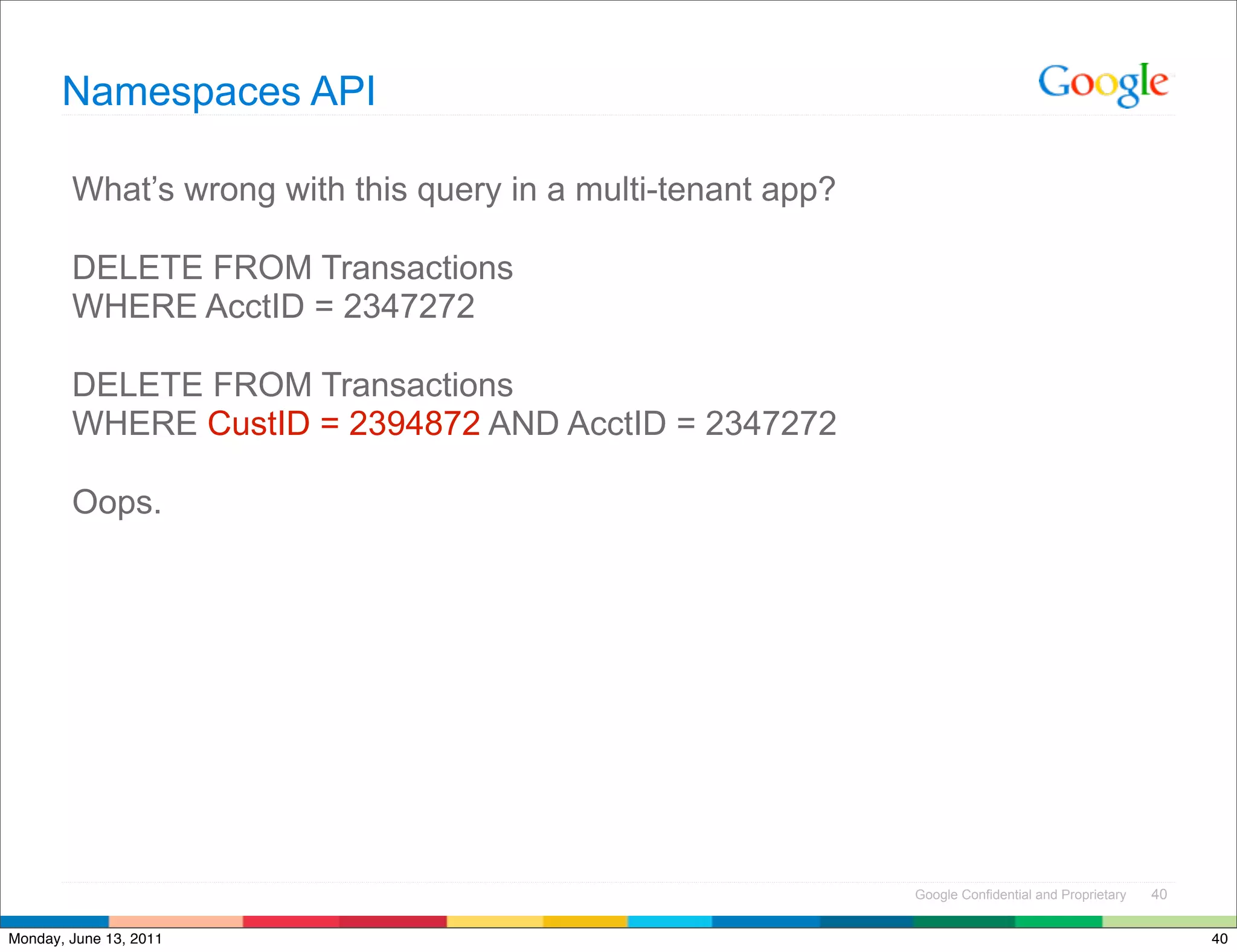

40. Namespaces API
What’s wrong with this query in a multi-tenant app?
DELETE FROM Transactions
WHERE AcctID = 2347272
DELETE FROM Transactions
WHERE CustID = 2394872 AND AcctID = 2347272
Oops.
Google Confidential and Proprietary 40
Monday, June 13, 2011 40

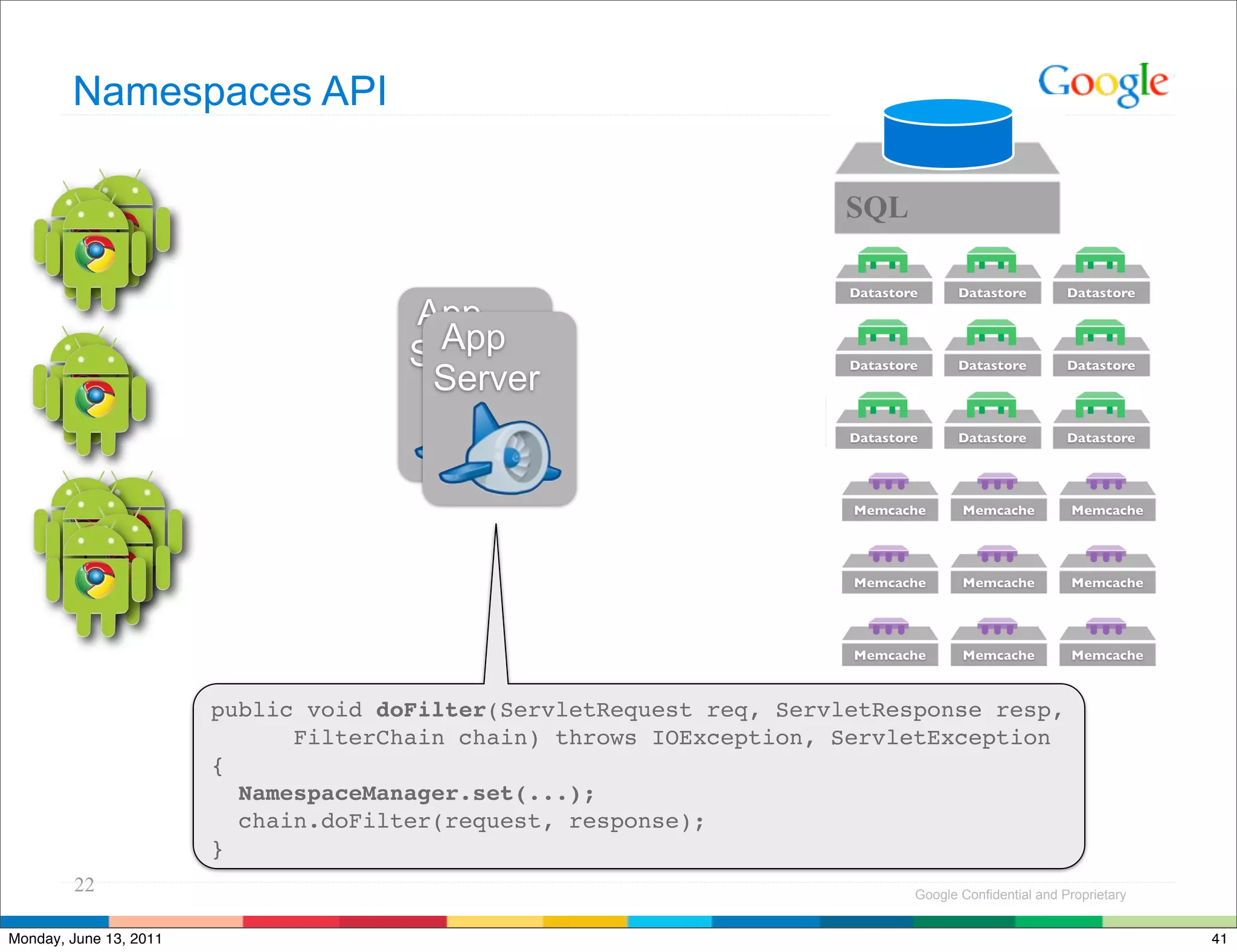

41. Namespaces API
SQL
App
App
Server
Server
public void doFilter(ServletRequest req, ServletResponse resp,
FilterChain chain) throws IOException, ServletException
{
NamespaceManager.set(...);
chain.doFilter(request, response);
}
22 Google Confidential and Proprietary
Monday, June 13, 2011 41

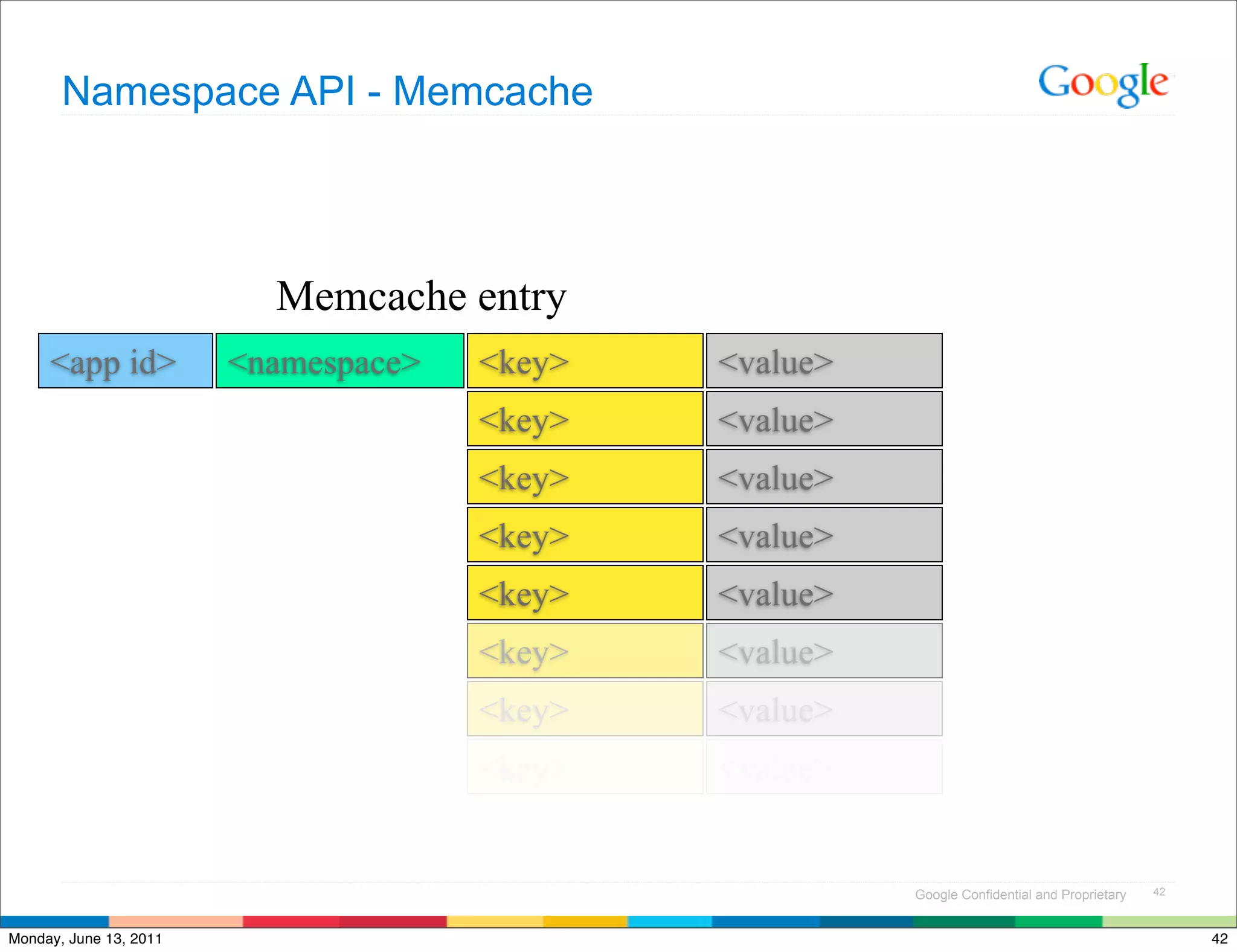

42. Namespace API - Memcache
Memcache entry
entries
<app id> <namespace>
<app id> <key> <value>
<key> <value>
<key> <value>
<key> <value>
<key> <value>
<key> <value>
<key> <value>
<key> <value>
Google Confidential and Proprietary 42
Monday, June 13, 2011 42

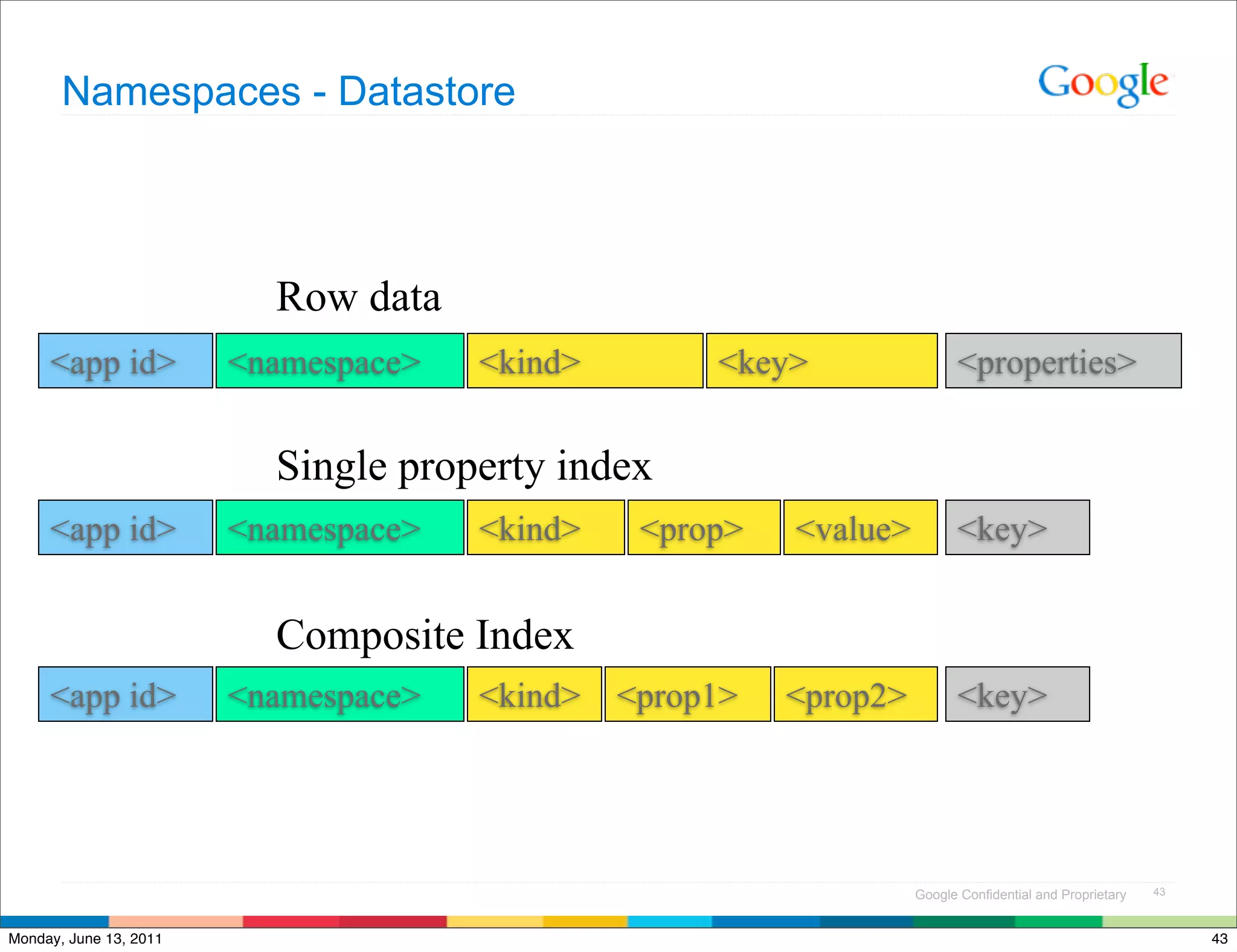

43. Namespaces - Datastore
Row data
<app id> <namespace>
<namespace>
<app id> <kind> <key> <properties>
Single property index
<app id> <namespace>
<namespace>
<app id> <kind> <prop> <value> <key>
Composite Index
<app id> <namespace>
<namespace>
<app id> <kind> <prop1> <prop2> <key>
Google Confidential and Proprietary 43
Monday, June 13, 2011 43

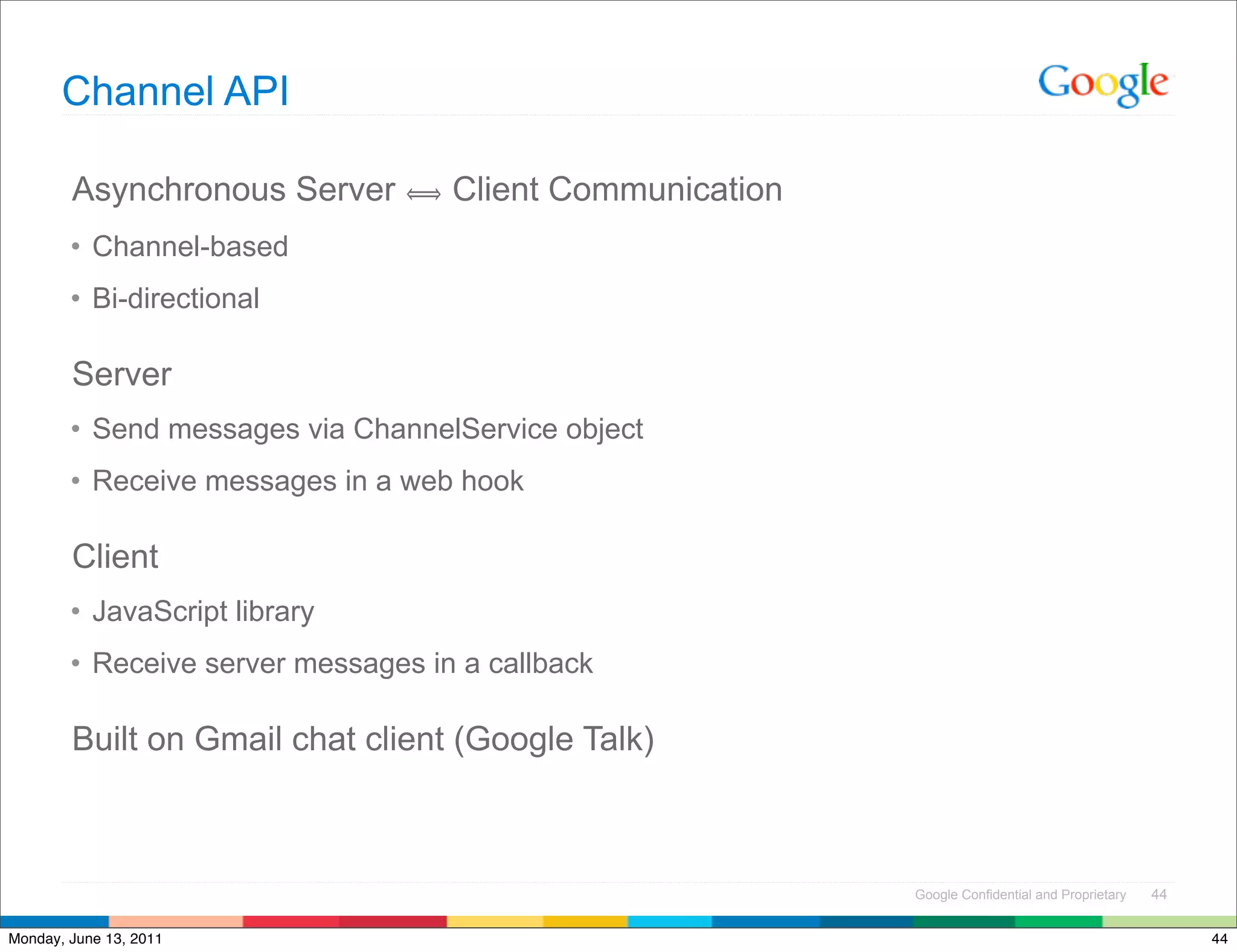

44. Channel API
Asynchronous Server ⟺ Client Communication
• Channel-based
• Bi-directional
Server
• Send messages via ChannelService object
• Receive messages in a web hook
Client
• JavaScript library
• Receive server messages in a callback
Built on Gmail chat client (Google Talk)
Google Confidential and Proprietary 44
Monday, June 13, 2011 44

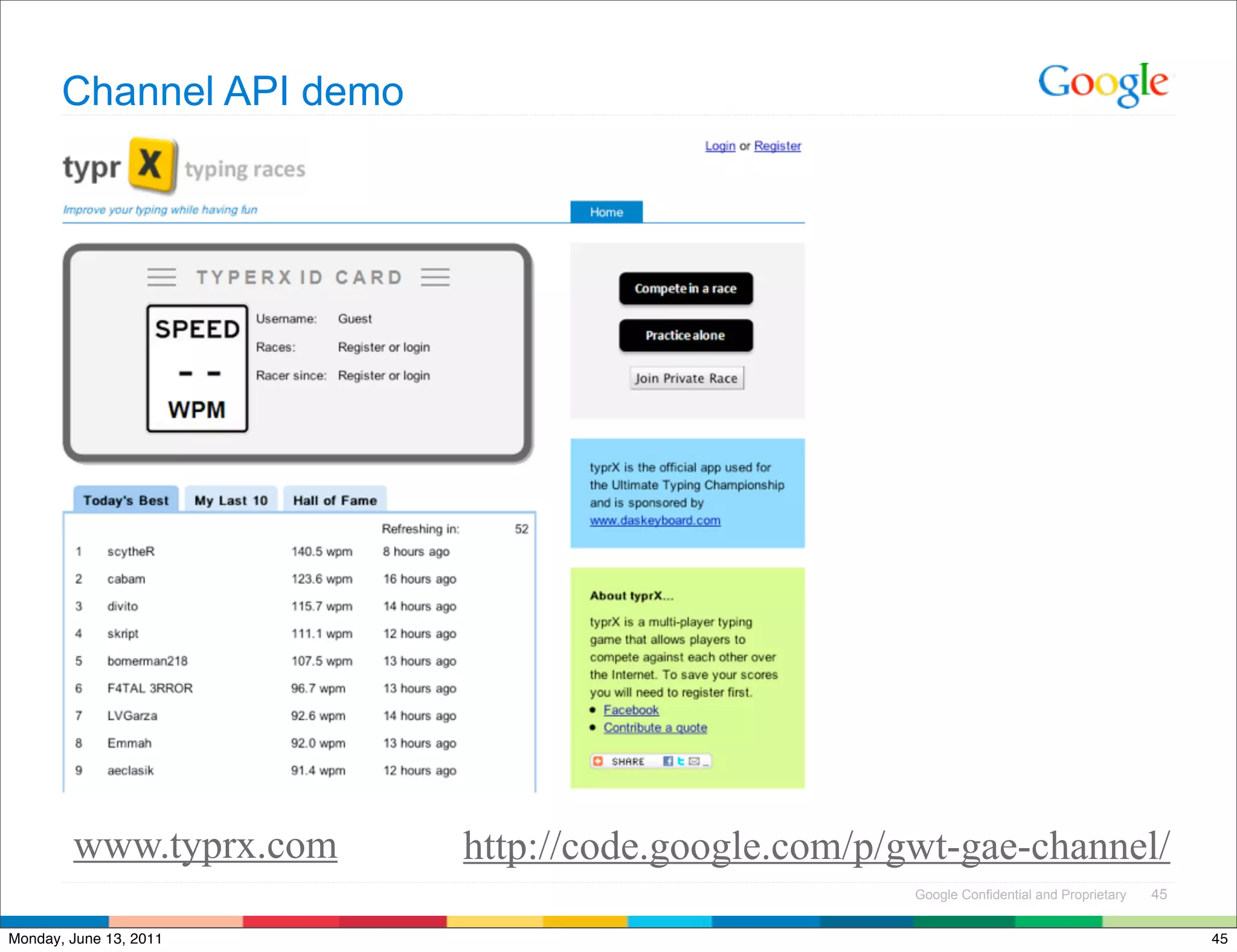

45. Channel API demo
www.typrx.com http://code.google.com/p/gwt-gae-channel/
Google Confidential and Proprietary 45
Monday, June 13, 2011 45

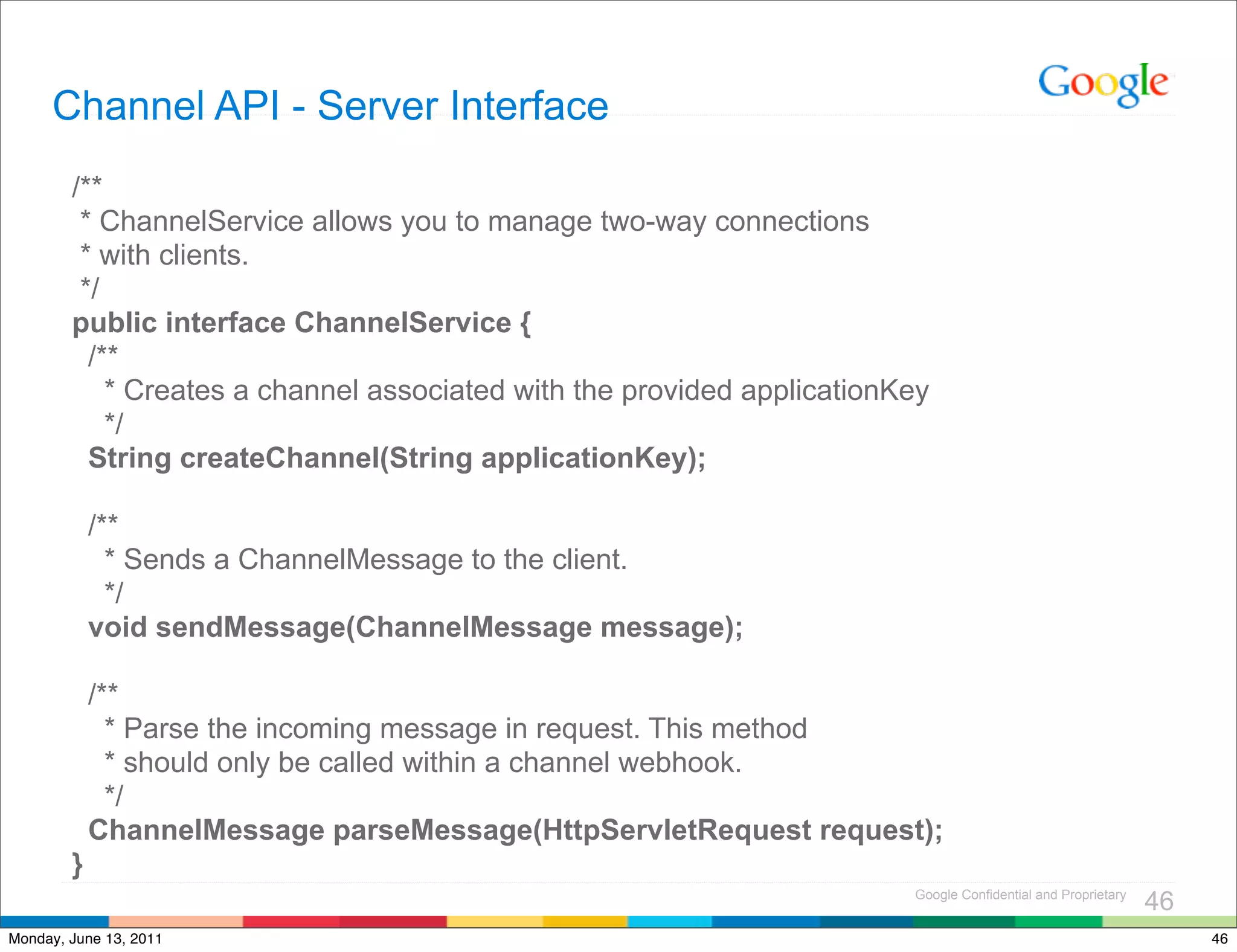

46. Channel API - Server Interface
/**
* ChannelService allows you to manage two-way connections
* with clients.
*/
public interface ChannelService {
/**
* Creates a channel associated with the provided applicationKey
*/
String createChannel(String applicationKey);
/**
* Sends a ChannelMessage to the client.
*/
void sendMessage(ChannelMessage message);
/**
* Parse the incoming message in request. This method
* should only be called within a channel webhook.
*/
ChannelMessage parseMessage(HttpServletRequest request);
}
Google Confidential and Proprietary
46
Monday, June 13, 2011 46

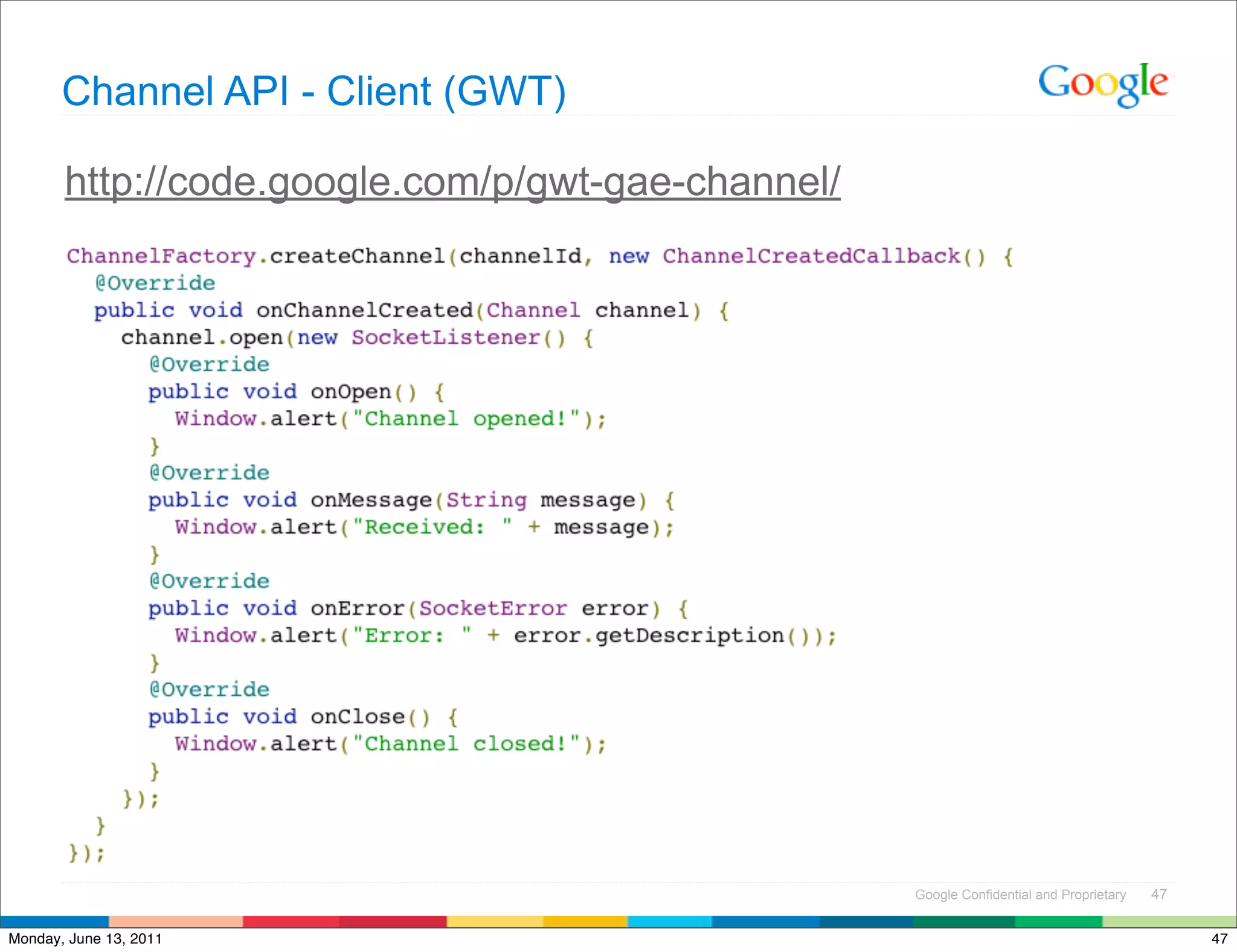

47. Channel API - Client (GWT)
http://code.google.com/p/gwt-gae-channel/
Google Confidential and Proprietary 47
Monday, June 13, 2011 47

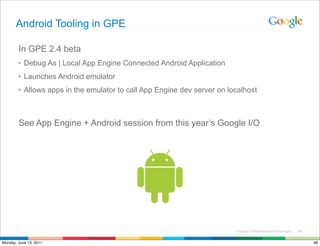

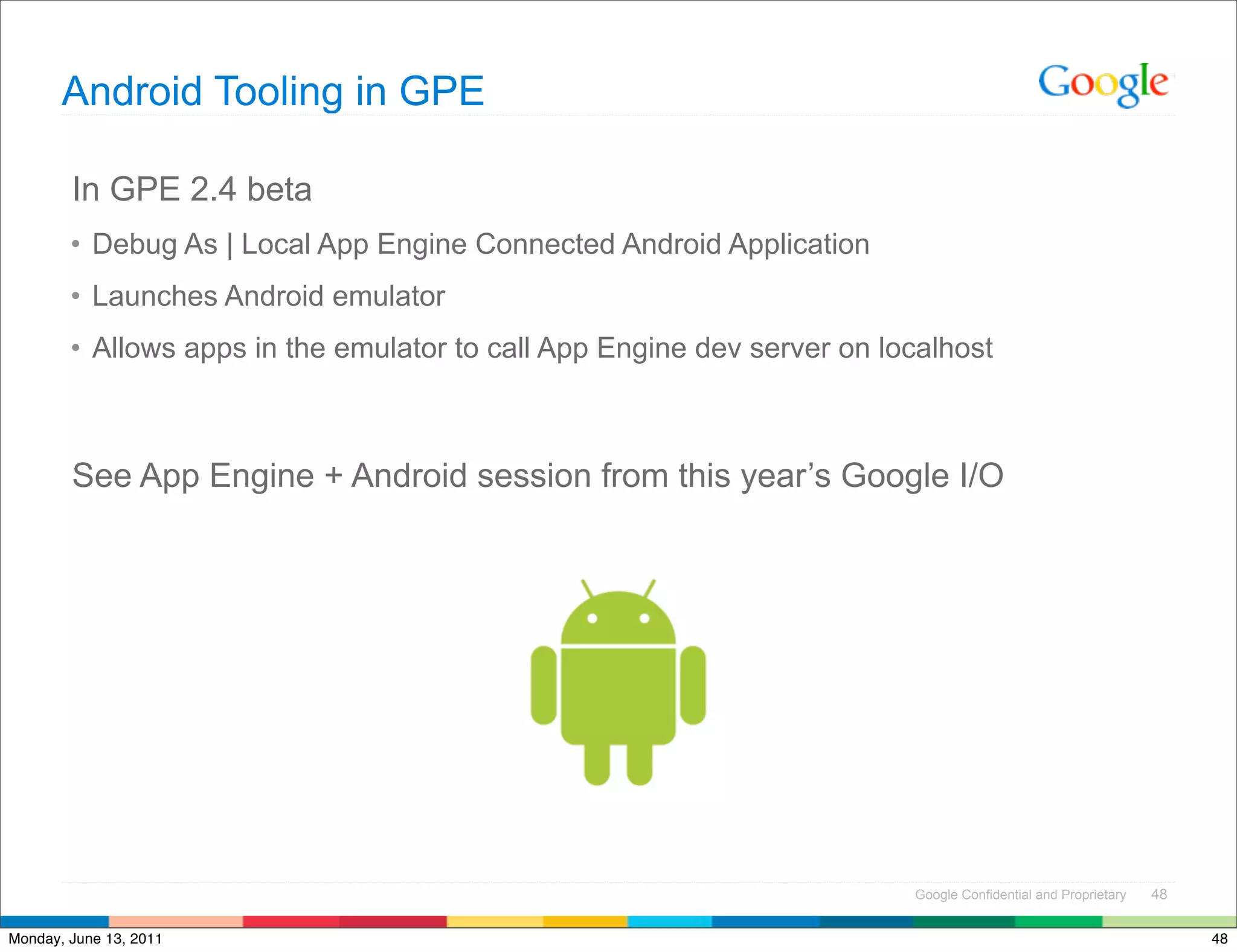

48. Android Tooling in GPE
In GPE 2.4 beta
• Debug As | Local App Engine Connected Android Application
• Launches Android emulator
• Allows apps in the emulator to call App Engine dev server on localhost
See App Engine + Android session from this year’s Google I/O
Google Confidential and Proprietary 48
Monday, June 13, 2011 48

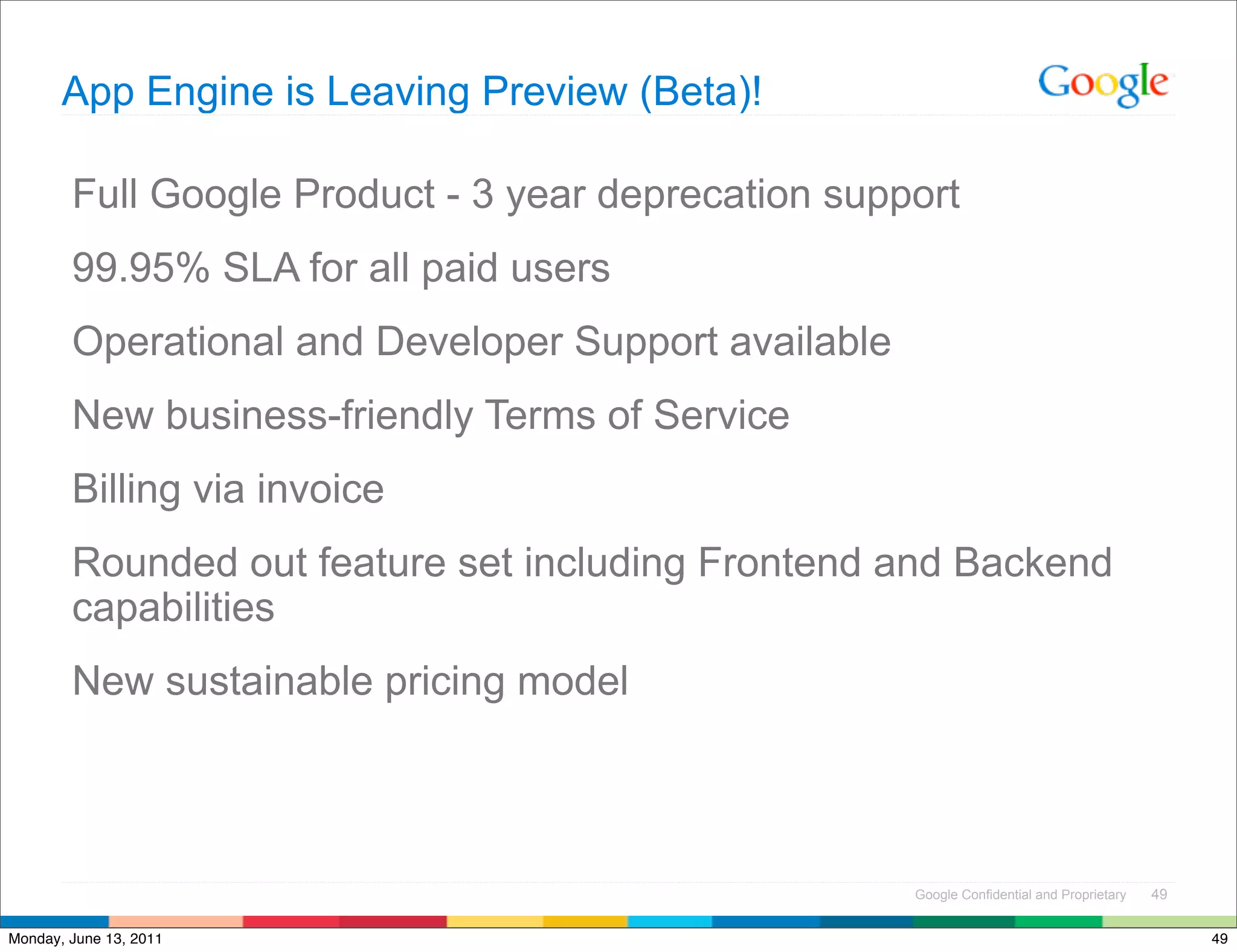

49. App Engine is Leaving Preview (Beta)!
Full Google Product - 3 year deprecation support
99.95% SLA for all paid users
Operational and Developer Support available
New business-friendly Terms of Service
Billing via invoice
Rounded out feature set including Frontend and Backend
capabilities
New sustainable pricing model
Google Confidential and Proprietary 49
Monday, June 13, 2011 49

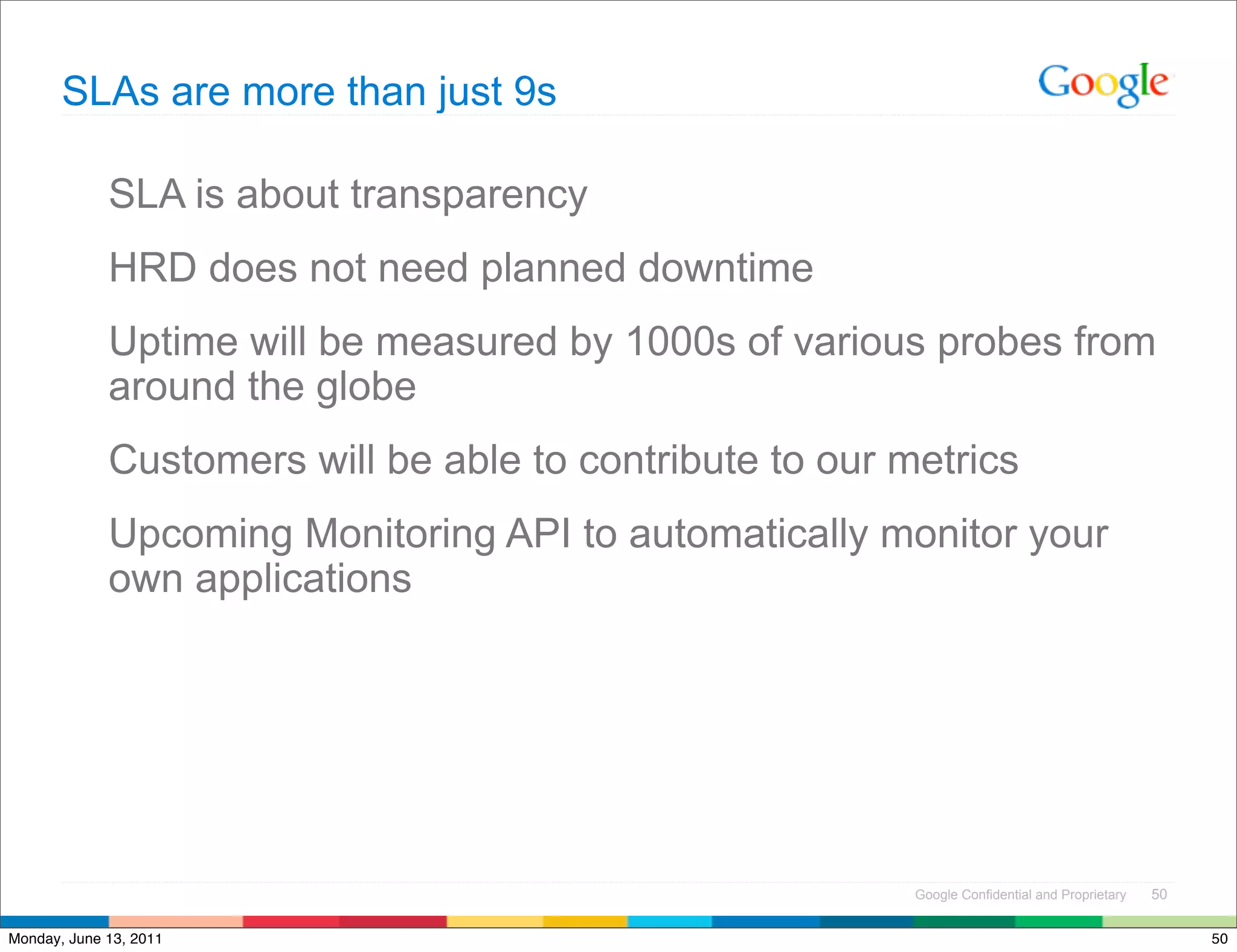

50. SLAs are more than just 9s
SLA is about transparency
HRD does not need planned downtime
Uptime will be measured by 1000s of various probes from
around the globe
Customers will be able to contribute to our metrics
Upcoming Monitoring API to automatically monitor your
own applications
Google Confidential and Proprietary 50
Monday, June 13, 2011 50

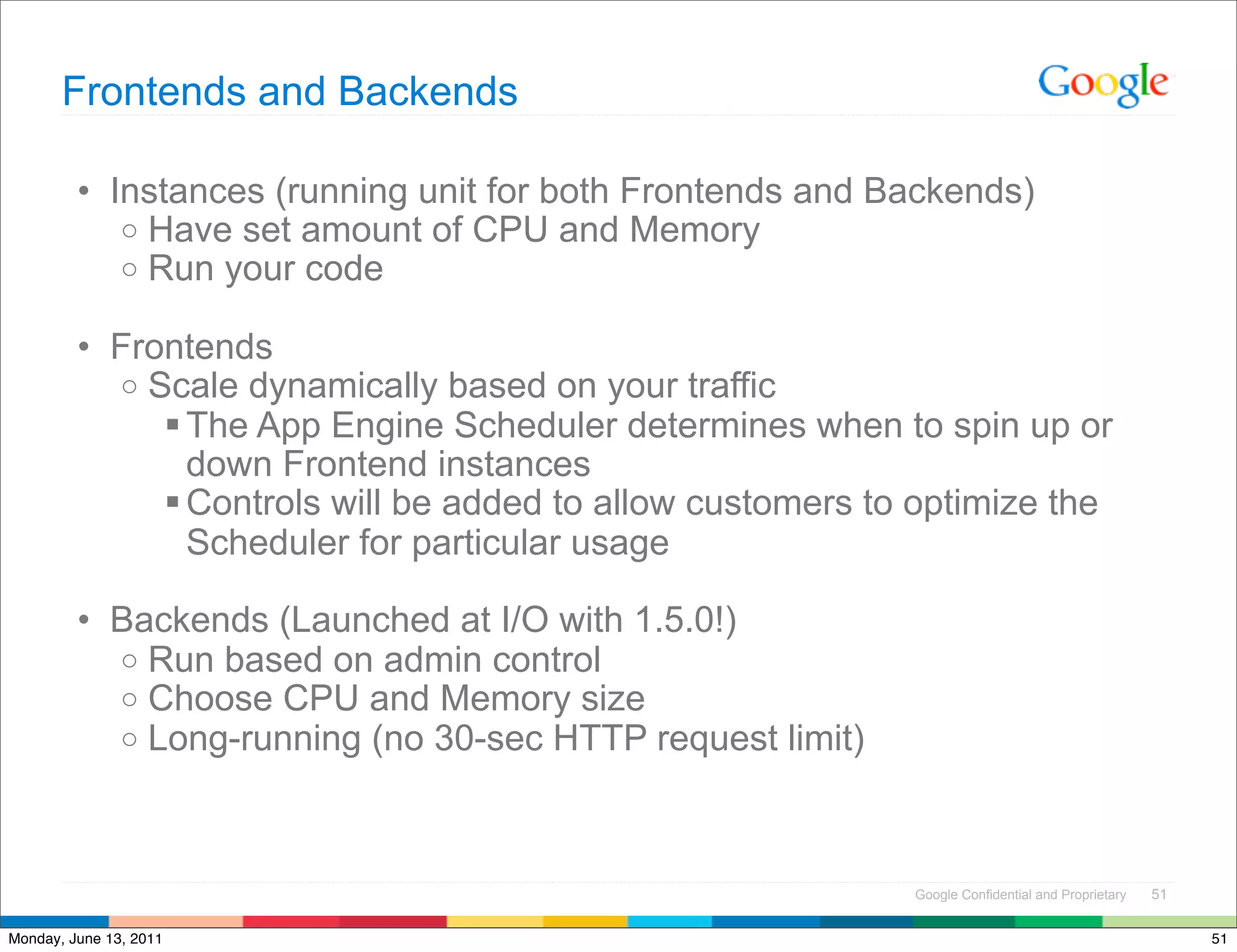

51. Frontends and Backends
• Instances (running unit for both Frontends and Backends)
o Have set amount of CPU and Memory
o Run your code
• Frontends
o Scale dynamically based on your traffic
 The App Engine Scheduler determines when to spin up or
down Frontend instances
 Controls will be added to allow customers to optimize the
Scheduler for particular usage
• Backends (Launched at I/O with 1.5.0!)
o Run based on admin control
o Choose CPU and Memory size
o Long-running (no 30-sec HTTP request limit)
Google Confidential and Proprietary 51
Monday, June 13, 2011 51

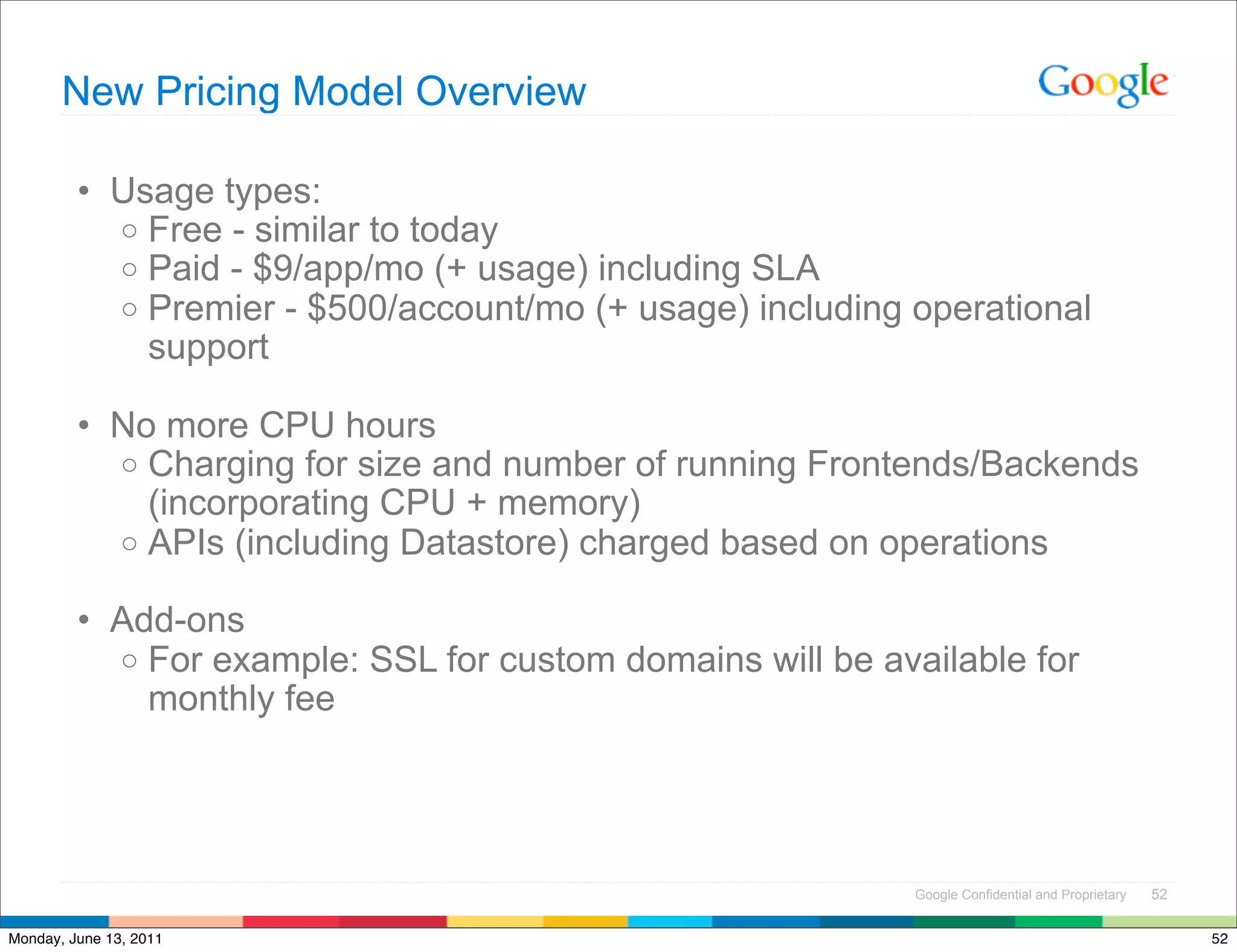

52. New Pricing Model Overview
• Usage types:
o Free - similar to today
o Paid - $9/app/mo (+ usage) including SLA
o Premier - $500/account/mo (+ usage) including operational
support
• No more CPU hours
o Charging for size and number of running Frontends/Backends
(incorporating CPU + memory)
o APIs (including Datastore) charged based on operations
• Add-ons
o For example: SSL for custom domains will be available for
monthly fee
Google Confidential and Proprietary 52
Monday, June 13, 2011 52

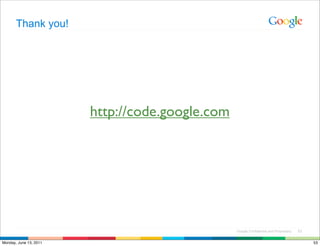

53. Thank you!
http://code.google.com
Google Confidential and Proprietary 53
Monday, June 13, 2011 53
