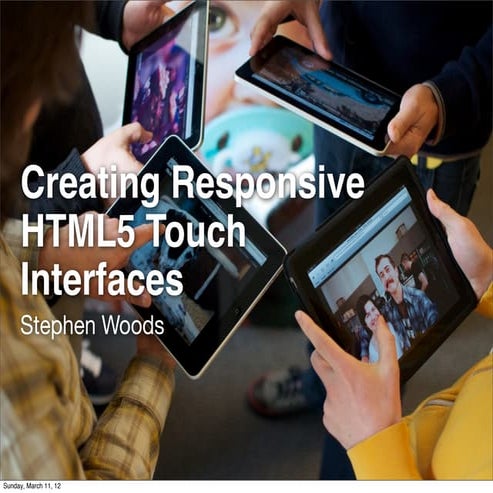

Creating Responsive
HTML5 Touch
Interfaces
Stephen Woods
Stephen Woods
Front End Engineer
       Flickr

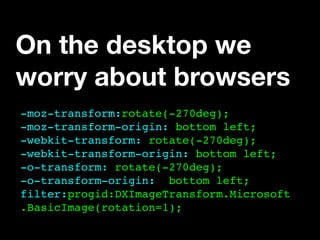

On the desktop we
worry about browsers
-moz-transform:rotate(-270deg);
-moz-transform-origin: bottom left;
-webkit-transform: rotate(-270deg);
-webkit-transform-origin: bottom left;
-o-transform: rotate(-270deg);
-o-transform-origin: bottom left;
filter:progid:DXImageTransform.Microsoft
.BasicImage(rotation=1);
On mobile we worry
about devices.

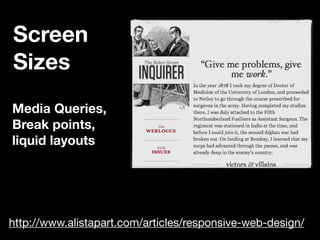

Screen
Sizes
Media Queries,
Break points,
liquid layouts




http://www.alistapart.com/articles/responsive-web-design/

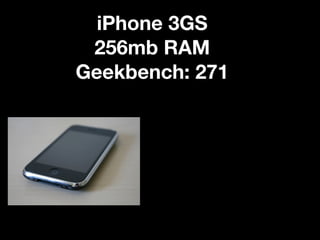

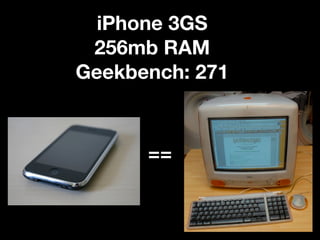

iPhone 3GS
 256mb RAM
Geekbench: 271
iPhone 3GS
 256mb RAM
Geekbench: 271



      ==

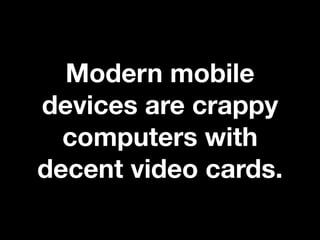

Modern mobile
devices are crappy
  computers with
decent video cards.
Perceived
Performance
On the desktop it’s
easy...



  Throw up a spinner.
Touch interfaces are
tactile.
Touch interfaces are
tactile.


   Feedback must be
        continuous.

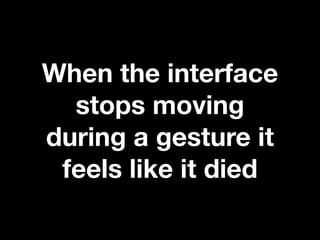

When the interface
  stops moving
during a gesture it
 feels like it died
Respect Convention

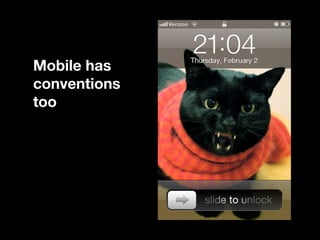

Mobile has
conventions
too
Mobile has
conventions
too
TouchEvent

• touchstart - fires once
• touchmove - fires continuously
• touchend - fires once

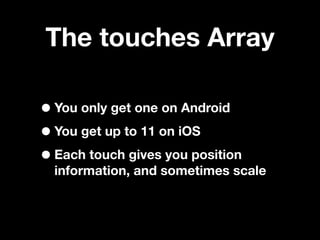

The touches Array

• You only get one on Android
• You get up to 11 on iOS
• Each touch gives you position
  information, and sometimes scale

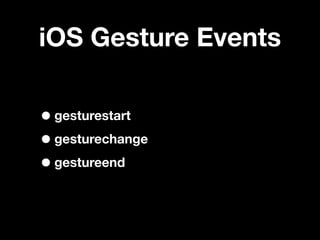

iOS Gesture Events

• gesturestart
• gesturechange
• gestureend
iOS Developer
      Library

http://bit.ly/iOS-guide

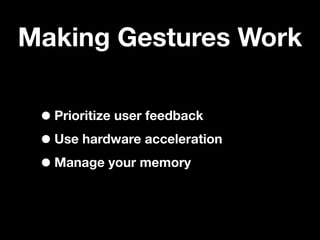

Making Gestures Work

 • Prioritize user feedback
 • Use hardware acceleration
 • Manage your memory

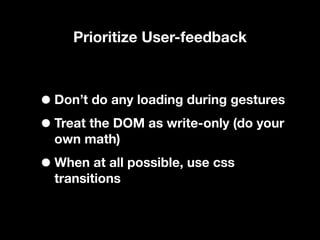

Prioritize User-feedback



• Don’t do any loading during gestures
• Treat the DOM as write-only (do your
  own math)

• When at all possible, use css
  transitions

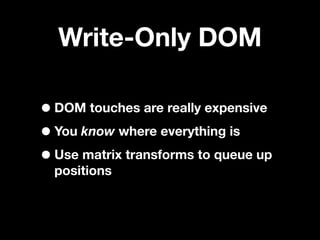

Write-Only DOM

• DOM touches are really expensive
• You know where everything is
• Use matrix transforms to queue up
  positions

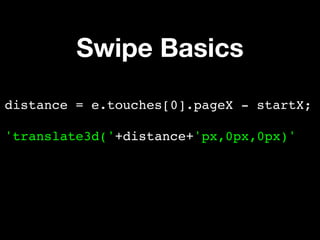

Swipe Basics
distance = e.touches[0].pageX - startX;

'translate3d('+distance+'px,0px,0px)'

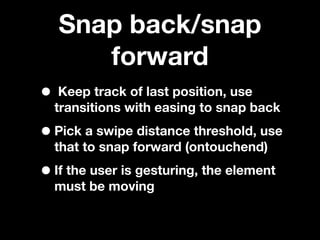

Snap back/snap
      forward
• Keep track of last position, use
  transitions with easing to snap back

• Pick a swipe distance threshold, use
  that to snap forward (ontouchend)

• If the user is gesturing, the element
  must be moving

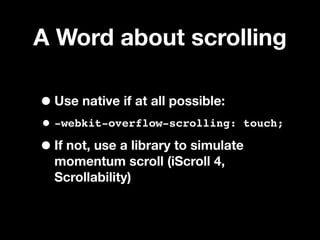

A Word about scrolling

• Use native if at all possible:
• -webkit-overflow-scrolling:      touch;

• If not, use a library to simulate
  momentum scroll (iScroll 4,
  Scrollability)
Image © Brian Lalor
Used with permission




   Pinch to Zoom
   (there will be math)
Why you can’t use
 native Pinch to
      Zoom

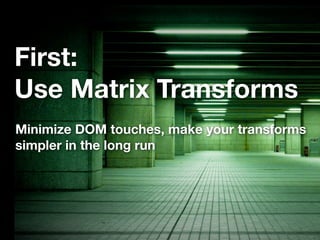

First:
Use Matrix Transforms
Minimize DOM touches, make your transforms
simpler in the long run

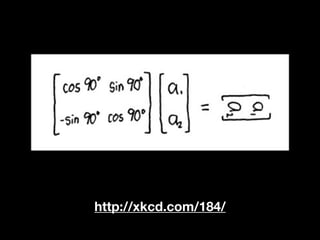

http://xkcd.com/184/
It’s Not That Hard!

transform:          Translate
matrix(1, 0, 0, 1, 10, 10);

         Scale

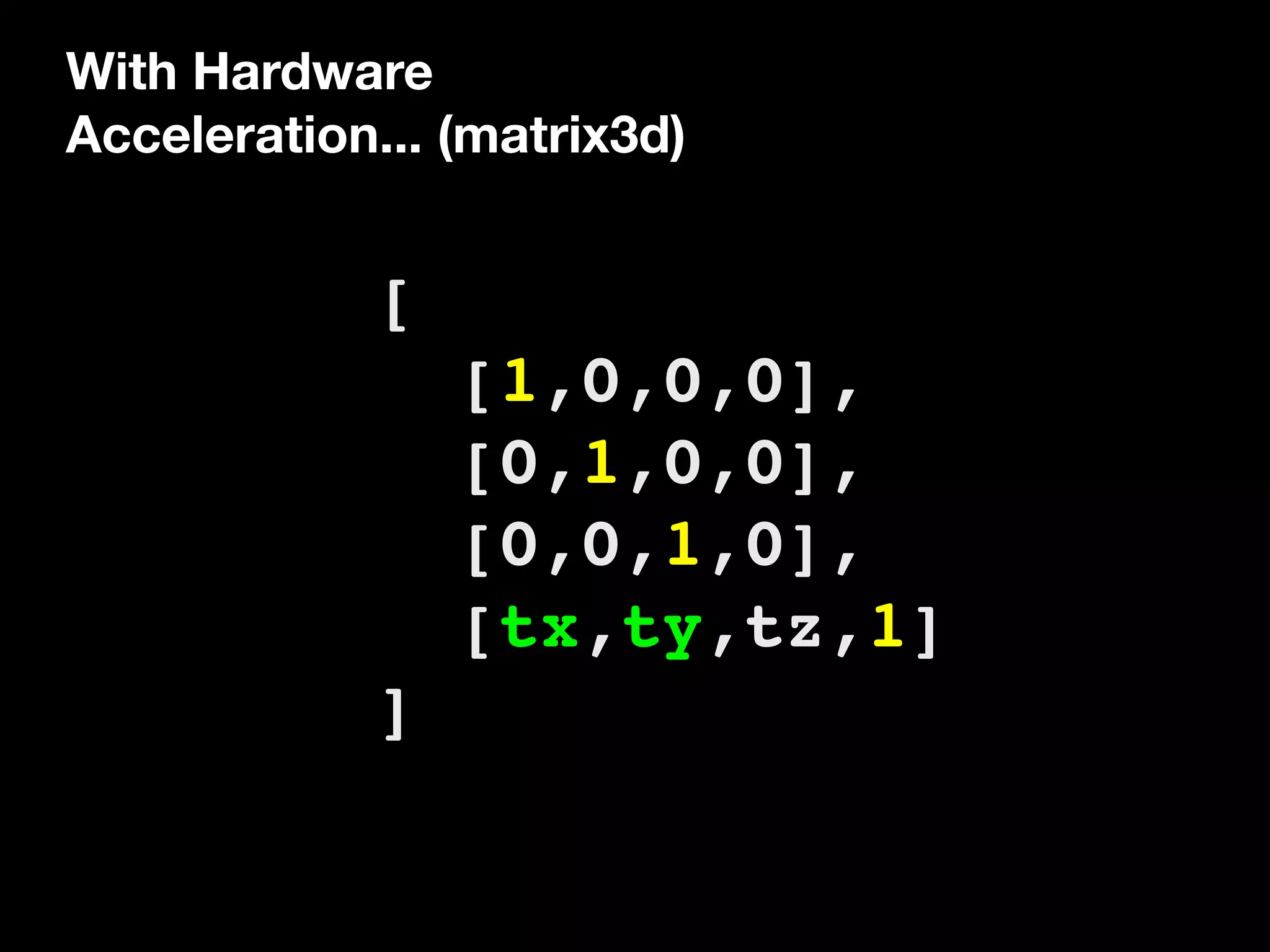

With Hardware
Acceleration... (matrix3d)


            [
                [1,0,0,0],
                [0,1,0,0],
                [0,0,1,0],
                [tx,ty,tz,1]
            ]
Transforms keep
  complex state
without DOM reads

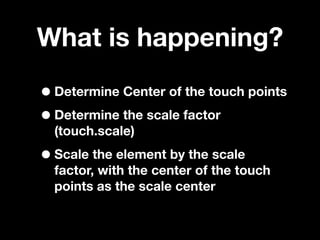

What is happening?

• Determine Center of the touch points
• Determine the scale factor
  (touch.scale)

• Scale the element by the scale
  factor, with the center of the touch
  points as the scale center

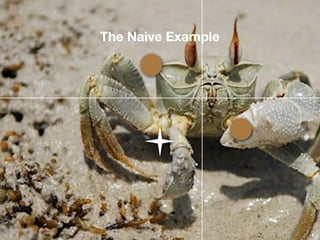

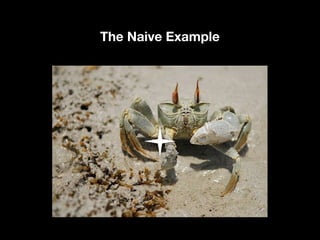

The Naive Example
The Naive Example
The Naive Example

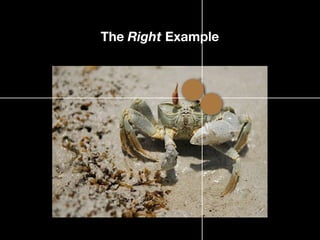

The Right Example
The Right Example
The Right Example

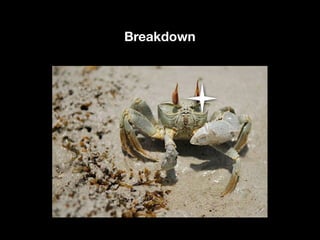

Breakdown
Breakdown
Breakdown
Breakdown

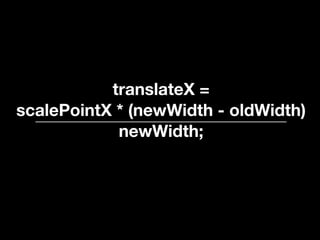

translateX =
scalePointX * (newWidth - oldWidth)
            newWidth;
Pro Tips

• Beware the virtual pixels
• Moving the transform-origin won’t
  really work

• Remember to snap back

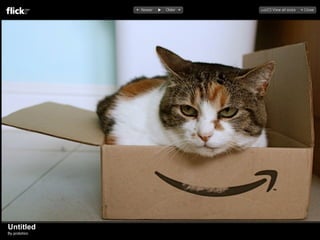

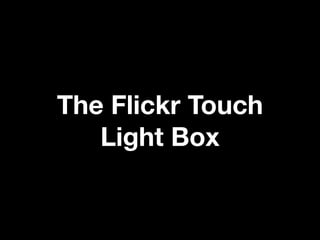

The Flickr Touch
   Light Box
Untitled
By protohiro
Untitled
By protohiro
Untitled
By protohiro
Untitled
By protohiro

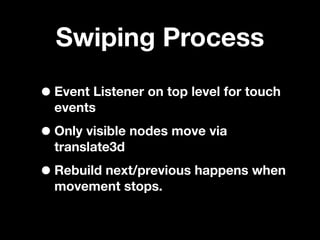

Swiping Process

• Event Listener on top level for touch
  events

• Only visible nodes move via
  translate3d

• Rebuild next/previous happens when
  movement stops.
Performance Tricks

• Aggressive Pruning
• Clean off css transforms/transitions
• Write-only DOM.
• Do as little as possible during swipes
Frustrating
         Limitations
• Retina screen is huge, device
  memory is small

• Hardware acceleration is a crash
  festival

• Fighting automatic optimization
http://bit.ly/apple-image-size-restrictions
Stephen Woods
                                  @ysaw

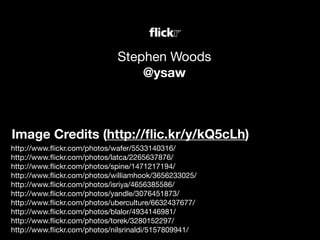

Image Credits (http://flic.kr/y/kQ5cLh)
http://www.flickr.com/photos/wafer/5533140316/
http://www.flickr.com/photos/latca/2265637876/
http://www.flickr.com/photos/spine/1471217194/
http://www.flickr.com/photos/williamhook/3656233025/
http://www.flickr.com/photos/isriya/4656385586/
http://www.flickr.com/photos/yandle/3076451873/
http://www.flickr.com/photos/uberculture/6632437677/
http://www.flickr.com/photos/blalor/4934146981/
http://www.flickr.com/photos/torek/3280152297/
http://www.flickr.com/photos/nilsrinaldi/5157809941/
