1. Ø berat
mm kg/m' 1 2 3 4 5 6 7 8 9 10
6 0.222 0.28 0.57 0.85 1.13 1.41 1.7 1.98 2.26 2.55 2.83
8 0.395 0.5 1.01 1.51 2.01 2.52 3.02 3.52 4.02 4.53 5.03
10 0.617 0.79 1.57 2.36 3.14 3.93 4.71 5.5 6.28 7.06 7.85
12 0.888 1.13 2.26 3.39 4.52 5.65 6.78 7.91 9.04 10.17 11.3
14 1.208 1.54 3.08 4.62 6.16 7.7 9.24 10.78 12.32 13.86 15.4
16 1.578 2.01 4.02 6.03 8.04 10.05 12.06 14.07 16.08 18.09 20.1
19 2.226 2.84 5.68 8.52 11.36 14.2 17.05 19.88 22.72 25.56 28.4
22 2.984 3.8 7.6 11.4 15.2 19 22.8 26.6 30.4 34.2 38
25 3.853 4.91 9.82 14.73 19.64 24.55 29.46 34.37 39.28 44.1 49.1
28 4.834 6.16 12.32 18.48 24.63 30.8 36.96 43.12 49.28 55.44 61.6
32 5.313 8.04 16.08 24.12 32.16 40.2 48.25 56.23 64.24 72.36 80.42
(mm) D10 D13 D16 D19 D22 D25 D29 D32 D35 D38
(mm) 9.53 12.7 15.9 19.1 22.2 25.4 28.6 31.8 34.9 38.1
(cm
2
) 0.713 1.267 1.986 2.865 3.871 5.067 6.424 7.942 9.566 11.4
(kg/m) 0.56 0.995 1.55 2.25 3.04 3.98 5.04 6.23 7.51 8.95
100 7.13 12.7 19.9 28.7 38.7 50.7 64.2 79.4 95.7 114
120 5.94 10.6 1.5 23.9 32.3 42.2 53.5 66.2 79.7 95
125 5.71 10.1 15.9 22.9 31 40.5 51.4 63.5 76.5 91.2
140 5.09 9.05 14.2 20.5 27.6 36.2 45.9 56.7 68.3 81.4
150 4.76 8.45 13.3 19.1 25.8 33.8 42.9 53 63.8 76.5
160 4.46 7.92 12.4 17.9 24.2 31.7 40.2 49.6 59.8 71.3
175 4.07 7.23 11.3 15.4 22.1 18.9 36.7 45.4 54.6 65.1
180 3.96 7.04 11 15.9 21.5 28.2 35.7 44.2 53.3 63.4
200 3.57 6.34 9.93 14.3 19.4 25.3 32.1 39.7 47.8 57
220 3.25 5.76 9.04 13 17.6 23.1 29.8 36.1 43.5 51.9
225 3.17 5.63 8.82 12.7 17.2 22.5 28.5 35.3 42.5 50.6
240 2.97 5.28 8.28 12 16.1 21.1 26.8 33.1 39.9 47.5
250 2.85 5.07 7.94 11.5 15.5 20.3 25.7 31.8 38.3 45.6
275 2.6 4.61 7.23 10.4 14.1 18.4 23.4 28.9 34.8 41.5
300 2.38 4.22 6.61 9.54 12.9 16.9 21.4 26.5 31.9 38
350 2.04 3.62 5.68 8.19 11.1 14.5 18.9 22.7 27.4 32.6
400 1.78 3.17 4.97 7.16 9.68 12.7 16.1 19.9 23.9 28.5
Luas(cm
2
)
Jumlah batang
Luas (cm2
)
Tabel Besi Polos Untuk Kolom Dan Balok
Tabel Besi Ulir Untuk Plat

2. (mm) D10 D13 D16 D19 D22 D25 D29 D32 D35 D38
(mm) 9.53 12.7 15.9 19.1 22.2 25.4 28.6 31.8 34.9 38.1
(cm2
) 0.713 1.267 1.986 2.865 3.871 5.067 6.424 7.942 9.566 11.4
(kg/m) 0.56 0.995 1.55 2.25 3.04 3.98 5.04 6.23 7.51 8.95
100 7.13 12.7 19.9 28.7 38.7 50.7 64.2 79.4 95.7 114
120 5.94 10.6 1.5 23.9 32.3 42.2 53.5 66.2 79.7 95
125 5.71 10.1 15.9 22.9 31 40.5 51.4 63.5 76.5 91.2
140 5.09 9.05 14.2 20.5 27.6 36.2 45.9 56.7 68.3 81.4
150 4.76 8.45 13.3 19.1 25.8 33.8 42.9 53 63.8 76.5
160 4.46 7.92 12.4 17.9 24.2 31.7 40.2 49.6 59.8 71.3
175 4.07 7.23 11.3 15.4 22.1 18.9 36.7 45.4 54.6 65.1
180 3.96 7.04 11 15.9 21.5 28.2 35.7 44.2 53.3 63.4
200 3.57 6.34 9.93 14.3 19.4 25.3 32.1 39.7 47.8 57
220 3.25 5.76 9.04 13 17.6 23.1 29.8 36.1 43.5 51.9
225 3.17 5.63 8.82 12.7 17.2 22.5 28.5 35.3 42.5 50.6
240 2.97 5.28 8.28 12 16.1 21.1 26.8 33.1 39.9 47.5
250 2.85 5.07 7.94 11.5 15.5 20.3 25.7 31.8 38.3 45.6
275 2.6 4.61 7.23 10.4 14.1 18.4 23.4 28.9 34.8 41.5
300 2.38 4.22 6.61 9.54 12.9 16.9 21.4 26.5 31.9 38
350 2.04 3.62 5.68 8.19 11.1 14.5 18.9 22.7 27.4 32.6
400 1.78 3.17 4.97 7.16 9.68 12.7 16.1 19.9 23.9 28.5

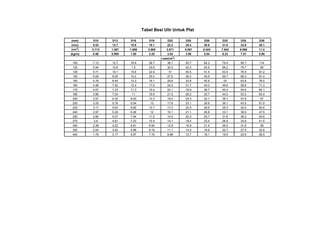

Tabel Besi Ulir Untuk Plat
Luas(cm2
)

3. (mm) D10 D13 D16 D19 D22 D25 D29 D32 D35 D38
(mm) 9.53 12.7 15.9 19.1 22.2 25.4 28.6 31.8 34.9 38.1
(cm2
) 0.713 1.267 1.986 2.865 3.871 5.067 6.424 7.942 9.566 11.4
(kg/m) 0.56 0.995 1.55 2.25 3.04 3.98 5.04 6.23 7.51 8.95
2 1.43 2.53 3.97 5.73 7.74 10.1 12.7 15.9 19.2 22.8
3 2.14 3.8 5.96 8.6 11.6 15.2 19.3 23.8 28.7 34.2
4 2.85 5.07 7.94 11.46 15.5 20.3 25.7 31.8 38.3 45.6
5 3.57 6.34 9.93 14.3 19.4 25.3 32.1 39.7 47.8 57
6 4.28 7.6 11.9 17.2 23.2 30.4 38.5 47.7 57.4 68.4
7 4.99 8.87 13.9 21.1 27.1 35.5 45 55.6 67 79.8
8 5.71 10.1 15.9 22.9 31 40.5 51.4 63.5 76.5 91.2
9 6.42 11.4 17.9 25.8 34.8 45.6 57.8 71.5 86.1 103
10 7.13 12.7 19.9 28.7 38.7 50.7 64.2 79.4 95.7 114
11 7.85 13.9 21.9 31.5 42.6 55.7 70.7 87.4 105 125
12 8.56 15.2 23.8 34.4 46.5 60.8 77.1 95.3 115 137
13 9.27 16.5 25.8 37.3 50.3 65.9 83.5 103 124 148
14 9.99 17.7 27.8 40.1 54.2 70.9 89.8 111 134 160
15 10.7 19 29.8 43 58.1 76 96.4 119 144 171
16 11.4 20.3 31.8 45.8 61.9 81.1 103 127 153 182
17 12.1 21.5 33.8 48.7 65.8 86.1 109 135 163 194
18 12.8 22.8 35.8 51.6 69.7 91.2 116 143 172 205
19 13.6 24.1 37.7 54.4 73.6 96.3 122 151 182 217
20 14.3 25.3 39.7 57.3 77.4 101 129 169 191 228

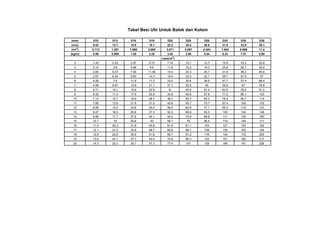

Tabel Besi Ulir Untuk Balok dan Kolom
Luas(cm2
)

4. 6 8 10 12 14 16 19 22
70 14.29 4.04 7.18 11.22 16.16 21.99 28.73 40.51 54.3
75 13.13 3.77 6.7 10.47 15.08 20.52 26.81 37.81 50.81
80 12.5 3.53 6.28 9.82 14.14 19.24 25.13 35.45 47.51
85 11.76 3.33 5.91 9.24 13.31 18.11 23.65 33.37 44.72
90 11.11 3.14 5.59 8.73 12.57 17.1 22.34 31.52 42.23
95 10.53 2.98 5.29 8.27 11.9 16.2 21.16 29.86 40.01
100 10 2.83 5.03 7.85 11.31 15.39 20.11 28.36 38.01
105 9.53 2.69 4.79 7.48 10.77 14.66 19.15 27.01 36.2
110 9.1 2.57 4.57 7.14 10.28 13.99 18.28 25.78 34.55
115 8.7 2.46 4.37 6.83 9.83 13.39 17.48 24.66 33.05
120 8.34 2.36 4.19 6.54 9.42 12.83 16.76 23.63 31.67
125 8 2.26 4.02 6.28 9.05 12.32 16.08 22.69 30.41
130 7.7 2.17 3.87 6.04 8.7 11.84 15.47 21.82 29.24
135 7.41 2.09 3.72 5.82 8.38 11.4 14.89 21.01 28.16
140 7.15 2.02 3.59 5.61 8.08 11 14.36 20.26 27.15
145 6.9 1.95 3.47 5.42 7.8 10.62 13.87 19.56 26.21
150 6.67 1.89 3.35 5.24 7.54 10.26 13.41 18.91 25.34
155 6.46 1.82 3.24 5.07 7.3 9.93 12.97 18.3 24.52
160 6.25 1.77 3.14 4.91 7.07 9.62 12.57 17.73 23.76
165 6.06 1.71 3.05 4.76 6.85 9.33 12.19 17.19 23.04
170 5.89 1.66 2.96 4.62 6.65 9.05 11.82 16.68 22.36
175 5.72 1.62 2.87 4.49 6.46 8.79 11.49 16.21 21.72
180 5.56 1.57 2.79 4.36 6.28 8.55 11.17 15.75 21.12
185 5.41 1.53 2.72 4.25 6.11 8.32 10.87 15.33 20.55
190 5.27 1.49 2.65 4.14 5.95 8.1 10.58 14.92 20.01
195 5.13 1.45 2.58 4.03 5.8 7.89 10.31 14.54 19.49
200 5 1.41 2.51 3.93 5.65 7.69 10.05 14.18 19.01
Luas (cm2
)

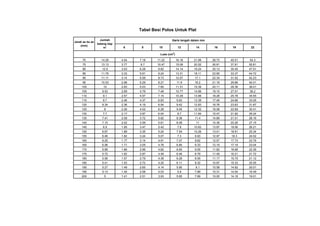

Tabel Besi Polos Untuk Plat
Jumlah
batang tiap
m'
Jarak as ke as
(mm)
Garis tengah dalam mm
