1. Building a System of Engagement
with MongoDB
{ name: ‘Bryan Reinero’,
twitter: ‘@blimpyacht’,
email: ‘bryan@mongdb.com’
web: ‘mongodb.com/bryan’ }

2. 2
Systems of Engagement
• Real-Time
• Context-Aware
• Encourage
Interaction
• Embedded in
Business Systems

3. 3
Systems of Engagement
• Context rich and User
Relevant Interactions
• Integrates data from many
systems
• Integrates Analytics

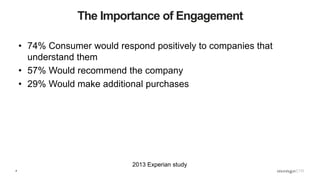

4. 4
The Importance of Engagement
• 74% Consumer would respond positively to companies that
understand them
• 57% Would recommend the company
• 29% Would make additional purchases
2013 Experian study

5. 5

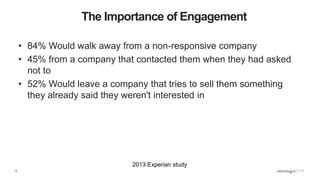

• 84% Would walk away from a non-responsive company
• 45% from a company that contacted them when they had asked
not to
• 52% Would leave a company that tries to sell them something
they already said they weren't interested in
The Importance of Engagement
2013 Experian study

6. 6
How is the
application of value
to the user?

7. 7

8. 8
Department of Veterans Affairs
20+ million Veterans in the US today
Doctors need a single view of a patient’s health record.
What happens when a patient has to change their address?

9. Requirements
• High performance requirements
• Increasingly large datasets
• High Availability

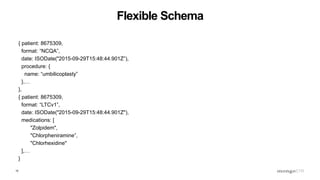

10. 10
Flexible Schema
{ patient: 8675309,
format: “NCQA”,
date: ISODate("2015-09-29T15:48:44.901Z”),
procedure: {
name: “umbilicoplasty”
},…
},
{ patient: 8675309,
format: “LTCv1”,
date: ISODate("2015-09-29T15:48:44.901Z"),
medications: [
"Zolpidem",
"Chlorpheniramine”,
"Chlorhexidine"
],…
}

11. 11

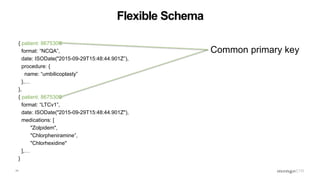

Flexible Schema
{ patient: 8675309,
format: “NCQA”,
date: ISODate("2015-09-29T15:48:44.901Z”),
procedure: {
name: “umbilicoplasty”
},…
},
{ patient: 8675309,
format: “LTCv1”,
date: ISODate("2015-09-29T15:48:44.901Z"),
medications: [
"Zolpidem",
"Chlorpheniramine”,
"Chlorhexidine"
],…
}
Common primary key
Flexible Schema

12. 12
Flexible Schema
Common primary key
Discriminator
{ patient: 8675309,
format: “NCQA”,
date: ISODate("2015-09-29T15:48:44.901Z”),
procedure: {
name: “umbilicoplasty”
},…
},
{ patient: 8675309,
format: “LTCv1”,
date: ISODate("2015-09-29T15:48:44.901Z"),
medications: [
"Zolpidem",
"Chlorpheniramine”,
"Chlorhexidine"
],…
}

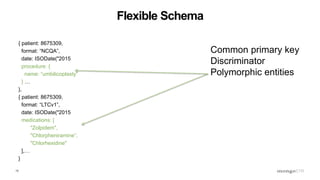

13. 13
Flexible Schema
{ patient: 8675309,
format: “NCQA”,
date: ISODate("2015-09-29T15:48:44.901Z”),
procedure: {
name: “umbilicoplasty”
},…
},
{ patient: 8675309,
format: “LTCv1”,
date: ISODate("2015-09-29T15:48:44.901Z"),
medications: [
"Zolpidem",
"Chlorpheniramine”,
"Chlorhexidine"
],…
}
Common primary key
Discriminator
Polymorphic entities

14. 14

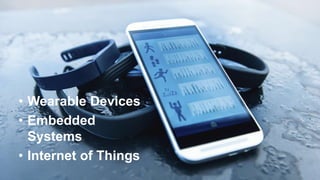

• Wearable Devices
• Embedded
Systems
• Internet of Things

15. 15
Customer Single View
• Understand customer
relationships
• Improves customer
experience
• Develops effective
customer marketing
• Improves product

16. 16

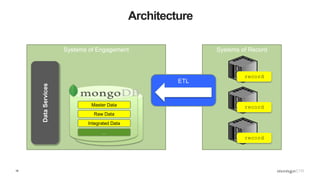

Architecture
Systems of Engagement
DataServices
Systems of Record
Master Data
Raw Data
Integrated Data
…
ETL
record
record
record

17. 17

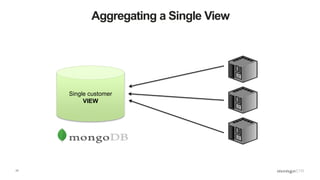

Aggregating a Single View
Single customer
VIEW

18. 18

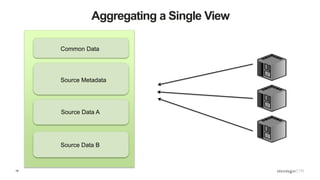

Aggregating a Single View
Common Data
Source Metadata
Source Data A
Source Data B

19. 19

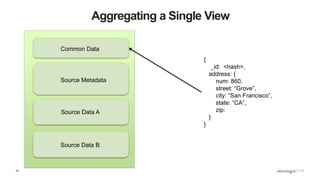

Aggregating a Single View
Common Data
Source Metadata
Source Data A
Source Data B
{
_id: <hash>,
address: {
num: 860,
street: “Grove”,
city: “San Francisco”,
state: “CA”,
zip:
}
}

20. 20

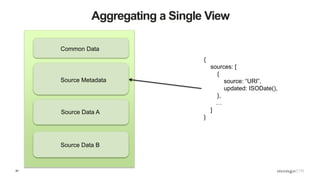

Aggregating a Single View
Common Data
Source Metadata
Source Data A
Source Data B
{
sources: [
{
source: “URI”,
updated: ISODate(),
},
…
]
}

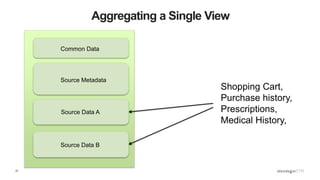

21. 21
Aggregating a Single View
Common Data
Source Metadata
Source Data A
Source Data B
Shopping Cart,
Purchase history,
Prescriptions,
Medical History,

22. The Point of Engagement

23. 23

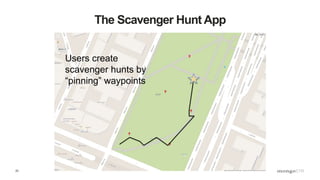

The Scavenger Hunt App
Users create
scavenger hunts by
“pinning” waypoints

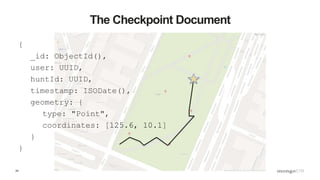

24. 24
The Checkpoint Document
{
_id: ObjectId(),
user: UUID,
huntId: UUID,
timestamp: ISODate(),
geometry: {
type: "Point",
coordinates: [125.6, 10.1]
}
}

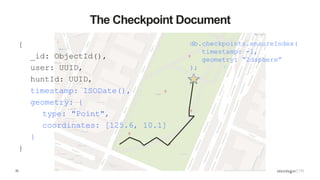

25. 25
The Checkpoint Document
{
_id: ObjectId(),
user: UUID,
huntId: UUID,
timestamp: ISODate(),
geometry: {
type: "Point",
coordinates: [125.6, 10.1]
}
}
db.checkpoints.ensureIndex(
timestamp: -1,
geometry: “2dsphere”
);

26. 26

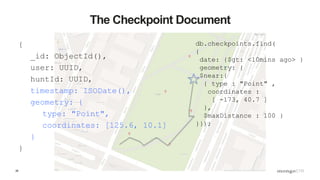

The Checkpoint Document
db.checkpoints.find(
{
date: {$gt: <10mins ago> }
geometry: {
$near:{
{ type : "Point" ,
coordinates :
[ -173, 40.7 ]
},
$maxDistance : 100 }
}});
{
_id: ObjectId(),
user: UUID,
huntId: UUID,
timestamp: ISODate(),
geometry: {
type: "Point",
coordinates: [125.6, 10.1]
}
}

27. 27

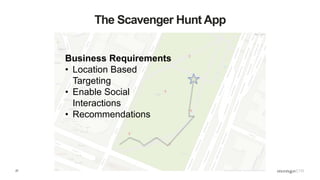

The Scavenger Hunt App
Business Requirements
• Location Based
Targeting
• Enable Social
Interactions
• Recommendations

28. 28

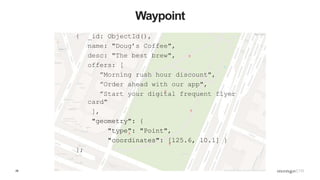

Waypoint
{ _id: ObjectId(),
name: "Doug’s Coffee",
desc: "The best brew",
offers: [
”Morning rush hour discount",
”Order ahead with our app",
”Start your digital frequent flyer
card"
],
"geometry": {
"type": "Point",
"coordinates": [125.6, 10.1] }
};

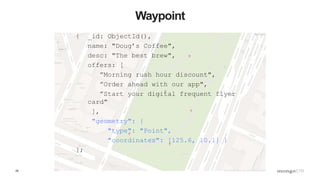

29. 29
Waypoint
{ _id: ObjectId(),
name: "Doug’s Coffee",
desc: "The best brew",
offers: [
”Morning rush hour discount",
”Order ahead with our app",
”Start your digital frequent flyer
card"
],
"geometry": {
"type": "Point",
"coordinates": [125.6, 10.1] }
};

30. 30

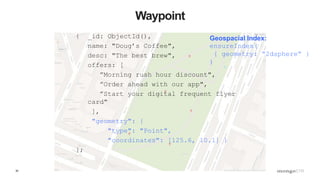

Waypoint
{ _id: ObjectId(),
name: "Doug’s Coffee",
desc: "The best brew",
offers: [
”Morning rush hour discount",
”Order ahead with our app",
”Start your digital frequent flyer
card"
],
"geometry": {
"type": "Point",
"coordinates": [125.6, 10.1] }
};
Geospacial Index:
ensureIndex(
{ geometry: “2dsphere” }
)

31. 31

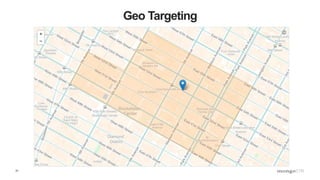

Geo Targeting

32. 32

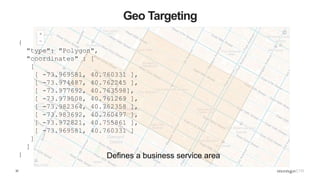

Geo Targeting
{
"type": "Polygon",
"coordinates" : [
[
[ -73.969581, 40.760331 ],
[ -73.974487, 40.762245 ],
[ -73.977692, 40.763598],
[ -73.979508, 40.761269 ],
[ -73.982364, 40.762358 ],
[ -73.983692, 40.760497 ],
[ -73.972821, 40.755861 ],
[ -73.969581, 40.760331 ]
]
]
} Defines a business service area

33. 33
$geoIntersects
{
$geoIntersects: {
$geometry: {
"type": "Point",
"coordinates": [
-73.975010,
40.760071
]
}
}
}

34. 34

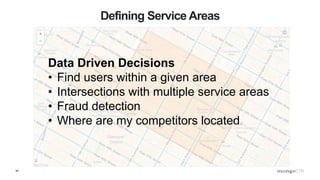

Defining Service Areas
Data Driven Decisions
• Find users within a given area
• Intersections with multiple service areas
• Fraud detection
• Where are my competitors located

35. Social Interactions

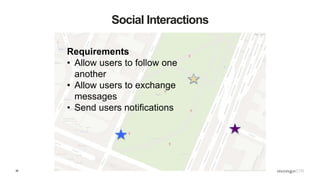

36. 36
Social Interactions
Requirements
• Allow users to follow one
another
• Allow users to exchange
messages
• Send users notifications

37. 37
Social Interactions
Eratosthenes
Democritus
Hypatia
Shemp
Euripides
Graph models
Personal Relationships
Recommendation Engines

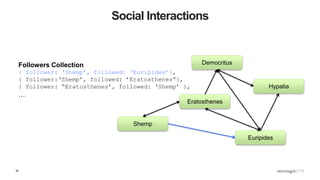

38. 38
Social Interactions
Followers Collection
{ follower: ‘Shemp’, followed: ‘Euripides’},
{ follower:‘Shemp’, followed: ’Eratosthenes”},
{ follower: “Eratosthenes’, followed: ‘Shemp’ },
…
Eratosthenes
Democritus
Hypatia
Shemp
Euripides

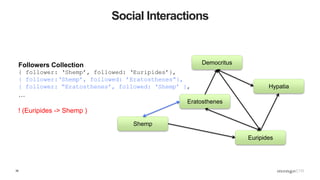

39. 39
Social Interactions
Eratosthenes
Democritus
Hypatia
Shemp
Euripides
Followers Collection
{ follower: ‘Shemp’, followed: ‘Euripides’},
{ follower:‘Shemp’, followed: ’Eratosthenes”},
{ follower: “Eratosthenes’, followed: ‘Shemp’ },
…
! (Euripides -> Shemp )

40. 40

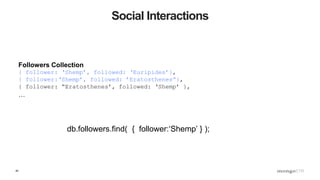

Social Interactions
db.followers.find( { follower:‘Shemp’ } );
Followers Collection
{ follower: ‘Shemp’, followed: ‘Euripides’},
{ follower:‘Shemp’, followed: ’Eratosthenes”},
{ follower: “Eratosthenes’, followed: ‘Shemp’ },
…

41. Notifications

42. 42

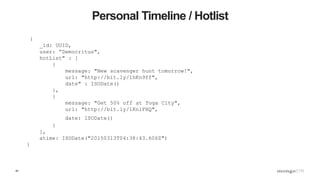

Personal Timeline / Hotlist
{
_id: UUID,
user: ”Democritus",
hotList" : [
{
message: "New scavenger hunt tomorrow!",
url: "http://bit.ly/1hKn9ff",
date" : ISODate()
},
{
message: "Get 50% off at Toga City",
url: "http://bit.ly/1KnlFHQ",
date: ISODate()
}
],
atime: ISODate("20150313T04:38:43.606Z")
}

43. 43

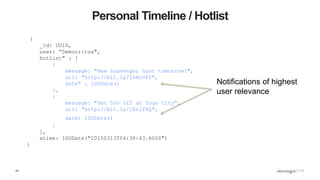

Personal Timeline / Hotlist
Notifications of highest
user relevance
{
_id: UUID,
user: ”Democritus",
hotList" : [
{
message: "New scavenger hunt tomorrow!",
url: "http://bit.ly/1hKn9ff",
date" : ISODate()
},
{
message: "Get 50% off at Toga City",
url: "http://bit.ly/1KnlFHQ",
date: ISODate()
}
],
atime: ISODate("20150313T04:38:43.606Z")
}

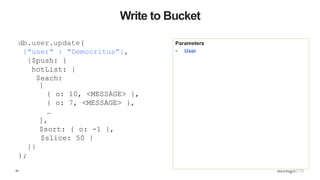

44. 44
Write to Bucket
Parameters
• User
db.user.update(
{"user" : "Democritus"},
{$push: {
hotList: {
$each:
[
{ o: 10, <MESSAGE> },
{ o: 7, <MESSAGE> },
…
],
$sort: { o: -1 },
$slice: 50 }
}}
);

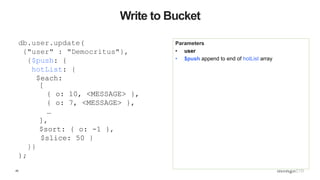

45. 45
Write to Bucket
Parameters
• user
• $push append to end of hotList array
db.user.update(
{"user" : "Democritus"},
{$push: {
hotList: {
$each:
[
{ o: 10, <MESSAGE> },
{ o: 7, <MESSAGE> },
…
],
$sort: { o: -1 },
$slice: 50 }
}}
);

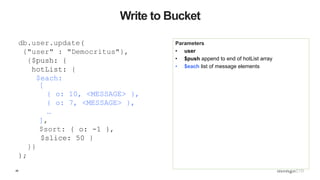

46. 46
Write to Bucket
Parameters
• user
• $push append to end of hotList array
• $each list of message elements
db.user.update(
{"user" : "Democritus"},
{$push: {
hotList: {
$each:
[
{ o: 10, <MESSAGE> },
{ o: 7, <MESSAGE> },
…
],
$sort: { o: -1 },
$slice: 50 }
}}
);

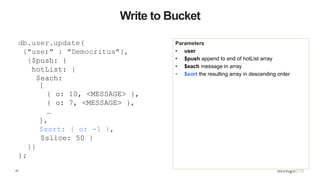

47. 47
Write to Bucket
Parameters
• user
• $push append to end of hotList array
• $each message in array
• $sort the resulting array in descending order
db.user.update(
{"user" : "Democritus"},
{$push: {
hotList: {
$each:
[
{ o: 10, <MESSAGE> },
{ o: 7, <MESSAGE> },
…
],
$sort: { o: -1 },
$slice: 50 }
}}
);

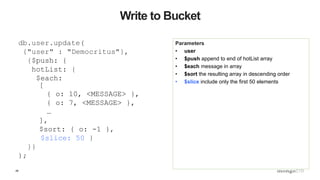

48. 48
Write to Bucket
Parameters
• user
• $push append to end of hotList array
• $each message in array
• $sort the resulting array in descending order
• $slice include only the first 50 elements
db.user.update(
{"user" : "Democritus"},
{$push: {
hotList: {
$each:
[
{ o: 10, <MESSAGE> },
{ o: 7, <MESSAGE> },
…
],
$sort: { o: -1 },
$slice: 50 }
}}
);

49. Analytics

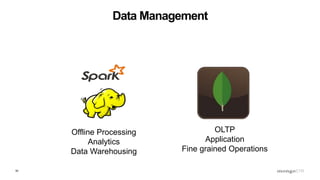

50. 50
Data Management
Offline Processing
Analytics
Data Warehousing
OLTP
Application
Fine grained Operations

51. 51
https://github.com/mongodb/mongo-hadoop

52. 52
Data Services
ETLDatabase
HDFS

53. 53

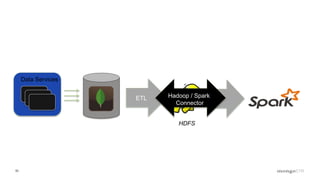

ETL
HDFS
Hadoop / Spark
Connector
Data Services

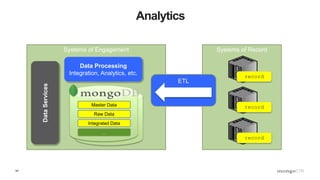

54. 54
Analytics
Systems of Engagement
DataServices
Data Processing
Integration, Analytics, etc.
Systems of Record
Master Data
Raw Data
Integrated Data
…
ETL
record
record
record

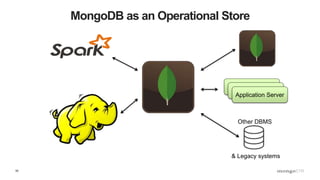

55. 55
MongoDB as an Operational Store
Application Server
Other DBMS
& Legacy systems

56. Data Capture

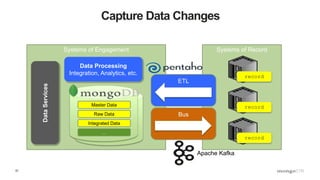

57. 57
Capture Data Changes
Systems of Engagement
DataServices
Data Processing
Integration, Analytics, etc.
Systems of Record
Master Data
Raw Data
Integrated Data
…
ETL
Bus
Apache Kafka
record
record
record

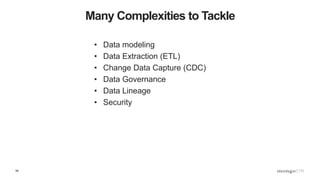

58. 58
Many Complexities to Tackle
• Data modeling
• Data Extraction (ETL)
• Change Data Capture (CDC)
• Data Governance
• Data Lineage
• Security

59. 59
How is the application of
value to the user?

60. Thanks!
{ name: ‘Bryan Reinero’,
twitter: ‘@blimpyacht’,
email: ‘bryan@mongodb.com’
web: ‘mongodb.com/bryan’ }
