1. OVERVIEW
Igor Moochnick
Director, Cloud Platforms
BlueMetal Architects
igorm@bluemetal.com
Blog: igorshare.wordpress.com

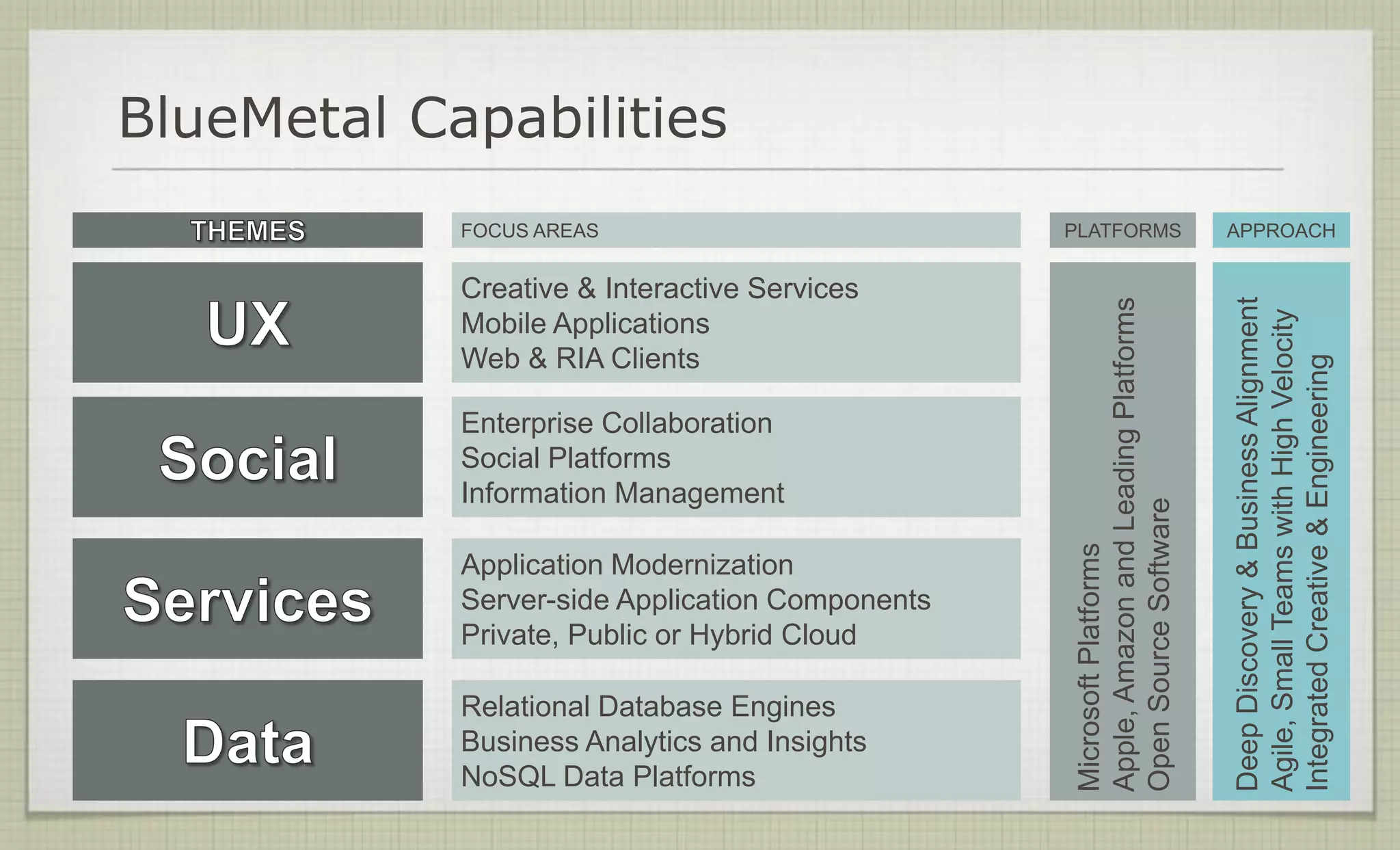

2. BlueMetal Capabilities
FOCUS AREAS PLATFORMS APPROACH
Creative & Interactive Services
Deep Discovery & Business Alignment
Apple, Amazon and Leading Platforms
Agile, Small Teams with High Velocity
Mobile Applications
Web & RIA Clients
Integrated Creative & Engineering
Enterprise Collaboration
Social Platforms
Information Management
Open Source Software
Microsoft Platforms
Application Modernization
Server-side Application Components
Private, Public or Hybrid Cloud
Relational Database Engines
Business Analytics and Insights
NoSQL Data Platforms

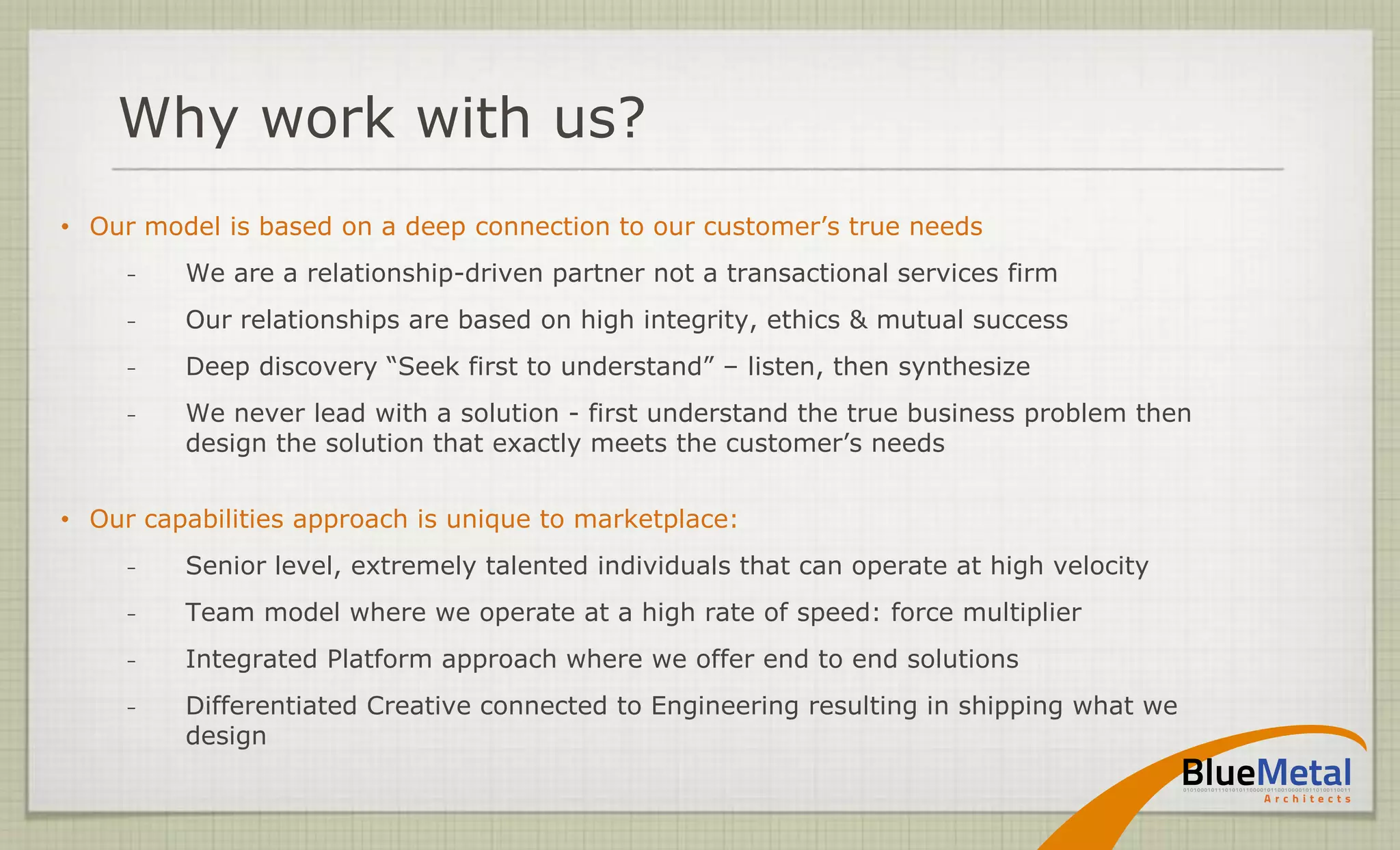

3. Why work with us?
• Our model is based on a deep connection to our customer’s true needs
̵ We are a relationship-driven partner not a transactional services firm
̵ Our relationships are based on high integrity, ethics & mutual success
̵ Deep discovery “Seek first to understand” – listen, then synthesize
̵ We never lead with a solution - first understand the true business problem then
design the solution that exactly meets the customer’s needs
• Our capabilities approach is unique to marketplace:
̵ Senior level, extremely talented individuals that can operate at high velocity
̵ Team model where we operate at a high rate of speed: force multiplier
̵ Integrated Platform approach where we offer end to end solutions
̵ Differentiated Creative connected to Engineering resulting in shipping what we
design

4. Sweet Spots
 Web Related Data, such as user sessions, shopping cart, etc.
 Dynamic Entities, such as user-customizable entities, entities
with a large number of optional fields, etc.
 Persisted View Models
 Large Data Sets - known to scale in excess of 1
terabyte (on a single machine with thousands writes/sec)
and trivial to shard the database across multiple machines

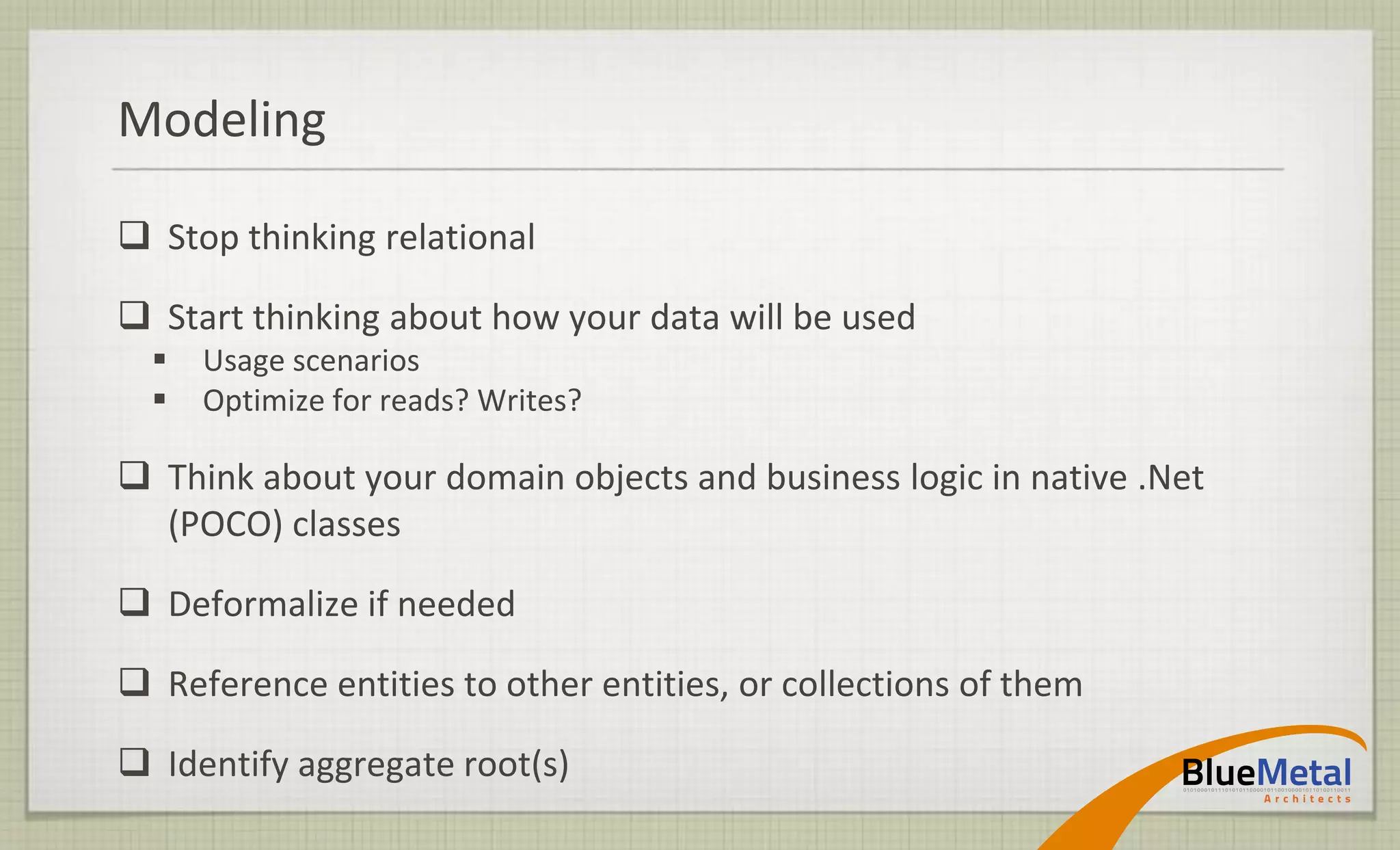

5. Modeling
 Stop thinking relational
 Start thinking about how your data will be used
 Usage scenarios
 Optimize for reads? Writes?
 Think about your domain objects and business logic in native .Net
(POCO) classes
 Deformalize if needed
 Reference entities to other entities, or collections of them
 Identify aggregate root(s)

6. Modes of operations
 Windows Service
 Console App (debug mode)
 Embedded
 IIS App (ASP.NET Service)
 On the cloud (Azure, RavenNest)

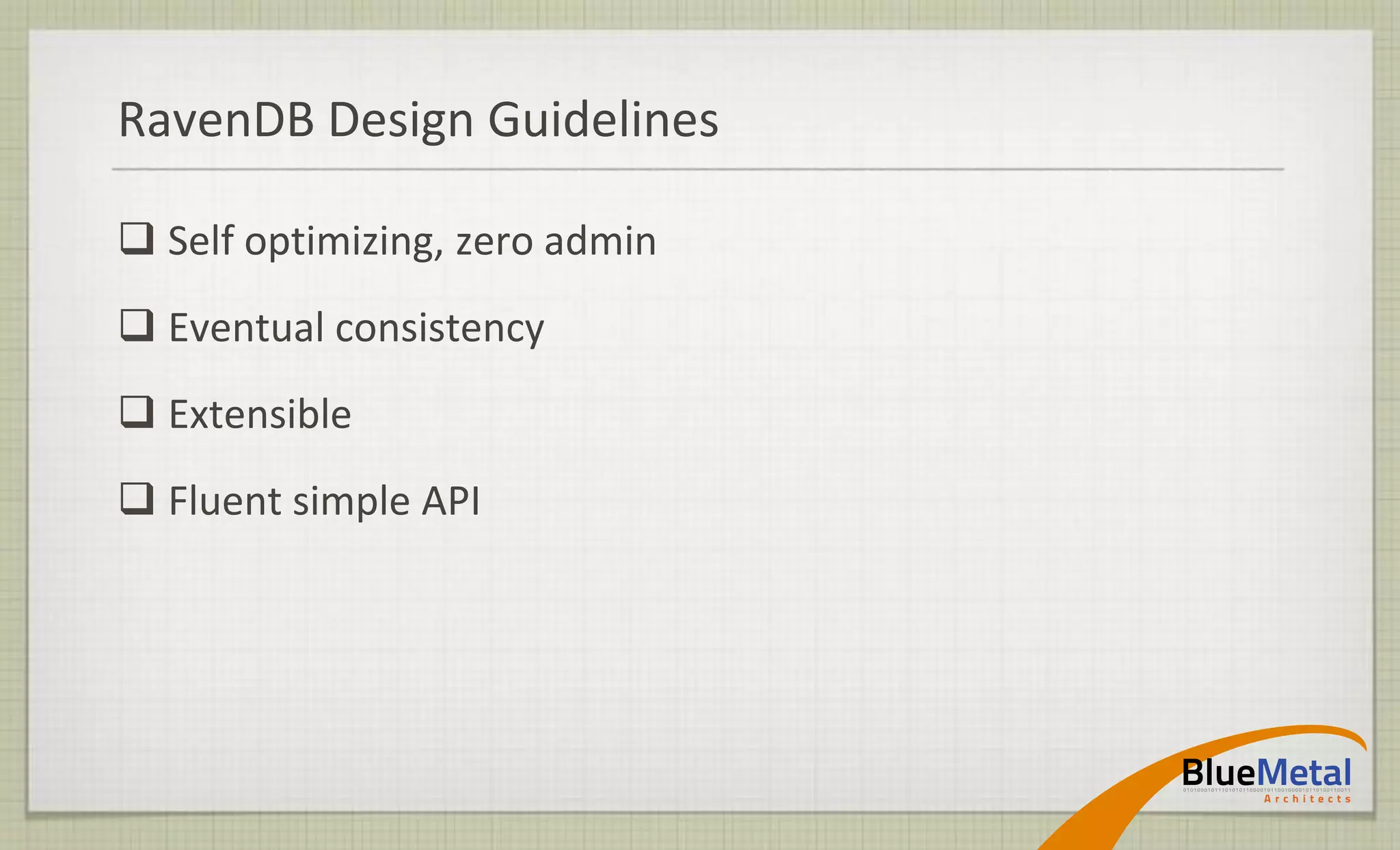

7. RavenDB Design Guidelines
 Self optimizing, zero admin
 Eventual consistency
 Extensible
 Fluent simple API

8. Client API
 Lightweight
 Silverlight
 Embedded
 RavenLight

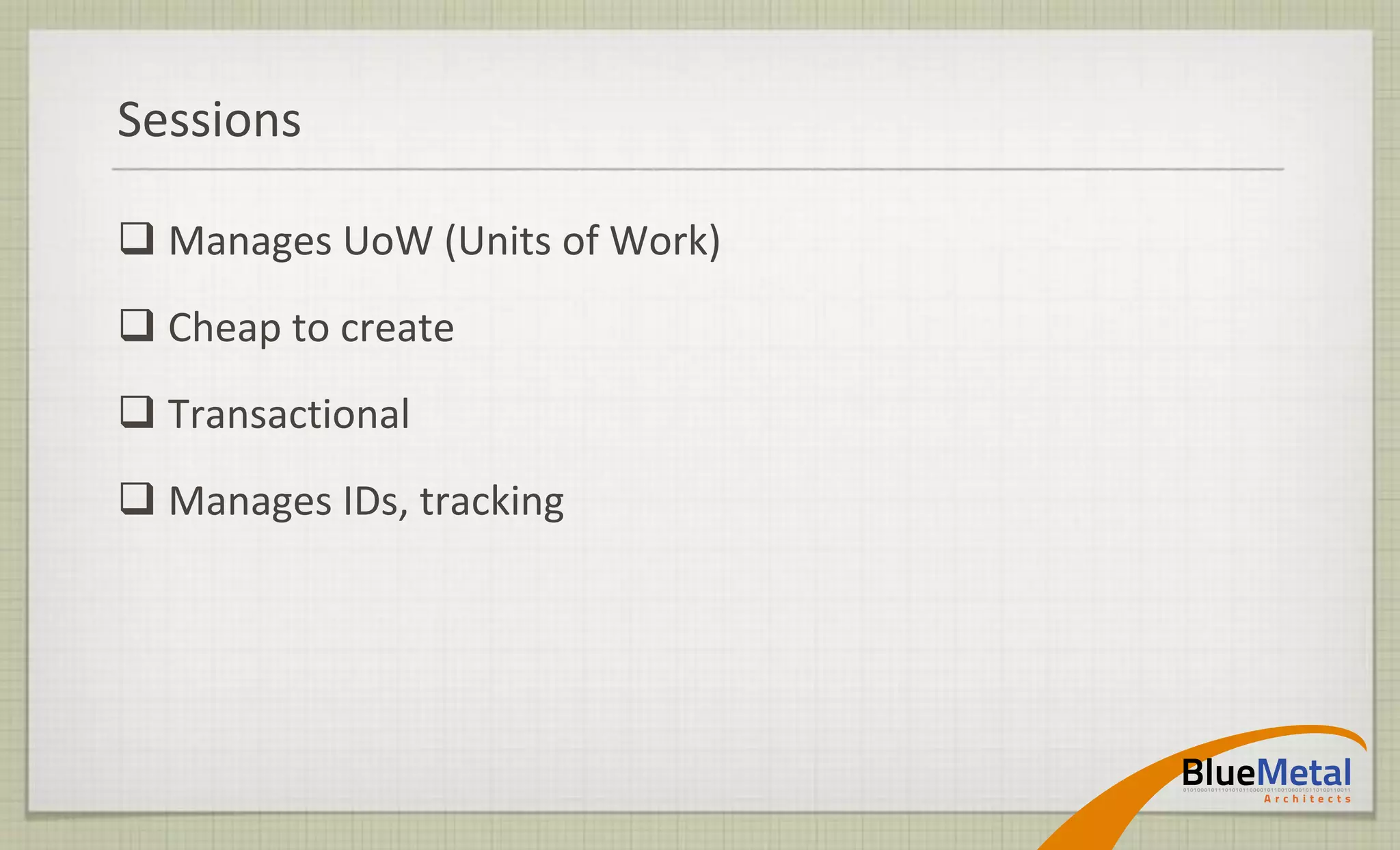

9. Sessions
 Manages UoW (Units of Work)
 Cheap to create
 Transactional
 Manages IDs, tracking

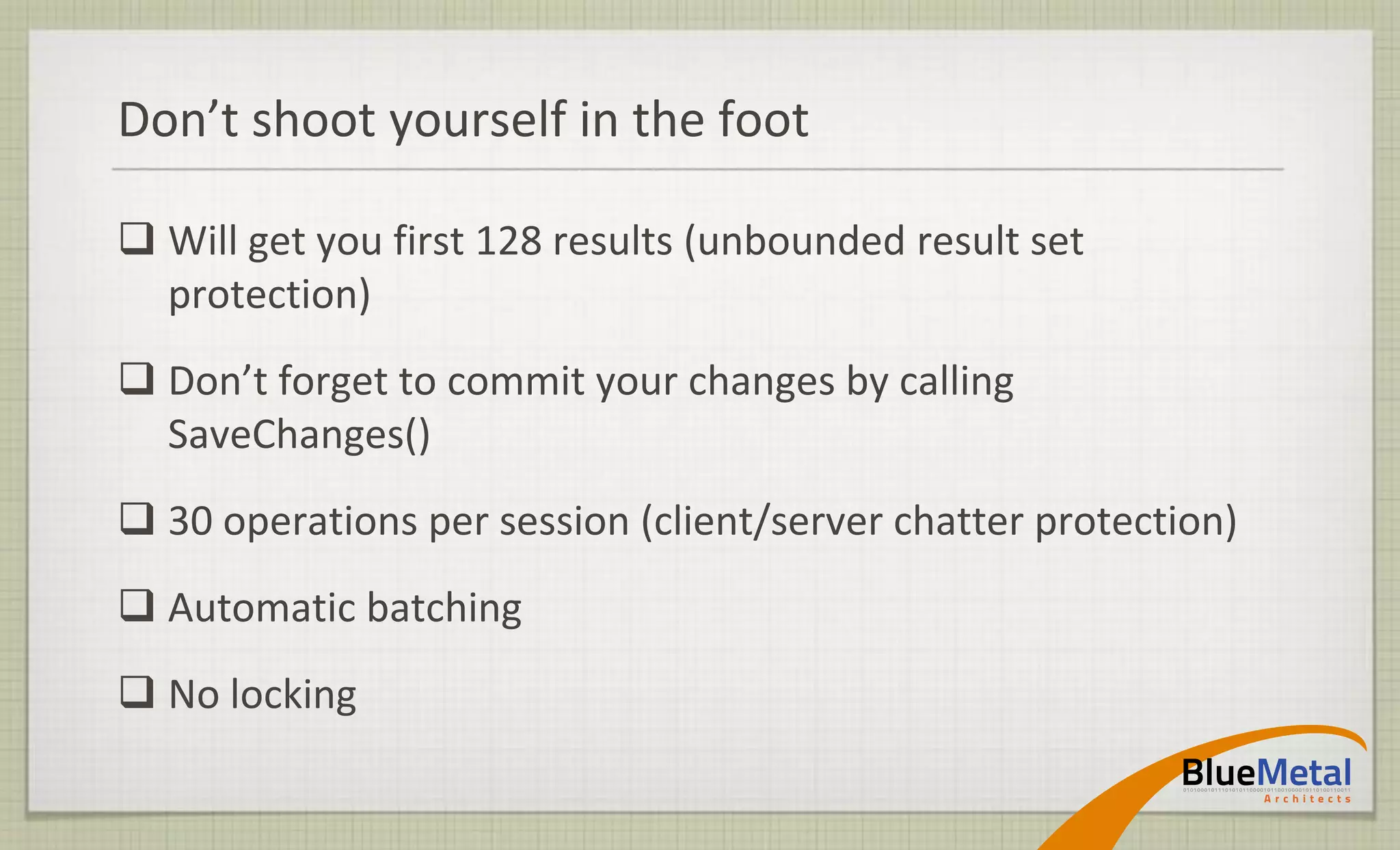

10. Don’t shoot yourself in the foot
 Will get you first 128 results (unbounded result set
protection)
 Don’t forget to commit your changes by calling
SaveChanges()
 30 operations per session (client/server chatter protection)
 Automatic batching
 No locking

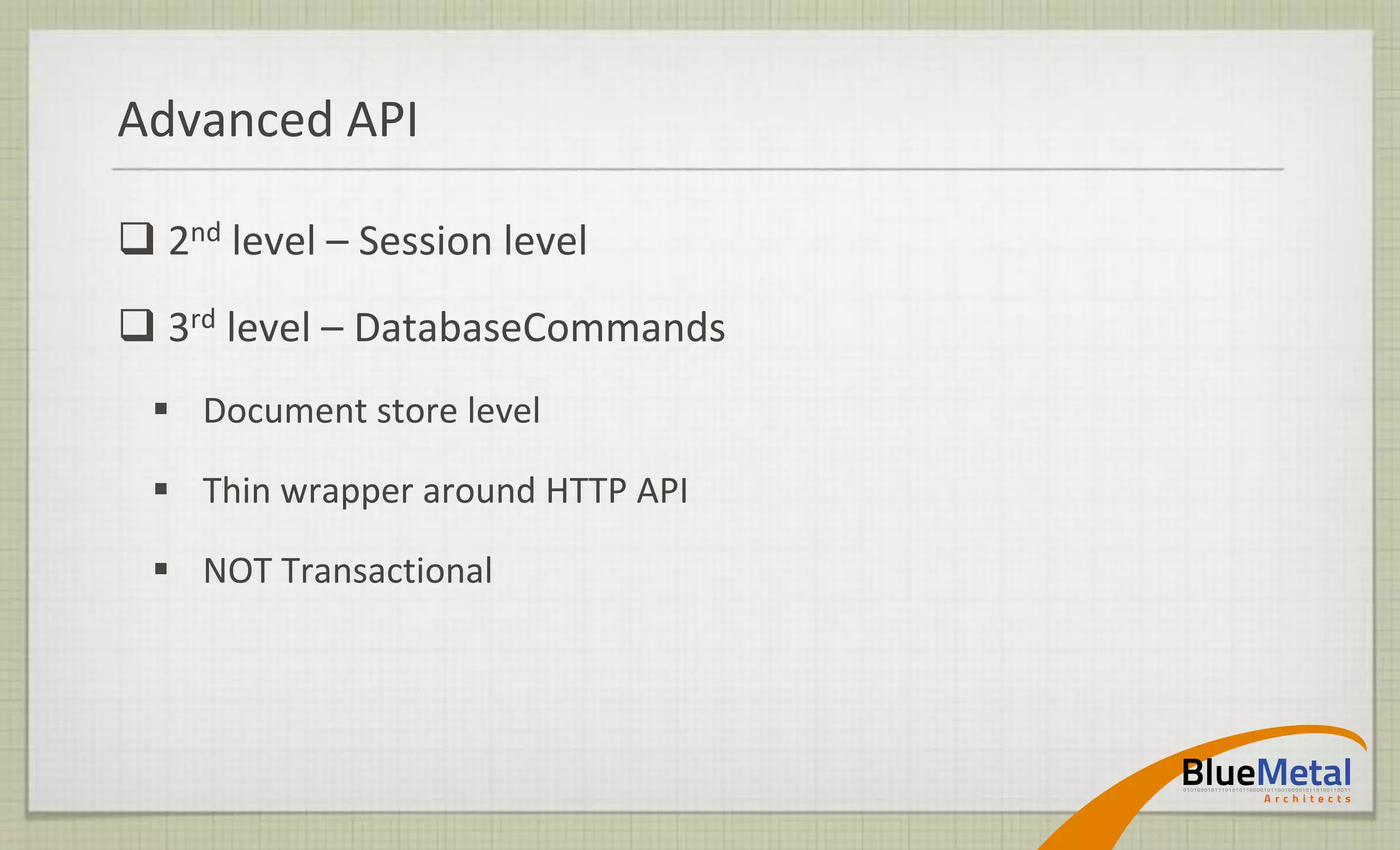

11. Advanced API
 2nd level – Session level
 3rd level – DatabaseCommands
 Document store level
 Thin wrapper around HTTP API
 NOT Transactional

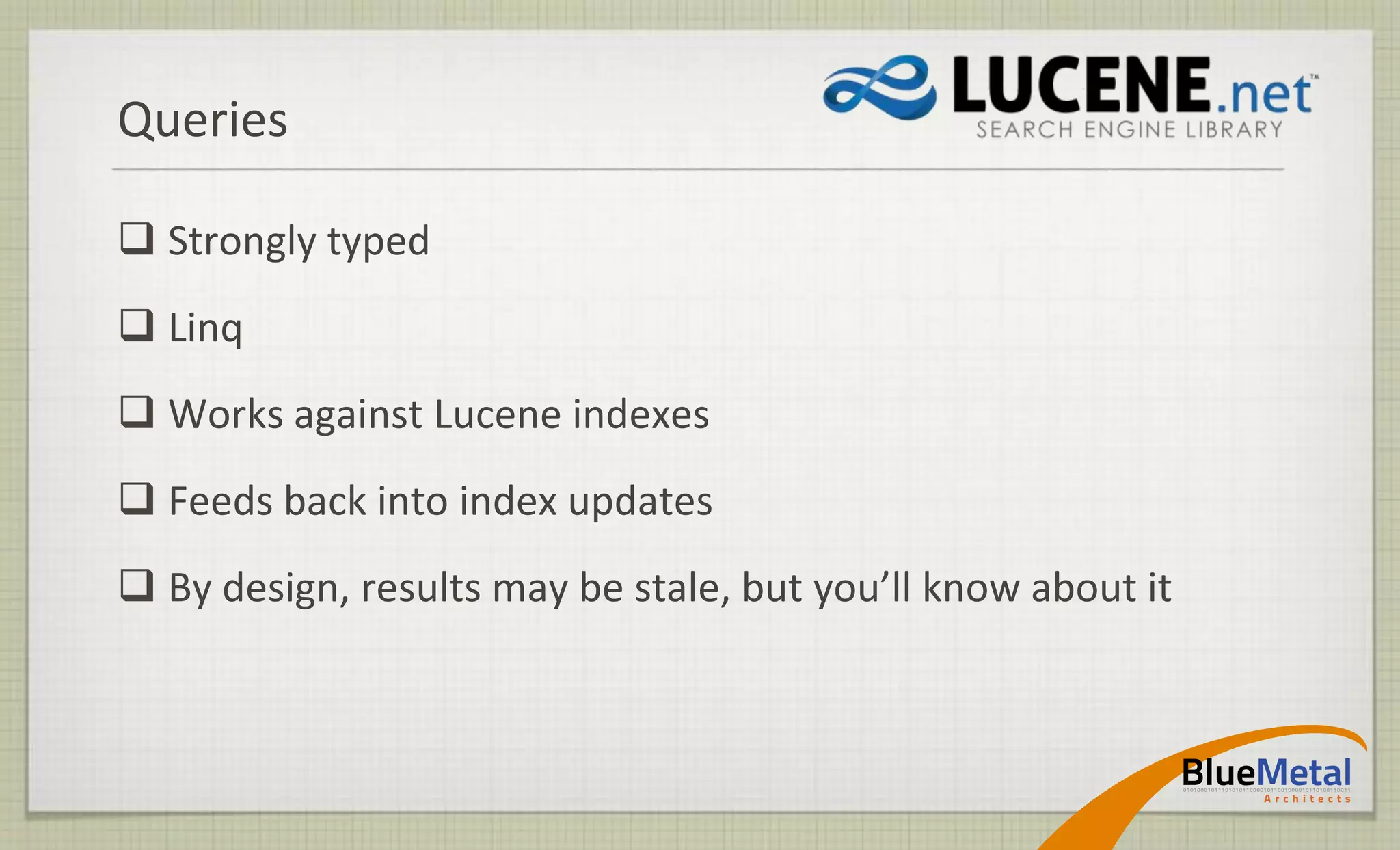

12. Queries
 Strongly typed
 Linq
 Works against Lucene indexes
 Feeds back into index updates
 By design, results may be stale, but you’ll know about it

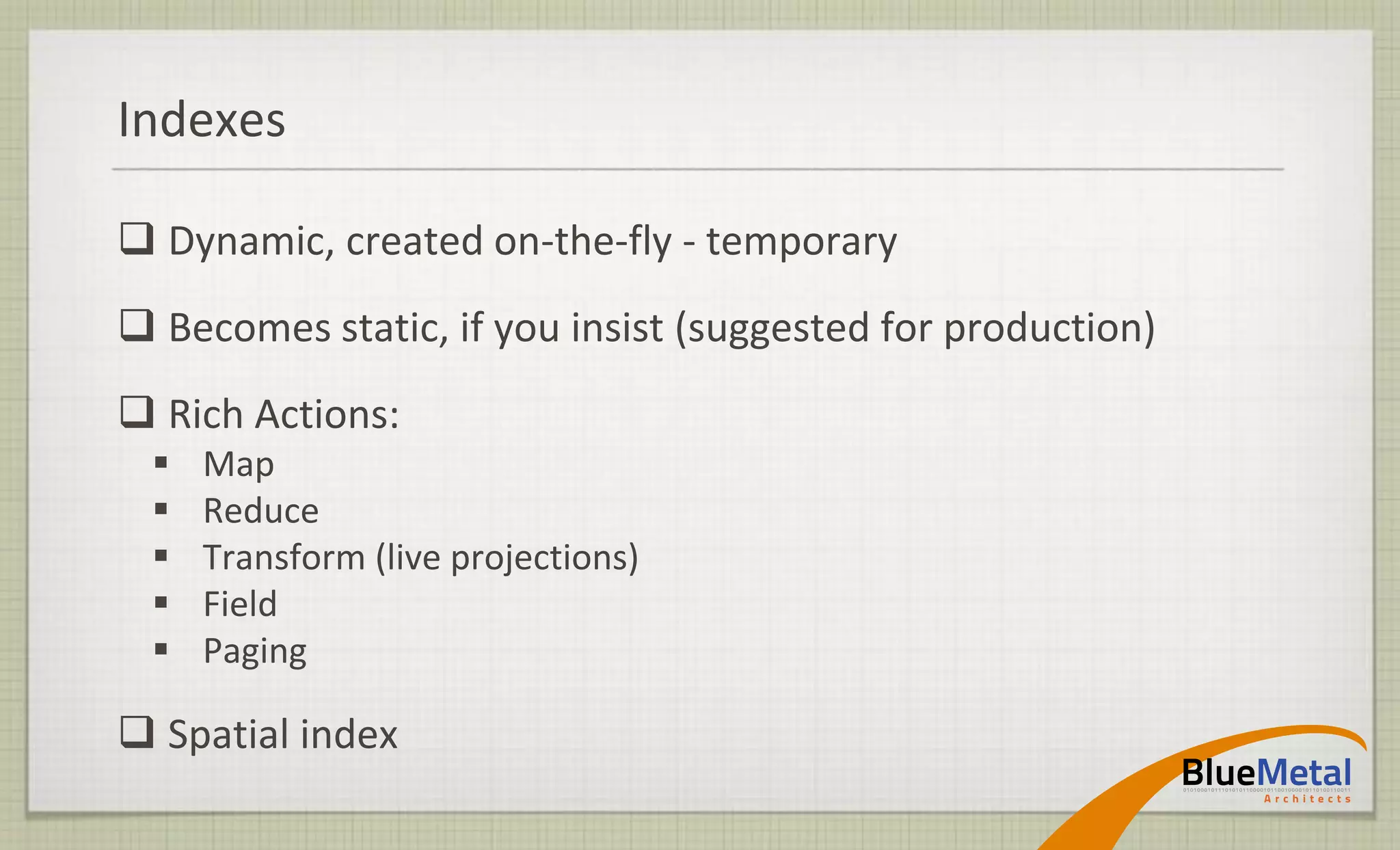

13. Indexes
 Dynamic, created on-the-fly - temporary
 Becomes static, if you insist (suggested for production)
 Rich Actions:
 Map
 Reduce
 Transform (live projections)
 Field
 Paging
 Spatial index

14. Linq Queries
// Filter by property value
var posts = from post in session.Query<BlogPost>()
where post.Subject == "NoSQL Update"
select post;
// Filter by range
var posts = from post in session.Query<BlogPost>()
where post.NumberOfWords > 50
select post;
// Filter by nested (calculated) property
var posts = from post in session.Query<BlogPost>()
where post.Comments.Count > 2
select post;

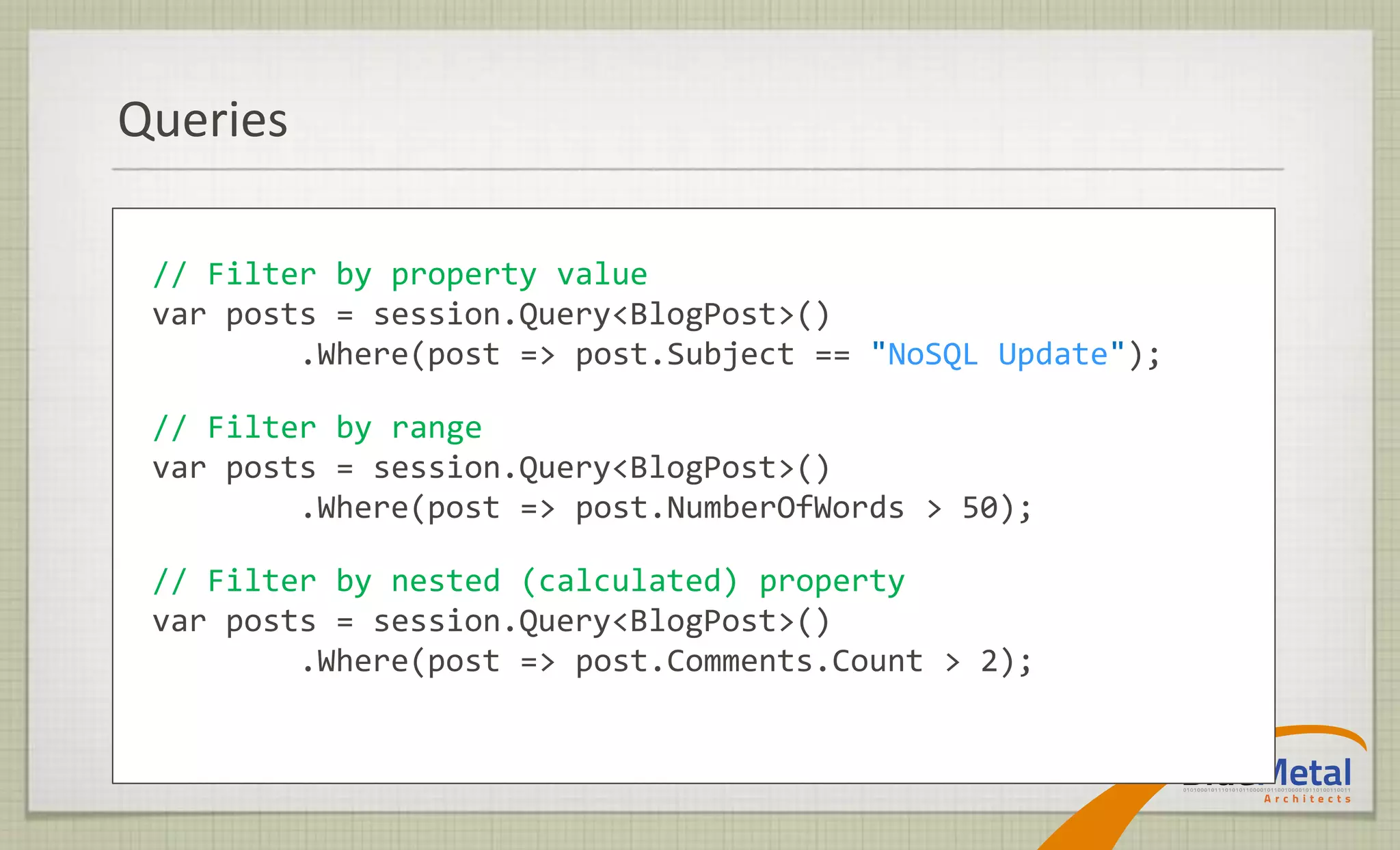

15. Queries
// Filter by property value
var posts = session.Query<BlogPost>()
.Where(post => post.Subject == "NoSQL Update");
// Filter by range
var posts = session.Query<BlogPost>()
.Where(post => post.NumberOfWords > 50);
// Filter by nested (calculated) property
var posts = session.Query<BlogPost>()
.Where(post => post.Comments.Count > 2);

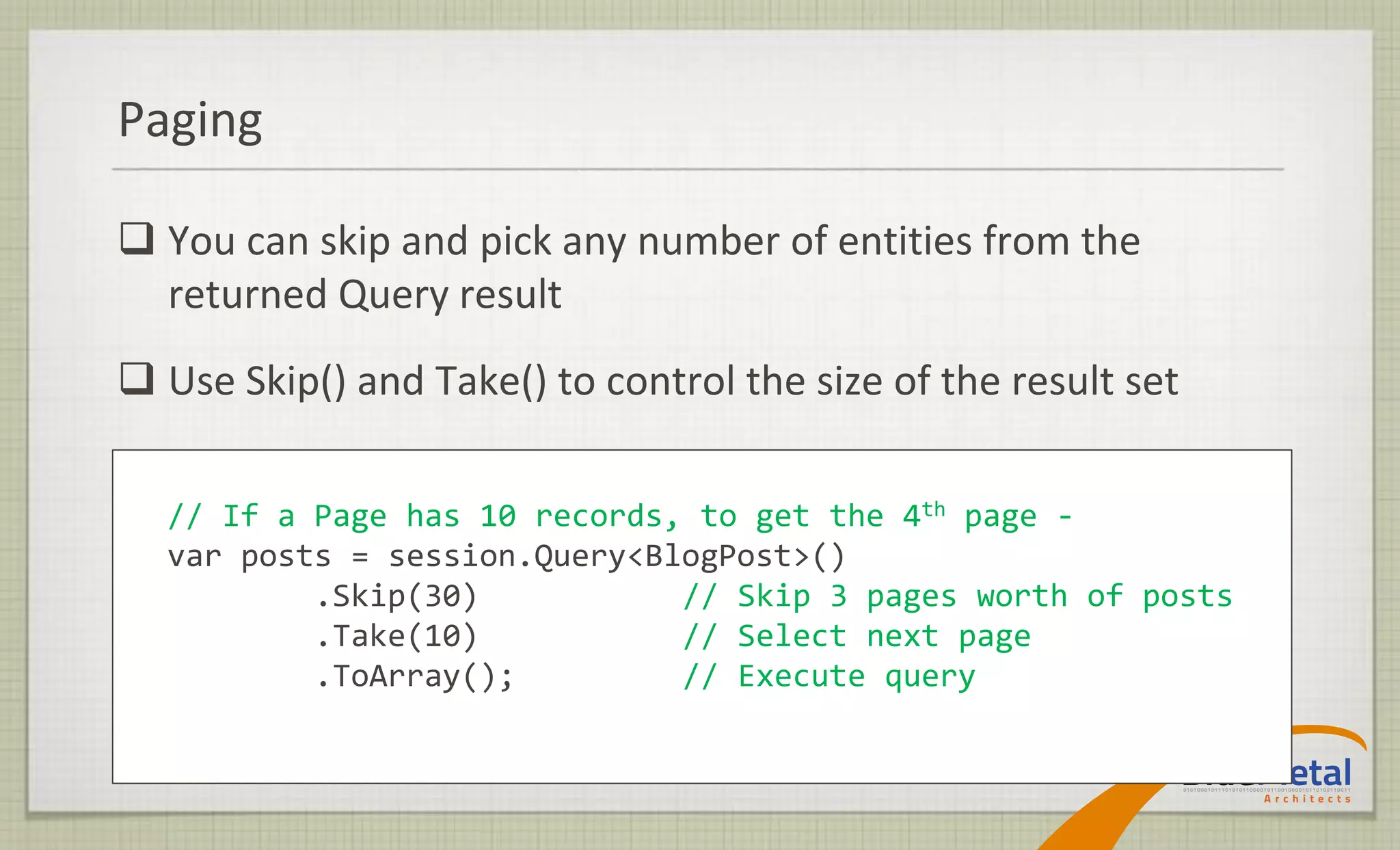

16. Paging
 You can skip and pick any number of entities from the
returned Query result
 Use Skip() and Take() to control the size of the result set
// If a Page has 10 records, to get the 4th page -
var posts = session.Query<BlogPost>()
.Skip(30) // Skip 3 pages worth of posts
.Take(10) // Select next page
.ToArray(); // Execute query

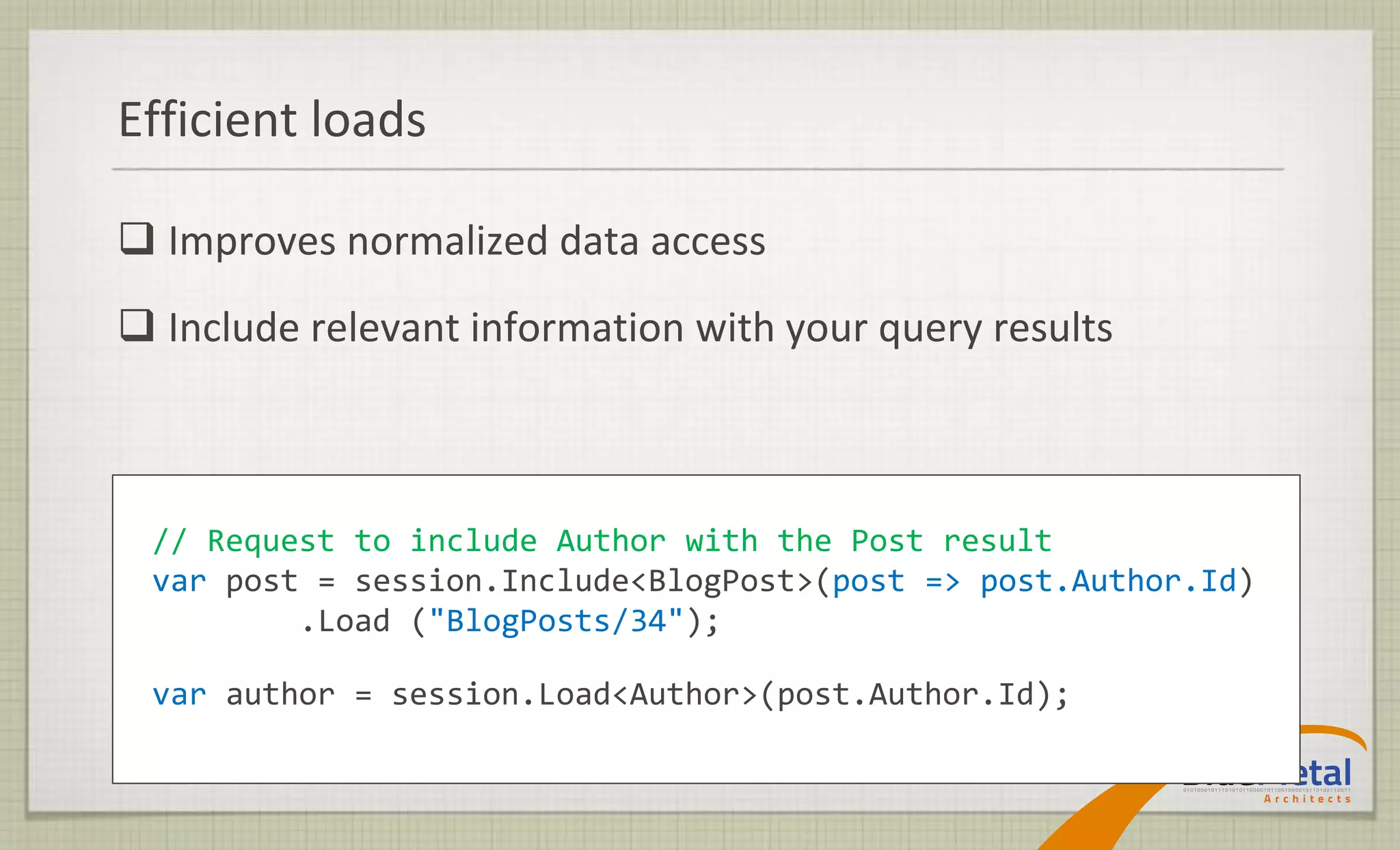

17. Efficient loads
 Improves normalized data access
 Include relevant information with your query results
// Request to include Author with the Post result
var post = session.Include<BlogPost>(post => post.Author.Id)
.Load ("BlogPosts/34");
var author = session.Load<Author>(post.Author.Id);

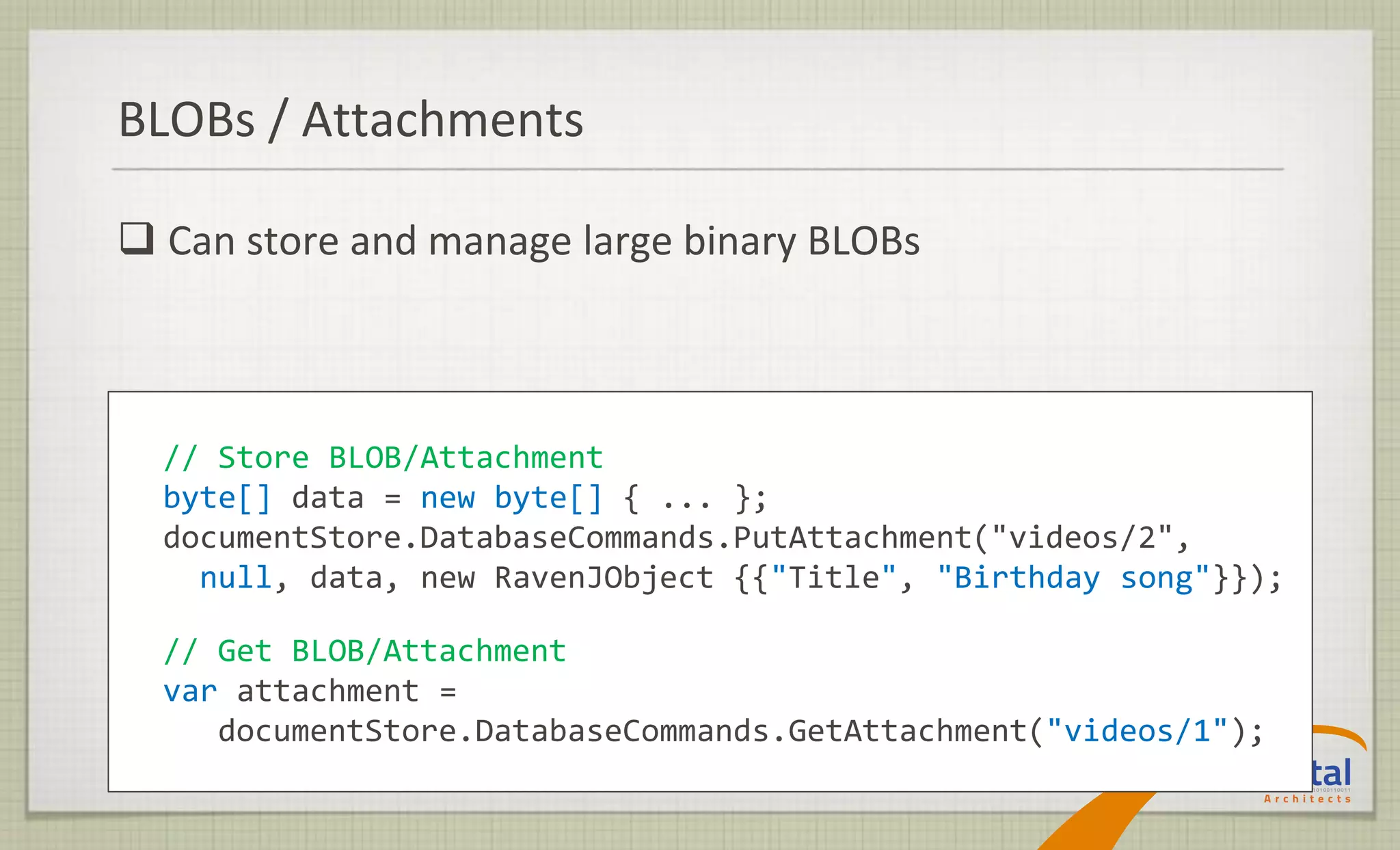

18. BLOBs / Attachments
 Can store and manage large binary BLOBs
// Store BLOB/Attachment
byte[] data = new byte[] { ... };
documentStore.DatabaseCommands.PutAttachment("videos/2",
null, data, new RavenJObject {{"Title", "Birthday song"}});
// Get BLOB/Attachment
var attachment =
documentStore.DatabaseCommands.GetAttachment("videos/1");

19. Polymorphism For more watch webcast …
 No required inheritance association
// Query against unified index
var result = session.Query<dynamic,
EverytingByName>();
foreach (dynamic animal in result)
Console.WriteLine(animal.Name);

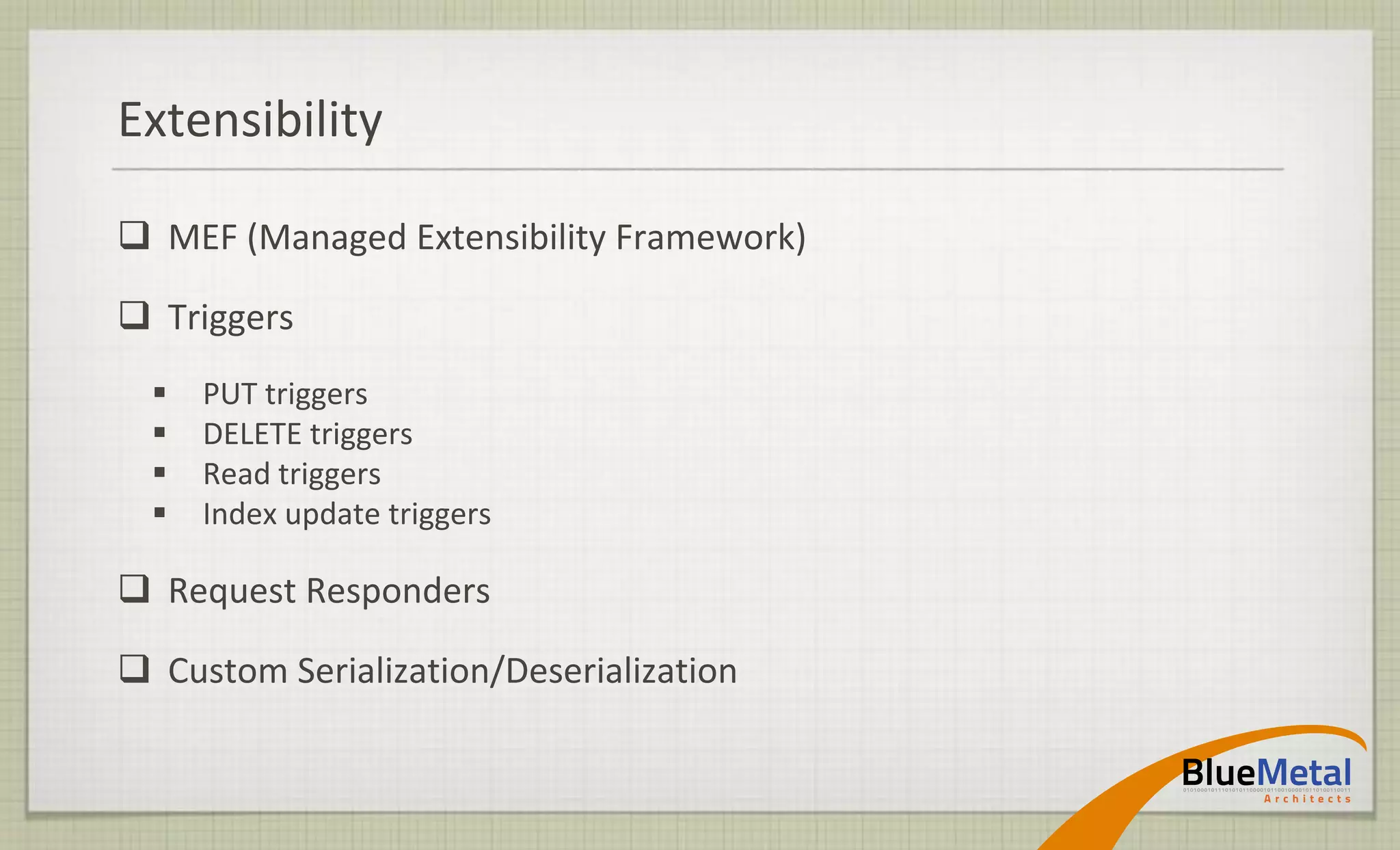

20. Extensibility
 MEF (Managed Extensibility Framework)
 Triggers
 PUT triggers
 DELETE triggers
 Read triggers
 Index update triggers
 Request Responders
 Custom Serialization/Deserialization

21. Plugins
// RavenDB plugin
public class DocSize : RequestResponder
{
public override void Respond(IHttpContext context)
{ ... }
public override string UrlPattern
{ get { return "/blobsize/(.+)"; } }
public override string[] SupportedVerbs
{ get { return new[] {"GET"}; } }
}

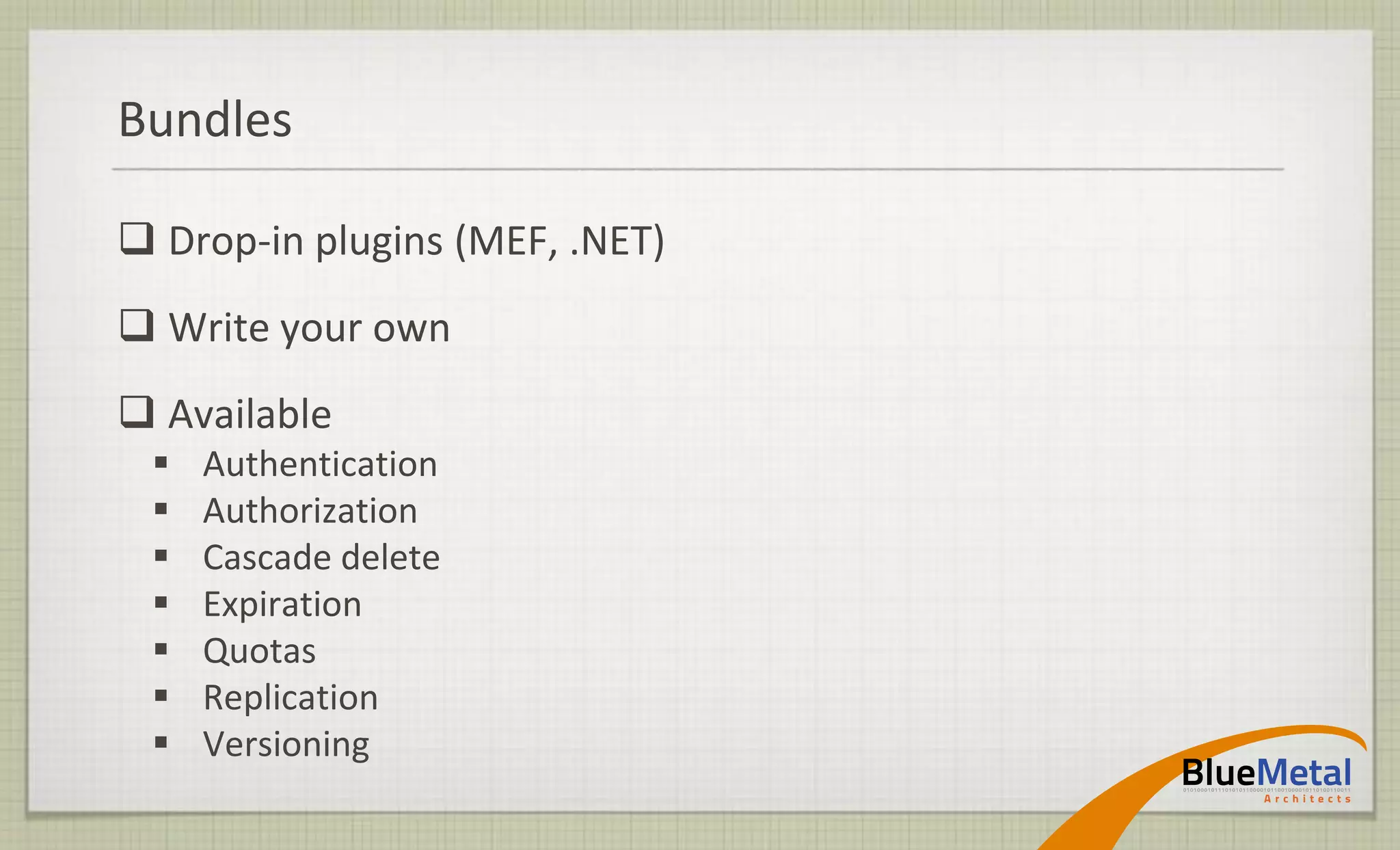

22. Bundles
 Drop-in plugins (MEF, .NET)
 Write your own
 Available
 Authentication
 Authorization
 Cascade delete
 Expiration
 Quotas
 Replication
 Versioning

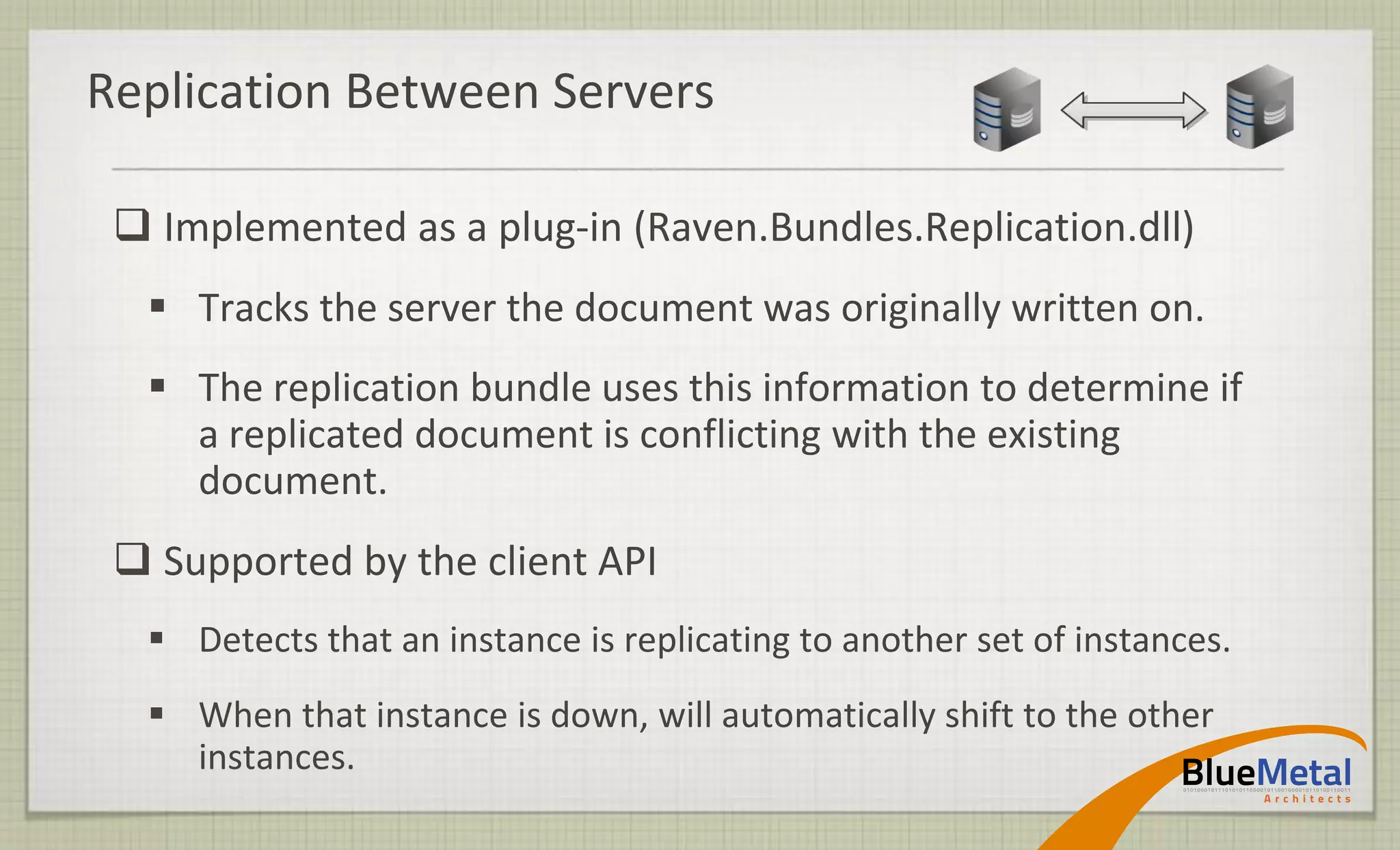

23. Replication Between Servers
 Implemented as a plug-in (Raven.Bundles.Replication.dll)
 Tracks the server the document was originally written on.
 The replication bundle uses this information to determine if
a replicated document is conflicting with the existing
document.
 Supported by the client API
 Detects that an instance is replicating to another set of instances.
 When that instance is down, will automatically shift to the other
instances.

24. Replication to Relational DB
Given this document…
And this index…
Gives this table output
http://ravendb.net/bundles/index-replication

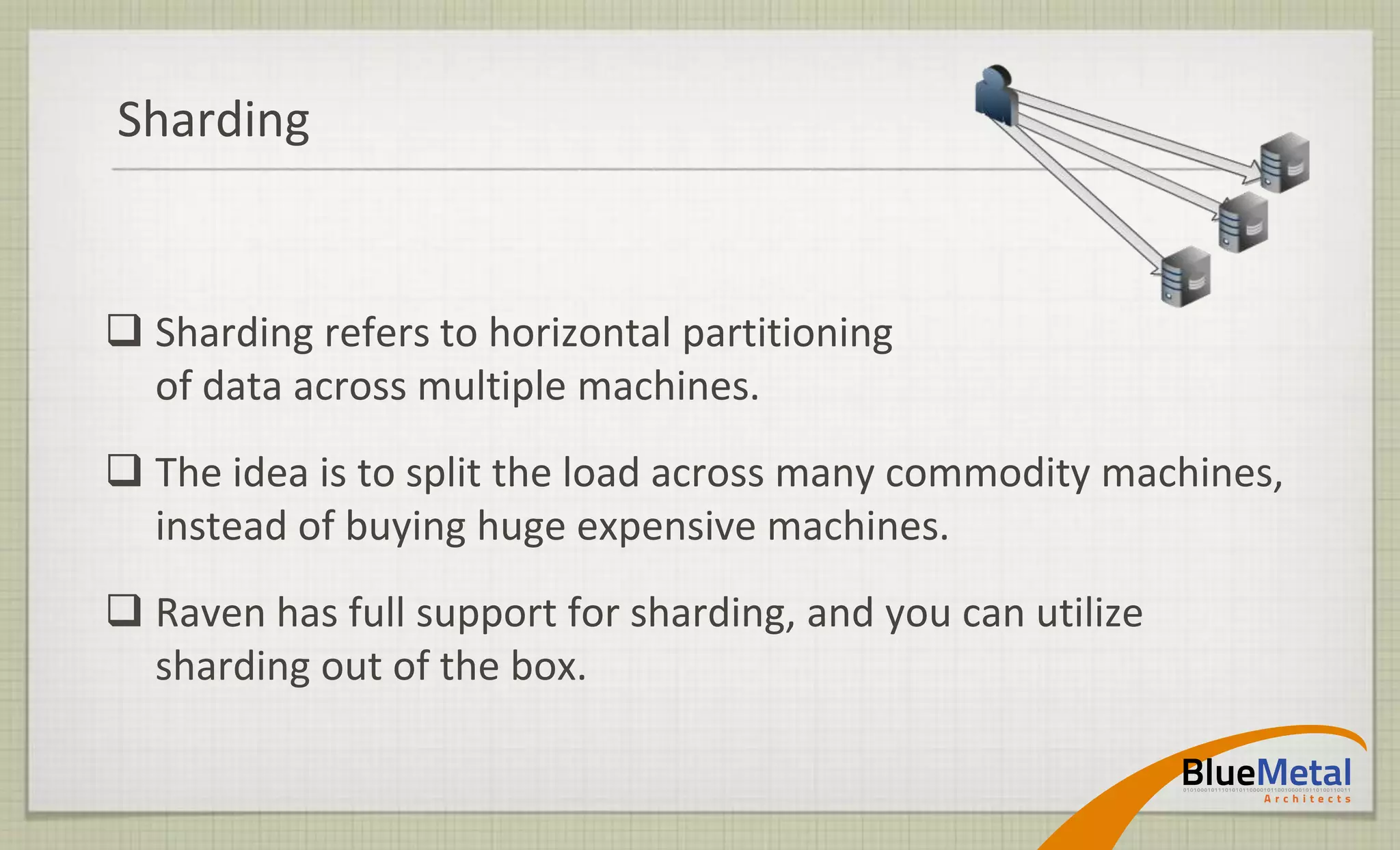

25. Sharding
 Sharding refers to horizontal partitioning
of data across multiple machines.
 The idea is to split the load across many commodity machines,
instead of buying huge expensive machines.
 Raven has full support for sharding, and you can utilize
sharding out of the box.

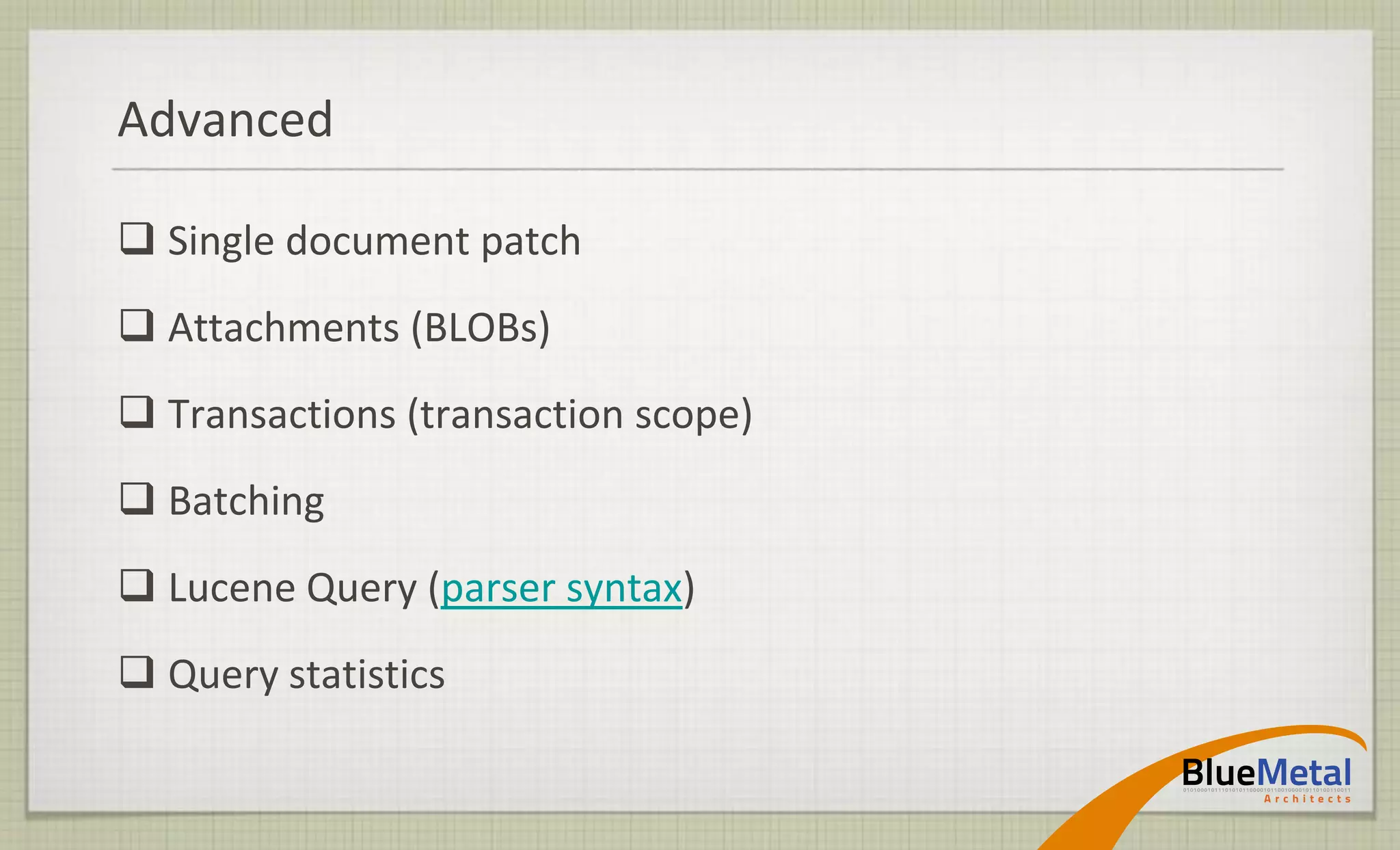

26. Advanced
 Single document patch
 Attachments (BLOBs)
 Transactions (transaction scope)
 Batching
 Lucene Query (parser syntax)
 Query statistics

27. Learn More!
 Raven DB Home Page
http://ravendb.net/
 Raven DB: An Introduction
http://www.codeproject.com/KB/cs/RavenDBIntro.aspx
 Herding Code 83: Ayende Rahien on RavenDB
http://herdingcode.com/?p=255
 Raven posts from Ayende Rahien
http://ayende.com/Blog/category/564.aspx
 Raven posts from Rob Ashton
http://codeofrob.com/category/13.aspx
 RavenDB - The Lost Session
