This chapter discusses techniques for synchronizing concurrent threads in C++, including condition variables, futures/promises, packaged tasks, and chrono time utilities. Condition variables allow threads to wait for some condition to be met or signaled by another thread. Futures and promises are used to return values from asynchronous operations. Packaged tasks separate function execution from result retrieval. Chrono defines types for measuring time and time points. The chapter also briefly mentions message passing between actors as another concurrency method.

1. SYNCHRONIZING CONCURRENT
THREADS
C++ Concurrency in Action:Chapter 4

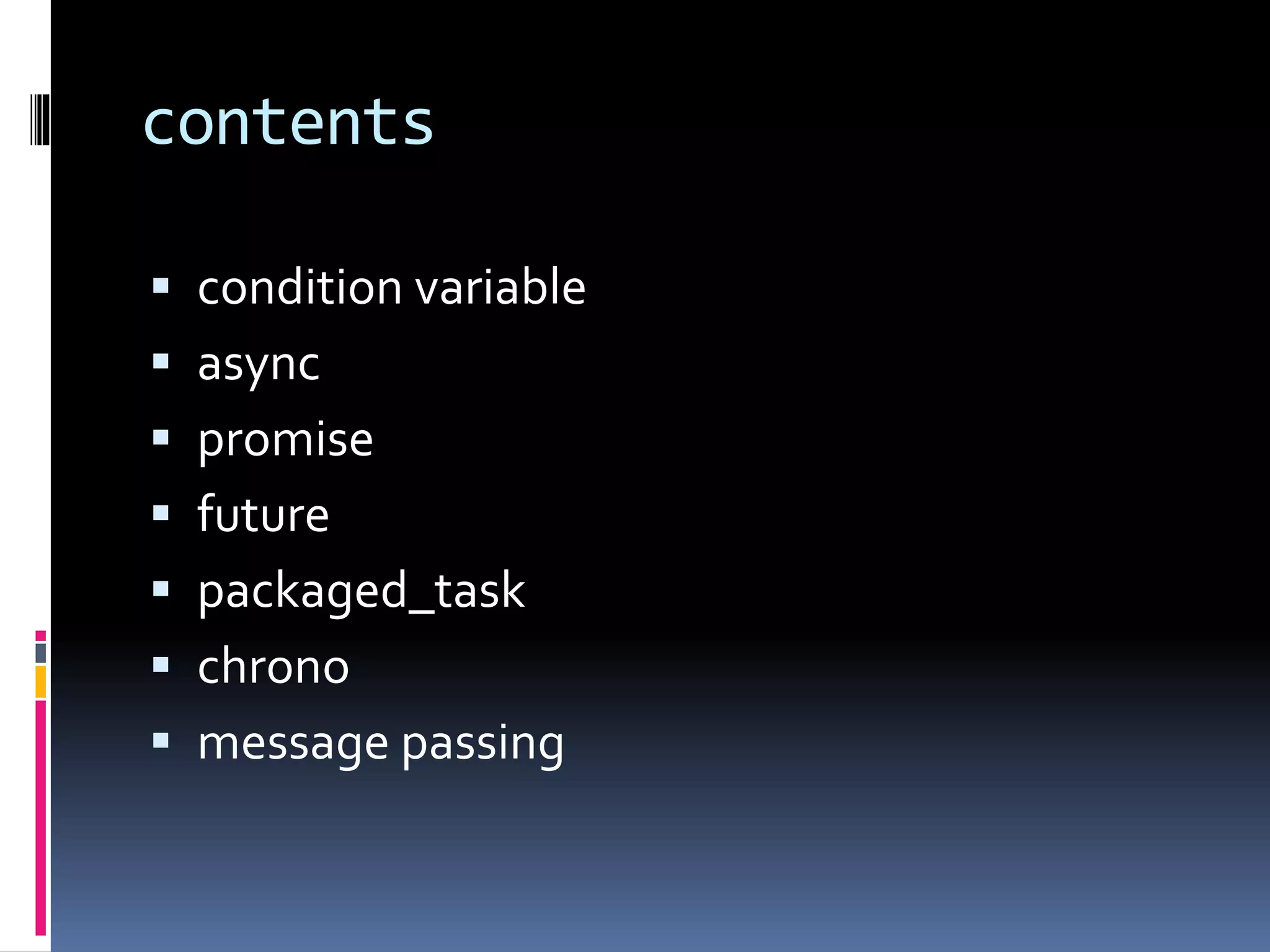

2. contents
 condition variable
 async
 promise
 future
 packaged_task
 chrono
 message passing

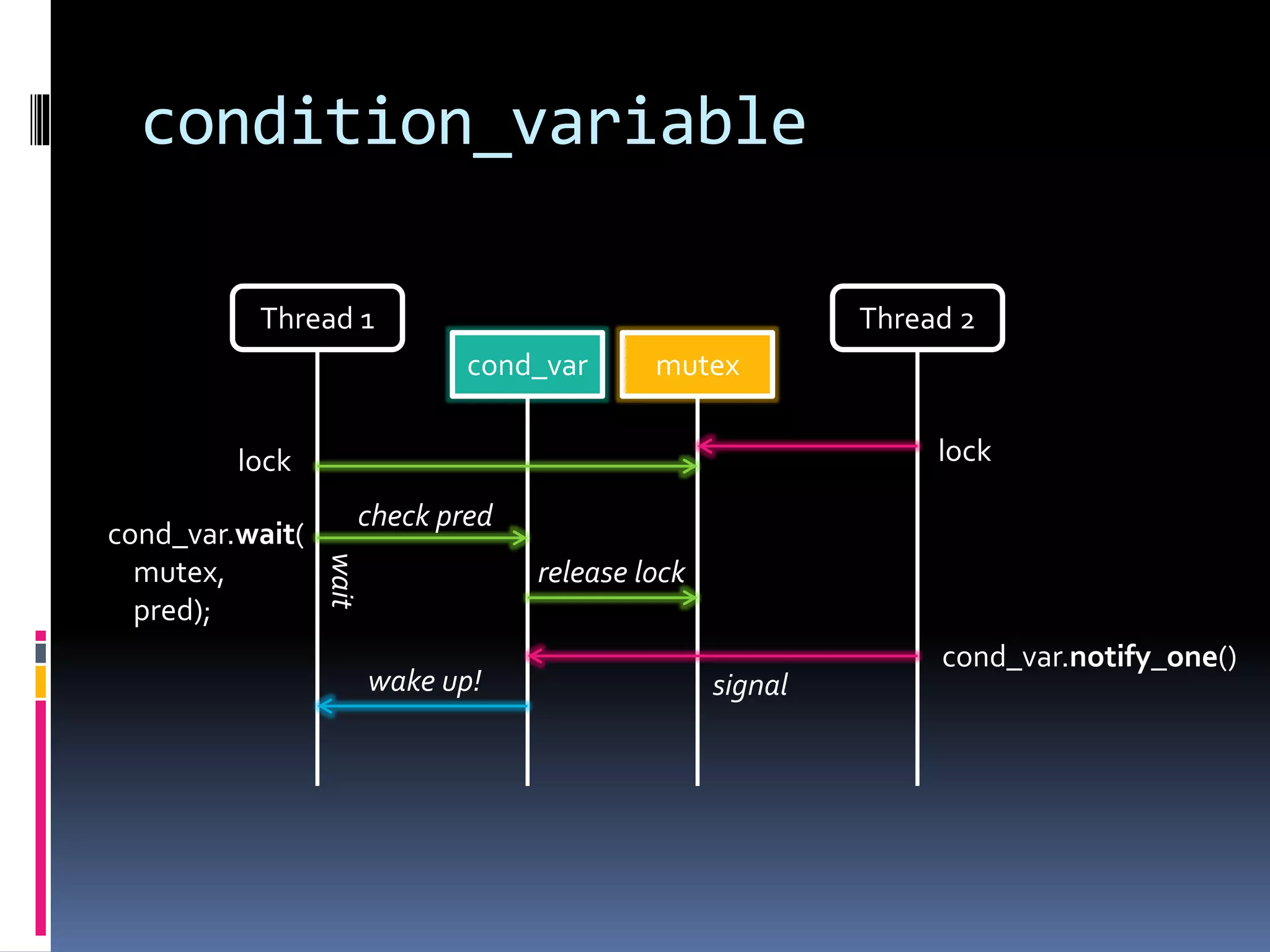

3. condition_variable
Thread 1 Thread 2
cond_var mutex
cond_var.wait(
mutex,
pred);
lock
cond_var.notify_one()
wake up!
check pred
lock
release lock
wait
signal

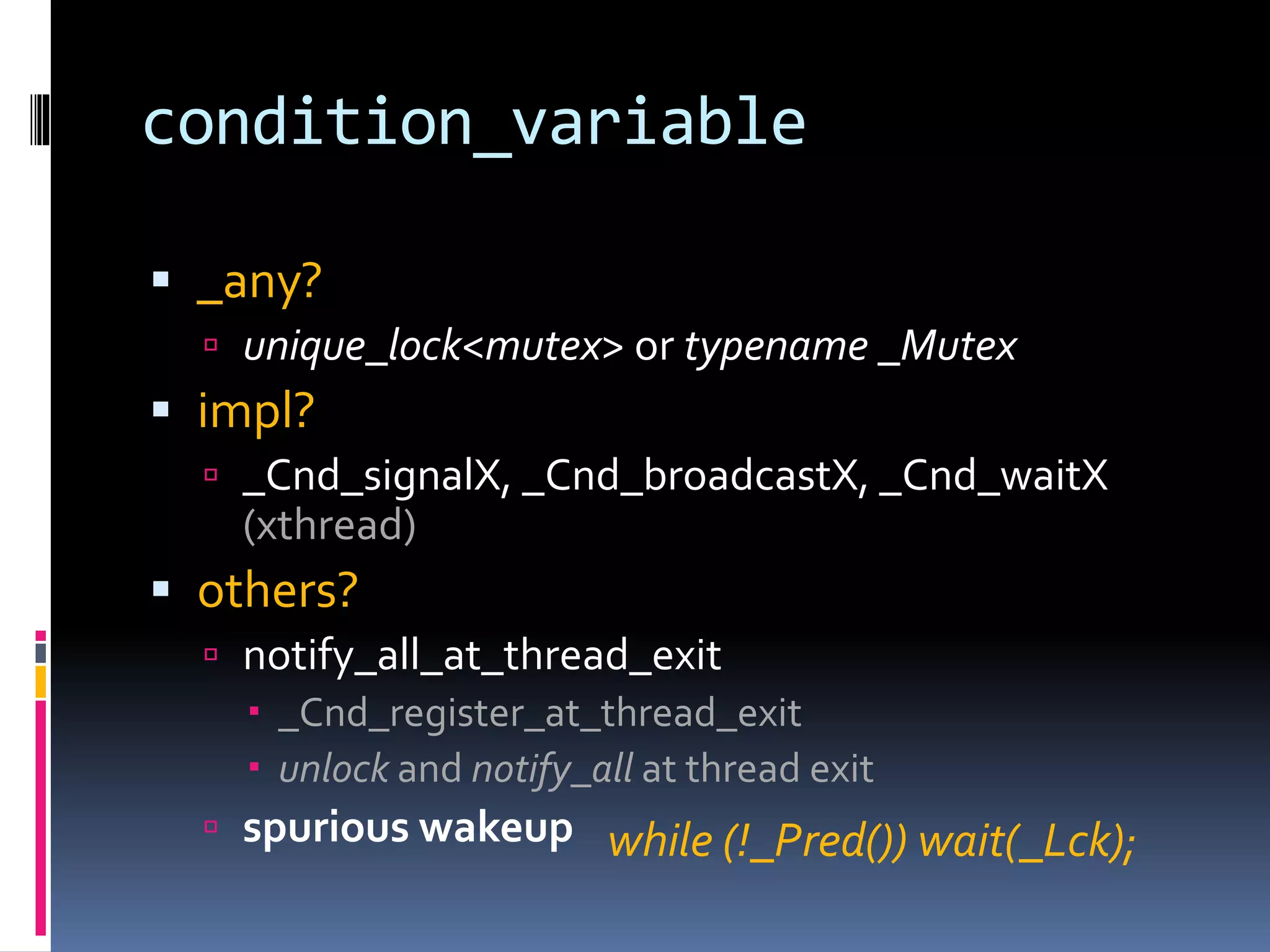

4. condition_variable
 _any?
 unique_lock<mutex> or typename _Mutex
 impl?
 _Cnd_signalX, _Cnd_broadcastX, _Cnd_waitX
(xthread)
 others?
 notify_all_at_thread_exit
 _Cnd_register_at_thread_exit
 unlock and notify_all at thread exit
 spurious wakeup while (!_Pred()) wait(_Lck);

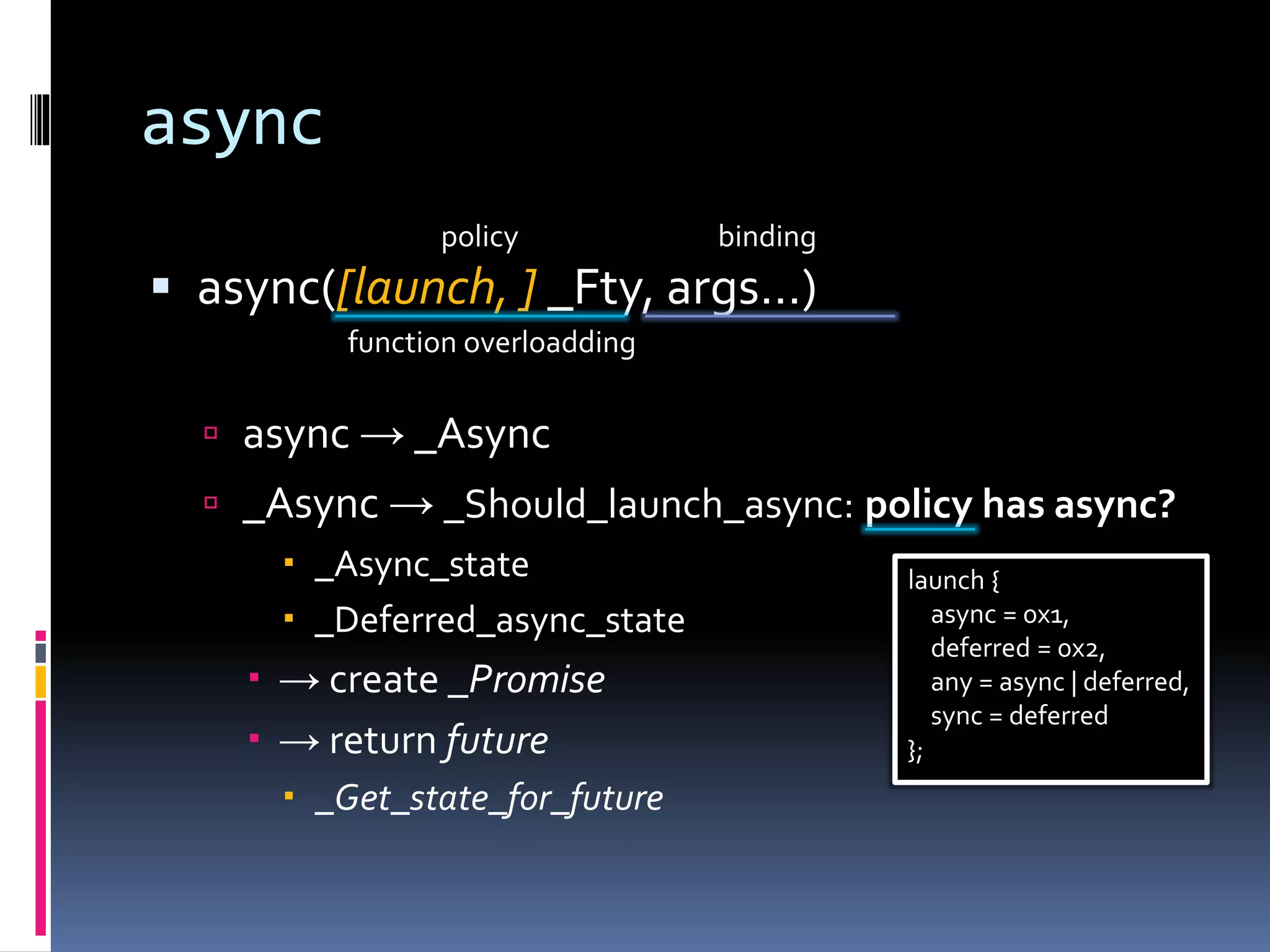

5. async
 async([launch, ] _Fty, args…)
 async → _Async
 _Async → _Should_launch_async: policy has async?
 _Async_state
 _Deferred_async_state
 → create _Promise
 → return future
 _Get_state_for_future
function overloadding
policy binding
launch {
async = 0x1,
deferred = 0x2,
any = async | deferred,
sync = deferred
};

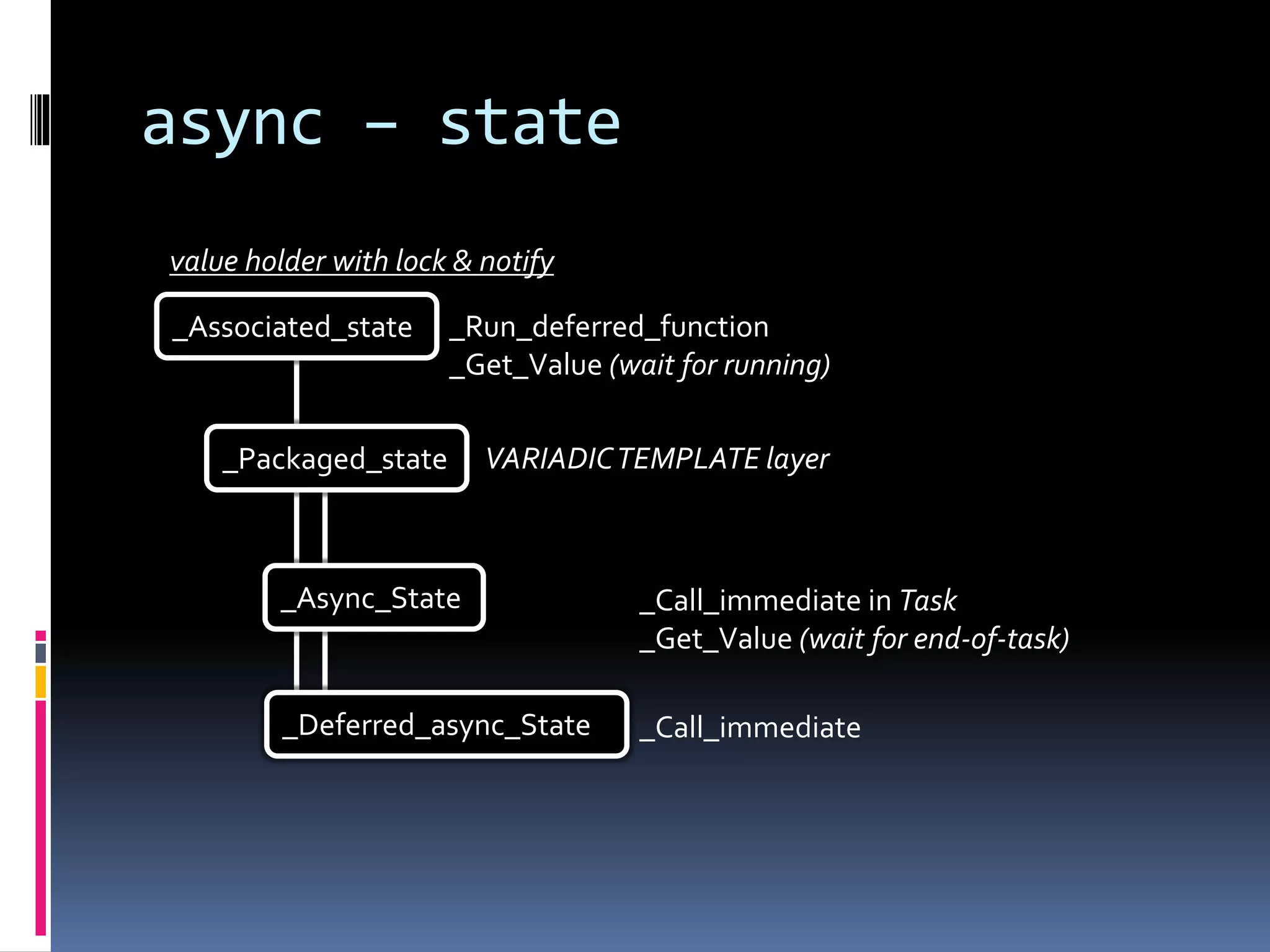

6. async – state
_Async_State
_Deferred_async_State
_Packaged_state
_Call_immediate in Task
_Get_Value (wait for end-of-task)
_Call_immediate
_Associated_state _Run_deferred_function
_Get_Value (wait for running)
value holder with lock & notify
VARIADICTEMPLATE layer

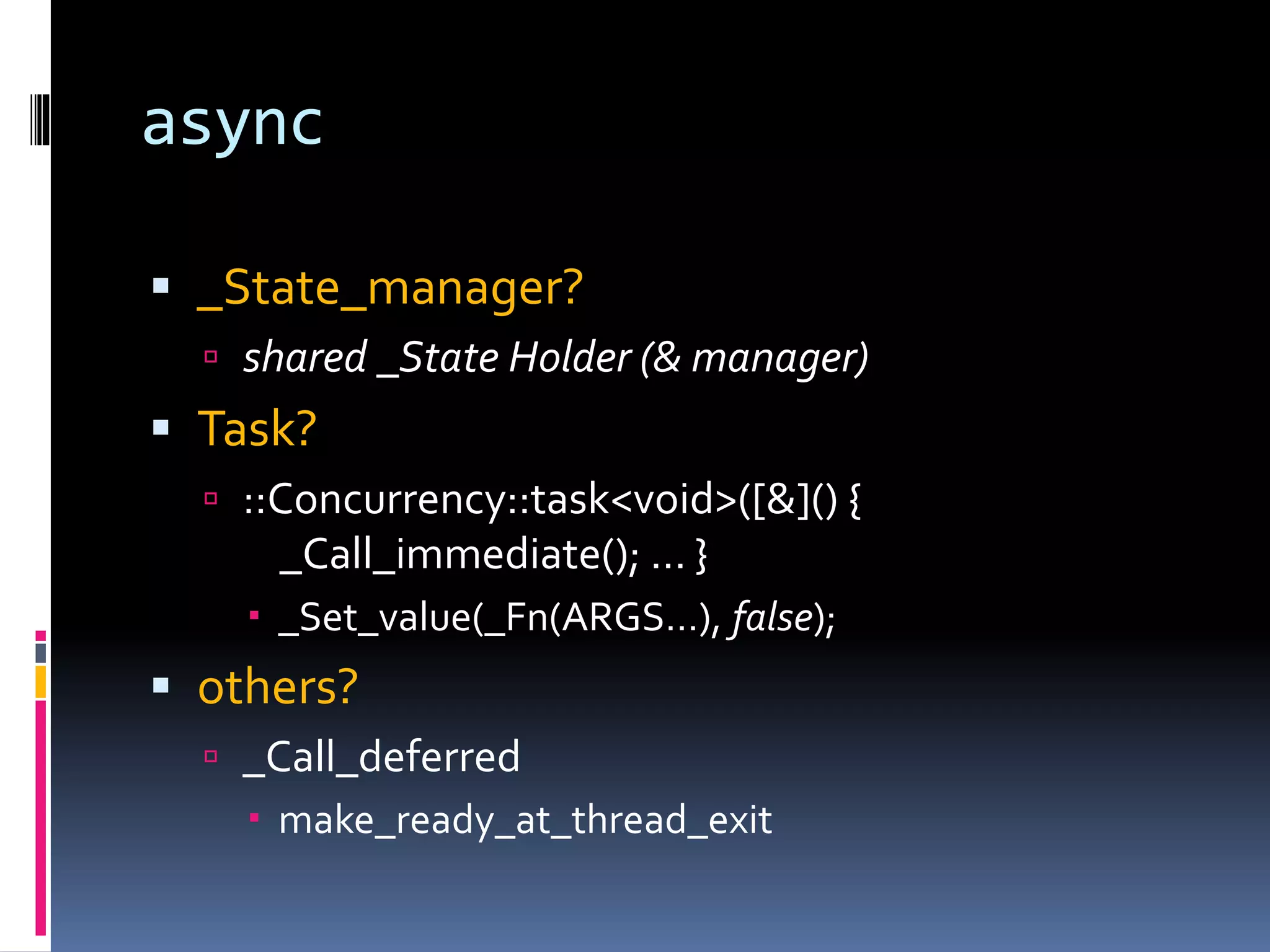

7. async
 _State_manager?
 shared _State Holder (& manager)
 Task?
 ::Concurrency::task<void>([&]() {
_Call_immediate(); … }
 _Set_value(_Fn(ARGS…), false);
 others?
 _Call_deferred
 make_ready_at_thread_exit

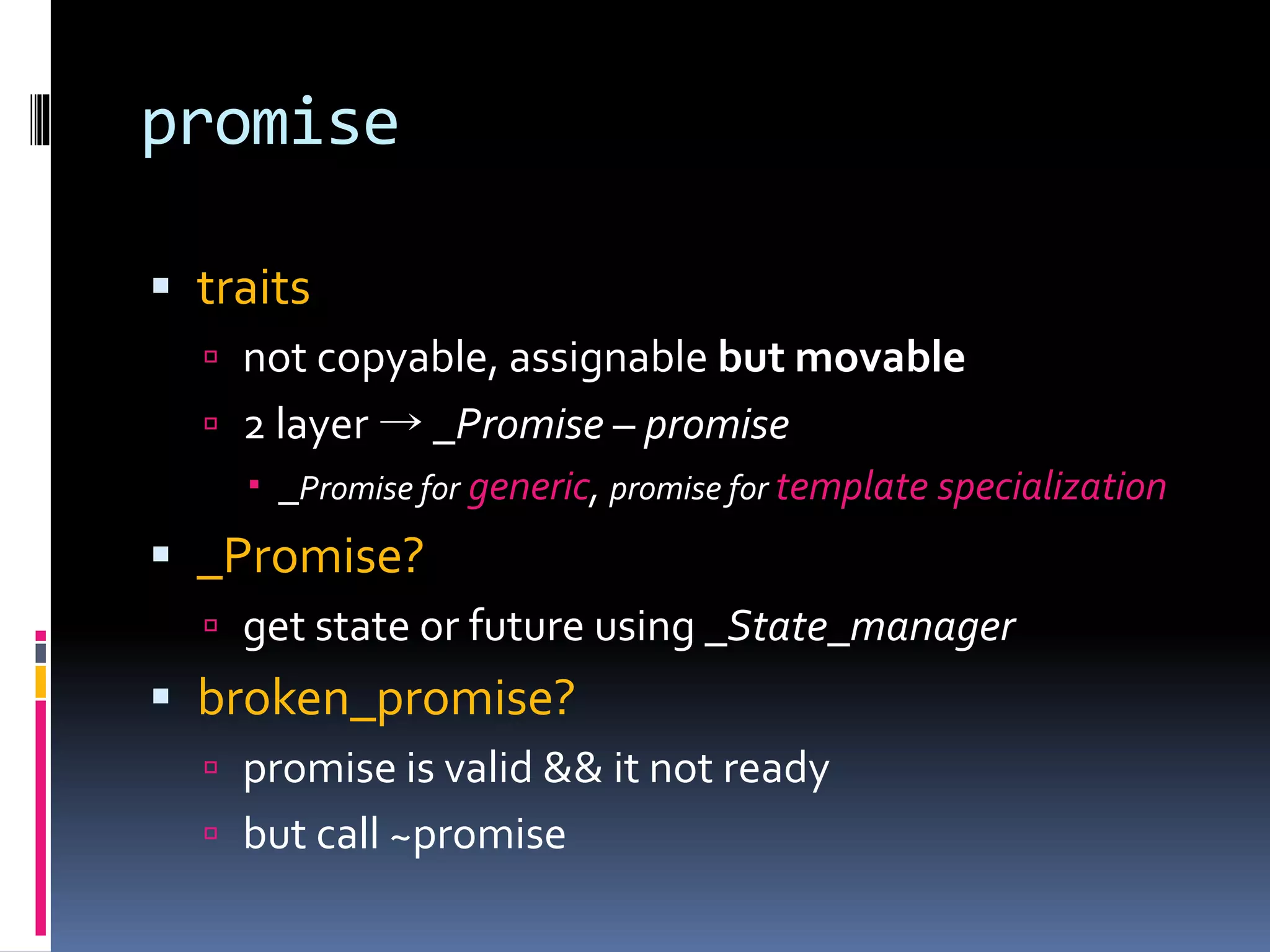

8. promise
 traits
 not copyable, assignable but movable
 2 layer → _Promise – promise
 _Promise for generic, promise for template specialization
 _Promise?
 get state or future using _State_manager
 broken_promise?
 promise is valid && it not ready
 but call ~promise

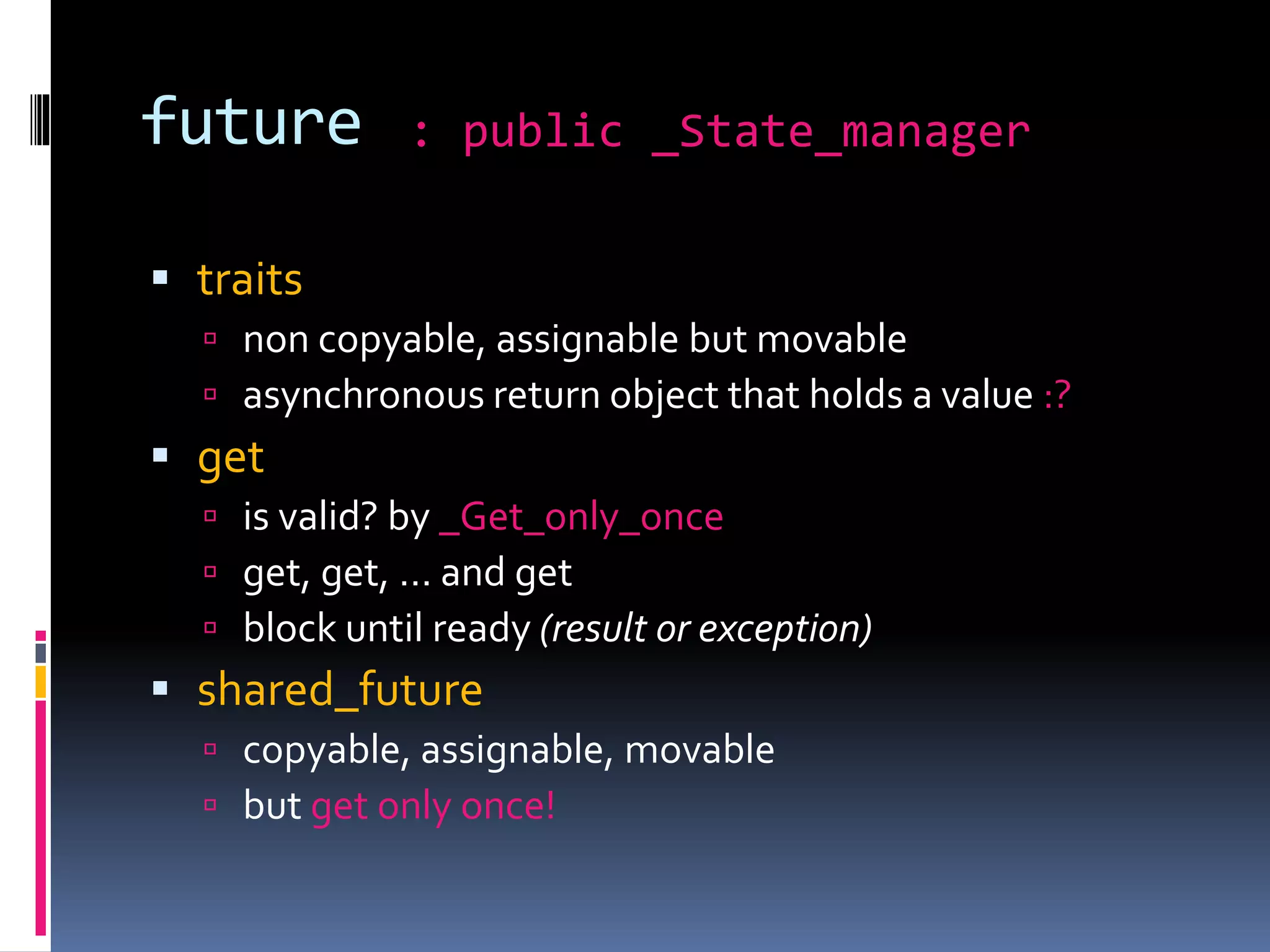

9. future
 traits
 non copyable, assignable but movable
 asynchronous return object that holds a value :?
 get
 is valid? by _Get_only_once
 get, get, … and get
 block until ready (result or exception)
 shared_future
 copyable, assignable, movable
 but get only once!
: public _State_manager

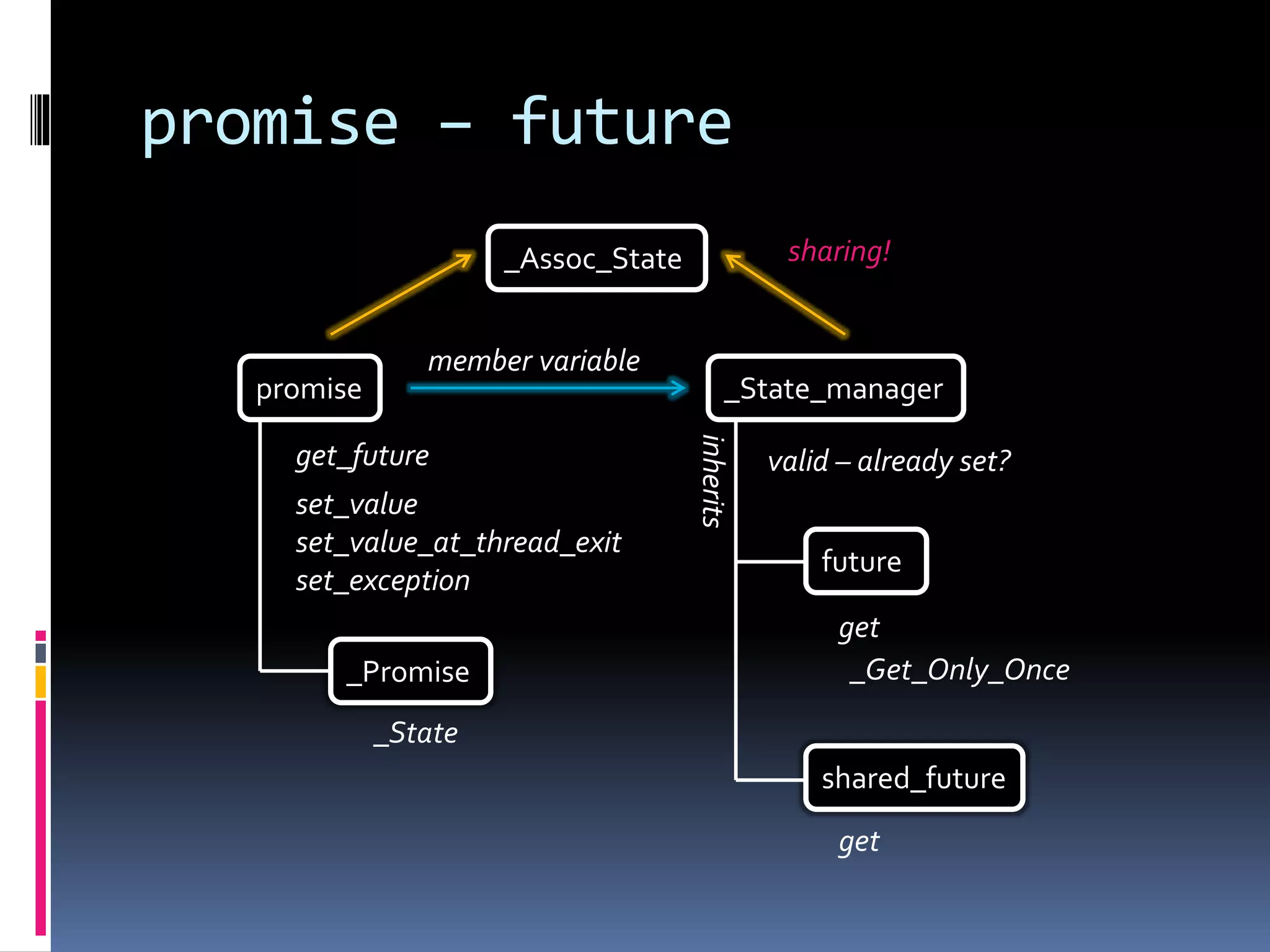

10. promise – future
future
promise
get_future
get
_Promise
_State
_Get_Only_Once
_State_manager
valid – already set?
set_value
set_value_at_thread_exit
set_exception
shared_future
get
member variable
inherits
_Assoc_State sharing!

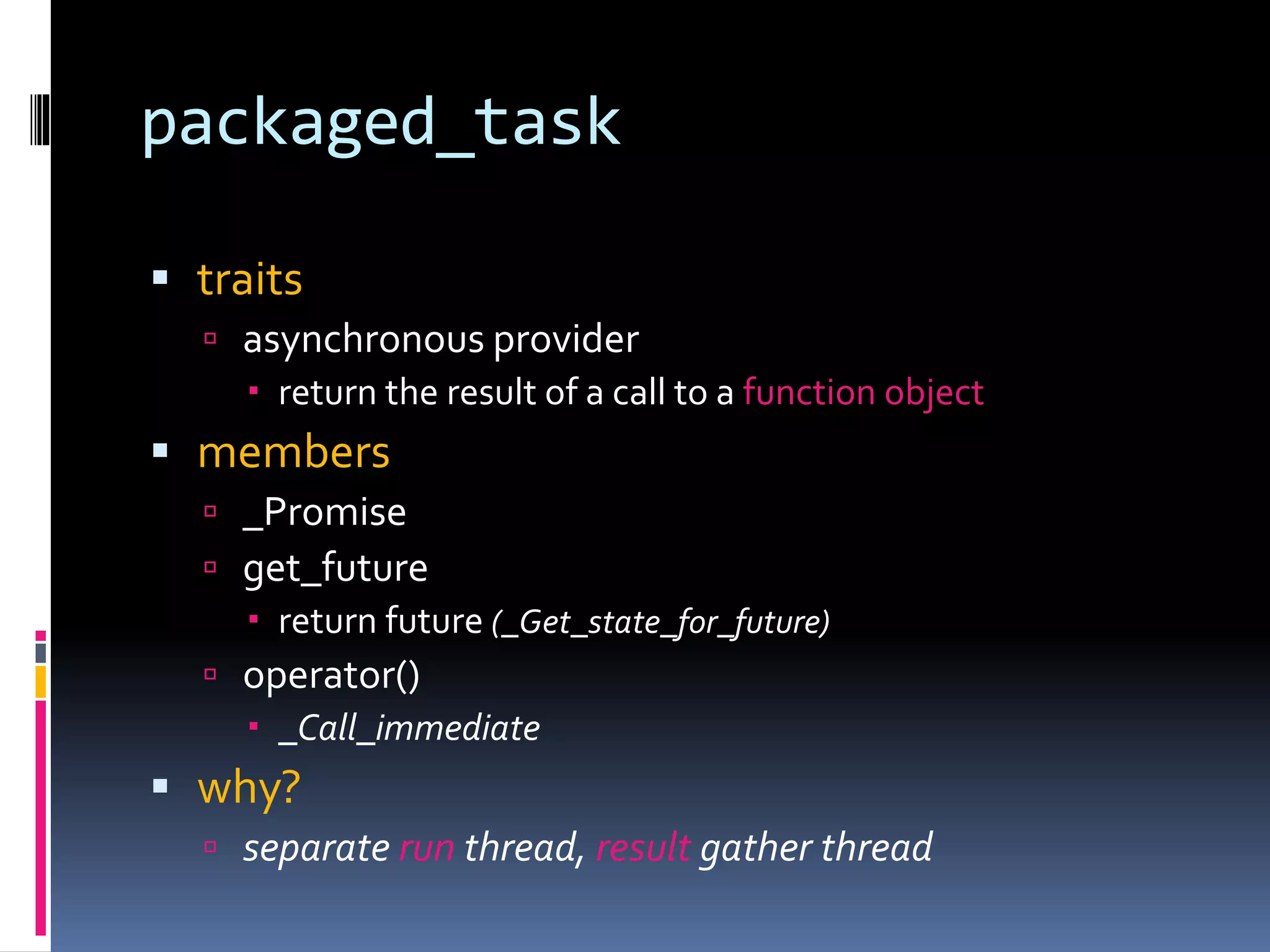

11. packaged_task
 traits
 asynchronous provider
 return the result of a call to a function object
 members
 _Promise
 get_future
 return future (_Get_state_for_future)
 operator()
 _Call_immediate
 why?
 separate run thread, result gather thread

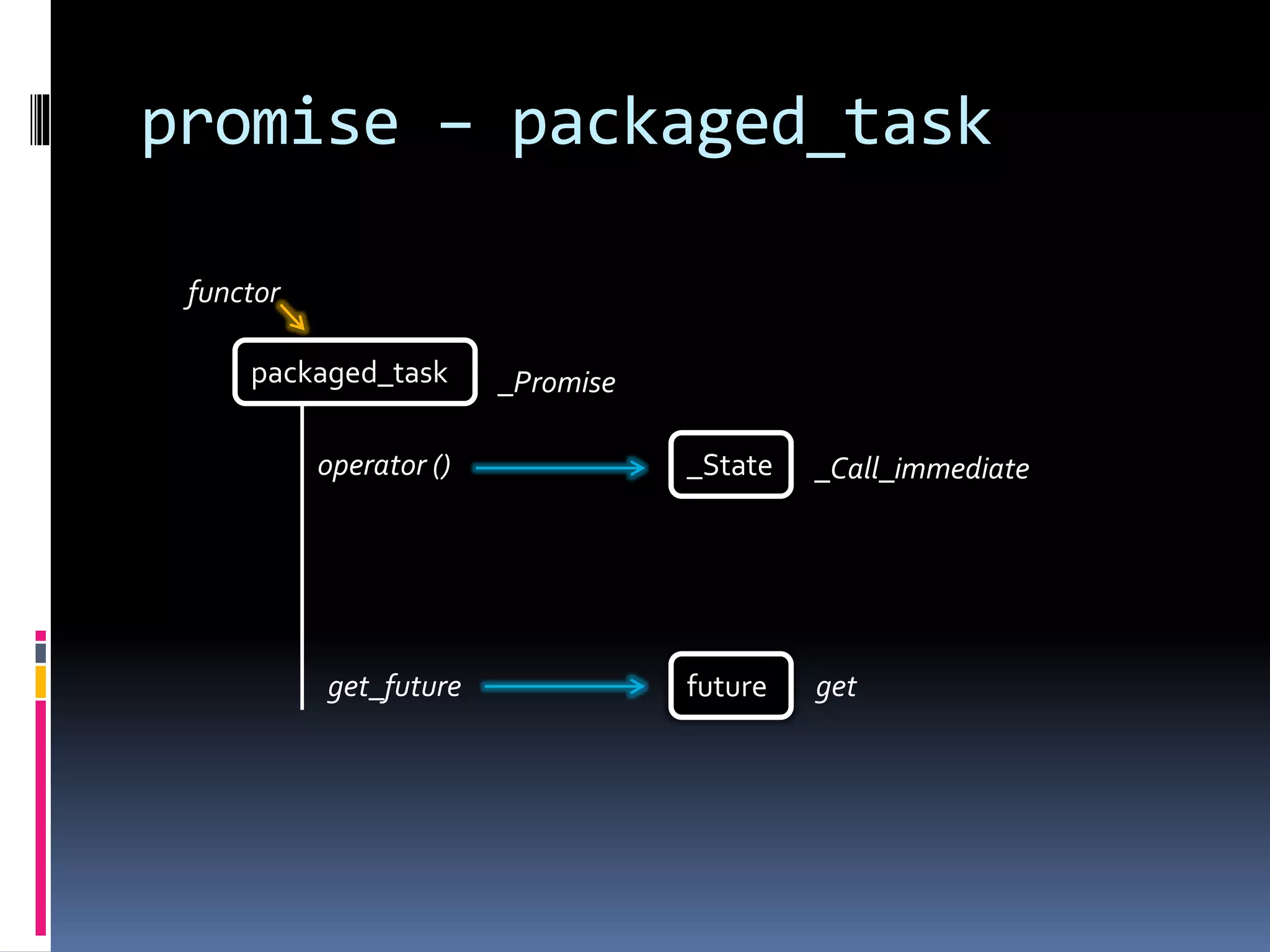

12. promise – packaged_task
packaged_task
_Stateoperator () _Call_immediate
get_future future get
functor
_Promise

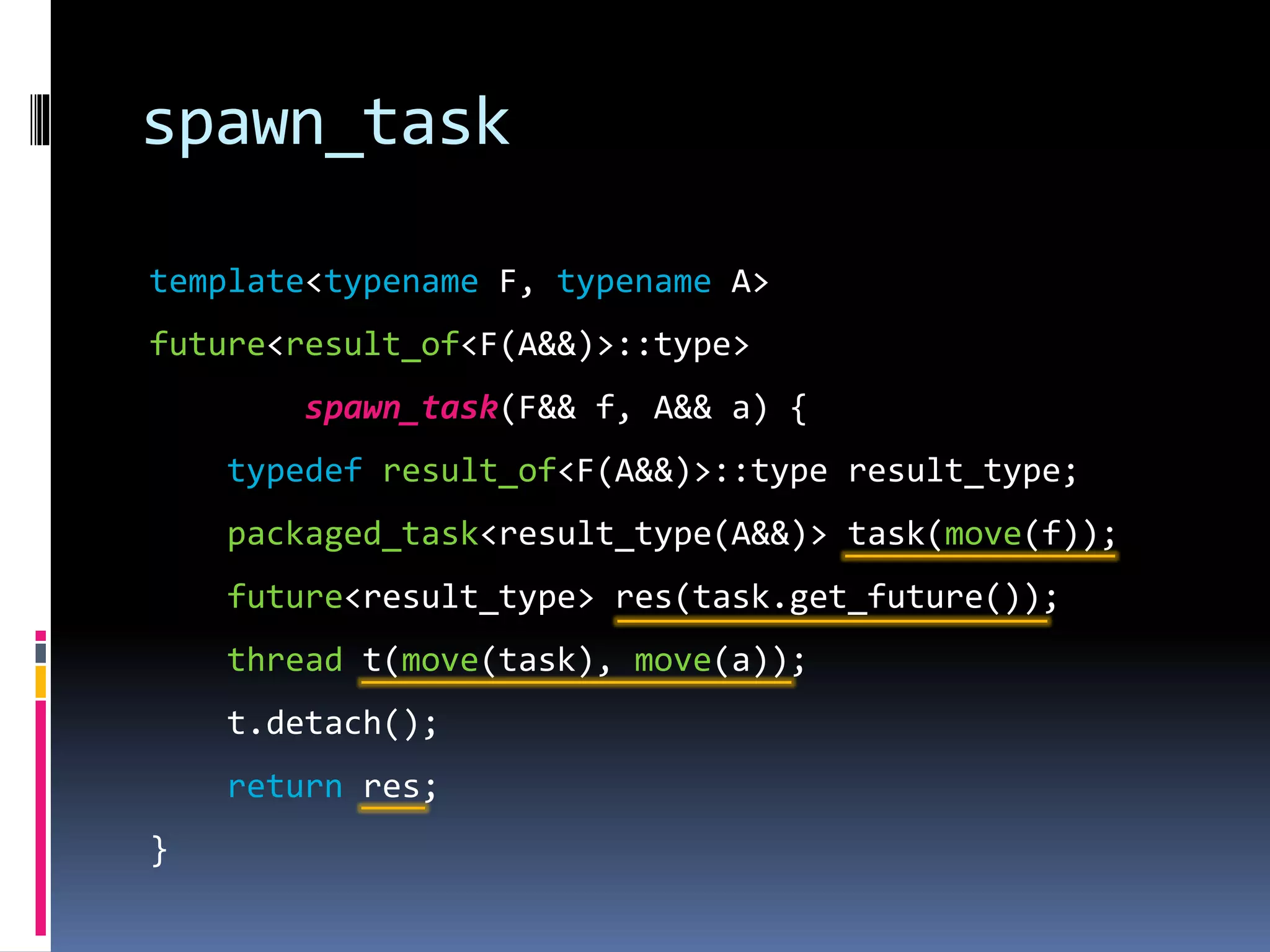

13. spawn_task
template<typename F, typename A>
future<result_of<F(A&&)>::type>
spawn_task(F&& f, A&& a) {
typedef result_of<F(A&&)>::type result_type;
packaged_task<result_type(A&&)> task(move(f));
future<result_type> res(task.get_future());
thread t(move(task), move(a));
t.detach();
return res;
}

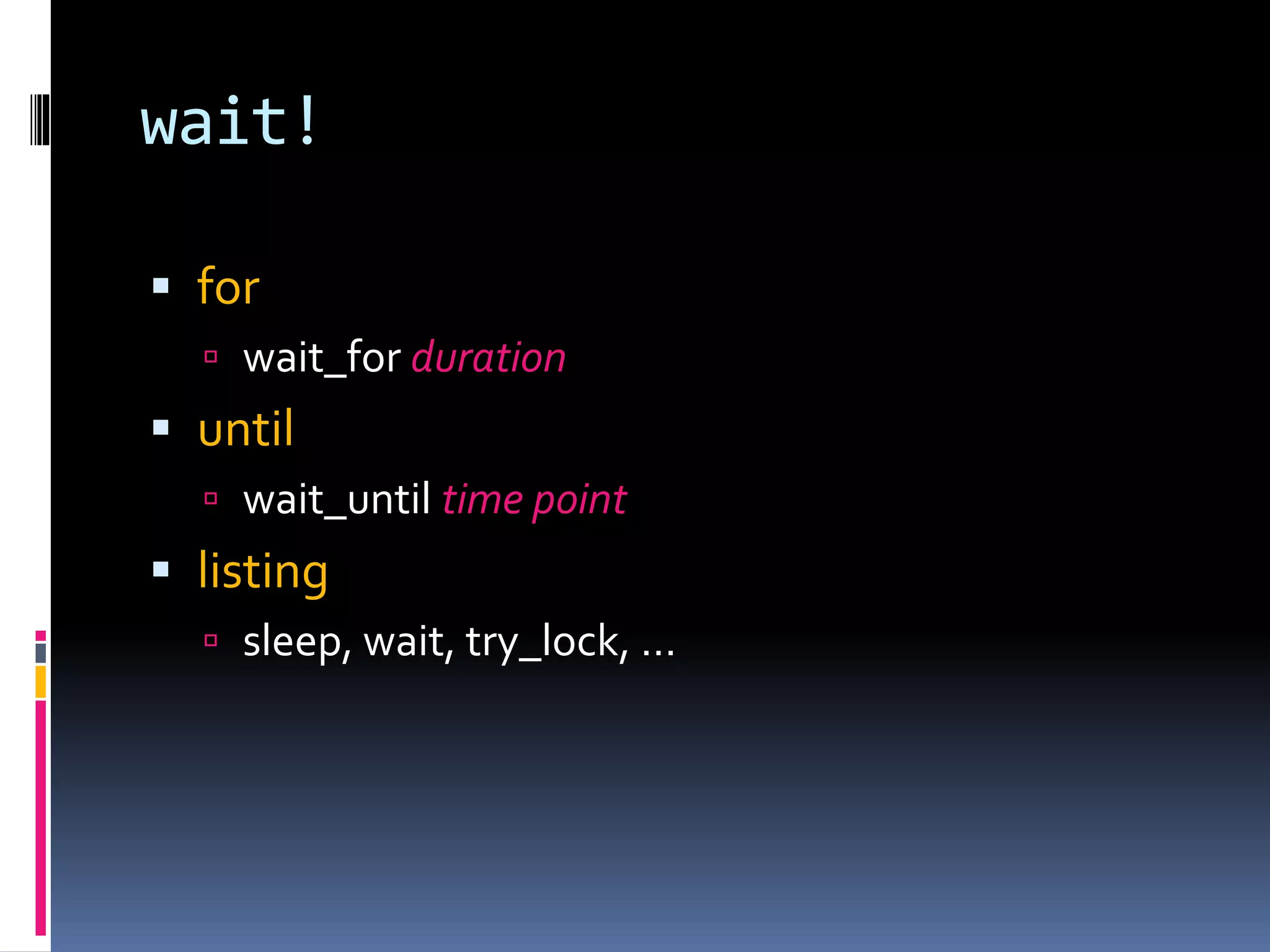

14. wait!
 for
 wait_for duration
 until
 wait_until time point
 listing
 sleep, wait, try_lock, …

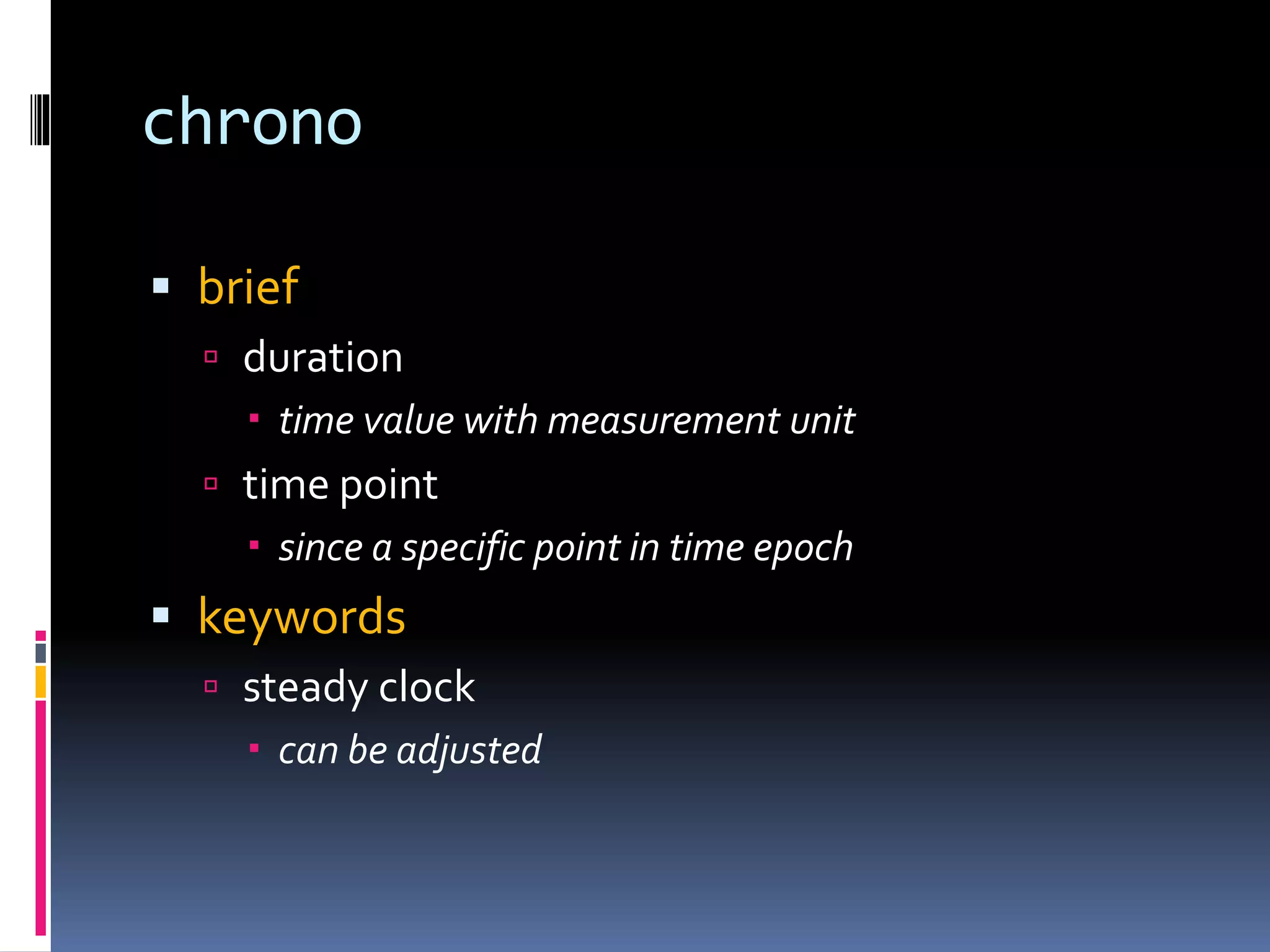

15. chrono
 brief
 duration
 time value with measurement unit
 time point
 since a specific point in time epoch
 keywords
 steady clock
 can be adjusted

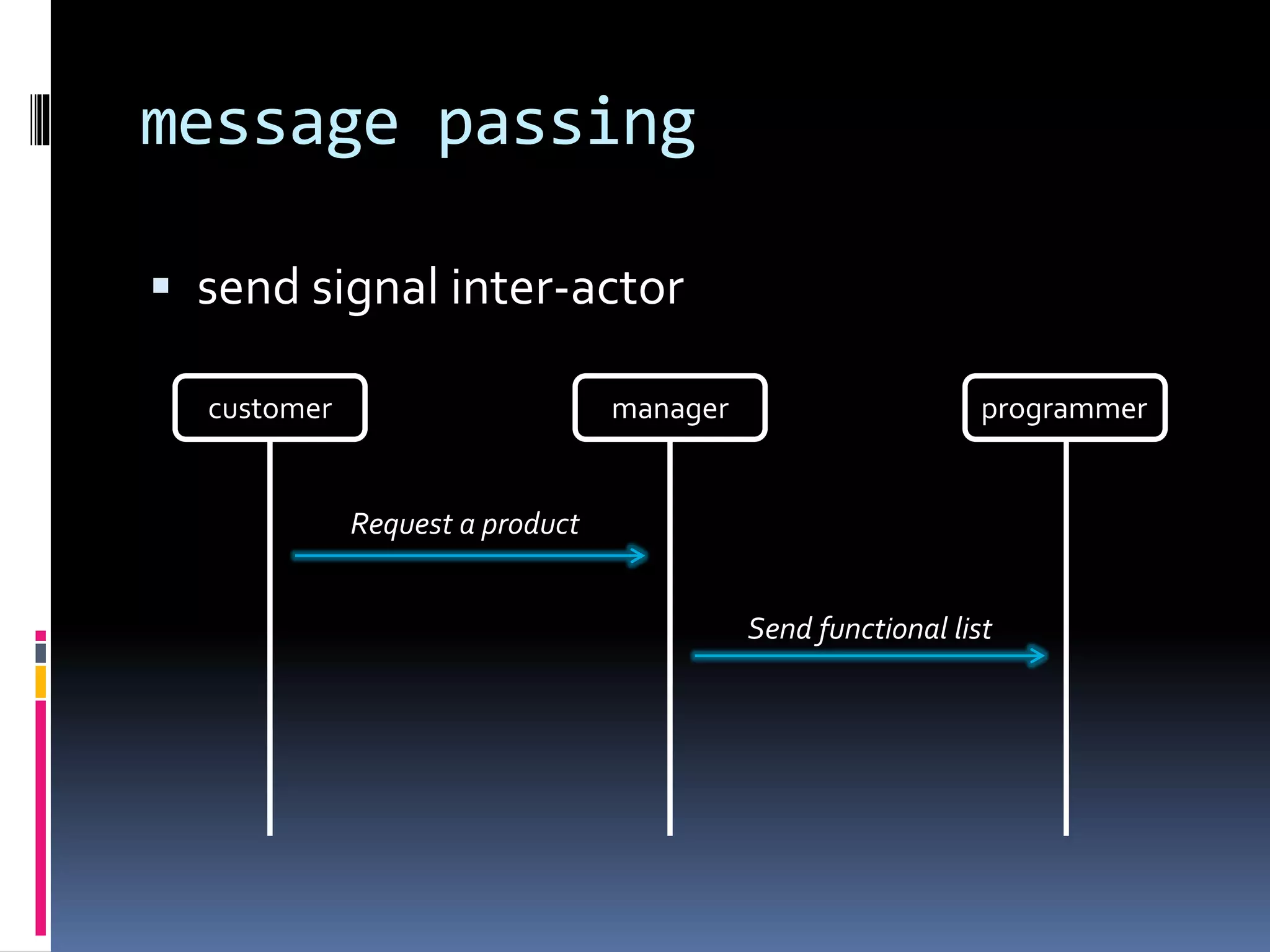

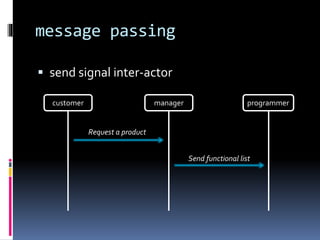

16. message passing
 send signal inter-actor
manager programmercustomer
Request a product
Send functional list

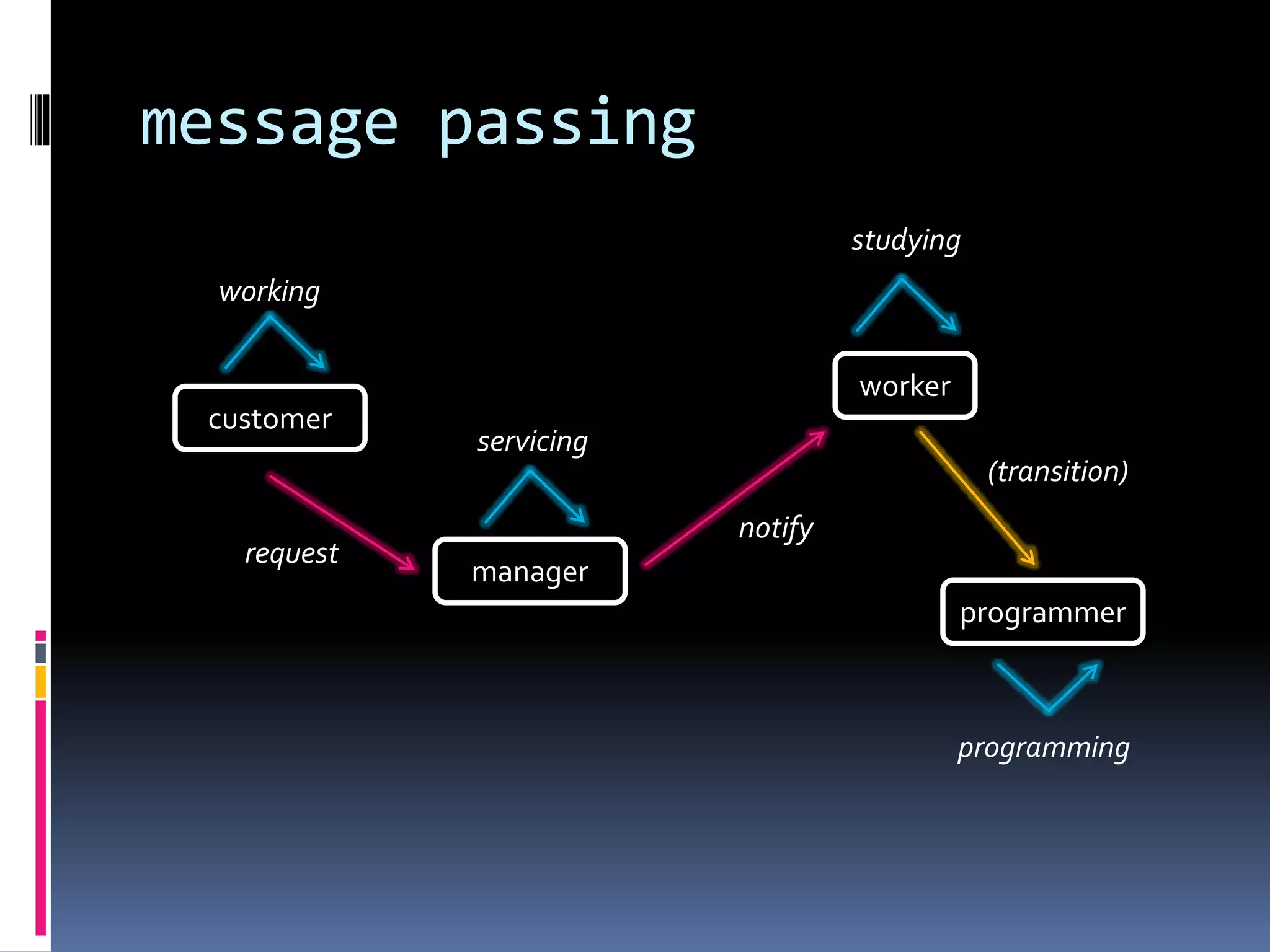

17. message passing
manager
worker
customer
request
notify
working
servicing
studying
programmer
programming
(transition)

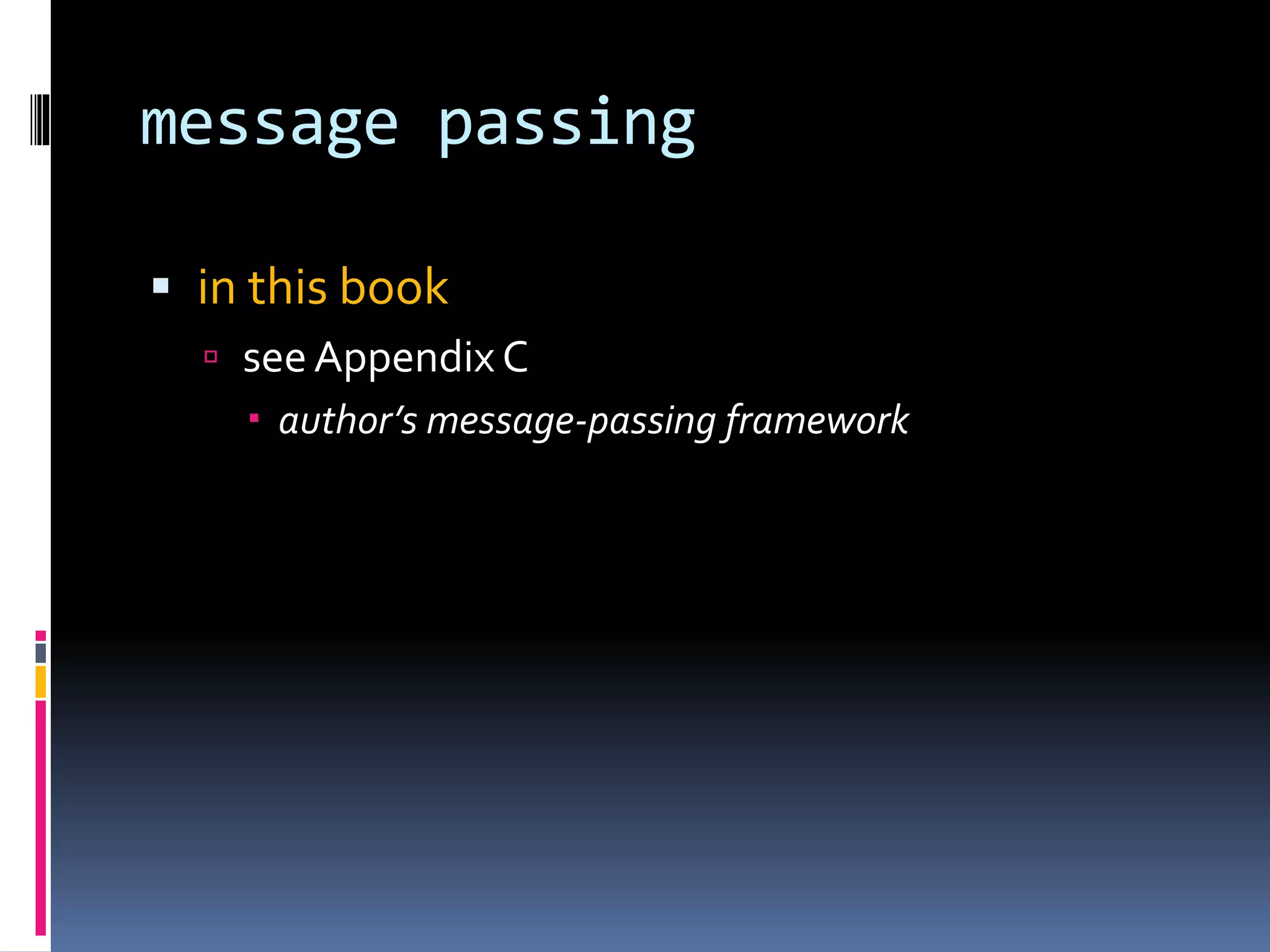

18. message passing
 in this book
 seeAppendix C
 author’s message-passing framework

19. C++ Concurrency in Action:Chapter 4
Synchronizing concurrent threads
