SVG (Scalable Vector Graphics) is a XML-based format for defining vector graphics. It allows graphics to be scalable, zoomable and searchable. Common SVG shapes that can be created include circles, rectangles, ellipses, lines, and paths. Attributes like cx, cy, r are used to define properties of circles and ellipses, while x1, y1, x2, y2 define the start and end points of a line. SVG graphics do not lose quality when resized.
More Related Content
![Fundamental JavaScript [UTC, March 2014]](https://cdn.slidesharecdn.com/ss_thumbnails/fundamentaljavascriptutcmarch2014-140305104047-phpapp01-thumbnail.jpg?width=640&height=640&fit=bounds)
Svg
- 1.

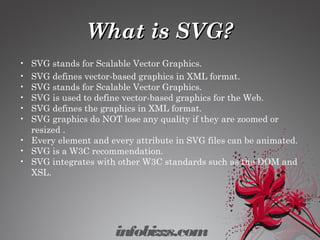

- 2. What is SVG?Whatis SVG? • SVG stands for Scalable Vector Graphics. • SVG defines vector-based graphics in XML format. • SVG stands for Scalable Vector Graphics. • SVG is used to define vector-based graphics for the Web. • SVG defines the graphics in XML format. • SVG graphics do NOT lose any quality if they are zoomed or resized . • Every element and every attribute in SVG files can be animated. • SVG is a W3C recommendation. • SVG integrates with other W3C standards such as the DOM and XSL. infobizzs.com

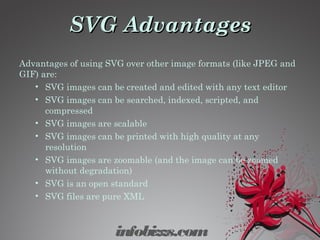

- 3. SVG AdvantagesSVG Advantages Advantagesof using SVG over other image formats (like JPEG and GIF) are: • SVG images can be created and edited with any text editor • SVG images can be searched, indexed, scripted, and compressed • SVG images are scalable • SVG images can be printed with high quality at any resolution • SVG images are zoomable (and the image can be zoomed without degradation) • SVG is an open standard • SVG files are pure XML infobizzs.com

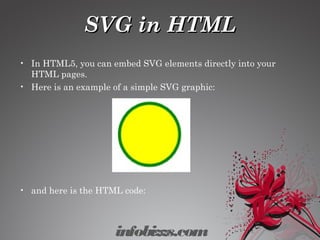

- 4. SVG in HTMLSVGin HTML • In HTML5, you can embed SVG elements directly into your HTML pages. • Here is an example of a simple SVG graphic: • and here is the HTML code: infobizzs.com

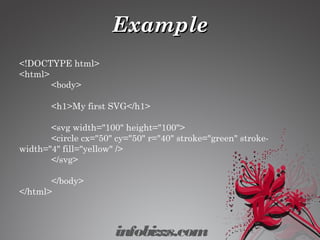

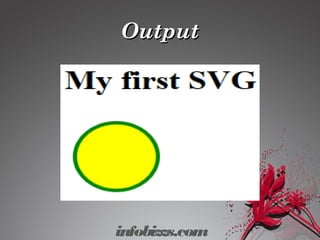

- 5. ExampleExample <!DOCTYPE html> <html> <body> <h1>My firstSVG</h1> <svg width="100" height="100"> <circle cx="50" cy="50" r="40" stroke="green" stroke- width="4" fill="yellow" /> </svg> </body> </html> infobizzs.com
- 6.

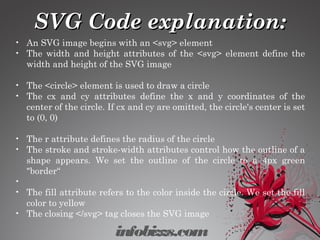

- 7. SVG Code explanation:SVGCode explanation: infobizzs.com • An SVG image begins with an <svg> element • The width and height attributes of the <svg> element define the width and height of the SVG image • The <circle> element is used to draw a circle • The cx and cy attributes define the x and y coordinates of the center of the circle. If cx and cy are omitted, the circle's center is set to (0, 0) • The r attribute defines the radius of the circle • The stroke and stroke-width attributes control how the outline of a shape appears. We set the outline of the circle to a 4px green "border“ • • The fill attribute refers to the color inside the circle. We set the fill color to yellow • The closing </svg> tag closes the SVG image
- 8. SVG ShapesSVG Shapes SVGhas some predefined shape elements that can be used by developers: • Rectangle <rect> • Circle <circle> • Ellipse <ellipse> • Line <line> • Polyline <polyline> • Polygon <polygon> • Path <path> infobizzs.com

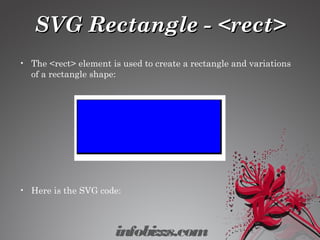

- 9. SVG Rectangle -<rect>SVG Rectangle - <rect> • The <rect> element is used to create a rectangle and variations of a rectangle shape: • Here is the SVG code: infobizzs.com
- 10. ExampleExample <svg width="400" height="110"> <rect width="300" height="100“ style="fill:rgb(0,0,255); stroke-width:3;stroke:rgb(0,0,0)" /> </svg> OutputOutput infobizzs.com

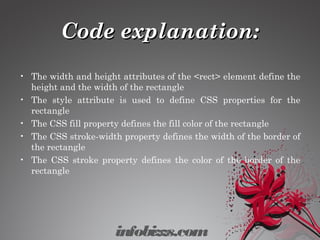

- 11. Code explanation:Code explanation: •The width and height attributes of the <rect> element define the height and the width of the rectangle • The style attribute is used to define CSS properties for the rectangle • The CSS fill property defines the fill color of the rectangle • The CSS stroke-width property defines the width of the border of the rectangle • The CSS stroke property defines the color of the border of the rectangle infobizzs.com

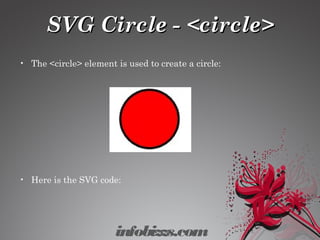

- 12. SVG Circle -<circle>SVG Circle - <circle> • The <circle> element is used to create a circle: • Here is the SVG code: infobizzs.com
- 13. ExampleExample <svg height="100" width="100"> <circle cx="50" cy="50" r="40" stroke="black" stroke- width="3" fill="red" /> </svg> OutputOutput infobizzs.com

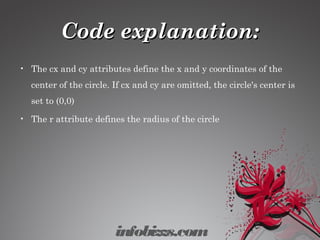

- 14. Code explanation:Code explanation: •The cx and cy attributes define the x and y coordinates of the center of the circle. If cx and cy are omitted, the circle's center is set to (0,0) • The r attribute defines the radius of the circle infobizzs.com

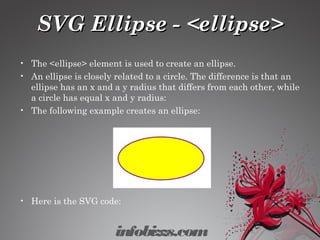

- 15. SVG Ellipse -<ellipse>SVG Ellipse - <ellipse> • The <ellipse> element is used to create an ellipse. • An ellipse is closely related to a circle. The difference is that an ellipse has an x and a y radius that differs from each other, while a circle has equal x and y radius: • The following example creates an ellipse: • Here is the SVG code: infobizzs.com

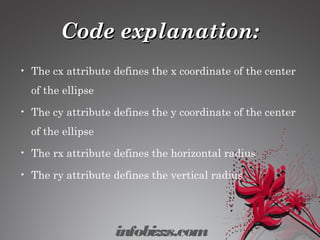

- 16. ExampleExample • <svg height="140"width="500"> <ellipse cx="200" cy="80" rx="100" ry="50" style="fill:yellow;stroke:purple;stroke-width:2" /> </svg> Output infobizzs.com
- 17. Code explanation:Code explanation: •The cx attribute defines the x coordinate of the center of the ellipse • The cy attribute defines the y coordinate of the center of the ellipse • The rx attribute defines the horizontal radius • The ry attribute defines the vertical radius infobizzs.com

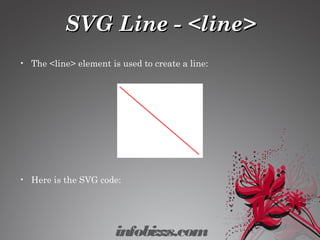

- 18. SVG Line -<line>SVG Line - <line> • The <line> element is used to create a line: • Here is the SVG code: infobizzs.com

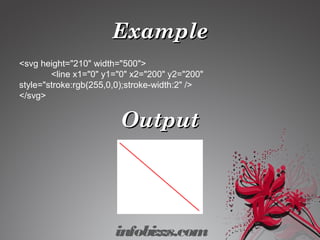

- 19. ExampleExample <svg height="210" width="500"> <linex1="0" y1="0" x2="200" y2="200" style="stroke:rgb(255,0,0);stroke-width:2" /> </svg> OutputOutput infobizzs.com
- 20. Code explanation:Code explanation: •The x1 attribute defines the start of the line on the x- axis • The y1 attribute defines the start of the line on the y- axis • The x2 attribute defines the end of the line on the x- axis • The y2 attribute defines the end of the line on the y- axis infobizzs.com
