1. Surface Casing Vent Testing
Michael Beck
V.11.13.13

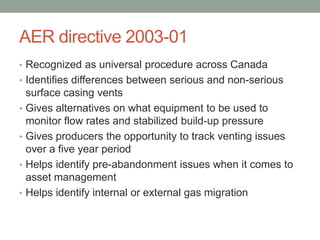

2. AER directive 2003-01
• Recognized as universal procedure across Canada
• Identifies differences between serious and non-serious
•
•
•
•
surface casing vents
Gives alternatives on what equipment to be used to
monitor flow rates and stabilized build-up pressure
Gives producers the opportunity to track venting issues
over a five year period
Helps identify pre-abandonment issues when it comes to
asset management
Helps identify internal or external gas migration

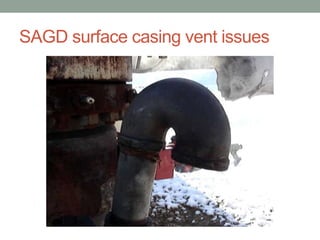

3. SAGD surface casing vent issues

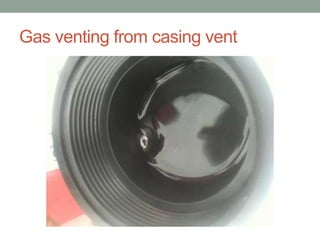

4. Gas venting from casing vent

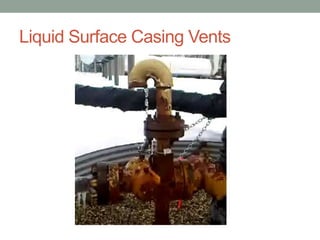

5. Liquid Surface Casing Vents

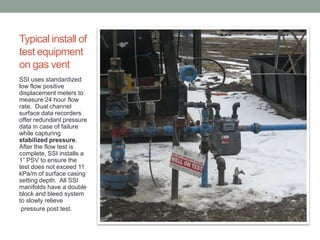

6. Typical install of
test equipment
on gas vent
SSI uses standardized
low flow positive
displacement meters to
measure 24 hour flow
rate. Dual channel
surface data recorders
offer redundant pressure
data in case of failure
while capturing
stabilized pressure.
After the flow test is
complete, SSI installs a
1” PSV to ensure the
test does not exceed 11
kPa/m of surface casing
setting depth. All SSI
manifolds have a double
block and bleed system
to slowly relieve
pressure post test.

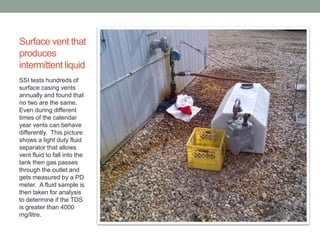

7. Surface vent that
produces
intermittent liquid
SSI tests hundreds of
surface casing vents
annually and found that
no two are the same.
Even during different
times of the calendar
year vents can behave
differently. This picture
shows a light duty fluid
separator that allows
vent fluid to fall into the
tank then gas passes
through the outlet and
gets measured by a PD
meter. A fluid sample is
then taken for analysis
to determine if the TDS
is greater than 4000
mg/litre.

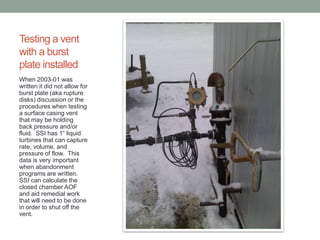

8. Testing a vent
with a burst
plate installed
When 2003-01 was
written it did not allow for
burst plate (aka rupture
disks) discussion or the
procedures when testing
a surface casing vent
that may be holding
back pressure and/or
fluid. SSI has 1” liquid
turbines that can capture
rate, volume, and
pressure of flow. This
data is very important
when abandonment
programs are written.
SSI can calculate the
closed chamber AOF
and aid remedial work
that will need to be done
in order to shut off the
vent.

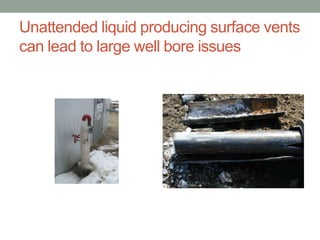

9. Unattended liquid producing surface vents
can lead to large well bore issues

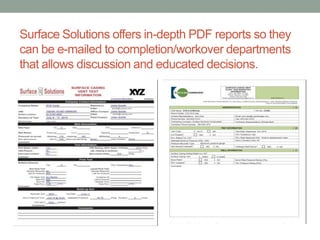

10. Surface Solutions offers in-depth PDF reports so they
can be e-mailed to completion/workover departments
that allows discussion and educated decisions.

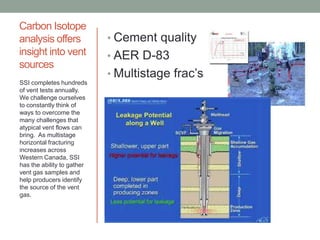

11. Carbon Isotope
analysis offers
insight into vent
sources
SSI completes hundreds
of vent tests annually.
We challenge ourselves
to constantly think of
ways to overcome the
many challenges that
atypical vent flows can
bring. As multistage
horizontal fracturing
increases across
Western Canada, SSI
has the ability to gather
vent gas samples and
help producers identify
the source of the vent
gas.
• Cement quality
• AER D-83
• Multistage frac’s

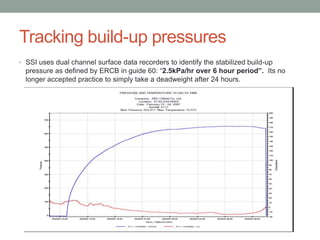

12. Tracking build-up pressures
• SSI uses dual channel surface data recorders to identify the stabilized build-up
pressure as defined by ERCB in guide 60: “2.5kPa/hr over 6 hour period”. Its no
longer accepted practice to simply take a deadweight after 24 hours.

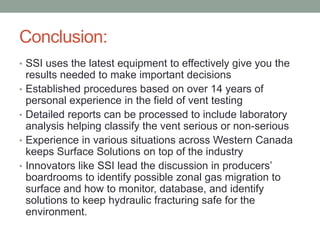

13. Conclusion:
• SSI uses the latest equipment to effectively give you the
•
•
•
•
results needed to make important decisions
Established procedures based on over 14 years of
personal experience in the field of vent testing
Detailed reports can be processed to include laboratory
analysis helping classify the vent serious or non-serious
Experience in various situations across Western Canada
keeps Surface Solutions on top of the industry
Innovators like SSI lead the discussion in producers’
boardrooms to identify possible zonal gas migration to
surface and how to monitor, database, and identify
solutions to keep hydraulic fracturing safe for the
environment.

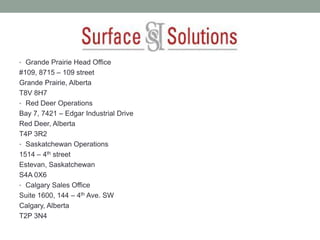

14. • Grande Prairie Head Office
