SUNPREME CONFIDENTIAL
Sunpreme CONFIDENTIAL

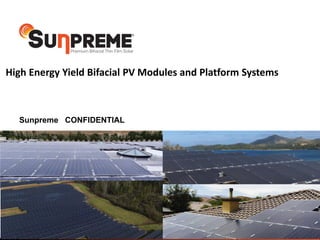

High Energy Yield Bifacial PV Modules and Platform Systems
SUNPREME CONFIDENTIAL

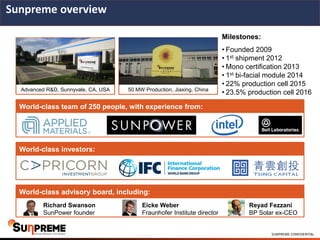

Sunpreme overview
World-class team of 250 people, with experience from:
World-class investors:
World-class advisory board, including:
Milestones:
• Founded 2009
• 1st shipment 2012
• Mono certification 2013
• 1st bi-facial module 2014
• 22% production cell 2015
• 23.5% production cell 2016
Richard Swanson
SunPower founder
Eicke Weber
Fraunhofer Institute director
Reyad Fezzani
BP Solar ex-CEO
50 MW Production, Jiaxing, ChinaAdvanced R&D, Sunnyvale, CA, USA
SUNPREME CONFIDENTIAL

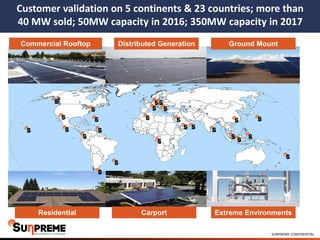

Customer validation on 5 continents & 23 countries; more than
40 MW sold; 50MW capacity in 2016; 350MW capacity in 2017
Commercial Rooftop Distributed Generation Ground Mount
Residential Carport Extreme Environments
SUNPREME CONFIDENTIAL

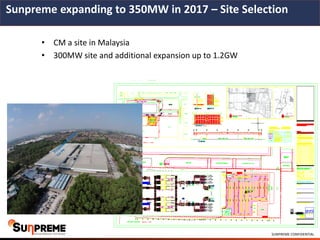

• CM a site in Malaysia
• 300MW site and additional expansion up to 1.2GW
Sunpreme expanding to 350MW in 2017 – Site Selection
SUNPREME CONFIDENTIAL
SUNPREME CONFIDENTIAL

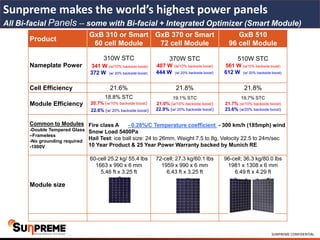

Sunpreme makes the world’s highest power panels
All Bi-facial Panels -- some with Bi-facial + Integrated Optimizer (Smart Module)
Product
GxB 310 or Smart
60 cell Module
GxB 370 or Smart
72 cell Module
GxB 510
96 cell Module
Nameplate Power
310W STC
341 W (w/10% backside boost)
372 W (w/ 20% backside boost)
370W STC
407 W (w/10% backside boost)
444 W (w/ 20% backside boost)
510W STC
561 W (w/10% backside boost)
612 W (w/ 20% backside boost)
Cell Efficiency 21.6% 21.8% 21.8%
Module Efficiency
18.8% STC
20.7% (w/10% backside boost)
22.6% (w/ 20% backside boost)
19.1% STC
21.0% (w/10% backside boost)
22.9% (w/ 20% backside boost)
19.7% STC
21.7% (w/10% backside boost)
23.6% (w/20% backside boost)
Common to Modules
-Double Tempered Glass
–Frameless
-No grounding required
-1000V
Fire class A - 0.28%/C Temperature coefficient - 300 km/h (185mph) wind
Snow Load 5400Pa
Hail Test: ice ball size: 24 to 26mm, Weight 7.5 to 8g, Velocity 22.5 to 24m/sec
10 Year Product & 25 Year Power Warranty backed by Munich RE
Module size
60-cell 25.2 kg/ 55.4 lbs
1663 x 990 x 6 mm
5.46 ft x 3.25 ft
72-cell; 27.3 kg/60.1 lbs
1959 x 990 x 6 mm
6.43 ft x 3.25 ft
96-cell; 36.3 kg/80.0 lbs
1981 x 1308 x 6 mm
6.49 ft x 4.29 ft
SUNPREME CONFIDENTIAL
7

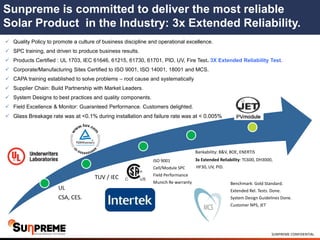

UL
CSA, CES.
TUV / IEC
ISO 9001
Cell/Module SPC
Field Performance
Munich Re warranty
Bankability: B&V, BOE, ENERTIS
3x Extended Reliability: TC600, DH3000,
HF30, UV, PID.
Benchmark: Gold Standard.
Extended Rel. Tests. Done.
System Design Guidelines Done.
Customer NPS, JET
 Quality Policy to promote a culture of business discipline and operational excellence.
 SPC training, and driven to produce business results.
 Products Certified : UL 1703, IEC 61646, 61215, 61730, 61701, PID, UV, Fire Test. 3X Extended Reliability Test.
 Corporate/Manufacturing Sites Certified to ISO 9001, ISO 14001, 18001 and MCS.
 CAPA training established to solve problems – root cause and systematically
 Supplier Chain: Build Partnership with Market Leaders.
 System Designs to best practices and quality components.
 Field Excellence & Monitor: Guaranteed Performance. Customers delighted.
 Glass Breakage rate was at <0.1% during installation and failure rate was at < 0.005%
7
Sunpreme is committed to deliver the most reliable
Solar Product in the Industry: 3x Extended Reliability.
SUNPREME CONFIDENTIAL

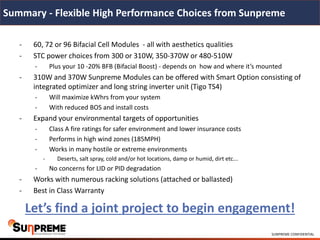

Summary - Flexible High Performance Choices from Sunpreme
- 60, 72 or 96 Bifacial Cell Modules - all with aesthetics qualities
- STC power choices from 300 or 310W, 350-370W or 480-510W
- Plus your 10 -20% BFB (Bifacial Boost) - depends on how and where it’s mounted
- 310W and 370W Sunpreme Modules can be offered with Smart Option consisting of
integrated optimizer and long string inverter unit (Tigo TS4)
- Will maximize kWhrs from your system
- With reduced BOS and install costs
- Expand your environmental targets of opportunities
- Class A fire ratings for safer environment and lower insurance costs
- Performs in high wind zones (185MPH)
- Works in many hostile or extreme environments
- Deserts, salt spray, cold and/or hot locations, damp or humid, dirt etc...
- No concerns for LID or PID degradation
- Works with numerous racking solutions (attached or ballasted)
- Best in Class Warranty
Let’s find a joint project to begin engagement!
