Single Stage Air Compressor -Single Stage Air Compressors are meant for Low Pressure Compressed Air Requirement. SUDARSHAN ENGINEERING manufactures Air Cooled, Reciprocating, Single Acting Air Compressors. Single Stage Air Compressors are mainly used in Powder Coating, Chemicals, Dyes & Intermediates industries. Where compressed air pressure required up-to 100 PSIG. Two Stage Air Compressor- Two stage Air Compressors are meant for pressure requirement upto 175 PSIG (12.3 kg/cm2g). SUDARSHAN ENGINEERING manufactures Air Cooled, Reciprocating, Single Acting Air Compressors. Generally all pneumatic applications falls in the same range. Multi Stage Air Compressor - Multi stage Air Compressor are meant for high pressure compressed air requirement up to 70 kg/cm2g (1000 PSIG). These high pressure requirement is ideal for Air Blast Circuit Breaking, PET Industries etc.

1. .SUDARSHAN ENGINEERING.
.AIR COMPRESSOR.
 Single Stage Air Compressor.
 Two Stage Air Compressor.
 Multi Stage Air Compressor.
http://www.sudarshanengg.com

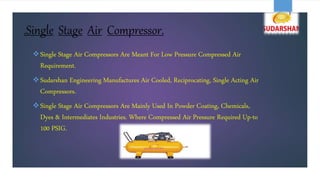

2. .Single Stage Air Compressor.
Single Stage Air Compressors Are Meant For Low Pressure Compressed Air
Requirement.
Sudarshan Engineering Manufactures Air Cooled, Reciprocating, Single Acting Air
Compressors.
Single Stage Air Compressors Are Mainly Used In Powder Coating, Chemicals,
Dyes & Intermediates Industries. Where Compressed Air Pressure Required Up-to
100 PSIG.

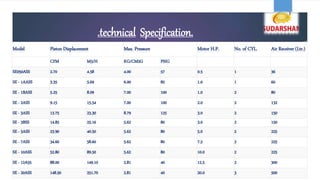

3. .technical Specification.
Model Piston Displacement Max. Pressure Motor H.P. No. of CYL. Air Receiver (Ltr.)
CFM M3/H KG/CM2G PSIG
SE050ASS 2.70 4.58 4.00 57 0.5 1 36
SE - 1AASS 3.35 5.69 6.00 85 1.0 1 60
SE - 1BASS 5.25 8.09 7.00 100 1.0 2 80
SE - 2ASS 9.15 15.54 7.00 100 2.0 2 132
SE - 3ASS 13.75 23.30 8.79 125 3.0 2 150
SE - 3BSS 14.85 25.16 5.62 80 3.0 2 150
SE - 5ASS 23.90 40.50 5.62 80 5.0 2 225
SE - 7ASS 34.60 58.60 5.62 80 7.5 2 225
SE - 10ASS 52.80 89.50 5.62 80 10.0 2 225
SE - 12A55 88.00 149.10 2.81 40 12.5 2 300
SE - 20ASS 148.50 251.70 2.81 40 20.0 3 500

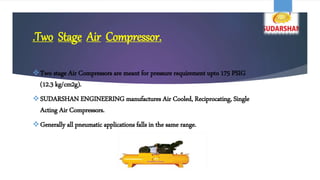

4. .Two Stage Air Compressor.
Two stage Air Compressors are meant for pressure requirement upto 175 PSIG
(12.3 kg/cm2g).
SUDARSHAN ENGINEERING manufactures Air Cooled, Reciprocating, Single
Acting Air Compressors.
Generally all pneumatic applications falls in the same range.

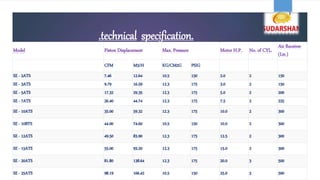

5. .technical specification.
Model Piston Displacement Max. Pressure Motor H.P. No. of CYL.
Air Receiver
(Ltr.)
CFM M3/H KG/CM2G PSIG
SE - 2ATS 7.46 12.64 10.5 150 2.0 2 150
SE - 3ATS 9.79 16.59 12.3 175 3.0 2 150
SE - 5ATS 17.32 29.35 12.3 175 5.0 2 200
SE - 7ATS 26.40 44.74 12.3 175 7.5 2 225
SE - 10ATS 35.00 59.32 12.3 175 10.0 2 300
SE - 10BTS 44.00 74.60 10.5 150 10.0 2 300
SE - 12ATS 49.50 83.90 12.3 175 12.5 2 300
SE - 15ATS 55.00 93.20 12.3 175 15.0 2 300
SE - 20ATS 81.80 138.64 12.3 175 20.0 3 500
SE - 25ATS 98.19 166.42 10.5 150 25.0 3 500

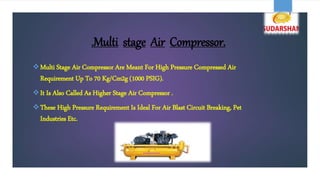

6. .Multi stage Air Compressor.
Multi Stage Air Compressor Are Meant For High Pressure Compressed Air
Requirement Up To 70 Kg/Cm2g (1000 PSIG).
It Is Also Called As Higher Stage Air Compressor .
These High Pressure Requirement Is Ideal For Air Blast Circuit Breaking, Pet
Industries Etc.

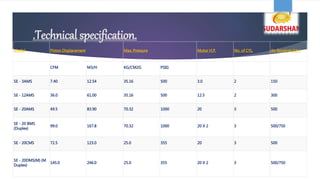

7. .Technical specification.
Model Piston Displacement Max. Pressure Motor H.P. No. of CYL. Air Receiver (Ltr.)
CFM M3/H KG/CM2G PSIG
SE - 3AMS 7.40 12.54 35.16 500 3.0 2 150
SE - 12AMS 36.0 61.00 35.16 500 12.5 2 300
SE - 20AMS 49.5 83.90 70.32 1000 20 3 500
SE - 20 BMS
(Duplex)
99.0 167.8 70.32 1000 20 X 2 3 500/750
SE - 20CMS 72.5 123.0 25.0 355 20 3 500
SE - 20DMS(M) (M
Duplex)
145.0 246.0 25.0 355 20 X 2 3 500/750

8. http://www.sudarshanengg.com
