The document analyzes the evolution of Linux system calls over a decade, highlighting 393 system calls and their usage patterns among applications. It examines 8,770 changes made to these system calls from 2005 to 2014, categorizing them into refactoring, bug fixes, and improvements. The study provides insights into system call development and conveys the importance of sibling calls and architectural support in the Linux kernel.

1.
Analyzing a decade of Linux
system calls
Mojtaba Bagherzadeh, Nafiseh Kahani, Cor-Paul Bezemer,
Ahmed E. Hassan, Juergen Dingel, James R. Cordy
Journal First — Empirical Software Engineering Journal

2. The Linux kernel forms the central part of various
operating systems used by millions of users
2

3. The Linux kernel forms the central part of various
operating systems used by millions of users
2

4. The Linux kernel forms the central part of various
operating systems used by millions of users
2

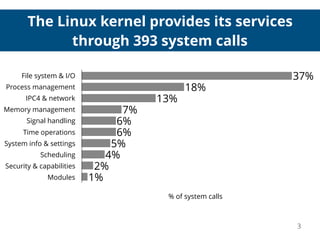

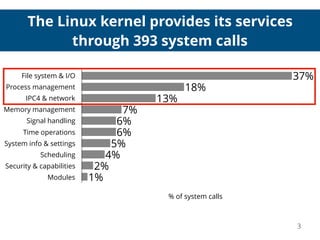

5. The Linux kernel provides its services
through 393 system calls
File system & I/O
Process management
IPC4 & network
Memory management
Signal handling
Time operations
System info & settings
Scheduling
Security & capabilities
Modules
% of system calls
1%
2%
4%
5%
6%
6%
7%
13%
18%
37%
3

6. The Linux kernel provides its services
through 393 system calls
File system & I/O
Process management
IPC4 & network
Memory management
Signal handling
Time operations
System info & settings
Scheduling
Security & capabilities
Modules
% of system calls
1%
2%
4%
5%
6%
6%
7%
13%
18%
37%
3

7. System calls are extensively used by
most applications
4
Running the ls command
requires the execution of 26
different system calls!

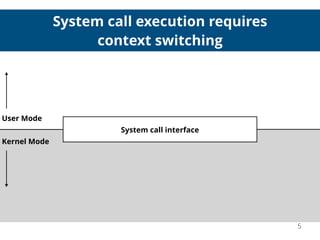

8. System call execution requires
context switching
System call interface
User Mode
Kernel Mode
5

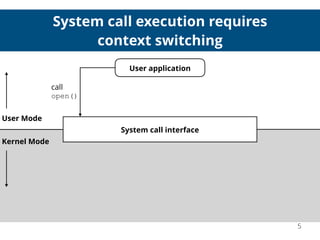

9. System call execution requires
context switching
User application
call
open()
System call interface
User Mode
Kernel Mode
5

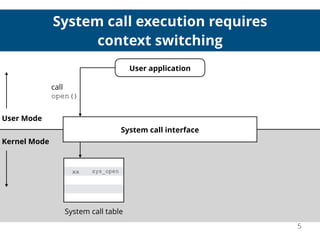

10. System call execution requires
context switching
User application
call
open()
System call interface
User Mode
Kernel Mode
System call table
xx sys_open
5

11. System call execution requires
context switching
User application
call
open()
System call interface
User Mode
Kernel Mode
Service function
Implementation
of open()
System call table
xx sys_open
5

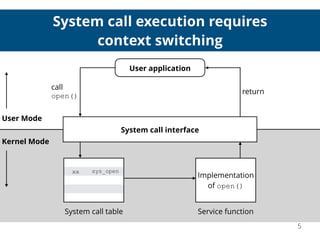

12. System call execution requires
context switching
User application
call
open()
System call interface
User Mode
Kernel Mode
return
Service function
Implementation
of open()
System call table
xx sys_open
5

13. Studying the evolution of the system calls can
lead to valuable insights for several groups
6

14. Studying the evolution of the system calls can
lead to valuable insights for several groups
Developers
6

15. Studying the evolution of the system calls can
lead to valuable insights for several groups
Developers Researchers
6

16. 7
We extracted 8,770 changes (commits) of
system calls from April 2005 to December 2014

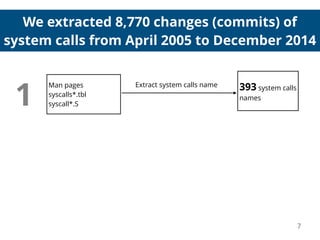

17. 7
1
Man pages
syscalls*.tbl
syscall*.S
393 system calls
names
Extract system calls name
We extracted 8,770 changes (commits) of
system calls from April 2005 to December 2014

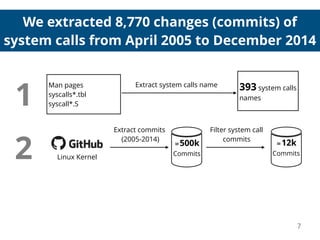

18. 7
1
Man pages
syscalls*.tbl
syscall*.S
393 system calls
names
Extract system calls name
2
Extract commits
(2005-2014)
Filter system call
commits
≅12k
Commits
≅500k
Commits
Linux Kernel
We extracted 8,770 changes (commits) of
system calls from April 2005 to December 2014

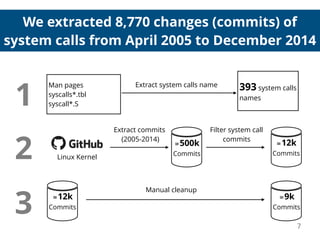

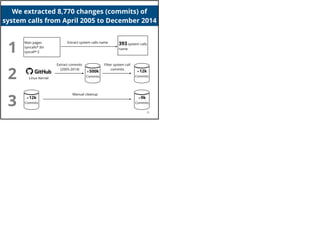

19. 7
1
Man pages
syscalls*.tbl
syscall*.S
393 system calls
names
Extract system calls name
3 ≅12k
Commits
Manual cleanup
≅9k
Commits
2
Extract commits
(2005-2014)
Filter system call
commits
≅12k
Commits
≅500k
Commits
Linux Kernel
We extracted 8,770 changes (commits) of
system calls from April 2005 to December 2014

20. We classified 8,770 changes (commits) of
system calls
8

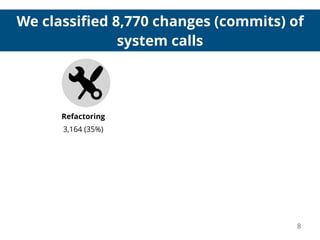

21. We classified 8,770 changes (commits) of
system calls
8
3,164 (35%)
Refactoring

22. We classified 8,770 changes (commits) of
system calls
8
3,164 (35%)
Refactoring
3,247 (36%)
Bug fixes

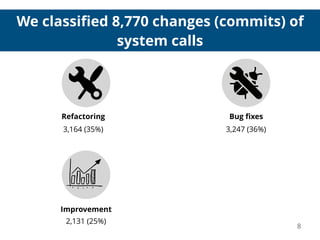

23. We classified 8,770 changes (commits) of
system calls
8
3,164 (35%)
Refactoring
2,131 (25%)
Improvement
3,247 (36%)
Bug fixes

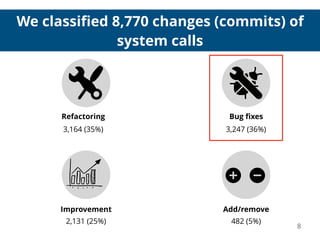

24. We classified 8,770 changes (commits) of
system calls
8
Add/remove
482 (5%)
3,164 (35%)
Refactoring
2,131 (25%)
Improvement
3,247 (36%)
Bug fixes

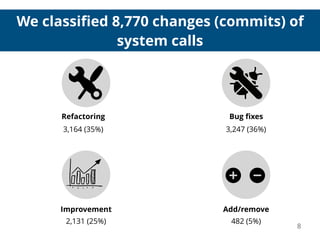

25. We classified 8,770 changes (commits) of
system calls
8
Add/remove
482 (5%)
3,164 (35%)
Refactoring
2,131 (25%)
Improvement
3,247 (36%)
Bug fixes

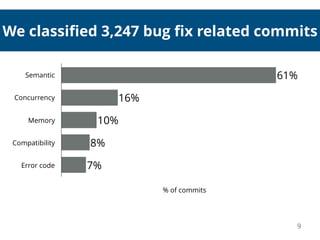

26. We classified 3,247 bug fix related commits
Semantic
Concurrency
Memory
Compatibility
Error code
% of commits
7%
8%
10%
16%
61%
9

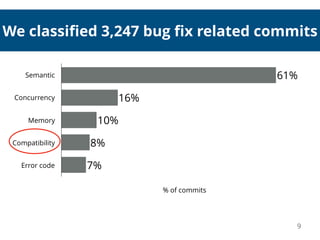

27. We classified 3,247 bug fix related commits
Semantic
Concurrency
Memory
Compatibility
Error code
% of commits
7%
8%
10%
16%
61%
9

28. Our study provides several insightful results
for the development of system calls
10

29. Our study provides several insightful results
for the development of system calls
10
Complex system calls
Sibling system calls
The cost of supporting several architectures
Race graph

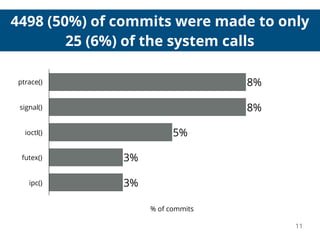

30. 4498 (50%) of commits were made to only
25 (6%) of the system calls
11
ptrace()
signal()
ioctl()
futex()
ipc()
% of commits
3%
3%
5%
8%
8%

31. 4498 (50%) of commits were made to only
25 (6%) of the system calls
11
ptrace()
signal()
ioctl()
futex()
ipc()
% of commits
3%
3%
5%
8%
8%

32. Our study provides several insightful results
for the development of system calls
12

33. Our study provides several insightful results
for the development of system calls
12
Complex system calls
Sibling system calls
The cost of supporting several architectures
Race graph

34. A sibling call is a system call that is similar in
functionality, often in name, to another system call
13

35. A sibling call is a system call that is similar in
functionality, often in name, to another system call
13
Parameter extension,
e.g, dup, dup2

36. A sibling call is a system call that is similar in
functionality, often in name, to another system call
13
Parameter extension,
e.g, dup, dup2
Architecture support,
e.g, truncate, truncate64

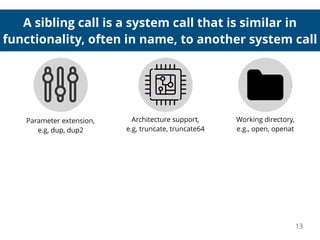

37. A sibling call is a system call that is similar in
functionality, often in name, to another system call
13
Working directory,
e.g., open, openat
Parameter extension,
e.g, dup, dup2
Architecture support,
e.g, truncate, truncate64

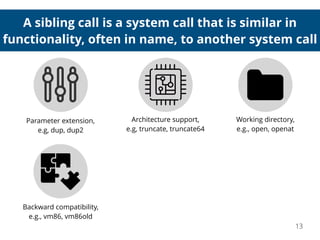

38. A sibling call is a system call that is similar in
functionality, often in name, to another system call
13
Backward compatibility,
e.g., vm86, vm86old
Working directory,
e.g., open, openat
Parameter extension,
e.g, dup, dup2
Architecture support,
e.g, truncate, truncate64

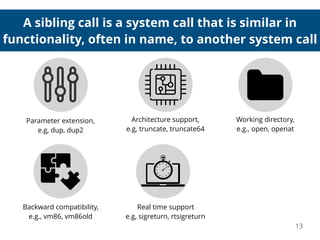

39. A sibling call is a system call that is similar in
functionality, often in name, to another system call
13
Backward compatibility,
e.g., vm86, vm86old
Working directory,
e.g., open, openat
Real time support
e.g, sigreturn, rtsigreturn
Parameter extension,
e.g, dup, dup2
Architecture support,
e.g, truncate, truncate64

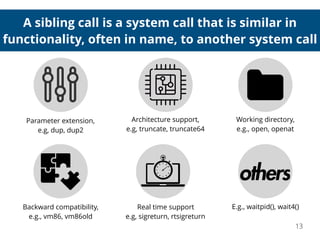

40. A sibling call is a system call that is similar in
functionality, often in name, to another system call
13
Backward compatibility,
e.g., vm86, vm86old
Working directory,
e.g., open, openat
Real time support
e.g, sigreturn, rtsigreturn
E.g., waitpid(), wait4()
Parameter extension,
e.g, dup, dup2
Architecture support,
e.g, truncate, truncate64

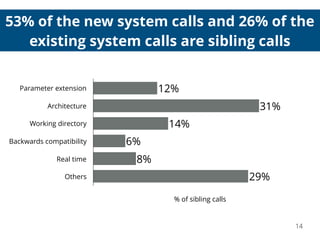

41. 53% of the new system calls and 26% of the
existing system calls are sibling calls
Parameter extension
Architecture
Working directory
Backwards compatibility
Real time
Others
% of sibling calls
29%
8%
6%
14%
31%
12%
14

42. In most cases, sibling calls
are a repayment of technical
debt in the Linux kernel API
15

43. Kernel developers use flag and
struct parameter to minimize
the number of new sibling calls
16

44. Our study provides several insightful results
for the development of system calls
17

45. Our study provides several insightful results
for the development of system calls
17
Complex system calls
Sibling system calls
The cost of supporting several architectures
Race graph

46. A new system call is usually not activated
for all architectures at the same time
18
2010 2013
XtensaARM

47. A new system call is usually not activated
for all architectures at the same time
18
2010 2013
XtensaARM
2008
Activation year of the accept4 system call on different architectures
Sparc-64

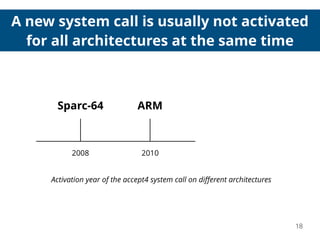

48. A new system call is usually not activated
for all architectures at the same time
18
2010 2013
XtensaARM
2008
Activation year of the accept4 system call on different architectures
Sparc-64

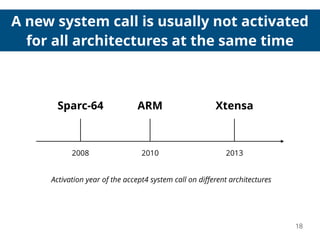

49. A new system call is usually not activated
for all architectures at the same time
18
2010 2013
XtensaARM
2008
Activation year of the accept4 system call on different architectures
Sparc-64

50. Kernel developers made
many changes to make the
system call code more generic
19

51. Our study provides several insightful results
for the development of system calls
20

52. Our study provides several insightful results
for the development of system calls
20
Complex system calls
Sibling system calls
The cost of supporting several architectures
Race graph

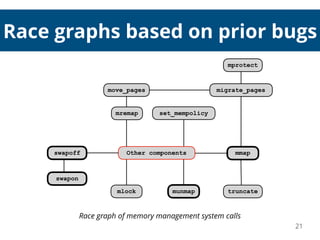

53. Race graphs based on prior bugs
21

54. Race graphs based on prior bugs
21
Race graph of memory management system calls
mprotect
move_pages migrate_pages
mremap
mmap
truncatemunmapmlock
swapoff
swapon
set_mempolicy
Other components

55. Our findings are of value to other UNIX-
based operating systems
22

56. Our findings are of value to other UNIX-
based operating systems
22
# of system calls447 393

57. Our findings are of value to other UNIX-
based operating systems
22
# of system calls447 393
# of system calls with the same signature 199199 (44%)

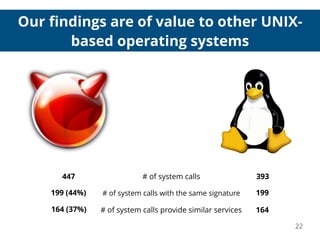

58. Our findings are of value to other UNIX-
based operating systems
22
# of system calls447 393
# of system calls with the same signature 199199 (44%)
# of system calls provide similar services 164164 (37%)
