Download as PDF, PPTX

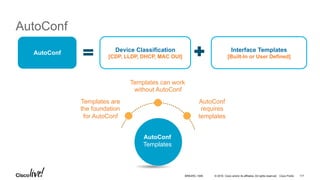

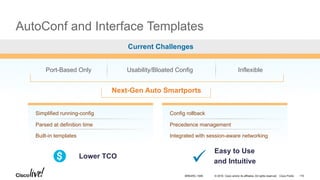

![© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public

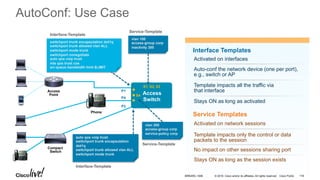

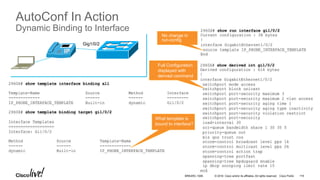

AutoConf
Device Classification
[CDP, LLDP, DHCP, MAC OUI]
Interface Templates
[Built-In or User Defined]
AutoConf
Templates are
the foundation
for AutoConf
Templates can work
without AutoConf
AutoConf
requires
templates
AutoConf
Templates
BRKARC-1009 117](https://image.slidesharecdn.com/brkarc-1009guduruv2-180910134305/85/Cisco-Catalyst-2960-X-Series-Switching-Architecture-117-320.jpg)
Uploaded bySunil Kumar Guduru

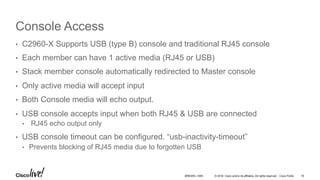

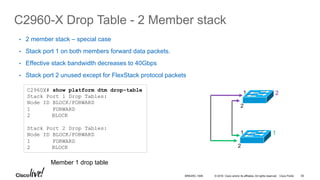

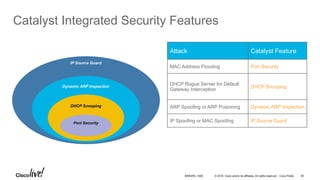

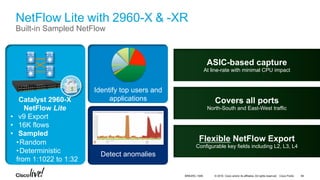

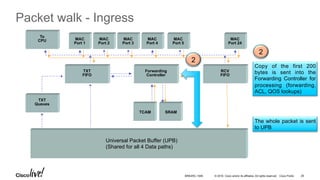

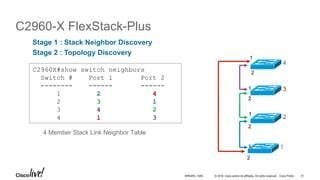

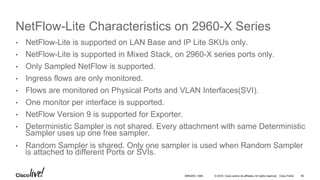

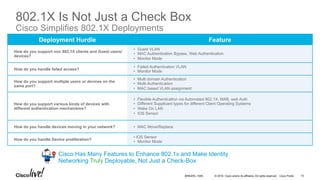

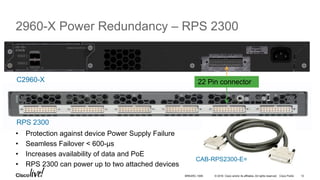

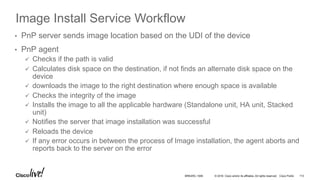

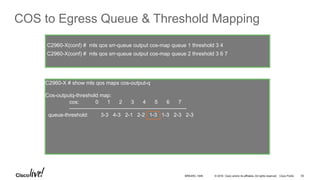

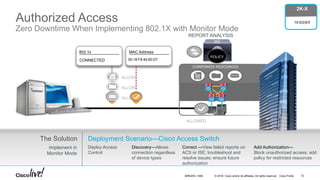

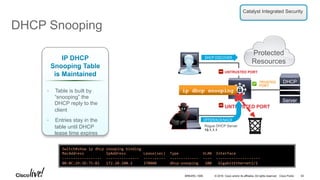

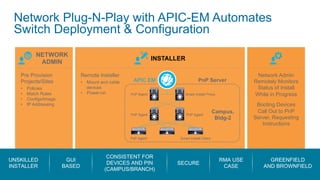

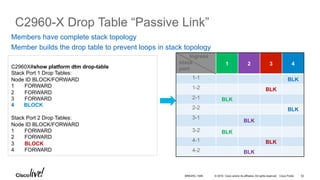

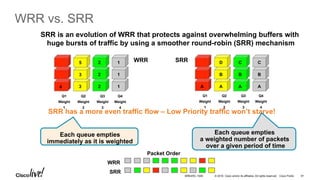

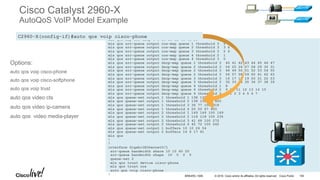

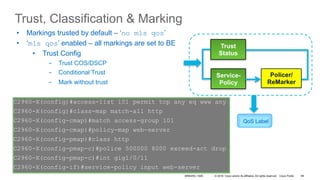

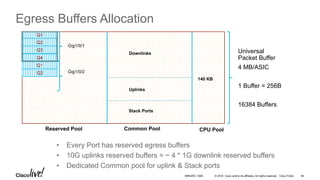

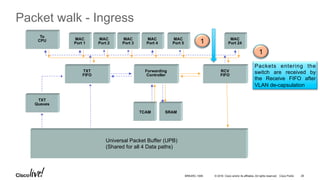

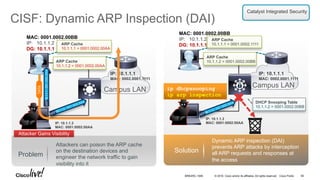

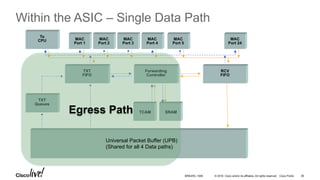

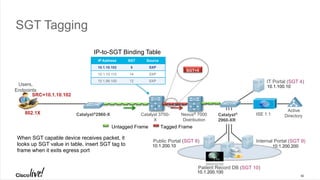

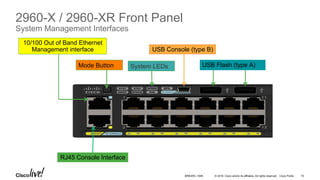

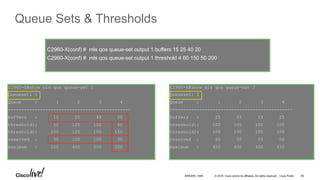

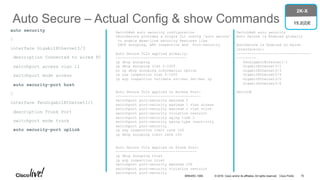

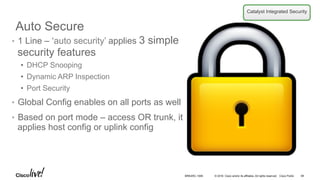

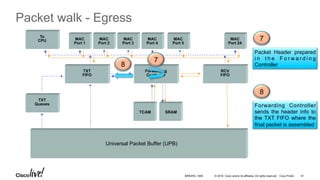

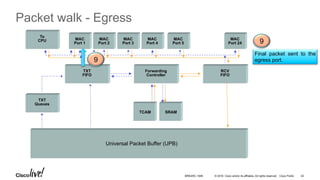

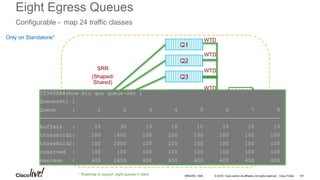

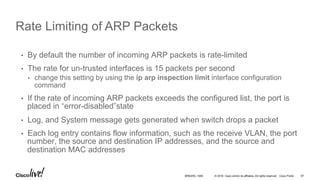

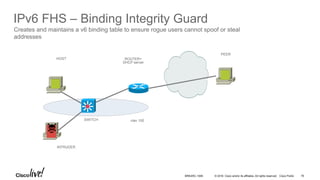

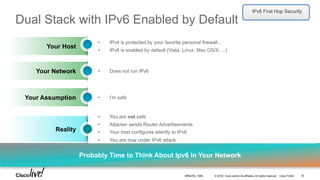

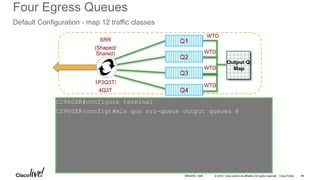

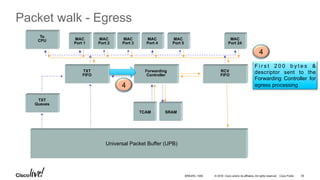

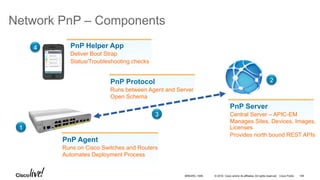

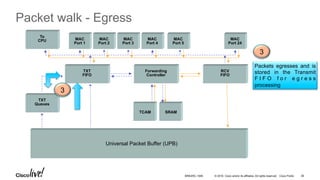

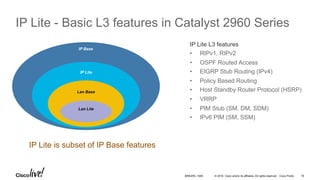

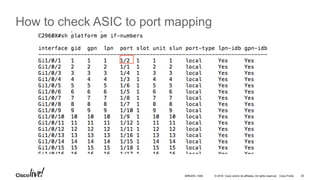

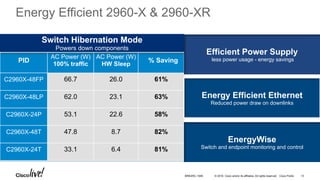

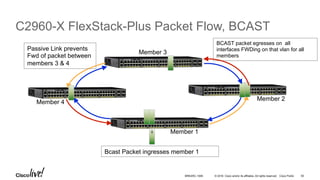

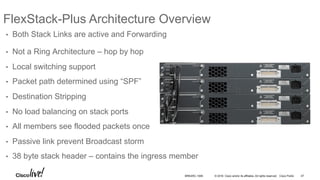

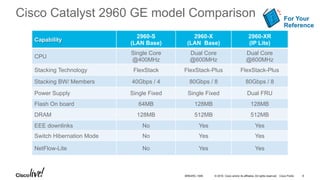

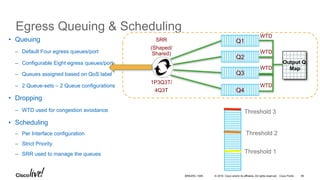

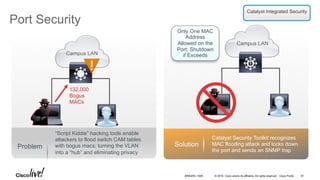

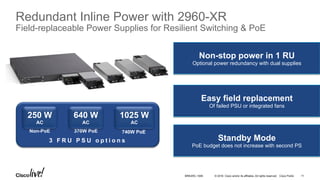

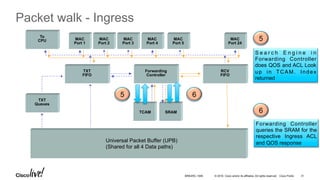

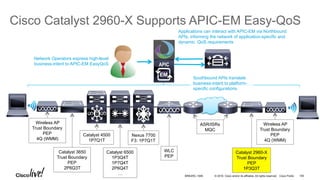

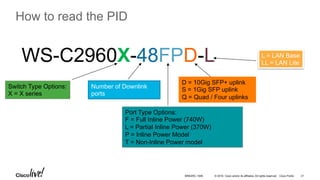

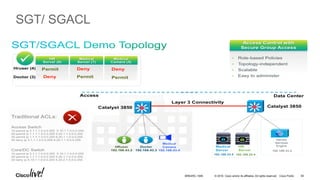

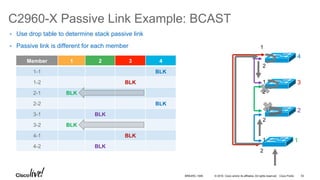

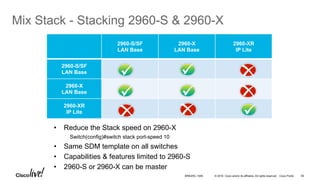

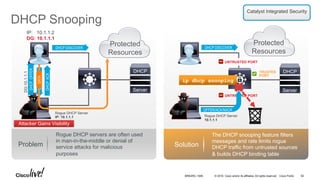

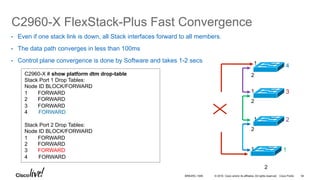

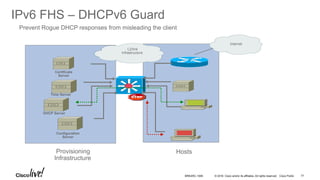

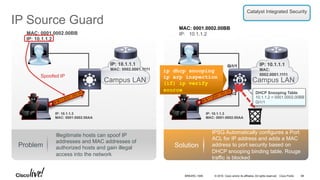

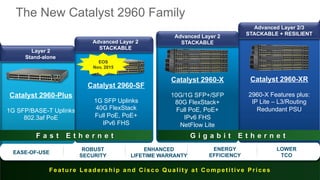

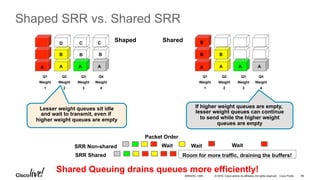

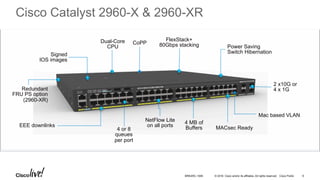

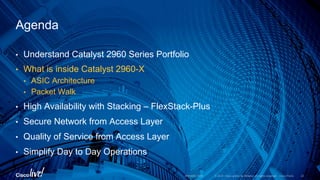

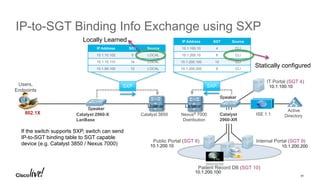

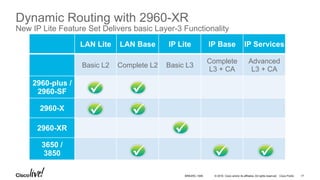

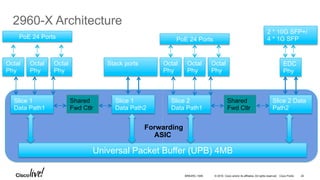

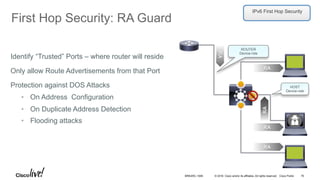

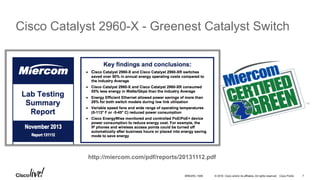

Cisco Catalyst 2960-X Series Switching Architecture

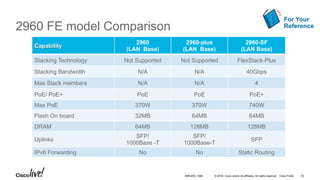

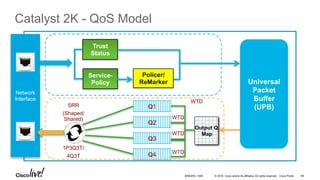

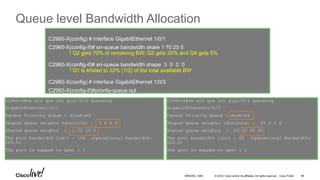

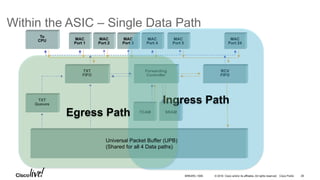

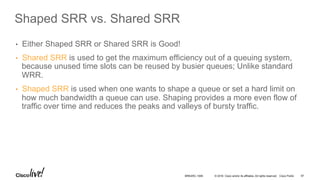

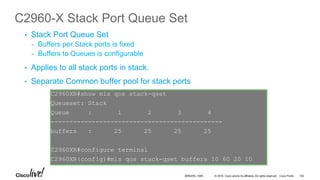

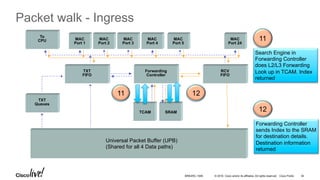

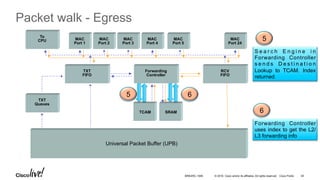

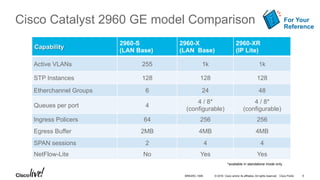

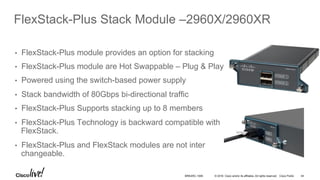

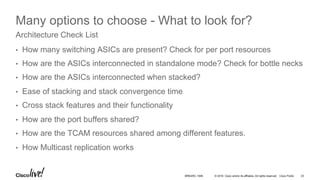

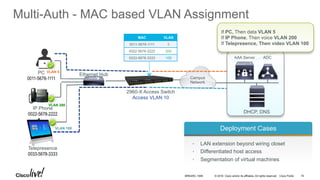

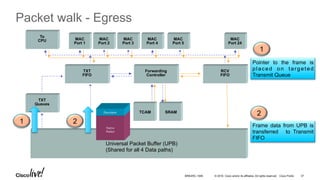

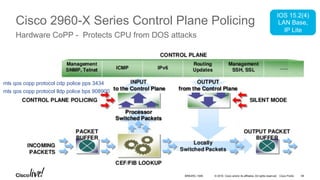

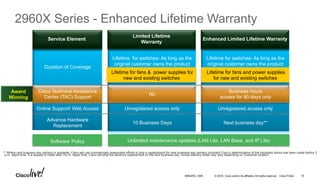

The document provides an overview of the Cisco Catalyst 2960-X series, highlighting its features such as FlexStack-Plus for high availability, secure network capabilities, and efficient energy use. Key specifications are compared across different models, detailing processor architecture, power options, and enhanced lifetime warranty terms. The agenda covers the product's architecture, operational ease, and advanced networking functionalities.
