The R6 Manual Total Station by Stonex has high-accuracy angle and distance measurement capabilities. It can measure angles to 2 arc-seconds and distances to targets up to 7,500 meters with a circular prism or 600 meters reflectorless. The total station stores up to 10,000 points and has Bluetooth and USB connectivity for data transfer. It is durable and portable with an IP54 rating and operates for over 36 hours on a single battery charge.

1. R6 MANUAL
TOTAL STATION
Stonex

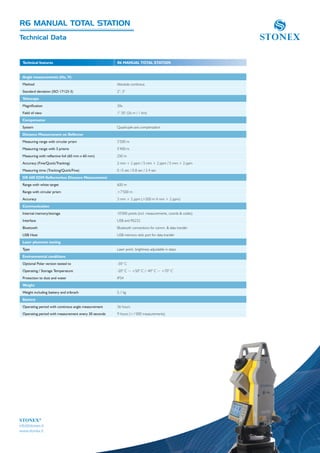

2. STONEX®
info@stonex.it
www.stonex.it
StonexTechnical Data
R6 MANUAL TOTAL STATION
Angle measurements (Hz, V)
Method Absolute continous
Standard deviation (ISO 17123-3) 2”, 5”
Telescope
Magnification 30x
Field of view 1° 30’ (26 m / 1 km)
Compensator
System Quadruple-axis compensation
Distance Measurement on Reflector
Measuring range with circular prism 3’500 m
Measuring range with 3 prisms 5’400 m
Measuring with reflective foil (60 mm x 60 mm) 250 m
Accuracy (Fine/Quick/Tracking) 2 mm + 2 ppm / 5 mm + 2 ppm / 5 mm + 2 ppm
Measuring time (Tracking/Quick/Fine) 0.15 sec / 0.8 sec / 2.4 sec
DR 600 EDM Reflectorless Distance Measurement
Range with white target 600 m
Range with circular prism >7’500 m
Accuracy 3 mm + 2 ppm (>500 m 4 mm + 2 ppm)
Communication
Internal memory/storage 10’000 points (incl. measurements, coords & codes)
Interface USB and RS232
Bluetooth Bluetooth connections for comm. & data transfer
USB Host USB memory stick port for data transfer
Laser plummet testing
Type Laser point, brightness adjustable in steps
Environmental conditions
Optional Polar version tested to -30° C
Operating / Storage Temperature -20° C ~ +50° C / -40° C ~ +70° C
Protection to dust and water IP54
Weight
Weight including battery and tribrach 5.1 kg
Battery
Operating period with continous angle measurement 36 hours
Operating period with measurement every 30 seconds 9 hours (>1’000 measurements)
Technical features R6 MANUAL TOTAL STATION
