1. Stackato Overview
Martin Kenneth Michalsky
Senior QE

2. © 2013 TechZone. All rights reserved.

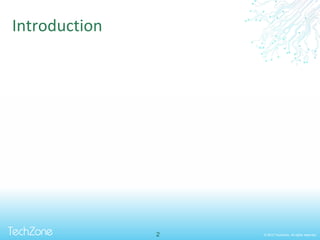

Introduction
2

3. © 2013 TechZone. All rights reserved.
Stackato Architecture
3

4. © 2013 TechZone. All rights reserved.

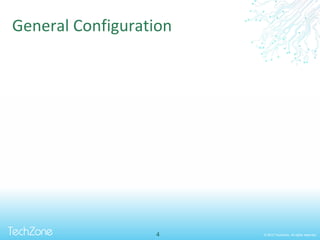

General Configuration
4

5. © 2013 TechZone. All rights reserved.

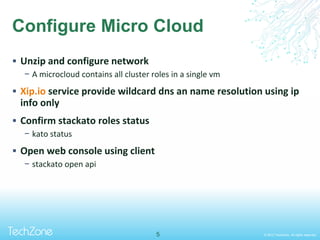

Configure Micro Cloud
 Unzip and configure network
− A microcloud contains all cluster roles in a single vm
 Xip.io service provide wildcard dns an name resolution using ip
info only
 Confirm stackato roles status
− kato status
 Open web console using client
− stackato open api
5

6. © 2013 TechZone. All rights reserved.

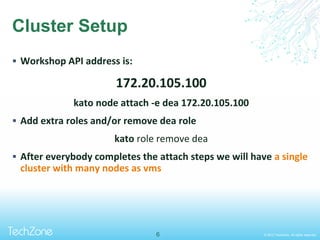

Cluster Setup
 Workshop API address is:
172.20.105.100
kato node attach -e dea 172.20.105.100
 Add extra roles and/or remove dea role
kato role remove dea
 After everybody completes the attach steps we will have a single
cluster with many nodes as vms
6

7. © 2013 TechZone. All rights reserved.
Deploying Apps
7

8. © 2013 TechZone. All rights reserved.

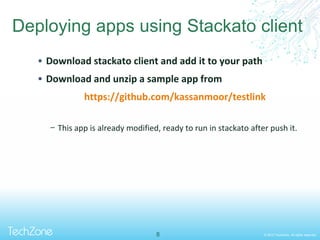

Deploying apps using Stackato client
 Download stackato client and add it to your path
 Download and unzip a sample app from
https://github.com/kassanmoor/testlink
− This app is already modified, ready to run in stackato after push it.
8

9. © 2013 TechZone. All rights reserved.

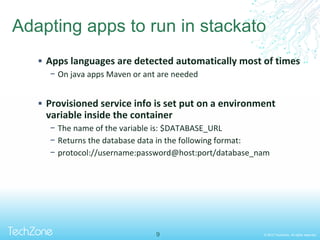

Adapting apps to run in stackato
 Apps languages are detected automatically most of times
− On java apps Maven or ant are needed
 Provisioned service info is set put on a environment
variable inside the container
− The name of the variable is: $DATABASE_URL
− Returns the database data in the following format:
− protocol://username:password@host:port/database_nam
9

10. © 2013 TechZone. All rights reserved.

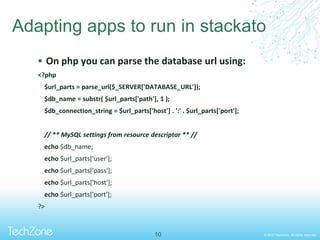

Adapting apps to run in stackato
 On php you can parse the database url using:
<?php
$url_parts = parse_url($_SERVER['DATABASE_URL']);
$db_name = substr( $url_parts['path'], 1 );
$db_connection_string = $url_parts['host'] . ':' . $url_parts['port'];
// ** MySQL settings from resource descriptor ** //
echo $db_name;
echo $url_parts['user'];
echo $url_parts['pass'];
echo $url_parts['host'];
echo $url_parts['port'];
?>
10

11. © 2013 TechZone. All rights reserved.
Deploying apps from Appstore
 Several open source apps included in the default store
− Ready to use and you can check the source code modifications
needed to run it at:
https://github.com/Stackato-Apps/
 You can add your own apps using a reachable git repository
and yml file
− Naming logic is already built in on store and each parameter of
app/store are fully customizable
11

12. © 2013 TechZone. All rights reserved.12
Q&A
