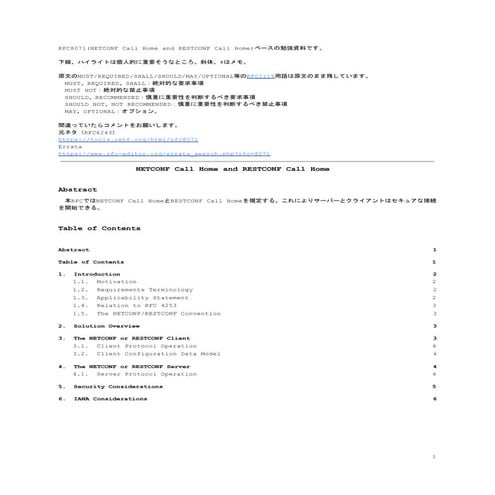

RFC8071(NETCONF Call Home and RESTCONF Call Home)の勉強資料Tetsuya Hasegawa
RFC8071(NETCONF Call Home and RESTCONF Call Home)ベースの勉強資料です。
https://docs.google.com/document/d/e/2PACX-1vR7ka6inXrrw5mVinn7S9ABlZ5s7bm7Ny29QWL7N36xRG2yn1h4L7DKpgjTIkVazUv3vTN7yBUB2ahM/pub
18. RFC編
下線、ハイライトは個人的に重要そうなところ。斜体、#はメモ。
原文のMUST/REQUIRED/SHALL/SHOULD/MAY/OPTIONAL等のRFC2119用語は原文のまま残しています。
MUST、REQUIRED、SHALL:絶対的な要求事項
MUST NOT:絶対的な禁止事項
SHOULD、RECOMMENDED:慎重に重要性を判断するべき要求事項
SHOULD NOT、NOT RECOMMENDED:慎重に重要性を判断するべき禁止事項
MAY、OPTIONAL:オプション。
SSH関連のRFCリスト
RFC 概要

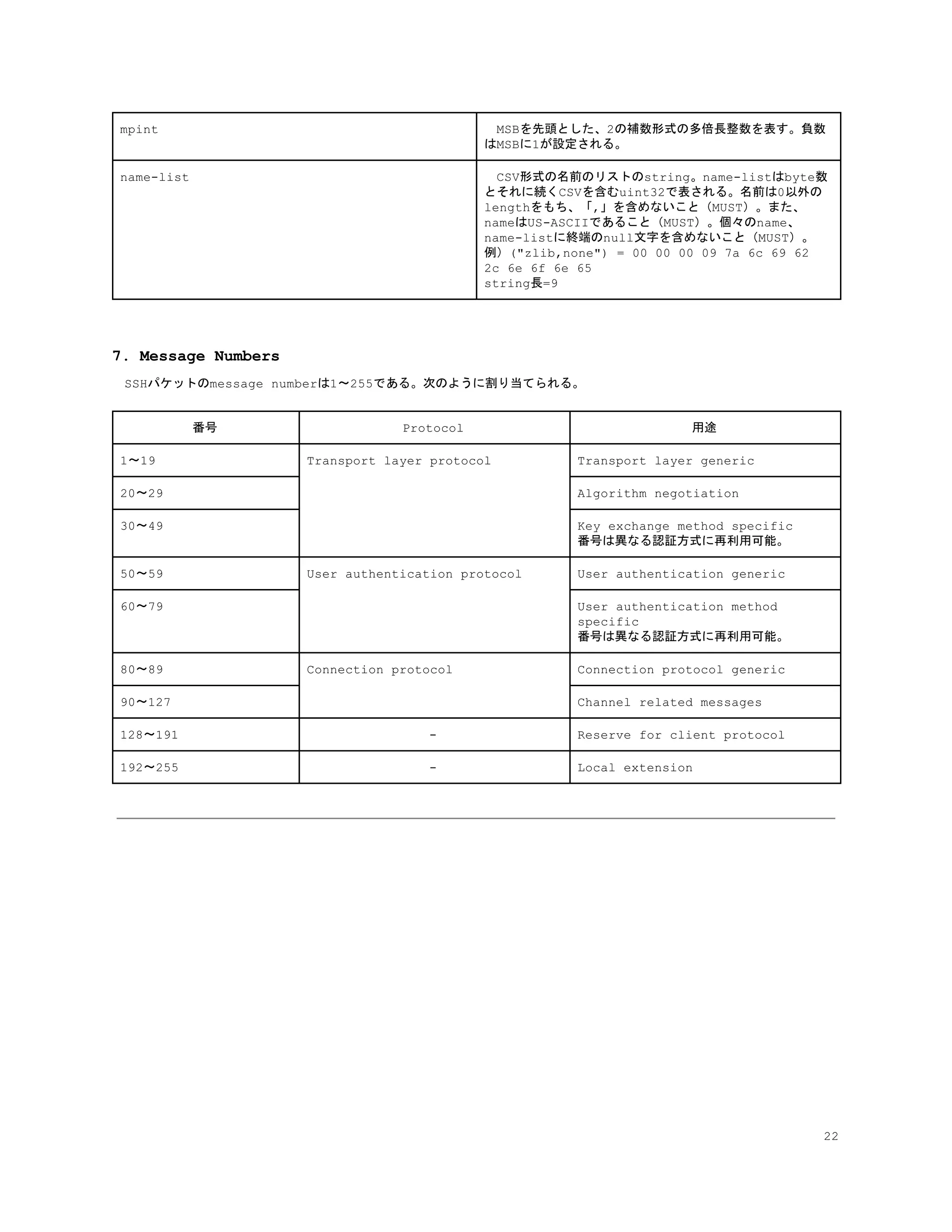

RFC 4250
The Secure Shell (SSH) Protocol Assigned Numbers
https://tools.ietf.org/html/rfc4250
SSHのプロトコルで使用される番号の定義。

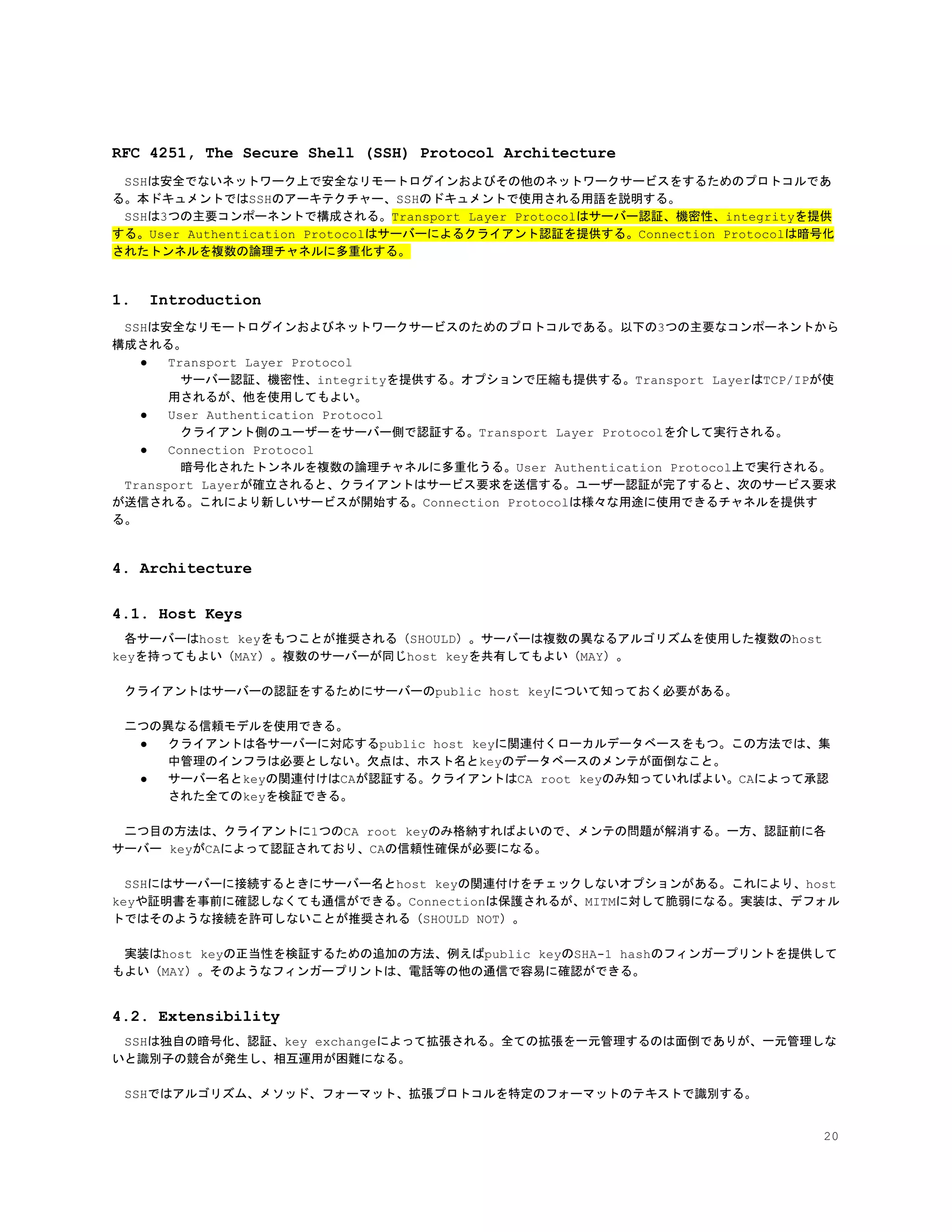

RFC 4251
The Secure Shell (SSH) Protocol Architecture
https://tools.ietf.org/html/rfc4251
SSHのアーキテクチャーの概要。
3つの主要コンポーネントであるTransport Layer
Protocol、User Authentication Protocol、
Coonection Protocolの概要。
RFC 4252
The Secure Shell (SSH) Authentication Protocol
https://tools.ietf.org/html/rfc4252
Authentication Protocolの詳細。
Public key、Password、Host-based client
authentication method。

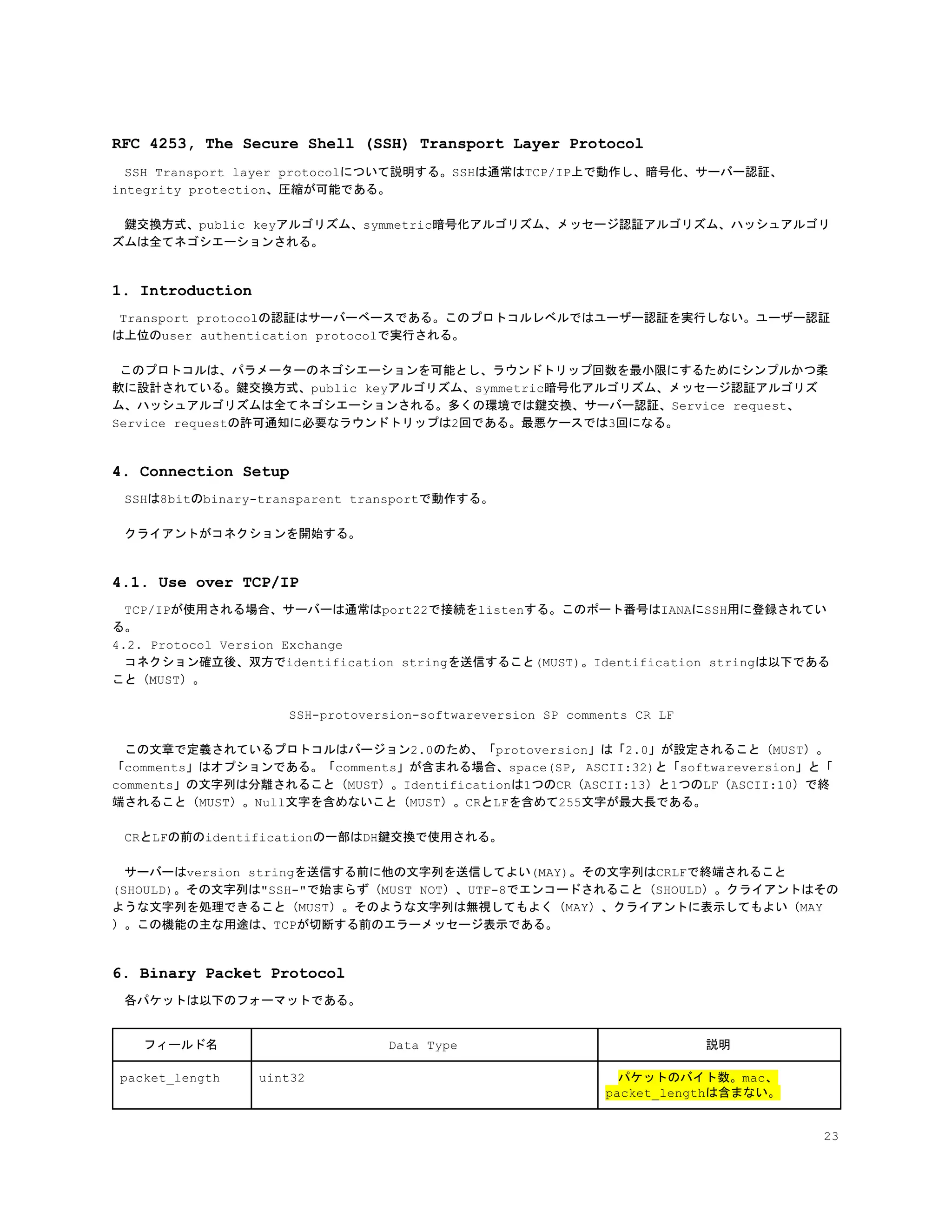

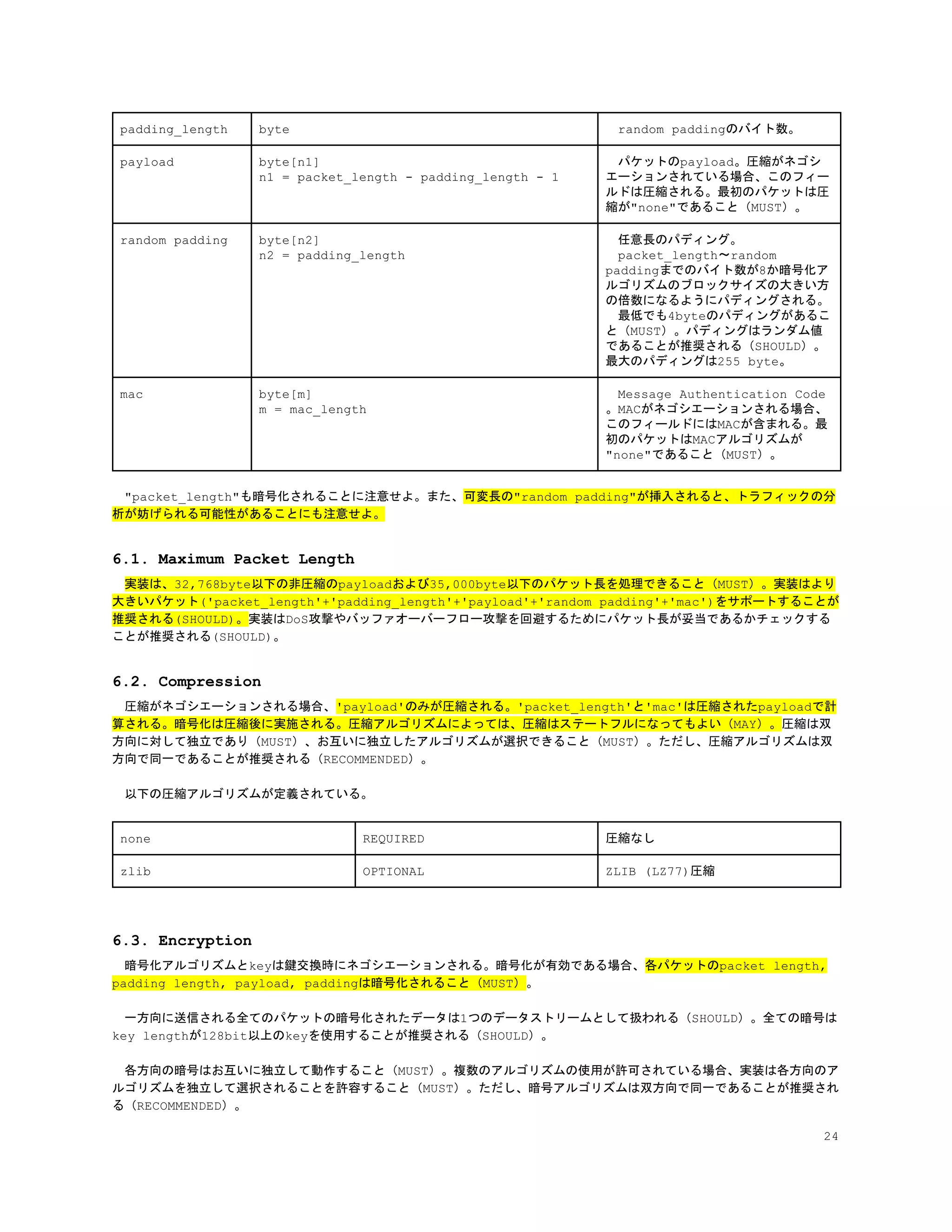

RFC 4253
The Secure Shell (SSH) Transport Layer Protocol
https://tools.ietf.org/html/rfc4253
Transport Layer Protocolの詳細。
RFC 4254
The Secure Shell (SSH) Connection Protocol
https://tools.ietf.org/html/rfc4254
Connection Protocolの詳細。
Interactive login、コマンドのリモート実行、TCP/IP接
続、X11接続を提供する。
RFC 4255
Using DNS to Securely Publish Secure Shell (SSH) Key
Fingerprints
https://tools.ietf.org/html/rfc4255
DNSSECでSSH host keyを検証する方法。
DNS resource recordに”SSHFP”を追加する。
RFC 4256
Generic Message Exchange Authentication for the Secure
Shell Protocol (SSH)
https://tools.ietf.org/html/rfc4256
認証データが手入力される場合に適したSSH用の認証方式。
RFC 4335
The Secure Shell (SSH) Session Channel Break Extension
https://tools.ietf.org/html/rfc4335
SSHでBREAK signalを送信するSession Channel Break
Extension。

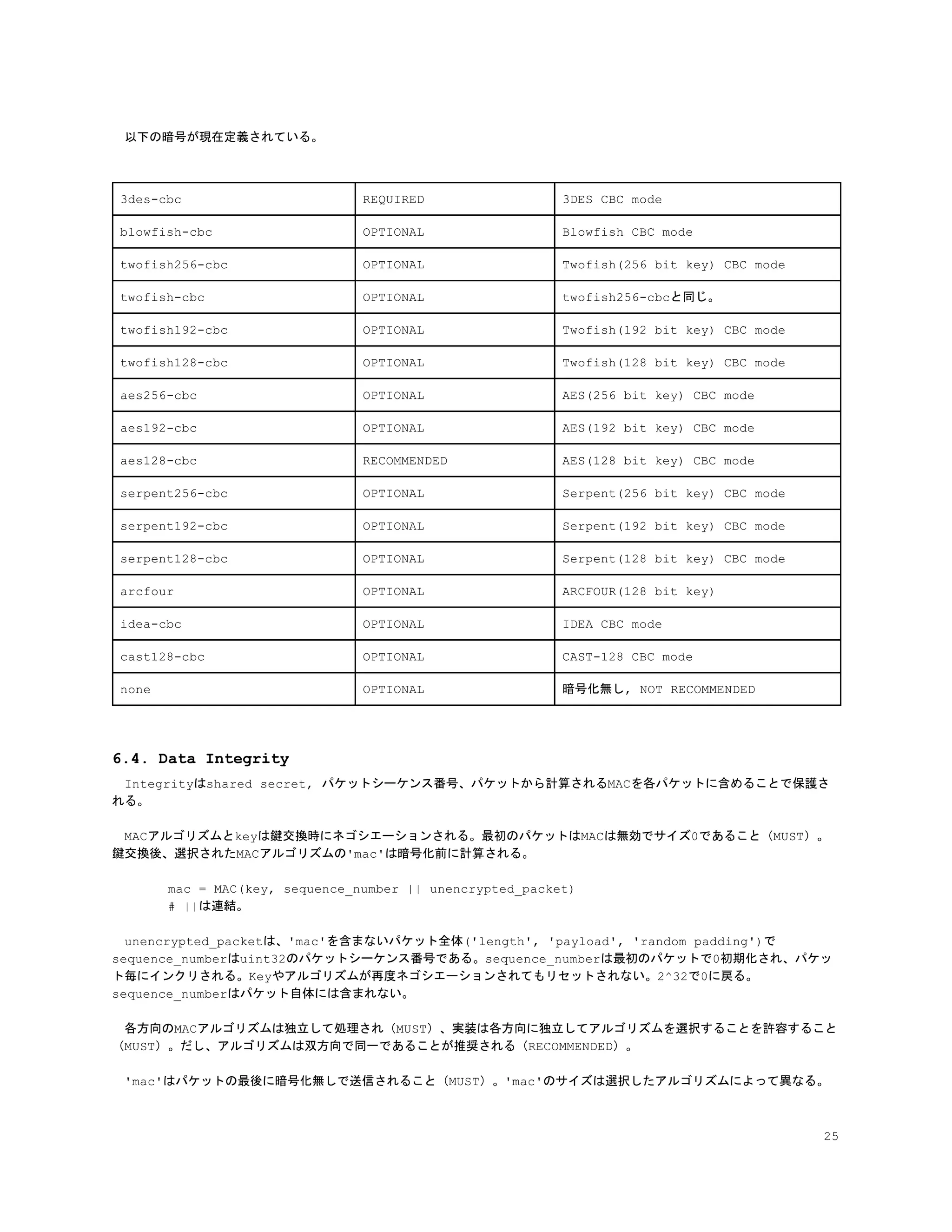

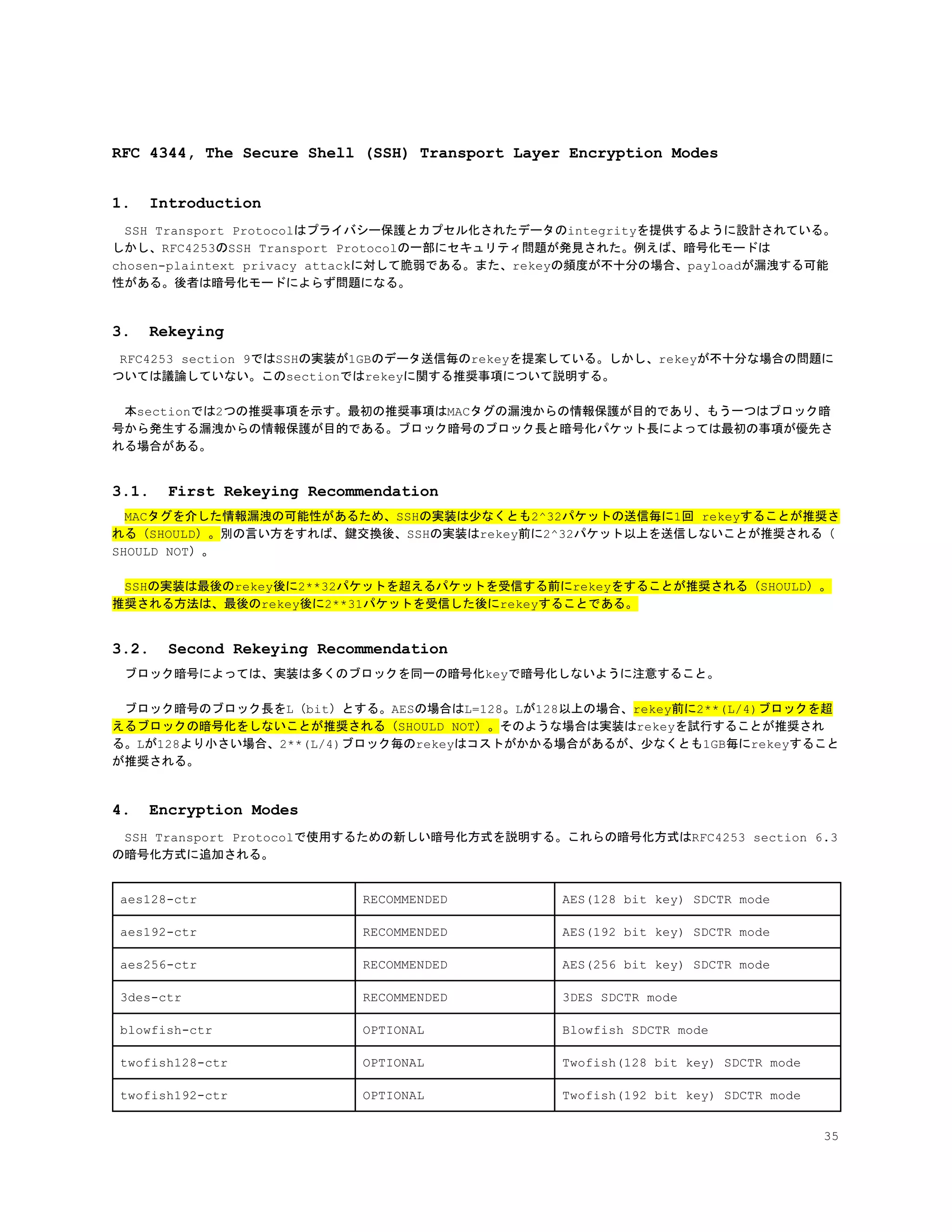

RFC 4344
The Secure Shell (SSH) Transport Layer Encryption Modes
https://tools.ietf.org/html/rfc4344
SSHで推奨するsymmetric encription method、Rekey頻
度。
RFC 4345
Improved Arcfour Modes for the Secure Shell (SSH) Transport
Layer Protocol
https://tools.ietf.org/html/rfc4345
Arcfour cipherの使用方法。
18
19. RFC 4419
Diffie-Hellman Group Exchange for the Secure Shell (SSH)
Transport Layer Protocol
https://tools.ietf.org/html/rfc4419
DH group exchangeの新しいグループの追加。
RFC 4432
RSA Key Exchange for the Secure Shell (SSH) Transport Layer
Protocol
https://tools.ietf.org/html/rfc4432
RSA public key encryptionによる鍵交換。DH鍵交換より
CPUを使わない。
RFC 4462
Generic Security Service Application Program Interface
(GSS-API) Authentication and Key Exchange for the Secure
Shell (SSH) Protocol
https://tools.ietf.org/html/rfc4462
Generic Security Service Application Program
Interface (GSS-API)で認証、key exchangeする方法。
RFC 4716
The Secure Shell (SSH) Public Key File Format
https://tools.ietf.org/html/rfc4716
Public keyを交換するためのpublic key fileフォーマッ
トの定義。
RFC 4819
Secure Shell Public Key Subsystem
https://tools.ietf.org/html/rfc4819
Public Key Subsystemというクライアントがpublic key
を追加/削除したり、サーバーがpublic keyを管理するための
メカニズムの説明。
RFC 5647
AES Galois Counter Mode for the Secure Shell Transport
Layer Protocol
https://tools.ietf.org/html/rfc5647
Transport Layer Protocolに機密性とintegrityを提供
するAES Galois Counter Modeの説明。
RFC 5656
Elliptic Curve Algorithm Integration in the Secure Shell
Transport Layer
https://tools.ietf.org/html/rfc5656
Elliptic Curve Cryptography (ECC)(楕円曲線)に基づ
くアルゴリズムの説明。
RFC 6187
X.509v3 Certificates for Secure Shell Authentication
https://tools.ietf.org/html/rfc6187
X.509v3 public key certificatesを使用する方法。
RFC 6239
Suite B Cryptographic Suites for Secure Shell (SSH)
https://tools.ietf.org/html/rfc6239
Suite Bに対応するSSHのアーキテクチャー。ECDH key
agreement、ECDSA、AES-CGM、SHA-256/SHA-384、
X.509 certificatesを使用する。
RFC 6594
Use of the SHA-256 Algorithm with RSA, Digital Signature
Algorithm (DSA), and Elliptic Curve DSA (ECDSA) in SSHFP
Resource Records
https://tools.ietf.org/html/rfc6594
SSHFP、DNSSECでSSH host keyを検証する方法用のDNS
resource recordにSHA-256 Fingerprint、ECDSAを使
用する定義を追加する。
RFC 6668
SHA-2 Data Integrity Verification for the Secure Shell
(SSH) Transport Layer Protocol
https://tools.ietf.org/html/rfc6668
データのintegrityのためのアルゴリズムとパラメーターの定
義。
RFC 4253のupdate。
RFC 7478
Ed25519 SSHFP Resource Records
https://tools.ietf.org/html/rfc7479
Ed25519 signature algorithmのアルゴリズム番号の定
義。
Errata
https://www.rfc-editor.org/errata_search.php?rfc=XXXX
19
