Ultra Chemical Resistant for Thermal Transfer PrintingHION-RHR PP
Product Brocher
HIONRHR - Highly chemical resistant Label for thermal transfer printing
• HION-RHR is a highly chemical resistant Label which is designed for thermal transfer printing
that are used in harsh environments.
• When printed with Ricoh B110CU resin ribbons, no overlam is required and readability of the
print is ensured even after contact with fuel, solvents and other chemicals.
• HION-RHR is available in glossy or matt finish and can be combined with a wide range of VOID
and security label technologies.
• HION-RHR can be pre-printed with fixed designs using UV-flexo technology as well.
#1304 Back-Sang Star Tower 2nd building, Ga-San Digital 2nd Street 165, Geum-Cheon Gu, Seoul, South korea
Tel : +82 02 2038 0018 / Fax : +82 2038 8058 / E-mail : hion@hionit.com / Website : www.hionmall.co.kr
For better understanding of Thermal Transfer Printing

2. Solution Everywhere
No part of this publication may be circulated, quoted, or reproduced for distribution outside the client organization without prior written approval from Hion IT.
This document provides an outline of a presentation and is incomplete without the accompanying oral commentary and discussion.
Ultra Chemical Resistant for Thermal Transfer PrintingHION-RHR PP

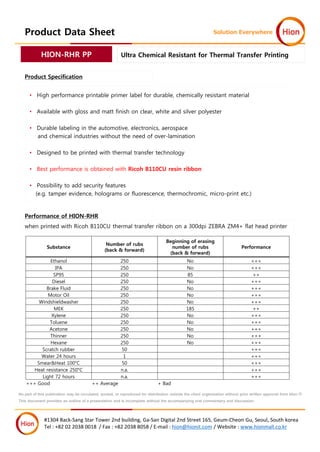

Product Data Sheet
Product Specification
when printed with Ricoh B110CU thermal transfer ribbon on a 300dpi ZEBRA ZM4+ flat head printer
Performance of HION-RHR
• High performance printable primer label for durable, chemically resistant material
• Available with gloss and matt finish on clear, white and silver polyester
• Durable labeling in the automotive, electronics, aerospace
and chemical industries without the need of over-lamination
• Designed to be printed with thermal transfer technology
• Best performance is obtained with Ricoh B110CU resin ribbon
• Possibility to add security features
(e.g. tamper evidence, holograms or fluorescence, thermochromic, micro-print etc.)
Substance
Number of rubs
(back & forward)
Beginning of erasing
number of rubs
(back & forward)
Performance
Ethanol 250 No +++
IPA 250 No +++
SP95 250 85 ++
Diesel 250 No +++
Brake Fluid 250 No +++
Motor Oil 250 No +++
Windshieldwasher 250 No +++
MEK 250 185 ++
Xylene 250 No +++
Toluene 250 No +++
Acetone 250 No +++
Thinner 250 No +++
Hexane 250 No +++
Scratch rubber 50 +++
Water 24 hours 1 +++
Smear&Heat 100°C 50 +++
Heat resistance 250°C n.a. +++
Light 72 hours n.a. +++
+++ Good ++ Average + Bad
#1304 Back-Sang Star Tower 2nd building, Ga-San Digital 2nd Street 165, Geum-Cheon Gu, Seoul, South korea
Tel : +82 02 2038 0018 / Fax : +82 2038 8058 / E-mail : hion@hionit.com / Website : www.hionmall.co.kr

3. Solution Everywhere
No part of this publication may be circulated, quoted, or reproduced for distribution outside the client organization without prior written approval from Hion IT.
This document provides an outline of a presentation and is incomplete without the accompanying oral commentary and discussion.
Ultra Chemical Resistant for Thermal Transfer PrintingHION-RHR PP
HION-RHR PP is 60㎛ white Polypropylene
label which is the specified receiving material
for Ricoh B110CU thermal transfer ribbon,
featuring ultra-chemical resistance (Ethanol,
IPA, Acetone, MAX, Thinner, Xylene, Brake fluid,
water and etc.).
When used in combination with Ricoh B110CU,
it also offers excellent resistance to smearing,
scratch and high temperature in extremely
harsh environment.
It can be used for the applications where
solvent resistance is critical including
transportation equipment, parts nameplates,
processes control where heavy solvent is used
for finish cleaning.
Product Data Sheet
Product Description
Face stock:
White top-coated Polypropylene Film specially
designed for Ricoh B110CU
Nominal thickness: 60mic (±10%) ISO 534
Weight: 50g/m2 (±10%) ISO 536
Adhesive:
High performance acrylic solvent based
permanent adhesive
Product Name : DS890
Minimum application temperature: +10℃
Peel adhesion (90°, 24hrs): 13↑N/in FTM 2
Loop Tack: 15↑N/in FTM 9
Release Liner:
High-density glassine 80g
Nominal thickness: 70mic (±10%) ISO 534
Weight: 80g/m2 (±10%) ISO 536
Product Construction
Alcohol and solvent resistance:
Barcode without defect when used in
combination with B110CU @ 100 times with
cloth – Ricoh’s Test method
(Alcohols: Methanol, Ethanol, Isopropyl Alcohol)
(Solvents : Acetone, Butanone, Water, Dimethyl
benzene, Brake Fluid and Diluent)
Scratch resistance
Barcode without defect when used in
combination with B110CU @ 100 times with
nib – Ricoh’s test method
Preservation of thermal transfer printing
Please be cautious of scratch or damage of the
top-coated layer which may result in poor
printing quality.
HION-RHR PP can be stored for at least 6
months in an environment 23 ± 2 ℃ and 50%
± 5% RH.
It remains the responsibility of the user to
assess the risk of using this product although
we are confident that the ribbons
recommended above will perform well with
this product.
Thus, it is highly recommended that customers
should develop functional testing protocols
that will qualify a product’s fitness for use, in
their actual applications
Special consideration
Best performance is obtained with Ricoh B110CU
