SR INFO SYSTEMS, BHUBANESWAR

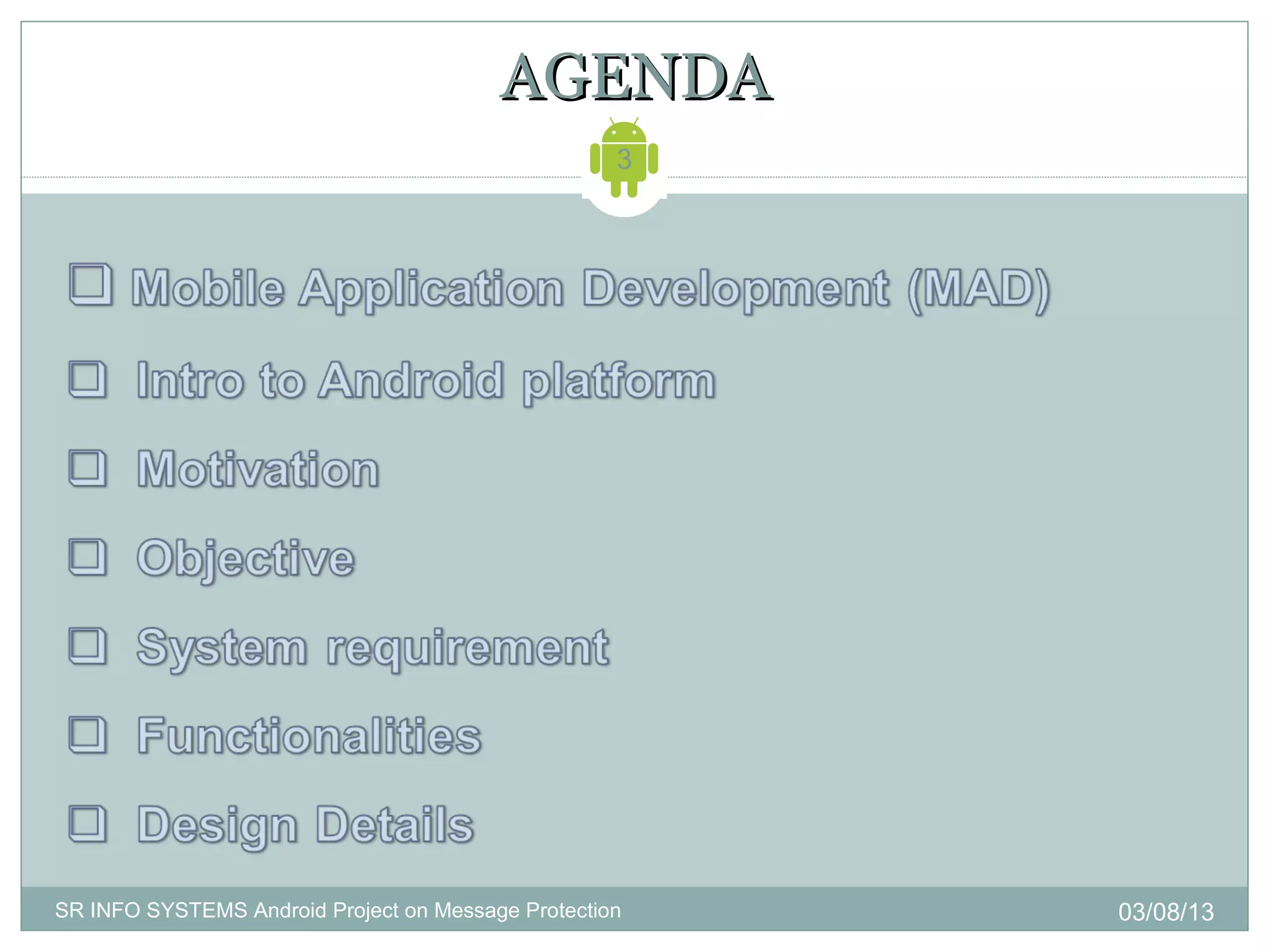

AGENDA
                                                    3




SR INFO SYSTEMS Android Project on Message Protection   03/08/13

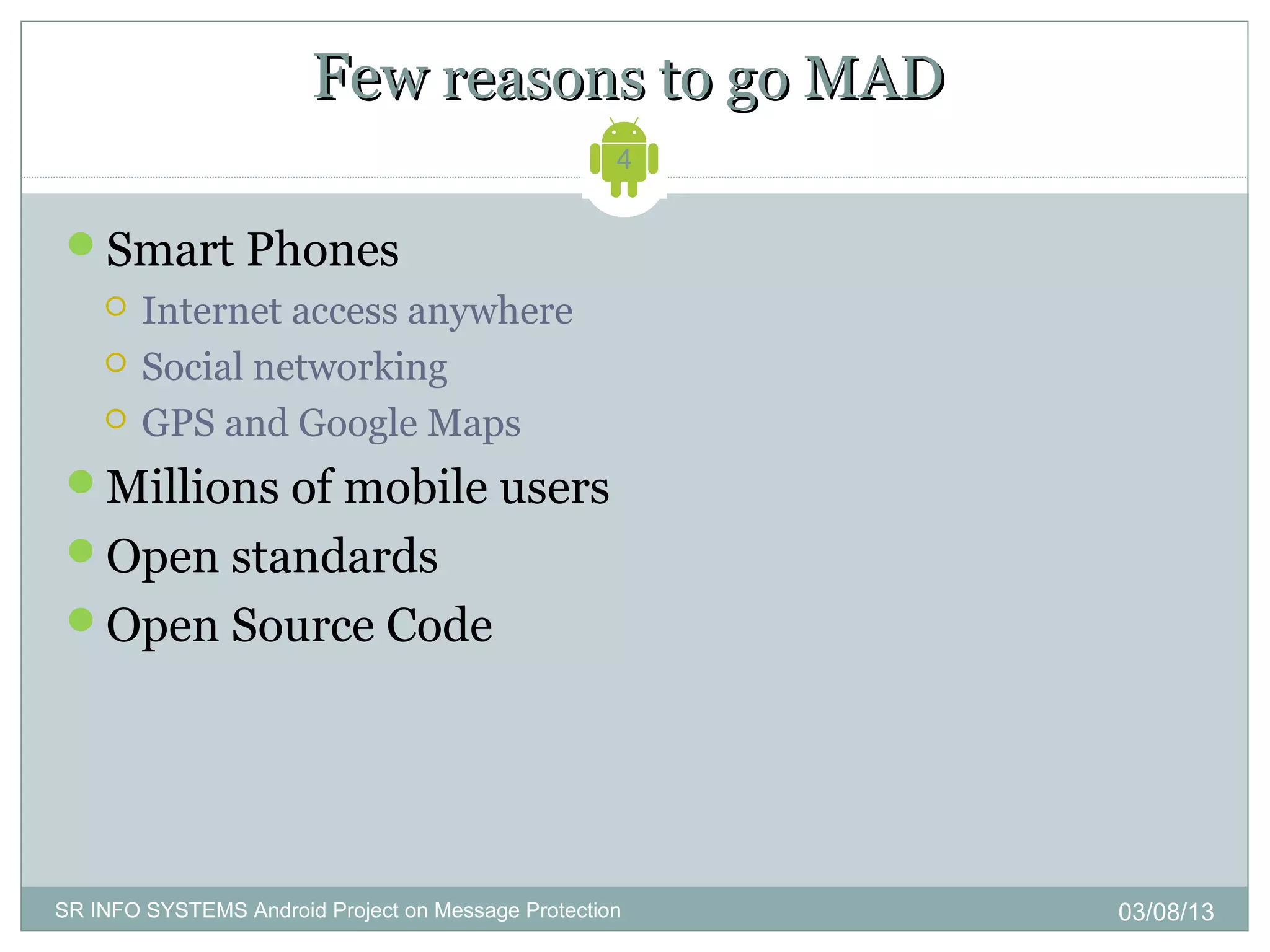

Few reasons to go MAD
                                                    4


 Smart Phones
       Internet access anywhere
       Social networking
       GPS and Google Maps
 Millions of mobile users
 Open standards
 Open Source Code




SR INFO SYSTEMS Android Project on Message Protection   03/08/13

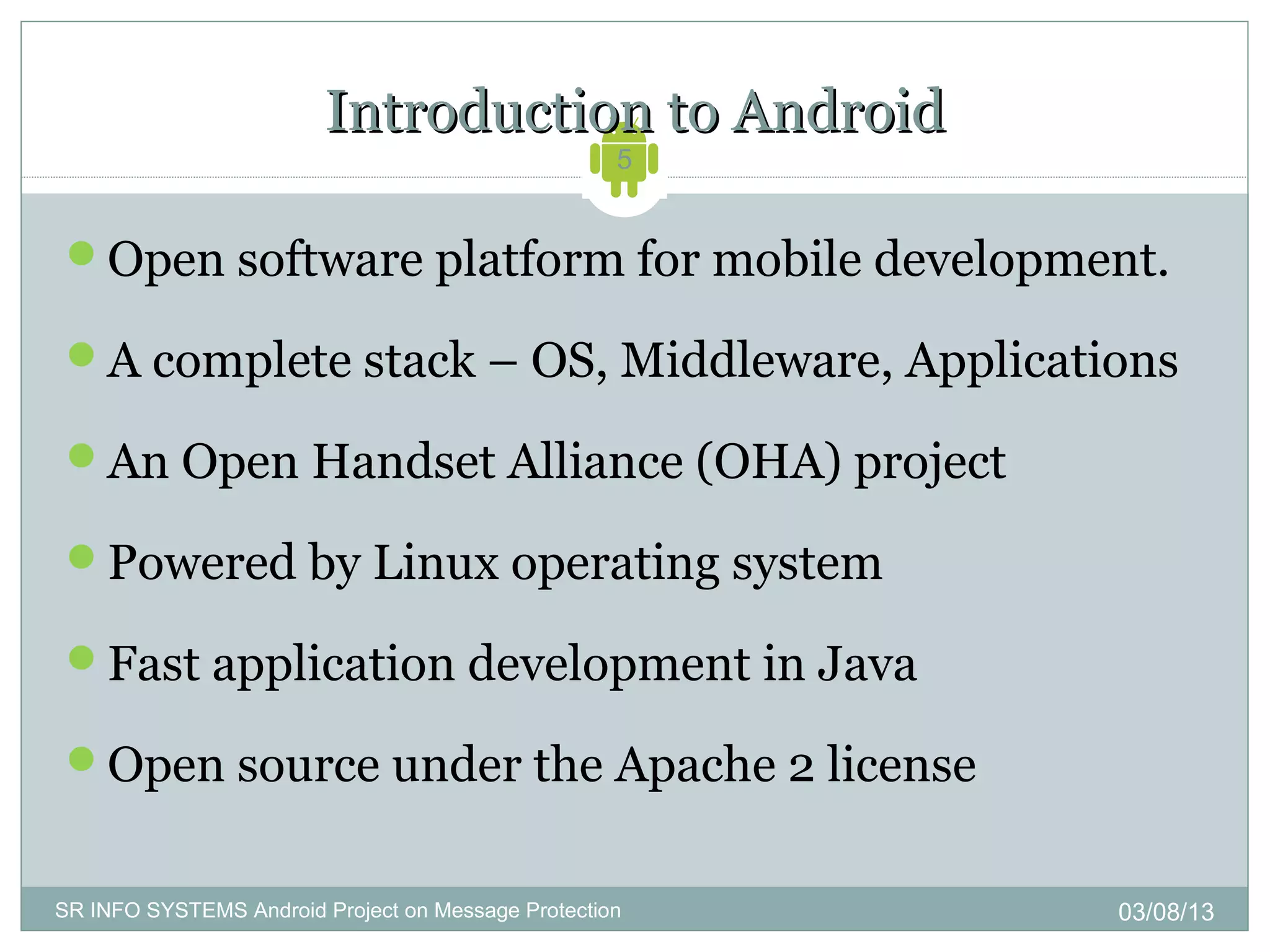

Introduction to Android
                                                    5


 Open software platform for mobile development.

 A complete stack – OS, Middleware, Applications

 An Open Handset Alliance (OHA) project

 Powered by Linux operating system

 Fast application development in Java

 Open source under the Apache 2 license


SR INFO SYSTEMS Android Project on Message Protection   03/08/13

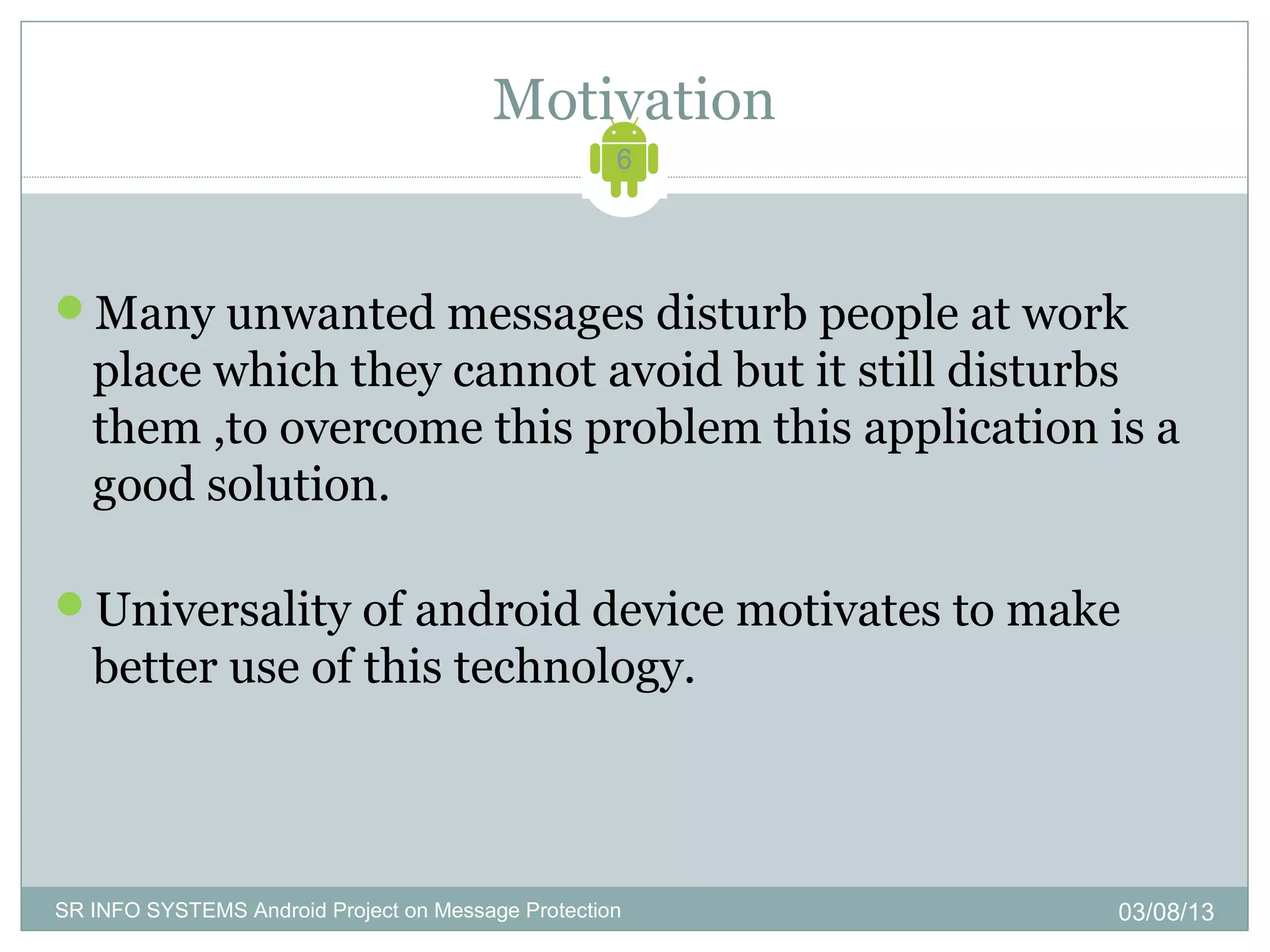

Motivation
                                                    6




Many unwanted messages disturb people at work
   place which they cannot avoid but it still disturbs
   them ,to overcome this problem this application is a
   good solution.

Universality of android device motivates to make
   better use of this technology.



SR INFO SYSTEMS Android Project on Message Protection   03/08/13

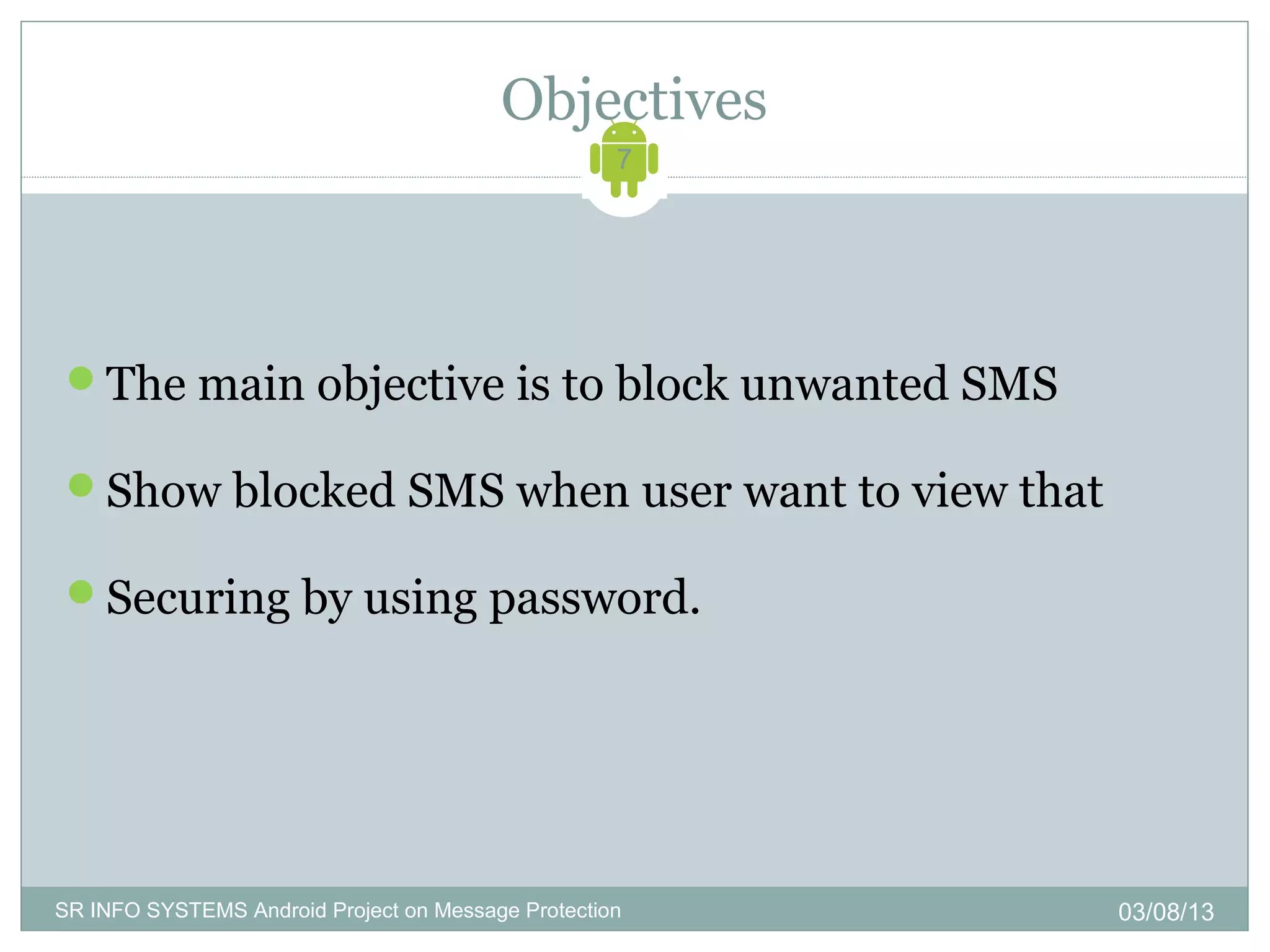

Objectives
                                                    7




 The main objective is to block unwanted SMS

 Show blocked SMS when user want to view that

 Securing by using password.




SR INFO SYSTEMS Android Project on Message Protection   03/08/13

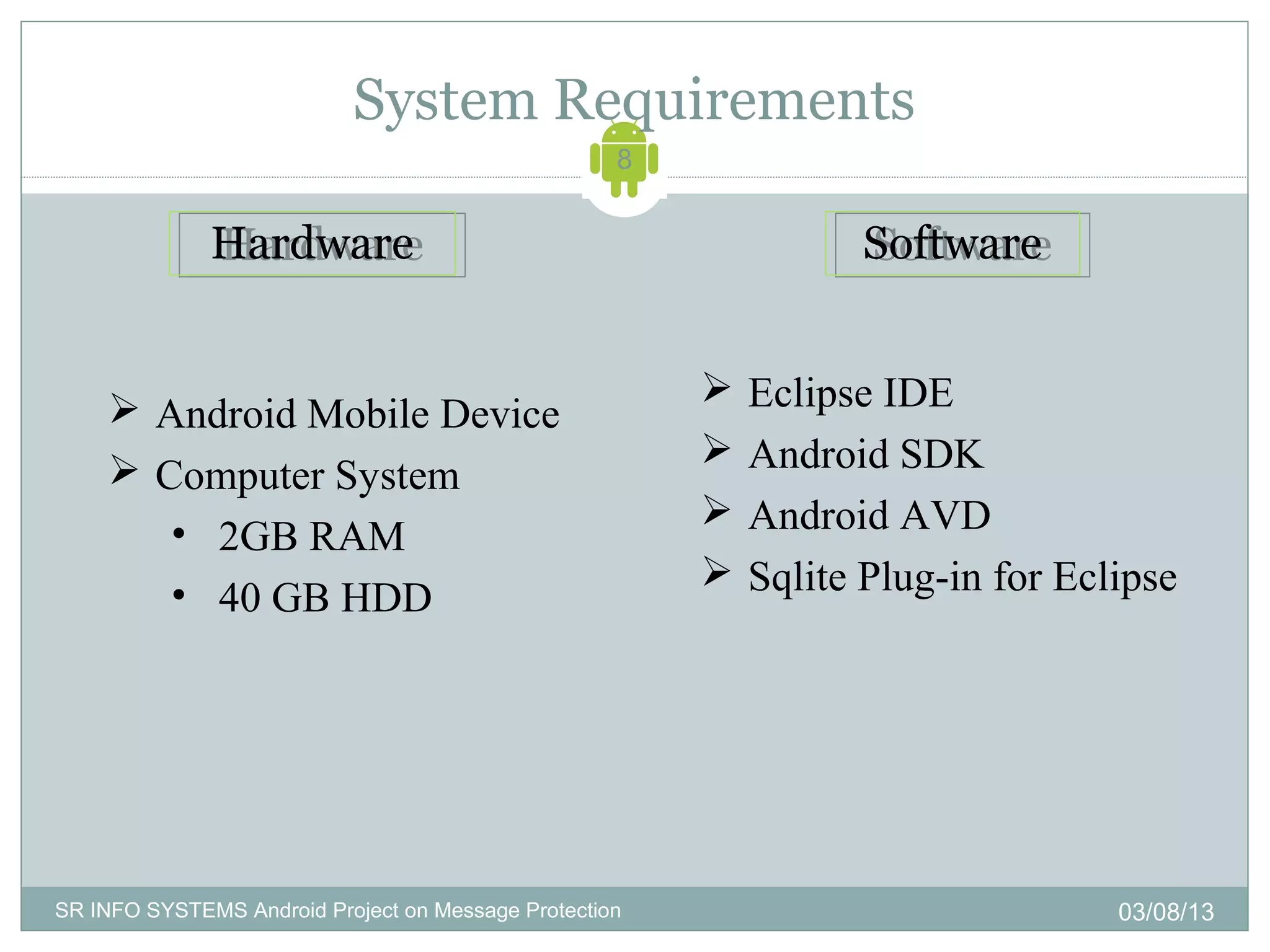

System Requirements
                                                    8


              Hardware
              Hardware                                            Software
                                                                  Software


                                                           Eclipse IDE
     Android Mobile Device
                                                           Android SDK
     Computer System
                                                           Android AVD
       • 2GB RAM
                                                           Sqlite Plug-in for Eclipse
       • 40 GB HDD




SR INFO SYSTEMS Android Project on Message Protection                             03/08/13

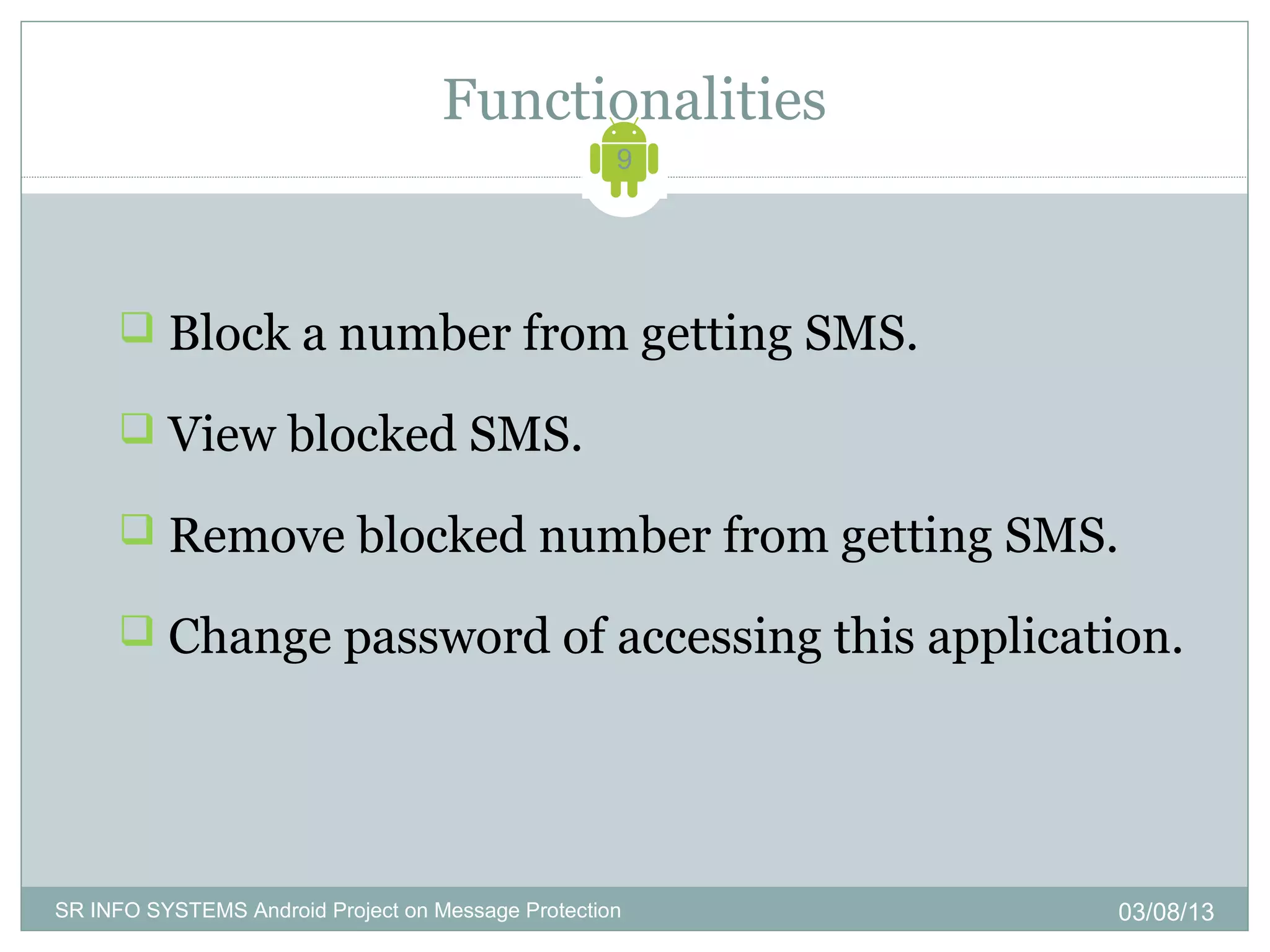

Functionalities
                                                    9




      Block a number from getting SMS.

      View blocked SMS.

      Remove blocked number from getting SMS.

      Change password of accessing this application.




SR INFO SYSTEMS Android Project on Message Protection   03/08/13

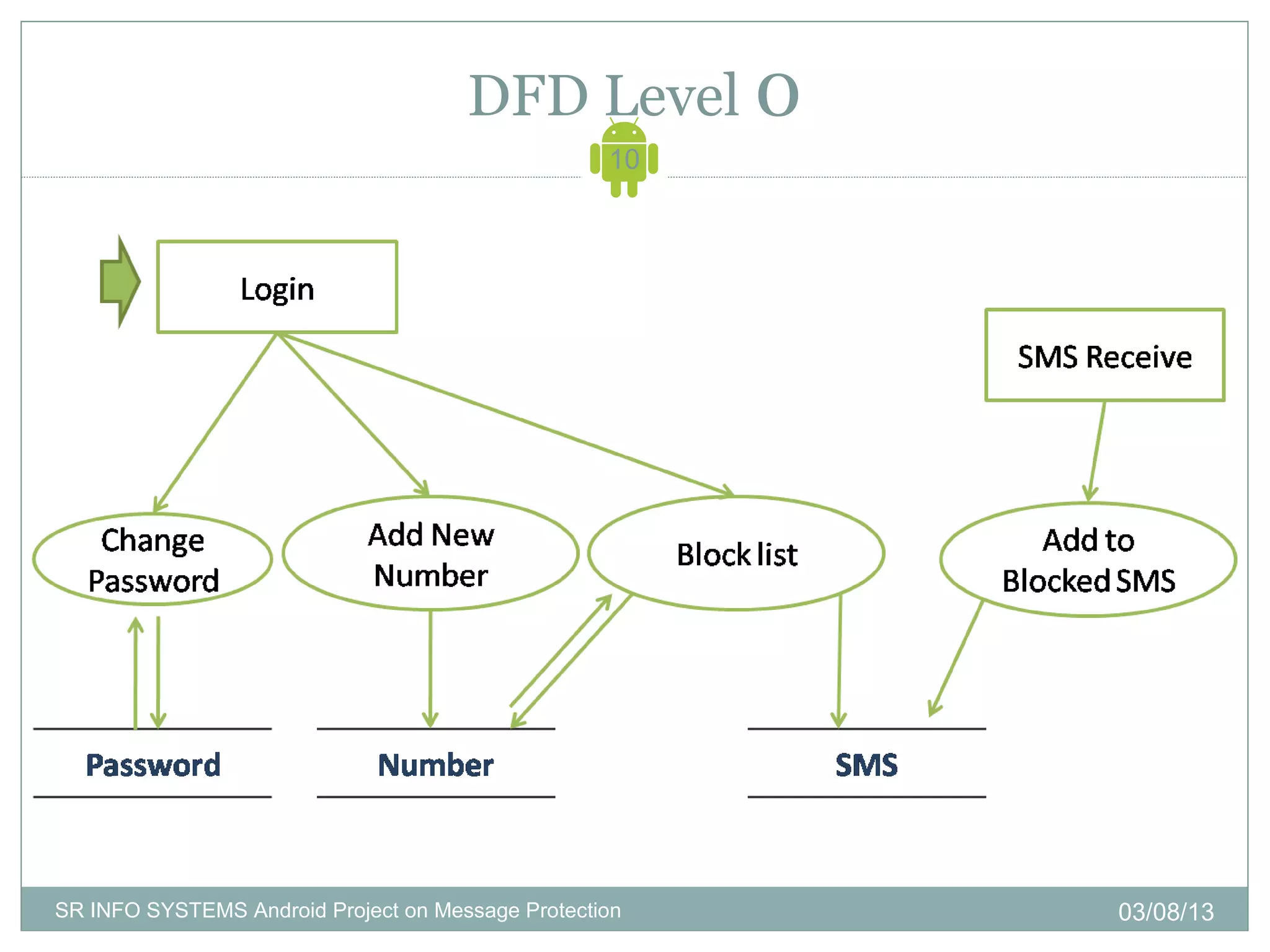

DFD Level 0
                                                   10




SR INFO SYSTEMS Android Project on Message Protection   03/08/13

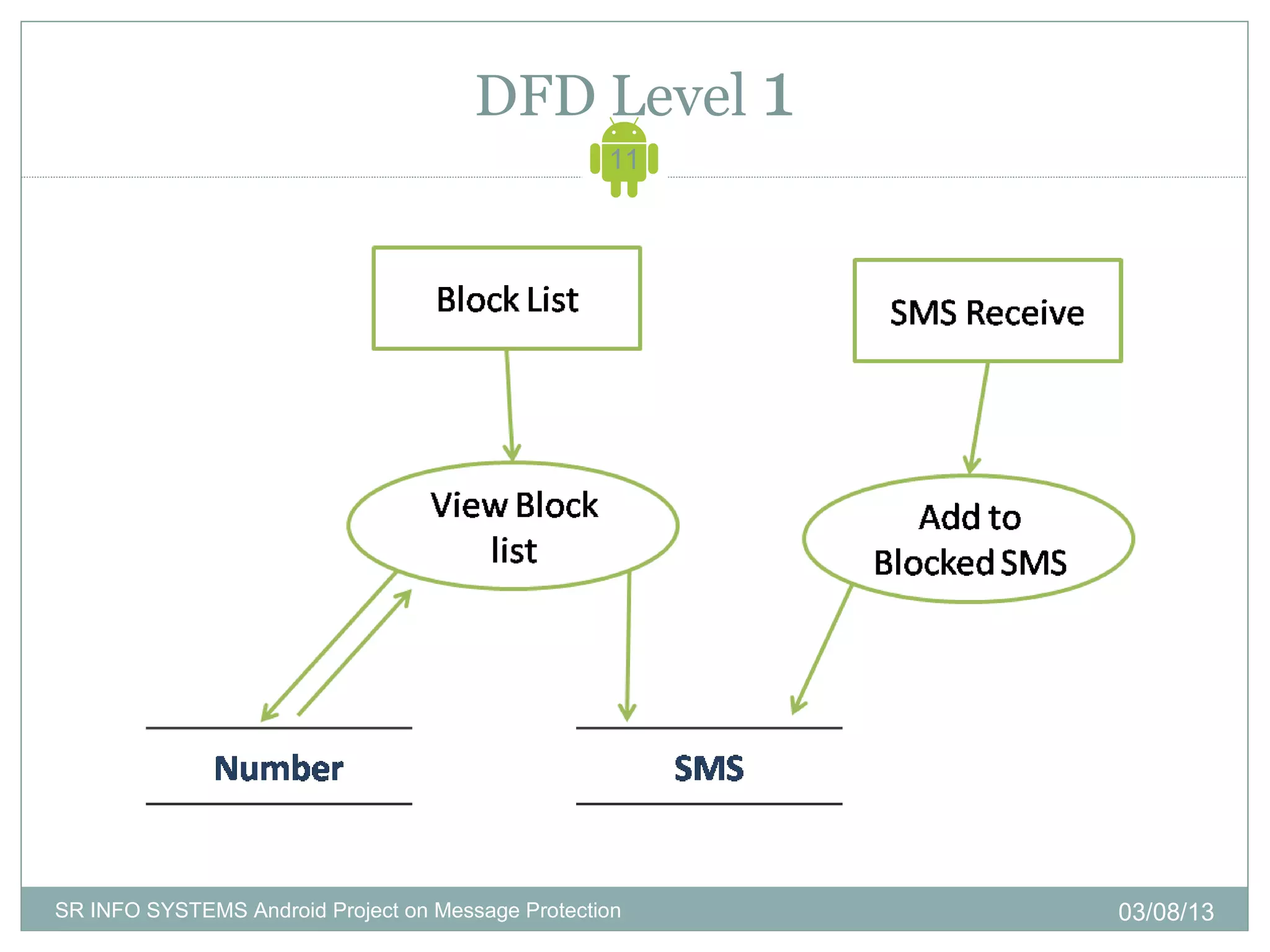

DFD Level 1
                                                   11




SR INFO SYSTEMS Android Project on Message Protection   03/08/13
E R Diagram
                                                   12




SR INFO SYSTEMS Android Project on Message Protection   03/08/13

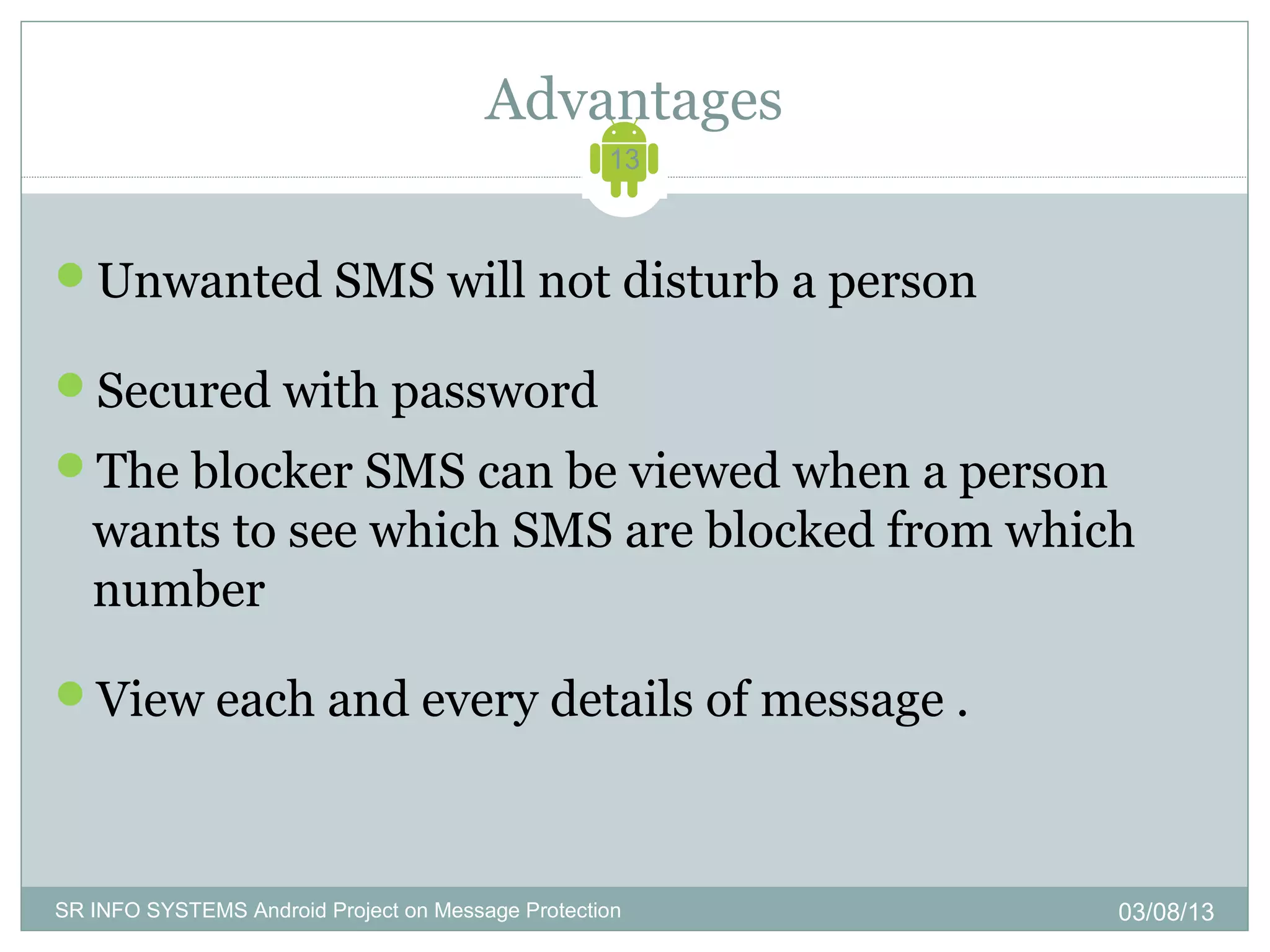

Advantages
                                                   13



Unwanted SMS will not disturb a person

Secured with password
The blocker SMS can be viewed when a person
   wants to see which SMS are blocked from which
   number

View each and every details of message .



SR INFO SYSTEMS Android Project on Message Protection   03/08/13

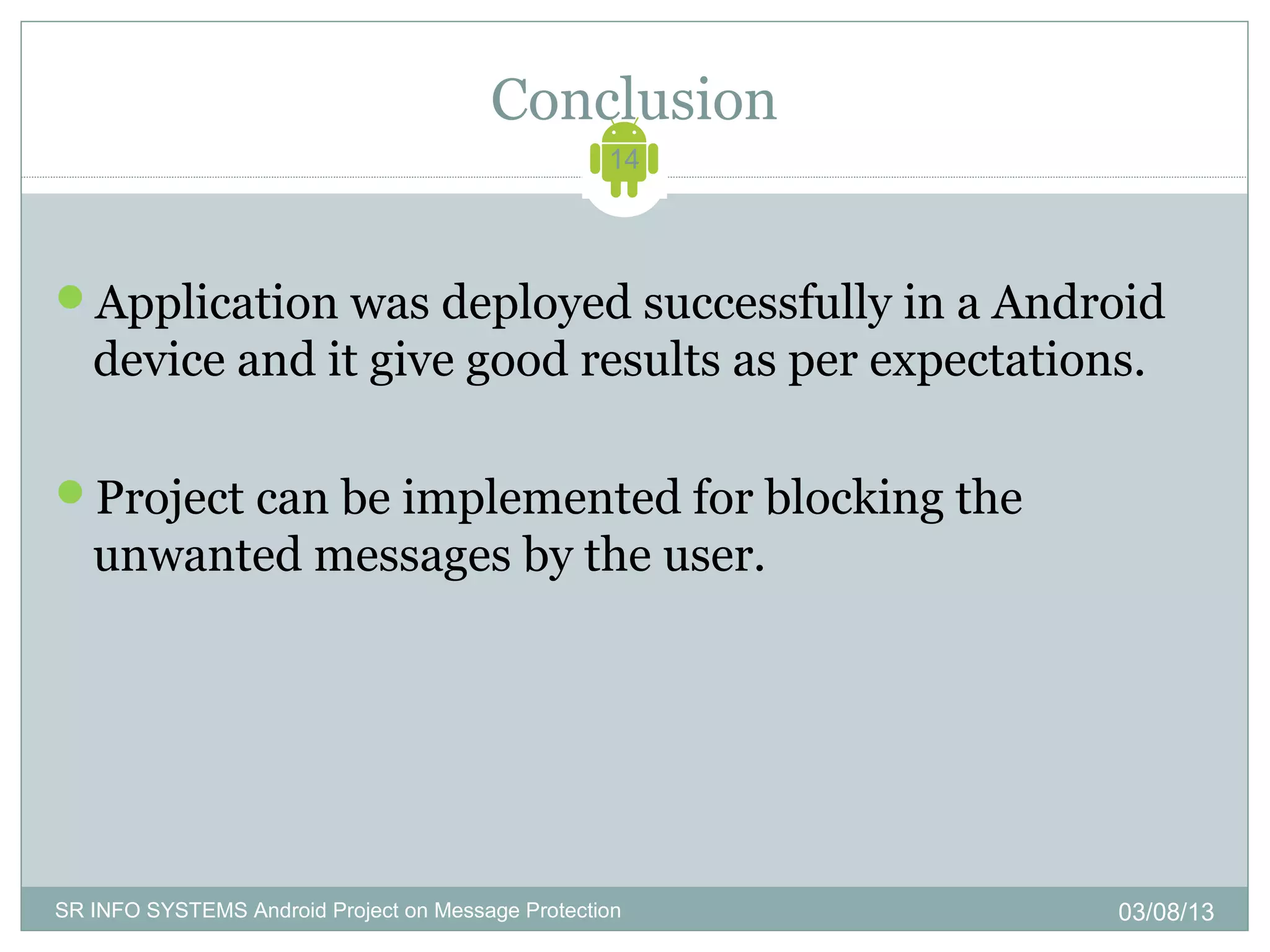

Conclusion
                                                   14




Application was deployed successfully in a Android
   device and it give good results as per expectations.

Project can be implemented for blocking the
   unwanted messages by the user.




SR INFO SYSTEMS Android Project on Message Protection   03/08/13
References
                                                   15


http://developer.android.com
http://code.google.com/android
http://anddev.org




SR INFO SYSTEMS Android Project on Message Protection   03/08/13
16




SR INFO SYSTEMS Android Project on Message Protection   03/08/13
