This document discusses various concepts related to big data and distributed systems. It begins by defining big data and providing examples of the scale of data sizes. It then covers topics like structured vs unstructured data, database models, partitioning, replication, consistency models, and tradeoffs between consistency, availability and partition tolerance.

1. 1
That is the question

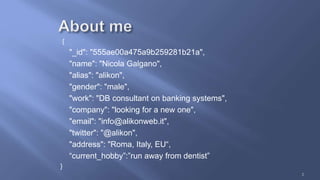

2. {
"_id": "555ae00a475a9b259281b21a",
"name": "Nicola Galgano",
"alias": "alikon",
"gender": "male",
"work": "DB consultant on banking systems",
"company": "looking for a new one",
"email": "info@alikonweb.it",
"twitter": "@alikon",
"address": "Roma, Italy, EU“,
“current_hobby”:”run away from dentist”
}
2

3. Henri Poincaré
3
Ipse dixit

4. 4

5. What is Big
Data ?
Big data is an all-
encompassing term for
any collection of data
sets so large or
complex that it
becomes difficult to
process them using
traditional data
processing applications.
From wikipedia
5

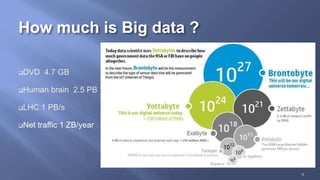

6. How much is Big data ?
DVD 4.7 GB
Human brain 2.5 PB
LHC 1 PB/s
Net traffic 1 ZB/year
6

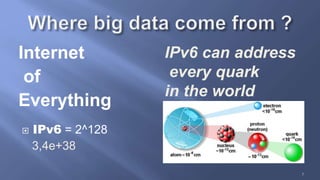

7. Internet
of
Everything
 IPv6 = 2^128
3,4e+38
7
IPv6 can address
every quark
in the world

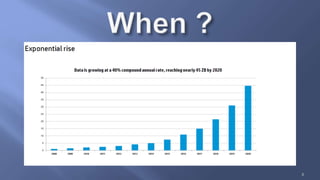

8. 8

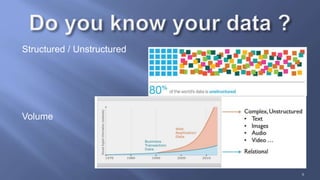

9. Structured / Unstructured
Volume
9

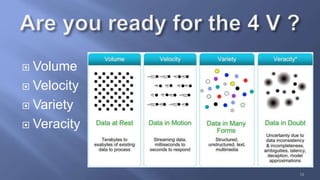

10.  Volume
 Velocity
 Variety
 Veracity
10

11. Availability
Downtime/year Downtime/month Downtime/week
90 % (1 nine)
36.5 days 72 hours
16.8 hours
99 % (2 nines)
3.65 days 7.20 hours 1.68 hours
99,9 % (3 nines)
8.76 hours 43.8 minutes 10.1 minutes
99,99 % (4 nines)
52.56 minutes 4.38 minutes 1.01 minutes
99,999% (5 nines)
5.26 minutes 25.9 seconds 6.05 seconds
11

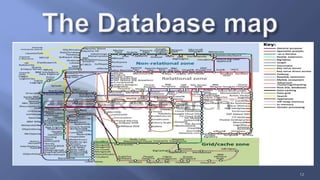

12. 12

13. Next Generation Databases mostly addressing some of the points:
 non-relational
 distributed
 horizontal scalable
 open-source
From www.nosql-database.org
13

14.  Key / value
 Column
 Document
 Graph
14

15. A data model is a rapresentation that we use to perceive and manipulate data
15
•Logic model
•Normalization
• 1NF,2NF,3NF,..
• E-R
• Schema (rigid)
• Algebra of sets
•Impedance mismatch

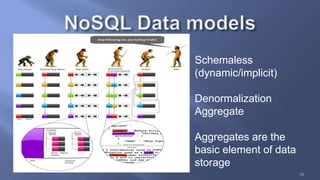

16. 16
Schemaless
(dynamic/implicit)
Denormalization
Aggregate
Aggregates are the
basic element of data
storage

17. 17
Simple data model
Blob/Opaque
Only 3 API function
• Get(key)
• Set(key, value)
• Delete(key)
Key and value can be complex

18. More trasparent
18
JSON
(JavaScript Object Notation)
A lightweight data
interchange format
Easy for humans
and machines to
read and write

19. Column
Sparse semi structured,
sorted map.
Flexible number of columns
Column key can be grouped to
family
19
How is stored

20.  Graph theory model G = ( V, E )
 Store, map and query relationships
20
•Node connected by edges
•Complex relationships
•Recommend products
•ACID
Queries = graph traversal

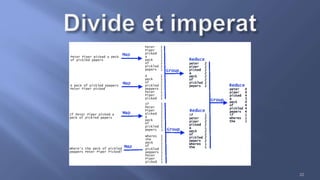

21. The map job
takes a set of data and converts it
into another set of data, where
individual elements are broken down
into tuples (key/value pairs)
The reduce job
takes the output from a map as input
and combines those data tuples into
a smaller set of tuples
21
refers to 2 separate and distinct tasks
Tasks runs in parallel

22. 22

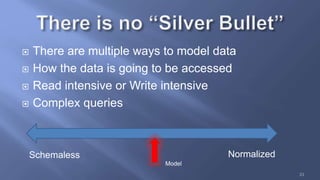

23.  There are multiple ways to model data
 How the data is going to be accessed
 Read intensive or Write intensive
 Complex queries
23
Schemaless Normalized
Model

24. Vertical (up)
Add more power (ram/cpu/disk)
Horizontal (out)
Add more commodity systems
24

25.  1. The network is reliable.
 2. Latency is zero.
 3. Bandwidth is infinite.
 4. The network is secure.
 5. Topology doesn't change.
 6. There is one administrator.
 7. Transport cost is zero.
 8. The network is homogeneous.
25

26.  Split up data into multiple chunks
 Store each chunk in a separate data node
 Partitioning strategy “The shard key“
 Multishard ops (Join/aggregate)
 Load balancing
26

27.  Master / Slave
 Multi / Master
 Synchonous
 Asynchonous
 Provide redundancy
 Increase availability
 Failover (automatic)
27

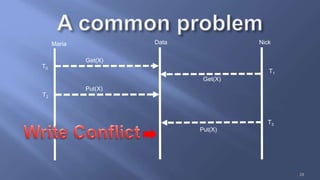

28. 28
Maria NickData
Get(X)
T0
Get(X)
T1
T2
Put(X)
Put(X)
T3

29. Transaction
 A sequence of operations that form a single unit of work
 Transaction have 4 properties
 Atomic
 Consistent
 Isolated
 Durable
29

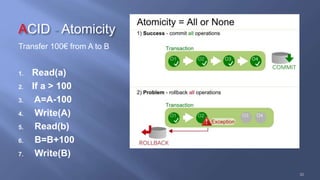

30. ACID - Atomicity
Transfer 100€ from A to B
1. Read(a)
2. If a > 100
3. A=A-100
4. Write(A)
5. Read(b)
6. B=B+100
7. Write(B)
30

31. ACID - Consistency
Transfer 100€ from A to B
1. Read(a)
2. If A > 100
3. A=A-100
4. Write(A)
5. Read(B)
6. B=B+100
7. Write(B)
31

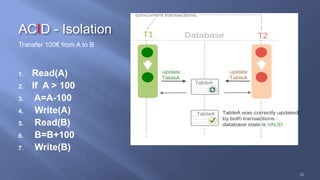

32. ACID - Isolation
Transfer 100€ from A to B
1. Read(A)
2. If A > 100
3. A=A-100
4. Write(A)
5. Read(B)
6. B=B+100
7. Write(B)
32

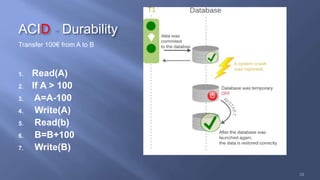

33. ACID - Durability
Transfer 100€ from A to B
1. Read(A)
2. If A > 100
3. A=A-100
4. Write(A)
5. Read(b)
6. B=B+100
7. Write(B)
33

34. Basically Available:
 There will be a response to any request.
 Fast response even if some replicas are slow or crashed
Soft State:
 The state of the system could change over time
 It’s user application task to guarantee consistency
Eventual consistent:
 The system will eventually become consistent once it stops
receiving input.
 The data will propagate to everywhere
34

35.  Nick finds a cool photo and shares with Maria by posting
on her Facebook wall
 Nick asks Maria to check it out
 Maria logs in her account, checks her Facebook wall but:
- Nothing is there! (x apart)
 Nick tells Maria to wait a bit and check out later
 Maria waits for a minute or so and checks back:
- She finds the photo Nick shared with her!
35

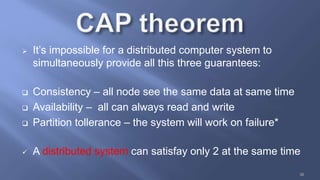

36.  It’s impossible for a distributed computer system to
simultaneously provide all this three guarantees:
 Consistency – all node see the same data at same time
 Availability – all can always read and write
 Partition tollerance – the system will work on failure*
 A distributed system can satisfay only 2 at the same time
36

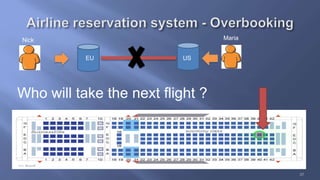

37. 37
Nick Maria
Who will take the next flight ?
EU US

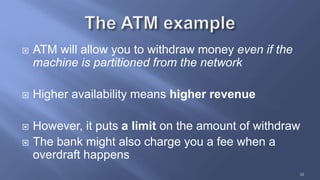

38. 38
 ATM will allow you to withdraw money even if the
machine is partitioned from the network
 Higher availability means higher revenue
 However, it puts a limit on the amount of withdraw
 The bank might also charge you a fee when a
overdraft happens

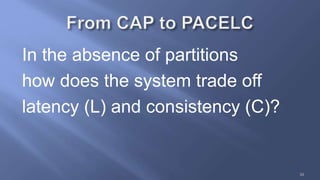

39. In the absence of partitions
how does the system trade off
latency (L) and consistency (C)?
39

40. 40

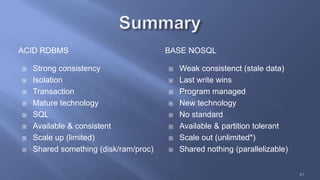

41. ACID RDBMS BASE NOSQL
 Strong consistency
 Isolation
 Transaction
 Mature technology
 SQL
 Available & consistent
 Scale up (limited)
 Shared something (disk/ram/proc)
 Weak consistenct (stale data)
 Last write wins
 Program managed
 New technology
 No standard
 Available & partition tolerant
 Scale out (unlimited*)
 Shared nothing (parallelizable)
41
