The document discusses aspect-oriented programming (AOP) and key AOP concepts like joinpoints, pointcuts, advice, and aspects. It explains how AOP addresses cross-cutting concerns in code through separation of concerns using pointcuts, advice, and aspects rather than scattering code throughout a system. The document also provides examples of how to configure AOP using Spring AOP through pointcuts, advice definitions, and proxies.

1. Adlux Consultancy Services Pvt Ltd

2. AGENDA Introduction To AOP AOP Concepts Aspect Joinpoint Advice Pointcuts Target Object Weaving Adlux Consultancy Services Pvt Ltd

3. What Is AOP Aspect-oriented programming, or AOP, is a programming technique that allows programmers to modularize crosscutting concerns It is often defined as a programming technique that promotes separation of crosscutting concerns with in a software system. concerns : A concern is a particular issue, concept, or area of interest for an application: typically, a goal the application must meet. Adlux Consultancy Services Pvt Ltd

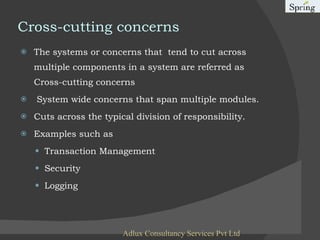

4. Cross-cutting concerns The systems or concerns that tend to cut across multiple components in a system are referred as Cross-cutting concerns System wide concerns that span multiple modules. Cuts across the typical division of responsibility. Examples such as Transaction Management Security Logging Adlux Consultancy Services Pvt Ltd

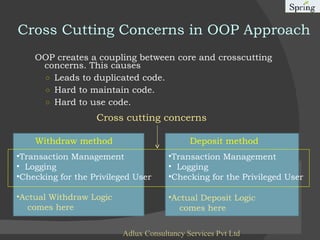

5. Cross Cutting Concerns in OOP Approach OOP creates a coupling between core and crosscutting concerns. This causes Leads to duplicated code. Hard to maintain code. Hard to use code. Adlux Consultancy Services Pvt Ltd Transaction Management Logging Checking for the Privileged User Actual Withdraw Logic comes here Transaction Management Logging Checking for the Privileged User Actual Deposit Logic comes here Withdraw method Deposit method Cross cutting concerns

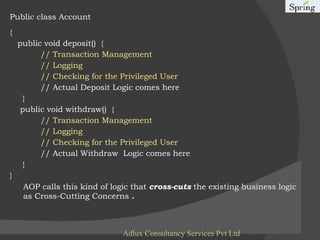

6. Public class Account { public void deposit() { // Transaction Management // Logging // Checking for the Privileged User // Actual Deposit Logic comes here } public void withdraw() { // Transaction Management // Logging // Checking for the Privileged User // Actual Withdraw Logic comes here } } AOP calls this kind of logic that cross-cuts the existing business logic as Cross-Cutting Concerns . Adlux Consultancy Services Pvt Ltd

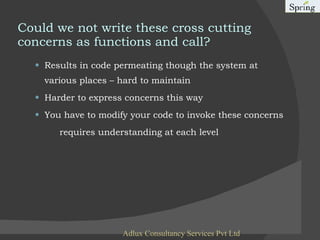

7. Results in code permeating though the system at various places – hard to maintain Harder to express concerns this way You have to modify your code to invoke these concerns requires understanding at each level Could we not write these cross cutting concerns as functions and call? Adlux Consultancy Services Pvt Ltd

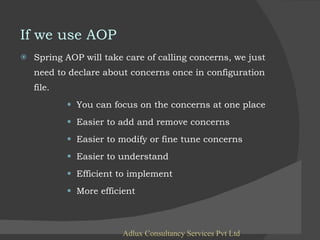

8. If we use AOP Spring AOP will take care of calling concerns, we just need to declare about concerns once in configuration file. You can focus on the concerns at one place Easier to add and remove concerns Easier to modify or fine tune concerns Easier to understand Efficient to implement More efficient Adlux Consultancy Services Pvt Ltd

9. AOP Terminology Joinpoint A point during the execution of a program, such as the execution of a method or the handling of an exception. We can insert additional logic at Joinpoint's. In Spring AOP, a join point always represents a method execution. Advice Action taken at a particular joinpoint is called Advice. PointCut A declarative condition that identifies for which joinpoint, the advices should fire. Aspect: An aspect is a modularization of a crosscutting concern; the gathering together of code that might otherwise have been scattered. It is termed as the combination of the point-cut and the advice . Adlux Consultancy Services Pvt Ltd

10. AOP vs OOP Adlux Consultancy Services Pvt Ltd Object Oriented Aspect Oriented Class – code unit that encapsulates methods and attributes. Aspect – code unit that encapsulates pointcuts, advice, and attributes. Method signatures – define the entry points for the execution of method bodies. Pointcut – define the set of entry points (triggers) in which advice is executed. Method bodies – implementations of the primary concerns. Advice – implementations of the cross cutting concerns. Compiler – converts source code into object code. Weaver – instruments code (source or object) with advice.

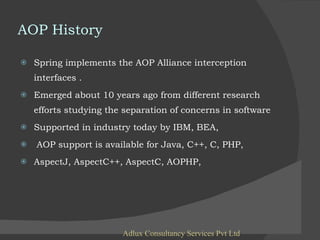

11. AOP History Spring implements the AOP Alliance interception interfaces . Emerged about 10 years ago from different research efforts studying the separation of concerns in software Supported in industry today by IBM, BEA, AOP support is available for Java, C++, C, PHP, AspectJ, AspectC++, AspectC, AOPHP, Adlux Consultancy Services Pvt Ltd

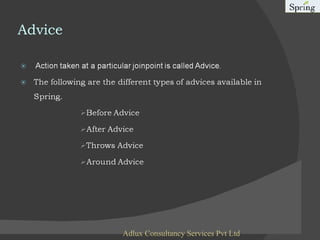

12. Advice Adlux Consultancy Services Pvt Ltd

13. Advice Adlux Consultancy Services Pvt Ltd

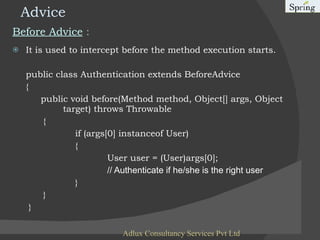

14. Advice Before Advice : It is used to intercept before the method execution starts. public class Authentication extends BeforeAdvice { public void before(Method method, Object[] args, Object target) throws Throwable { if (args[0] instanceof User) { User user = (User)args[0]; // Authenticate if he/she is the right user } } } Adlux Consultancy Services Pvt Ltd

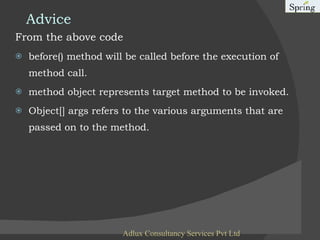

15. Advice From the above code before() method will be called before the execution of method call. method object represents target method to be invoked. Object[] args refers to the various arguments that are passed on to the method. Adlux Consultancy Services Pvt Ltd

16. Advice After Advice It will be useful if some logic has to be executed before Returning the Control within a method execution. public class CleanUpOperation implements AfterReturningAdvice { public void afterReturning(Object returnValue, Method method, Object[] args, Object target) throws Throwable { // Clean up session and user information. } } Adlux Consultancy Services Pvt Ltd

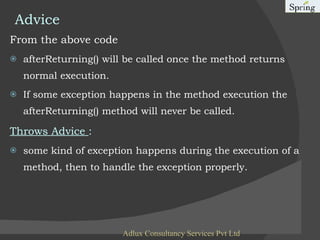

17. Advice From the above code afterReturning() will be called once the method returns normal execution. If some exception happens in the method execution the afterReturning() method will never be called. Throws Advice : some kind of exception happens during the execution of a method, then to handle the exception properly. Adlux Consultancy Services Pvt Ltd

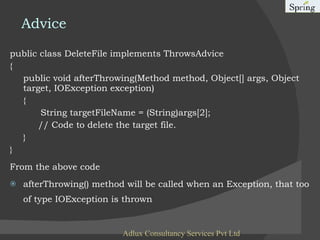

18. Advice public class DeleteFile implements ThrowsAdvice { public void afterThrowing(Method method, Object[] args, Object target, IOException exception) { String targetFileName = (String)args[2]; // Code to delete the target file. } } From the above code afterThrowing() method will be called when an Exception, that too of type IOException is thrown Adlux Consultancy Services Pvt Ltd

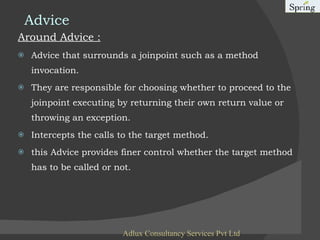

19. Advice Around Advice : Advice that surrounds a joinpoint such as a method invocation. They are responsible for choosing whether to proceed to the joinpoint executing by returning their own return value or throwing an exception. Intercepts the calls to the target method. this Advice provides finer control whether the target method has to be called or not. Adlux Consultancy Services Pvt Ltd

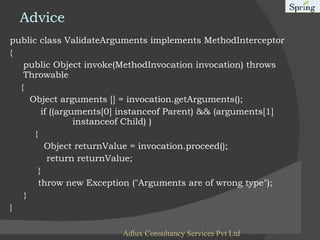

20. Advice public class ValidateArguments implements MethodInterceptor { public Object invoke(MethodInvocation invocation) throws Throwable { Object arguments [] = invocation.getArguments(); if ((arguments[0] instanceof Parent) && (arguments[1] instanceof Child) ) { Object returnValue = invocation.proceed(); return returnValue; } throw new Exception ("Arguments are of wrong type"); } } Adlux Consultancy Services Pvt Ltd

21. Advice From the above code It is important to make a call to MethodInvocation.proceed(), if we are happy with the arguments validation, else the target method will never gets invoked. Adlux Consultancy Services Pvt Ltd

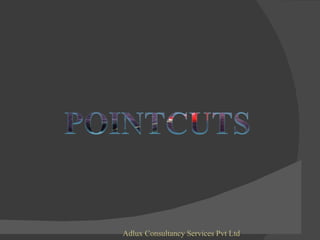

22. Adlux Consultancy Services Pvt Ltd

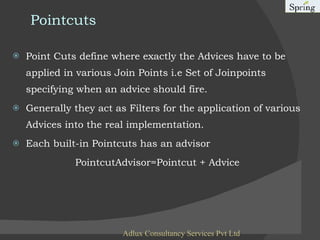

23. Pointcuts Point Cuts define where exactly the Advices have to be applied in various Join Points i.e Set of Joinpoints specifying when an advice should fire. Generally they act as Filters for the application of various Advices into the real implementation. Each built-in Pointcuts has an advisor PointcutAdvisor=Pointcut + Advice Adlux Consultancy Services Pvt Ltd

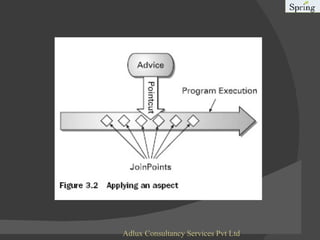

24. Adlux Consultancy Services Pvt Ltd

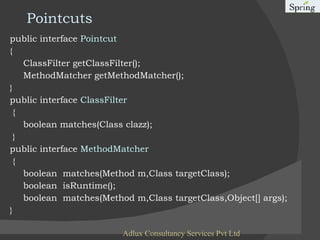

25. Pointcuts public interface Pointcut { ClassFilter getClassFilter(); MethodMatcher getMethodMatcher(); } public interface ClassFilter { boolean matches(Class clazz); } public interface MethodMatcher { boolean matches(Method m,Class targetClass); boolean isRuntime(); boolean matches(Method m,Class targetClass,Object[] args); } Adlux Consultancy Services Pvt Ltd

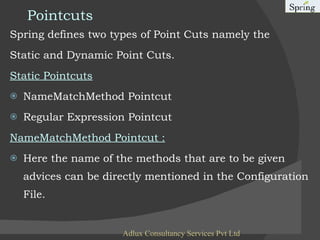

26. Pointcuts Spring defines two types of Point Cuts namely the Static and Dynamic Point Cuts. Static Pointcuts NameMatchMethod Pointcut Regular Expression Pointcut NameMatchMethod Pointcut : Here the name of the methods that are to be given advices can be directly mentioned in the Configuration File. Adlux Consultancy Services Pvt Ltd

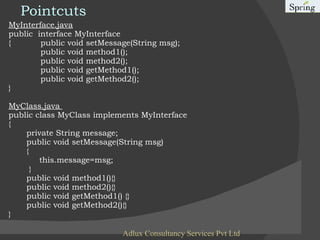

27. Pointcuts MyInterface.java public interface MyInterface { public void setMessage(String msg); public void method1(); public void method2(); public void getMethod1(); public void getMethod2(); } MyClass.java public class MyClass implements MyInterface { private String message; public void setMessage(String msg) { this.message=msg; } public void method1(){} public void method2(){} public void getMethod1() {} public void getMethod2(){} } Adlux Consultancy Services Pvt Ltd

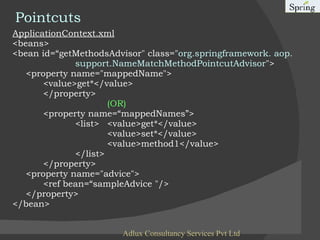

28. Pointcuts ApplicationContext.xml <beans> <bean id=“getMethodsAdvisor&quot; class=&quot; org.springframework. aop. support.NameMatchMethodPointcutAdvisor &quot;> <property name=&quot;mappedName&quot;> <value>get*</value> </property> (OR) <property name=“mappedNames”> <list> <value>get*</value> <value>set*</value> <value>method1</value> </list> </property> <property name=&quot;advice&quot;> <ref bean=“sampleAdvice &quot;/> </property> </bean> Adlux Consultancy Services Pvt Ltd

29. Pointcuts Adlux Consultancy Services Pvt Ltd <bean id=“myTargetClass&quot; class=“MyClass“/> <bean id=“sampleAdvice&quot; class=“MySampleAdvice“/> <bean id=“proxy“ class=“ org.springframework.aop.framework.ProxyFactoryBean “> <property name=&quot;proxyInterfaces“> <value>MyInterface</value> </property> <property name=&quot;target&quot;> <ref bean=“myTargetClass &quot;/> </property> <property name=&quot;interceptorNames&quot;> <value> getMethodsAdvisor </value> </property> </bean> </beans>

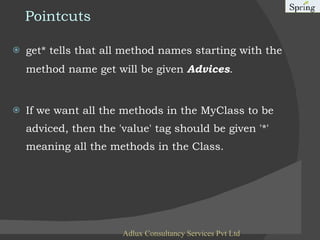

30. Pointcuts get* tells that all method names starting with the method name get will be given Advices . If we want all the methods in the MyClass to be adviced, then the 'value' tag should be given '*' meaning all the methods in the Class. Adlux Consultancy Services Pvt Ltd

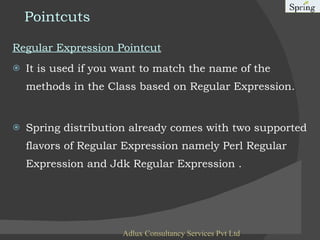

31. Pointcuts Regular Expression Pointcut It is used if you want to match the name of the methods in the Class based on Regular Expression. Spring distribution already comes with two supported flavors of Regular Expression namely Perl Regular Expression and Jdk Regular Expression . Adlux Consultancy Services Pvt Ltd

32. Pointcuts MyInterface.java public interface MyInterface { public void method1(); public void method11(); public void method2(); public void getMethod1(); public void getMethod2(); } MyClass.java public class MyClass implements MyInterface { public void method1(){} public void method11(){} public void method2(){} public void getMethod1(){} public void getMethod2(){} } Adlux Consultancy Services Pvt Ltd

33. Pointcuts ApplicationContext.xml <bean id=&quot;regExpAdvisor“ class=&quot; org.springframework.aop. support.RegexpMethodPointcutAdvisor &quot;> <property name=“advice&quot;> <ref bean=&quot;sampleAdvice&quot;/> </property> <property name=“patterns”> <list> <value>m.*1</value> <value>.*method.*</value> </list> </property> </bean> Adlux Consultancy Services Pvt Ltd

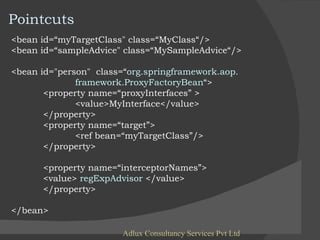

34. Adlux Consultancy Services Pvt Ltd <bean id=“myTargetClass&quot; class=“MyClass“/> <bean id=“sampleAdvice&quot; class=“MySampleAdvice“/> <bean id=&quot;person&quot; class=“ org.springframework.aop. framework.ProxyFactoryBean “> <property name=“proxyInterfaces” > <value>MyInterface</value> </property> <property name=“target”> <ref bean=“myTargetClass”/> </property> <property name=“interceptorNames”> <value> regExpAdvisor </value> </property> </bean> Pointcuts

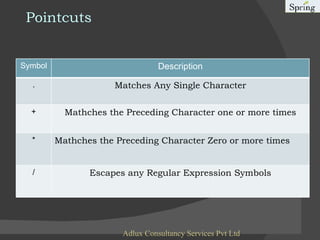

35. Pointcuts Adlux Consultancy Services Pvt Ltd Symbol Description . Matches Any Single Character + Mathches the Preceding Character one or more times * Mathches the Preceding Character Zero or more times / Escapes any Regular Expression Symbols

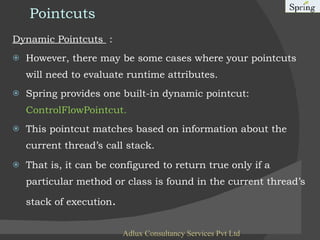

36. Pointcuts Dynamic Pointcuts : However, there may be some cases where your pointcuts will need to evaluate runtime attributes. Spring provides one built-in dynamic pointcut: ControlFlowPointcut. This pointcut matches based on information about the current thread’s call stack. That is, it can be configured to return true only if a particular method or class is found in the current thread’s stack of execution . Adlux Consultancy Services Pvt Ltd

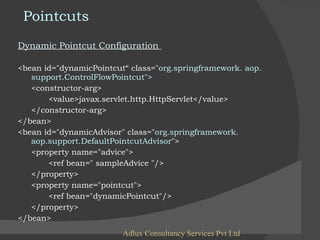

37. Pointcuts Dynamic Pointcut Configuration <bean id=&quot;dynamicPointcut“ class=&quot; org.springframework. aop. support.ControlFlowPointcut&quot;> <constructor-arg> <value>javax.servlet.http.HttpServlet</value> </constructor-arg> </bean> <bean id=&quot;dynamicAdvisor&quot; class=&quot; org.springframework. aop.support.DefaultPointcutAdvisor &quot;> <property name=&quot;advice&quot;> <ref bean=&quot; sampleAdvice &quot;/> </property> <property name=&quot;pointcut&quot;> <ref bean=&quot;dynamicPointcut&quot;/> </property> </bean> Adlux Consultancy Services Pvt Ltd

38. Adlux Consultancy Services Pvt Ltd <bean id=“myTargetClass&quot; class=“MyClass“/> <bean id=“sampleAdvice&quot; class=“MySampleAdvice“/> <bean id=&quot;person&quot; class=“ org.springframework.aop. framework.ProxyFactoryBean “> <property name=“proxyInterfaces” > <value>MyInterface</value> </property> <property name=“target”> <ref bean=“myTargetClass”/> </property> <property name=“interceptorNames”> <value> dynamicAdvisor </value> </property> </bean> Pointcuts

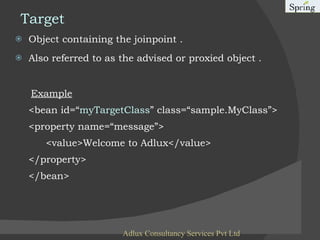

39. Target Object containing the joinpoint . Also referred to as the advised or proxied object . Example <bean id=“ myTargetClass ” class=“sample.MyClass”> <property name=“message”> <value>Welcome to Adlux</value> </property> </bean> Adlux Consultancy Services Pvt Ltd

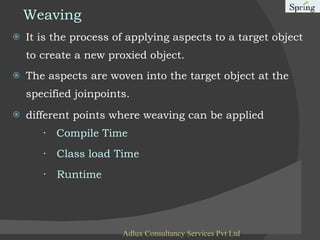

40. Weaving It is the process of applying aspects to a target object to create a new proxied object. The aspects are woven into the target object at the specified joinpoints. different points where weaving can be applied · Compile Time · Class load Time · Runtime Adlux Consultancy Services Pvt Ltd

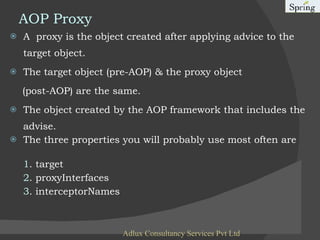

41. AOP Proxy A proxy is the object created after applying advice to the target object. The target object (pre-AOP) & the proxy object (post-AOP) are the same. The object created by the AOP framework that includes the advise. The three properties you will probably use most often are 1 . target 2 . proxyInterfaces 3 . interceptorNames Adlux Consultancy Services Pvt Ltd

42. AOP Proxy Adlux Consultancy Services Pvt Ltd Sample ProxyFactoryBean Configuration <bean id=“sampleProxy&quot; class=“org.springframework.aop. framework.ProxyFactoryBean“> <property name=&quot;proxyInterfaces“> <value> SampleInterface </value> </property> <property name=&quot;target&quot;> <ref bean=&quot; sampleTarget &quot;/> </property> <property name=&quot;interceptorNames&quot;> <value> sampleAdvice </value> </property> </bean> <bean id=“sampleTarget&quot; class=“MySampleTarget“/> <bean id=“sampleAdvice&quot; class=“MySampleAdvice“/>

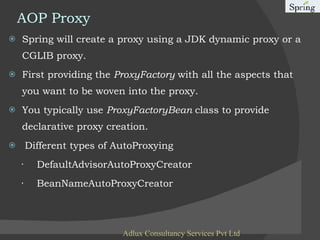

43. AOP Proxy Spring will create a proxy using a JDK dynamic proxy or a CGLIB proxy. First providing the ProxyFactory with all the aspects that you want to be woven into the proxy. You typically use ProxyFactoryBean class to provide declarative proxy creation. Different types of AutoProxying · DefaultAdvisorAutoProxyCreator · BeanNameAutoProxyCreator Adlux Consultancy Services Pvt Ltd

44. AOP Proxy BeanNameAutoProxyCreator <bean id=“beanNameAutoProxy” class=&quot;org.springframework.aop. framework.autoproxy.BeanNameAutoProxyCreator&quot;> <property name=&quot;beanNames&quot;> <list><value> *Service </value></list> </property> <property name=&quot;interceptorNames&quot;> <value> performanceThresholdInterceptor </value> </property> </bean> <bean id=“performanceThresholdInterceptor” class=“student.performanceThresholdInterceptor”/> <bean id=“studentService” class=“student.StudentService”/> <bean id=“courseService” class=“student.CourseService”/> <bean id=“sampleService” class=“sample.SampleService”/> Adlux Consultancy Services Pvt Ltd

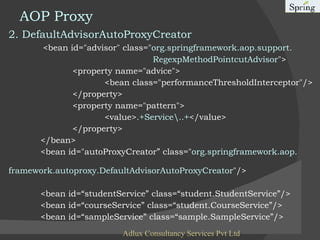

45. AOP Proxy 2. DefaultAdvisorAutoProxyCreator <bean id=&quot;advisor&quot; class=&quot; org.springframework.aop.support. RegexpMethodPointcutAdvisor &quot;> <property name=&quot;advice&quot;> <bean class=&quot;performanceThresholdInterceptor&quot;/> </property> <property name=&quot;pattern&quot;> <value> .+Service\..+ </value> </property> </bean> <bean id=&quot;autoProxyCreator” class=&quot; org.springframework.aop. framework.autoproxy.DefaultAdvisorAutoProxyCreator &quot;/> <bean id=“studentService” class=“student.StudentService”/> <bean id=“courseService” class=“student.CourseService”/> <bean id=“sampleService” class=“sample.SampleService”/> Adlux Consultancy Services Pvt Ltd

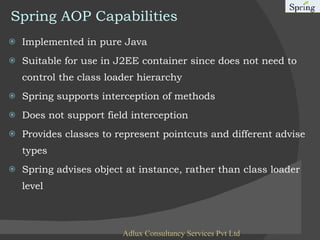

46. Spring AOP Capabilities Implemented in pure Java Suitable for use in J2EE container since does not need to control the class loader hierarchy Spring supports interception of methods Does not support field interception Provides classes to represent pointcuts and different advise types Spring advises object at instance, rather than class loader level Adlux Consultancy Services Pvt Ltd

47. Adlux Consultancy Services Pvt Ltd
