Spring AOP

Spring AOP
Presented By
SHAKIL AKHTAR

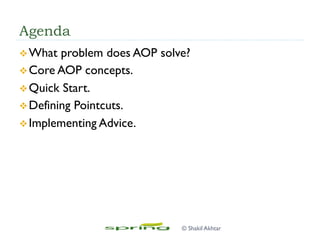

Agenda
v What problem does AOP solve?
v Core AOP concepts.
v Quick Start.
v Defining Pointcuts.
v Implementing Advice.
© Shakil Akhtar

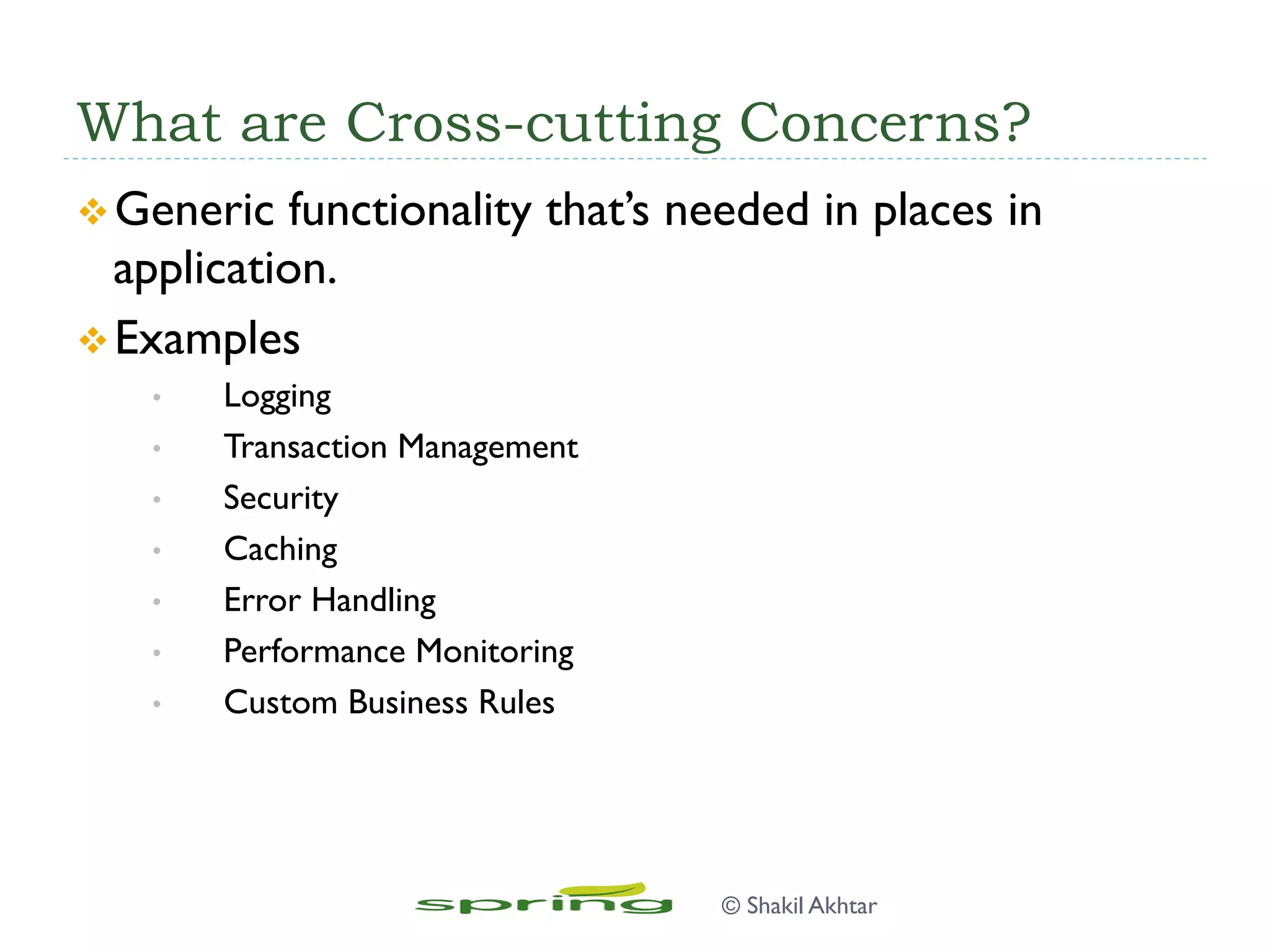

What are Cross-cutting Concerns?
v Generic functionality that’s needed in places in
application.
v Examples
•  Logging
•  Transaction Management
•  Security
•  Caching
•  Error Handling
•  Performance Monitoring
•  Custom Business Rules
© Shakil Akhtar

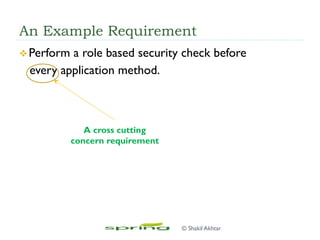

An Example Requirement
v Perform a role based security check before
every application method.
A cross cutting
concern requirement
© Shakil Akhtar

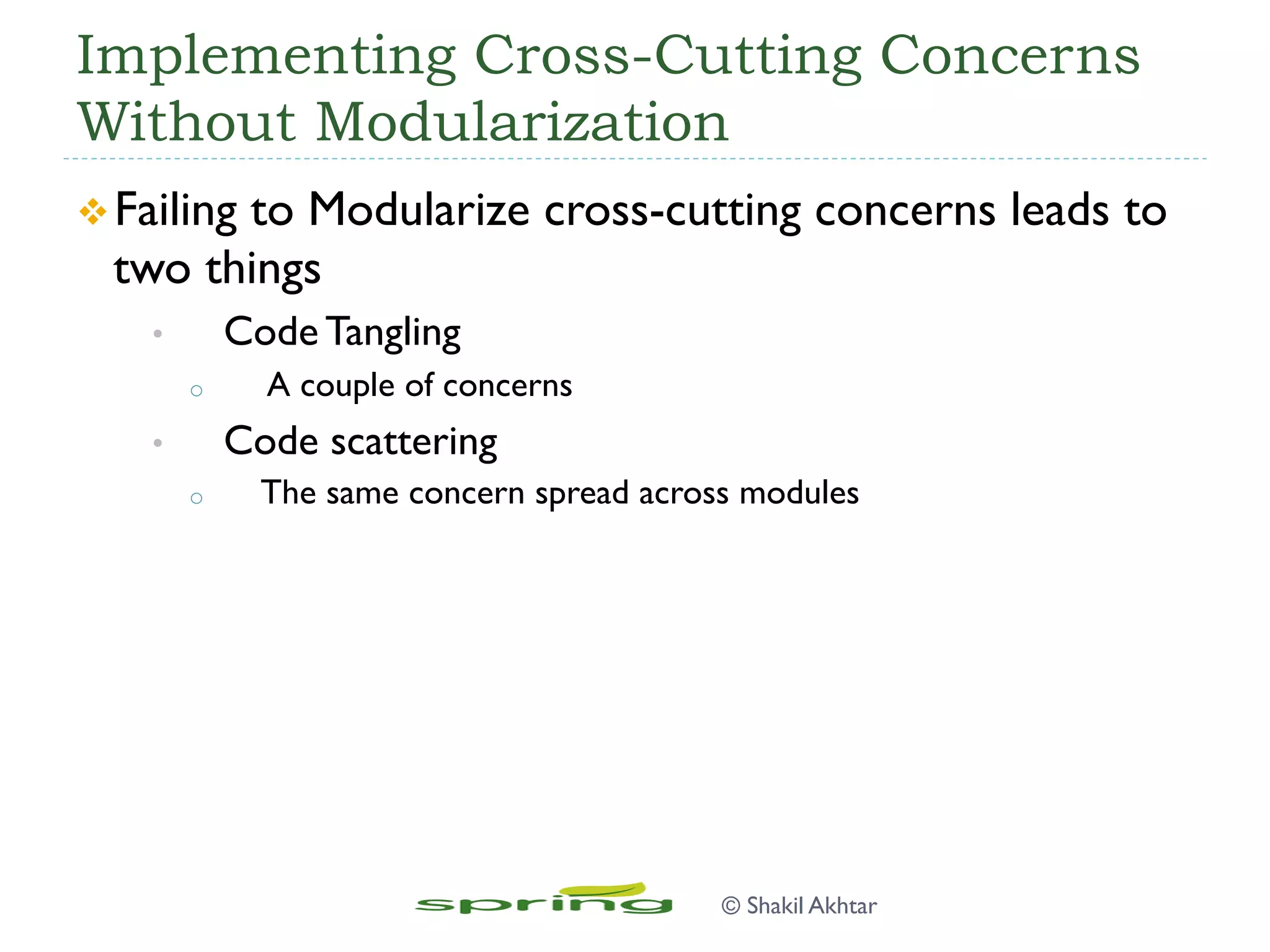

Implementing Cross-Cutting Concerns
Without Modularization
v Failing to Modularize cross-cutting concerns leads to
two things
•  Code Tangling
o  A couple of concerns
•  Code scattering
o  The same concern spread across modules
© Shakil Akhtar

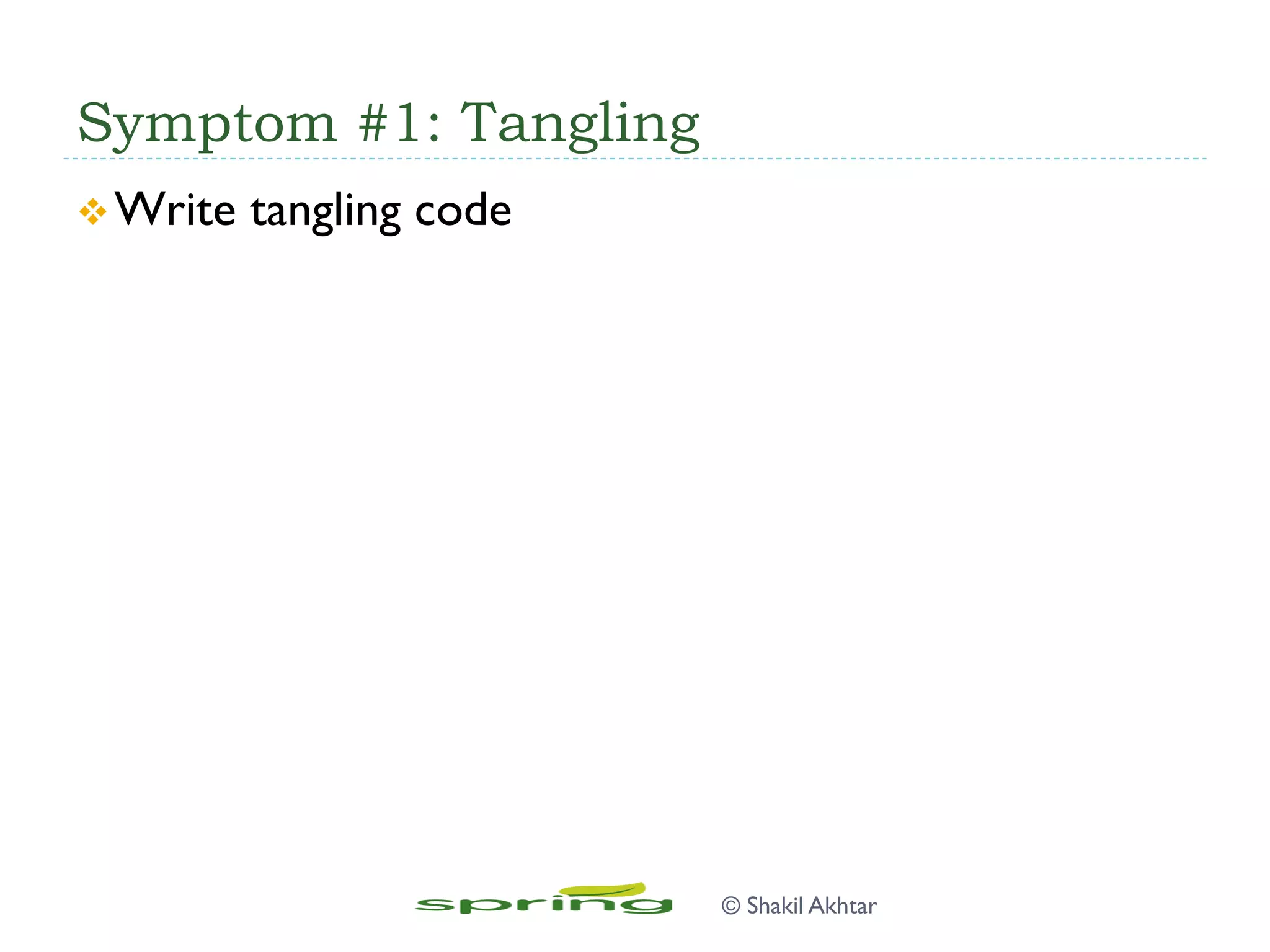

Symptom #1: Tangling
v Write tangling code
© Shakil Akhtar

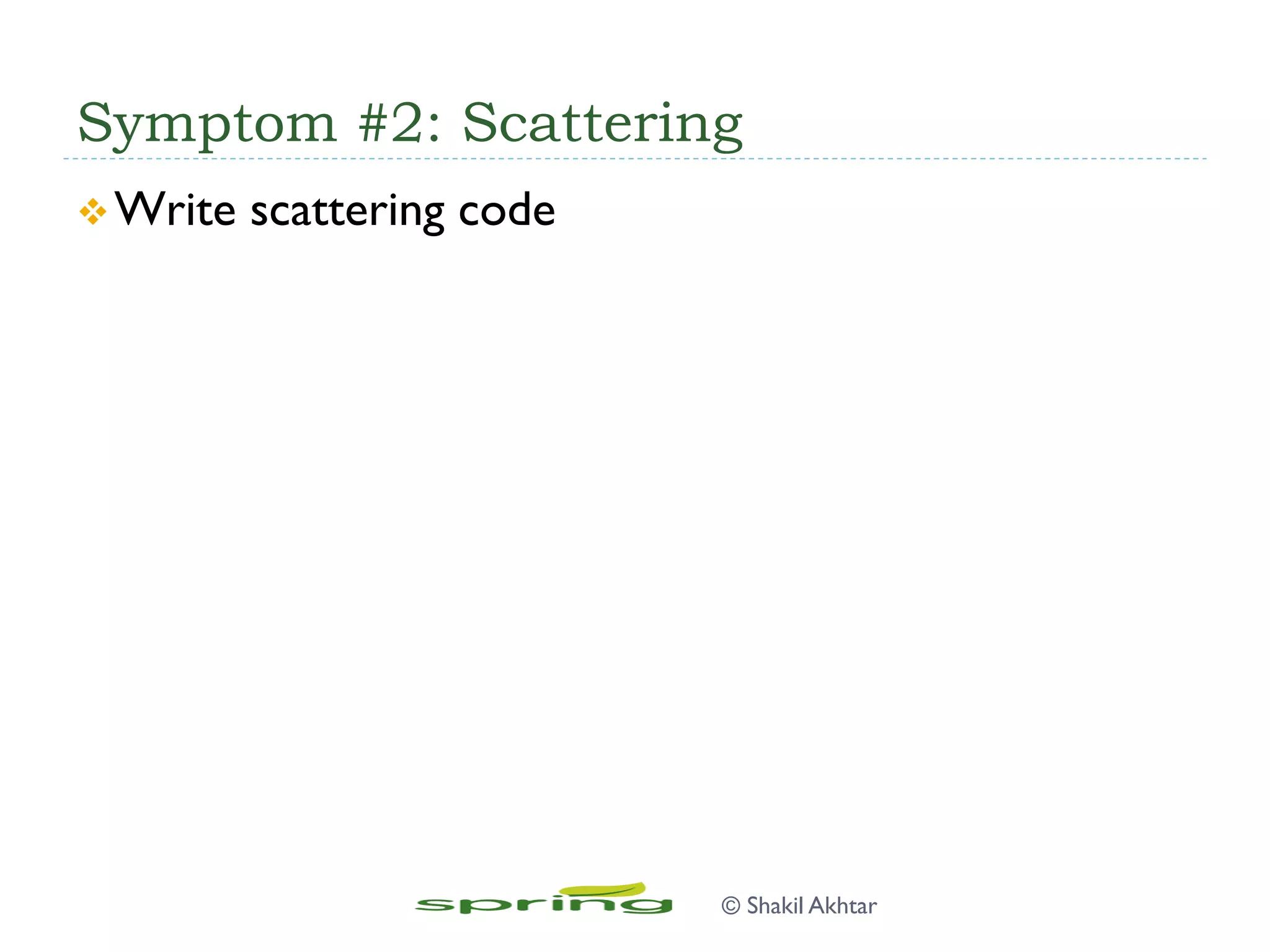

Symptom #2: Scattering
v Write scattering code
© Shakil Akhtar

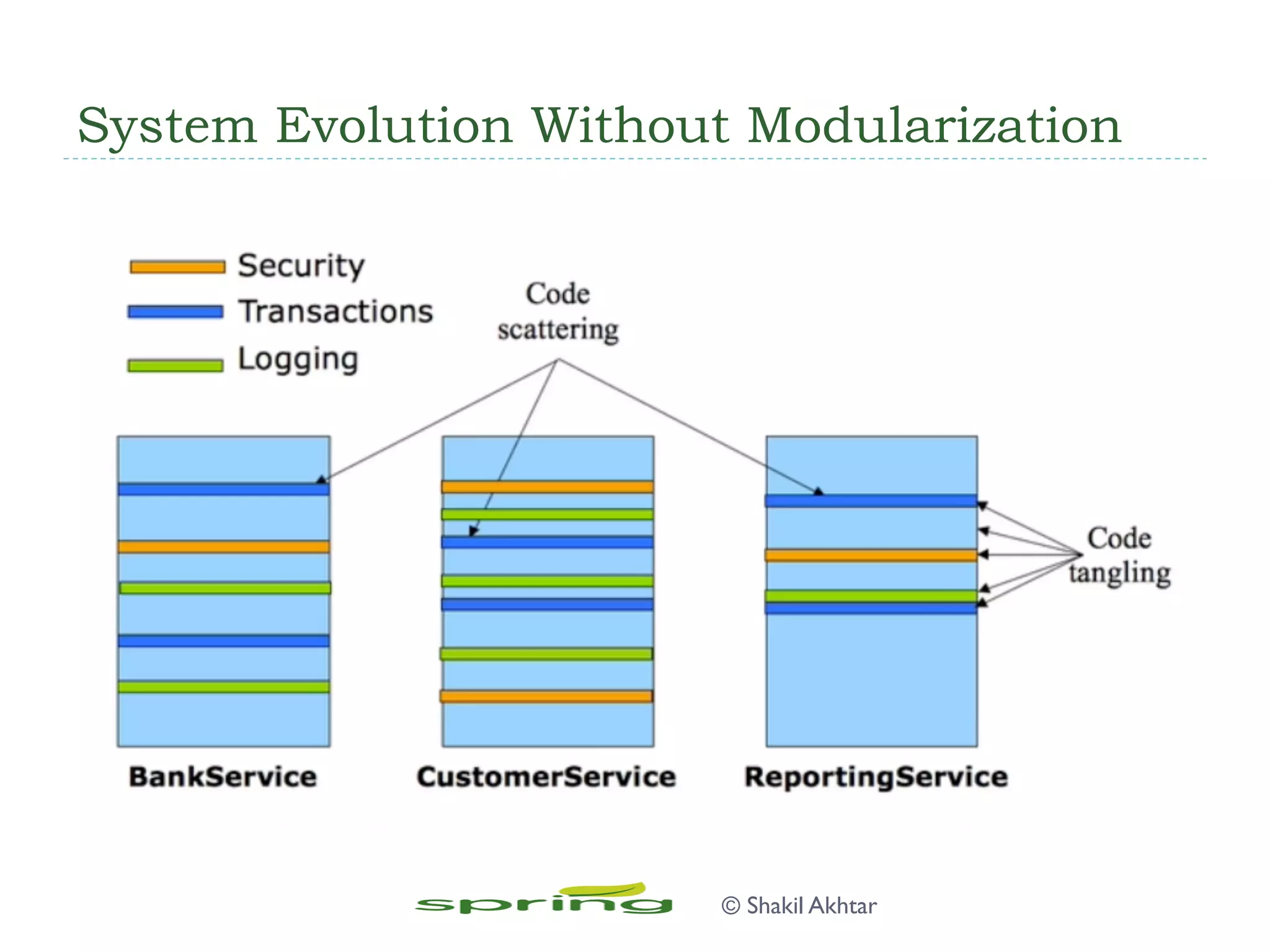

System Evolution Without Modularization
© Shakil Akhtar

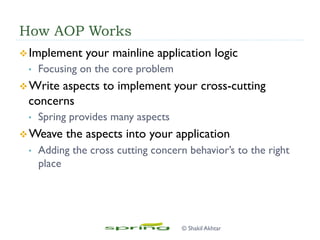

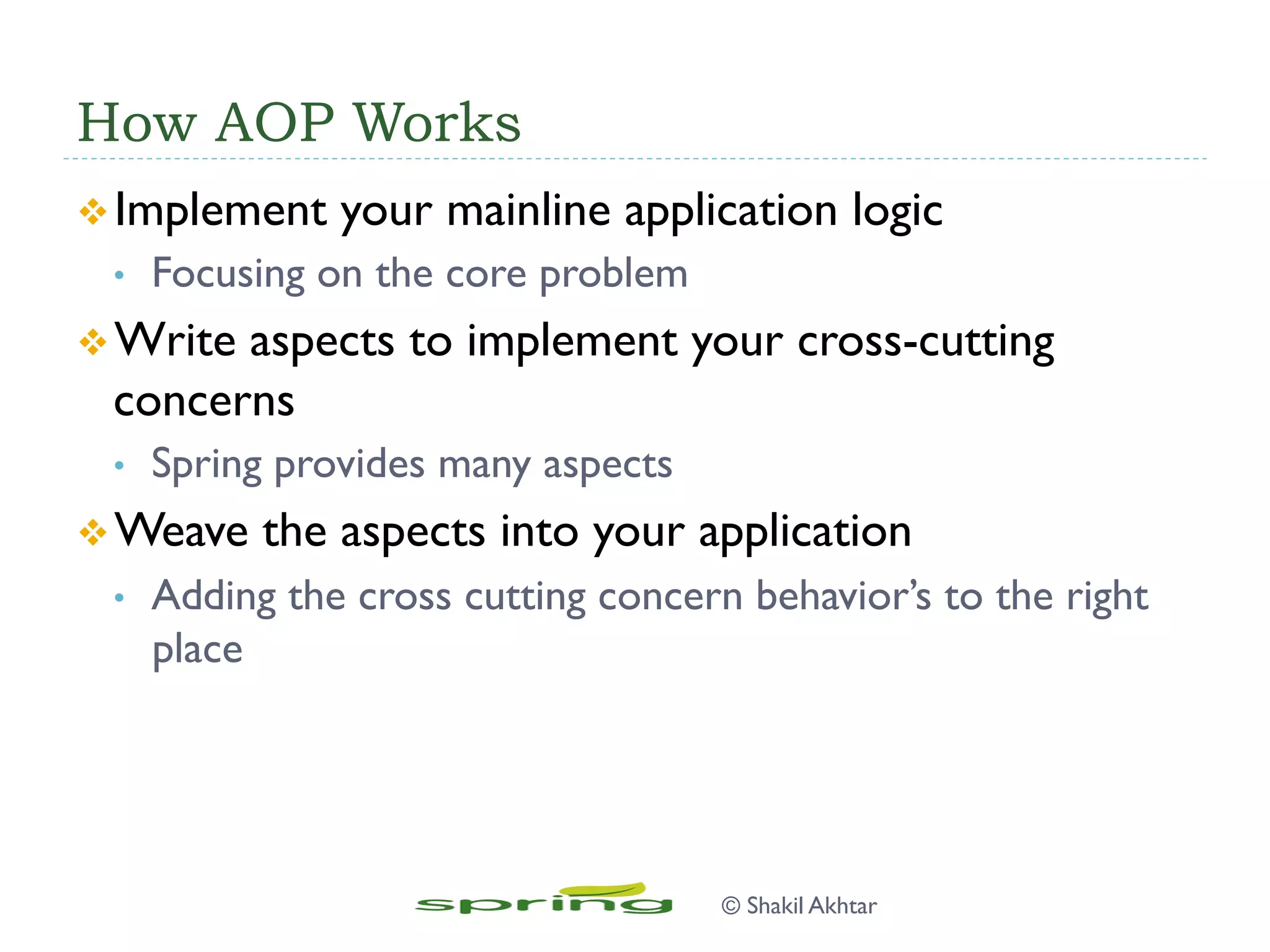

How AOP Works
v Implement your mainline application logic
•  Focusing on the core problem
v Write aspects to implement your cross-cutting
concerns
•  Spring provides many aspects
v Weave the aspects into your application
•  Adding the cross cutting concern behavior’s to the right
place
© Shakil Akhtar

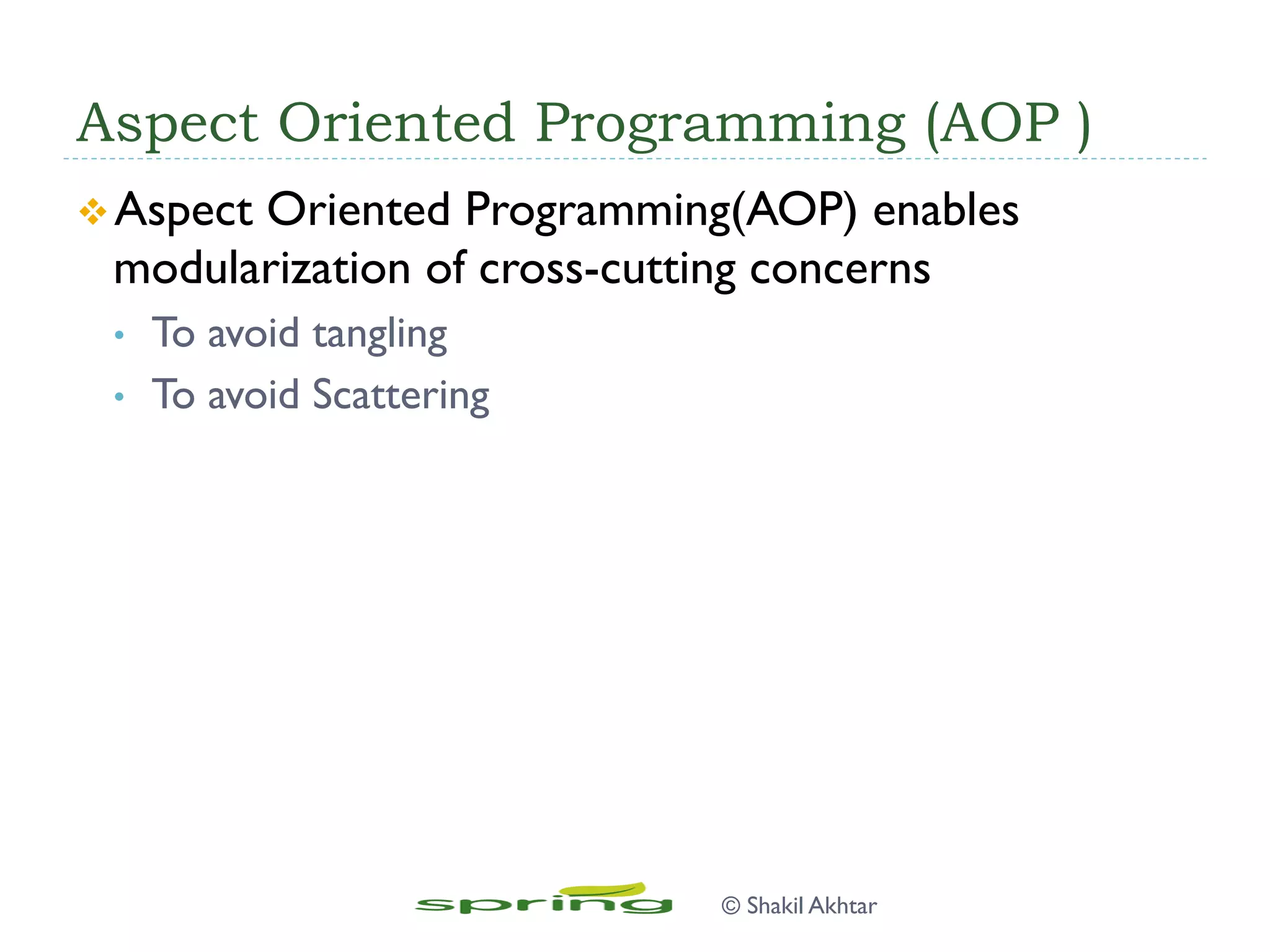

Aspect Oriented Programming (AOP )
v Aspect Oriented Programming(AOP) enables
modularization of cross-cutting concerns
•  To avoid tangling
•  To avoid Scattering
© Shakil Akhtar

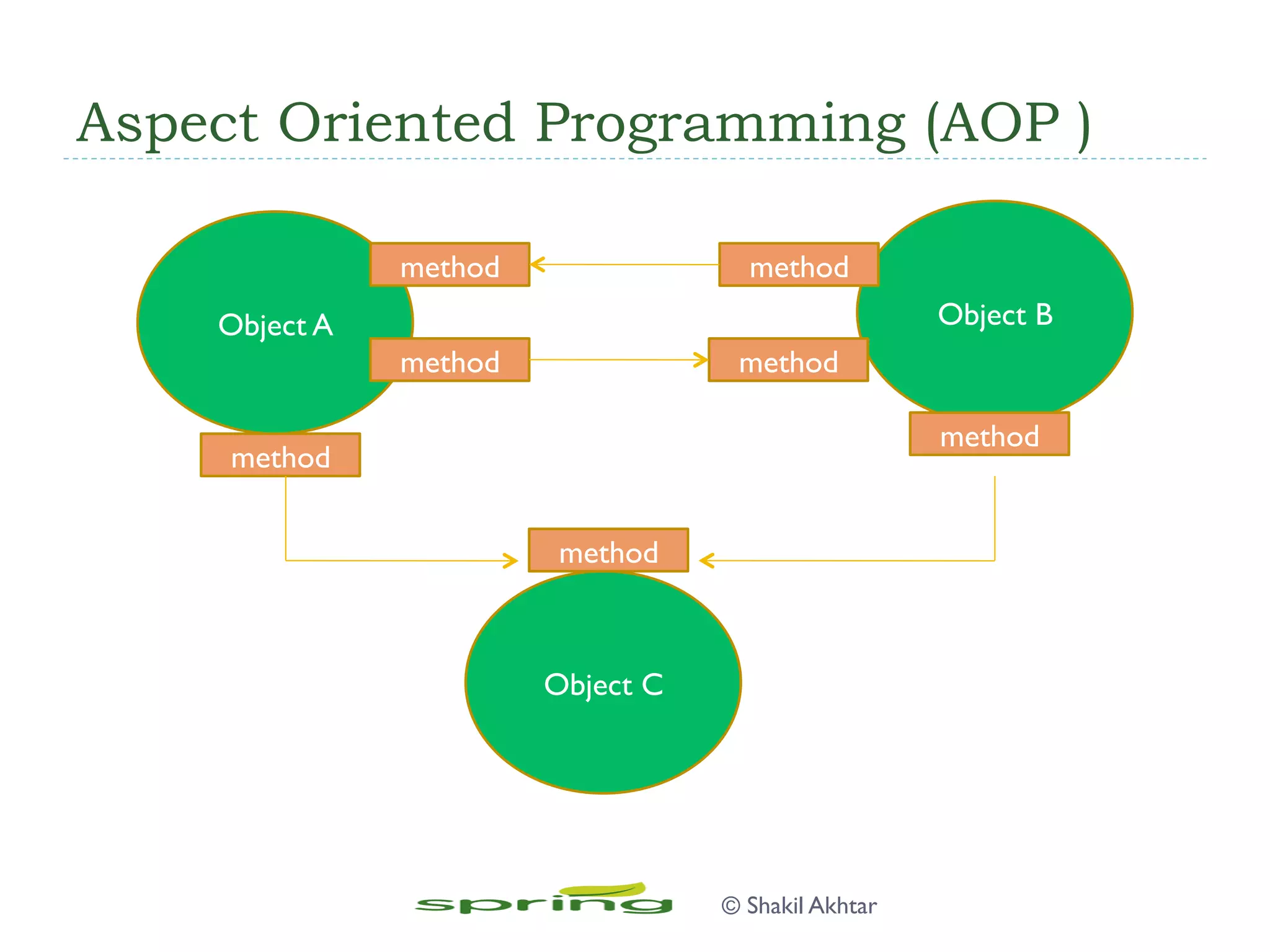

Aspect Oriented Programming (AOP )
© Shakil Akhtar
Object A
Object C
Object B
method
method method
method
method
method
method

…
© Shakil Akhtar

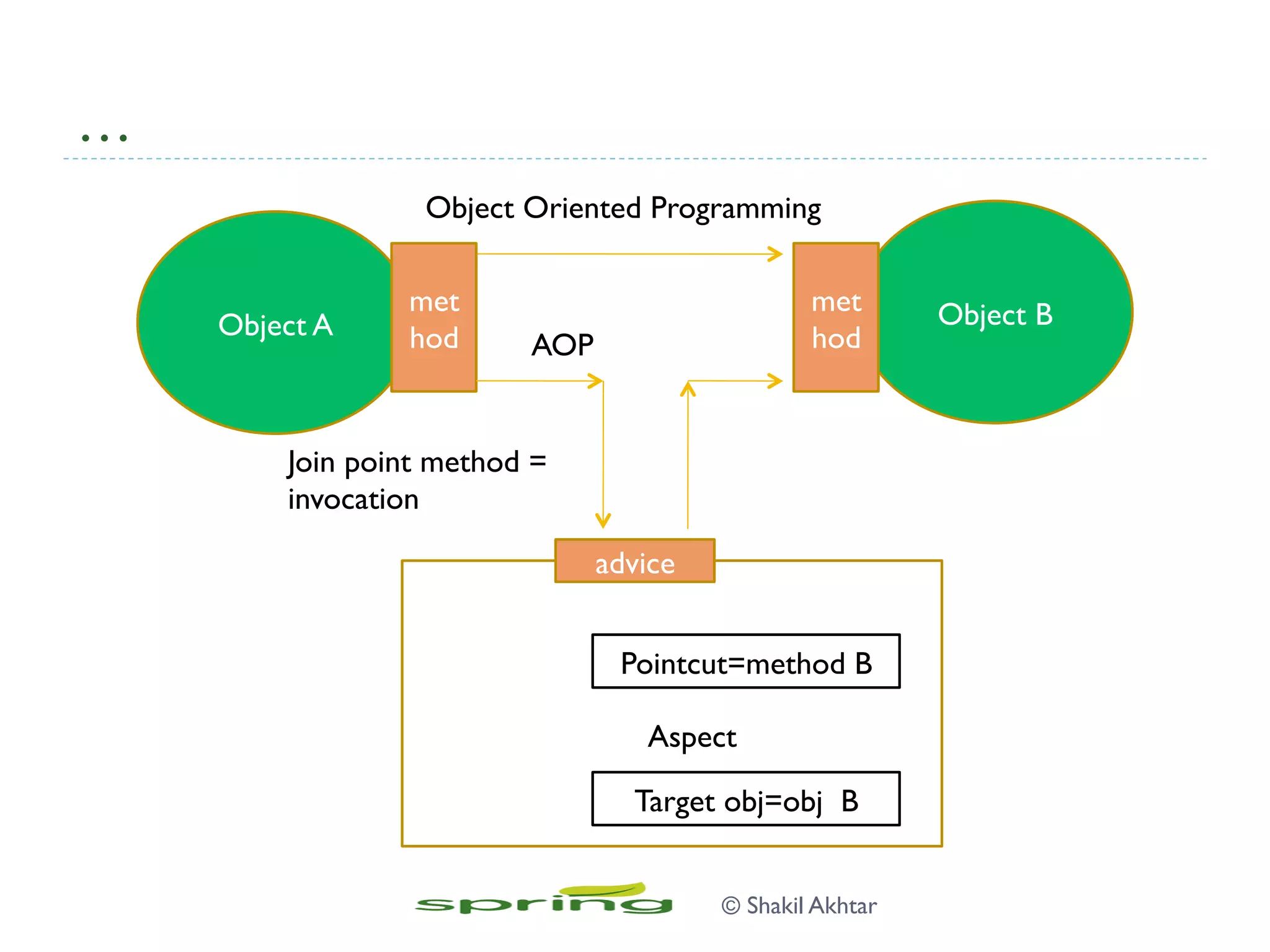

Object A Object Bmet
hod
met
hod
advice
Object Oriented Programming
Target obj=obj B
Pointcut=method B
Aspect
Join point method =
invocation
AOP

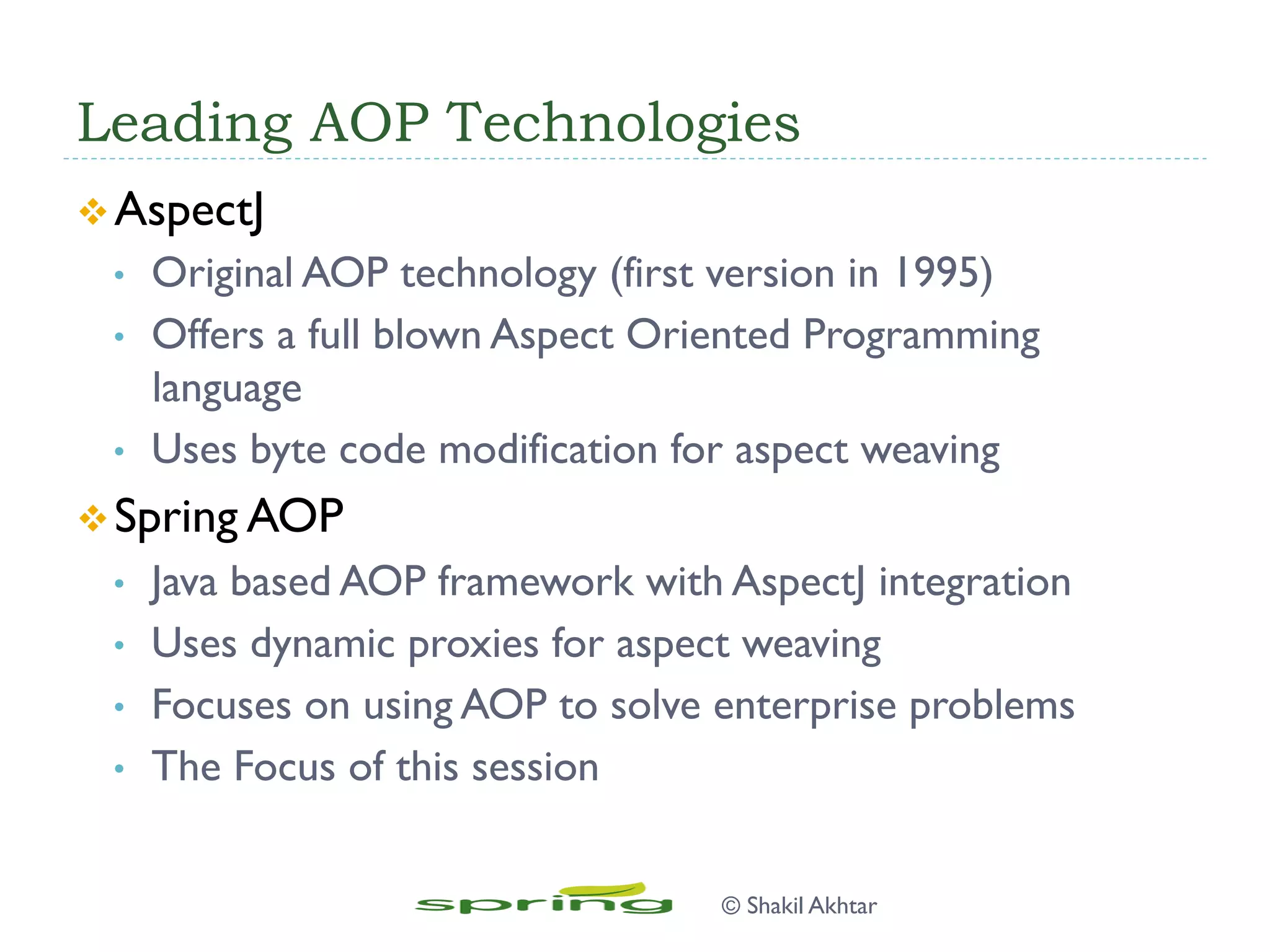

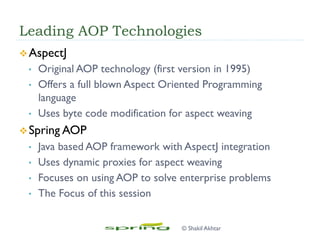

Leading AOP Technologies
v AspectJ
•  Original AOP technology (first version in 1995)
•  Offers a full blown Aspect Oriented Programming
language
•  Uses byte code modification for aspect weaving
v Spring AOP
•  Java based AOP framework with AspectJ integration
•  Uses dynamic proxies for aspect weaving
•  Focuses on using AOP to solve enterprise problems
•  The Focus of this session
© Shakil Akhtar

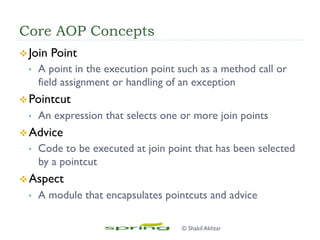

Core AOP Concepts
v Join Point
•  A point in the execution point such as a method call or
field assignment or handling of an exception
v Pointcut
•  An expression that selects one or more join points
v Advice
•  Code to be executed at join point that has been selected
by a pointcut
v Aspect
•  A module that encapsulates pointcuts and advice
© Shakil Akhtar

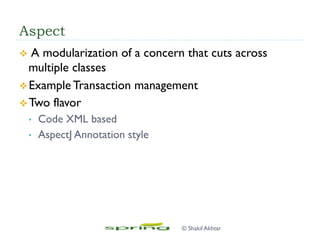

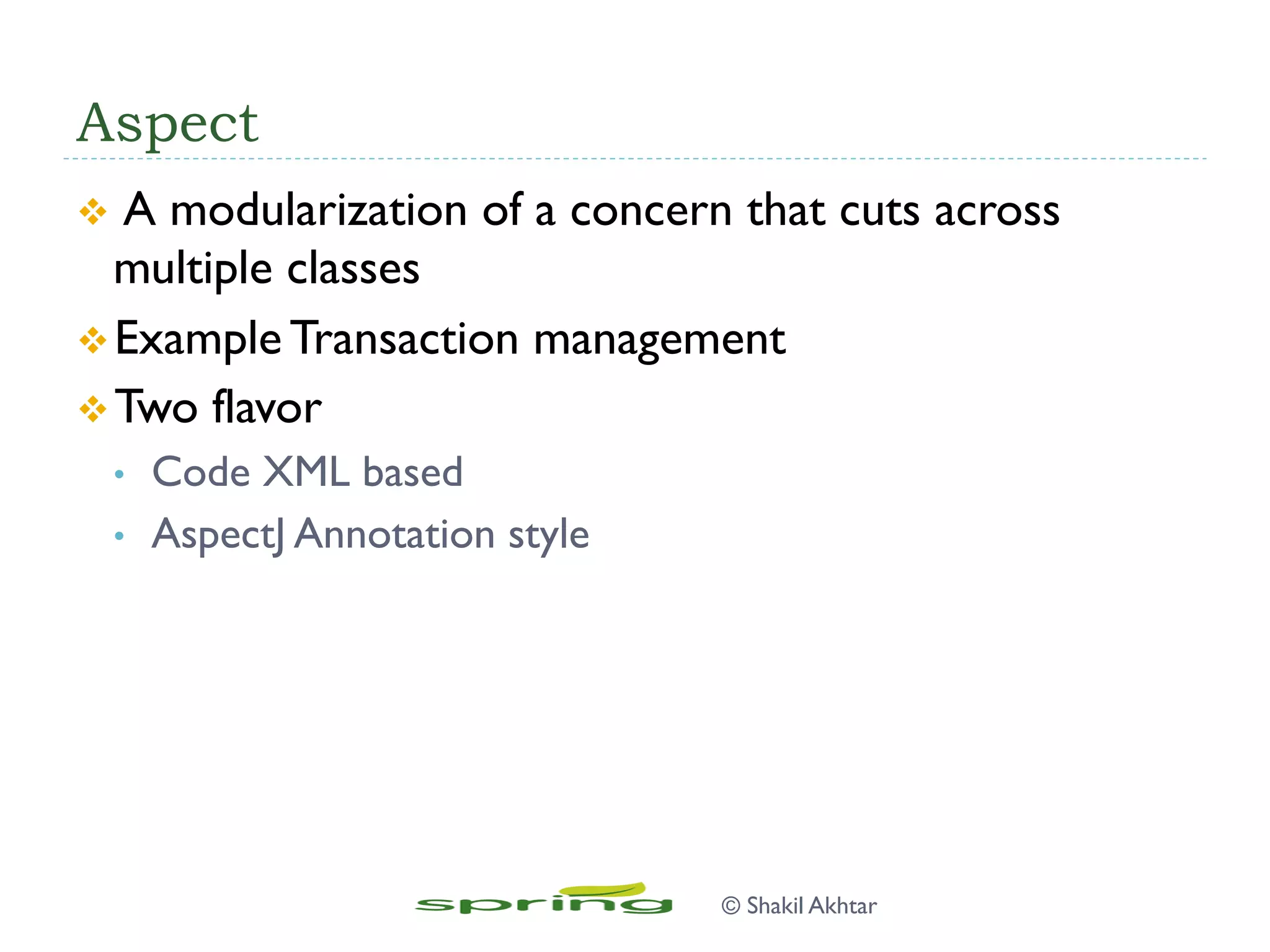

Aspect
v  A modularization of a concern that cuts across
multiple classes
v Example Transaction management
v Two flavor
•  Code XML based
•  AspectJ Annotation style
© Shakil Akhtar

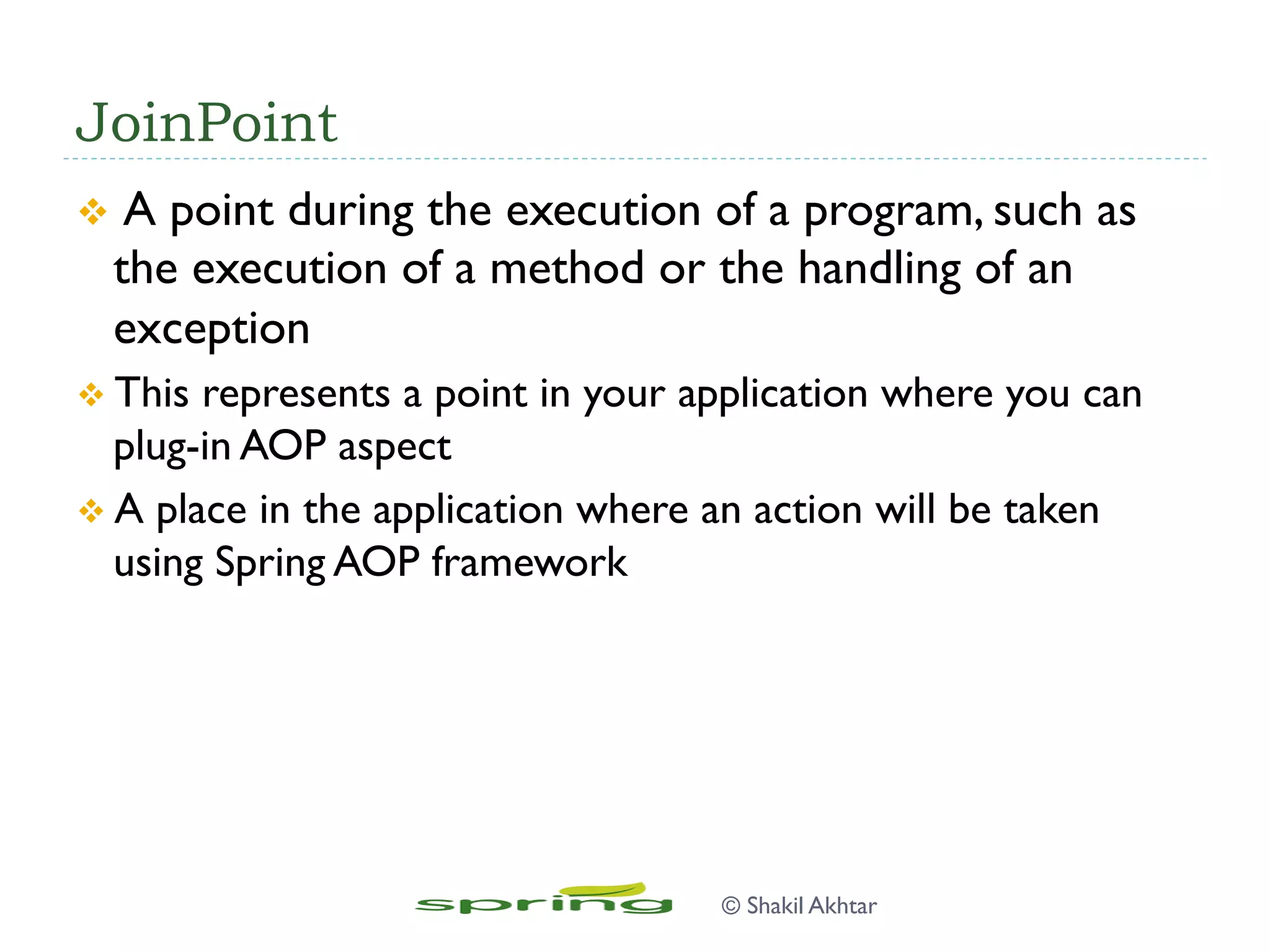

JoinPoint
v  A point during the execution of a program, such as
the execution of a method or the handling of an
exception
v This represents a point in your application where you can
plug-in AOP aspect
v A place in the application where an action will be taken
using Spring AOP framework
© Shakil Akhtar

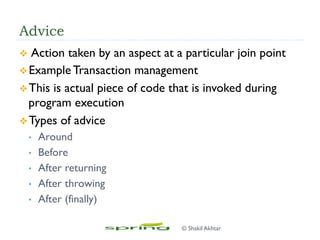

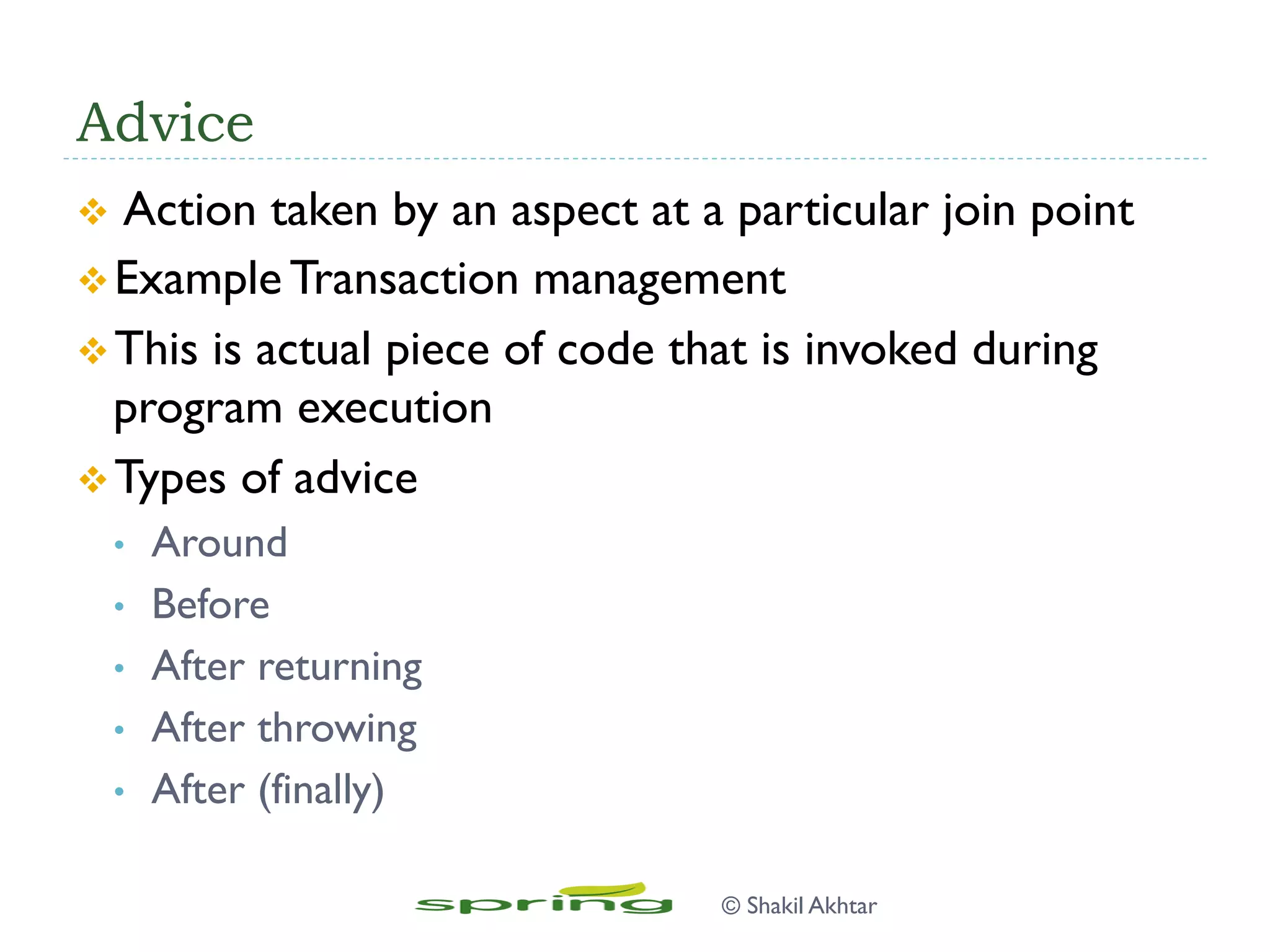

Advice
v  Action taken by an aspect at a particular join point
v Example Transaction management
v This is actual piece of code that is invoked during
program execution

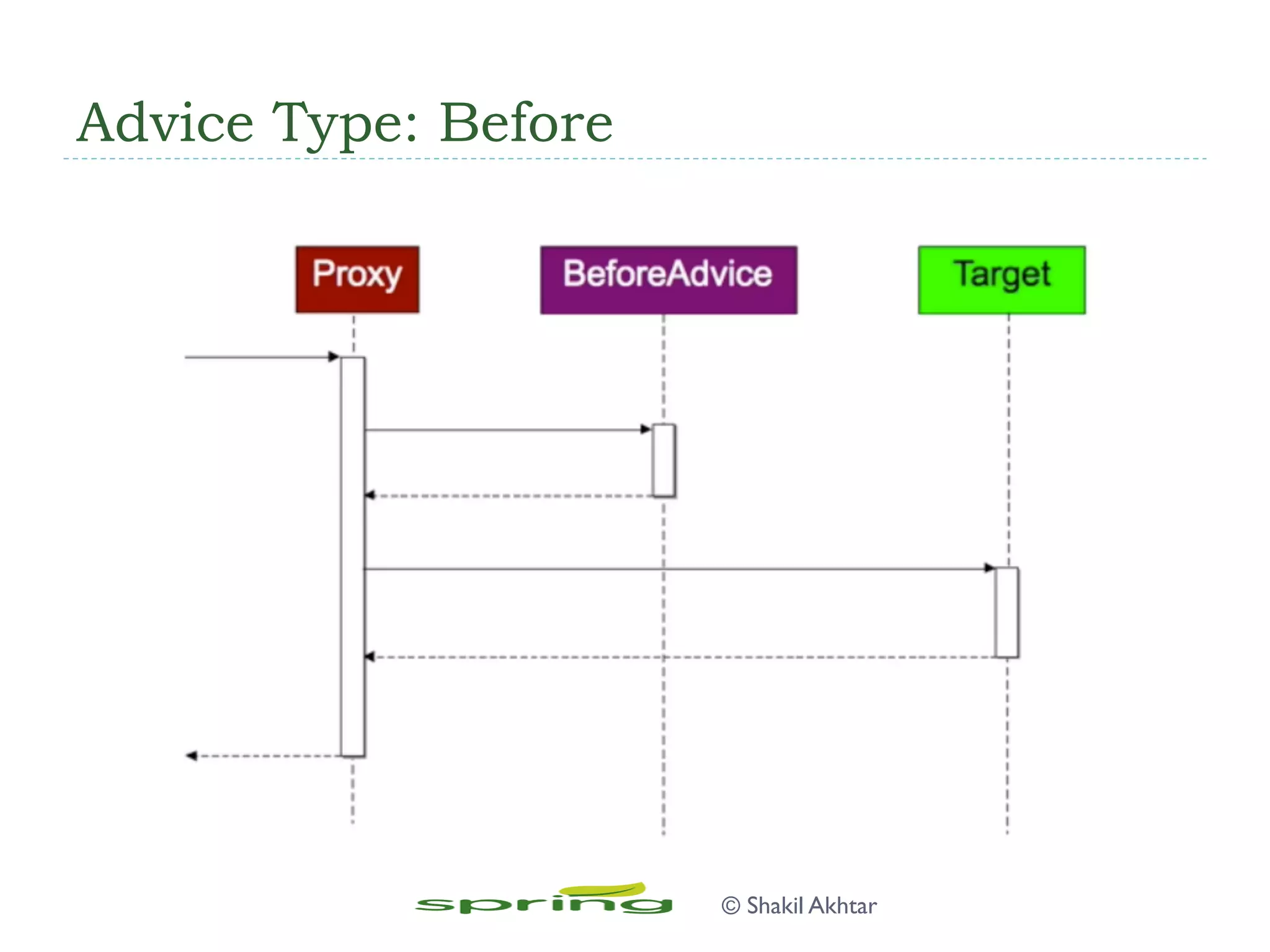

v Types of advice

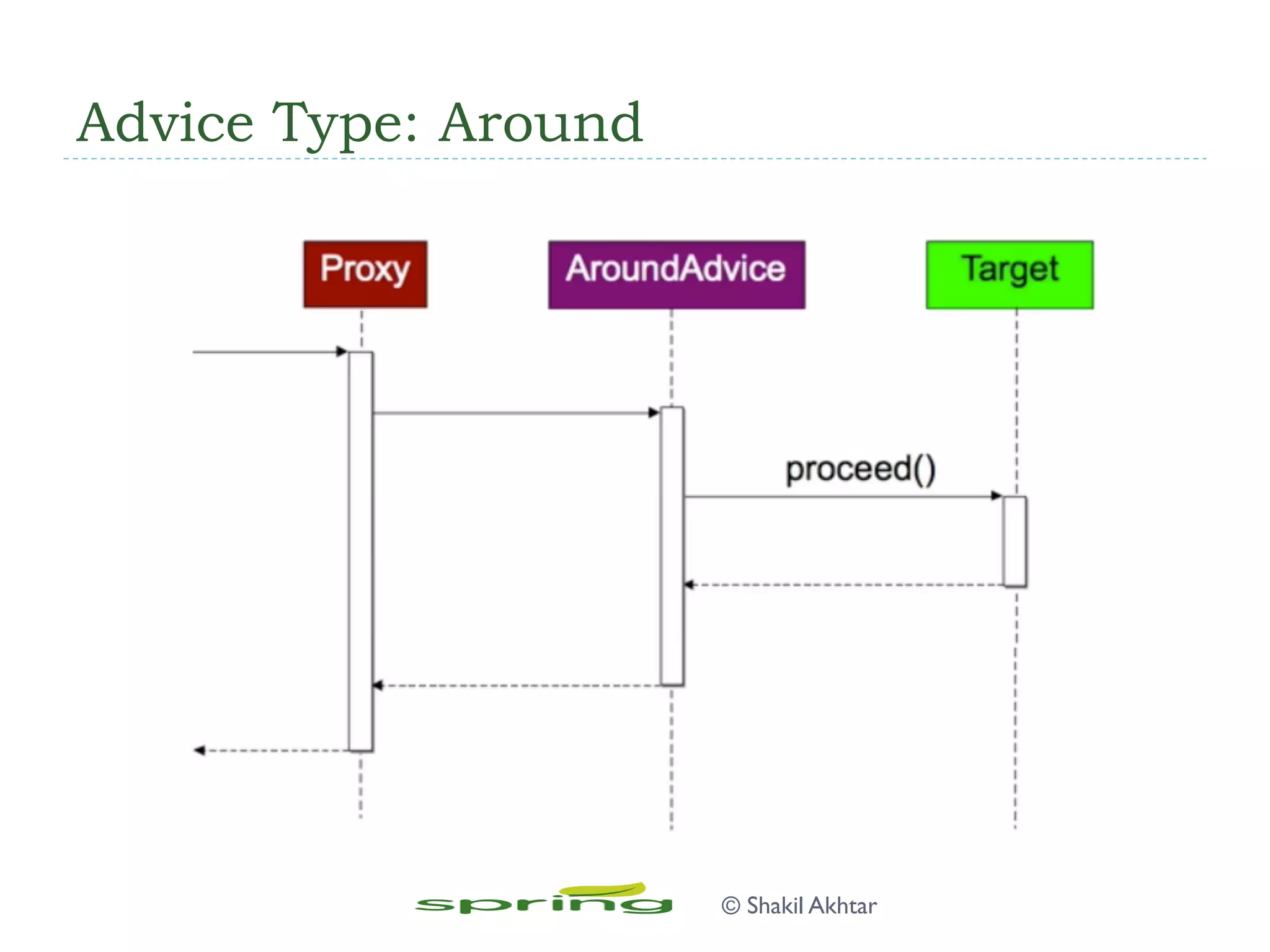

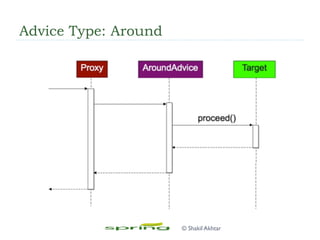

•  Around
•  Before

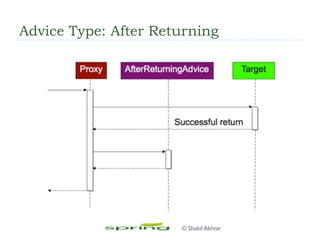

•  After returning
•  After throwing
•  After (finally)
© Shakil Akhtar

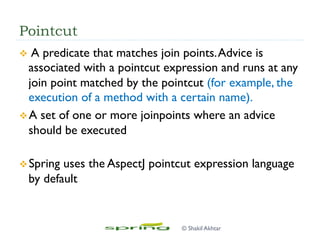

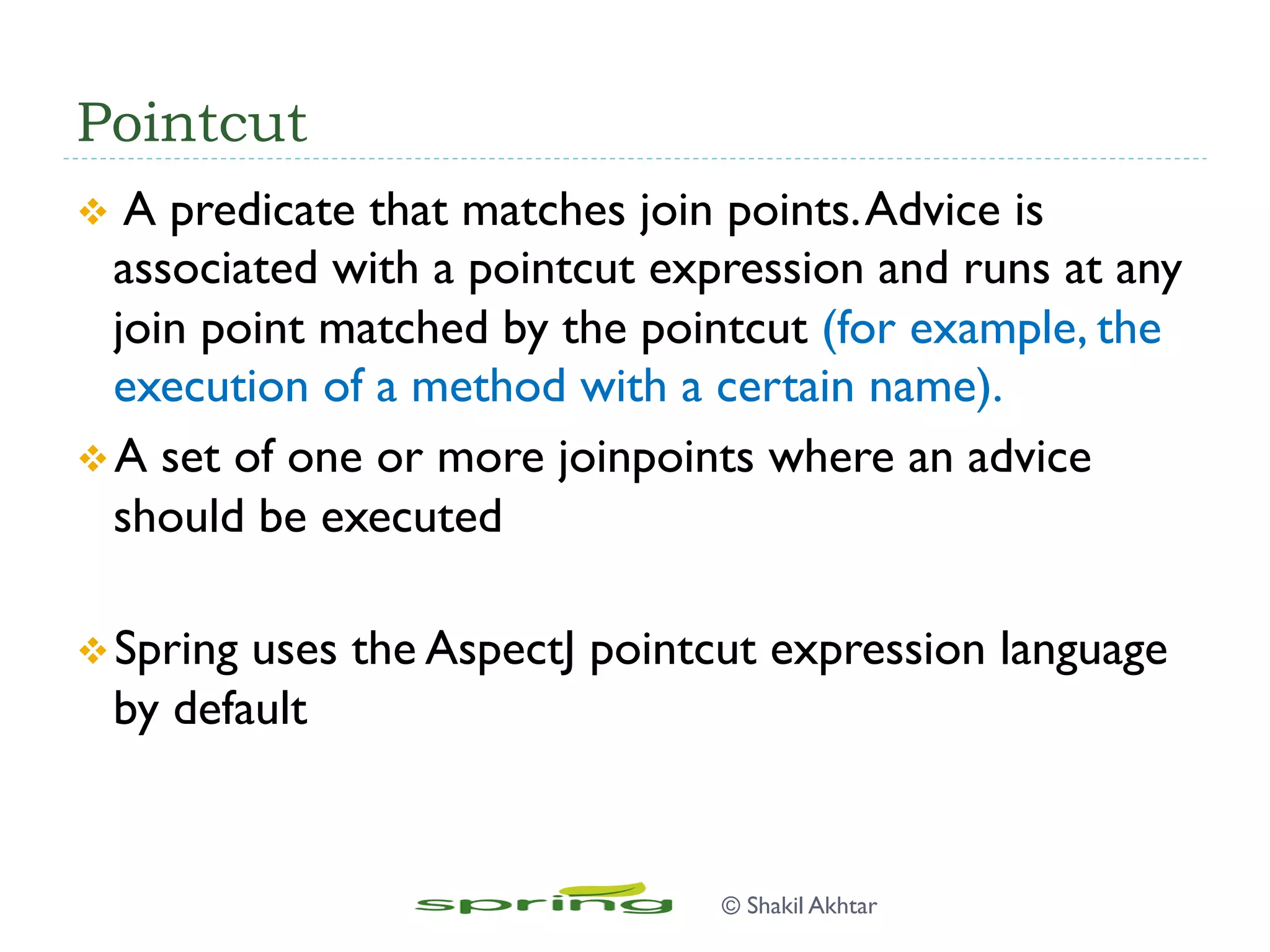

Pointcut
v  A predicate that matches join points.Advice is
associated with a pointcut expression and runs at any
join point matched by the pointcut (for example, the
execution of a method with a certain name).
v A set of one or more joinpoints where an advice
should be executed
v Spring uses the AspectJ pointcut expression language
by default
© Shakil Akhtar

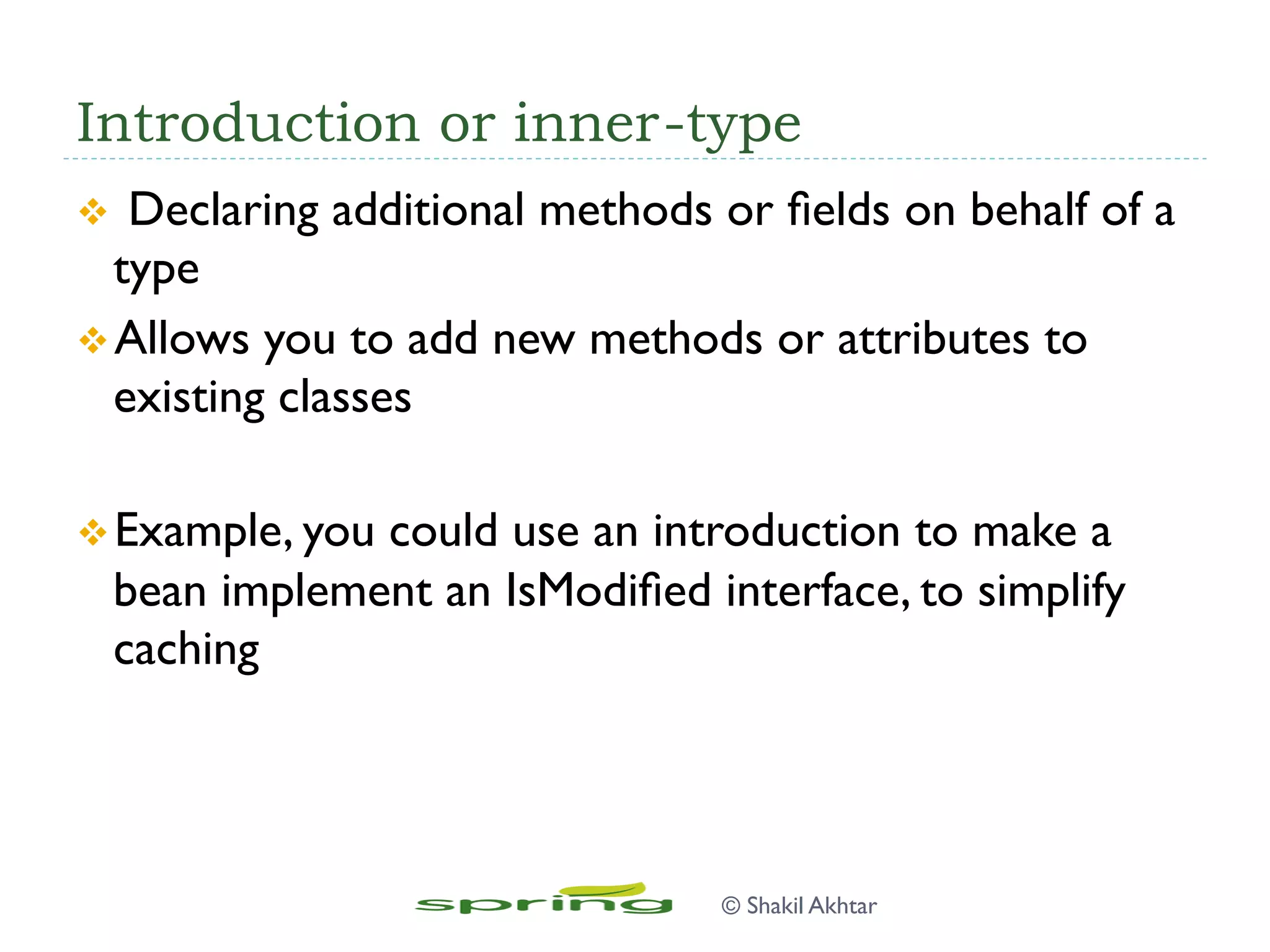

Introduction or inner-type
v  Declaring additional methods or ﬁelds on behalf of a
type
v Allows you to add new methods or attributes to
existing classes
v Example, you could use an introduction to make a
bean implement an IsModiﬁed interface, to simplify
caching
© Shakil Akhtar

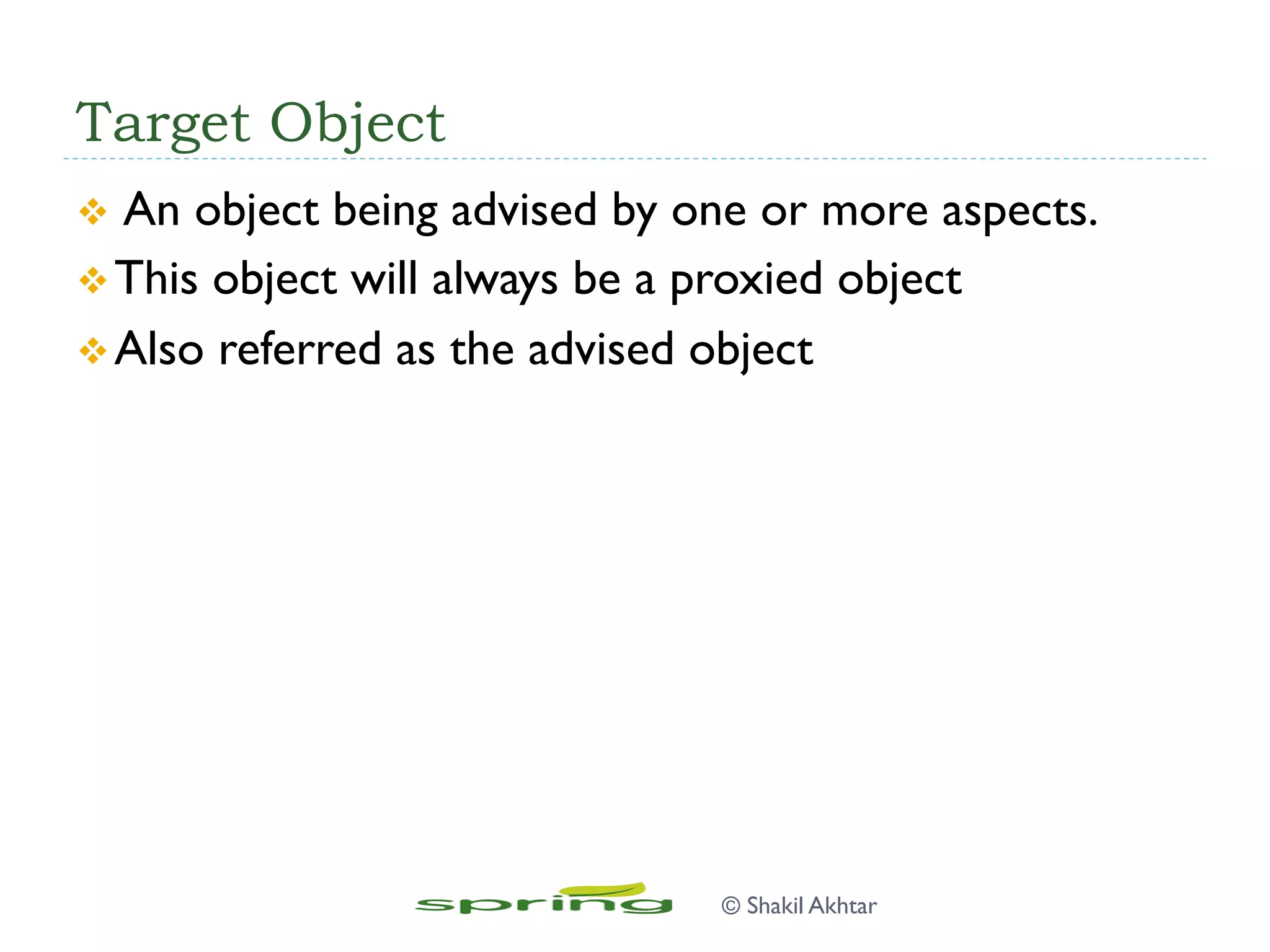

Target Object
v  An object being advised by one or more aspects.
v This object will always be a proxied object
v Also referred as the advised object
© Shakil Akhtar

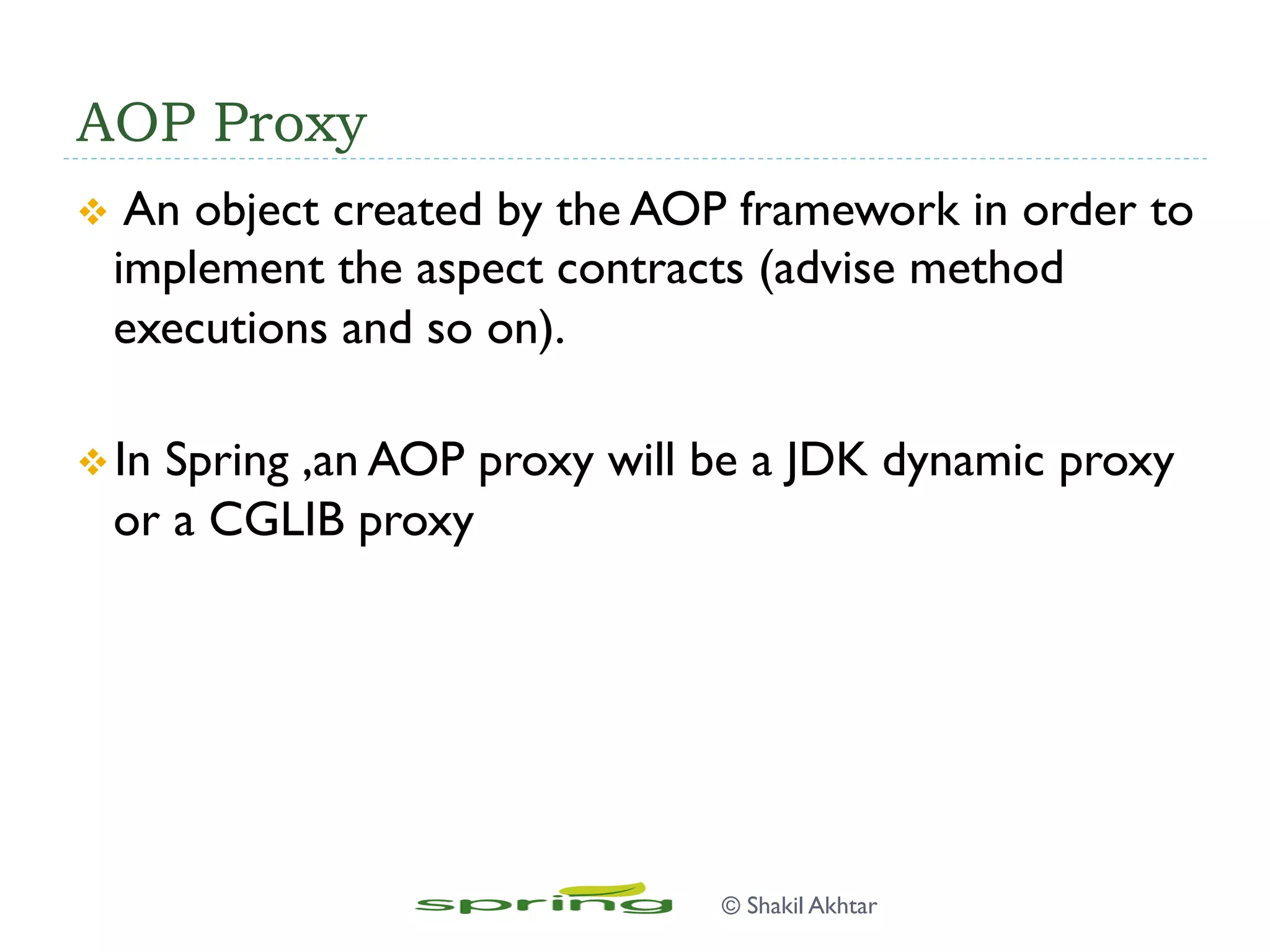

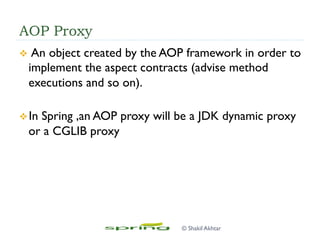

AOP Proxy
v  An object created by the AOP framework in order to
implement the aspect contracts (advise method
executions and so on).
v In Spring ,an AOP proxy will be a JDK dynamic proxy
or a CGLIB proxy
© Shakil Akhtar

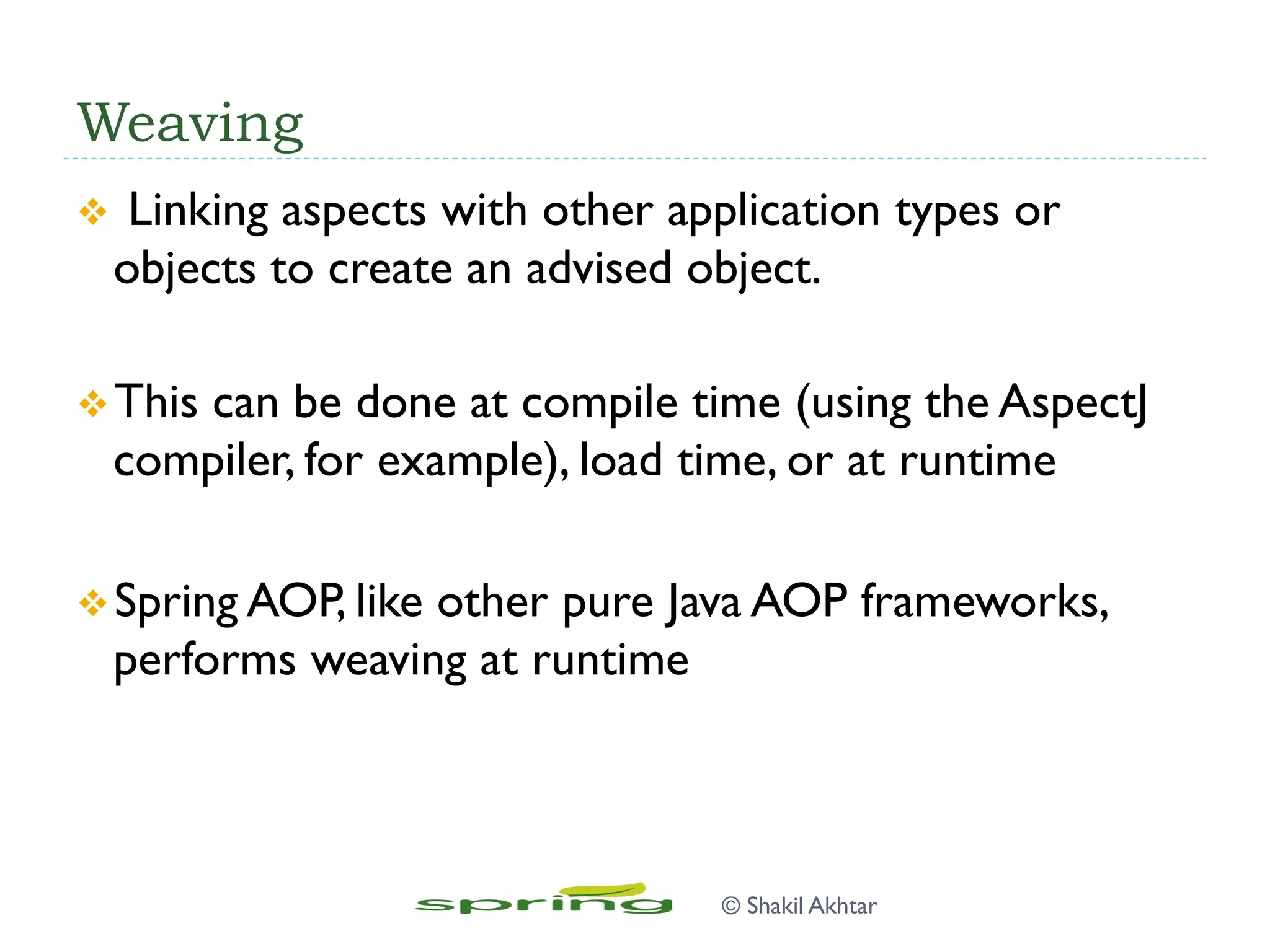

Weaving
v  Linking aspects with other application types or
objects to create an advised object.
v This can be done at compile time (using the AspectJ
compiler, for example), load time, or at runtime
v Spring AOP, like other pure Java AOP frameworks,
performs weaving at runtime
© Shakil Akhtar

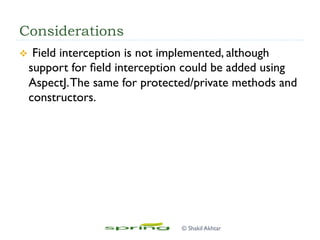

Considerations
v  Field interception is not implemented, although
support for ﬁeld interception could be added using
AspectJ.The same for protected/private methods and
constructors.
© Shakil Akhtar

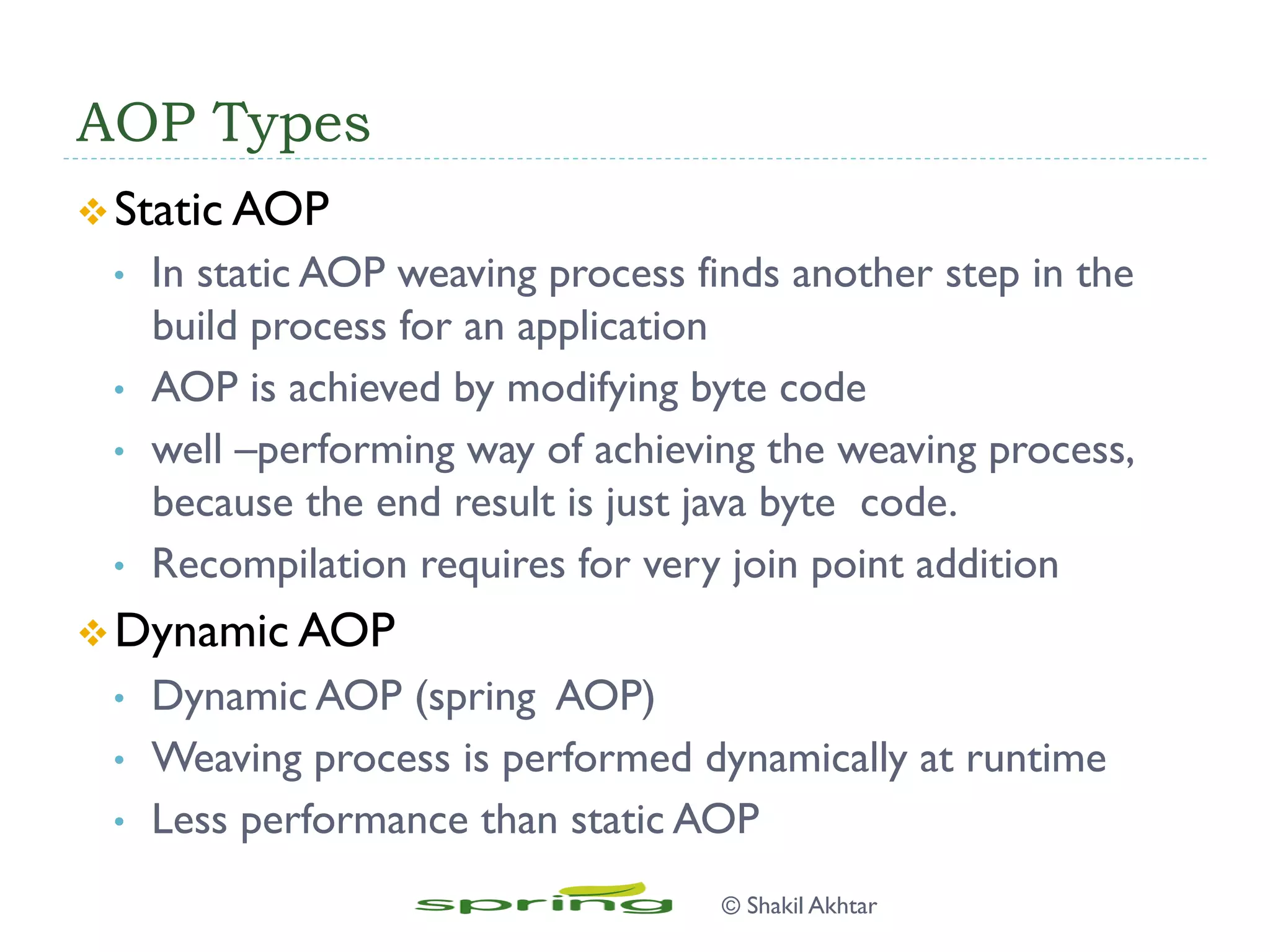

AOP Types
v Static AOP
•  In static AOP weaving process finds another step in the
build process for an application
•  AOP is achieved by modifying byte code
•  well –performing way of achieving the weaving process,
because the end result is just java byte code.
•  Recompilation requires for very join point addition
v Dynamic AOP
•  Dynamic AOP (spring AOP)
•  Weaving process is performed dynamically at runtime
•  Less performance than static AOP
© Shakil Akhtar

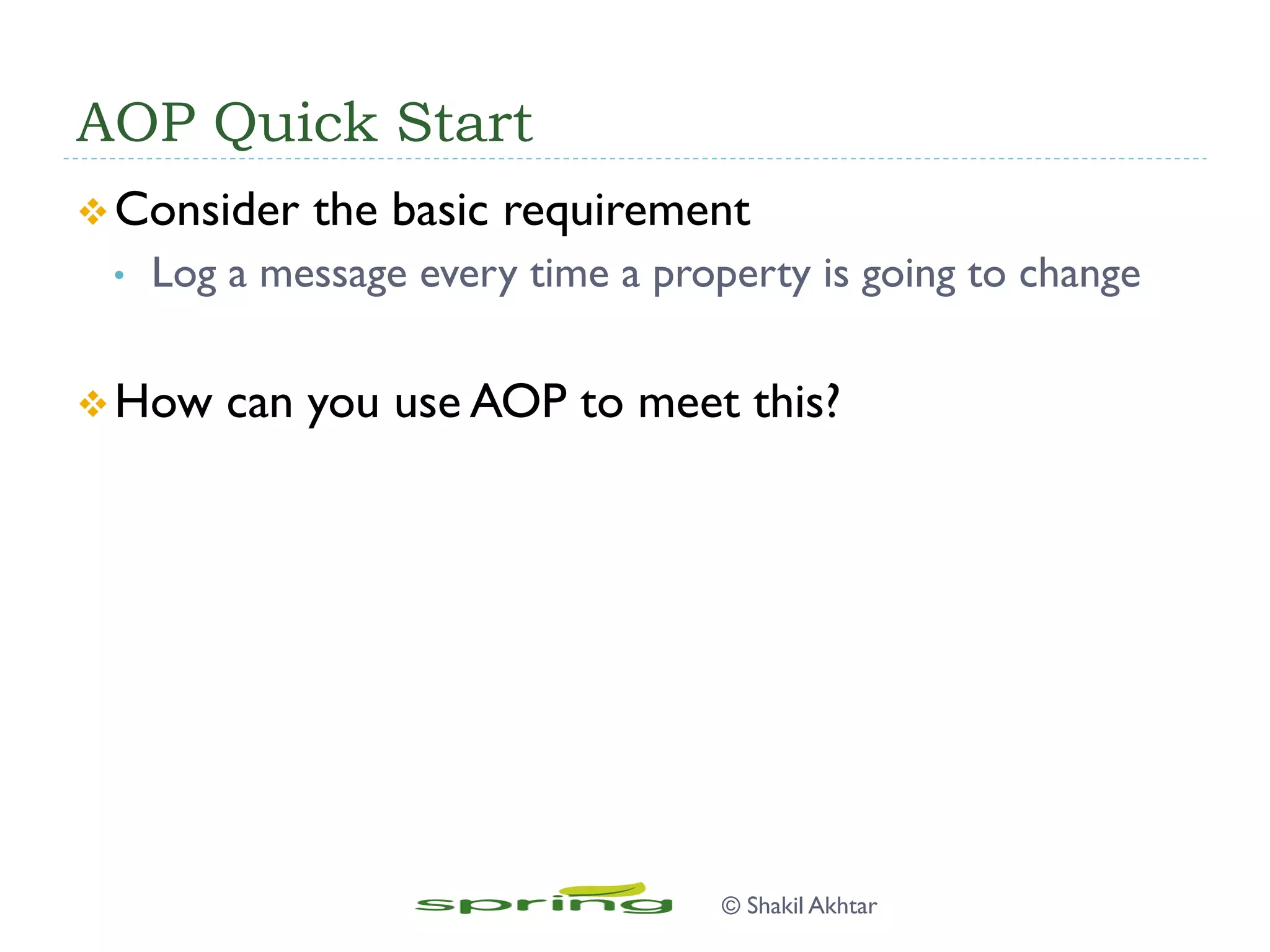

AOP Quick Start
v Consider the basic requirement
•  Log a message every time a property is going to change
v How can you use AOP to meet this?
© Shakil Akhtar

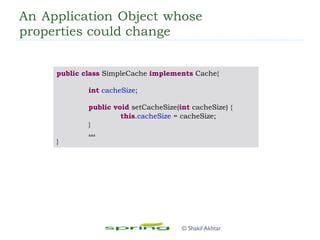

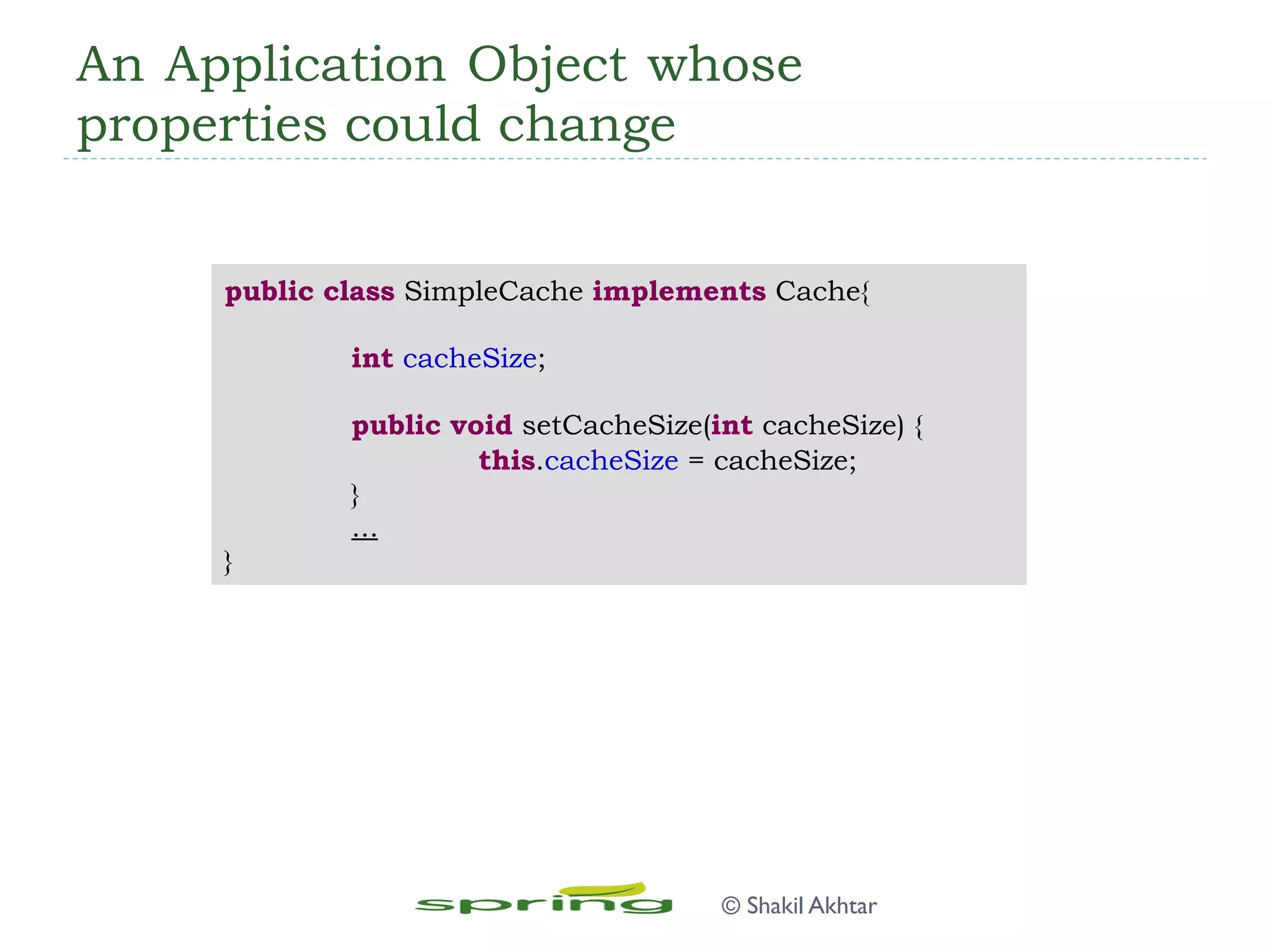

An Application Object whose
properties could change
public class SimpleCache implements Cache{
int cacheSize;
public void setCacheSize(int cacheSize) {
this.cacheSize = cacheSize;
}
...
}
© Shakil Akhtar

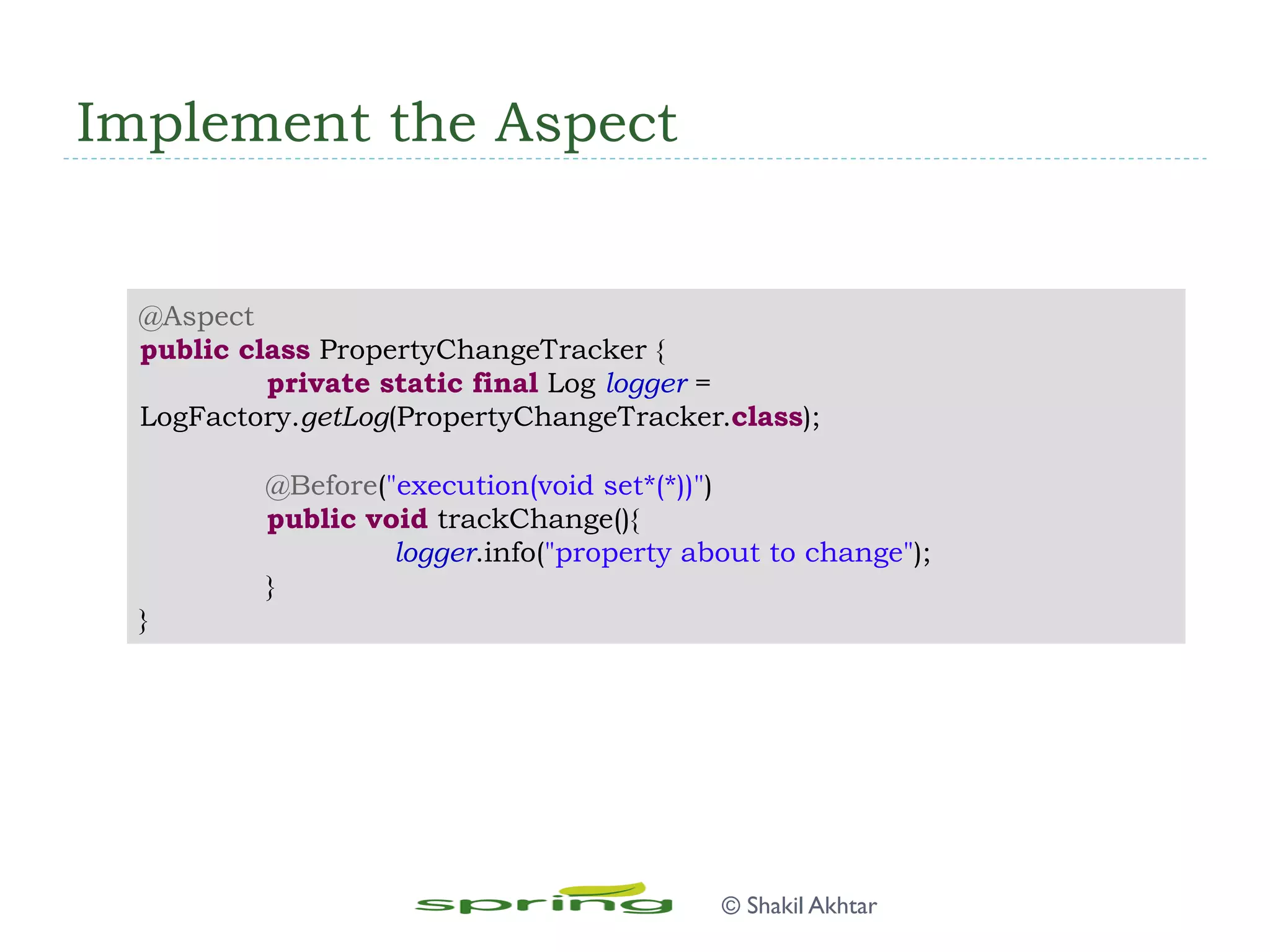

Implement the Aspect
@Aspect
public class PropertyChangeTracker {
private static final Log logger =
LogFactory.getLog(PropertyChangeTracker.class);
@Before("execution(void set*(*))")
public void trackChange(){
logger.info("property about to change");
}
}
© Shakil Akhtar

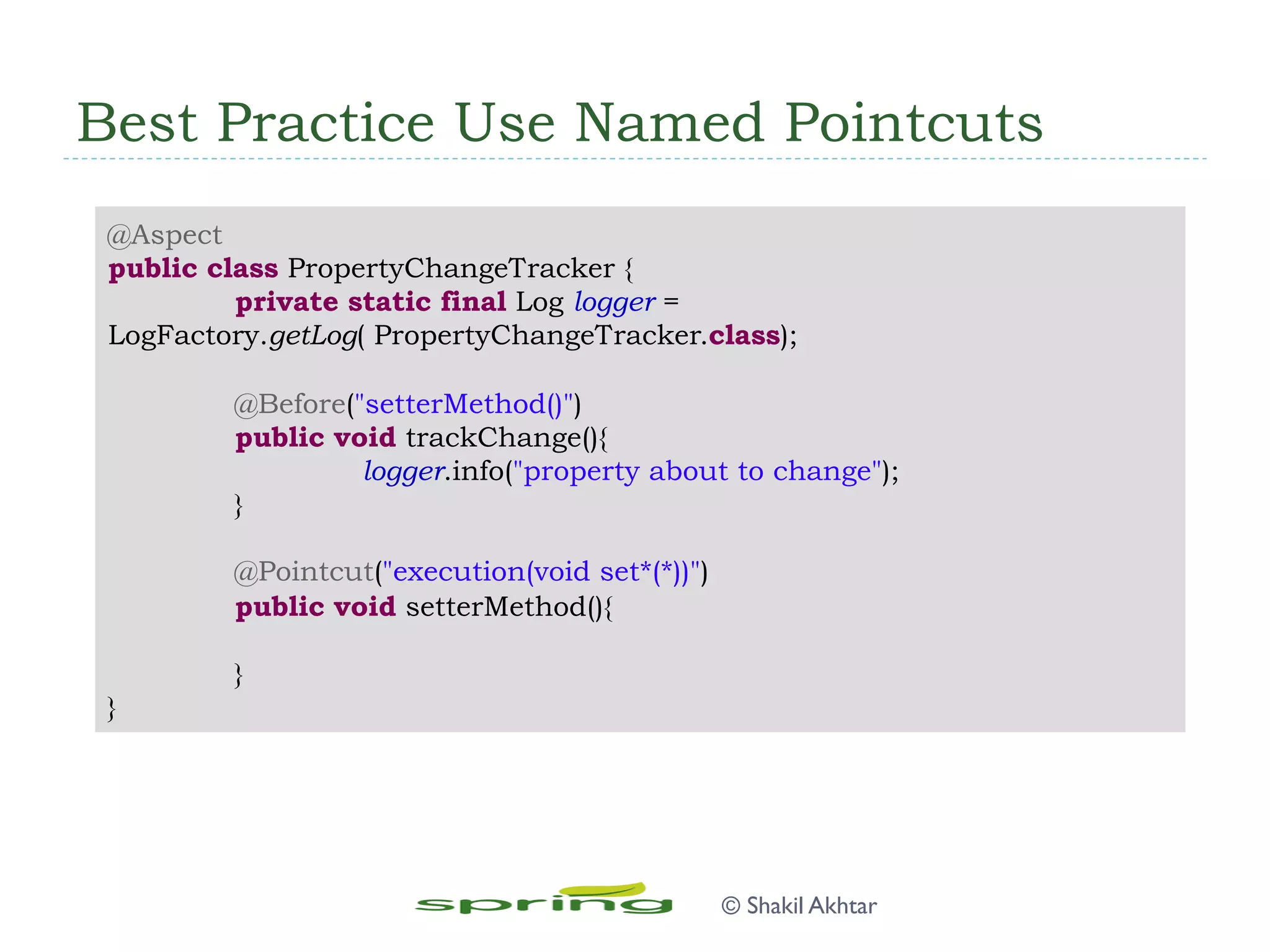

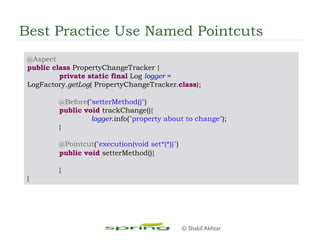

Best Practice Use Named Pointcuts
@Aspect
LogFactory.getLog( PropertyChangeTracker.class);
@Before("setterMethod()")
public void trackChange(){
logger.info("property about to change");
}
@Pointcut("execution(void set*(*))")
public void setterMethod(){
}
}
© Shakil Akhtar

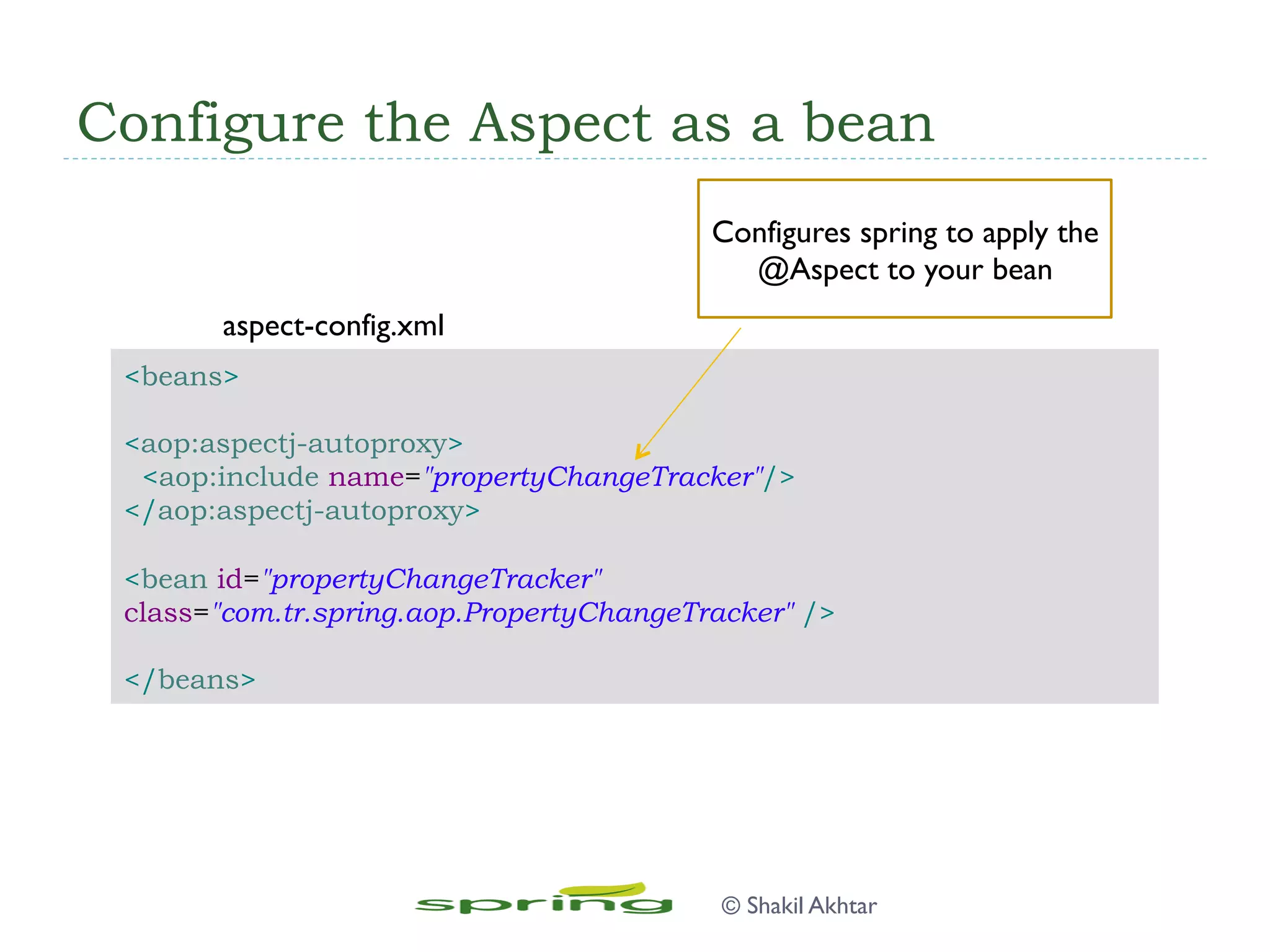

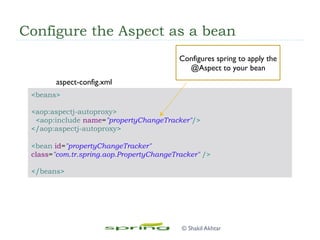

Configure the Aspect as a bean
<beans>
<aop:aspectj-autoproxy>
<aop:include name="propertyChangeTracker"/>
</aop:aspectj-autoproxy>
<bean id="propertyChangeTracker"
class="com.tr.spring.aop.PropertyChangeTracker" />
</beans>
Configures spring to apply the
@Aspect to your bean
aspect-config.xml
© Shakil Akhtar

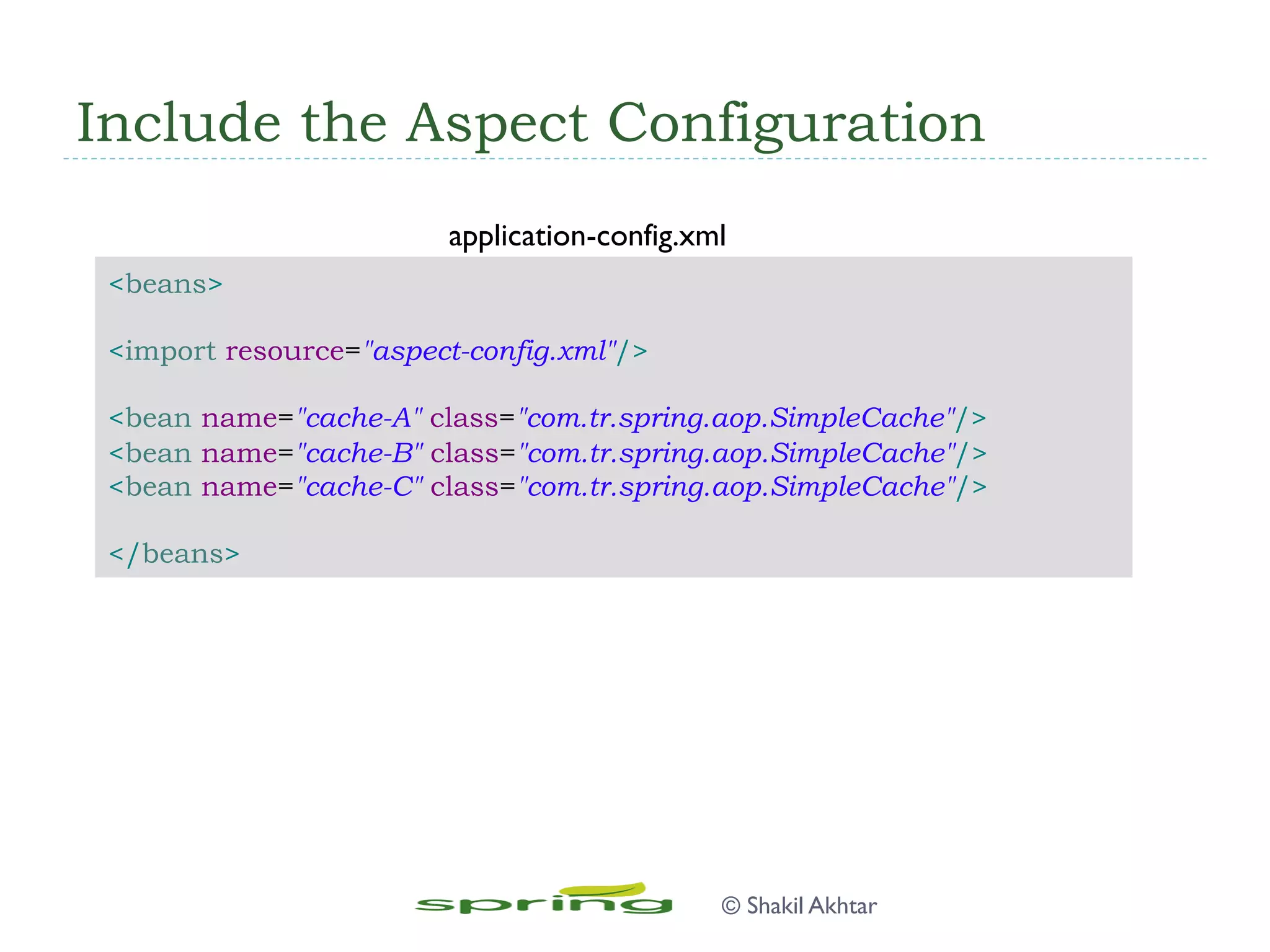

Include the Aspect Configuration
<beans>
<import resource="aspect-config.xml"/>
<bean name="cache-A" class="com.tr.spring.aop.SimpleCache"/>
<bean name="cache-B" class="com.tr.spring.aop.SimpleCache"/>
<bean name="cache-C" class="com.tr.spring.aop.SimpleCache"/>
</beans>
application-config.xml
© Shakil Akhtar

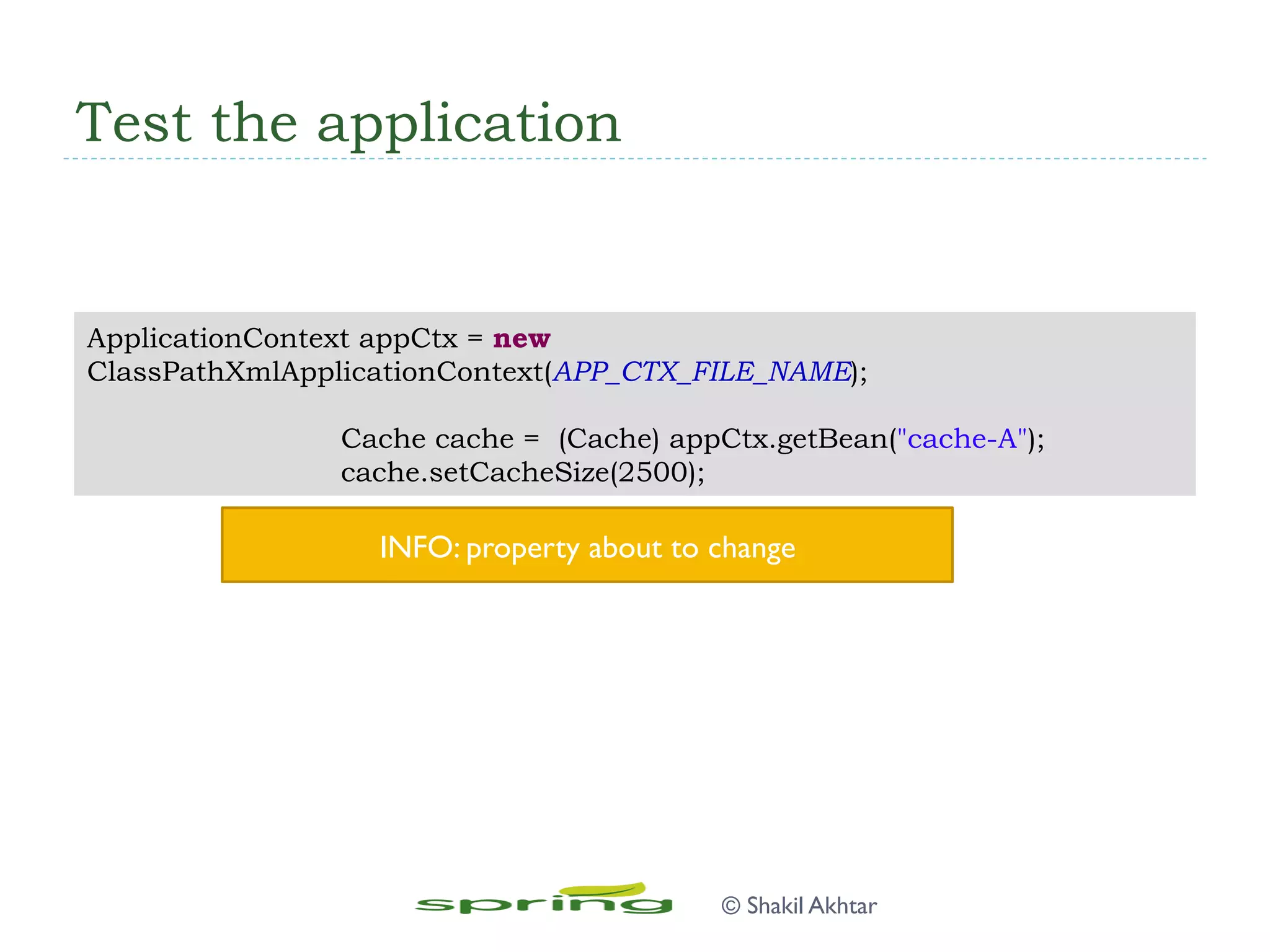

Test the application
ApplicationContext appCtx = new
ClassPathXmlApplicationContext(APP_CTX_FILE_NAME);
Cache cache = (Cache) appCtx.getBean("cache-A");
cache.setCacheSize(2500);
INFO: property about to change
© Shakil Akhtar

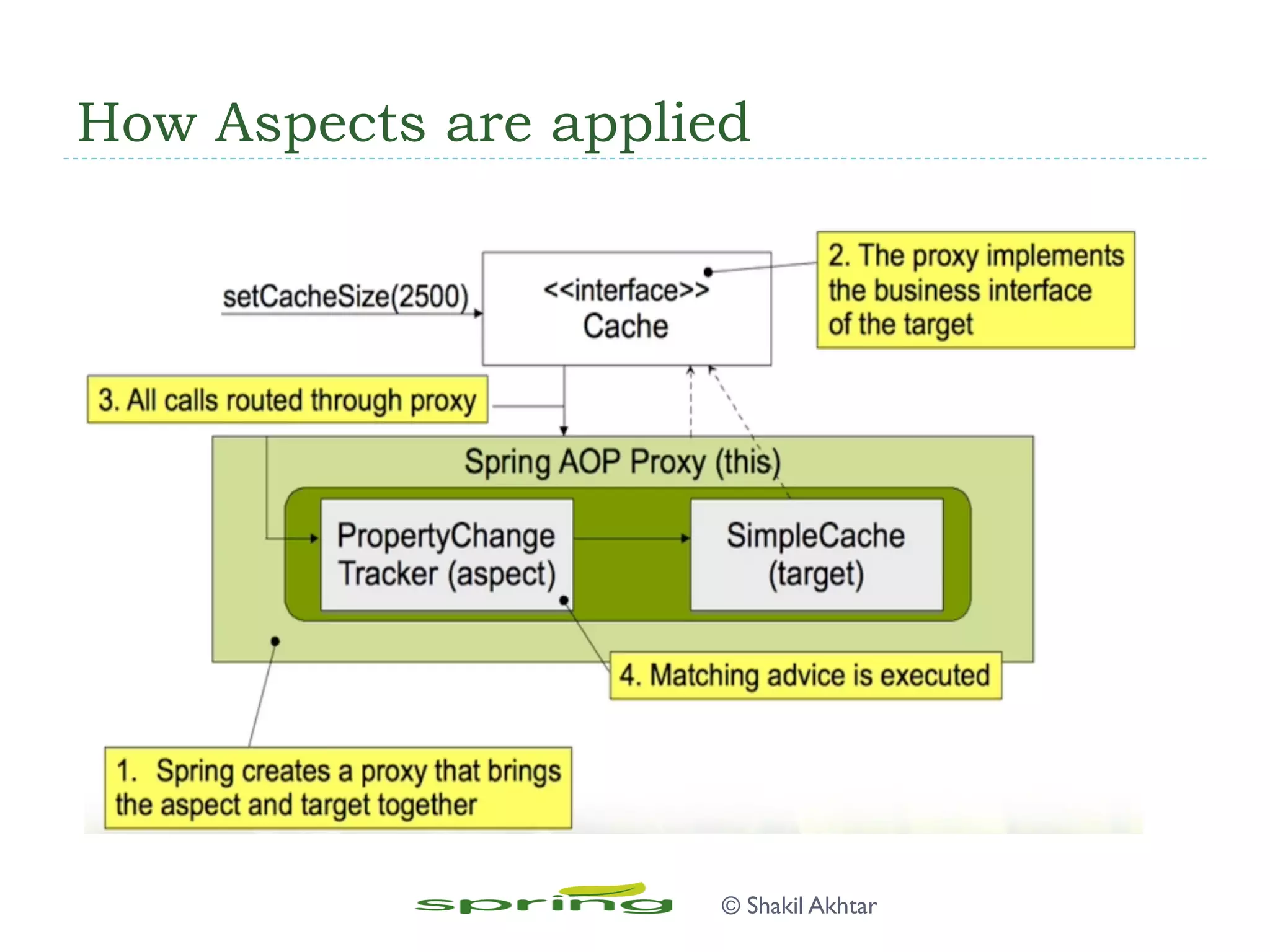

How Aspects are applied
© Shakil Akhtar

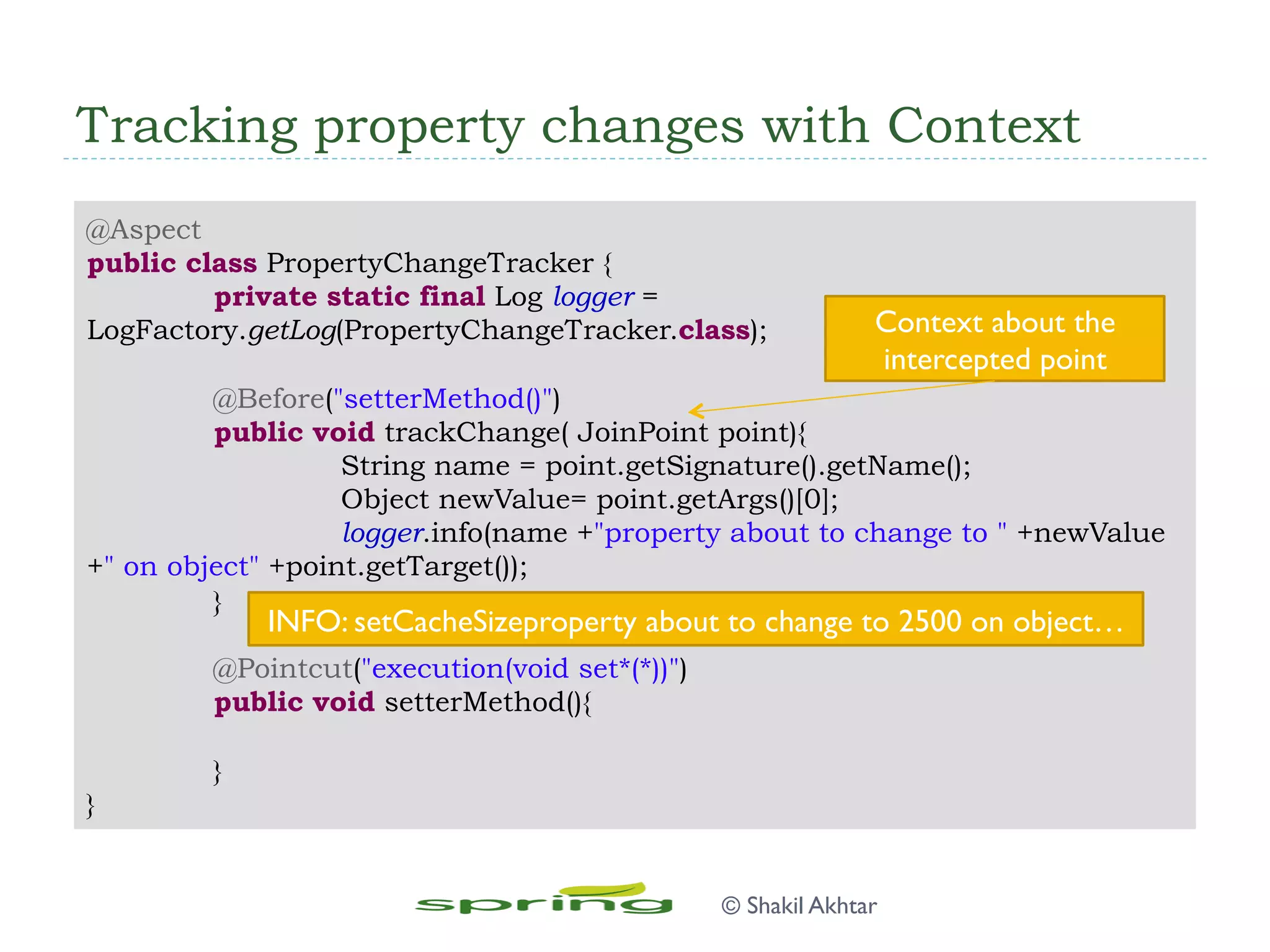

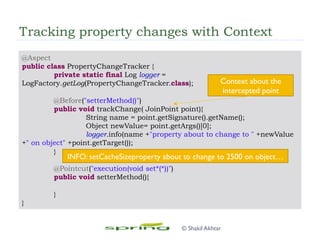

Tracking property changes with Context
@Aspect
LogFactory.getLog(PropertyChangeTracker.class);
@Before("setterMethod()")
public void trackChange( JoinPoint point){
String name = point.getSignature().getName();
Object newValue= point.getArgs()[0];
logger.info(name +"property about to change to " +newValue
+" on object" +point.getTarget());
}
@Pointcut("execution(void set*(*))")
public void setterMethod(){
}
}
Context about the
intercepted point
INFO: setCacheSizeproperty about to change to 2500 on object…
© Shakil Akhtar

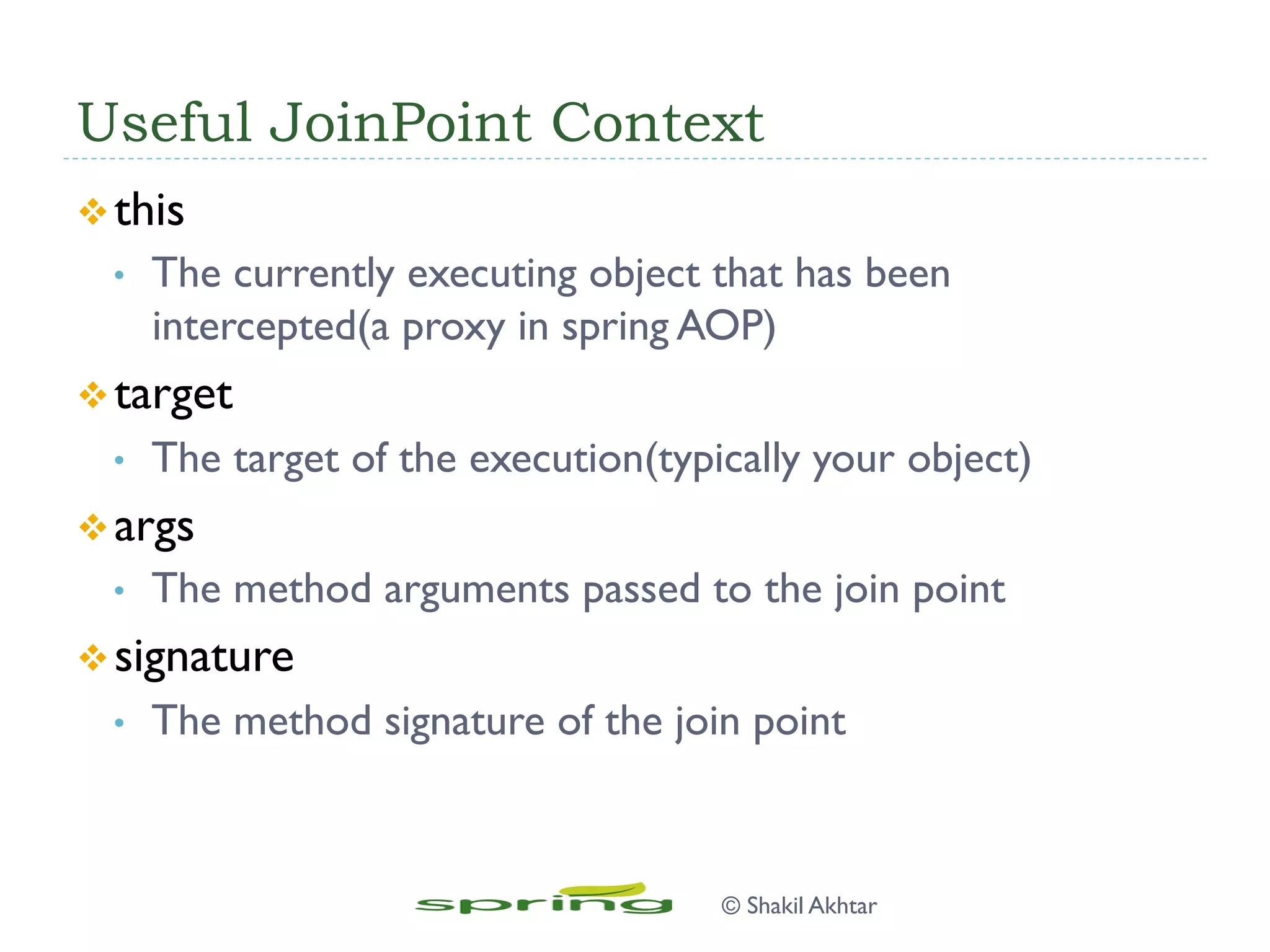

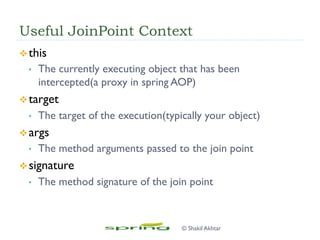

Useful JoinPoint Context
v this
•  The currently executing object that has been
intercepted(a proxy in spring AOP)
v target
•  The target of the execution(typically your object)
v args
•  The method arguments passed to the join point
v signature
•  The method signature of the join point
© Shakil Akhtar

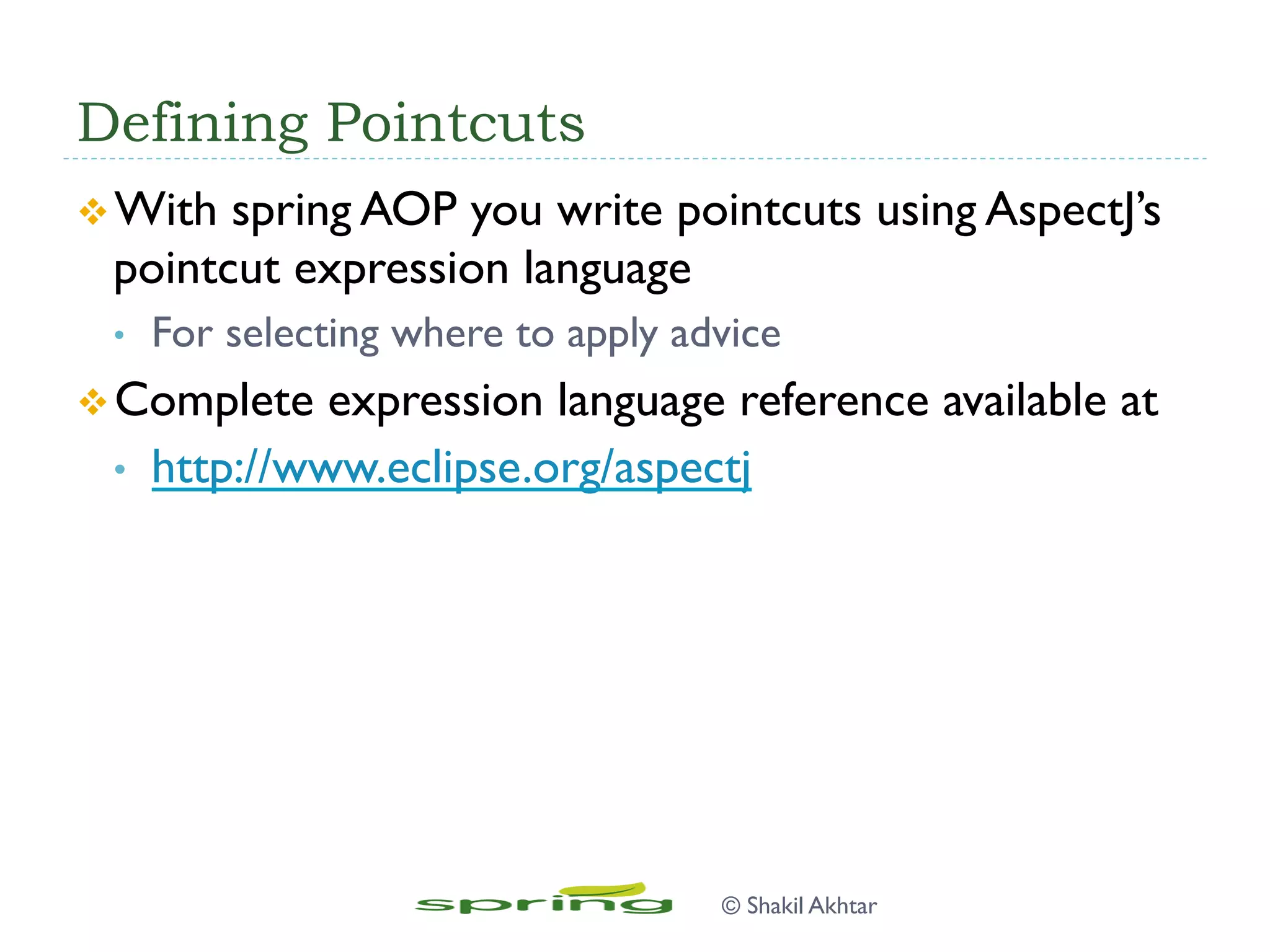

Defining Pointcuts
v With spring AOP you write pointcuts using AspectJ’s
pointcut expression language
•  For selecting where to apply advice
v Complete expression language reference available at
•  http://www.eclipse.org/aspectj
© Shakil Akhtar

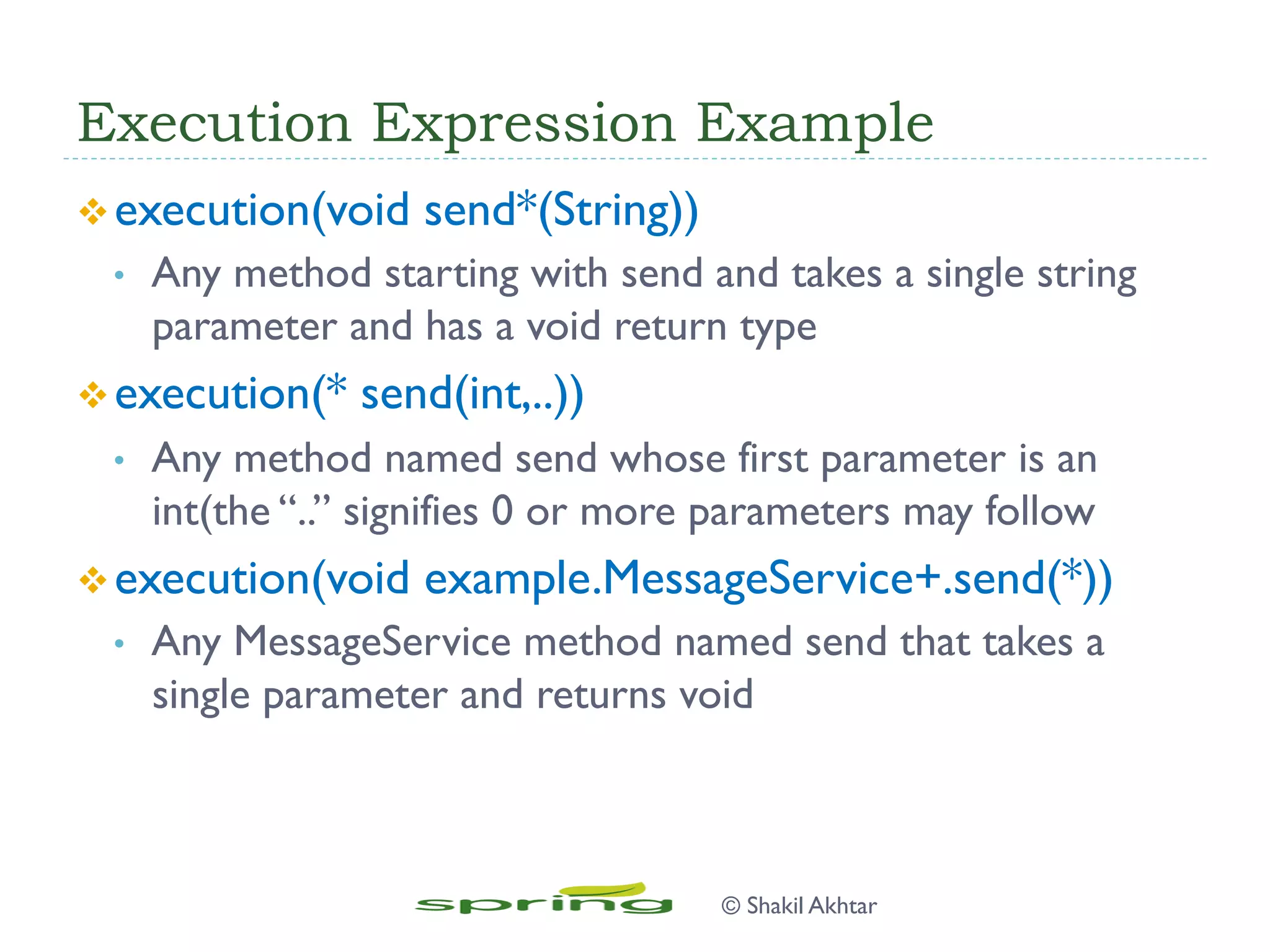

Execution Expression Example
v execution(void send*(String))
•  Any method starting with send and takes a single string
parameter and has a void return type
v execution(* send(int,..))
•  Any method named send whose first parameter is an
int(the “..” signifies 0 or more parameters may follow
v execution(void example.MessageService+.send(*))
•  Any MessageService method named send that takes a
single parameter and returns void
© Shakil Akhtar

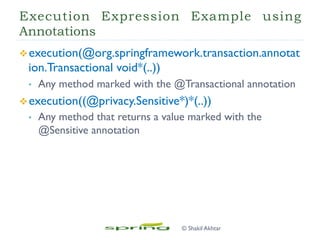

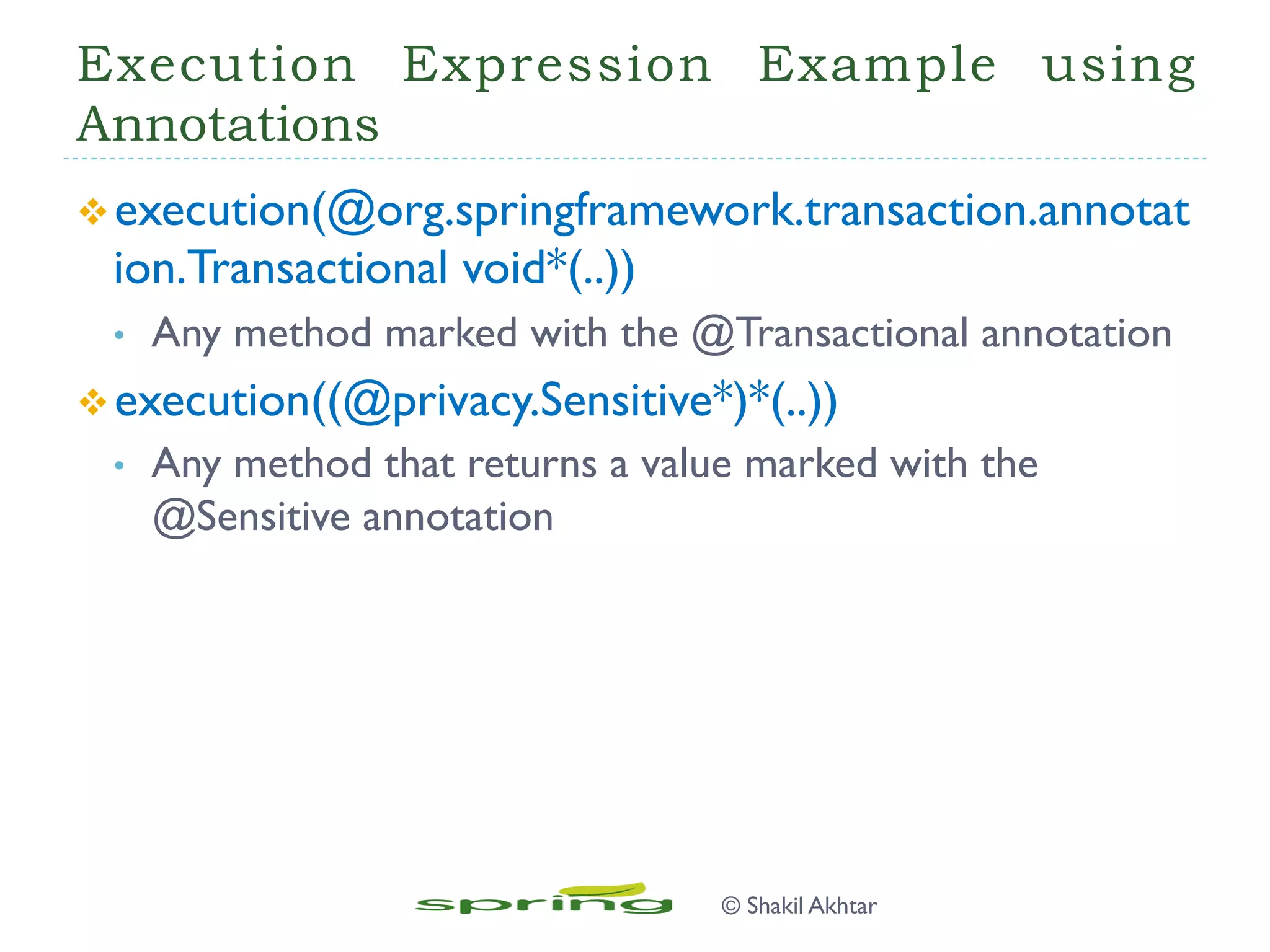

Execution Expression Example using
Annotations
v execution(@org.springframework.transaction.annotat
ion.Transactional void*(..))
•  Any method marked with the @Transactional annotation
v execution((@privacy.Sensitive*)*(..))
•  Any method that returns a value marked with the
@Sensitive annotation
© Shakil Akhtar

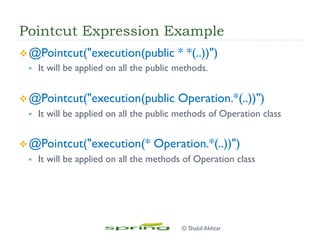

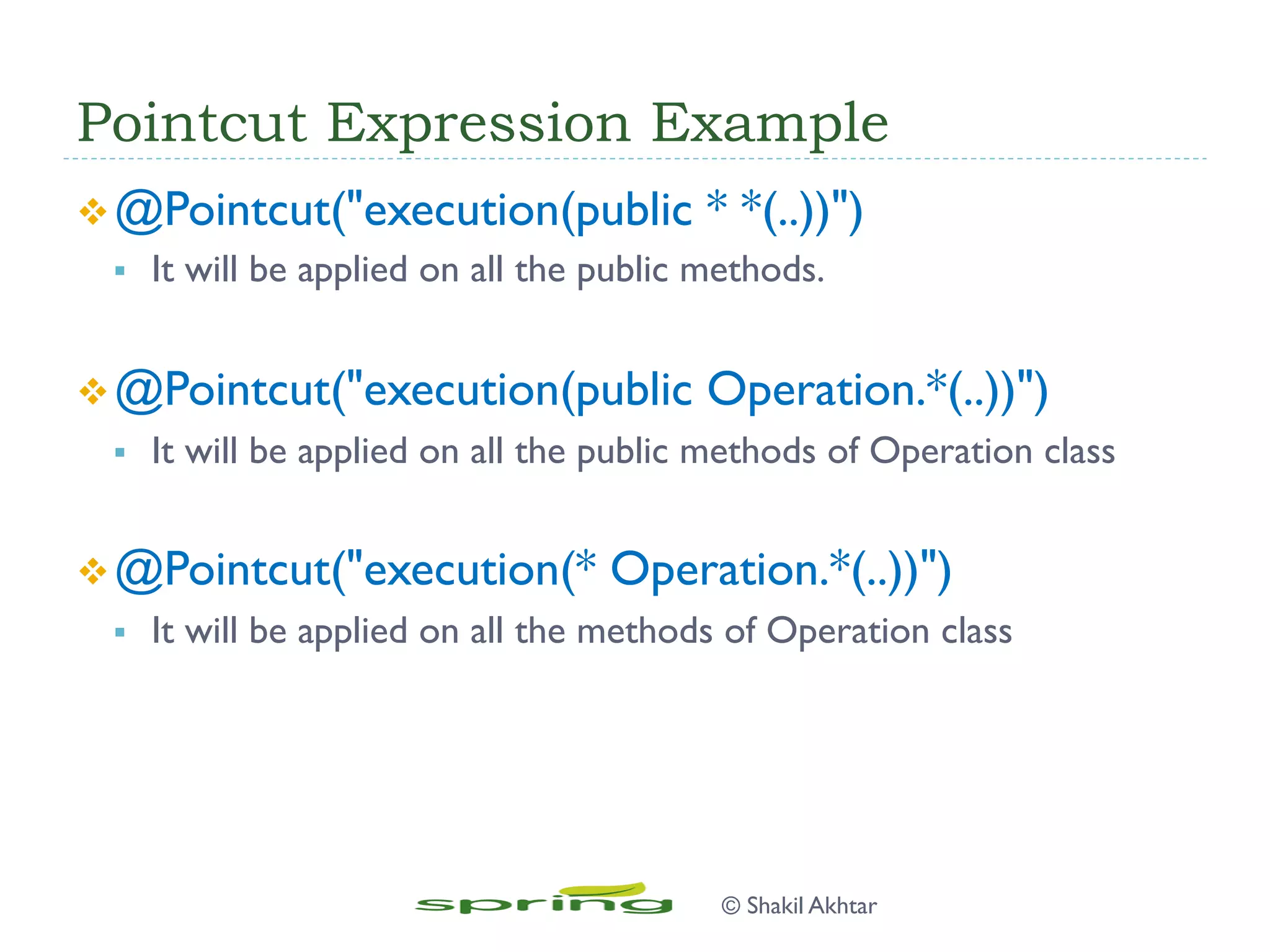

Pointcut Expression Example
v @Pointcut("execution(public * *(..))")
§  It will be applied on all the public methods.
v @Pointcut("execution(public Operation.*(..))")
§  It will be applied on all the public methods of Operation class
v @Pointcut("execution(* Operation.*(..))")
§  It will be applied on all the methods of Operation class
© Shakil Akhtar

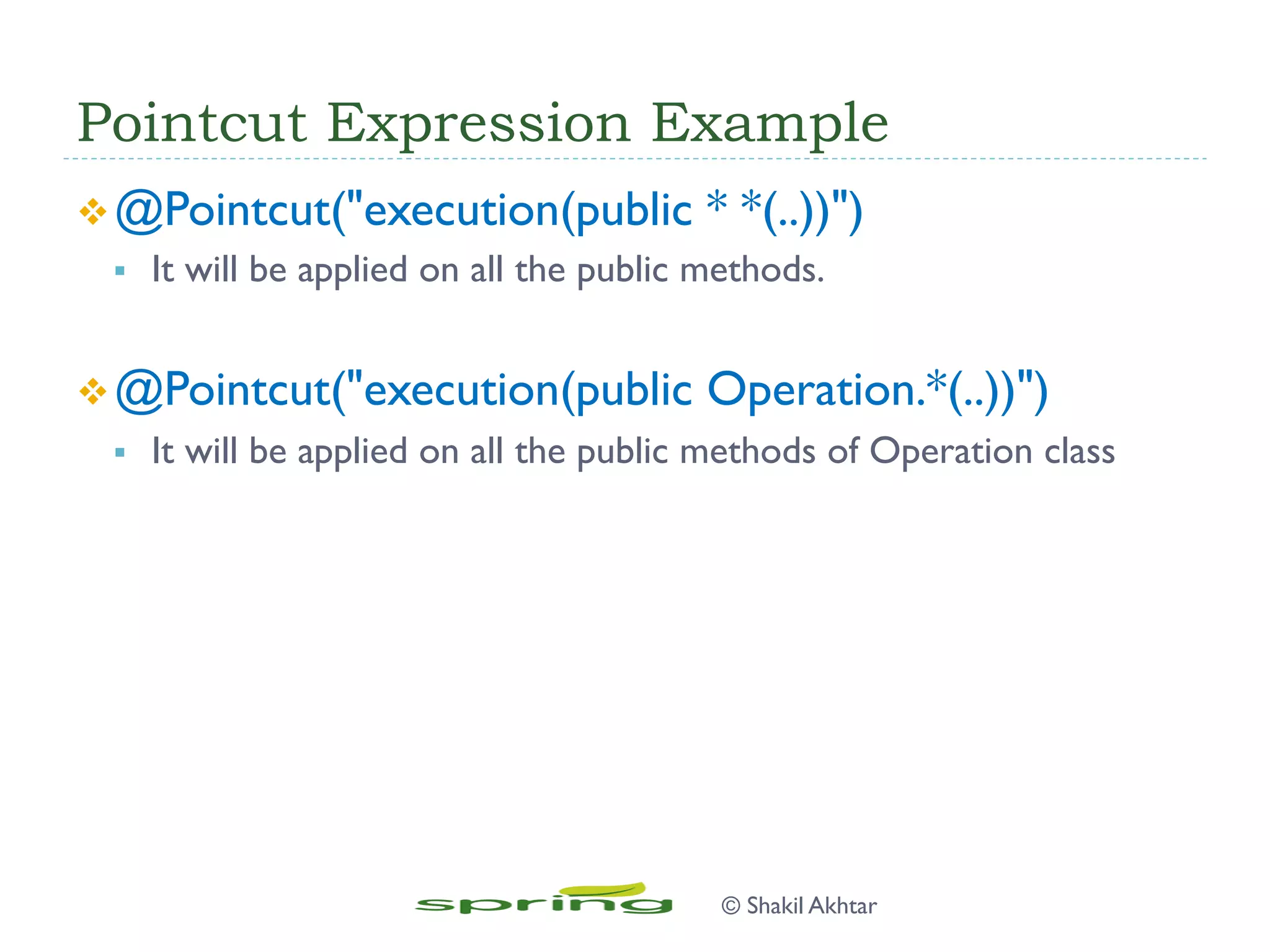

Pointcut Expression Example
v @Pointcut("execution(public * *(..))")
§  It will be applied on all the public methods.
v @Pointcut("execution(public Operation.*(..))")
§  It will be applied on all the public methods of Operation class
© Shakil Akhtar

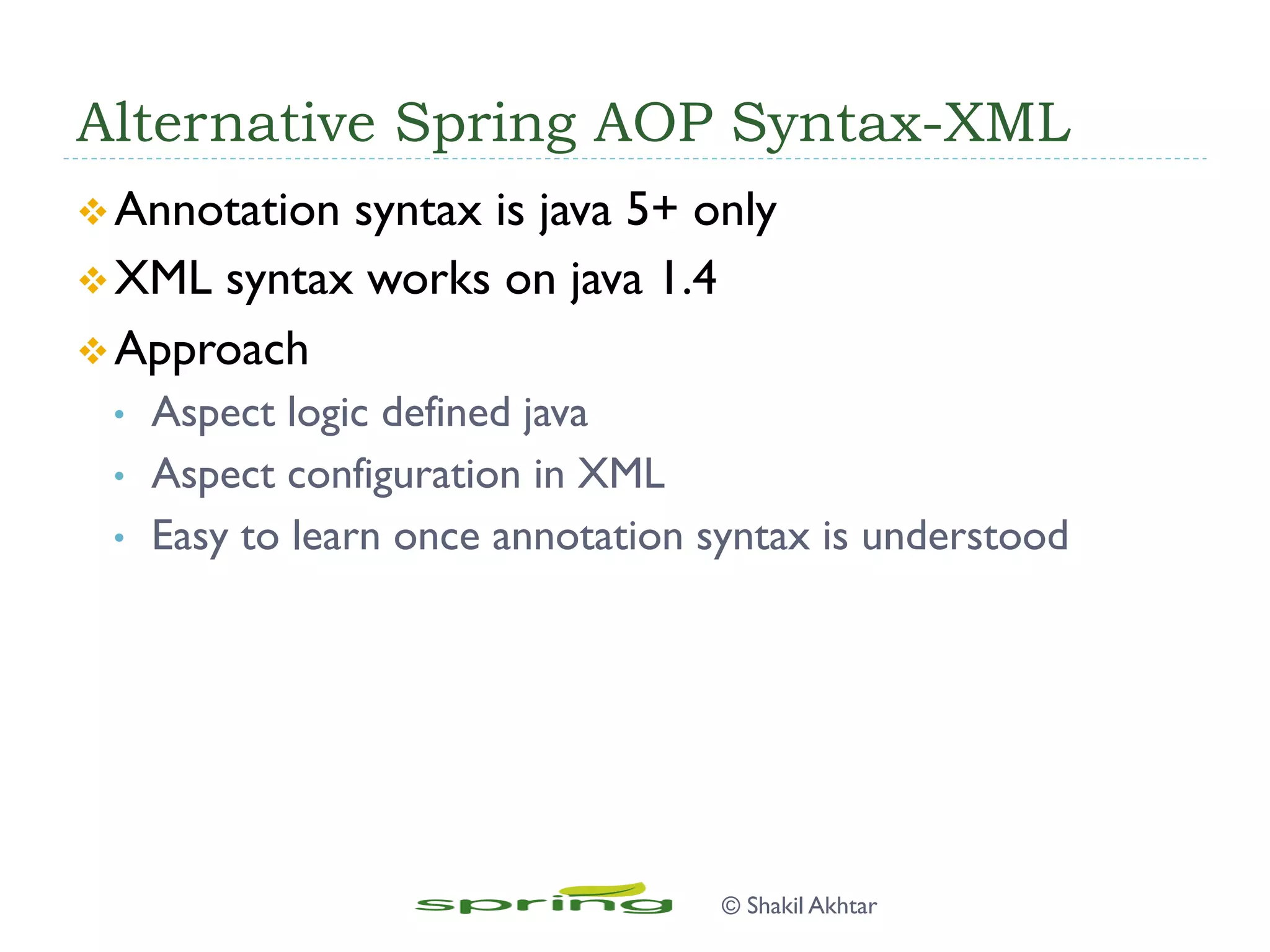

Alternative Spring AOP Syntax-XML
v Annotation syntax is java 5+ only
v XML syntax works on java 1.4
v Approach
•  Aspect logic defined java
•  Aspect configuration in XML
•  Easy to learn once annotation syntax is understood
© Shakil Akhtar

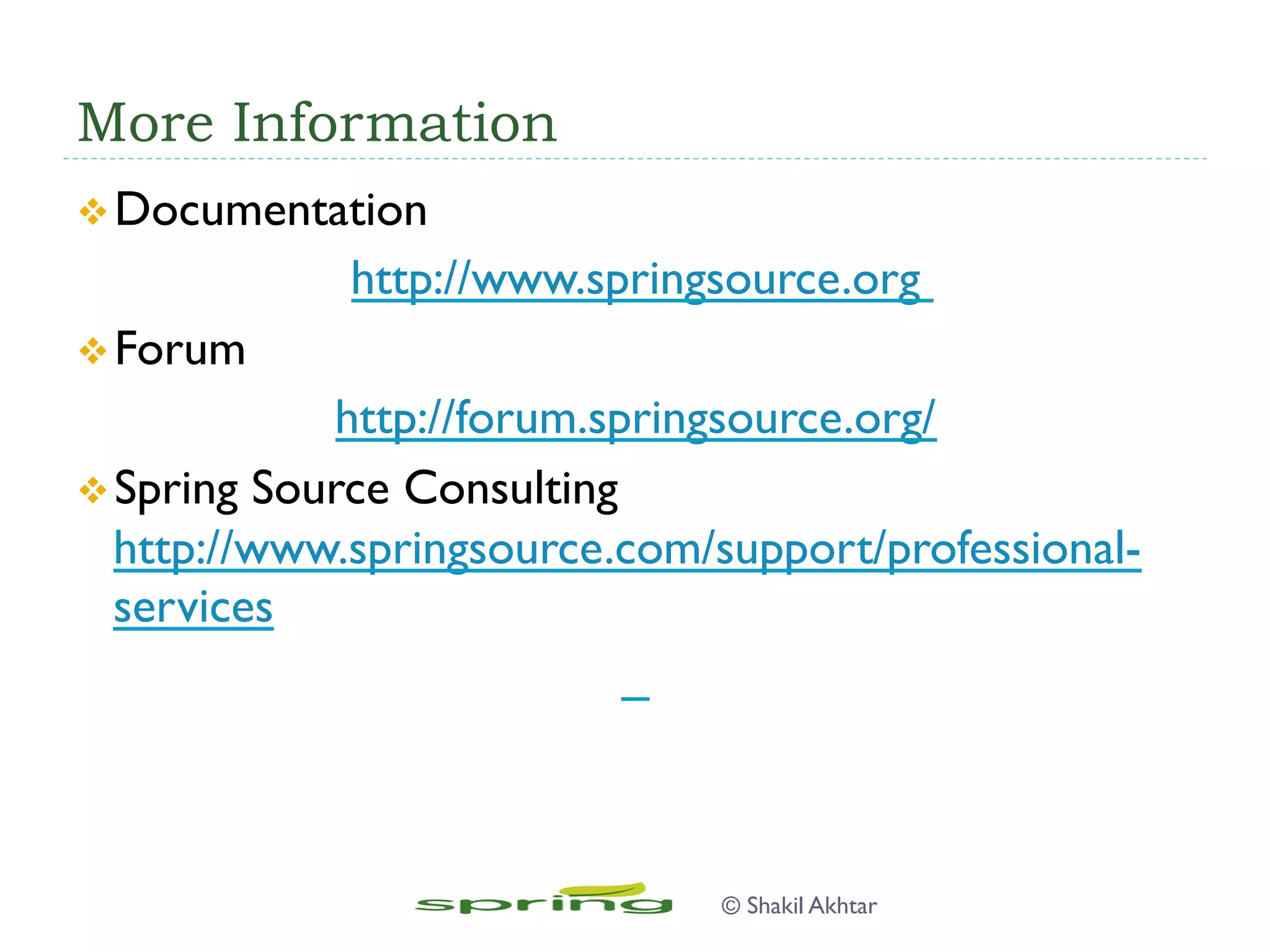

More Information
v Documentation
http://www.springsource.org
v Forum
http://forum.springsource.org/
v Spring Source Consulting
http://www.springsource.com/support/professional-
services
© Shakil Akhtar
