Speed layer : Real time views in LAMBDA architecture
The document discusses the Lambda architecture, which consists of a speed layer, batch layer, and serving layer. The speed layer computes real-time views from streaming data using incremental algorithms and stores these views in databases like Cassandra. This allows for low-latency updates but introduces challenges in maintaining consistency. The batch layer recomputes views from all historical data periodically to correct any inconsistencies introduced in the speed layer.
More Related Content
Similar to Speed layer : Real time views in LAMBDA architecture
Speed layer : Real time views in LAMBDA architecture
- 1. LAMBDA ARCHITECTURE Speed layer:Real-time views BIS2013 Database Systems Prof. Duc Khanh Tran, PhD 1st Hai Vo 2nd Huy Huynh 3rd Tin Ho
- 2. BIS2013-RGB GROUP 2 HaiVo The Speed Layer Computing & Storing real-time views Huy Huynh Challenges of incremental algorithms Asynchronous versus synchronous updates Tin Ho Expiring real-time views Cassandra: an example speed layer view Conclusion Agenda

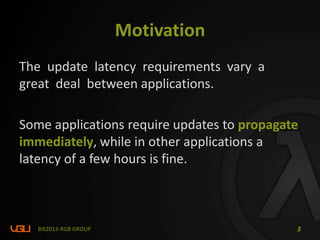

- 3. Motivation The update latencyrequirements vary a great deal between applications. Some applications require updates to propagate immediately, while in other applications a latency of a few hours is fine. BIS2013-RGB GROUP 3

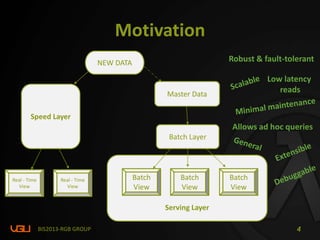

- 4. Serving Layer Motivation BIS2013-RGB GROUP4 NEW DATA Master Data Batch Layer Batch View Batch View Batch View Robust & fault-tolerant Low latency reads Allows ad hoc queries Low latency update Speed Layer Real - Time View Real - Time View

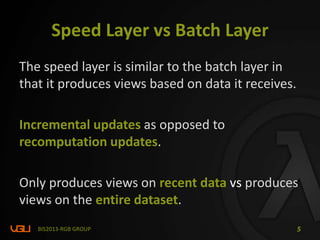

- 5. Speed Layer vsBatch Layer The speed layer is similar to the batch layer in that it produces views based on data it receives. Incremental updates as opposed to recomputation updates. Only produces views on recent data vs produces views on the entire dataset. BIS2013-RGB GROUP 5

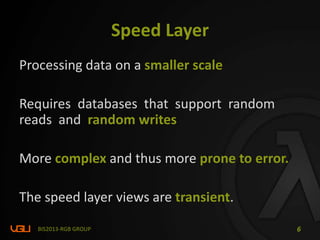

- 6. Speed Layer Processing dataon a smaller scale Requires databases that support random reads and random writes More complex and thus more prone to error. The speed layer views are transient. BIS2013-RGB GROUP 6

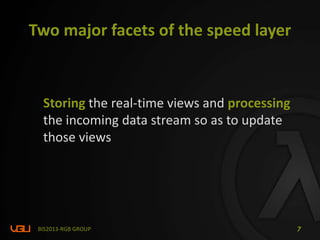

- 7. Two major facetsof the speed layer Storing the real-time views and processing the incoming data stream so as to update those views BIS2013-RGB GROUP 7
- 8. Computing Real-time Views BIS2013-RGBGROUP 8 Real-time View = function (recent data) ALL DATA Recent Data Batch Views Real-time Views
- 9. Computing Real-time Views BIS2013-RGBGROUP 9 Real-time View = function (new data, previous real-time view) ALL DATA Recent Data Batch Views Real-time Views Real-time Views (Updated)
- 10. Storing Real-time Views Low-latencyrandom reads, and using incremental algorithms necessitates low-latency random updates BIS2013-RGB GROUP 10 Random reads Fault-tolerantRandom writes Scalability NoSQL database i.e. Cassandra

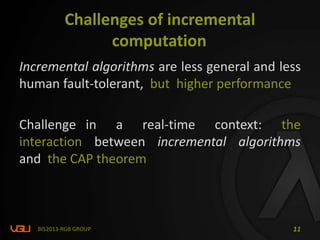

- 11. Challenges of incremental computation Incrementalalgorithms are less general and less human fault-tolerant, but higher performance Challenge in a real-time context: the interaction between incremental algorithms and the CAP theorem BIS2013-RGB GROUP 11

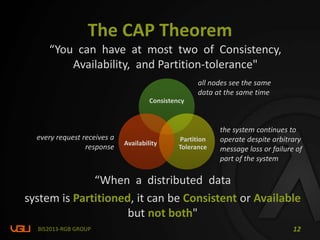

- 12. The CAP Theorem BIS2013-RGBGROUP 12 Consistency Partition Tolerance Availability “You can have at most two of Consistency, Availability, and Partition-tolerance" “When a distributed data system is Partitioned, it can be Consistent or Available but not both" the system continues to operate despite arbitrary message loss or failure of part of the system every request receives a response all nodes see the same data at the same time

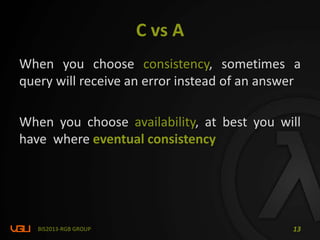

- 13. C vs A Whenyou choose consistency, sometimes a query will receive an error instead of an answer When you choose availability, at best you will have where eventual consistency BIS2013-RGB GROUP 13

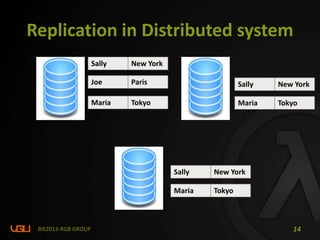

- 14. Replication in Distributedsystem Sally New York BIS2013-RGB GROUP 14 Joe Paris Maria Tokyo Sally New York Maria Tokyo Sally New York Maria Tokyo Joe Paris Maria Tokyo
- 15.

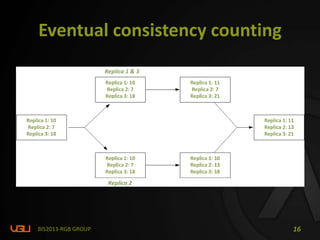

- 16. BIS2013-RGB GROUP 16 Eventualconsistency counting

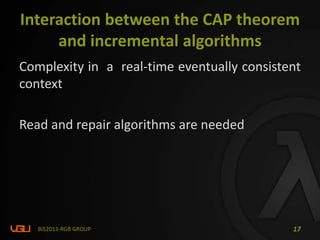

- 17. Complexity in areal-time eventually consistent context Read and repair algorithms are needed BIS2013-RGB GROUP 17 Interaction between the CAP theorem and incremental algorithms
- 18. Unfortunately there isno escape from this complexity if you want eventual consistency in the speed layer If the real-time view becomes corrupted, the batch/serving layers will later automatically correct the mistake in the serving layer views BIS2013-RGB GROUP 18 Keep calm with Lambda

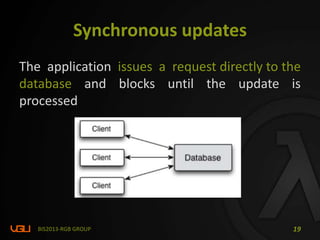

- 19. Synchronous updates BIS2013-RGB GROUP19 The application issues a request directly to the database and blocks until the update is processed

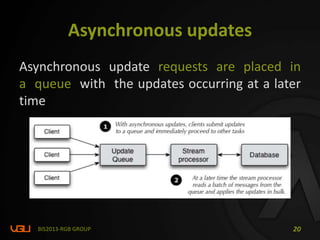

- 20. Asynchronous updates BIS2013-RGB GROUP20 Asynchronous update requests are placed in a queue with the updates occurring at a later time

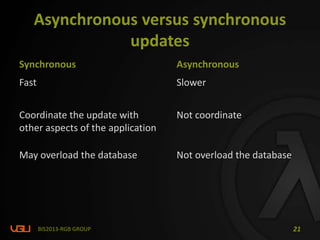

- 21. Asynchronous versus synchronous updates SynchronousAsynchronous Fast Slower Coordinate the update with other aspects of the application Not coordinate May overload the database Not overload the database BIS2013-RGB GROUP 21

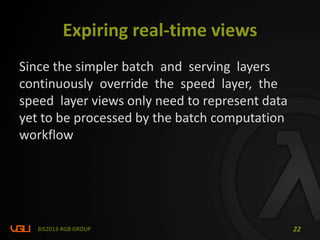

- 22. Expiring real-time views Sincethe simpler batch and serving layers continuously override the speed layer, the speed layer views only need to represent data yet to be processed by the batch computation workflow BIS2013-RGB GROUP 22
- 23. Expiring real-time views Instead,we present a generic approach for expiring speed layer views that works regardless of the speed layer databases being used. To understand this approach, let's first get an understanding of what exactly needs to be expired each time the serving layer is updated BIS2013-RGB GROUP 23
- 24.

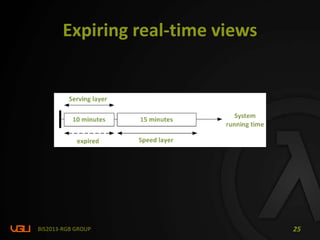

- 25.

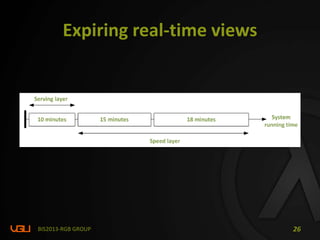

- 26.
- 27.

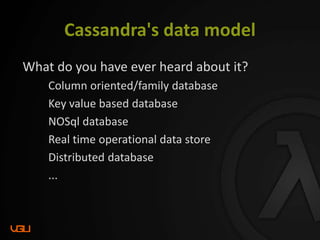

- 28. Cassandra's data model Whatdo you have ever heard about it? Column oriented/family database Key value based database NOSql database Real time operational data store Distributed database ...

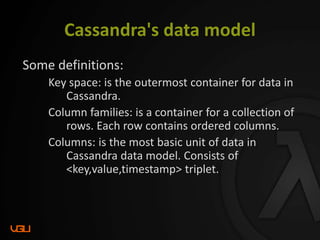

- 29. Cassandra's data model Somedefinitions: Key space: is the outermost container for data in Cassandra. Column families: is a container for a collection of rows. Each row contains ordered columns. Columns: is the most basic unit of data in Cassandra data model. Consists of <key,value,timestamp> triplet.

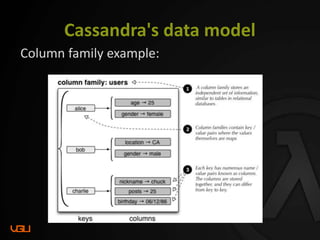

- 30. Cassandra's data model Columnfamily example:

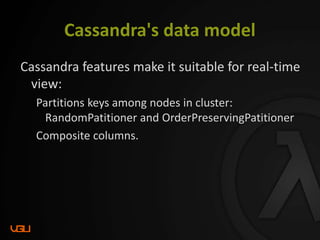

- 31. Cassandra's data model Cassandrafeatures make it suitable for real-time view: Partitions keys among nodes in cluster: RandomPatitioner and OrderPreservingPatitioner Composite columns.
- 32.

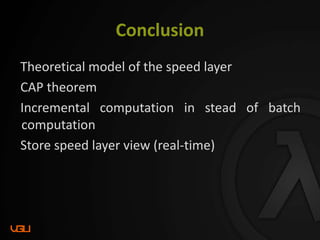

- 33. Conclusion Theoretical model ofthe speed layer CAP theorem Incremental computation in stead of batch computation Store speed layer view (real-time)

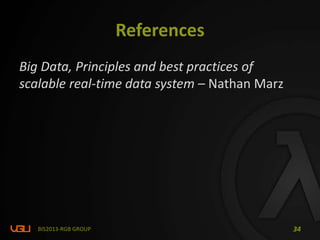

- 34. References BIS2013-RGB GROUP 34 BigData, Principles and best practices of scalable real-time data system – Nathan Marz
