This document provides specifications for a 7-inch touch screen car media system. It includes details on supported file formats, display specs, audio and video outputs, Bluetooth and radio functions, and dimensions. Connectivity options include USB, SD card, DVD/CD, and auxiliary inputs. The system can play media from USB drives, SD cards, CDs, DVDs, and supports connecting an iPod for music playback through the car stereo.

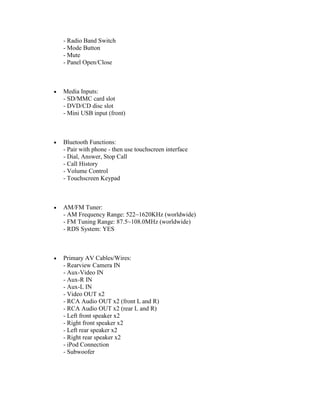

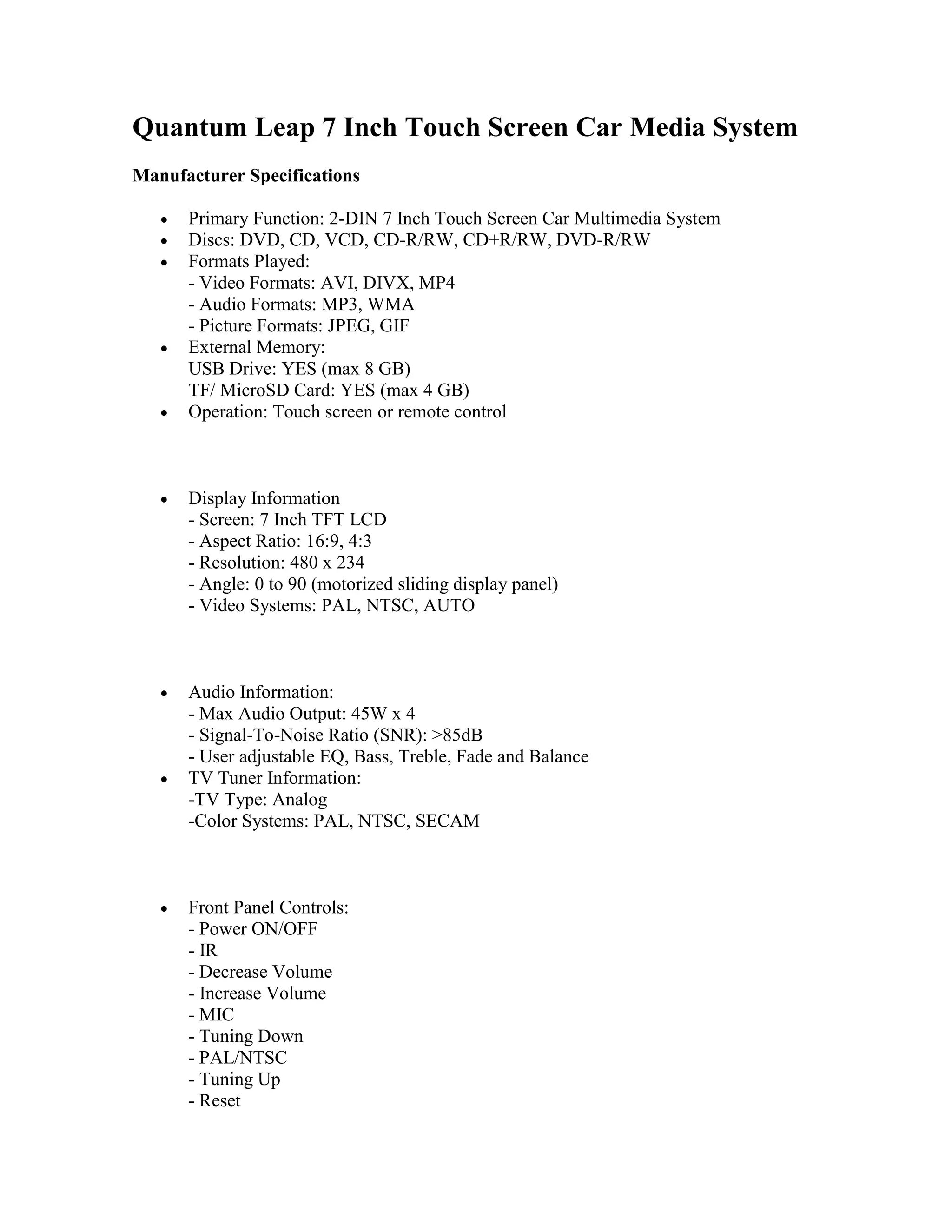

1. Quantum Leap 7 Inch Touch Screen Car Media SystemManufacturer SpecificationsPrimary Function: 2-DIN 7 Inch Touch Screen Car Multimedia SystemDiscs: DVD, CD, VCD, CD-R/RW, CD+R/RW, DVD-R/RWFormats Played: - Video Formats: AVI, DIVX, MP4 - Audio Formats: MP3, WMA - Picture Formats: JPEG, GIFExternal Memory: USB Drive: YES (max 8 GB) TF/ MicroSD Card: YES (max 4 GB)Operation: Touch screen or remote controlDisplay Information - Screen: 7 Inch TFT LCD - Aspect Ratio: 16:9, 4:3 - Resolution: 480 x 234 - Angle: 0 to 90 (motorized sliding display panel) - Video Systems: PAL, NTSC, AUTOAudio Information: - Max Audio Output: 45W x 4 - Signal-To-Noise Ratio (SNR): >85dB - User adjustable EQ, Bass, Treble, Fade and BalanceTV Tuner Information: -TV Type: Analog -Color Systems: PAL, NTSC, SECAMFront Panel Controls: - Power ON/OFF - IR - Decrease Volume - Increase Volume - MIC - Tuning Down - PAL/NTSC - Tuning Up - Reset - Radio Band Switch - Mode Button - Mute - Panel Open/CloseMedia Inputs: - SD/MMC card slot - DVD/CD disc slot - Mini USB input (front)Bluetooth Functions: - Pair with phone - then use touchscreen interface - Dial, Answer, Stop Call - Call History - Volume Control - Touchscreen KeypadAM/FM Tuner: - AM Frequency Range: 522~1620KHz (worldwide) - FM Tuning Range: 87.5~108.0MHz (worldwide) - RDS System: YESPrimary AV Cables/Wires: - Rearview Camera IN - Aux-Video IN - Aux-R IN - Aux-L IN - Video OUT x2 - RCA Audio OUT x2 (front L and R) - RCA Audio OUT x2 (rear L and R) - Left front speaker x2 - Right front speaker x2 - Left rear speaker x2 - Right rear speaker x2 - iPod Connection - SubwooferDimensions: L:162 x W:178 x H:100 (mm): Length with front panel = 181 (mm)OSD Languages: English, French, German, Portuguese, Spanish, ChineseManufacturer Ref: NH6O9AHY9EF7Product NotesConnect your iPod to listen to your iLife music collection on your car's stereo systemThe USB port is a great way to hook up your portable media player with your car entertainment centerWonder if you can really do it yourself? Check this out - Information On Installing A Car DVD PlayerPackage Contents Car Multimedia PlayerRemote Control with battery includedUSB Extension CableStylusIpod CableMounting Hardware Users Manual - English
