This document provides specifications for a covert wireless spy camera alarm clock and receiver system. The clock contains a hidden 1/3 inch camera with a 45 degree field of view and range of 1-8 meters. It transmits to the receiver from 15-20 meters away. The receiver has a 2.5 inch LCD screen to view the camera feed and supports 4 channels. It receives signals from 2400-2483 MHz and has volume controls, earphone jack, and rechargeable battery. The full package includes the hidden camera clock.

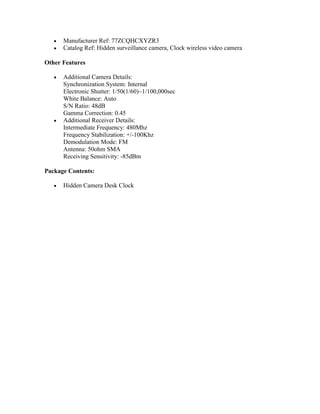

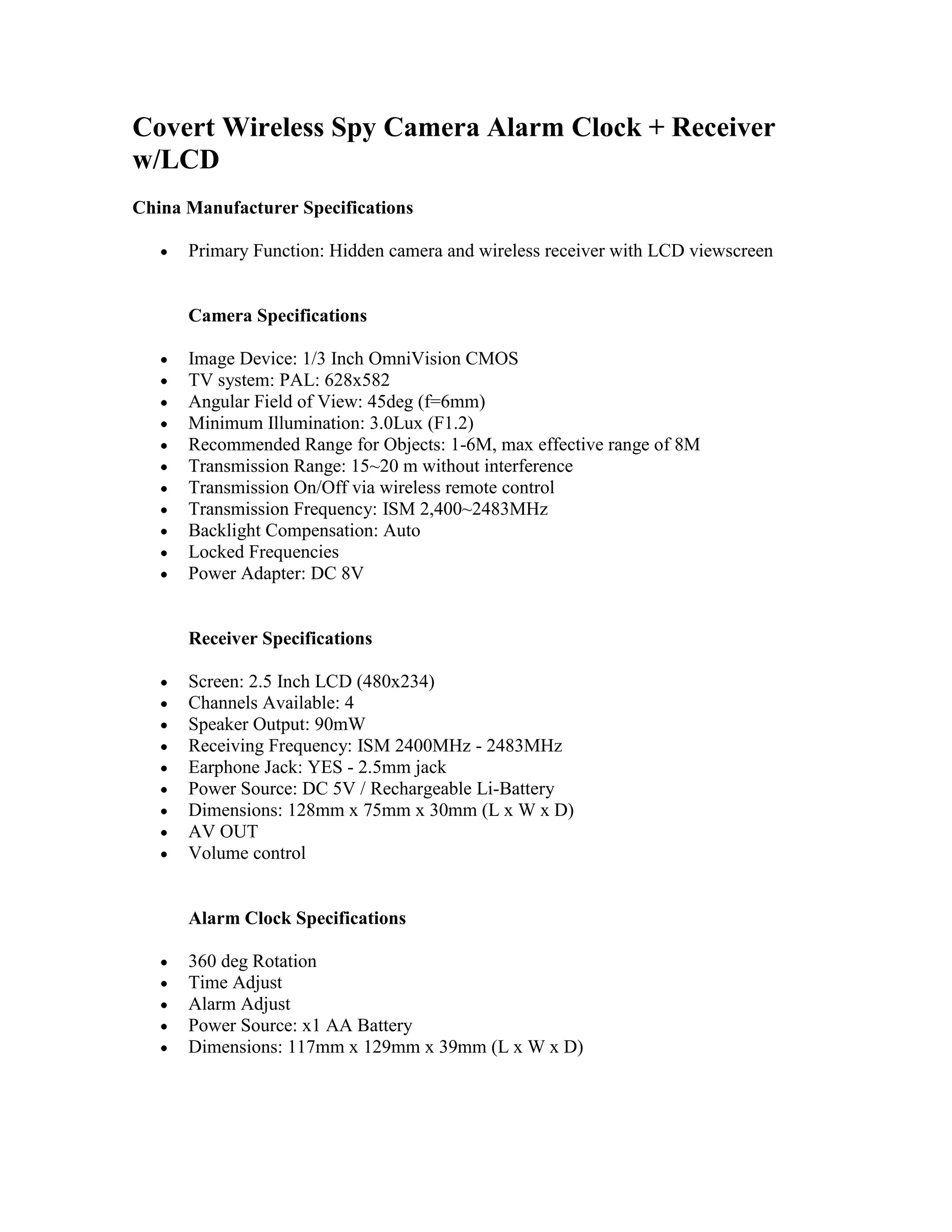

1. Covert Wireless Spy Camera Alarm Clock + Receiver w/LCD China Manufacturer Specifications Primary Function: Hidden camera and wireless receiver with LCD viewscreen Camera Specifications Image Device: 1/3 Inch OmniVision CMOS TV system: PAL: 628x582 Angular Field of View: 45deg (f=6mm) Minimum Illumination: 3.0Lux (F1.2) Recommended Range for Objects: 1-6M, max effective range of 8M Transmission Range: 15~20 m without interference Transmission On/Off via wireless remote control Transmission Frequency: ISM 2,400~2483MHz Backlight Compensation: Auto Locked Frequencies Power Adapter: DC 8V Receiver Specifications Screen: 2.5 Inch LCD (480x234) Channels Available: 4 Speaker Output: 90mW Receiving Frequency: ISM 2400MHz - 2483MHz Earphone Jack: YES - 2.5mm jack Power Source: DC 5V / Rechargeable Li-Battery Dimensions: 128mm x 75mm x 30mm (L x W x D) AV OUT Volume control Alarm Clock Specifications 360 deg Rotation Time Adjust Alarm Adjust Power Source: x1 AA Battery Dimensions: 117mm x 129mm x 39mm (L x W x D) Manufacturer Ref: 77ZCQHCXYZR3 Catalog Ref: Hidden surveillance camera, Clock wireless video camera Other Features Additional Camera Details: Synchronization System: Internal Electronic Shutter: 1/50(1/60)~1/100,000sec White Balance: Auto S/N Ratio: 48dB Gamma Correction: 0.45 Additional Receiver Details: Intermediate Frequency: 480Mhz Frequency Stabilization: +/-100Khz Demodulation Mode: FM Antenna: 50ohm SMA Receiving Sensitivity: -85dBm Package Contents: Hidden Camera Desk Clock
