Lucandra is a project that combines Lucene/Solr indexing and search capabilities with Cassandra for storage. It addresses issues with scaling Lucene/Solr by leveraging Cassandra's ability to horizontally scale writes and queries. Lucandra stores Lucene indexes and term vectors in Cassandra to allow distributed indexing and searching across nodes. It has been used successfully in production systems like sparse.ly for twitter search and Wikassandra for Wikipedia search.

1. Lucandra Lucene + Cassandra http://github/tjake/Lucandra http://twitter.com/tjake Jake Luciani

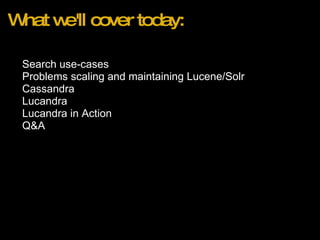

2. What we'll cover today: Search use-cases Problems scaling and maintaining Lucene/Solr Cassandra Lucandra Lucandra in Action Q&A

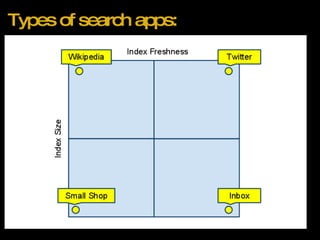

3. Types of search apps:

4. Types of search apps:

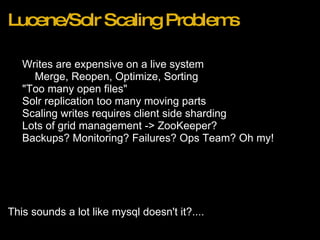

5. Lucene/Solr Scaling Problems Writes are expensive on a live system Merge, Reopen, Optimize, Sorting "Too many open files" Solr replication too many moving parts Scaling writes requires client side sharding Lots of grid management -> ZooKeeper? Backups? Monitoring? Failures? Ops Team? Oh my! This sounds a lot like mysql doesn't it?....

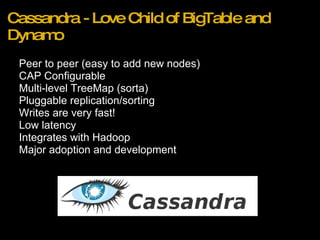

6. Cassandra - Love Child of BigTable and Dynamo Peer to peer (easy to add new nodes) CAP Configurable Multi-level TreeMap (sorta) Pluggable replication/sorting Writes are very fast! Low latency Integrates with Hadoop Major adoption and development

7. Cassandra's Data Model { "bloghost.com" : // Keyspace { "Posts" : // ColumnFamily { " tjake.bloghost.com " : // Key { "20100426-Lucandra" : "lucandra talk today!" } // Columns } }, { "Comments" : // SuperColumnFamily { " tjake.bloghost.com " : // Key { "20100426-Lucandra-1": // SuperColumn {"From" : "Otis","Comment": "Don't Suck!"}, // Columns }, { "20100426-Lucandra-2": // SuperColumn {"From" : "Jake","Comment": "O.K."}, // Columns }, } }}

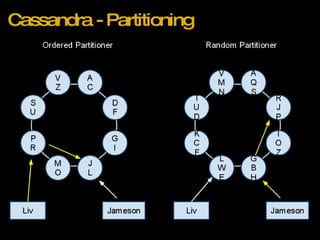

8. Cassandra - Partitioning

9. Cassandra - Scale Up / Scale Down

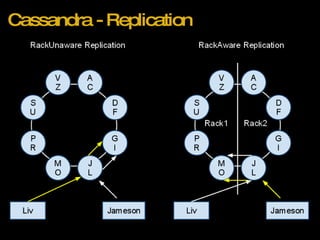

10. Cassandra - Replication

11. Solr/Lucene Components

12. Lucandra Components

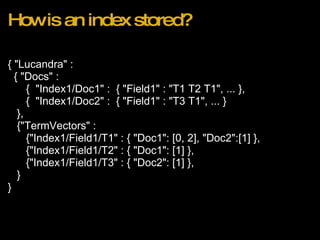

13. How is an index stored? { "Lucandra" : { "Docs" : { "Index1/Doc1" : { "Field1" : "T1 T2 T1", ... }, { "Index1/Doc2" : { "Field1" : "T3 T1", ... } }, {"TermVectors" : {"Index1/Field1/T1" : { "Doc1": [0, 2], "Doc2":[1] }, {"Index1/Field1/T2" : { "Doc1": [1] }, {"Index1/Field1/T3" : { "Doc2": [1] }, } }

14. Lucandra Deployed

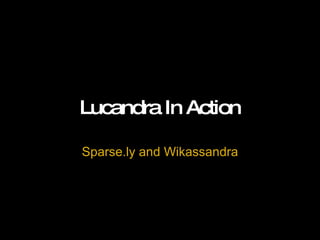

15. Lucandra In Action Sparse.ly and Wikassandra

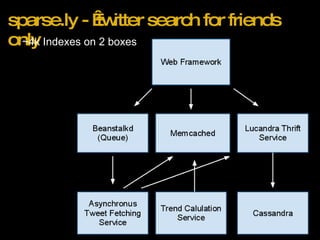

16. sparse.ly - twitter search for friends only ~4k Indexes on 2 boxes

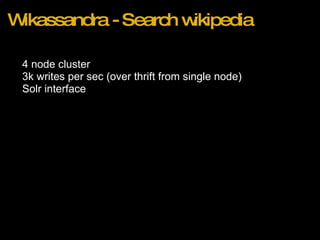

17. Wikassandra - Search wikipedia 4 node cluster 3k writes per sec (over thrift from single node) Solr interface
