Topic: Sorting in c programming

2. www.iies.in PH: +91 98869 20008 enquiry@iies.in
Why Sorting :
Sorting is one of the important category of algorithms in computer science. And a lot of
research has gone into this category. Sorting can significantly reduce the complexity of
problem and is often used for database algorithms and searches.
What is Sorting :
Sorting is an algorithm that arranges the data elements in a specified order, here the order
refers to ascending or descending.

3. www.iies.in PH: +91 98869 20008 enquiry@iies.in
C provides the following categories of sorting techniques:
1)Bubble Sort.
2)Insertion Sort.
3)Selection Sort.
4)Quick Sort.
5)Merge Sort.

4. www.iies.in PH: +91 98869 20008 enquiry@iies.in

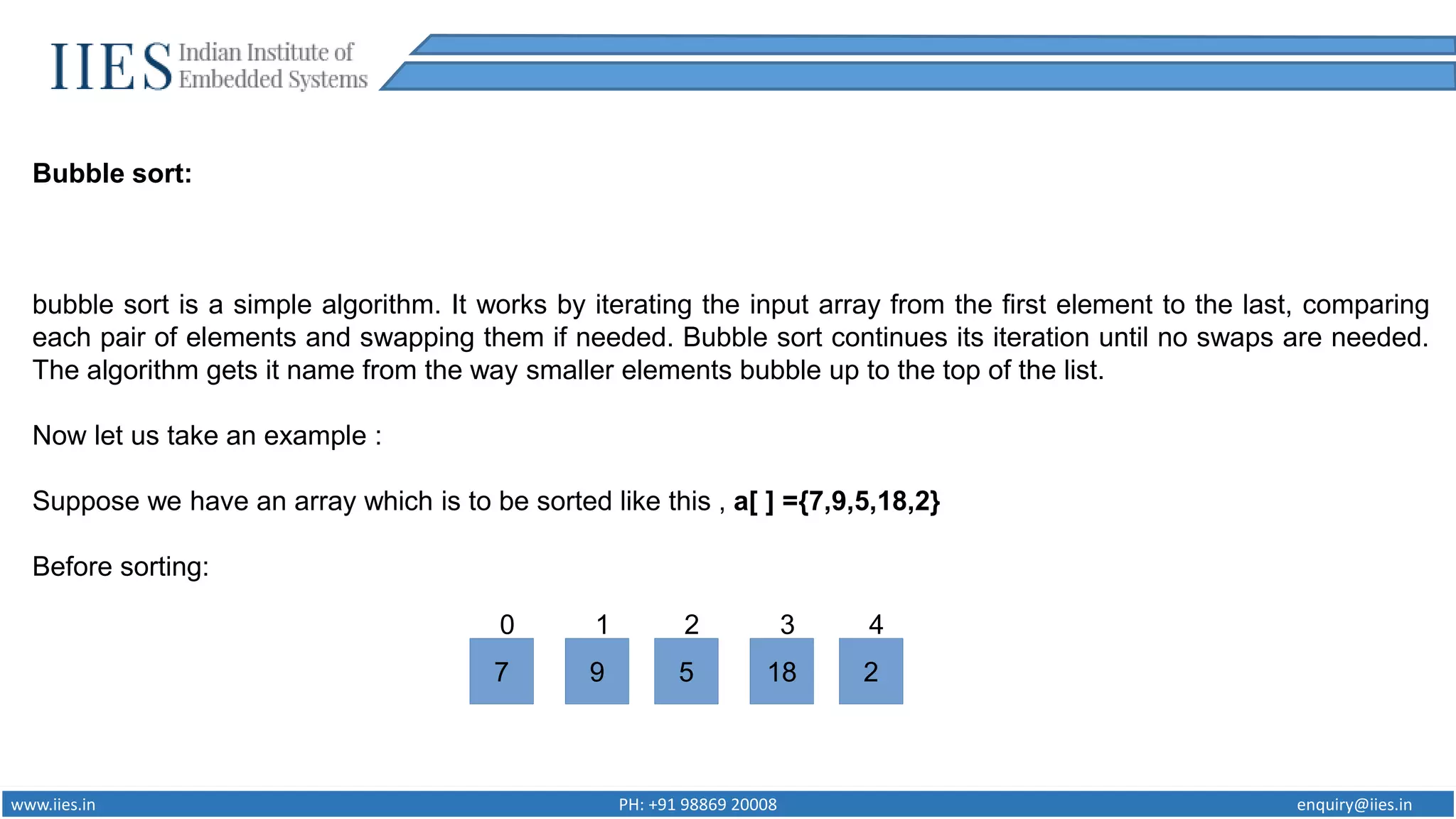

Bubble sort:
bubble sort is a simple algorithm. It works by iterating the input array from the first element to the last, comparing
each pair of elements and swapping them if needed. Bubble sort continues its iteration until no swaps are needed.
The algorithm gets it name from the way smaller elements bubble up to the top of the list.
Now let us take an example :
Suppose we have an array which is to be sorted like this , a[ ] ={7,9,5,18,2}
Before sorting:
7 9 5 18 2
0 1 2 3 4

5. www.iies.in PH: +91 98869 20008 enquiry@iies.in
After sorting the array it should look like this
now this is our unsorted array
2 5 7 9 18
0 1 2 3 4
7 9 5 18 2
0 1 2 3 4

6. www.iies.in PH: +91 98869 20008 enquiry@iies.in
now in the 1ST PASS we compare the adjacent elements and do swapping if they are not in sorted form to get
them in sorted form and traverse to the next adjacent elements now for traversing what I can see is we compare the
adjacent elements and if it is already in sorted form then we move ahead with next adjacent elements without
swapping. What if they are not in sorted order we just simply swap the elements to place them in there right place.
To sort an n-size array we perform n-1 passes. Now let us see how actually we perform bubble sort and what
actually a pass means and what will happen at the end of each pass.
PASS:1
first we compare with index 0 and index 1.
7 9 5 18 2
0 1 2 3 4

7. www.iies.in PH: +91 98869 20008 enquiry@iies.in

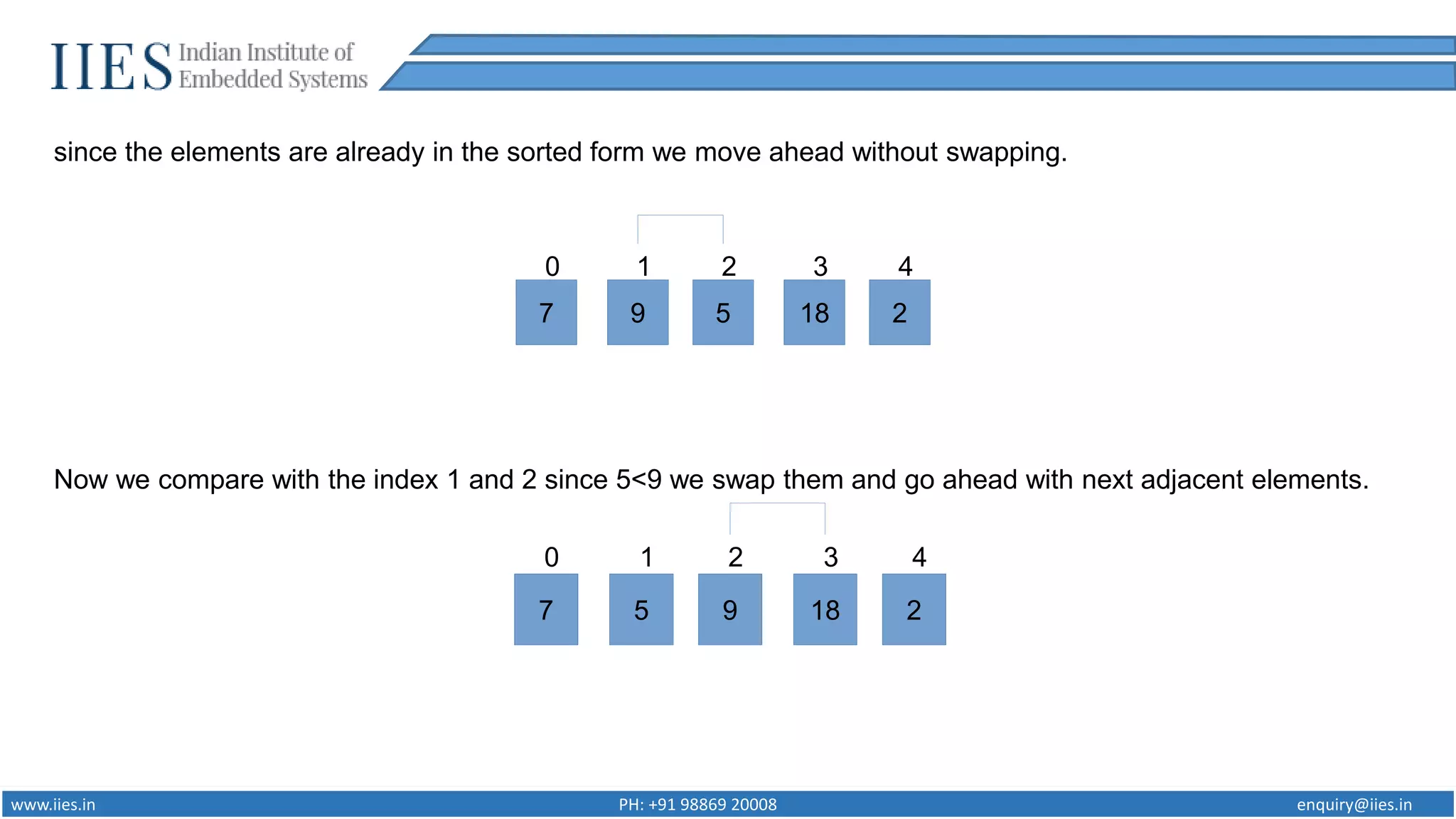

since the elements are already in the sorted form we move ahead without swapping.
Now we compare with the index 1 and 2 since 5<9 we swap them and go ahead with next adjacent elements.
7 9 5 18 2
0 1 2 3 4
7 5 9 18 2
0 1 2 3 4

8. www.iies.in PH: +91 98869 20008 enquiry@iies.in

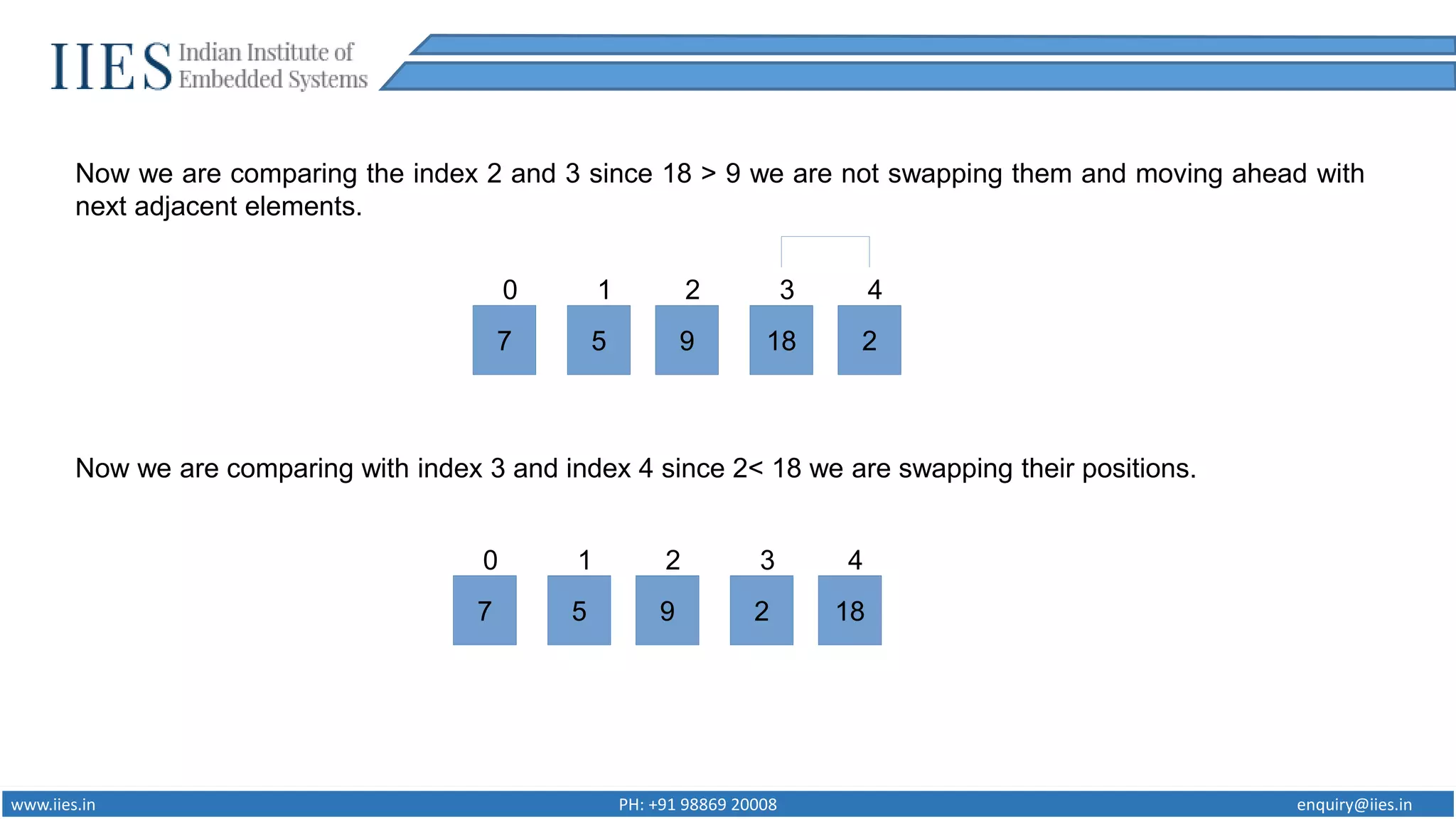

Now we are comparing the index 2 and 3 since 18 > 9 we are not swapping them and moving ahead with
next adjacent elements.
Now we are comparing with index 3 and index 4 since 2< 18 we are swapping their positions.
7 5 9 18 2
0 1 2 3 4
7 5 9 2 18
0 1 2 3 4

9. www.iies.in PH: +91 98869 20008 enquiry@iies.in

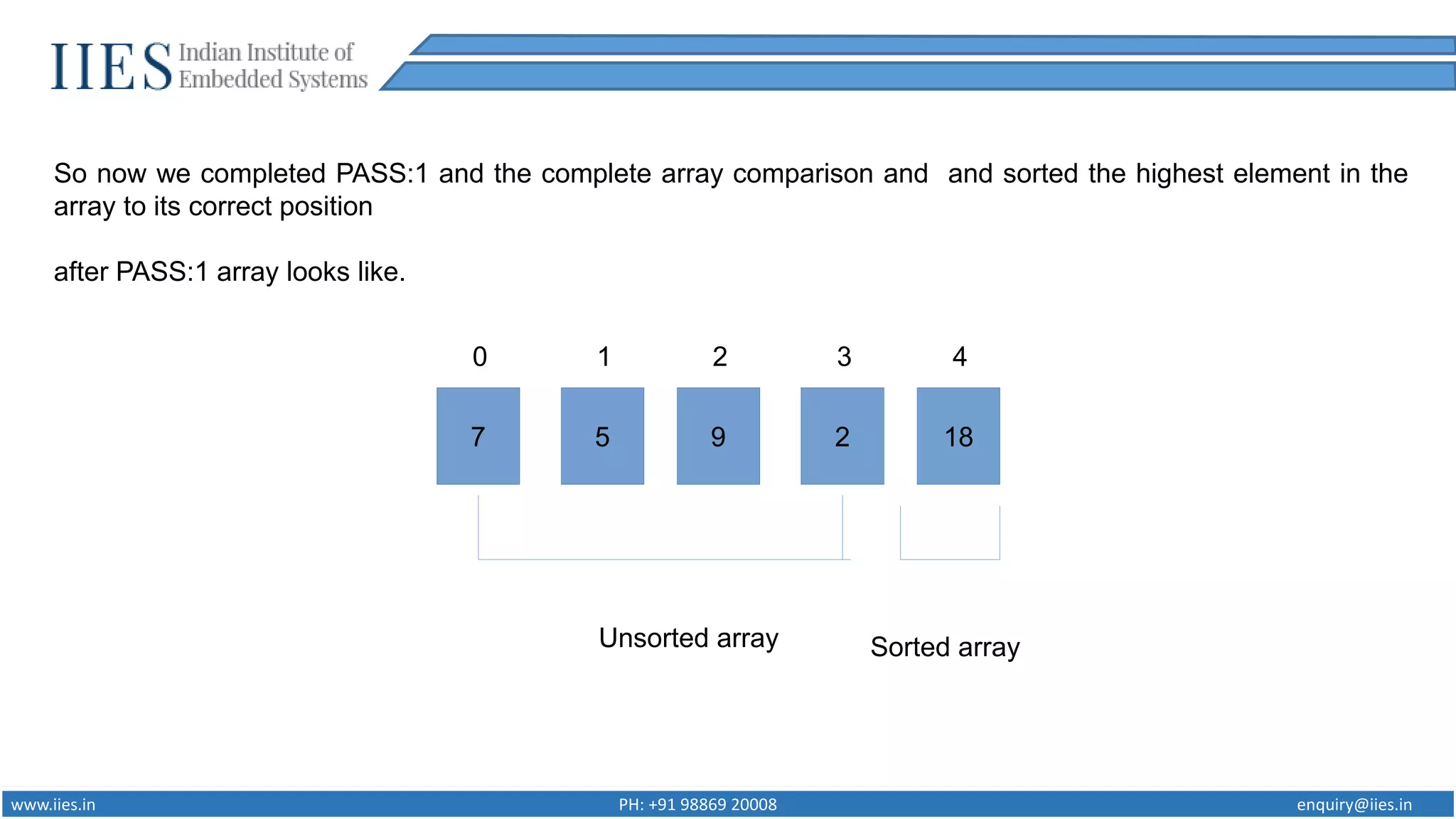

So now we completed PASS:1 and the complete array comparison and and sorted the highest element in the
array to its correct position
after PASS:1 array looks like.
7 5 9 2 18
0 1 2 3 4
Unsorted array Sorted array

10. www.iies.in PH: +91 98869 20008 enquiry@iies.in

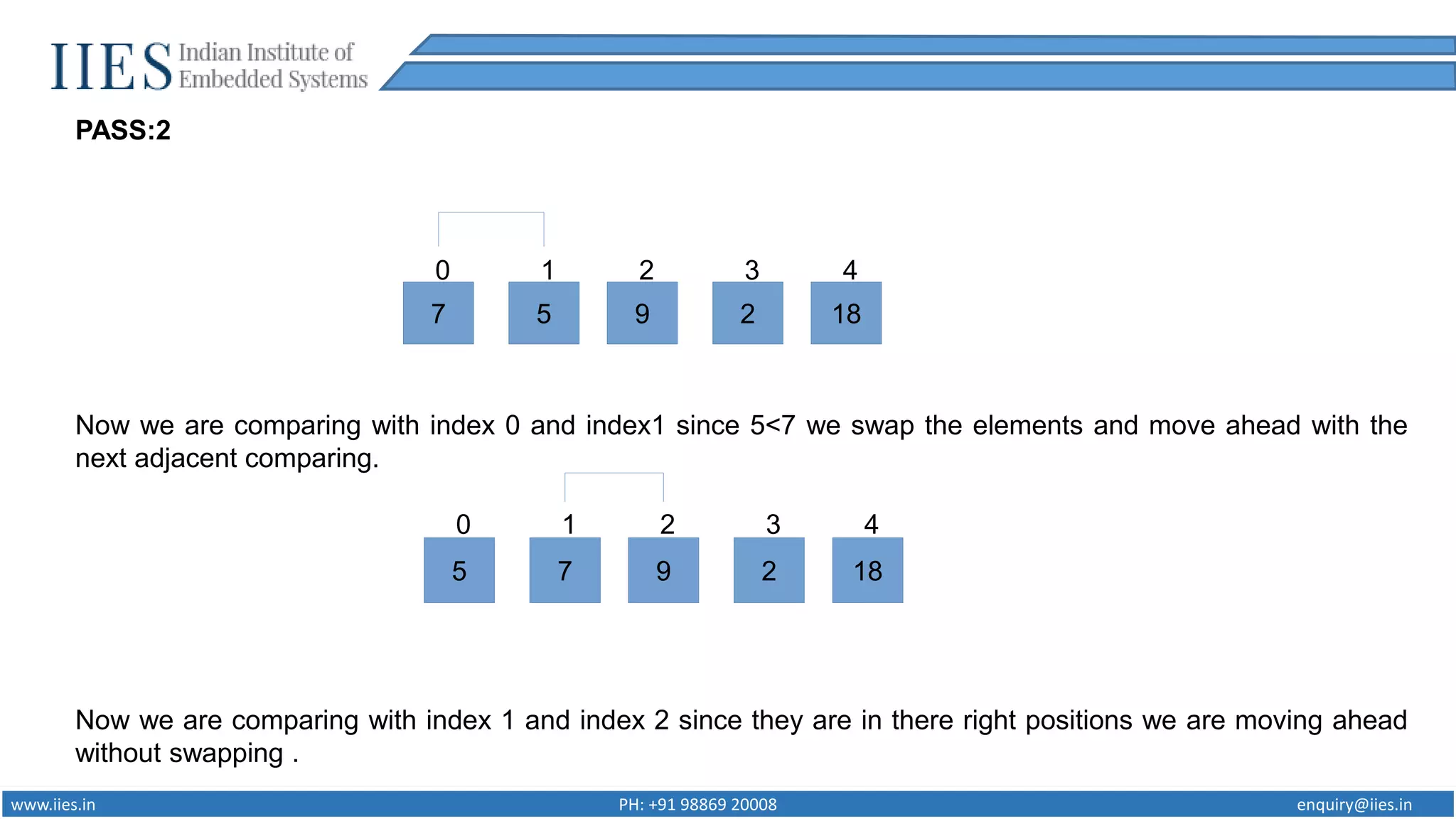

PASS:2
Now we are comparing with index 0 and index1 since 5<7 we swap the elements and move ahead with the
next adjacent comparing.
Now we are comparing with index 1 and index 2 since they are in there right positions we are moving ahead
without swapping .
7 5 9 2 18
0 1 2 3 4
5 7 9 2 18
0 1 2 3 4

11. www.iies.in PH: +91 98869 20008 enquiry@iies.in

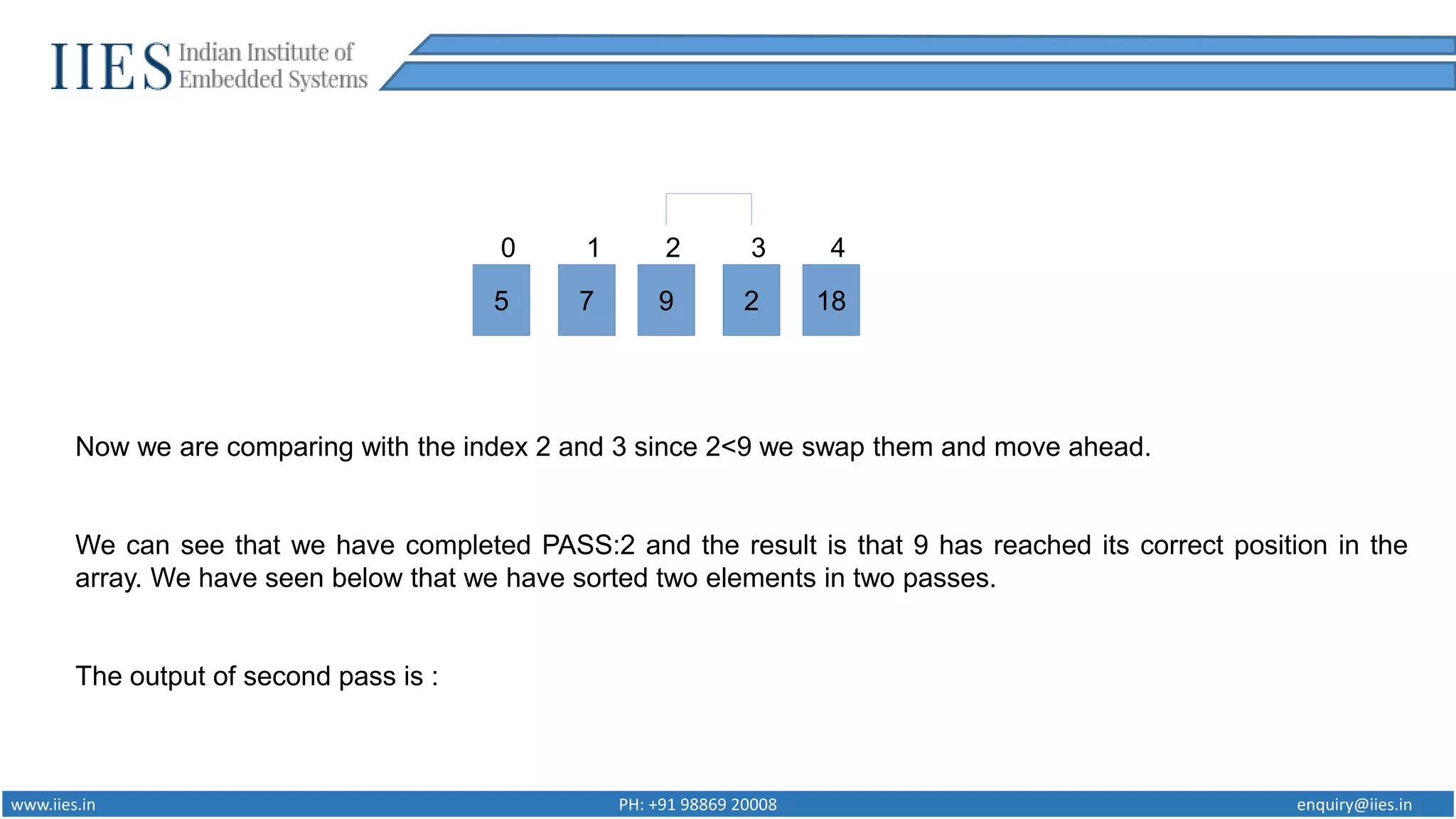

Now we are comparing with the index 2 and 3 since 2<9 we swap them and move ahead.
We can see that we have completed PASS:2 and the result is that 9 has reached its correct position in the
array. We have seen below that we have sorted two elements in two passes.
The output of second pass is :
5 7 9 2 18
0 1 2 3 4

12. www.iies.in PH: +91 98869 20008 enquiry@iies.in
This the output of second pass we have sorted two elements in two passes:
5 7 2 9 18
0 1 2 3 4
Unsorted array
Sorted array

13. www.iies.in PH: +91 98869 20008 enquiry@iies.in

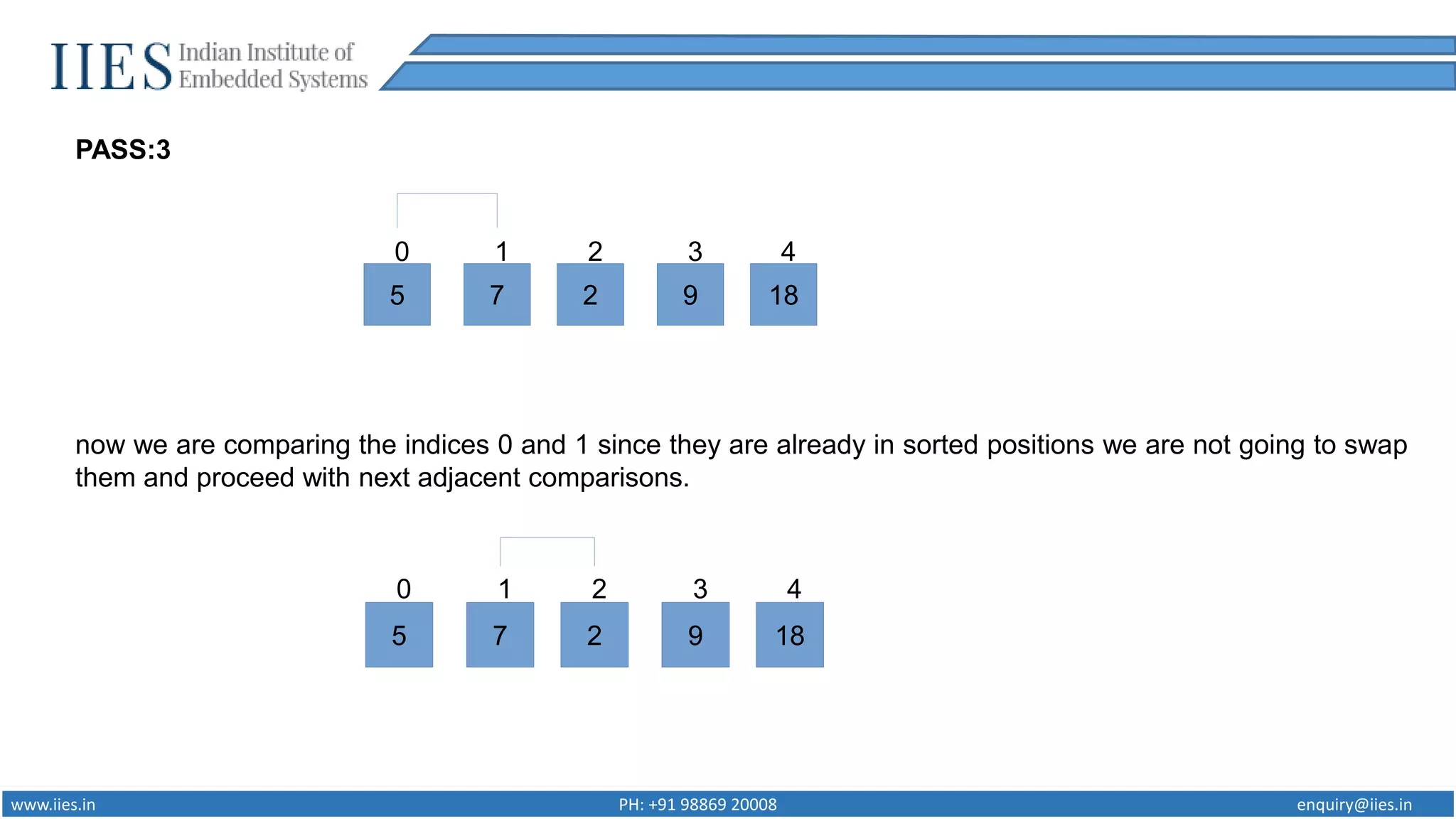

PASS:3
now we are comparing the indices 0 and 1 since they are already in sorted positions we are not going to swap
them and proceed with next adjacent comparisons.
5 7 2 9 18
0 1 2 3 4
5 7 2 9 18
0 1 2 3 4

14. www.iies.in PH: +91 98869 20008 enquiry@iies.in

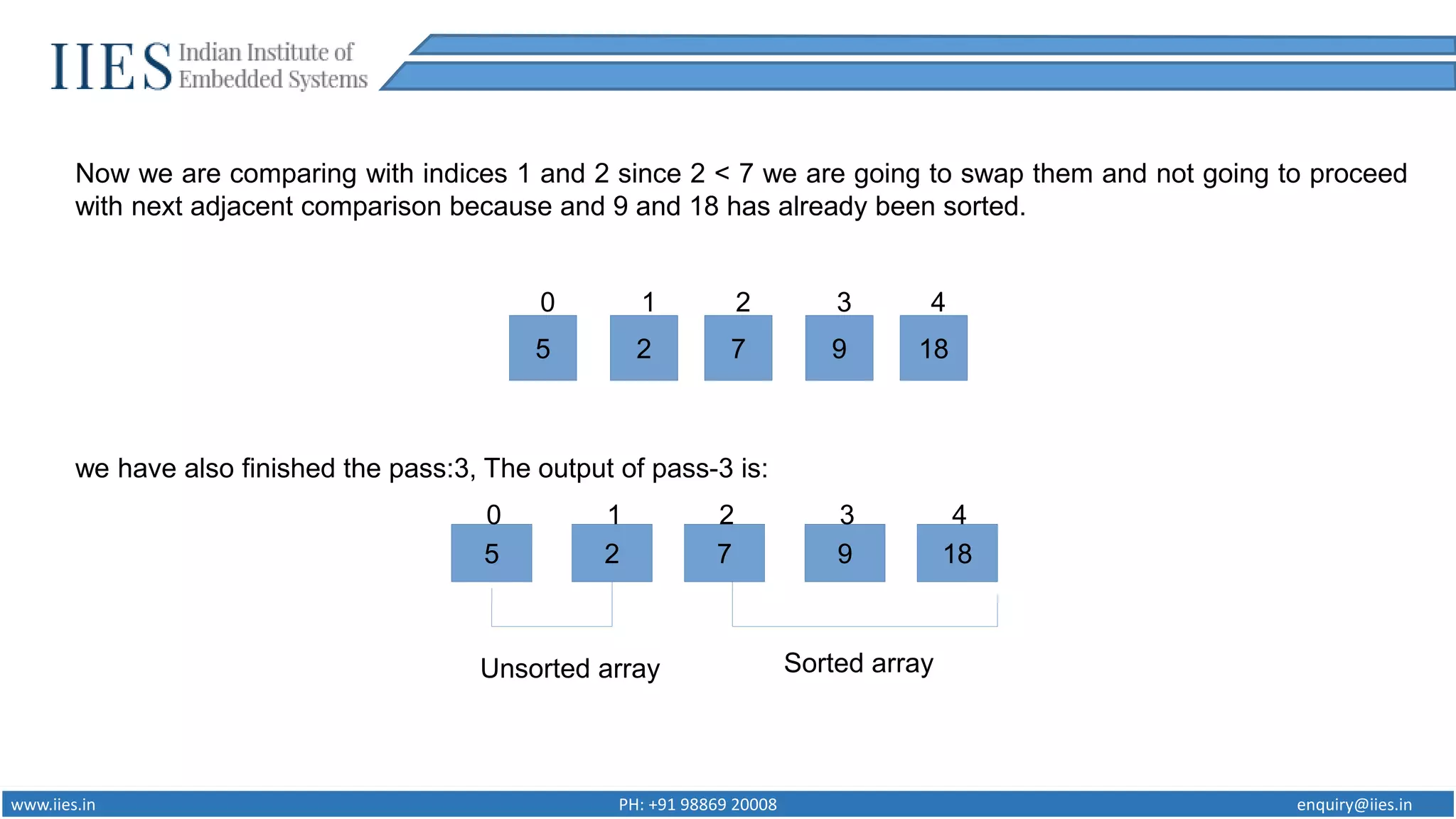

Now we are comparing with indices 1 and 2 since 2 < 7 we are going to swap them and not going to proceed
with next adjacent comparison because and 9 and 18 has already been sorted.
we have also finished the pass:3, The output of pass-3 is:
5 2 7 9 18
0 1 2 3 4
5 2 7 9 18
0 1 2 3 4
Unsorted array Sorted array

15. www.iies.in PH: +91 98869 20008 enquiry@iies.in

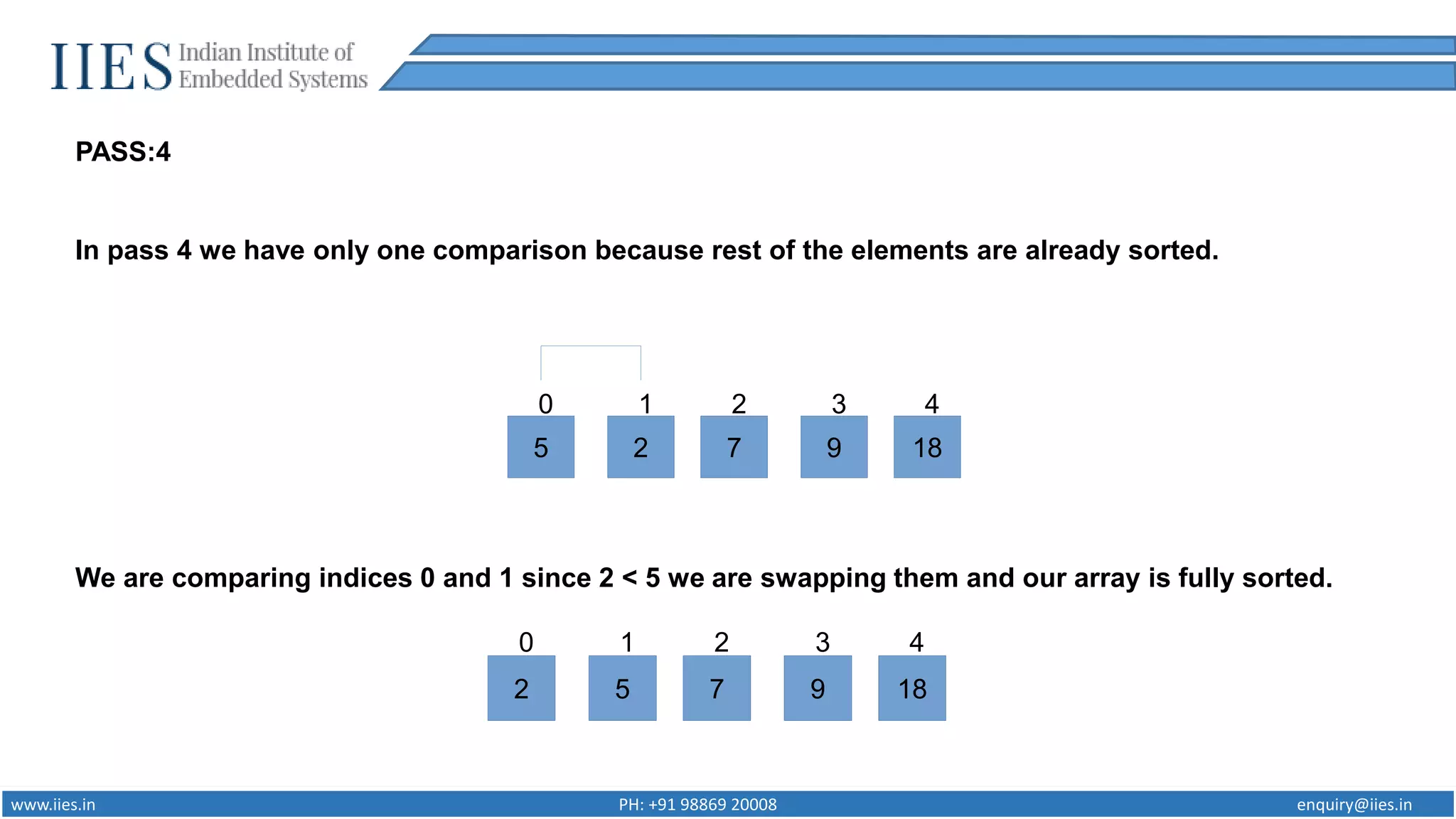

PASS:4
In pass 4 we have only one comparison because rest of the elements are already sorted.
We are comparing indices 0 and 1 since 2 < 5 we are swapping them and our array is fully sorted.
5 2 7 9 18
0 1 2 3 4
2 5 7 9 18
0 1 2 3 4

16. www.iies.in PH: +91 98869 20008 enquiry@iies.in

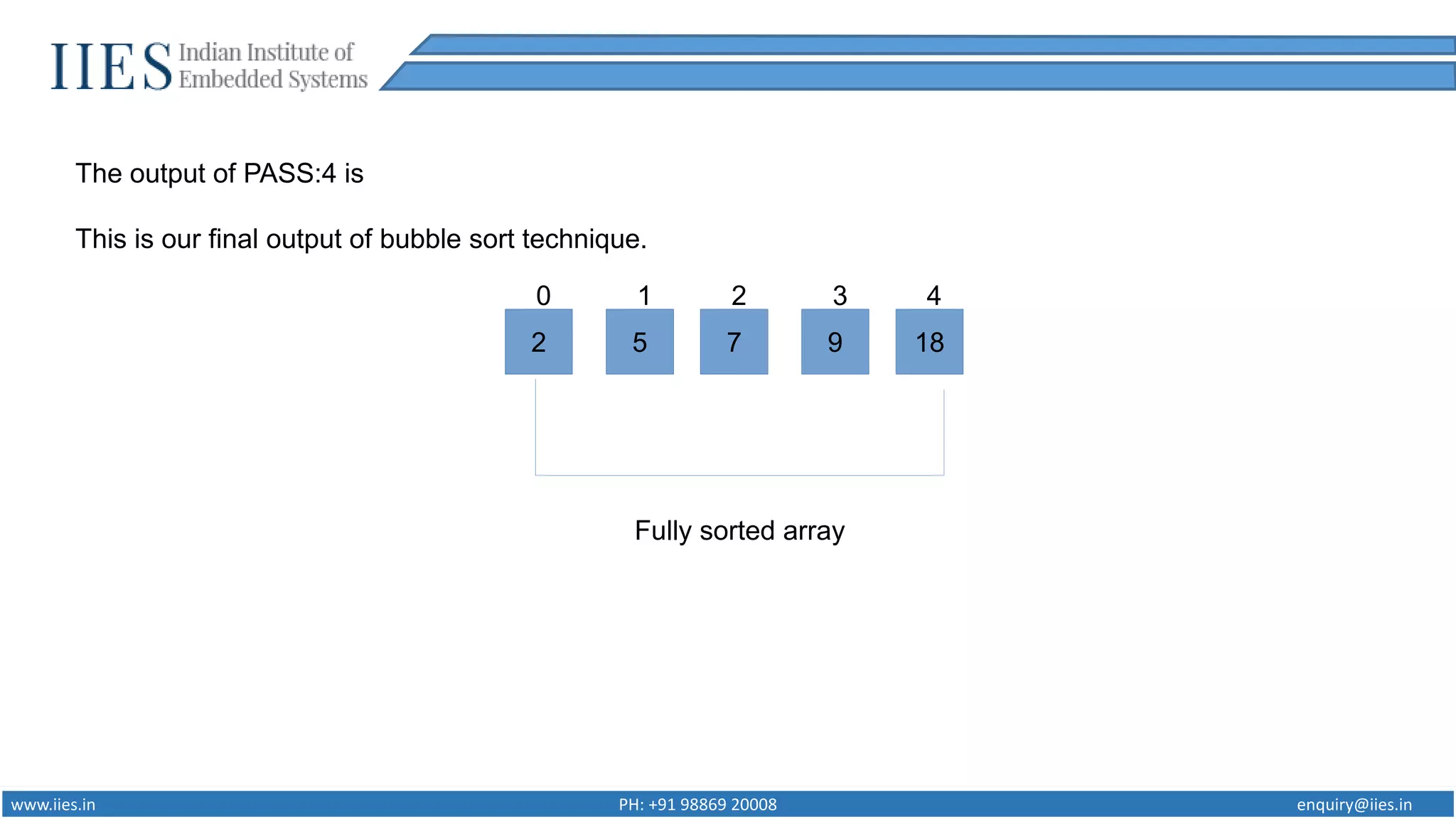

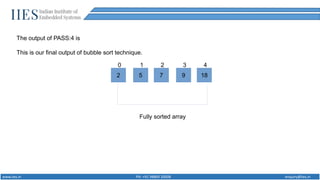

The output of PASS:4 is
This is our final output of bubble sort technique.
2 5 7 9 18
0 1 2 3 4
Fully sorted array

17. www.iies.in PH: +91 98869 20008 enquiry@iies.in

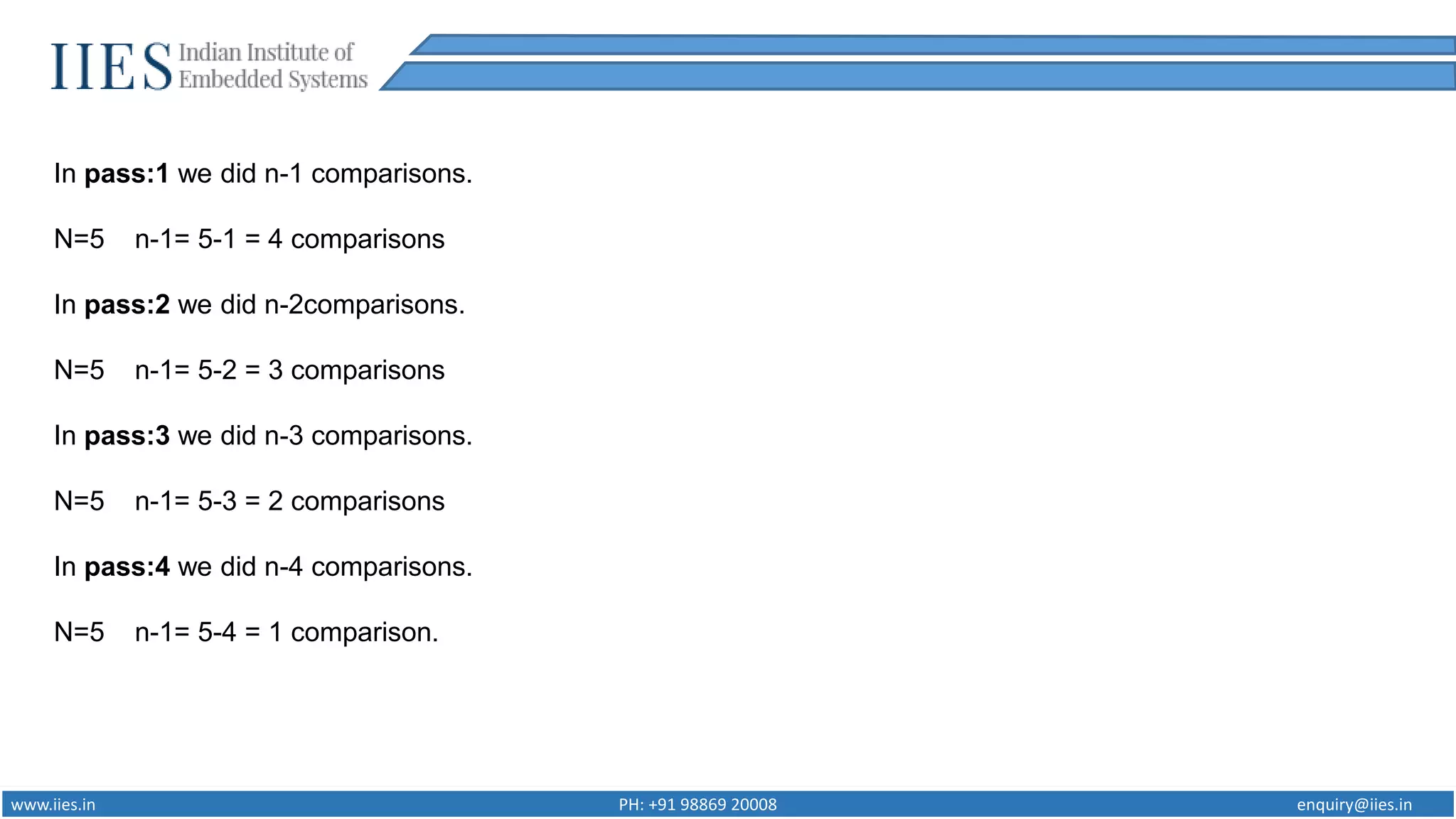

In pass:1 we did n-1 comparisons.
N=5 n-1= 5-1 = 4 comparisons
In pass:2 we did n-2comparisons.
N=5 n-1= 5-2 = 3 comparisons
In pass:3 we did n-3 comparisons.
N=5 n-1= 5-3 = 2 comparisons
In pass:4 we did n-4 comparisons.
N=5 n-1= 5-4 = 1 comparison.

18. www.iies.in PH: +91 98869 20008 enquiry@iies.in

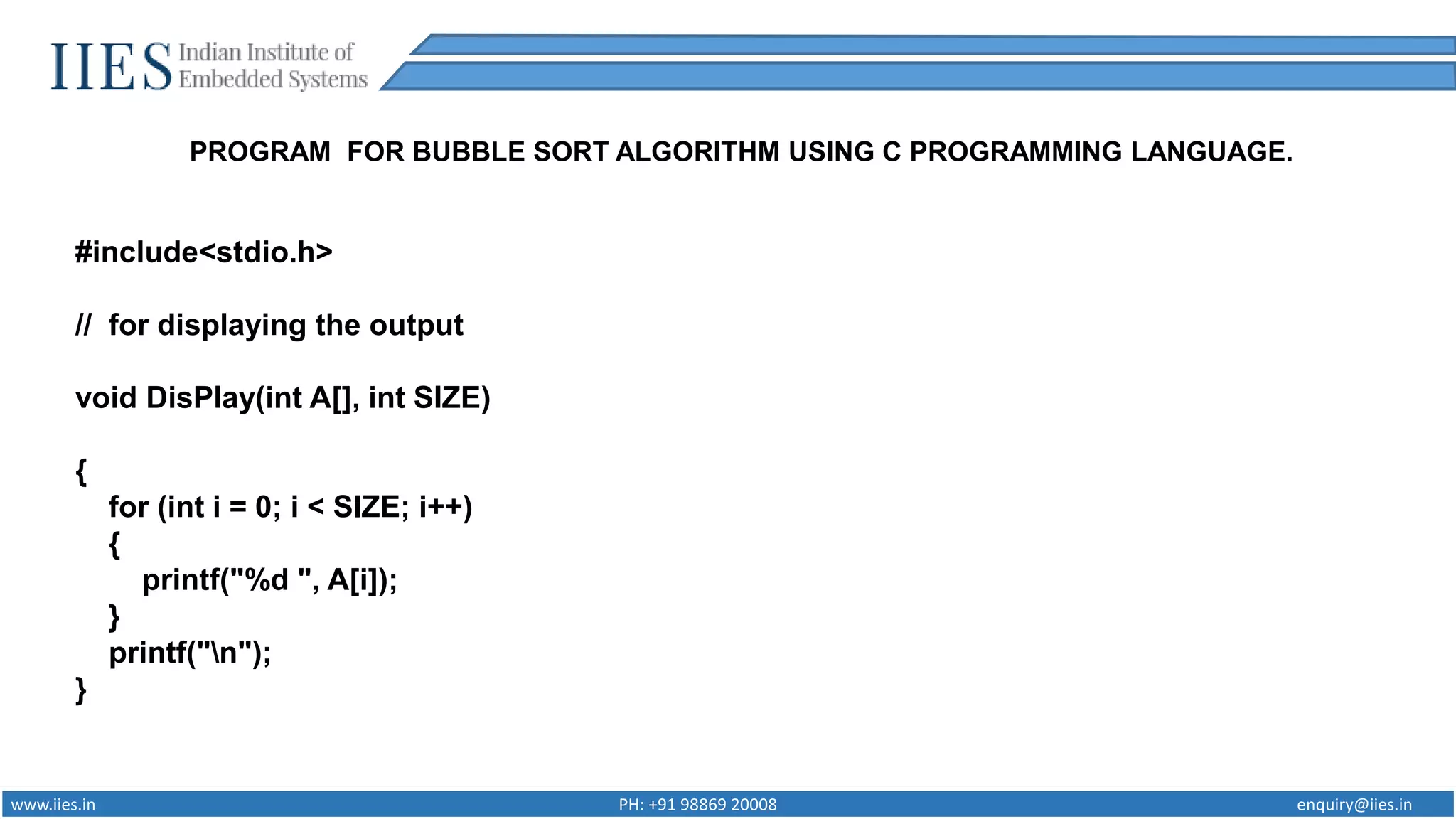

PROGRAM FOR BUBBLE SORT ALGORITHM USING C PROGRAMMING LANGUAGE.
#include<stdio.h>
// for displaying the output
void DisPlay(int A[], int SIZE)
{
for (int i = 0; i < SIZE; i++)
{
printf("%d ", A[i]);
}
printf("n");
}

19. www.iies.in PH: +91 98869 20008 enquiry@iies.in
// for bubblesort
void bubble_SorT(int A[], int SIZE){
int temp;
int Sorted = 0;
for (int i = 0; i < SIZE-1; i++) // For number of pass
{
// printf("Working on pass number %dn", i+1);
for (int j = 0; j <SIZE-1-i ; j++) // For comparison in each pass
{
if(A[j]>A[j+1]){
temp = A[j];
A[j] = A[j+1];
A[j+1] = temp;
}
}
}
}

20. www.iies.in PH: +91 98869 20008 enquiry@iies.in
int main(){
int A[] = {11, 2, 5, 78,8,75,56,65,100,722,7,1};
int SIZE = sizeof(A)/sizeof(int);
DisPlay(A, SIZE); // array before sorting
bubble_SorT(A, SIZE); // to sort the array
DisPlay(A, SIZE); // array After sorting
return 0;
}
