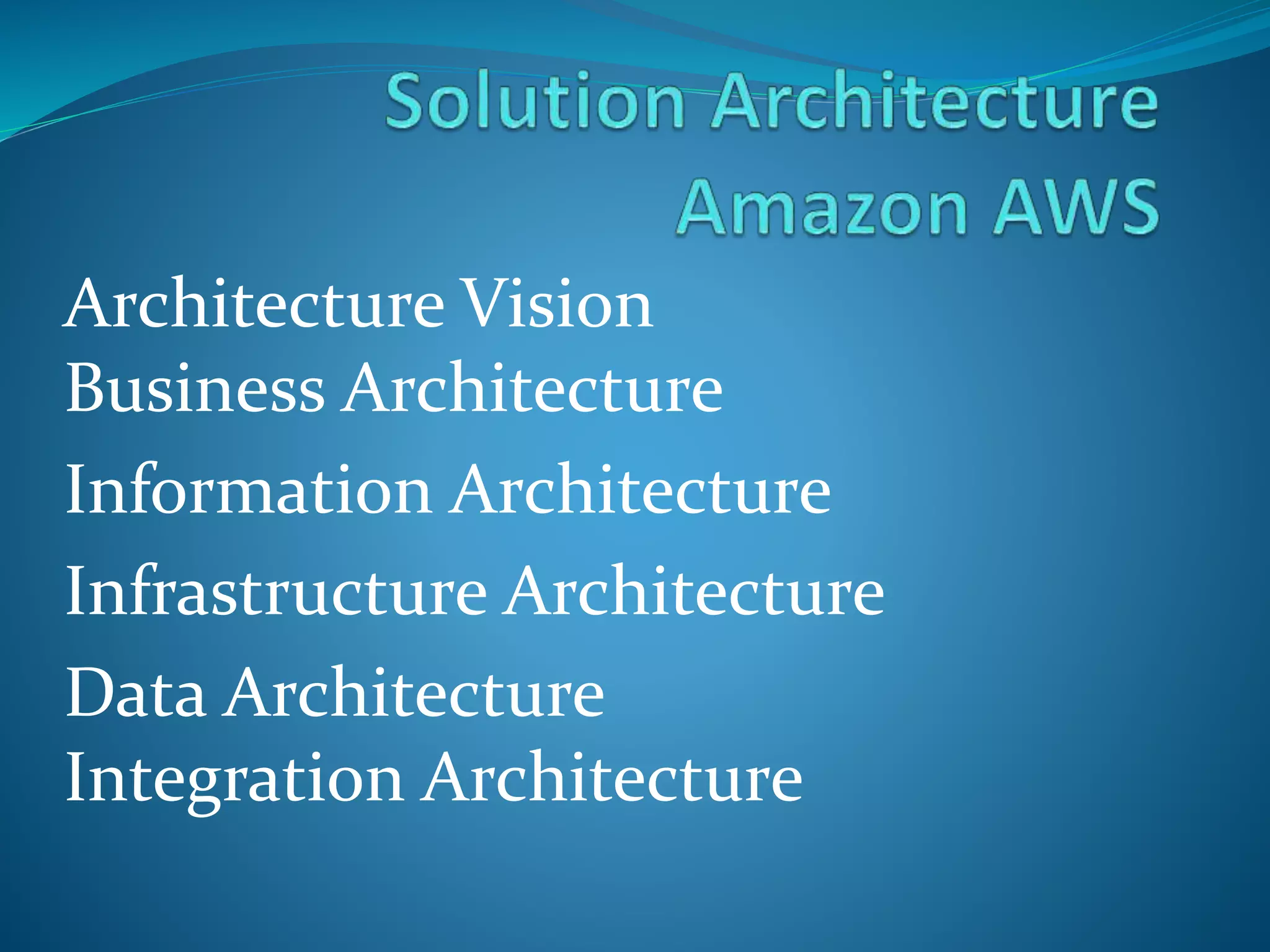

Solution architecture amazon web services

1. Architecture Vision
Business Architecture
Information Architecture
Infrastructure Architecture
Data Architecture
Integration Architecture

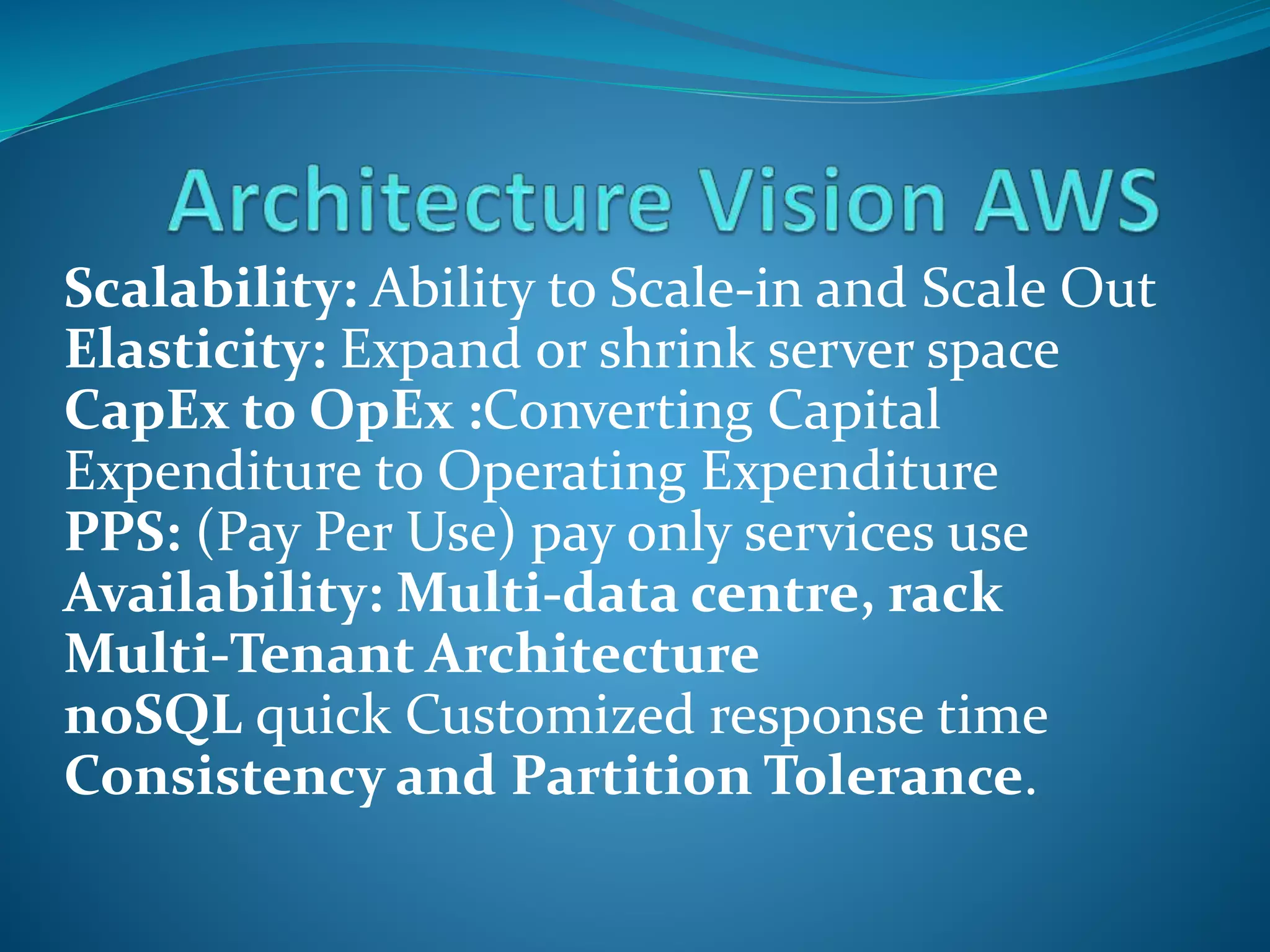

2. Scalability: Ability to Scale-in and Scale Out
Elasticity: Expand or shrink server space
CapEx to OpEx :Converting Capital
Expenditure to Operating Expenditure
PPS: (Pay Per Use) pay only services use
Availability: Multi-data centre, rack
Multi-Tenant Architecture
noSQL quick Customized response time
Consistency and Partition Tolerance.

3. Risk Model: Risk IT,
Law & Regulation: HIPAA,SOX,FMFIA,FISMA etc.
Control Frameworks: COBIT,Zackman etc.
Security Domain Model: COBIT
Security Architecture: Elastic IP, IAM: Identity &
Access Management, VPC: Virtual private cloud
Security Catalog: Amazon Directory Services.
Security Services Catalog:
Security Policy Architecture:

4. Use Cases Example: AWS API Business Rules
BPM models: Process Orchestration of Web
services.
Inputs: Reference Models, Viewpoints, Tools,
Catalogs,
Develop: business baseline Architecture
Gap Analysis: Trade off , make-buy decisions on
AWS services from GAP in As-IS To-Be.
Define RoadMap of architectural Components.
Check fitment against existing Landscape.

5. Network Components: Amazon Route 53 DNS service
Amazon Cloudfront: Content Delivery
Amazon Elastic Transcoder: media transcoding in
cloud
Elastic IP: NATed address space,
Elastic Network Interfaces attached to VPC.
VPC: Virtual Private Cloud
Amazon WorkSpaces is a fully managed desktop
computing service in the cloud
AWS Direct Connect makes it easy to establish a
dedicated network connection

6. Amazon S3: file Storage
Amazon RDS: set up , operate and scale Relational DB
Amazon EBS Volumes: SSD General & IOPS
Amazon Elastic MapReduce : Customized processing vast
amount of data
AWS Import/Export transfers large amounts of data
Amazon Redshift fast, fully managed, petabyte-scale data
warehouse service
Amazon DynamoDB: high performance non-relational
database service that is easy to set up, operate, and scale
Amazon Glacier: data archiving and backup

7. Amazon ElastiCache : deploy, operate, and scale an
in-memory cache in the cloud.
Amazon Simple Email Service (Amazon SES) email-
sending service for businesses and developers.
Amazon CloudSearch: integrate fast and highly
scalable search functionality into their applications.

8. Amazon Simple Queue Service (Amazon SQS) offers
a reliable, highly scalable, hosted queue in the cloud
Amazon Simple Notification Service (Amazon SNS):
set up, operate, and send notifications from the cloud.
Amazon WorkDocs: nterprise storage and sharing
service.
Amazon Simple Queue Service (Amazon SQS) offers
a reliable, highly scalable, hosted queue in the cloud.
Amazon Simple Workflow Service (Amazon SWF):
