The document discusses the SOLID principles of object-oriented design: 1. The Single Responsibility Principle states that a class should have one, and only one, reason to change. 2. The Open/Closed Principle states that software entities should be open for extension, but closed for modification. 3. The Liskov Substitution Principle states that derived classes must be substitutable for their base classes. 4. The Interface Segregation Principle states that interfaces should be client specific. 5. The Dependency Inversion Principle states that high level modules should not depend on low level modules but on abstractions.

1. S.O.L.I.D
Principles
Bastian Feder OSIDays 2011, Bangalore
bastian.feder@liip.ch 21st November 2011

2. Me, myself & I
PHP since 2001
Testing and Quality coach @ Liip Inc.
Opensource addict
PHP manual translations
FluentDOM
phpDox

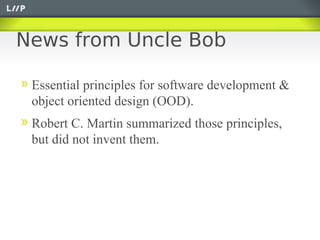

3. News from Uncle Bob
Essential principles for software development &
object oriented design (OOD).
Robert C. Martin summarized those principles,
but did not invent them.

4. Which are these principles?
Single responsibility principle
Open/Close principle
Liskov substitution principle
Interface segregation principle
Dependency inversion principle

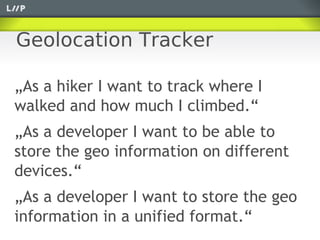

5. Geolocation Tracker
„As a hiker I want to track where I
walked and how much I climbed.“
„As a developer I want to be able to
store the geo information on different
devices.“
„As a developer I want to store the geo
information in a unified format.“

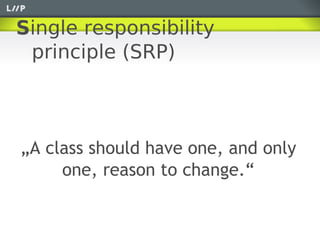

6. Single responsibility
principle (SRP)
„A class should have one, and only
one, reason to change.“

7. How to do
it wrong

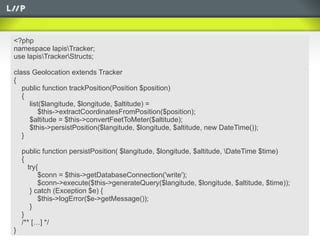

8. <?php
namespace lapisTracker;
use lapisTrackerStructs;
class Geolocation extends Tracker
{
public function trackPosition(Position $position)
{
list($langitude, $longitude, $altitude) =
$this->extractCoordinatesFromPosition($position);
$altitude = $this->convertFeetToMeter($altitude);
$this->persistPosition($langitude, $longitude, $altitude, new DateTime());
}
public function persistPosition( $langitude, $longitude, $altitude, DateTime $time)
{
try{
$conn = $this->getDatabaseConnection('write');
$conn->execute($this->generateQuery($langitude, $longitude, $altitude, $time));
} catch (Exception $e) {
$this->logError($e->getMessage());
}
}
/** […] */
}

9. How to do
it right

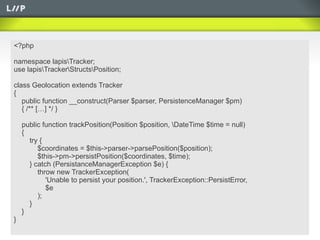

10. <?php
namespace lapisTracker;
use lapisTrackerStructsPosition;
class Geolocation extends Tracker
{
public function __construct(Parser $parser, PersistenceManager $pm)
{ /** […] */ }
public function trackPosition(Position $position, DateTime $time = null)
{
try {
$coordinates = $this->parser->parsePosition($position);
$this->pm->persistPosition($coordinates, $time);
} catch (PersistanceManagerException $e) {
throw new TrackerException(
'Unable to persist your position.', TrackerException::PersistError,
$e
);
}
}
}

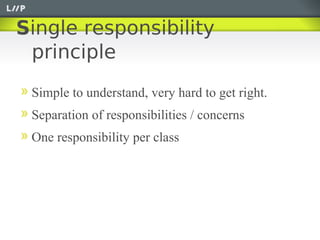

11. Single responsibility
principle
Simple to understand, very hard to get right.
Separation of responsibilities / concerns
One responsibility per class

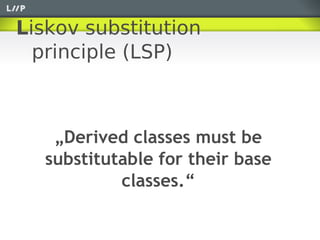

12. Liskov substitution
principle (LSP)
„Derived classes must be
substitutable for their base
classes.“

13. Where do
we start

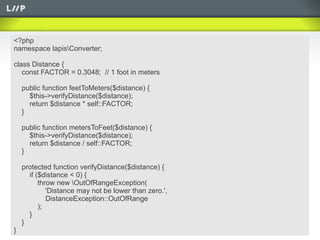

14. <?php
namespace lapisConverter;
class Distance {
const FACTOR = 0.3048; // 1 foot in meters
public function feetToMeters($distance) {
$this->verifyDistance($distance);
return $distance * self::FACTOR;
}
public function metersToFeet($distance) {
$this->verifyDistance($distance);
return $distance / self::FACTOR;
}
protected function verifyDistance($distance) {
if ($distance < 0) {
throw new OutOfRangeException(
'Distance may not be lower than zero.',
DistanceException::OutOfRange
);
}
}
}

15. How to do
it wrong

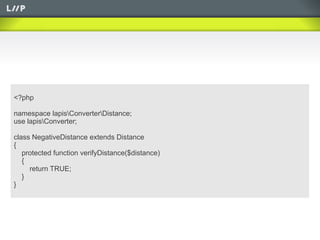

16. <?php
namespace lapisConverterDistance;
use lapisConverter;
class NegativeDistance extends Distance
{
protected function verifyDistance($distance)
{
return TRUE;
}
}

17. How to do
it right

18. <?php
namespace lapisConverterDistance;
use lapisConverter;
class MaxDistance extends Distance {
public function feetToMeters($distance) {
$distance = parent::feetToMeters($distance);
$this->verifyDistance($distance, 15000);
return $distance;
}
protected function verifyDistance($distance, $max = 0) {
if ($distance < 0) {
$message = 'Distance may not be lower than the zero.';
}
if ($max > 0 && $distance >= $max) {
$message = 'Distance may not be greater than the maximum of ' . $max . '.';
}
If (isset($message) {
throw new OutOfRangeException($message, DistanceException::OutOfRange);
}
}
}

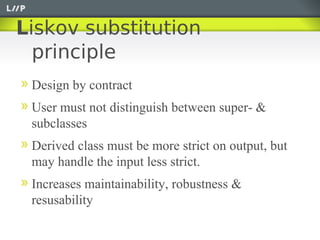

19. Liskov substitution
principle
Design by contract
User must not distinguish between super- &
subclasses
Derived class must be more strict on output, but
may handle the input less strict.
Increases maintainability, robustness &
resusability

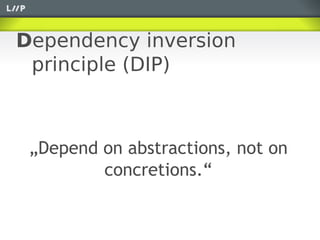

20. Dependency inversion
principle (DIP)
„Depend on abstractions, not on
concretions.“

21. How to do
it wrong

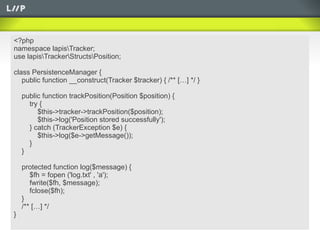

22. <?php
namespace lapisTracker;
use lapisTrackerStructsPosition;
class PersistenceManager {
public function __construct(Tracker $tracker) { /** […] */ }
public function trackPosition(Position $position) {
try {
$this->tracker->trackPosition($position);
$this->log('Position stored successfully');
} catch (TrackerException $e) {
$this->log($e->getMessage());
}
}
protected function log($message) {
$fh = fopen ('log.txt' , 'a');
fwrite($fh, $message);
fclose($fh);
}
/** […] */
}

23. How to do
it right

24. <?php
namespace lapisTracker;
use lapisLogger, lapisTrackerServices;
class PersistenceManager
{
public function __construct(PersistService $ps, Logger $logger)
{ /** […] */ }
public function persistPosition($coordinates, DateTime $time = null)
{
try {
$this->ps->setCoordinates($coordinates);
$this->ps->setTimeStamp($time);
$this->ps->persist();
$this->logger->log('Position stored successfully');
} catch (PersistServiceException $e) {
$this->logger->exception($e);
}
}
}

25. Dependency inversion
principle
Fundamental principle for OOD
Encapsulate low level modules in abstractions
Depend on abstractions / interfaces rather than
implementations

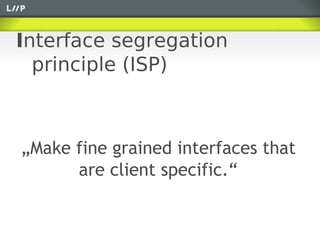

26. Interface segregation
principle (ISP)
„Make fine grained interfaces that
are client specific.“

27. Where do
we start

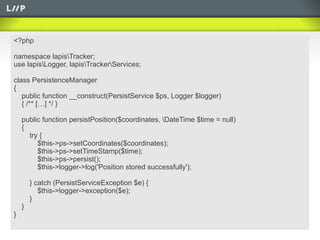

28. <?php
namespace lapisTracker;
use lapisLogger, lapisTrackerServices;
class PersistenceManager
{
public function __construct(PersistService $ps, Logger $logger)
{ /** […] */ }
public function persistPosition($coordinates, DateTime $time = null)
{
try {
$this->ps->setCoordinates($coordinates);
$this->ps->setTimeStamp($time);
$this->ps->persist();
$this->logger->log('Position stored successfully');
} catch (PersistServiceException $e) {
$this->logger->exception($e);
}
}
}

29. How to do
it right

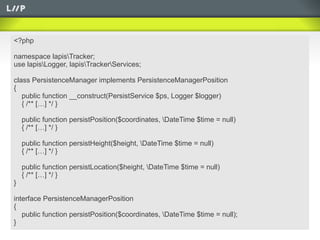

30. <?php
namespace lapisTracker;
use lapisLogger, lapisTrackerServices;
class PersistenceManager implements PersistenceManagerPosition
{
public function __construct(PersistService $ps, Logger $logger)
{ /** […] */ }
public function persistPosition($coordinates, DateTime $time = null)
{ /** […] */ }
public function persistHeight($height, DateTime $time = null)
{ /** […] */ }
public function persistLocation($height, DateTime $time = null)
{ /** […] */ }
}
interface PersistenceManagerPosition
{
public function persistPosition($coordinates, DateTime $time = null);
}

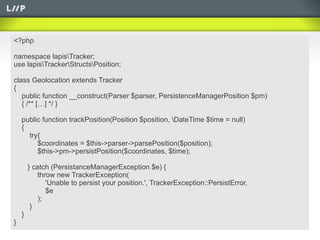

31. <?php
namespace lapisTracker;
use lapisTrackerStructsPosition;
class Geolocation extends Tracker
{
public function __construct(Parser $parser, PersistenceManagerPosition $pm)
{ /** […] */ }
public function trackPosition(Position $position, DateTime $time = null)
{
try{
$coordinates = $this->parser->parsePosition($position);
$this->pm->persistPosition($coordinates, $time);
} catch (PersistanceManagerException $e) {
throw new TrackerException(
'Unable to persist your position.', TrackerException::PersistError,
$e
);
}
}
}

32. Interface segregation
principle
Avoid „fat“ interfaces, stick to what's really
needed
Ask yourself „What do I want to archieve?“
Be strict!

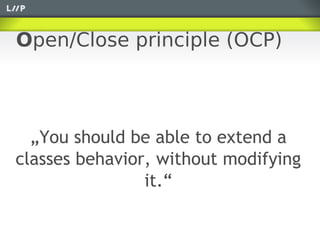

33. Open/Close principle (OCP)
„You should be able to extend a
classes behavior, without modifying
it.“

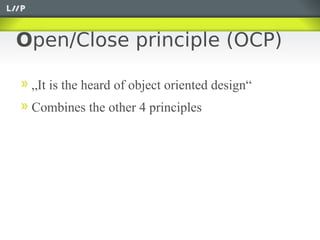

34. Open/Close principle (OCP)
„It is the heard of object oriented design“
Combines the other 4 principles

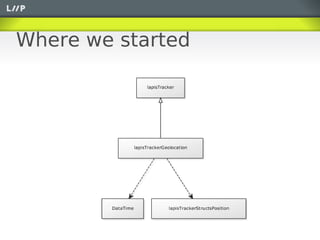

35. Where we started

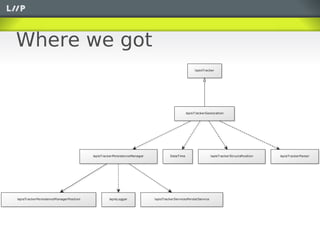

36. Where we got

37. Questions
@lapistano
bastian.feder@liip.ch

38. PHP5.3 Powerworkshop
New features of
PHP5.3
Best Pratices using
OOP
PHPUnit
PHPDocumentor

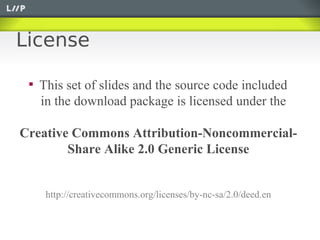

39. License

This set of slides and the source code included
in the download package is licensed under the
Creative Commons Attribution-Noncommercial-
Share Alike 2.0 Generic License
http://creativecommons.org/licenses/by-nc-sa/2.0/deed.en
