1. PHP development
with Eclipse PDT
Bastian Feder IPC 2008
papaya Software GmbH 29.10.2008

2. Me, myself & I
 Application
developer
 PHP since 2001
 @papaya since
01.2008

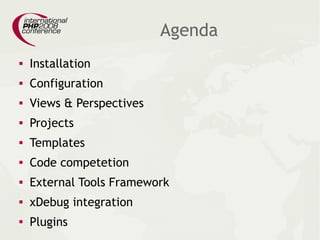

3. Agenda
 Installation
 Configuration
 Views & Perspectives
 Projects
 Templates
 Code competetion
 External Tools Framework
 xDebug integration
 Plugins

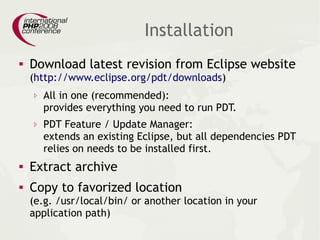

4. Installation
 Download latest revision from Eclipse website
(http://www.eclipse.org/pdt/downloads)
▹ All in one (recommended):
provides everything you need to run PDT.
▹ PDT Feature / Update Manager:
extends an existing Eclipse, but all dependencies PDT
relies on needs to be installed first.
 Extract archive
 Copy to favorized location
(e.g. /usr/local/bin/ or another location in your
application path)

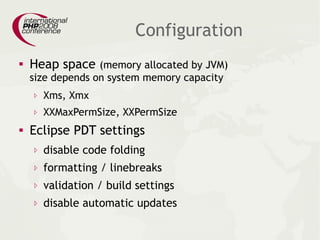

5. Configuration
 Heap space (memory allocated by JVM)
size depends on system memory capacity
▹ Xms, Xmx
▹ XXMaxPermSize, XXPermSize
 Eclipse PDT settings
▹ disable code folding
▹ formatting / linebreaks
▹ validation / build settings
▹ disable automatic updates

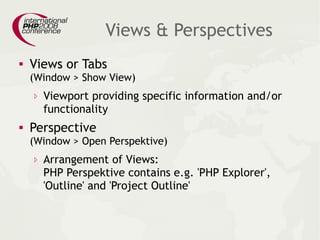

6. Views & Perspectives
 Views or Tabs
(Window > Show View)
▹ Viewport providing specific information and/or
functionality
 Perspective
(Window > Open Perspektive)
▹ Arrangement of Views:
PHP Perspektive contains e.g. 'PHP Explorer',
'Outline' and 'Project Outline'

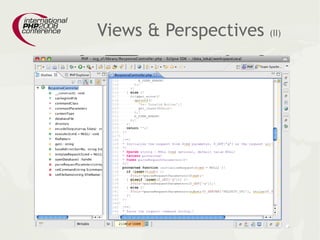

7. Views & Perspectives (II)

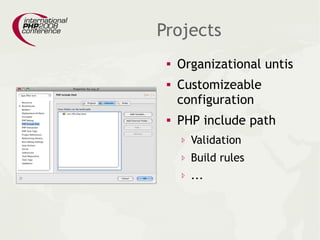

8. Projects
 Organizational untis
 Customizeable
configuration
 PHP include path
▹ Validation
▹ Build rules
▹ ...

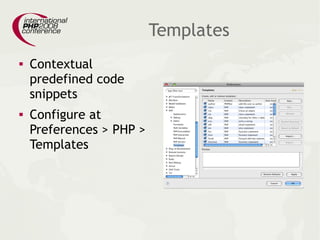

9. Templates
 Contextual
predefined code
snippets
 Configure at
Preferences > PHP >
Templates

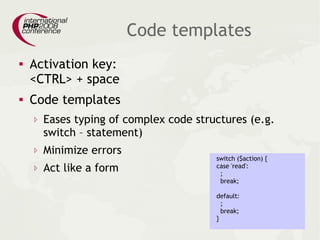

10. Code templates
 Activation key:
<CTRL> + space
 Code templates
▹ Eases typing of complex code structures (e.g.
switch – statement)
▹ Minimize errors
switch ($action) {
▹ Act like a form case 'read':
;
break;
default:
;
break;
}

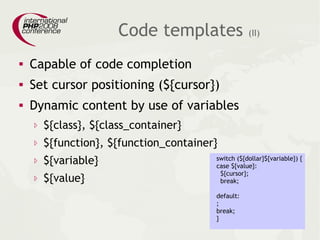

11. Code templates (II)
 Capable of code completion
 Set cursor positioning (${cursor})
 Dynamic content by use of variables
▹ ${class}, ${class_container}
▹ ${function}, ${function_container}
▹ ${variable} switch (${dollar}${variable}) {
case ${value}:
${cursor};
▹ ${value} break;
default:
;
break;
}

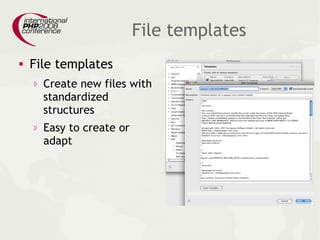

12. File templates
 File templates
▹ Create new files with
standardized
structures
▹ Easy to create or
adapt

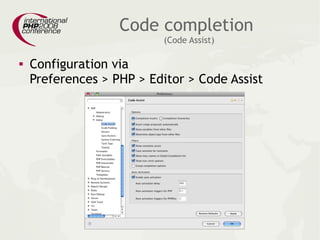

13. Code completion
(Code Assist)
 Configuration via
Preferences > PHP > Editor > Code Assist

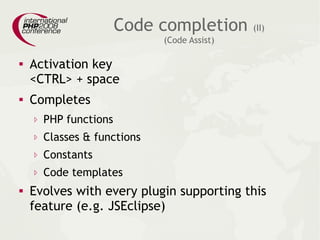

14. Code completion (II)
(Code Assist)
 Activation key
<CTRL> + space
 Completes
▹ PHP functions
▹ Classes & functions
▹ Constants
▹ Code templates
 Evolves with every plugin supporting this
feature (e.g. JSEclipse)

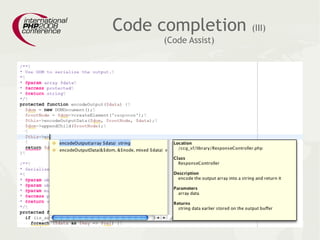

15. Code completion (III)
(Code Assist)

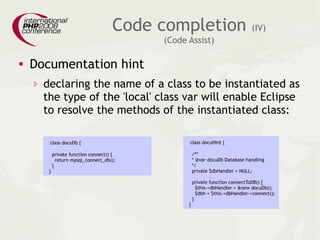

16. Code completion (IV)
(Code Assist)
 Documentation hint
▹ declaring the name of a class to be instantiated as
the type of the 'local' class var will enable Eclipse
to resolve the methods of the instantiated class:
class docuDb { class docuHint {
private function connect() { /**
return mysql_connect_db(); * @var docuDb Database handling
} */
} private $dbHandler = NULL;
private function connectToDB() {
$this->dbHandler = &new docuDb();
$dbh = $this->dbHandler->connect();
}
}

17. External Tools Framework
 Enables Eclipse to run ,stand-alone'
applications
 Two broad classes of external tools are
available:
▹ Ant build files
▹ Everything else

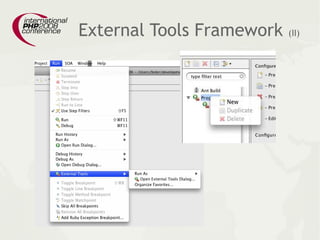

18. External Tools Framework (II)

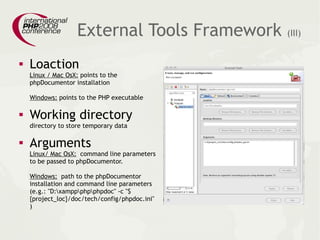

19. External Tools Framework (III)
 Loaction
Linux / Mac OsX: points to the
phpDocumentor installation
Windows: points to the PHP executable
 Working directory
directory to store temporary data
 Arguments
Linux/ Mac OsX: command line parameters
to be passed to phpDocumentor.
Windows: path to the phpDocumentor
installation and command line parameters
(e.g.: quot;D:xamppphpphpdocquot; -c quot;$
{project_loc}/doc/tech/config/phpdoc.iniquot;
)

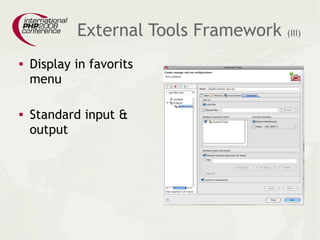

20. External Tools Framework (III)
 Display in favorits
menu
 Standard input &
output

21. xDebug
 Debugging for PHP by Derick Rethans
(http://www.xdebug.org)
 Provides profiling, tracing, code coverage, …
 Cross platform

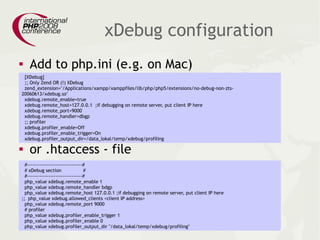

22. xDebug configuration
 Add to php.ini (e.g. on Mac)
[XDebug]
;; Only Zend OR (!) XDebug
zend_extension=quot;/Applications/xampp/xamppfiles/lib/php/php5/extensions/no-debug-non-zts-
20060613/xdebug.soquot;
xdebug.remote_enable=true
xdebug.remote_host=127.0.0.1 ;if debugging on remote server, put client IP here
xdebug.remote_port=9000
xdebug.remote_handler=dbgp
;; profiler
xdebug.profiler_enable=Off
xdebug.profiler_enable_trigger=On
xdebug.profiler_output_dir=/data_lokal/temp/xdebug/profiling
 or .htaccess - file
#-------------------------------#
# xDebug section #
#-------------------------------#
php_value xdebug.remote_enable 1
php_value xdebug.remote_handler bdgp
php_value xdebug.remote_host 127.0.0.1 ;if debugging on remote server, put client IP here
;; php_value xdebug.allowed_clients <client IP address>
php_value xdebug.remote_port 9000
# profiler
php_value xdebug.profiler_enable_trigger 1
php_value xdebug.profiler_enable 0
php_value xdebug.profiler_output_dir quot;/data_lokal/temp/xdebug/profilingquot;

23. xDebug (III)
 Debug dialog

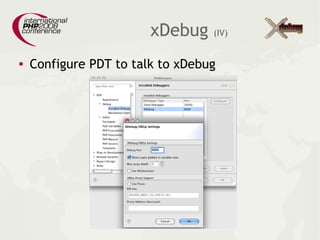

24. xDebug (IV)
 Configure PDT to talk to xDebug

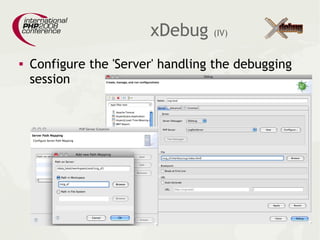

25. xDebug (IV)
 Configure the 'Server' handling the debugging
session

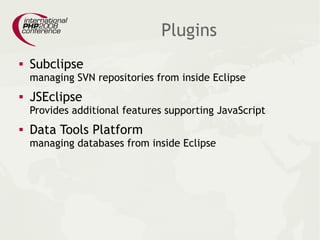

26. Plugins
 Subclipse
managing SVN repositories from inside Eclipse
 JSEclipse
Provides additional features supporting JavaScript
 Data Tools Platform
managing databases from inside Eclipse

27. Subclipse (installation)
 Eclipsse update site:
http://subclipse.tigris.org/update

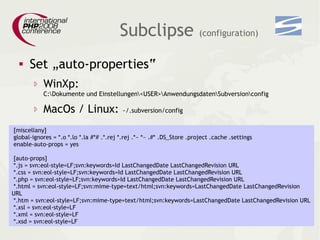

28. Subclipse (configuration)
 Set „auto-properties“
▹ WinXp:
C:Dokumente und Einstellungen<USER>AnwendungsdatenSubversionconfig
▹ MacOs / Linux: ~/.subversion/config
[miscellany]
global-ignores = *.o *.lo *.la #*# .*.rej *.rej .*~ *~ .#* .DS_Store .project .cache .settings
enable-auto-props = yes
[auto-props]
*.js = svn:eol-style=LF;svn:keywords=Id LastChangedDate LastChangedRevision URL
*.css = svn:eol-style=LF;svn:keywords=Id LastChangedDate LastChangedRevision URL
*.php = svn:eol-style=LF;svn:keywords=Id LastChangedDate LastChangedRevision URL
*.html = svn:eol-style=LF;svn:mime-type=text/html;svn:keywords=LastChangedDate LastChangedRevision
URL
*.htm = svn:eol-style=LF;svn:mime-type=text/html;svn:keywords=LastChangedDate LastChangedRevision URL
*.xsl = svn:eol-style=LF
*.xml = svn:eol-style=LF
*.xsd = svn:eol-style=LF

29. Subclipse (conflict handling)
 Integrated (diff-) editor to resolve conflicts
 Support for merging changes which do not
conflict
 Preview on the checkout to find conflicts
before updating the sources

30. Questions?

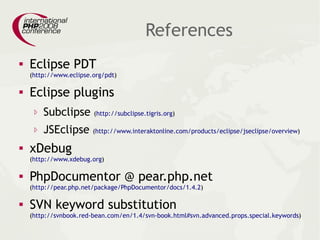

31. References
 Eclipse PDT
(http://www.eclipse.org/pdt)
 Eclipse plugins
▹ Subclipse (http://subclipse.tigris.org)
▹ JSEclipse (http://www.interaktonline.com/products/eclipse/jseclipse/overview)
 xDebug
(http://www.xdebug.org)
 PhpDocumentor @ pear.php.net
(http://pear.php.net/package/PhpDocumentor/docs/1.4.2)
 SVN keyword substitution
(http://svnbook.red-bean.com/en/1.4/svn-book.html#svn.advanced.props.special.keywords)

32. License
This set of slides and the source code included in
the download package is licensed under the
Creative Commons Attribution-Noncommercial-
Share Alike 2.0 Generic License
http://creativecommons.org/licenses/by-nc-sa/2.0/deed.en
