solar cell
•Download as PPT, PDF•
0 likes•54 views
A solar cell is a p-n junction diode that generates current when exposed to sunlight. It can be modeled as a diode in parallel with a current source representing the photo-generated current. However, the real model includes additional resistances - series and shunt resistances - to account for internal resistance and leakage currents. Multiple solar cells are connected in series and parallel in solar panels and arrays to achieve higher output voltages and currents. The power output is affected by factors like solar irradiation level, temperature, and partial shading of cells. Maximum power point tracking (MPPT) algorithms are used to extract the maximum available power by adjusting the operating voltage through a DC-DC converter.
Report
Share
Report
Share
Recommended
Solar shading and its effects
This document provides an overview of small scale renewable energy systems focusing on photovoltaic cells. It discusses the cross-section and configuration of solar panels, the ideal and single-diode models for photovoltaic cells, and how to characterize cells using I-V curves to determine key parameters like short circuit current, open circuit voltage, maximum power point, fill factor, and efficiency. It also covers temperature effects and mitigation of shading issues through the use of bypass diodes or microinverters in solar panel configurations.
Eb cvoltages[1]
This document discusses three-phase power systems. It explains that three-phase systems transmit power using three circuit conductors with currents that reach peak values 120 degrees out of phase. This allows for constant power transfer over each cycle. Common three-phase voltages used include 120/208V, 240V, and 277/480V. The document provides an example showing how a 10kW heater would require a smaller breaker and wire size if powered by three-phase 208V or 480V rather than single-phase 120V.
Per unitcalculations
This document provides an introduction to per unit calculations for electrical circuits and systems. It explains that per unit calculations allow representations of system elements like transformers, impedances, loads and generations to become more uniform by converting all values to a common base. Key points:
- Per unit values are ratios of actual values to a chosen base value of the same quantity. Common bases include voltage, current, impedance and power.
- Per unit calculations absorb complications from differing voltage bases that occur with transformers and other equipment.
- Per unit representations retain phase angle information but present values in a more uniform way that simplifies calculations.
- Generators, transformers and other equipment can be represented by their per unit impedances to
Elect principles 2 power factor
Power factor is a measure of how efficiently electrical power is consumed, with an ideal power factor of 1. A power factor less than 1 means extra power is needed to achieve the required task. Power factor is the ratio of true power to apparent power, which is equal to the cosine of the phase angle between current and voltage. Inductive loads have a lagging power factor while capacitive loads have a leading power factor. It is desirable to operate equipment at a high power factor to reduce costs and energy usage.
Energy calculation
This document discusses various electrical energy concepts including:
- Direct current (DC) and alternating current (AC)
- Apparent power (kVA) in single and three phase electrical circuits which is calculated using voltage, amperes, and a factor of 1 or 1.732
- Reactive power (kVAr) which is the non-working portion of apparent power needed by magnetic equipment
- Kilowatt-hour (kWh) which is the unit of energy consumed by 1000 Watts operating for 1 hour
- Formulas for calculating power in three phase AC and single phase AC circuits using voltage, current, and power factor
L10 c7 - notes - teacher master - series circuits - pp
This document discusses series circuits and provides examples of calculating current, resistance, and voltage in a series circuit. Some key points:
- In a series circuit, current flows through components one after another with only one path for current.
- The current at any point in a series circuit is constant. Total resistance is calculated by adding the individual resistances together.
- Sample calculations show that for a 12V circuit with two 2Ω resistors, the total resistance is 4Ω, the current is 3A at any point, and the voltage drops across each resistor is 6V.
MAJOR PROJECT REPORT ON "RENEWABLE ENERGY (SOLAR) BASED HOME -AUTOMATION
This document describes a home automation system powered by renewable solar energy. It includes a block diagram of the system components which are a 50W solar panel, 350VA inverter, 5A MPPT charge controller, and a 12V 40AH battery. The solar panel converts sunlight to DC electricity, which the charge controller regulates to charge the battery. The inverter converts the stored DC electricity in the battery to AC electricity used to power devices in the home. Excess solar energy can also power the electric grid. The system aims to provide sustainable home electricity through solar energy technology.
Per unit representation
This chapter discusses per unit representation, which expresses values like current, voltage, impedance, and power as a ratio of an actual value to a reference or base value. This makes the quantities unitless and independent of physical size or ratings. The document provides examples of converting actual values to per unit values and explains the advantages, which include representing apparatus values consistently over a wide range, simplifying computations, and specifying machine impedances in per unit values according to manufacturers.
Recommended
Solar shading and its effects
This document provides an overview of small scale renewable energy systems focusing on photovoltaic cells. It discusses the cross-section and configuration of solar panels, the ideal and single-diode models for photovoltaic cells, and how to characterize cells using I-V curves to determine key parameters like short circuit current, open circuit voltage, maximum power point, fill factor, and efficiency. It also covers temperature effects and mitigation of shading issues through the use of bypass diodes or microinverters in solar panel configurations.
Eb cvoltages[1]
This document discusses three-phase power systems. It explains that three-phase systems transmit power using three circuit conductors with currents that reach peak values 120 degrees out of phase. This allows for constant power transfer over each cycle. Common three-phase voltages used include 120/208V, 240V, and 277/480V. The document provides an example showing how a 10kW heater would require a smaller breaker and wire size if powered by three-phase 208V or 480V rather than single-phase 120V.
Per unitcalculations
This document provides an introduction to per unit calculations for electrical circuits and systems. It explains that per unit calculations allow representations of system elements like transformers, impedances, loads and generations to become more uniform by converting all values to a common base. Key points:
- Per unit values are ratios of actual values to a chosen base value of the same quantity. Common bases include voltage, current, impedance and power.
- Per unit calculations absorb complications from differing voltage bases that occur with transformers and other equipment.
- Per unit representations retain phase angle information but present values in a more uniform way that simplifies calculations.
- Generators, transformers and other equipment can be represented by their per unit impedances to
Elect principles 2 power factor
Power factor is a measure of how efficiently electrical power is consumed, with an ideal power factor of 1. A power factor less than 1 means extra power is needed to achieve the required task. Power factor is the ratio of true power to apparent power, which is equal to the cosine of the phase angle between current and voltage. Inductive loads have a lagging power factor while capacitive loads have a leading power factor. It is desirable to operate equipment at a high power factor to reduce costs and energy usage.
Energy calculation
This document discusses various electrical energy concepts including:
- Direct current (DC) and alternating current (AC)
- Apparent power (kVA) in single and three phase electrical circuits which is calculated using voltage, amperes, and a factor of 1 or 1.732
- Reactive power (kVAr) which is the non-working portion of apparent power needed by magnetic equipment
- Kilowatt-hour (kWh) which is the unit of energy consumed by 1000 Watts operating for 1 hour
- Formulas for calculating power in three phase AC and single phase AC circuits using voltage, current, and power factor
L10 c7 - notes - teacher master - series circuits - pp
This document discusses series circuits and provides examples of calculating current, resistance, and voltage in a series circuit. Some key points:
- In a series circuit, current flows through components one after another with only one path for current.
- The current at any point in a series circuit is constant. Total resistance is calculated by adding the individual resistances together.
- Sample calculations show that for a 12V circuit with two 2Ω resistors, the total resistance is 4Ω, the current is 3A at any point, and the voltage drops across each resistor is 6V.
MAJOR PROJECT REPORT ON "RENEWABLE ENERGY (SOLAR) BASED HOME -AUTOMATION
This document describes a home automation system powered by renewable solar energy. It includes a block diagram of the system components which are a 50W solar panel, 350VA inverter, 5A MPPT charge controller, and a 12V 40AH battery. The solar panel converts sunlight to DC electricity, which the charge controller regulates to charge the battery. The inverter converts the stored DC electricity in the battery to AC electricity used to power devices in the home. Excess solar energy can also power the electric grid. The system aims to provide sustainable home electricity through solar energy technology.
Per unit representation
This chapter discusses per unit representation, which expresses values like current, voltage, impedance, and power as a ratio of an actual value to a reference or base value. This makes the quantities unitless and independent of physical size or ratings. The document provides examples of converting actual values to per unit values and explains the advantages, which include representing apparatus values consistently over a wide range, simplifying computations, and specifying machine impedances in per unit values according to manufacturers.
6 d electronics 231110
Series and parallel circuits. Resistance. Resistors in parallel and series. 6th year Higher Physics introduction to electricity / circuits
Load Cell Frequently Asked Questions
Here we go over what load cell sensitivity is, how to convert load cell output voltage to pounds, kilograms or newtons and more.
Physics electric power w11-l22
The document discusses power and energy in electric circuits. It defines electrical power as the rate at which electrical energy is transferred by a circuit, calculated as the product of current and voltage (P=VI). Common devices and their power consumption are provided as examples. The relationship between power, current, voltage and resistance is explored, and formulas for calculating power from these variables are derived and practiced in sample quiz questions. Kilowatt-hours are defined as a unit of energy used to bill customers for electricity usage.
student - series circuit
Using batteries, bulbs, and an ammeter in a series circuit, the current was measured and found to be _. Voltages across individual bulbs were measured to be _ V and _ V. Bulb resistances were calculated using Ohm's Law. The total resistance of both bulbs was _ ohms. Using the measured current and total resistance in Ohm's Law, the predicted total voltage was calculated to be _. The actual total voltage measured across the batteries was _.
parallel
This document provides information about parallel circuits. It defines parallel circuits as those where components are connected such that current can divide and flow through multiple components simultaneously. Some key points made include:
- In parallel circuits, the current through individual branches can vary but the total current increases as total resistance decreases.
- The total resistance of a parallel circuit decreases as more resistors are added in parallel, as these provide additional paths for current to flow.
- The voltage across each component/resistor in a parallel branch is the same.
- Examples of parallel circuits include household electrical wiring and multi-core computer processors.
Electrical power and power factor
1) Electrical loads that consume only active power have current and voltage waves that are in phase. Loads that consume reactive power have current and voltage waves that are out of phase.
2) Reactive power is measured in vars and is supplied by inductive and capacitive loads. It does not do useful work but requires extra current.
3) Connecting a capacitor of the correct size in parallel with an inductive motor can supply the motor's reactive power needs, improving the power factor to 1.
parallel circuit
The document describes an experiment using a circuit construction kit simulation to measure current and voltage in a parallel circuit with two light bulbs. Key steps include:
1) Building a parallel circuit with two light bulbs and measuring the total current and current through each bulb.
2) Measuring the voltage across each bulb and using this to calculate the resistance of each bulb.
3) Calculating the total resistance of the two bulbs and using Ohm's Law to predict the total voltage, then measuring the actual total voltage.
Calculo de un Sistema de Distribución, Mario Rosales
En este documento resolví un ejercicio donde se planteaba el calculo de potencias aparentes, potencia reactivas y correccion de factor de potencia a partir de un valor de potencial real ya establecido y de factores de potencias no corregidos.
Parallel circuit
This document provides information about parallel circuits. It defines a parallel circuit as having multiple paths from the power source through various resistors. The key learning objectives are that students will understand what parallel circuits look like, and know the relationships between voltage, current, and resistance in parallel circuits. The document explains that in parallel circuits, voltage is constant across all resistors while current is calculated by adding the individual branch currents. It provides formulas for calculating total resistance, current, and voltage values. Examples are given to demonstrate applying the formulas.
What is Parallel Circuit
This document provides a lesson on parallel circuits. It defines a parallel circuit as one with two or more current paths where the voltage is the same across each component. Current can follow many different paths in a parallel circuit and has different values in different places, while the voltage value is the same everywhere. The total resistance of a parallel circuit decreases compared to the lowest resistor value. The lesson covers the definition of a parallel circuit, voltage and current values, resistance values, and includes examples and homework assignments.
Final quiz ee
This document appears to be a quiz containing 10 multiple choice questions related to basic electrical concepts and components. The questions cover topics like electrical quantities, short circuits, units of measurement, power in different circuit types, transformer types, motors, and heating elements. The participant is asked to only select one answer for each question from the given multiple choice options.
dc generator
Electric generators convert mechanical energy into electrical energy through the process of electromagnetic induction described by Faraday's law. A generator works by using a coil rotating inside a magnetic field to produce an alternating current, with the direction of current changing each half revolution. Increasing the number of coil turns and arranging them carefully can help produce a smoother direct current output.
Active
This document discusses different types of power in electrical circuits:
1. Real/Active power (P) is the power actually used by a load and is calculated as P=VI cosθ in AC circuits. In DC and purely resistive AC circuits it is P=VI.
2. Reactive power (Q) is power that oscillates between source and load due to inductive or capacitive properties and is calculated as Q=VI sinθ. It is measured in VAR.
3. Apparent power (S) is the total power in an AC circuit including both real and reactive power. It is calculated as S=VI without considering phase angle and is measured in VA. Apparent power is greater than
3power
Power is defined as the rate at which energy is converted and is measured in watts. During energy conversion in electrical devices, some input energy is converted to heat. This heating can cause problems in devices like motors and transformers. However, heating is rarely a problem in devices like lamps. As voltage increases for a fixed resistance, current and power output will both increase due to their relationships as defined by Ohm's and Joule's laws.
17 resistance in series and parallel
The document discusses resistance in series and parallel circuits. For series circuits, the total resistance (Rs) is calculated by adding the individual resistances. For parallel circuits, the total resistance (Rp) is calculated by taking the reciprocal of the sum of the reciprocals of the individual resistances. An example is provided showing how to calculate the equivalent resistance of two light bulbs connected in parallel.
Circuits
A circuit is a closed loop that allows electric charges to flow continuously from the positive terminal of a battery or other energy source, through external components, and back to the negative terminal. For a circuit to work, it must include an energy source that establishes a potential difference to drive the movement of charges along a conducting loop between the source's terminals. Common circuit components include batteries, wires, light bulbs, and resistors, with circuits classified as either series or parallel depending on how the components are connected.
Science 5 chapter 4 electricity in your life
1. The document discusses simple electric circuits and their components, including cells, bulbs, switches, and connection cables.
2. It explains how changing the number of bulbs or cells in a circuit impacts the brightness of the light bulbs. Adding more bulbs decreases the brightness as each bulb receives less energy from the cell. Adding more cells increases the brightness.
3. Circuit diagrams use symbols to represent each component, and these symbols are standardized worldwide. Examples of common circuit diagrams and their symbols are provided.
17 mse004 mppt
The document discusses maximum power point tracking (MPPT) systems for solar cells. It explains that solar cells have a non-linear output efficiency that can be analyzed using I-V curves. MPPT systems sample the solar cell output and apply the proper resistance to obtain maximum power for any given environment. It then provides details on the maximum power transfer theorem, buck-boost converters commonly used for MPPT, and some MPPT algorithms.
a ماكسويل وورك شيت
An AC bridge circuit called the Maxwell-Wien bridge is used to precisely measure unknown inductors. The document describes a balanced Maxwell-Wien bridge where the capacitance is 120 nF, balancing resistor is 14.25 kΩ, source frequency is 400 Hz, and two fixed resistors are 1 kΩ each. Given this information, the inductance of the inductor being tested is calculated to be 120 mH and its resistance is 70.175 Ω.
Maximum power point tracking algorithms for solar(pv) systems
Maximum power point tracking algorithms for solar(pv) systemsSiksha 'O' Anusandhan (Deemed to be University )
These slides present the maximum power point tracking (MPPT ) algorithms for solar (PV) systems. Later of the class we will discuss on MPPT control of wind generators. Modeling and Simulation of Solar Photovoltaic System
Solar energy is a vital untapped resource in a tropical country like ours. The main hindrance for the penetration and reach of solar PV systems is their low efficiency and high capital cost. The efficiency of solar PV is very low. In order to increase the efficiency, Maximum Power Point Tracking (MPPT) techniques are to be undertaken to match the source and load property. These techniques are employed in PV systems to make full utilization of PV array output power. Recently, many MPPT algorithms of PV system have been proposed which depends on solar irradiation and temperature, but perturb and observe (P&O) and Incremental conductance algorithms are basic and most widely used. This project firstly introduces a Mat lab Simulink of photovoltaic array. To achieve the maximum power point tracking the Incremental Conductance method and perturb and observed (P&O) method are used. These two algorithms are employed with PV model along with converter in Mat lab Simulink. Three different converter boost, buck boost and cuk converter are design according to requirement and used. Few comparisons such as voltage, current and power output for each different combination have been recorded. Irfan Khan | Ameen Uddin Ahmad"Modeling and Simulation of Solar Photovoltaic System" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-1 | Issue-6 , October 2017, URL: http://www.ijtsrd.com/papers/ijtsrd5743.pdf http://www.ijtsrd.com/engineering/electrical-engineering/5743/modeling-and-simulation-of-solar--photovoltaic-system/irfan-khan
PV cell chara.ppt
- A solar cell can be represented as a diode with a current source added in parallel to represent the photocurrent. This allows the solar cell to operate in the fourth quadrant and act as a power source.
- The equivalent circuit of a solar cell consists of a current source in parallel with a diode, along with a series resistance and shunt resistance accounting for non-idealities.
- Key solar cell parameters that change with irradiance include short-circuit current (increasing linearly) and open-circuit voltage (increasing logarithmically). Temperature also affects these parameters and the maximum power point.
More Related Content
What's hot
6 d electronics 231110
Series and parallel circuits. Resistance. Resistors in parallel and series. 6th year Higher Physics introduction to electricity / circuits
Load Cell Frequently Asked Questions
Here we go over what load cell sensitivity is, how to convert load cell output voltage to pounds, kilograms or newtons and more.
Physics electric power w11-l22
The document discusses power and energy in electric circuits. It defines electrical power as the rate at which electrical energy is transferred by a circuit, calculated as the product of current and voltage (P=VI). Common devices and their power consumption are provided as examples. The relationship between power, current, voltage and resistance is explored, and formulas for calculating power from these variables are derived and practiced in sample quiz questions. Kilowatt-hours are defined as a unit of energy used to bill customers for electricity usage.
student - series circuit
Using batteries, bulbs, and an ammeter in a series circuit, the current was measured and found to be _. Voltages across individual bulbs were measured to be _ V and _ V. Bulb resistances were calculated using Ohm's Law. The total resistance of both bulbs was _ ohms. Using the measured current and total resistance in Ohm's Law, the predicted total voltage was calculated to be _. The actual total voltage measured across the batteries was _.
parallel
This document provides information about parallel circuits. It defines parallel circuits as those where components are connected such that current can divide and flow through multiple components simultaneously. Some key points made include:
- In parallel circuits, the current through individual branches can vary but the total current increases as total resistance decreases.
- The total resistance of a parallel circuit decreases as more resistors are added in parallel, as these provide additional paths for current to flow.
- The voltage across each component/resistor in a parallel branch is the same.
- Examples of parallel circuits include household electrical wiring and multi-core computer processors.
Electrical power and power factor
1) Electrical loads that consume only active power have current and voltage waves that are in phase. Loads that consume reactive power have current and voltage waves that are out of phase.
2) Reactive power is measured in vars and is supplied by inductive and capacitive loads. It does not do useful work but requires extra current.
3) Connecting a capacitor of the correct size in parallel with an inductive motor can supply the motor's reactive power needs, improving the power factor to 1.
parallel circuit
The document describes an experiment using a circuit construction kit simulation to measure current and voltage in a parallel circuit with two light bulbs. Key steps include:
1) Building a parallel circuit with two light bulbs and measuring the total current and current through each bulb.
2) Measuring the voltage across each bulb and using this to calculate the resistance of each bulb.
3) Calculating the total resistance of the two bulbs and using Ohm's Law to predict the total voltage, then measuring the actual total voltage.
Calculo de un Sistema de Distribución, Mario Rosales
En este documento resolví un ejercicio donde se planteaba el calculo de potencias aparentes, potencia reactivas y correccion de factor de potencia a partir de un valor de potencial real ya establecido y de factores de potencias no corregidos.
Parallel circuit
This document provides information about parallel circuits. It defines a parallel circuit as having multiple paths from the power source through various resistors. The key learning objectives are that students will understand what parallel circuits look like, and know the relationships between voltage, current, and resistance in parallel circuits. The document explains that in parallel circuits, voltage is constant across all resistors while current is calculated by adding the individual branch currents. It provides formulas for calculating total resistance, current, and voltage values. Examples are given to demonstrate applying the formulas.
What is Parallel Circuit
This document provides a lesson on parallel circuits. It defines a parallel circuit as one with two or more current paths where the voltage is the same across each component. Current can follow many different paths in a parallel circuit and has different values in different places, while the voltage value is the same everywhere. The total resistance of a parallel circuit decreases compared to the lowest resistor value. The lesson covers the definition of a parallel circuit, voltage and current values, resistance values, and includes examples and homework assignments.
Final quiz ee
This document appears to be a quiz containing 10 multiple choice questions related to basic electrical concepts and components. The questions cover topics like electrical quantities, short circuits, units of measurement, power in different circuit types, transformer types, motors, and heating elements. The participant is asked to only select one answer for each question from the given multiple choice options.
dc generator
Electric generators convert mechanical energy into electrical energy through the process of electromagnetic induction described by Faraday's law. A generator works by using a coil rotating inside a magnetic field to produce an alternating current, with the direction of current changing each half revolution. Increasing the number of coil turns and arranging them carefully can help produce a smoother direct current output.
Active
This document discusses different types of power in electrical circuits:
1. Real/Active power (P) is the power actually used by a load and is calculated as P=VI cosθ in AC circuits. In DC and purely resistive AC circuits it is P=VI.
2. Reactive power (Q) is power that oscillates between source and load due to inductive or capacitive properties and is calculated as Q=VI sinθ. It is measured in VAR.
3. Apparent power (S) is the total power in an AC circuit including both real and reactive power. It is calculated as S=VI without considering phase angle and is measured in VA. Apparent power is greater than
3power
Power is defined as the rate at which energy is converted and is measured in watts. During energy conversion in electrical devices, some input energy is converted to heat. This heating can cause problems in devices like motors and transformers. However, heating is rarely a problem in devices like lamps. As voltage increases for a fixed resistance, current and power output will both increase due to their relationships as defined by Ohm's and Joule's laws.
17 resistance in series and parallel
The document discusses resistance in series and parallel circuits. For series circuits, the total resistance (Rs) is calculated by adding the individual resistances. For parallel circuits, the total resistance (Rp) is calculated by taking the reciprocal of the sum of the reciprocals of the individual resistances. An example is provided showing how to calculate the equivalent resistance of two light bulbs connected in parallel.
Circuits
A circuit is a closed loop that allows electric charges to flow continuously from the positive terminal of a battery or other energy source, through external components, and back to the negative terminal. For a circuit to work, it must include an energy source that establishes a potential difference to drive the movement of charges along a conducting loop between the source's terminals. Common circuit components include batteries, wires, light bulbs, and resistors, with circuits classified as either series or parallel depending on how the components are connected.
Science 5 chapter 4 electricity in your life
1. The document discusses simple electric circuits and their components, including cells, bulbs, switches, and connection cables.
2. It explains how changing the number of bulbs or cells in a circuit impacts the brightness of the light bulbs. Adding more bulbs decreases the brightness as each bulb receives less energy from the cell. Adding more cells increases the brightness.
3. Circuit diagrams use symbols to represent each component, and these symbols are standardized worldwide. Examples of common circuit diagrams and their symbols are provided.
17 mse004 mppt
The document discusses maximum power point tracking (MPPT) systems for solar cells. It explains that solar cells have a non-linear output efficiency that can be analyzed using I-V curves. MPPT systems sample the solar cell output and apply the proper resistance to obtain maximum power for any given environment. It then provides details on the maximum power transfer theorem, buck-boost converters commonly used for MPPT, and some MPPT algorithms.
a ماكسويل وورك شيت
An AC bridge circuit called the Maxwell-Wien bridge is used to precisely measure unknown inductors. The document describes a balanced Maxwell-Wien bridge where the capacitance is 120 nF, balancing resistor is 14.25 kΩ, source frequency is 400 Hz, and two fixed resistors are 1 kΩ each. Given this information, the inductance of the inductor being tested is calculated to be 120 mH and its resistance is 70.175 Ω.
What's hot (19)
Calculo de un Sistema de Distribución, Mario Rosales
Calculo de un Sistema de Distribución, Mario Rosales
Similar to solar cell
Maximum power point tracking algorithms for solar(pv) systems
Maximum power point tracking algorithms for solar(pv) systemsSiksha 'O' Anusandhan (Deemed to be University )
These slides present the maximum power point tracking (MPPT ) algorithms for solar (PV) systems. Later of the class we will discuss on MPPT control of wind generators. Modeling and Simulation of Solar Photovoltaic System
Solar energy is a vital untapped resource in a tropical country like ours. The main hindrance for the penetration and reach of solar PV systems is their low efficiency and high capital cost. The efficiency of solar PV is very low. In order to increase the efficiency, Maximum Power Point Tracking (MPPT) techniques are to be undertaken to match the source and load property. These techniques are employed in PV systems to make full utilization of PV array output power. Recently, many MPPT algorithms of PV system have been proposed which depends on solar irradiation and temperature, but perturb and observe (P&O) and Incremental conductance algorithms are basic and most widely used. This project firstly introduces a Mat lab Simulink of photovoltaic array. To achieve the maximum power point tracking the Incremental Conductance method and perturb and observed (P&O) method are used. These two algorithms are employed with PV model along with converter in Mat lab Simulink. Three different converter boost, buck boost and cuk converter are design according to requirement and used. Few comparisons such as voltage, current and power output for each different combination have been recorded. Irfan Khan | Ameen Uddin Ahmad"Modeling and Simulation of Solar Photovoltaic System" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-1 | Issue-6 , October 2017, URL: http://www.ijtsrd.com/papers/ijtsrd5743.pdf http://www.ijtsrd.com/engineering/electrical-engineering/5743/modeling-and-simulation-of-solar--photovoltaic-system/irfan-khan
PV cell chara.ppt
- A solar cell can be represented as a diode with a current source added in parallel to represent the photocurrent. This allows the solar cell to operate in the fourth quadrant and act as a power source.
- The equivalent circuit of a solar cell consists of a current source in parallel with a diode, along with a series resistance and shunt resistance accounting for non-idealities.
- Key solar cell parameters that change with irradiance include short-circuit current (increasing linearly) and open-circuit voltage (increasing logarithmically). Temperature also affects these parameters and the maximum power point.
An Intelligent Technique By Using The Method of Constant Coefficient of Short...
Photovoltaic (PV) system is extensively increasing since it is clean,
pollution free, and inexhaustible and by consider available resource as a future
energy supply. The PV array output power is used to directly control the Pulse-width
modulation (PWM), dc/dc boost converter, thereby reducing the complexity of the
system. The resulting system has high efficiency with lower cost. This paper presents
an improved Constant Coefficient of Short Circuit Current (CCSCC) Maximum Power
Point Tracking (MPPT) technique under PWM control of photovoltaic (PV) power
generation systems to obtain the maximum output power. The solar panel is
modelled and analyzed in MATLAB/SIMULINK.
Lecture 3
This document provides an overview and summary of key concepts from a lecture on three-phase power system operations and analysis:
1) It introduces the per-phase analysis method which allows analysis of a balanced three-phase system as if it were a single phase by representing loads and sources as wye-connected equivalents and assuming phases are decoupled.
2) It provides an example of using the per-phase analysis method to solve a circuit and determine real and reactive power flows between generators supplying a delta-connected load.
3) It discusses basic power system components and operations including generation, load, transmission, distribution of power, and the goal of maintaining real and reactive power balance at all buses.
Multilevel Inverters for PV Applications
In this paper the multicarrier pulse width modulation (MCPWM) with multi value DC voltage source multilevel inverter is presented. These MLI’s are suitable in high voltage & high power application due to their ability to synthesize waveforms with better harmonic spectrum. Seven level inverter is simulated using MATLAB/Simulink. The use of Photovoltaic Cell as a DC source for the multilevel Inverter is proposed here.
Solar energy
A solar cell converts light energy into electrical energy through the photovoltaic effect. The document discusses different types of solar cell materials like mono-crystalline silicon, multi-crystalline silicon, and amorphous silicon. Individual solar cells can be combined into solar panels by connecting them in series to increase voltage or parallel to increase current. The amount of electricity generated by a solar cell depends on factors like intensity of light, area of the cell, and angle of incidence of light. Key parameters that characterize solar cells and modules are discussed such as short circuit current, open circuit voltage, maximum power point, fill factor, and efficiency.
Computer Application in Power system: Chapter two - load flow analysis
Computer Application in Power system: Chapter two - load flow analysisAdama Science and Technology University
This chapter will deal with load/power flow analysis especially it will focus on the decoupled and fast decoupled load flow analysis methods. Grid Interfaced 3-phase Solar Inverter with MPPT by using Boost Converter
This document describes a grid-interfaced 3-phase 750VA solar inverter system with maximum power point tracking (MPPT). It uses a boost converter with a perturbation and observation MPPT algorithm to extract maximum power from the solar panels. The boost converter output is fed to a 3-phase inverter to regulate the voltage and frequency for supplying AC loads or grid integration. Simulation results in MATLAB/Simulink show the MPPT algorithm effectively tracks maximum power and the voltage controller with SPWM regulates the inverter output voltage. The inverter can supply 1kW of power to the grid with output voltages and currents as required.
Mppt
The document discusses maximum power point tracking (MPPT) techniques used with photovoltaic solar systems. MPPT algorithms aim to maximize solar panel output power by adjusting the load impedance to match the maximum power point. The summary is:
1) MPPT techniques aim to continuously track the maximum power point of solar panels under varying conditions to optimize power extraction.
2) Common MPPT methods include perturb and observe and incremental conductance, which adjust voltage and measure changes in power output to determine the maximum power point.
3) Other MPPT methods include current sweep, constant voltage/open circuit voltage tracking, and techniques using neural networks, fuzzy logic, or temperature measurements.
Network theorems
The document discusses several network theorems including superposition, Thevenin's, and Norton's theorems. Superposition theorem states that the total response of a network with multiple sources is the sum of the responses of each source acting alone. Thevenin's theorem shows that any linear network can be reduced to an equivalent circuit with a voltage source and single output resistance. Norton's theorem represents a network as a current source and parallel output resistance. Both theorems simplify analysis of complex networks. Maximum power transfer occurs when the load and source resistances are equal.
CIRCUITOS TEMA 3
This document discusses circuit analysis techniques including:
1. Linearity and superposition principles, which allow analyzing circuits with multiple independent sources by considering each source individually.
2. Source transformations, which allow converting between current and voltage sources to simplify circuit analysis.
3. Thevenin's and Norton's theorems, which allow replacing complex linear circuits with simplified equivalent circuits containing a single voltage or current source with internal resistance.
4. The maximum power transfer theorem, which states that maximum power is delivered to a load when its resistance equals the internal resistance of the equivalent Thevenin source.
Photovoltaic based three phase three-wire saf for significant energy conserva...
This paper presents a Photovoltaic based Shunt Active Filter (PV-SAF) system for power quality improvement, harmonic mitigation, and reactive power compensation. The PV array utilizes a fuzzy logic based maximum power point tracking (MPPT) algorithm to optimize power output. The PV-SAF can operate in two modes: compensation mode to inject compensating current and UPS energy conservation mode to supply excess PV power directly to the load. Simulation results demonstrate the PV-SAF's ability to mitigate current harmonics and reduce total harmonic distortion to below IEEE standards. The fuzzy logic MPPT controller is also shown to track the maximum power point 88% faster than a conventional perturb and observe method.
New Microsoft PowerPoint Presentation.pptx
Maximum Power Point Tracking (MPPT) algorithms are used to extract the maximum available power from photovoltaic modules by operating them at the voltage where power output is highest. This is done by periodically adjusting the module operating voltage to match the maximum power point, which varies based on solar irradiance and temperature. Common MPPT techniques include Perturb and Observe and Incremental Conductance methods, which use hill-climbing algorithms to track the maximum power point.
Power Quality Improvement of Utility Current in Grid Connected Photovoltaic S...
This paper presents the grid-tied Solar Photovoltaic generator system supplying to nonlinear loads based
Shunt Active Power Filter for reactive power compensation and harmonic mitigation by droop control method.
Solar PV system is a promising source of energy with great interest in clean and renewable energy sources.
The rising number of power electronics-based equipment is resulting in quality problems of electric power
supply. Both high power industrial loads and domestic loads cause many disturbances in the utility side
such as harmonics, imbalance, sags, swells, flickers and frequency variation. Power quality problems may
arise in the system or may be created by the consumer itself. In this paper, the proposed controller utilizing
power references shows some significant improvements in theory and a simple control topology. The PV
module is connected to the DC side of Shunt Active Filter through the DC-DC converter. Converter switch is
controlled by Perturb & Observe (P&O) Maximum Power Point Tracking (MPPT) algorithm and it eliminates the
drawback in the conventional PV system. An emulation using MATLAB Simulink is presented to validate the
advantage of the proposed system.
685 calavia
This document compares three different Maximum Power Point Tracking (MPPT) strategies applied to solar modules: three-point perturb and observe, fixed-step incremental conductance, and variable-step incremental conductance. It describes each method and simulates their performance under changing irradiance conditions and with measurement noise. The variable-step incremental conductance method tracks irradiance changes the fastest and is least affected by noise, while the three-point perturb and observe method has the slowest response time and is most impacted by noise.
control-of-dcdc-converters-for-solar-energy-system-with-maximum-.pdf
This document summarizes a study on controlling DC/DC converters for maximum power tracking in solar energy systems. The study analyzed buck, boost, and buck-boost converter performance using a discrete-time proportional-integral control algorithm to track the maximum power points of a solar array. Simulation and experimental results showed the converters successfully tracked maximum power points under changing solar irradiance. The buck converter achieved the highest efficiency of around 90%. The control method and converter configurations allow solar energy systems to effectively transfer power from solar arrays.
4_INFRARED REMOTE USED FOR 8
An infrared remote control is used to control the speed of an induction motor in 8 steps. A microcontroller reads coded data from the remote control and activates output pins to change the firing time of thyristors, which drives the fan motor. The microcontroller receives signals from IR sensors connected to the remote and controls the system. A regulated power supply provides power and a transformer steps down the voltage.
The main factors affecting on value of maximum power point photovoltaic model...
A Matlab-Simulink based simulation study of photovoltaic (PV) cells
is carried out and presented in this paper. The study is helpful in results showed that
Maximum Power Point (MPP) strongly depends on sun irradiance, shunt resistance,
series resistance, temperature and ideal factor. These results might be used as a
guide for PV system users.
Modified One Cycle Controlled Scheme for Single-Phase Grid Connected Pv-Fc Hy...
This document summarizes a research paper that proposes a modified one cycle control scheme for a single-phase grid-connected photovoltaic-fuel cell hybrid system. The proposed scheme generates a fictitious current signal proportional to the grid voltage to overcome instability issues in the original one cycle control approach. It does not require sensing of the grid voltage. The maximum power point tracking is implemented using a perturb and observe method to ensure the system operates at the maximum power point even with variations in solar irradiation and parameter values. The control scheme is able to regulate the DC link voltage and ensure a near-sinusoidal current is injected into the grid with low distortion.
Similar to solar cell (20)
Maximum power point tracking algorithms for solar(pv) systems
Maximum power point tracking algorithms for solar(pv) systems
Modeling and Simulation of Solar Photovoltaic System
Modeling and Simulation of Solar Photovoltaic System
An Intelligent Technique By Using The Method of Constant Coefficient of Short...
An Intelligent Technique By Using The Method of Constant Coefficient of Short...
Computer Application in Power system: Chapter two - load flow analysis
Computer Application in Power system: Chapter two - load flow analysis
Grid Interfaced 3-phase Solar Inverter with MPPT by using Boost Converter
Grid Interfaced 3-phase Solar Inverter with MPPT by using Boost Converter
Photovoltaic based three phase three-wire saf for significant energy conserva...
Photovoltaic based three phase three-wire saf for significant energy conserva...
Power Quality Improvement of Utility Current in Grid Connected Photovoltaic S...
Power Quality Improvement of Utility Current in Grid Connected Photovoltaic S...
control-of-dcdc-converters-for-solar-energy-system-with-maximum-.pdf
control-of-dcdc-converters-for-solar-energy-system-with-maximum-.pdf
The main factors affecting on value of maximum power point photovoltaic model...
The main factors affecting on value of maximum power point photovoltaic model...
Modified One Cycle Controlled Scheme for Single-Phase Grid Connected Pv-Fc Hy...
Modified One Cycle Controlled Scheme for Single-Phase Grid Connected Pv-Fc Hy...
Recently uploaded
Modelagem de um CSTR com reação endotermica.pdf
Modelagem em função de transferencia. CSTR não-linear.
New techniques for characterising damage in rock slopes.pdf
rock mass characterization and New techniques for characterising damage in rock slopes
Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...
Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...University of Maribor
Slides from talk presenting:
Aleš Zamuda: Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapter and Networking.
Presentation at IcETRAN 2024 session:
"Inter-Society Networking Panel GRSS/MTT-S/CIS
Panel Session: Promoting Connection and Cooperation"
IEEE Slovenia GRSS
IEEE Serbia and Montenegro MTT-S
IEEE Slovenia CIS
11TH INTERNATIONAL CONFERENCE ON ELECTRICAL, ELECTRONIC AND COMPUTING ENGINEERING
3-6 June 2024, Niš, Serbia5214-1693458878915-Unit 6 2023 to 2024 academic year assignment (AutoRecovere...
Bigdata of technology
Understanding Inductive Bias in Machine Learning
This presentation explores the concept of inductive bias in machine learning. It explains how algorithms come with built-in assumptions and preferences that guide the learning process. You'll learn about the different types of inductive bias and how they can impact the performance and generalizability of machine learning models.
The presentation also covers the positive and negative aspects of inductive bias, along with strategies for mitigating potential drawbacks. We'll explore examples of how bias manifests in algorithms like neural networks and decision trees.
By understanding inductive bias, you can gain valuable insights into how machine learning models work and make informed decisions when building and deploying them.
Redefining brain tumor segmentation: a cutting-edge convolutional neural netw...
Medical image analysis has witnessed significant advancements with deep learning techniques. In the domain of brain tumor segmentation, the ability to
precisely delineate tumor boundaries from magnetic resonance imaging (MRI)
scans holds profound implications for diagnosis. This study presents an ensemble convolutional neural network (CNN) with transfer learning, integrating
the state-of-the-art Deeplabv3+ architecture with the ResNet18 backbone. The
model is rigorously trained and evaluated, exhibiting remarkable performance
metrics, including an impressive global accuracy of 99.286%, a high-class accuracy of 82.191%, a mean intersection over union (IoU) of 79.900%, a weighted
IoU of 98.620%, and a Boundary F1 (BF) score of 83.303%. Notably, a detailed comparative analysis with existing methods showcases the superiority of
our proposed model. These findings underscore the model’s competence in precise brain tumor localization, underscoring its potential to revolutionize medical
image analysis and enhance healthcare outcomes. This research paves the way
for future exploration and optimization of advanced CNN models in medical
imaging, emphasizing addressing false positives and resource efficiency.
ISPM 15 Heat Treated Wood Stamps and why your shipping must have one
For International shipping and maritime laws all wood must contain the ISPM 15 Stamp. Here is how and why.
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
As digital technology becomes more deeply embedded in power systems, protecting the communication
networks of Smart Grids (SG) has emerged as a critical concern. Distributed Network Protocol 3 (DNP3)
represents a multi-tiered application layer protocol extensively utilized in Supervisory Control and Data
Acquisition (SCADA)-based smart grids to facilitate real-time data gathering and control functionalities.
Robust Intrusion Detection Systems (IDS) are necessary for early threat detection and mitigation because
of the interconnection of these networks, which makes them vulnerable to a variety of cyberattacks. To
solve this issue, this paper develops a hybrid Deep Learning (DL) model specifically designed for intrusion
detection in smart grids. The proposed approach is a combination of the Convolutional Neural Network
(CNN) and the Long-Short-Term Memory algorithms (LSTM). We employed a recent intrusion detection
dataset (DNP3), which focuses on unauthorized commands and Denial of Service (DoS) cyberattacks, to
train and test our model. The results of our experiments show that our CNN-LSTM method is much better
at finding smart grid intrusions than other deep learning algorithms used for classification. In addition,
our proposed approach improves accuracy, precision, recall, and F1 score, achieving a high detection
accuracy rate of 99.50%.
Unit-III-ELECTROCHEMICAL STORAGE DEVICES.ppt
Batteries -Introduction – Types of Batteries – discharging and charging of battery - characteristics of battery –battery rating- various tests on battery- – Primary battery: silver button cell- Secondary battery :Ni-Cd battery-modern battery: lithium ion battery-maintenance of batteries-choices of batteries for electric vehicle applications.
Fuel Cells: Introduction- importance and classification of fuel cells - description, principle, components, applications of fuel cells: H2-O2 fuel cell, alkaline fuel cell, molten carbonate fuel cell and direct methanol fuel cells.
A SYSTEMATIC RISK ASSESSMENT APPROACH FOR SECURING THE SMART IRRIGATION SYSTEMS
The smart irrigation system represents an innovative approach to optimize water usage in agricultural and landscaping practices. The integration of cutting-edge technologies, including sensors, actuators, and data analysis, empowers this system to provide accurate monitoring and control of irrigation processes by leveraging real-time environmental conditions. The main objective of a smart irrigation system is to optimize water efficiency, minimize expenses, and foster the adoption of sustainable water management methods. This paper conducts a systematic risk assessment by exploring the key components/assets and their functionalities in the smart irrigation system. The crucial role of sensors in gathering data on soil moisture, weather patterns, and plant well-being is emphasized in this system. These sensors enable intelligent decision-making in irrigation scheduling and water distribution, leading to enhanced water efficiency and sustainable water management practices. Actuators enable automated control of irrigation devices, ensuring precise and targeted water delivery to plants. Additionally, the paper addresses the potential threat and vulnerabilities associated with smart irrigation systems. It discusses limitations of the system, such as power constraints and computational capabilities, and calculates the potential security risks. The paper suggests possible risk treatment methods for effective secure system operation. In conclusion, the paper emphasizes the significant benefits of implementing smart irrigation systems, including improved water conservation, increased crop yield, and reduced environmental impact. Additionally, based on the security analysis conducted, the paper recommends the implementation of countermeasures and security approaches to address vulnerabilities and ensure the integrity and reliability of the system. By incorporating these measures, smart irrigation technology can revolutionize water management practices in agriculture, promoting sustainability, resource efficiency, and safeguarding against potential security threats.
ACEP Magazine edition 4th launched on 05.06.2024
This document provides information about the third edition of the magazine "Sthapatya" published by the Association of Civil Engineers (Practicing) Aurangabad. It includes messages from current and past presidents of ACEP, memories and photos from past ACEP events, information on life time achievement awards given by ACEP, and a technical article on concrete maintenance, repairs and strengthening. The document highlights activities of ACEP and provides a technical educational article for members.
Eric Nizeyimana's document 2006 from gicumbi to ttc nyamata handball play
this notes have been created
by Eric36 at nyamata ttc
after readings
pe book for y2sme .
IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
Advanced control scheme of doubly fed induction generator for wind turbine us...
This paper describes a speed control device for generating electrical energy on an electricity network based on the doubly fed induction generator (DFIG) used for wind power conversion systems. At first, a double-fed induction generator model was constructed. A control law is formulated to govern the flow of energy between the stator of a DFIG and the energy network using three types of controllers: proportional integral (PI), sliding mode controller (SMC) and second order sliding mode controller (SOSMC). Their different results in terms of power reference tracking, reaction to unexpected speed fluctuations, sensitivity to perturbations, and resilience against machine parameter alterations are compared. MATLAB/Simulink was used to conduct the simulations for the preceding study. Multiple simulations have shown very satisfying results, and the investigations demonstrate the efficacy and power-enhancing capabilities of the suggested control system.
The Python for beginners. This is an advance computer language.
Python language is very important language at this time. we can easily understand this language by these notes.
Recently uploaded (20)
Engineering Drawings Lecture Detail Drawings 2014.pdf
Engineering Drawings Lecture Detail Drawings 2014.pdf
New techniques for characterising damage in rock slopes.pdf
New techniques for characterising damage in rock slopes.pdf
Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...
Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...
5214-1693458878915-Unit 6 2023 to 2024 academic year assignment (AutoRecovere...
5214-1693458878915-Unit 6 2023 to 2024 academic year assignment (AutoRecovere...
Redefining brain tumor segmentation: a cutting-edge convolutional neural netw...
Redefining brain tumor segmentation: a cutting-edge convolutional neural netw...
ISPM 15 Heat Treated Wood Stamps and why your shipping must have one
ISPM 15 Heat Treated Wood Stamps and why your shipping must have one
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
Generative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of content
A SYSTEMATIC RISK ASSESSMENT APPROACH FOR SECURING THE SMART IRRIGATION SYSTEMS
A SYSTEMATIC RISK ASSESSMENT APPROACH FOR SECURING THE SMART IRRIGATION SYSTEMS
Eric Nizeyimana's document 2006 from gicumbi to ttc nyamata handball play
Eric Nizeyimana's document 2006 from gicumbi to ttc nyamata handball play
IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
Advanced control scheme of doubly fed induction generator for wind turbine us...
Advanced control scheme of doubly fed induction generator for wind turbine us...
The Python for beginners. This is an advance computer language.
The Python for beginners. This is an advance computer language.
solar cell
- 1. A solar cell is a p-n junction so it is basically a diode but it is a special kind of diode. If there is no sunlight striking the cell, then it will behave exactly like a diode, allowing the current to flow only in one direction In sunlight, the cell would be modeled ideally by a diode connected in parallel with a current source. Solar Cell Model :

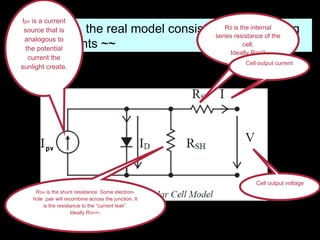

- 2. However, the real model consists of the following components ~~ Ipv is a current source that is analogous to the potential current the sunlight create. RS is the internal series resistance of the cell. Ideally RS=0 RSH is the shunt resistance. Some electron- hole pair will recombine across the junction. It is the resistance to the “current leak”. Ideally RSH=∞ Cell output current Cell output voltage

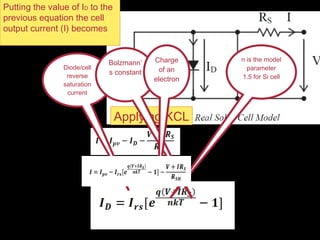

- 3. Applying KCL Diode/cell reverse saturation current Bolzmann’ s constant Charge of an electron n is the model parameter 1.5 for Si cell Putting the value of ID to the previous equation the cell output current (I) becomes

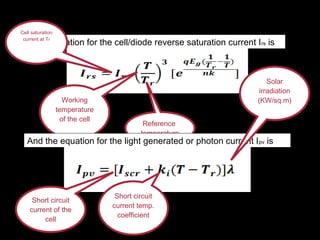

- 4. The equation for the cell/diode reverse saturation current Irs is Working temperature of the cell Reference temperature And the equation for the light generated or photon current Ipv is Cell saturation current at Tr Short circuit current of the cell Short circuit current temp. coefficient Solar irradiation (KW/sq.m)

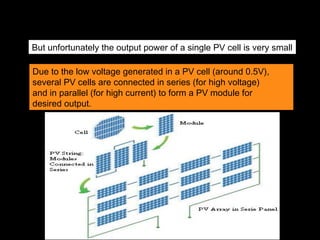

- 5. But unfortunately the output power of a single PV cell is very small Due to the low voltage generated in a PV cell (around 0.5V), several PV cells are connected in series (for high voltage) and in parallel (for high current) to form a PV module for desired output.

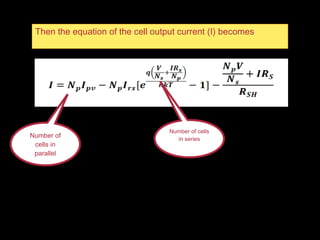

- 6. Then the equation of the cell output current (I) becomes Number of cells in parallel Number of cells in series
- 7. Characteristic curve of PV array: Here I assume RS=0 & RSH=∞ For simplicity Output Voltage Vs output current curve Output Voltage Vs output power curve Those are for constant temperature & irradiation

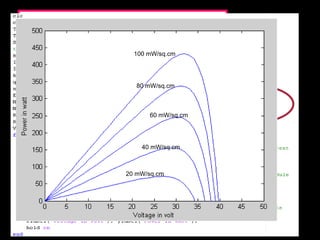

- 8. Solar Irradiation Variation’s Effect Variation of Solar irradiation 100 mW/sq.cm 80 mW/sq.cm 60 mW/sq.cm 40 mW/sq.cm 20 mW/sq.cm

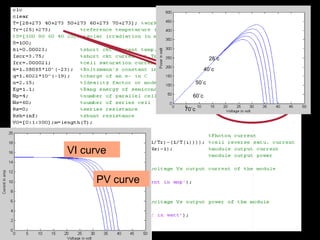

- 9. Temperature Variation’s Effect Variation of Temperature VI curve PV curve 28˚c 40˚c 50˚c 60˚c 70˚c
- 10. Influence of Partial Shadow : Ideally PV modules should be built using identical cells so to have a module with uniform characteristic. If irradiation cannot reach particular solar cell – due to shadowing, dirt, snow and leaves – then the photon current Iph of this particular solar cell is zero or very small. When connecting PV cells/modules in series, if one of the PV cells/modules has a much lower photo current Iph than others due to partial shading, dust or degradation, it operates as a load for other cells and is reversed biased. This cell/module will then dissipate energy rather than generate hence leading to a cell temperature rise and if the temperature is too high the cell/module can be damaged and affect the whole PV module/array is compromised The most common method to avoid this is to put a bypass diode across a PV string or modules
- 11. An array with 3 cells is considered Low illuminated panels however make no contribution to the load power as these are short circuited by the bypass diodes.

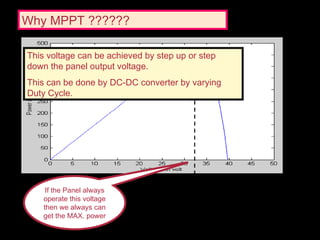

- 12. Why MPPT ?????? PV curve If the Panel always operate this voltage then we always can get the MAX. power This voltage can be achieved by step up or step down the panel output voltage. This can be done by DC-DC converter by varying Duty Cycle.
- 13. This is done by utilizing a DC-DC converter whose duty cycle is varied by using a mppt algorithm. Few of the many algorithms are: • Perturb and Observe method • Incremental Conductance method • Parasitic Capacitance method • Constant Voltage method • Constant Current method One of the most common is Perturb and Observe method. The operating voltage is sampled and the algorithm changes the operating voltage in the required direction and samples𝑑𝑑/𝑑𝑑. If 𝑑𝑑/𝑑𝑑 is positive, then the algorithm increases the voltage value towards the MPP until 𝑑𝑑/𝑑𝑑is negative. This iteration is continued until the algorithm finally reaches the MPP. The voltage never actually reaches an exact value but perturbs around the maximum power point (MPP). The system oscillates about the MPP if perturbation step size is large. The oscillation can be minimized by reducing the perturbation step size. But, a smaller perturbation size slows down the MPPT
