![ReportTemplate-English
[Precondition] -- optional
Precondition for this issue.
[How to reprocedure the problem]
1. install APP form AppStore
2. open miSecurity with 886929168168/12345678
3. goto video view, and click the active device
[Expected result]
The video should be transferred immediately.
[Actual result]
The exception occurs.
[Spec and CLD] -- optional
Spec P.53: Title ...
20](https://image.slidesharecdn.com/softwaredevelopmentprocessv1-190803102943/85/Software-Development-Process-v1-5-20121214-20-320.jpg)
![ResolvedTemplate…
[Root cause] -- 原因, 哪裡的問題
short description for root cause
[Solution] – 怎麼解決
how to fix and solution.
[Fix revision]
r17464
22](https://image.slidesharecdn.com/softwaredevelopmentprocessv1-190803102943/85/Software-Development-Process-v1-5-20121214-22-320.jpg)

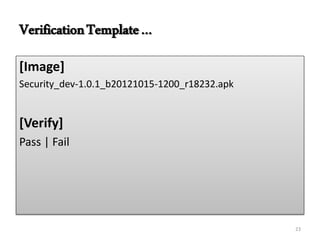

![VerificationTemplate…
[Image]
Security_dev-1.0.1_b20121015-1200_r18232.apk
[Verify]
Pass | Fail
23](https://image.slidesharecdn.com/softwaredevelopmentprocessv1-190803102943/85/Software-Development-Process-v1-5-20121214-23-320.jpg)
Uploaded byRick Hwang
Software Development Process v1.5 - 20121214
The document outlines the software development process for a project, detailing the roles and responsibilities involved at various stages, including system, function, and component level design. It emphasizes on testing practices, including functional, system, and regression testing, along with the importance of a well-defined release process and continuous integration. The document also provides templates and suggestions for effective bug reporting and tracking throughout the development lifecycle.
Software Development Process v1.5 - 20121214
- 1.

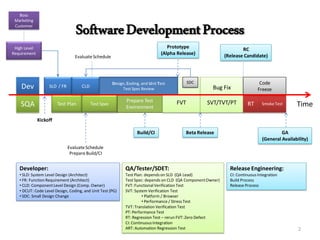

- 2. SmokeTest Prepare Test Environment FVT SLD /FR Test Plan Bug Fix SVT/TVT/PT RT Dev SQA Code Freeze Developer: • SLD: System Level Design (Architect) • FR: Function Requirement (Architect) • CLD: ComponentLevel Design (Comp. Owner) • DCUT: Code Level Design, Coding, and Unit Test (PG) • SDC: Small Design Change Prototype (Alpha Release) Time Beta Release RC (Release Candidate) GA (General Availability) SoftwareDevelopmentProcess Build/CI EvaluateSchedule PrepareBuild/CI Kickoff QA/Tester/SDET: Test Plan: dependson SLD (QA Lead) Test Spec: depends on CLD (QA ComponentOwner) FVT: Functional Verification Test SVT: System Verification Test • Platform / Browser • Performance / Stress Test TVT: Translation Verification Test PT: Performance Test RT: Regression Test – rerun FVT: Zero Defect CI: ContinuousIntegration ART: Automation Regression Test Test Spec High Level Requirement Boss Marketing Customer SDC CLD EvaluateSchedule Release Engineering: CI: ContinuousIntegration Build Process Release Process Design,Coding, and Unit Test Test Spec Review 2

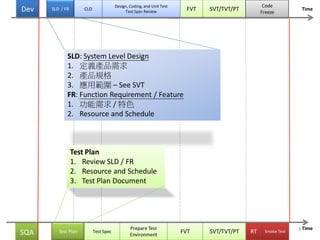

- 3. SDC FVT SVT/TVT/PT SmokeTest Prepare Test Environment FVTTestPlan SVT/TVT/PT RTSQA Time Test Spec Design, Coding, and Unit Test Test Spec Review SLD / FRDev Code Freeze CLD Time SLD: System Level Design 1. 定義產品需求 2. 產品規格 3. 應用範圍 – See SVT FR: Function Requirement / Feature 1. 功能需求 / 特色 2. Resource and Schedule Test Plan 1. Review SLD / FR 2. Resource and Schedule 3. Test Plan Document 3

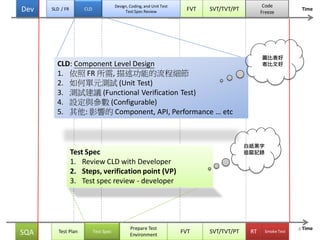

- 4. FVT SVT/TVT/PT SmokeTest Prepare Test Environment FVTTestPlan SVT/TVT/PT RTSQA Time Test Spec Design, Coding, and Unit Test Test Spec Review SLD / FRDev Code Freeze CLD Time CLD: Component Level Design 1. 依照 FR 所需, 描述功能的流程細節 2. 如何單元測試 (Unit Test) 3. 測試建議 (Functional Verification Test) 4. 設定與參數 (Configurable) 5. 其他: 影響的 Component, API, Performance … etc Test Spec 1. Review CLD with Developer 2. Steps, verification point (VP) 3. Test spec review - developer 圖比表好 表比文好 白紙黑字 追蹤記錄 4

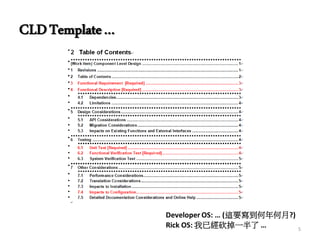

- 5. CLDTemplate… Developer OS: …(這要寫到何年何月?) Rick OS: 我已經砍掉一半了 … 5

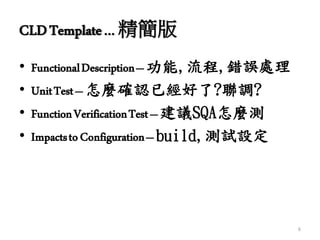

- 6. CLDTemplate… 精簡版 • FunctionalDescription–功能,流程,錯誤處理 •UnitTest–怎麼確認已經好了?聯調? • FunctionVerificationTest–建議SQA怎麼測 • ImpactstoConfiguration–build,測試設定 6
- 7.

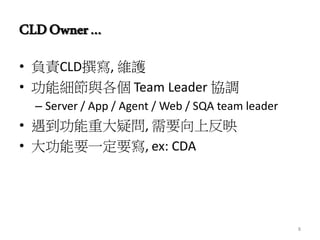

- 8. CLDOwner… • 負責CLD撰寫, 維護 •功能細節與各個 Team Leader 協調 – Server / App / Agent / Web / SQA team leader • 遇到功能重大疑問, 需要向上反映 • 大功能要一定要寫, ex: CDA 8
- 9. Test Plan 1. Environment 2.Precondition 3. Subject 4. VerificationPoint 5. Priority 6. ReferenceSpec 9

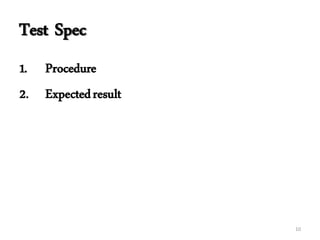

- 10. Test Spec 1. Procedure 2.Expectedresult 10

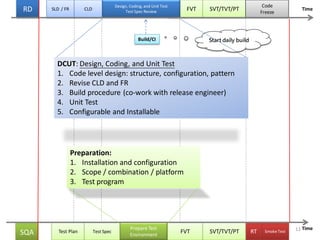

- 11. FVT SVT/TVT/PT SmokeTest Prepare Test Environment FVTTestPlan SVT/TVT/PT RTSQA Time Test Spec Design, Coding, and Unit Test Test Spec Review SLD / FRRD Code Freeze CLD Time Build/CI DCUT: Design, Coding, and Unit Test 1. Code level design: structure, configuration, pattern 2. Revise CLD and FR 3. Build procedure (co-work with release engineer) 4. Unit Test 5. Configurable and Installable Preparation: 1. Installation and configuration 2. Scope / combination / platform 3. Test program Start daily build 11
- 12.
- 13.
- 14. ConfigurableandInstallable… • 要知道怎麼安裝 • 要從BuildImage裝起來 • 要知道基本的設定 14

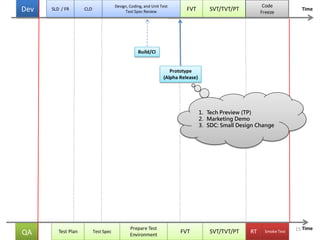

- 15. FVT SVT/TVT/PT SmokeTest Prepare Test Environment FVTTestPlan SVT/TVT/PT RTQA Time Test Spec Design, Coding, and Unit Test Test Spec Review SLD / FRDev Code Freeze CLD Time Prototype (Alpha Release) Build/CI 1. Tech Preview (TP) 2. Marketing Demo 3. SDC: Small Design Change 15
- 16. FVT SVT/TVT/PT SmokeTest Prepare Test Environment FVTTestPlan SVT/TVT/PT RTSQA Time Test Spec Design, Coding, and Unit Test Test Spec Review SLD / FRDev Code Freeze CLD Time FVT: Functional Verification Test, 依據 Test Spec 執行 Bug track and resolve: Team Room / Mantis ER: Execution Record, 測試的執行紀錄 Code change practice: 避免side effect Daily / Nightly Build 16

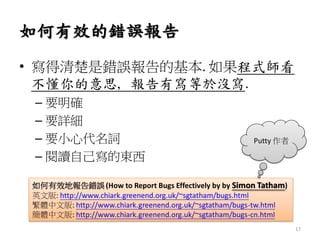

- 17. 如何有效的錯誤報告 • 寫得清楚是錯誤報告的基本. 如果程式師看 不懂你的意思,報告有寫等於沒寫. – 要明確 – 要詳細 – 要小心代名詞 – 閱讀自己寫的東西 如何有效地報告錯誤(How to Report Bugs Effectively by by Simon Tatham) 英文版: http://www.chiark.greenend.org.uk/~sgtatham/bugs.html 繁體中文版: http://www.chiark.greenend.org.uk/~sgtatham/bugs-tw.html 簡體中文版: http://www.chiark.greenend.org.uk/~sgtatham/bugs-cn.html Putty 作者 17
- 18. 提問的智慧 • 提問之前: 讀手冊,FAQ, google • 使用含義豐富, 描述準確的標題 標題很 重要 • 精確描述，信息量大 • 話不在多 提問的智慧(How To Ask Questions The Smart Way by Eric S. Raymond) 原文版: http://www.catb.org/esr/faqs/smart-questions.html 中文版: http://mis.ndhu.edu.tw/docu/question.htm 18

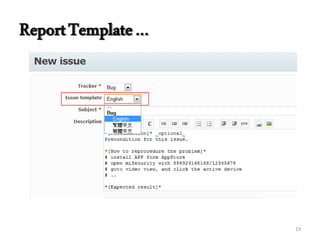

- 19.

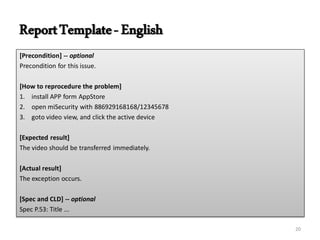

- 20. ReportTemplate-English [Precondition] -- optional Preconditionfor this issue. [How to reprocedure the problem] 1. install APP form AppStore 2. open miSecurity with 886929168168/12345678 3. goto video view, and click the active device [Expected result] The video should be transferred immediately. [Actual result] The exception occurs. [Spec and CLD] -- optional Spec P.53: Title ... 20

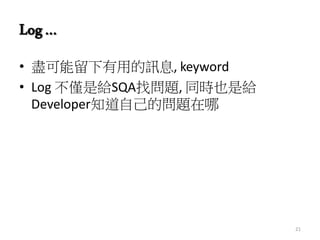

- 21. Log… • 盡可能留下有用的訊息, keyword •Log 不僅是給SQA找問題, 同時也是給 Developer知道自己的問題在哪 21
- 22. ResolvedTemplate… [Root cause] --原因, 哪裡的問題 short description for root cause [Solution] – 怎麼解決 how to fix and solution. [Fix revision] r17464 22
- 23.
- 24.

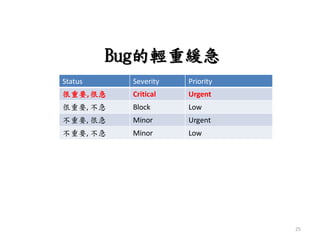

- 25. Bug的輕重緩急 Status Severity Priority 很重要,很急Critical Urgent 很重要, 不急 Block Low 不重要, 很急 Minor Urgent 不重要, 不急 Minor Low 25
- 26. Block, Immediate …呢? 如果電話一直狂call, 你覺得呢?? 26

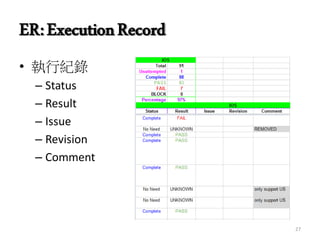

- 27. ER:ExecutionRecord • 執行紀錄 – Status –Result – Issue – Revision – Comment 27
- 28.
- 29.

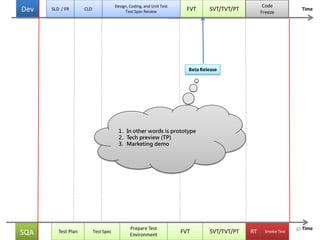

- 30. FVT SVT/TVT/PT SmokeTest Prepare Test Environment FVTTestPlan SVT/TVT/PT RTSQA Time Test Spec Design, Coding, and Unit Test Test Spec Review SLD / FRDev Code Freeze CLD Time Beta Release 1. In other words is prototype 2. Tech preview (TP) 3. Marketing demo 30

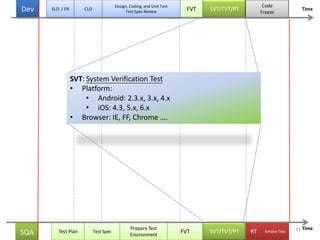

- 31. FVT SVT/TVT/PT SmokeTest Prepare Test Environment FVTTestPlan SVT/TVT/PT RTSQA Time Test Spec Design, Coding, and Unit Test Test Spec Review SLD / FRDev Code Freeze CLD Time SVT: System Verification Test • Platform: • Android: 2.3.x, 3.x, 4.x • iOS: 4.3, 5.x, 6.x • Browser: IE, FF, Chrome …. 31
- 32. 理論上:SVT要測哪些組合 …? From iPhoneZERO 32
- 33.
- 34.
- 35.
- 36.
- 37.
- 38.
- 39.
- 40.
- 41.
- 42. FVTandSVT • FVT 假設功能都還沒Ready –重點: 驗證功能的正確性是否符合CLD and FR – 功能都 Ready 可稱之 BetaVersion • SVT 假設功能已經Ready – 重點: 環境對功能的影響 – SVT 在SLD/FR階段就要定義清楚 42
- 43.
- 44.

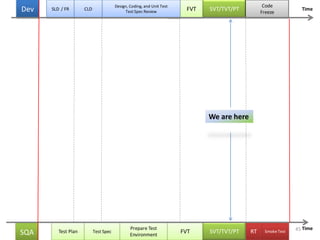

- 45. FVT SVT/TVT/PT SmokeTest Prepare Test Environment FVTTestPlan SVT/TVT/PT RTSQA Time Test Spec Design, Coding, and Unit Test Test Spec Review SLD / FRDev Code Freeze CLD Time We are here 45
- 46. PT:PerformanceTest Stress for productand people … 46

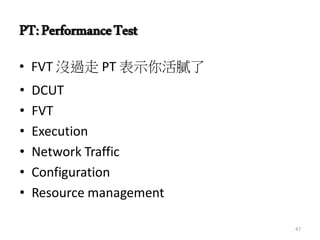

- 47. PT:PerformanceTest • FVT 沒過走PT 表示你活膩了 • DCUT • FVT • Execution • Network Traffic • Configuration • Resource management 47
- 48. FVT SVT/TVT/PT SmokeTest Prepare Test Environment FVTTestPlan SVT/TVT/PT RTSQA Time Test Spec Design, Coding, and Unit Test Test Spec Review SLD / FRDev Code Freeze CLD Time • Full FVT, Automation, Zero bug • Code Freeze • Next Phase Preparation – SLD/FR ready SLD / FR CLDCurrent Phase Next Phase 48
- 49.
- 50. RT:RegressionTest • Full FVT,仰賴自動化 • 驗證曾經出現的Bug ….. Mission impossible • Zero bug – Issue move to next phase • Code Freeze • Next Phase Preparation – SLD/FR ready – New branch – Maintenance team 50

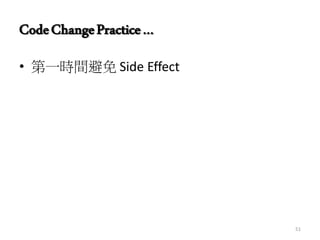

- 51. CodeChangePractice… • 第一時間避免 SideEffect 51
- 52.

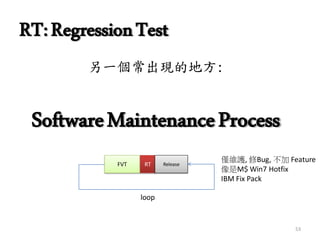

- 53. RT:RegressionTest 另一個常出現的地方: SoftwareMaintenanceProcess FVT RT Release loop 僅維護,修Bug, 不加 Feature 像是M$ Win7 Hotfix IBM Fix Pack 53
- 54. FVT SVT/TVT/PT SmokeTest Prepare Test Environment FVTTestPlan SVT/TVT/PT RTSQA Time Test Spec Design, Coding, and Unit Test Test Spec Review SLD / FRDev Code Freeze CLD Time We are here GA (General Availability) 54
- 55.

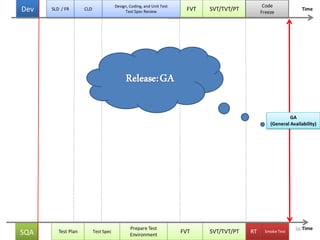

- 56. FVT SVT/TVT/PT SmokeTest Prepare Test Environment FVTTestPlan SVT/TVT/PT RTSQA Time Test Spec Design, Coding, and Unit Test Test Spec Review SLD / FRDev Code Freeze CLD Time GA (General Availability) Release:GA 56
- 57.

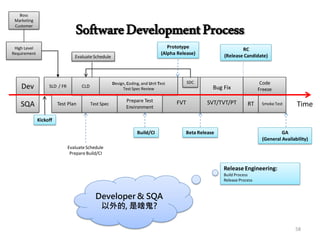

- 58. SmokeTest Prepare Test Environment FVT SLD /FR Test Plan Bug Fix SVT/TVT/PT RT Dev SQA Code Freeze Prototype (Alpha Release) Time Beta Release RC (Release Candidate) GA (General Availability) SoftwareDevelopmentProcess Build/CI EvaluateSchedule PrepareBuild/CI Kickoff Test Spec High Level Requirement Boss Marketing Customer SDC CLD EvaluateSchedule Design,Coding, and Unit Test Test Spec Review Developer & SQA 以外的, 是啥鬼? Release Engineering: Build Process Release Process 58
- 59. ReleaseEngineering • Role:Releaseengineer (IT/Systembackground) •Operation/Support – ReporttoPMorITManager • Missionandresponsibility: – Maintainbuildprocess:regular,special,debug,configuration,scripts – PerformreleaseProcess 59
- 60.

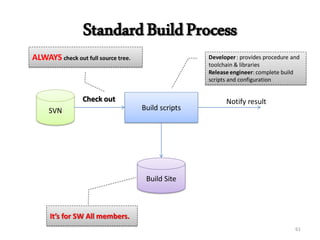

- 61. StandardBuildProcess SVN Build scripts BuildSite Notify resultCheck out Developer: provides procedure and toolchain & libraries Release engineer: complete build scripts and configuration ALWAYS check out full source tree. It’s for SW All members. 61

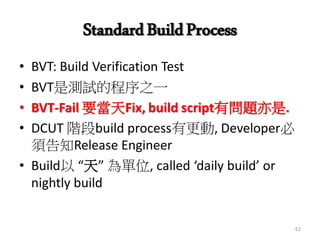

- 62. StandardBuildProcess • BVT: BuildVerification Test • BVT是測試的程序之一 • BVT-Fail 要當天Fix, build script有問題亦是. • DCUT 階段build process有更動, Developer必 須告知Release Engineer • Build以 “天” 為單位, called ‘daily build’ or nightly build 62

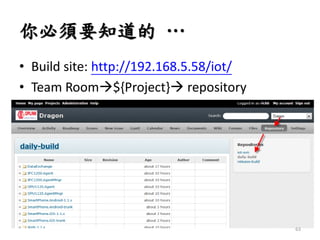

- 63. 你必須要知道的 … • Buildsite: http://192.168.5.58/iot/ • Team Room${Project} repository 63
- 64.
- 65.
- 66.
- 67.
- 68. 是 … • Justsomeday … • 呼口號 • 下一個痛苦的開始 … 68
- 69.
- 70.
- 71.
- 72.
- 73.

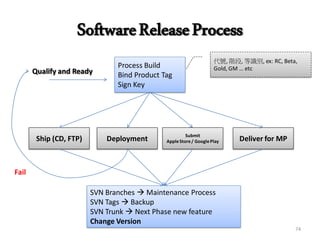

- 74. SoftwareReleaseProcess Process Build Bind ProductTag Sign Key Qualify and Ready 代號, 階段, 等識別, ex: RC, Beta, Gold, GM … etc Deployment Submit AppleStore/ GooglePlay Deliver for MPShip (CD, FTP) Fail SVN Branches Maintenance Process SVN Tags Backup SVN Trunk Next Phase new feature Change Version 74
- 75.
- 76.
- 77.
- 78.
- 79.
- 80.
- 81.
- 82. Development and TestingRDdept Sales / IT Release Time SoftwareProductOperation IT: Deployment Sales / RMA FR Development and Testing ReleaseFR Maintain Release Maintain Release Phase 1 Phase 2 Maintenance Team 82
