Software Design Specification Document (SDD) By David M. Jones November 16, 2014 Table of Contents 1. Introduction ………………………………………………………………………… …………………… 1 1.1 Purpose ………………………………………………………………………… …………… 1 1.2 Scope ………………………………………………………………………… ………………. 1 1.3 Definitions and acronyms …………………………………………………………… 1 2. References ………………………………………………………………………… …………………….. 1 3. Decomposition description ………………………………………………………………………. 2

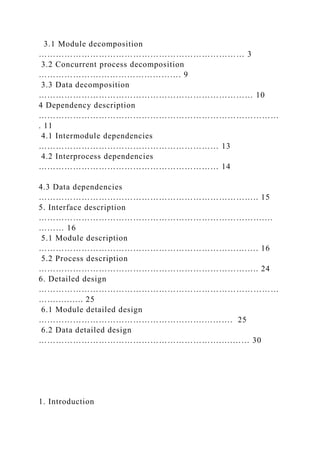

3.1 Module decomposition ……………………………………………………………… 3 3.2 Concurrent process decomposition ………………….………………………. 9 3.3 Data decomposition ………………………………………………………………… 10 4 Dependency description ………………………………………………………………………… . 11 4.1 Intermodule dependencies ……………………………………………………… 13 4.2 Interprocess dependencies ……………………………………………………… 14 4.3 Data dependencies ………………………………………………………………….. 15 5. Interface description …………………………………………………………………….… ……… 16 5.1 Module description …………………………………………………………….……. 16 5.2 Process description ………………………………………………………………….. 24 6. Detailed design ………………………………………………………………………… …….….….. 25 6.1 Module detailed design ………………………………………………….………. 25 6.2 Data detailed design ……………………………………………………….….…… 30 1. Introduction

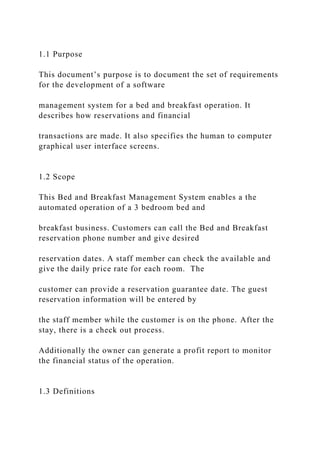

1.1 Purpose This document’s purpose is to document the set of requirements for the development of a software management system for a bed and breakfast operation. It describes how reservations and financial transactions are made. It also specifies the human to computer graphical user interface screens. 1.2 Scope This Bed and Breakfast Management System enables a the automated operation of a 3 bedroom bed and breakfast business. Customers can call the Bed and Breakfast reservation phone number and give desired reservation dates. A staff member can check the available and give the daily price rate for each room. The customer can provide a reservation guarantee date. The guest reservation information will be entered by the staff member while the customer is on the phone. After the stay, there is a check out process. Additionally the owner can generate a profit report to monitor the financial status of the operation. 1.3 Definitions

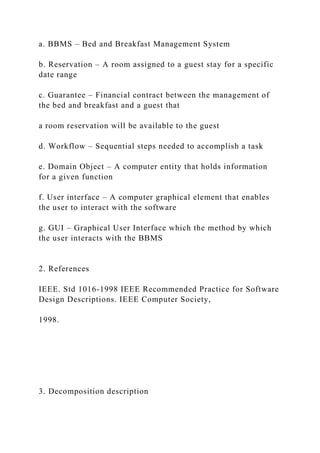

a. BBMS – Bed and Breakfast Management System b. Reservation – A room assigned to a guest stay for a specific date range c. Guarantee – Financial contract between the management of the bed and breakfast and a guest that a room reservation will be available to the guest d. Workflow – Sequential steps needed to accomplish a task e. Domain Object – A computer entity that holds information for a given function f. User interface – A computer graphical element that enables the user to interact with the software g. GUI – Graphical User Interface which the method by which the user interacts with the BBMS 2. References IEEE. Std 1016-1998 IEEE Recommended Practice for Software Design Descriptions. IEEE Computer Society, 1998. 3. Decomposition description

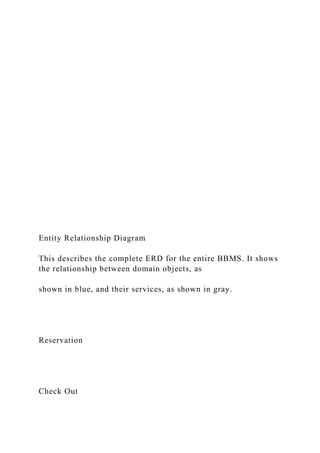

Entity Relationship Diagram This describes the complete ERD for the entire BBMS. It shows the relationship between domain objects, as shown in blue, and their services, as shown in gray. Reservation Check Out

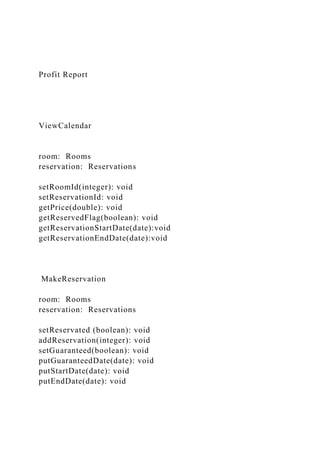

Profit Report ViewCalendar room: Rooms reservation: Reservations setRoomId(integer): void setReservationId: void getPrice(double): void getReservedFlag(boolean): void getReservationStartDate(date):void getReservationEndDate(date):void MakeReservation room: Rooms reservation: Reservations setReservated (boolean): void addReservation(integer): void setGuaranteed(boolean): void putGuaranteedDate(date): void putStartDate(date): void putEndDate(date): void
AddGuest reservation: Reservations guest: Guests addGuest(integer): void putFirstName(string): void putLastName(string): void putAddress(string): void putPhone(integer): void putCreditCardNumber(integer): void putCreditCartExpDate(integer): void MakePayment guest: Guests payment: Payments addPayment(integer): void putPaymentDate(date): void putTotalAmount(double):void putPaymentAmount(double): void getCreditCardNumber(integer): void chargePayment(double): void

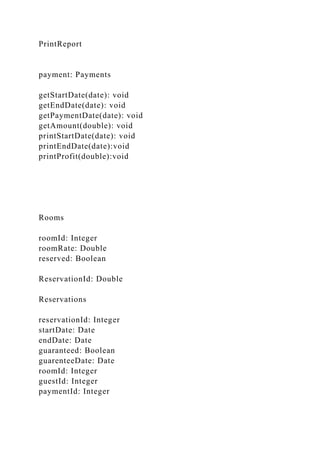

PrintReport payment: Payments getStartDate(date): void getEndDate(date): void getPaymentDate(date): void getAmount(double): void printStartDate(date): void printEndDate(date):void printProfit(double):void Rooms roomId: Integer roomRate: Double reserved: Boolean ReservationId: Double Reservations reservationId: Integer startDate: Date endDate: Date guaranteed: Boolean guarenteeDate: Date roomId: Integer guestId: Integer paymentId: Integer

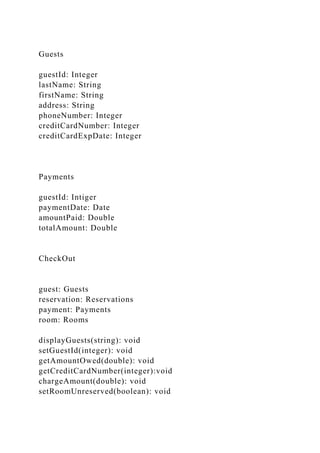

Guests guestId: Integer lastName: String firstName: String address: String phoneNumber: Integer creditCardNumber: Integer creditCardExpDate: Integer Payments guestId: Intiger paymentDate: Date amountPaid: Double totalAmount: Double CheckOut guest: Guests reservation: Reservations payment: Payments room: Rooms displayGuests(string): void setGuestId(integer): void getAmountOwed(double): void getCreditCardNumber(integer):void chargeAmount(double): void setRoomUnreserved(boolean): void

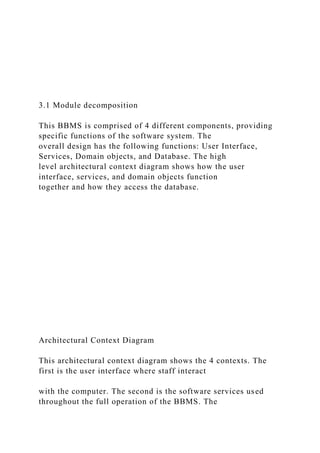

3.1 Module decomposition This BBMS is comprised of 4 different components, providing specific functions of the software system. The overall design has the following functions: User Interface, Services, Domain objects, and Database. The high level architectural context diagram shows how the user interface, services, and domain objects function together and how they access the database. Architectural Context Diagram This architectural context diagram shows the 4 contexts. The first is the user interface where staff interact with the computer. The second is the software services used throughout the full operation of the BBMS. The
third part diagrams the data domain objects contain the data. The last part is the database that is the software mechanism of data disk storage and retrieval. Services User Interface Domain Objects Database Stores Retrieves Stores Retrieves Manages Interacts 3.1.1 User Interface This module contains the GUI functions of user interface. The
external part of this system is the computer monitor, keyboard, mouse. Although not part of the GUI, a printer is also an external part for printing the profit report. Architectural Context Diagram of the User Interface 3.1.1.1 Main Menu This is the first user interface entity. It gives the user the choice of starting new reservations, checking out a guest, and printing the profit report. The Reports selection that goes to the profit report is password protected. 3.1.1.2 Calendar Lookup This displays a calendar with room reservation days in highlighted date squares on the calendar. The room is selected by a button. Additionally the daily price rate for the selected room is shown at the top of the

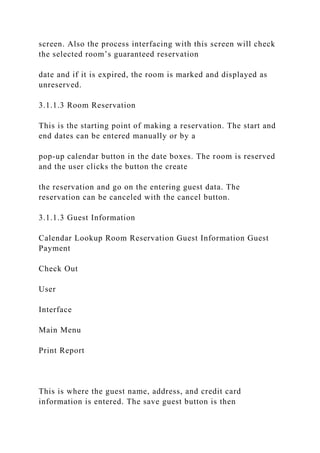

screen. Also the process interfacing with this screen will check the selected room’s guaranteed reservation date and if it is expired, the room is marked and displayed as unreserved. 3.1.1.3 Room Reservation This is the starting point of making a reservation. The start and end dates can be entered manually or by a pop-up calendar button in the date boxes. The room is reserved and the user clicks the button the create the reservation and go on the entering guest data. The reservation can be canceled with the cancel button. 3.1.1.3 Guest Information Calendar Lookup Room Reservation Guest Information Guest Payment Check Out User Interface Main Menu Print Report This is where the guest name, address, and credit card information is entered. The save guest button is then
clicked to go to the next screen. If the user wishes to cancel the reservation, the cancel button is clicked and the room is marked a unreserved. 3.1.1.4 Guest Payment This screen is where the user enters the guest’s payment. Also if the reservation is guaranteed the guaranteed box is clicked and the guarantee date is entered. 3.1.1.5 Finalize Payment This screen is accessed by way of the main menu Check Out button. It lists guest names by room number. The user clicks the desired guest name and the total amount of the customer’s bill is displayed. If there is any balance due the finalize payment button will atomically charge that amount to the guest’s credit card. If the is no balance due the finalize payment button only completes the stay. 3.1.2 Services This module contains the descriptions of the services required for the data processing of the BBMS

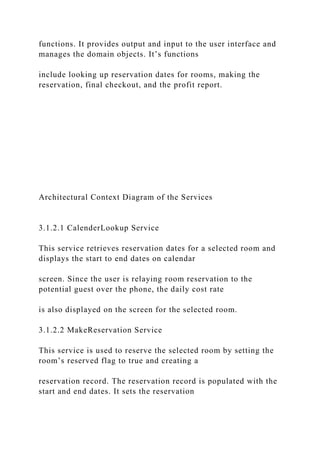

functions. It provides output and input to the user interface and manages the domain objects. It’s functions include looking up reservation dates for rooms, making the reservation, final checkout, and the profit report. Architectural Context Diagram of the Services 3.1.2.1 CalenderLookup Service This service retrieves reservation dates for a selected room and displays the start to end dates on calendar screen. Since the user is relaying room reservation to the potential guest over the phone, the daily cost rate is also displayed on the screen for the selected room. 3.1.2.2 MakeReservation Service This service is used to reserve the selected room by setting the room’s reserved flag to true and creating a reservation record. The reservation record is populated with the start and end dates. It sets the reservation

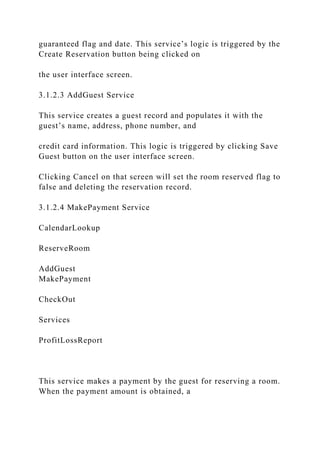

guaranteed flag and date. This service’s logic is triggered by the Create Reservation button being clicked on the user interface screen. 3.1.2.3 AddGuest Service This service creates a guest record and populates it with the guest’s name, address, phone number, and credit card information. This logic is triggered by clicking Save Guest button on the user interface screen. Clicking Cancel on that screen will set the room reserved flag to false and deleting the reservation record. 3.1.2.4 MakePayment Service CalendarLookup ReserveRoom AddGuest MakePayment CheckOut Services ProfitLossReport This service makes a payment by the guest for reserving a room. When the payment amount is obtained, a

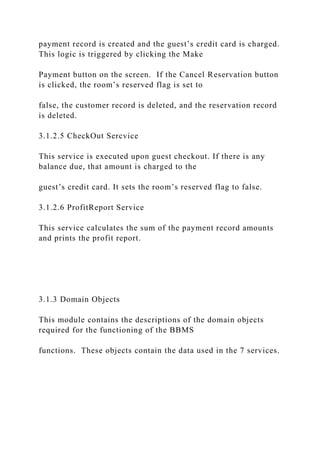

payment record is created and the guest’s credit card is charged. This logic is triggered by clicking the Make Payment button on the screen. If the Cancel Reservation button is clicked, the room’s reserved flag is set to false, the customer record is deleted, and the reservation record is deleted. 3.1.2.5 CheckOut Sercvice This service is executed upon guest checkout. If there is any balance due, that amount is charged to the guest’s credit card. It sets the room’s reserved flag to false. 3.1.2.6 ProfitReport Service This service calculates the sum of the payment record amounts and prints the profit report. 3.1.3 Domain Objects This module contains the descriptions of the domain objects required for the functioning of the BBMS functions. These objects contain the data used in the 7 services.

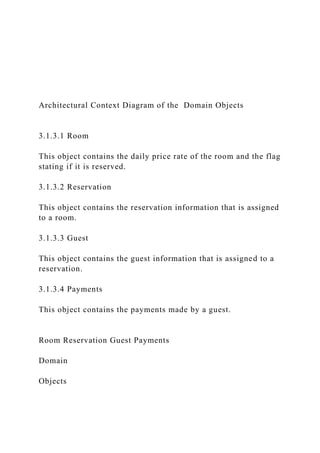

Architectural Context Diagram of the Domain Objects 3.1.3.1 Room This object contains the daily price rate of the room and the flag stating if it is reserved. 3.1.3.2 Reservation This object contains the reservation information that is assigned to a room. 3.1.3.3 Guest This object contains the guest information that is assigned to a reservation. 3.1.3.4 Payments This object contains the payments made by a guest. Room Reservation Guest Payments Domain Objects

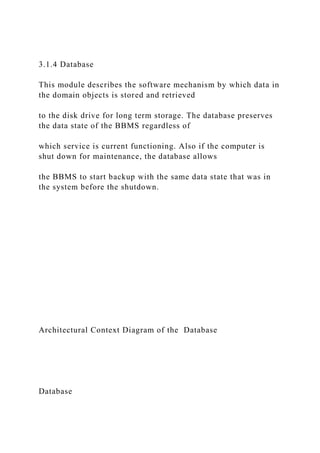

3.1.4 Database This module describes the software mechanism by which data in the domain objects is stored and retrieved to the disk drive for long term storage. The database preserves the data state of the BBMS regardless of which service is current functioning. Also if the computer is shut down for maintenance, the database allows the BBMS to start backup with the same data state that was in the system before the shutdown. Architectural Context Diagram of the Database Database
Services Domain Objects 3.2 Concurrent process decomposition This describes the processes from the user interface through the services to the domain objects. The services function independently of the user. Also the services create, update, and delete the domain objects of the BBMS. 3.2.1 Display Reservation Entity This entity is used to display reservation dates in calendar format for a selected room. 3.2.2. Make Reservation Entity This entity is used to make the reservation of the selected room. It creates a new reservation, new guest, and first payment. 3.2.3 Check Out Entity This entity is use for a selected guest to make payment of any balance due. It also sets the room the guest stayed in to available for reservation.

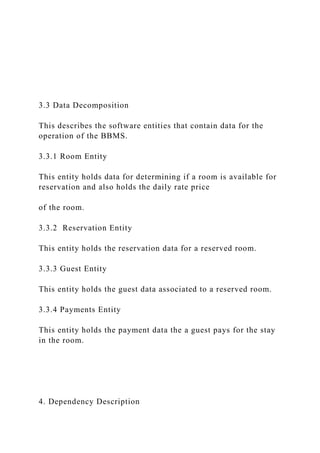

3.3 Data Decomposition This describes the software entities that contain data for the operation of the BBMS. 3.3.1 Room Entity This entity holds data for determining if a room is available for reservation and also holds the daily rate price of the room. 3.3.2 Reservation Entity This entity holds the reservation data for a reserved room. 3.3.3 Guest Entity This entity holds the guest data associated to a reserved room. 3.3.4 Payments Entity This entity holds the payment data the a guest pays for the stay in the room. 4. Dependency Description

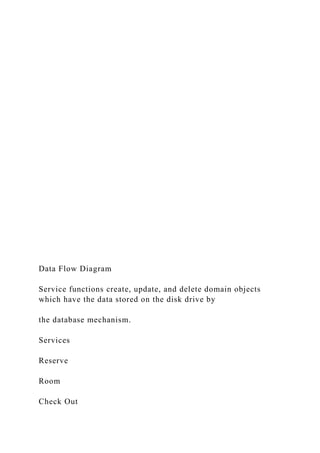

Data Flow Diagram Service functions create, update, and delete domain objects which have the data stored on the disk drive by the database mechanism. Services Reserve Room Check Out

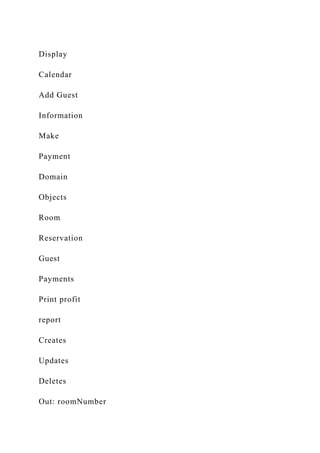

Display Calendar Add Guest Information Make Payment Domain Objects Room Reservation Guest Payments Print profit report Creates Updates Deletes Out: roomNumber

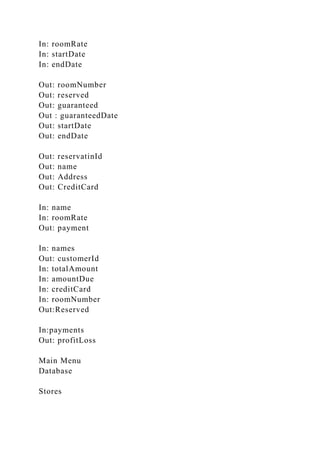

In: roomRate In: startDate In: endDate Out: roomNumber Out: reserved Out: guaranteed Out : guaranteedDate Out: startDate Out: endDate Out: reservatinId Out: name Out: Address Out: CreditCard In: name In: roomRate Out: payment In: names Out: customerId In: totalAmount In: amountDue In: creditCard In: roomNumber Out:Reserved In:payments Out: profitLoss Main Menu Database Stores

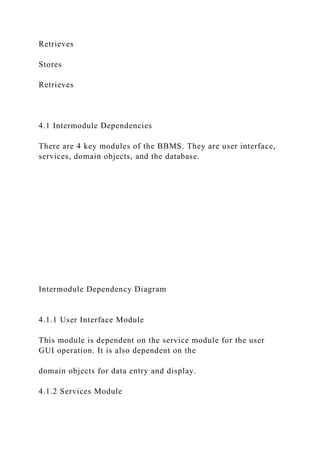

Retrieves Stores Retrieves 4.1 Intermodule Dependencies There are 4 key modules of the BBMS. They are user interface, services, domain objects, and the database. Intermodule Dependency Diagram 4.1.1 User Interface Module This module is dependent on the service module for the user GUI operation. It is also dependent on the domain objects for data entry and display. 4.1.2 Services Module

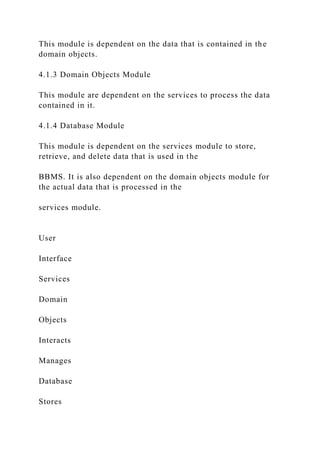

This module is dependent on the data that is contained in the domain objects. 4.1.3 Domain Objects Module This module are dependent on the services to process the data contained in it. 4.1.4 Database Module This module is dependent on the services module to store, retrieve, and delete data that is used in the BBMS. It is also dependent on the domain objects module for the actual data that is processed in the services module. User Interface Services Domain Objects Interacts Manages Database Stores

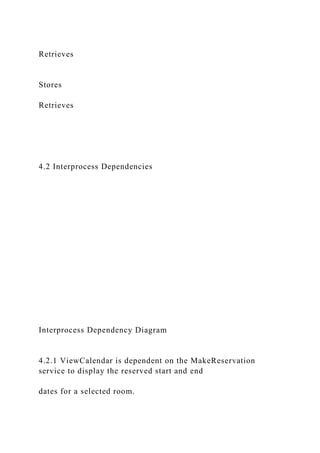

Retrieves Stores Retrieves 4.2 Interprocess Dependencies Interprocess Dependency Diagram 4.2.1 ViewCalendar is dependent on the MakeReservation service to display the reserved start and end dates for a selected room.

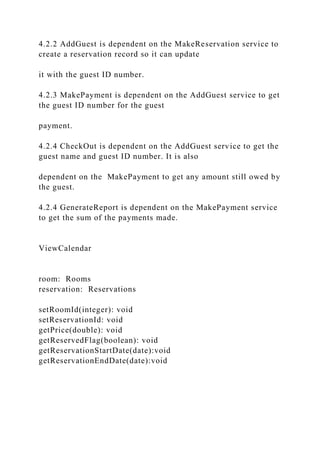

4.2.2 AddGuest is dependent on the MakeReservation service to create a reservation record so it can update it with the guest ID number. 4.2.3 MakePayment is dependent on the AddGuest service to get the guest ID number for the guest payment. 4.2.4 CheckOut is dependent on the AddGuest service to get the guest name and guest ID number. It is also dependent on the MakePayment to get any amount still owed by the guest. 4.2.4 GenerateReport is dependent on the MakePayment service to get the sum of the payments made. ViewCalendar room: Rooms reservation: Reservations setRoomId(integer): void setReservationId: void getPrice(double): void getReservedFlag(boolean): void getReservationStartDate(date):void getReservationEndDate(date):void

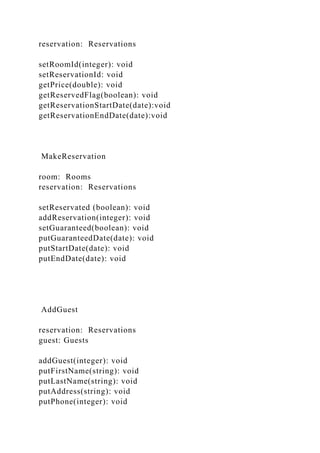

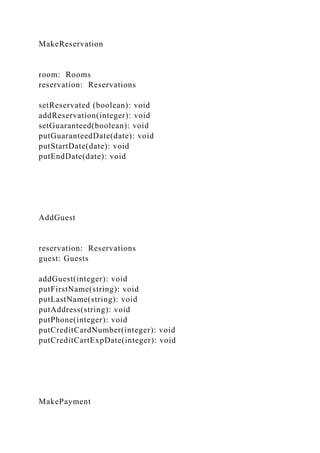

MakeReservation room: Rooms reservation: Reservations setReservated (boolean): void addReservation(integer): void setGuaranteed(boolean): void putGuaranteedDate(date): void putStartDate(date): void putEndDate(date): void AddGuest reservation: Reservations guest: Guests addGuest(integer): void putFirstName(string): void putLastName(string): void putAddress(string): void putPhone(integer): void putCreditCardNumber(integer): void putCreditCartExpDate(integer): void MakePayment

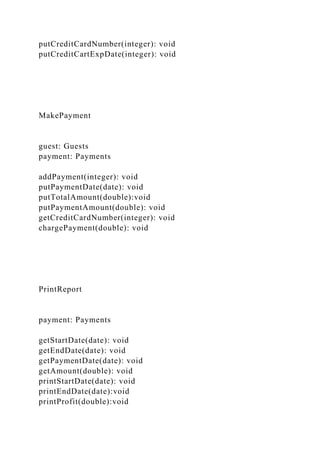

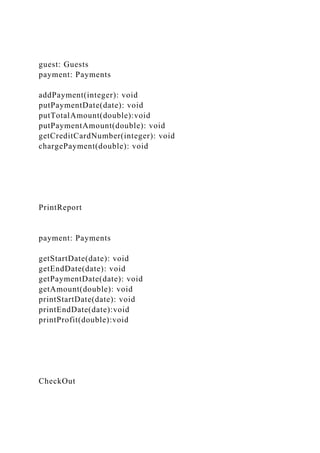

guest: Guests payment: Payments addPayment(integer): void putPaymentDate(date): void putTotalAmount(double):void putPaymentAmount(double): void getCreditCardNumber(integer): void chargePayment(double): void PrintReport payment: Payments getStartDate(date): void getEndDate(date): void getPaymentDate(date): void getAmount(double): void printStartDate(date): void printEndDate(date):void printProfit(double):void CheckOut

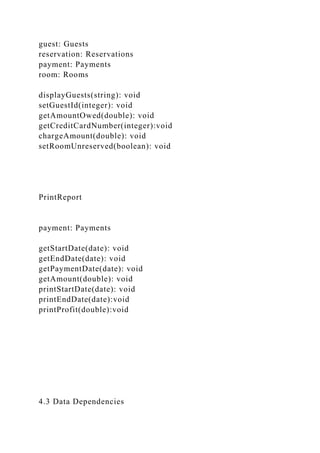

guest: Guests reservation: Reservations payment: Payments room: Rooms displayGuests(string): void setGuestId(integer): void getAmountOwed(double): void getCreditCardNumber(integer):void chargeAmount(double): void setRoomUnreserved(boolean): void PrintReport payment: Payments getStartDate(date): void getEndDate(date): void getPaymentDate(date): void getAmount(double): void printStartDate(date): void printEndDate(date):void printProfit(double):void 4.3 Data Dependencies
Data dependencies are associated with the process dependencies. Data Dependency Diagram 4.3.1 Rooms and Reservations are dependent by roomID. 4.3.2 Reservations and Guests are dependent by guestID. 4.3.3 Guests and Payments are dependent by guestID. ViewCalendar room: Rooms
reservation: Reservations setRoomId(integer): void setReservationId: void getPrice(double): void getReservedFlag(boolean): void getReservationStartDate(date):void getReservationEndDate(date):void MakeReservation room: Rooms reservation: Reservations setReservated (boolean): void addReservation(integer): void setGuaranteed(boolean): void putGuaranteedDate(date): void putStartDate(date): void putEndDate(date): void AddGuest reservation: Reservations guest: Guests addGuest(integer): void putFirstName(string): void putLastName(string): void putAddress(string): void putPhone(integer): void
putCreditCardNumber(integer): void putCreditCartExpDate(integer): void MakePayment guest: Guests payment: Payments addPayment(integer): void putPaymentDate(date): void putTotalAmount(double):void putPaymentAmount(double): void getCreditCardNumber(integer): void chargePayment(double): void PrintReport payment: Payments getStartDate(date): void getEndDate(date): void getPaymentDate(date): void getAmount(double): void printStartDate(date): void printEndDate(date):void printProfit(double):void

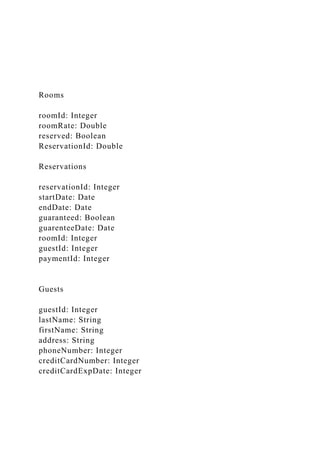

Rooms roomId: Integer roomRate: Double reserved: Boolean ReservationId: Double Reservations reservationId: Integer startDate: Date endDate: Date guaranteed: Boolean guarenteeDate: Date roomId: Integer guestId: Integer paymentId: Integer Guests guestId: Integer lastName: String firstName: String address: String phoneNumber: Integer creditCardNumber: Integer creditCardExpDate: Integer

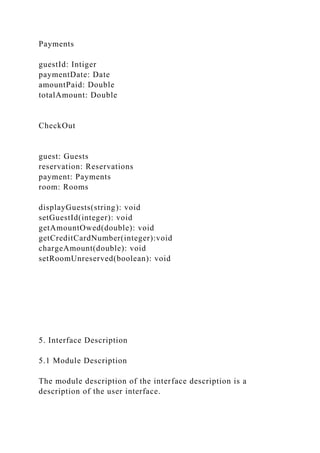

Payments guestId: Intiger paymentDate: Date amountPaid: Double totalAmount: Double CheckOut guest: Guests reservation: Reservations payment: Payments room: Rooms displayGuests(string): void setGuestId(integer): void getAmountOwed(double): void getCreditCardNumber(integer):void chargeAmount(double): void setRoomUnreserved(boolean): void 5. Interface Description 5.1 Module Description The module description of the interface description is a description of the user interface.
User Interface The user interface provides the users through the use of GUI’s with the means of interacting with the BBMS software system. The functions in the user interface gives the ability to: 1. Check the selected room available by calendar display. 2. Reserve a room. 3. Enter Guest information. 4. Guarantee a reservation. 5. Make initial payment. 6. Checkout. a. Make final, if any, payment b. Automatically set the room reserved flag to available

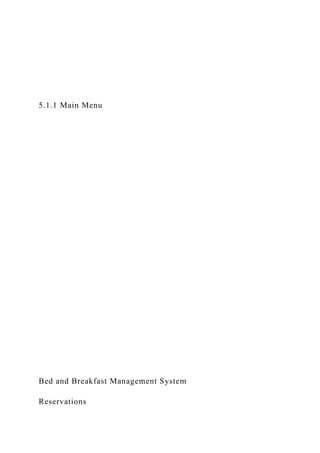

5.1.1 Main Menu Bed and Breakfast Management System Reservations

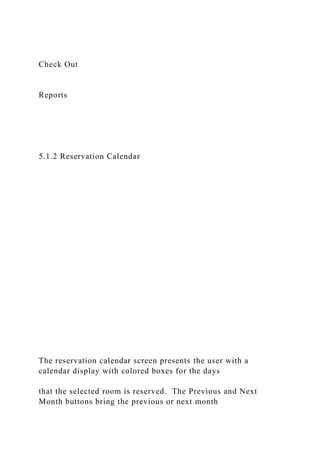

Check Out Reports 5.1.2 Reservation Calendar The reservation calendar screen presents the user with a calendar display with colored boxes for the days that the selected room is reserved. The Previous and Next Month buttons bring the previous or next month

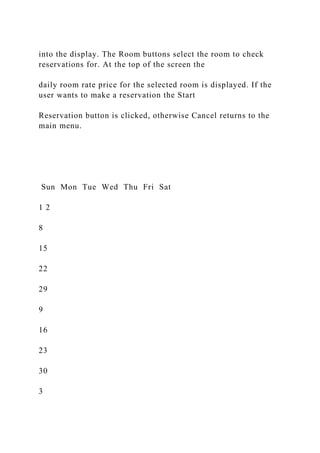

into the display. The Room buttons select the room to check reservations for. At the top of the screen the daily room rate price for the selected room is displayed. If the user wants to make a reservation the Start Reservation button is clicked, otherwise Cancel returns to the main menu. Sun Mon Tue Wed Thu Fri Sat 1 2 8 15 22 29 9 16 23 30 3

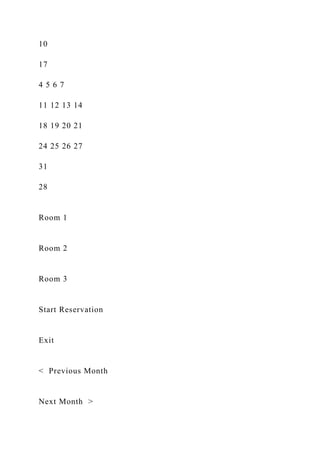

10 17 4 5 6 7 11 12 13 14 18 19 20 21 24 25 26 27 31 28 Room 1 Room 2 Room 3 Start Reservation Exit < Previous Month Next Month >

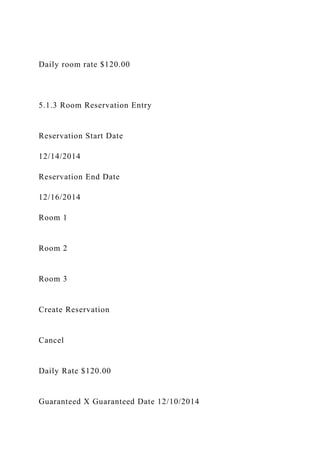

Daily room rate $120.00 5.1.3 Room Reservation Entry Reservation Start Date 12/14/2014 Reservation End Date 12/16/2014 Room 1 Room 2 Room 3 Create Reservation Cancel Daily Rate $120.00 Guaranteed X Guaranteed Date 12/10/2014

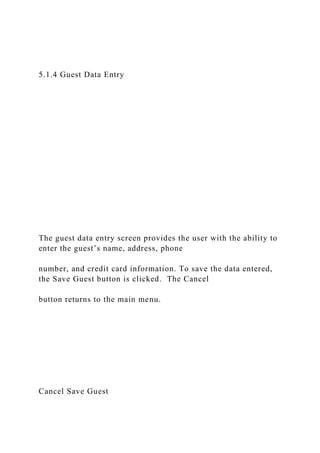

5.1.4 Guest Data Entry The guest data entry screen provides the user with the ability to enter the guest’s name, address, phone number, and credit card information. To save the data entered, the Save Guest button is clicked. The Cancel button returns to the main menu. Cancel Save Guest

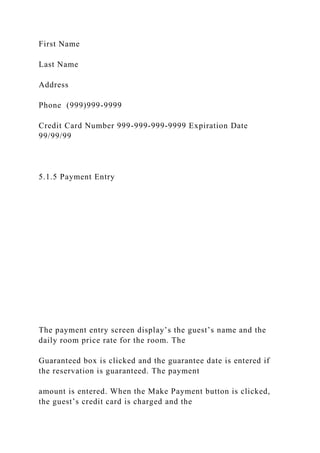

First Name Last Name Address Phone (999)999-9999 Credit Card Number 999-999-999-9999 Expiration Date 99/99/99 5.1.5 Payment Entry The payment entry screen display’s the guest’s name and the daily room price rate for the room. The Guaranteed box is clicked and the guarantee date is entered if the reservation is guaranteed. The payment amount is entered. When the Make Payment button is clicked, the guest’s credit card is charged and the
payment for that guest is stored. If Canceled Reservation is clicked the guest data is deleted from the database, the room reserved flag for that room is cleared, and the system returns to the main menu screen. John Smith Daily Room Rate $120.00 Payment Amount $360.00 Make Payment Cancel Reservation Total Amount $360.00 5.1.6 Check Out

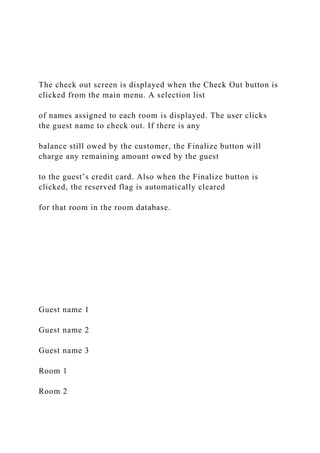

The check out screen is displayed when the Check Out button is clicked from the main menu. A selection list of names assigned to each room is displayed. The user clicks the guest name to check out. If there is any balance still owed by the customer, the Finalize button will charge any remaining amount owed by the guest to the guest’s credit card. Also when the Finalize button is clicked, the reserved flag is automatically cleared for that room in the room database. Guest name 1 Guest name 2 Guest name 3 Room 1 Room 2

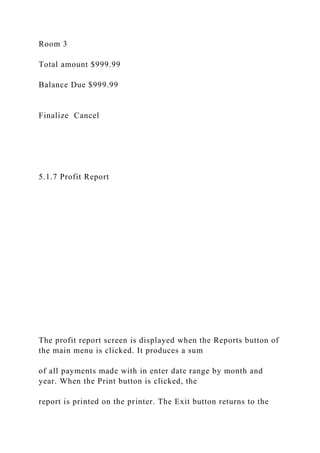

Room 3 Total amount $999.99 Balance Due $999.99 Finalize Cancel 5.1.7 Profit Report The profit report screen is displayed when the Reports button of the main menu is clicked. It produces a sum of all payments made with in enter date range by month and year. When the Print button is clicked, the report is printed on the printer. The Exit button returns to the

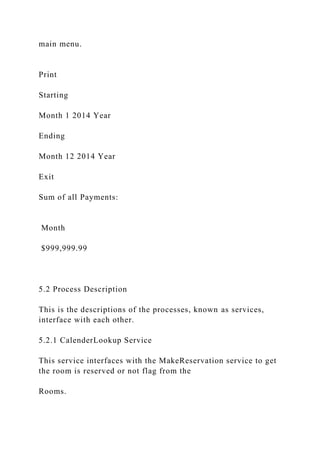

main menu. Print Starting Month 1 2014 Year Ending Month 12 2014 Year Exit Sum of all Payments: Month $999,999.99 5.2 Process Description This is the descriptions of the processes, known as services, interface with each other. 5.2.1 CalenderLookup Service This service interfaces with the MakeReservation service to get the room is reserved or not flag from the Rooms.
5.2.2 MakeReservation Service This service interfaces with the AddGuest service since the added guest makes the reservation. 5.2.3 AddGuest Service This service interfaces with the MakeReservation service since guest information is associated with the new reservation. It also interfaces with the MakePayment service since the guest that was added makes a payent forthereservatin. 5.2.4 MakePayment Service This service interfaces with the AddGuest service since the added guest makes the payment for the room reservation. 5.2.5 CheckOut Sercvice This service interfaces with the MakeReservation, AddGuest, and MakePayment services. Since it access the Rooms, Guests, Reservations, and Payments objects with data that was created and updated by these services. 5.2.6 ProfitReport Service This service interfaces with the MakePayment service. The common data object is the Payments object. The

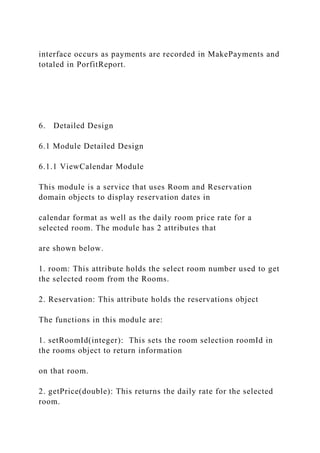

interface occurs as payments are recorded in MakePayments and totaled in PorfitReport. 6. Detailed Design 6.1 Module Detailed Design 6.1.1 ViewCalendar Module This module is a service that uses Room and Reservation domain objects to display reservation dates in calendar format as well as the daily room price rate for a selected room. The module has 2 attributes that are shown below. 1. room: This attribute holds the select room number used to get the selected room from the Rooms. 2. Reservation: This attribute holds the reservations object The functions in this module are: 1. setRoomId(integer): This sets the room selection roomId in the rooms object to return information on that room. 2. getPrice(double): This returns the daily rate for the selected room.

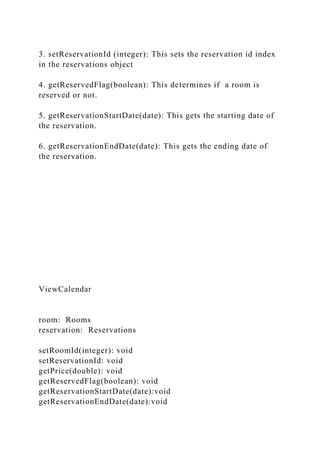

3. setReservationId (integer): This sets the reservation id index in the reservations object 4. getReservedFlag(boolean): This determines if a room is reserved or not. 5. getReservationStartDate(date): This gets the starting date of the reservation. 6. getReservationEndDate(date): This gets the ending date of the reservation. ViewCalendar room: Rooms reservation: Reservations setRoomId(integer): void setReservationId: void getPrice(double): void getReservedFlag(boolean): void getReservationStartDate(date):void getReservationEndDate(date):void

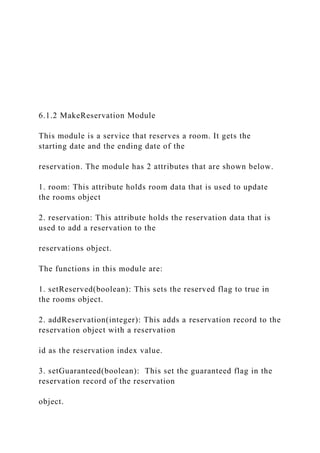

6.1.2 MakeReservation Module This module is a service that reserves a room. It gets the starting date and the ending date of the reservation. The module has 2 attributes that are shown below. 1. room: This attribute holds room data that is used to update the rooms object 2. reservation: This attribute holds the reservation data that is used to add a reservation to the reservations object. The functions in this module are: 1. setReserved(boolean): This sets the reserved flag to true in the rooms object. 2. addReservation(integer): This adds a reservation record to the reservation object with a reservation id as the reservation index value. 3. setGuaranteed(boolean): This set the guaranteed flag in the reservation record of the reservation object.
4. putGuaranteedDate(date): This puts the guaranteed date in the reservation record of the reservation object. 5. putStartDate(date): This puts the starting reservation date in the reservation object by reservation Id. 6. putEndDate(date): This puts the ending reservation date in the reservation object by reservation Id. MakeReservation room: Rooms reservation: Reservations setReservated (boolean): void addReservation(integer): void setGuaranteed(boolean): void putGuaranteedDate(date): void putStartDate(date): void putEndDate(date): void

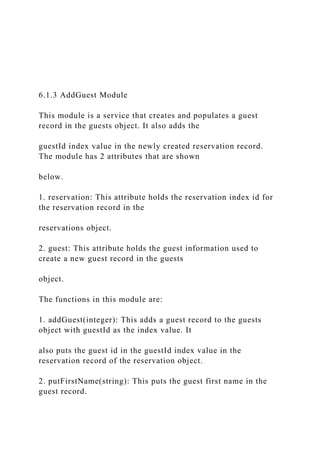

6.1.3 AddGuest Module This module is a service that creates and populates a guest record in the guests object. It also adds the guestId index value in the newly created reservation record. The module has 2 attributes that are shown below. 1. reservation: This attribute holds the reservation index id for the reservation record in the reservations object. 2. guest: This attribute holds the guest information used to create a new guest record in the guests object. The functions in this module are: 1. addGuest(integer): This adds a guest record to the guests object with guestId as the index value. It also puts the guest id in the guestId index value in the reservation record of the reservation object. 2. putFirstName(string): This puts the guest first name in the guest record.

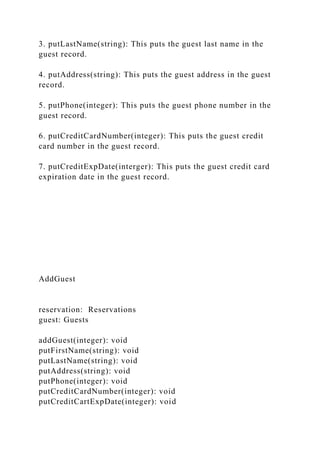

3. putLastName(string): This puts the guest last name in the guest record. 4. putAddress(string): This puts the guest address in the guest record. 5. putPhone(integer): This puts the guest phone number in the guest record. 6. putCreditCardNumber(integer): This puts the guest credit card number in the guest record. 7. putCreditExpDate(interger): This puts the guest credit card expiration date in the guest record. AddGuest reservation: Reservations guest: Guests addGuest(integer): void putFirstName(string): void putLastName(string): void putAddress(string): void putPhone(integer): void putCreditCardNumber(integer): void putCreditCartExpDate(integer): void

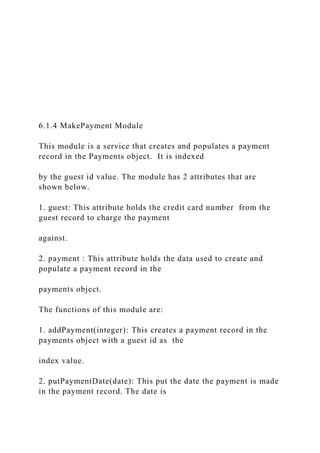

6.1.4 MakePayment Module This module is a service that creates and populates a payment record in the Payments object. It is indexed by the guest id value. The module has 2 attributes that are shown below. 1. guest: This attribute holds the credit card number from the guest record to charge the payment against. 2. payment : This attribute holds the data used to create and populate a payment record in the payments object. The functions of this module are: 1. addPayment(integer): This creates a payment record in the payments object with a guest id as the index value. 2. putPaymentDate(date): This put the date the payment is made in the payment record. The date is

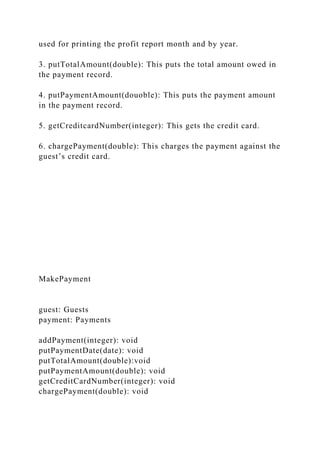

used for printing the profit report month and by year. 3. putTotalAmount(double): This puts the total amount owed in the payment record. 4. putPaymentAmount(douoble): This puts the payment amount in the payment record. 5. getCreditcardNumber(integer): This gets the credit card. 6. chargePayment(double): This charges the payment against the guest’s credit card. MakePayment guest: Guests payment: Payments addPayment(integer): void putPaymentDate(date): void putTotalAmount(double):void putPaymentAmount(double): void getCreditCardNumber(integer): void chargePayment(double): void

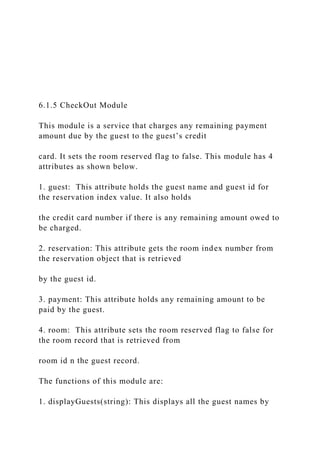

6.1.5 CheckOut Module This module is a service that charges any remaining payment amount due by the guest to the guest’s credit card. It sets the room reserved flag to false. This module has 4 attributes as shown below. 1. guest: This attribute holds the guest name and guest id for the reservation index value. It also holds the credit card number if there is any remaining amount owed to be charged. 2. reservation: This attribute gets the room index number from the reservation object that is retrieved by the guest id. 3. payment: This attribute holds any remaining amount to be paid by the guest. 4. room: This attribute sets the room reserved flag to false for the room record that is retrieved from room id n the guest record. The functions of this module are: 1. displayGuests(string): This displays all the guest names by
room number for guest selection in the GUI. 2. setGuestId(integer): This sets the guest id index value from the selected guest name in the GUI. 3. getAmountOwed(double): This gets any remaining amount still owed by the guest 4. getCreditCardNumber(integer): This executes if there is any remaining amount owed and gets the guest’s credit card number. 5. chargeAmount(double): This executes if there is any remaining amount owed and charges it against the guest’s cred card. 6. setRoomUnreserved(boolean): This accessed the room number indexed from the reservation record and sets the room reserved flag to false. CheckOut

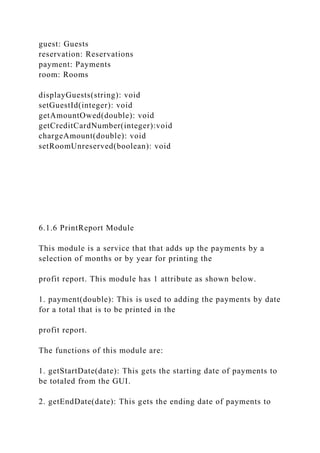

guest: Guests reservation: Reservations payment: Payments room: Rooms displayGuests(string): void setGuestId(integer): void getAmountOwed(double): void getCreditCardNumber(integer):void chargeAmount(double): void setRoomUnreserved(boolean): void 6.1.6 PrintReport Module This module is a service that that adds up the payments by a selection of months or by year for printing the profit report. This module has 1 attribute as shown below. 1. payment(double): This is used to adding the payments by date for a total that is to be printed in the profit report. The functions of this module are: 1. getStartDate(date): This gets the starting date of payments to be totaled from the GUI. 2. getEndDate(date): This gets the ending date of payments to

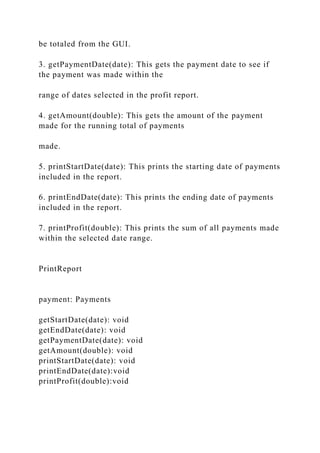

be totaled from the GUI. 3. getPaymentDate(date): This gets the payment date to see if the payment was made within the range of dates selected in the profit report. 4. getAmount(double): This gets the amount of the payment made for the running total of payments made. 5. printStartDate(date): This prints the starting date of payments included in the report. 6. printEndDate(date): This prints the ending date of payments included in the report. 7. printProfit(double): This prints the sum of all payments made within the selected date range. PrintReport payment: Payments getStartDate(date): void getEndDate(date): void getPaymentDate(date): void getAmount(double): void printStartDate(date): void printEndDate(date):void printProfit(double):void
6.2 Data Detailed Design 6.2.1 Room Entity This entity is used to represent information contained in a room record of the Rooms object. It holds the daily price rate of the room and a boolean flag used to indicate if a room is reserved or not. There are 4 attributes as shown below. 1. roomId(integer): This is the room number and is the index of the Rooms object. 2. roomRate(double): This is the daily price rate of the room. 3. reserved (boolean): This is the flag to tell if the room is reserved or not. 4. reservationId(integer): This is the reservation index id number of the reservation currently reserving the room.

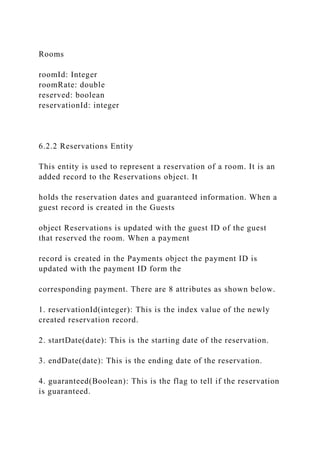

Rooms roomId: Integer roomRate: double reserved: boolean reservationId: integer 6.2.2 Reservations Entity This entity is used to represent a reservation of a room. It is an added record to the Reservations object. It holds the reservation dates and guaranteed information. When a guest record is created in the Guests object Reservations is updated with the guest ID of the guest that reserved the room. When a payment record is created in the Payments object the payment ID is updated with the payment ID form the corresponding payment. There are 8 attributes as shown below. 1. reservationId(integer): This is the index value of the newly created reservation record. 2. startDate(date): This is the starting date of the reservation. 3. endDate(date): This is the ending date of the reservation. 4. guaranteed(Boolean): This is the flag to tell if the reservation is guaranteed.

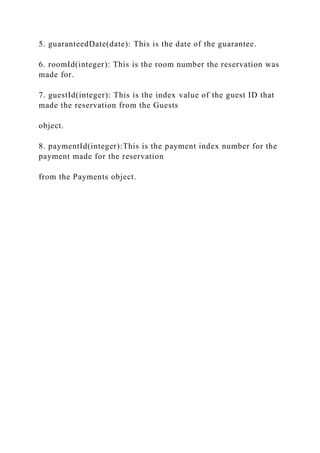

5. guaranteedDate(date): This is the date of the guarantee. 6. roomId(integer): This is the room number the reservation was made for. 7. guestId(integer): This is the index value of the guest ID that made the reservation from the Guests object. 8. paymentId(integer):This is the payment index number for the payment made for the reservation from the Payments object.

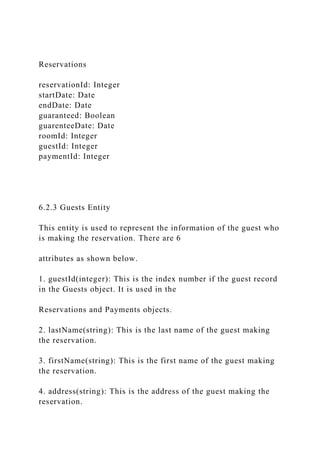

Reservations reservationId: Integer startDate: Date endDate: Date guaranteed: Boolean guarenteeDate: Date roomId: Integer guestId: Integer paymentId: Integer 6.2.3 Guests Entity This entity is used to represent the information of the guest who is making the reservation. There are 6 attributes as shown below. 1. guestId(integer): This is the index number if the guest record in the Guests object. It is used in the Reservations and Payments objects. 2. lastName(string): This is the last name of the guest making the reservation. 3. firstName(string): This is the first name of the guest making the reservation. 4. address(string): This is the address of the guest making the reservation.
5. creditCardNumber(integer): This is the guest’s credit card number. 6. creditCartExpDate(integer): This is the expiration month and year of the guest’s credit card Guests guestId: Integer lastName: String firstName: String address: String phoneNumber: Integer creditCardNumber: Integer creditCardExpDate: Integer 6.2.4 Payments Entity This entity is used to represent payments made by guests in the BBMS operation. There are attributes as

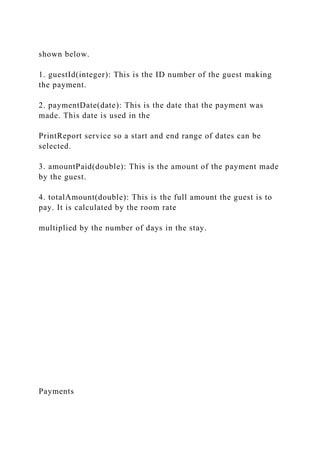

shown below. 1. guestId(integer): This is the ID number of the guest making the payment. 2. paymentDate(date): This is the date that the payment was made. This date is used in the PrintReport service so a start and end range of dates can be selected. 3. amountPaid(double): This is the amount of the payment made by the guest. 4. totalAmount(double): This is the full amount the guest is to pay. It is calculated by the room rate multiplied by the number of days in the stay. Payments

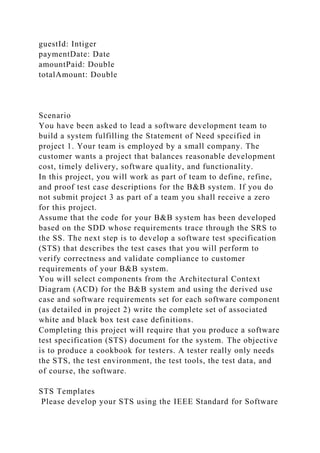

guestId: Intiger paymentDate: Date amountPaid: Double totalAmount: Double Scenario You have been asked to lead a software development team to build a system fulfilling the Statement of Need specified in project 1. Your team is employed by a small company. The customer wants a project that balances reasonable development cost, timely delivery, software quality, and functionality. In this project, you will work as part of team to define, refine, and proof test case descriptions for the B&B system. If you do not submit project 3 as part of a team you shall receive a zero for this project. Assume that the code for your B&B system has been developed based on the SDD whose requirements trace through the SRS to the SS. The next step is to develop a software test specification (STS) that describes the test cases that you will perform to verify correctness and validate compliance to customer requirements of your B&B system. You will select components from the Architectural Context Diagram (ACD) for the B&B system and using the derived use case and software requirements set for each software component (as detailed in project 2) write the complete set of associated white and black box test case definitions. Completing this project will require that you produce a software test specification (STS) document for the system. The objective is to produce a cookbook for testers. A tester really only needs the STS, the test environment, the test tools, the test data, and of course, the software. STS Templates Please develop your STS using the IEEE Standard for Software
Test Documentation, standard 829-1998, posted in the Course Resources > eReserves.Section6 in the IEEE Std 829-1998 is most relevant to this assignment, so focus on completing this section as thoroughly as you can. The assignment Complete the template as best as you can. Make any reasonable assumptions based on your understanding of the problem that allow you to address as many sections of the STS template as possible. (Please read the “project descriptions” in the project description section of the syllabus for additional context and information on course projects). Pay special attention to the following. The bulk of your grade will be decided on how well you address these issues. · Detailed Test Environment description - including test hardware, software, test tools, and data · White Box Test Cases (at least two): including; name of the component being tested, test inputs, and expected outputs · Black Box Test Cases: Select (at least) two components from your ACD and using the derived use cases, scenarios, and software requirements set for each of those components (from your SRS), write the complete set of associated black box test case definitions, including; name of the component being tested, test inputs, expected outputs, and requirement(s) from the SRS being tested. · Traceability matrix: Each test case is used to assess compliance to a SRS/SS requirement (i.e., Black Box) or to assess correct computation, e.g., correct inventory level (i.e., White Box). Your Test Cases should trace to one or more SRS requirements. See Table 4.4 (week 5 activities module 4 reading: Testing Strategies and Techniques) for an example of a Traceability Matrix. (Please endeavor to use the use cases/scenarios and requirements as you specified them in your SRS). Also please see chapter 7: Software Testing and chapter 8: Software Testing Strategies from the online text (Books 24x7: Software Engineering, Second Edition by Bharat Bhushan
Agarwal and Sumit Prakash Tayal) for additional context and information on testing. Section 7.6 discusses white-box testing; section 7.7 discusses black-box testing; section 7.9 discusses test case design; Hints and suggestions 1. For the STS, we shall be using only a subset of the IEEE template; specifically section 6 of the IEEE (Test Case Specification). Refer to Module 4 (week 5 activities module 4 reading: Testing Strategies and Techniques) for information on software testing and examples of black-box and white-box test case definitions. Remember: Each test case is used to assess compliance to a SRS/SS requirement (i.e., Black Box) or to assess correct computation, e.g., correct inventory level (i.e., White Box). Here are the details required for each test case description: · Test objective · unique test case identifier · input specification · output specification · special environment conditions · special procedural requirements · execution procedure steps · dependencies 2. You are encouraged to select and use any one of your team member's ACD, use cases or requirements set to complete this assignment. Collaborate with your team and decide who has the best representation to use. Make sure your work is neat and legible. Your charts, illustrations and diagrams can be done using any word processing, drawing, and/or software CASE drawing tool (or by hand) as long as it is neat and organized. Embed or scan any diagrams that you create in your STS document—do not upload them separately.

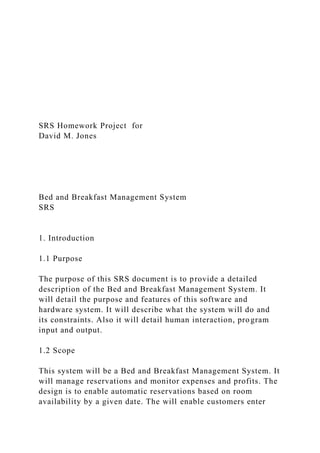

SRS Homework Project for David M. Jones Bed and Breakfast Management System SRS 1. Introduction 1.1 Purpose The purpose of this SRS document is to provide a detailed description of the Bed and Breakfast Management System. It will detail the purpose and features of this software and hardware system. It will describe what the system will do and its constraints. Also it will detail human interaction, program input and output. 1.2 Scope This system will be a Bed and Breakfast Management System. It will manage reservations and monitor expenses and profits. The design is to enable automatic reservations based on room availability by a given date. The will enable customers enter

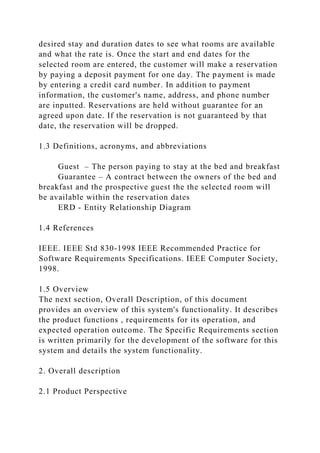

desired stay and duration dates to see what rooms are available and what the rate is. Once the start and end dates for the selected room are entered, the customer will make a reservation by paying a deposit payment for one day. The payment is made by entering a credit card number. In addition to payment information, the customer's name, address, and phone number are inputted. Reservations are held without guarantee for an agreed upon date. If the reservation is not guaranteed by that date, the reservation will be dropped. 1.3 Definitions, acronyms, and abbreviations Guest – The person paying to stay at the bed and breakfast Guarantee – A contract between the owners of the bed and breakfast and the prospective guest the the selected room will be available within the reservation dates ERD - Entity Relationship Diagram 1.4 References IEEE. IEEE Std 830-1998 IEEE Recommended Practice for Software Requirements Specifications. IEEE Computer Society, 1998. 1.5 Overview The next section, Overall Description, of this document provides an overview of this system's functionality. It describes the product functions , requirements for its operation, and expected operation outcome. The Specific Requirements section is written primarily for the development of the software for this system and details the system functionality. 2. Overall description 2.1 Product Perspective

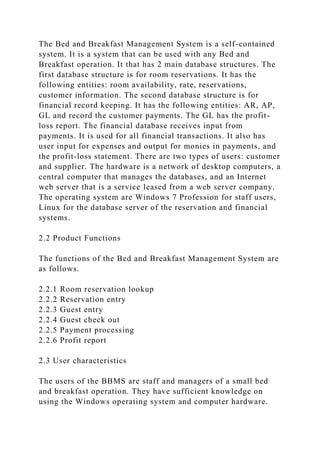

The Bed and Breakfast Management System is a self-contained system. It is a system that can be used with any Bed and Breakfast operation. It that has 2 main database structures. The first database structure is for room reservations. It has the following entities: room availability, rate, reservations, customer information. The second database structure is for financial record keeping. It has the following entities: AR, AP, GL and record the customer payments. The GL has the profit- loss report. The financial database receives input from payments. It is used for all financial transactions. It also has user input for expenses and output for monies in payments, and the profit-loss statement. There are two types of users: customer and supplier. The hardware is a network of desktop computers, a central computer that manages the databases, and an Internet web server that is a service leased from a web server company. The operating system are Windows 7 Profession for staff users, Linux for the database server of the reservation and financial systems. 2.2 Product Functions The functions of the Bed and Breakfast Management System are as follows. 2.2.1 Room reservation lookup 2.2.2 Reservation entry 2.2.3 Guest entry 2.2.4 Guest check out 2.2.5 Payment processing 2.2.6 Profit report 2.3 User characteristics The users of the BBMS are staff and managers of a small bed and breakfast operation. They have sufficient knowledge on using the Windows operating system and computer hardware.
They will have training on operating the BBMS software. 2.4 Constraints There are no constrains other than what is needed to operate a small bed and breakfast operation. 2.5 Assumptions and dependencies In order for the BBMS to operate the following assumptions are made: 2.5.1 The business provides a computer on which the BBMS can run. 2.5.2 The business provides a telephone service with which the customer can call in to make a reservation. 3. Specific Requirements 3.1 External interface requirements The requirements are to enable the user interaction with the BBMS. 3.1.1 User interfaces 3.1.1.1 Main menu – Displays choice of making a reservation, checking a guest out, and printing the profit report. 3.1.1.2 Calendar – Displays any reservations by calendar days a room may have. 3.1.1.3 Reservations – Provides a means to make a reservation 3.1.1.4 Check out – Charges any amount owed by a selected guest and removes the reservation for the room the guest stayed in. 3.1.1.5 Profit report – Display the total of all payments made by

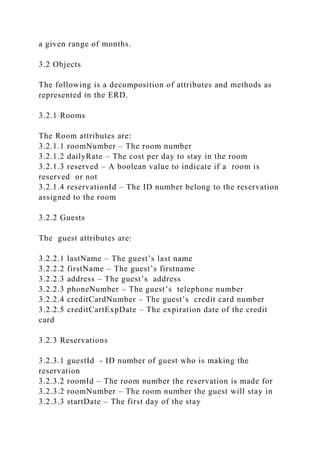

a given range of months. 3.2 Objects The following is a decomposition of attributes and methods as represented in the ERD. 3.2.1 Rooms The Room attributes are: 3.2.1.1 roomNumber – The room number 3.2.1.2 dailyRate – The cost per day to stay in the room 3.2.1.3 reserved – A boolean value to indicate if a room is reserved or not 3.2.1.4 reservationId – The ID number belong to the reservation assigned to the room 3.2.2 Guests The guest attributes are: 3.2.2.1 lastName – The guest’s last name 3.2.2.2 firstName – The guest’s firstname 3.2.2.3 address – The guest’s address 3.2.2.3 phoneNumber – The guest’s telephone number 3.2.2.4 creditCardNumber – The guest’s credit card number 3.2.2.5 creditCartExpDate – The expiration date of the credit card 3.2.3 Reservations 3.2.3.1 guestId - ID number of guest who is making the reservation 3.2.3.2 roomId – The room number the reservation is made for 3.2.3.2 roomNumber – The room number the guest will stay in 3.2.3.3 startDate – The first day of the stay

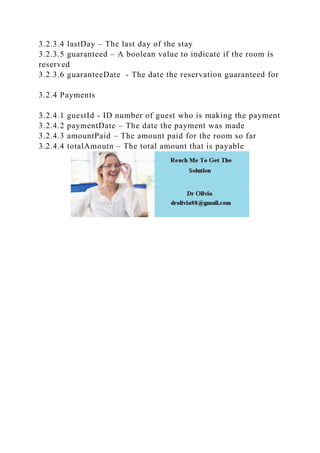

3.2.3.4 lastDay – The last day of the stay 3.2.3.5 guaranteed – A boolean value to indicate if the room is reserved 3.2.3.6 guaranteeDate - The date the reservation guaranteed for 3.2.4 Payments 3.2.4.1 guestId - ID number of guest who is making the payment 3.2.4.2 paymentDate – The date the payment was made 3.2.4.3 amountPaid – The amount paid for the room so far 3.2.4.4 totalAmoutn – The total amount that is payable

More Related Content

DOCX
4.2 Service TestThis test is for the Services module. It designe.docx
bygilbertkpeters11344

DOCX
Steve_Gubenia_SDD
byzenchi0

PPTX
Software requirements Specification
byPreshan Pradeepa

DOCX
0 Software Development Plan (SDP) 2014 .docx
bymercysuttle

PDF
Arif plaza inn project
byVijayananda Mohire

PPTX
software design documentation phases explained for a buisiness problem in app...
byhawa175590

PPTX
Hotel mgmt
byShakti Singh

PPTX
Hotel mgmt from shakti singh2014
byShakti Singh

4.2 Service TestThis test is for the Services module. It designe.docx
bygilbertkpeters11344

Steve_Gubenia_SDD
byzenchi0

Software requirements Specification
byPreshan Pradeepa

0 Software Development Plan (SDP) 2014 .docx
bymercysuttle

Arif plaza inn project
byVijayananda Mohire

software design documentation phases explained for a buisiness problem in app...
byhawa175590

Hotel mgmt
byShakti Singh

Hotel mgmt from shakti singh2014
byShakti Singh


Similar to Software Design Specification Document (SDD) By Da.docx

PPTX
Property Management Systems
byAnil Bilgihan

PPTX
Hotel manaement
bynishunishan26

DOCX
Steve_Gubenia_SDP
byzenchi0

PDF
IRJET - Banquet Hall Reservation
byIRJET Journal

DOCX
online room booking system
bymanuchinna

DOCX
Software Requirement Specification Of Hotel Management System
byUttam Singh Chaudhary

PDF
Object-oriented analysis and design - questions and answers
byNavinda Dissanayake

PPTX
PPT FOR ONLINE HOTEL MANAGEMENT
byJaya0006

DOC
Object oriented programming
byashu6

PPTX
this ppt shows easy way to understand ONLINE HOTEL MANGEMENT
byJaya0006

DOCX
GSUInnovators_v05
byTerrence Taylor

PPTX
Hotel & guest house online registration system
byPervaiz Dostiyar

PPT
Ppt slides 05
bylocpx

DOC
Object oriented programming
byashu6

DOC
Srs mine
byMohsin Khan

PDF
Guest Room Service for college students and students in a college
byssjimhopper1975

PPT
Hotel Management System
bycolimmy

PPTX
PROPERTY MANAGEMENT
bySOLAURA KUSHIMO

DOCX
Software architecture and design project_answer.docx
byHanaYaregal

DOCX
Business Case for Investment Outline PrototypesEnvironment Proc.docx
byhumphrieskalyn

Property Management Systems
byAnil Bilgihan

Hotel manaement
bynishunishan26

Steve_Gubenia_SDP
byzenchi0

IRJET - Banquet Hall Reservation
byIRJET Journal

online room booking system
bymanuchinna

Software Requirement Specification Of Hotel Management System
byUttam Singh Chaudhary

Object-oriented analysis and design - questions and answers
byNavinda Dissanayake

PPT FOR ONLINE HOTEL MANAGEMENT
byJaya0006

Object oriented programming
byashu6

this ppt shows easy way to understand ONLINE HOTEL MANGEMENT
byJaya0006

GSUInnovators_v05
byTerrence Taylor

Hotel & guest house online registration system
byPervaiz Dostiyar

Ppt slides 05
bylocpx

Object oriented programming
byashu6

Srs mine
byMohsin Khan

Guest Room Service for college students and students in a college
byssjimhopper1975

Hotel Management System
bycolimmy

PROPERTY MANAGEMENT
bySOLAURA KUSHIMO

Software architecture and design project_answer.docx
byHanaYaregal

Business Case for Investment Outline PrototypesEnvironment Proc.docx
byhumphrieskalyn


More from jensgosney

DOCX
Students are expected to watch at least 30 minutes of political ne.docx
byjensgosney

DOCX
Student will review prior readings (Chapter #8) and Klein Journal Ar.docx
byjensgosney

DOCX
Student Name Date Read the following case study and thorou.docx
byjensgosney

DOCX
Strategy DevelopmentDiscuss the role that an I-O psychologist pl.docx
byjensgosney

DOCX
Sociology in a Nutshell A Brief Introduction to the Discipl.docx
byjensgosney

DOCX
Struggling to understand how to implement a Hash bucket for program..docx
byjensgosney

DOCX
StratificationWhat are three ways that social stratification is .docx
byjensgosney

DOCX
Strategy maps are used in creating a balanced scorecard. Give one st.docx
byjensgosney

DOCX
SOFTWARE ENGINEERINGNinth EditionIan SommervilleAddi.docx
byjensgosney

DOCX
Structured DebateBased on the required readings, lecture mater.docx
byjensgosney

DOCX
Software Test DocumentCard Czar Android AppCMSC .docx
byjensgosney

DOCX
Software Training ProgramABC Company has 50,000 employees and wa.docx
byjensgosney

DOCX
Soft skills are most often characterized as the personal attribu.docx
byjensgosney

DOCX
Software Engineering Capstone .docx
byjensgosney

DOCX
Strength–Based Approaches PaperCovering Displaced Homemake.docx
byjensgosney

DOCX
Sociology Project CLASSROOM .docx
byjensgosney

DOCX
Socometal Rewarding African WorkersBy Evalde Mutabazi and C. B.docx
byjensgosney

DOCX
Sociology and General Education [1964]By Robert Bierstedt.docx
byjensgosney

DOCX
Sociological Observation of a Sporting Event Student Name .docx
byjensgosney

DOCX
Socioautobiography Assignment GuidelinesThe purpose of this assign.docx
byjensgosney

Students are expected to watch at least 30 minutes of political ne.docx
byjensgosney

Student will review prior readings (Chapter #8) and Klein Journal Ar.docx
byjensgosney

Student Name Date Read the following case study and thorou.docx
byjensgosney

Strategy DevelopmentDiscuss the role that an I-O psychologist pl.docx
byjensgosney

Sociology in a Nutshell A Brief Introduction to the Discipl.docx
byjensgosney

Struggling to understand how to implement a Hash bucket for program..docx
byjensgosney

StratificationWhat are three ways that social stratification is .docx
byjensgosney

Strategy maps are used in creating a balanced scorecard. Give one st.docx
byjensgosney

SOFTWARE ENGINEERINGNinth EditionIan SommervilleAddi.docx
byjensgosney

Structured DebateBased on the required readings, lecture mater.docx
byjensgosney

Software Test DocumentCard Czar Android AppCMSC .docx
byjensgosney

Software Training ProgramABC Company has 50,000 employees and wa.docx
byjensgosney

Soft skills are most often characterized as the personal attribu.docx
byjensgosney

Software Engineering Capstone .docx
byjensgosney

Strength–Based Approaches PaperCovering Displaced Homemake.docx
byjensgosney

Sociology Project CLASSROOM .docx
byjensgosney

Socometal Rewarding African WorkersBy Evalde Mutabazi and C. B.docx
byjensgosney

Sociology and General Education [1964]By Robert Bierstedt.docx
byjensgosney

Sociological Observation of a Sporting Event Student Name .docx
byjensgosney

Socioautobiography Assignment GuidelinesThe purpose of this assign.docx
byjensgosney


Recently uploaded

PPTX
How to Easily Track Appraisal Analysis Report in Odoo 18 Appraisal
byCeline George

DOCX
Q4_-LE_PEH8_Lesson1_Week1 pls don't docx
bymirajaneee00

PDF
Unit Plan and Unit Test-pdf-Dr. Rajashekhar Shirvalkar, Principal, SMRS B.Ed ...
byRajashekhar Shirvalkar

PDF
PPT Daftar Bahan Kelas Bedah Kitab Matius Khotbah di Bukit
bySABDA

PPTX
Q4_PPT MUSIC & ARTS 7 week 1-2, matatag curriculum
byZEN

PDF
Tetracycline Class of Antibiotics: SAR, MOA and Uses
bymominzarinamdnajeeb

PPTX
Chapter 1: Introduction to Economics - Macroeconomics and Microeconomics.pptx
byFJ M

PDF
How "Raiders of the Lost Ark" and "Ordinary People" Employ Non-Verbal Acting
by6x5csns4pn

PPTX
Health9_Q4 PPT_Week 1_Lesson 1 (Intentional Injuries).pptx
byElyMaeIbaez

PDF
Chapter 05 Drugs Acting on the Central Nervous System: Anti-Depressant Drugs
bySandeshSul

PPTX
Cultivation practice of Okra in Nepal.pptx
byUmeshTimilsina1

PDF
Why Projects Fail – The Need to “Do the Right Project” and “Do the Project Ri...
byAssociation for Project Management

PDF
Types of Foot & Foot Modifications in Birds
byDr. Ramzan Virani

PPTX
How to Manage Closest Location in Odoo 18 Inventory
byCeline George

PDF
Nursing care plan for Vomiting /B.Sc nsg
byDr. Sudhadevi Sadanandan

PPTX
How to Manage Reservation Method in Odoo 18 Inventory
byCeline George

PPTX
Complete Overview of Revamp in Odoo 18 Debug
byCeline George

PPTX
GRADE 8 - QUARTER 4 TYPES AND PARTS OF LETTER.pptx
byvillariasjazminercai

PPTX
Chapter 1: Introduction to Strategic Management.pptx
byFJ M

PDF
operation with integers and finding common ground worksheet solutions/7th cla...
bySandeep Swamy

How to Easily Track Appraisal Analysis Report in Odoo 18 Appraisal
byCeline George

Q4_-LE_PEH8_Lesson1_Week1 pls don't docx
bymirajaneee00

Unit Plan and Unit Test-pdf-Dr. Rajashekhar Shirvalkar, Principal, SMRS B.Ed ...
byRajashekhar Shirvalkar

PPT Daftar Bahan Kelas Bedah Kitab Matius Khotbah di Bukit
bySABDA

Q4_PPT MUSIC & ARTS 7 week 1-2, matatag curriculum
byZEN

Tetracycline Class of Antibiotics: SAR, MOA and Uses
bymominzarinamdnajeeb

Chapter 1: Introduction to Economics - Macroeconomics and Microeconomics.pptx
byFJ M

How "Raiders of the Lost Ark" and "Ordinary People" Employ Non-Verbal Acting
by6x5csns4pn

Health9_Q4 PPT_Week 1_Lesson 1 (Intentional Injuries).pptx
byElyMaeIbaez

Chapter 05 Drugs Acting on the Central Nervous System: Anti-Depressant Drugs
bySandeshSul

Cultivation practice of Okra in Nepal.pptx
byUmeshTimilsina1

Why Projects Fail – The Need to “Do the Right Project” and “Do the Project Ri...
byAssociation for Project Management

Types of Foot & Foot Modifications in Birds
byDr. Ramzan Virani

How to Manage Closest Location in Odoo 18 Inventory
byCeline George

Nursing care plan for Vomiting /B.Sc nsg
byDr. Sudhadevi Sadanandan

How to Manage Reservation Method in Odoo 18 Inventory
byCeline George

Complete Overview of Revamp in Odoo 18 Debug
byCeline George

GRADE 8 - QUARTER 4 TYPES AND PARTS OF LETTER.pptx
byvillariasjazminercai

Chapter 1: Introduction to Strategic Management.pptx
byFJ M

operation with integers and finding common ground worksheet solutions/7th cla...
bySandeep Swamy


Software Design Specification Document (SDD) By Da.docx

  • 1.
    Software Design SpecificationDocument (SDD) By David M. Jones November 16, 2014 Table of Contents 1. Introduction ………………………………………………………………………… …………………… 1 1.1 Purpose ………………………………………………………………………… …………… 1 1.2 Scope ………………………………………………………………………… ………………. 1 1.3 Definitions and acronyms …………………………………………………………… 1 2. References ………………………………………………………………………… …………………….. 1 3. Decomposition description ………………………………………………………………………. 2
  • 2.
    3.1 Module decomposition ………………………………………………………………3 3.2 Concurrent process decomposition ………………….………………………. 9 3.3 Data decomposition ………………………………………………………………… 10 4 Dependency description ………………………………………………………………………… . 11 4.1 Intermodule dependencies ……………………………………………………… 13 4.2 Interprocess dependencies ……………………………………………………… 14 4.3 Data dependencies ………………………………………………………………….. 15 5. Interface description …………………………………………………………………….… ……… 16 5.1 Module description …………………………………………………………….……. 16 5.2 Process description ………………………………………………………………….. 24 6. Detailed design ………………………………………………………………………… …….….….. 25 6.1 Module detailed design ………………………………………………….………. 25 6.2 Data detailed design ……………………………………………………….….…… 30 1. Introduction
  • 3.
    1.1 Purpose This document’spurpose is to document the set of requirements for the development of a software management system for a bed and breakfast operation. It describes how reservations and financial transactions are made. It also specifies the human to computer graphical user interface screens. 1.2 Scope This Bed and Breakfast Management System enables a the automated operation of a 3 bedroom bed and breakfast business. Customers can call the Bed and Breakfast reservation phone number and give desired reservation dates. A staff member can check the available and give the daily price rate for each room. The customer can provide a reservation guarantee date. The guest reservation information will be entered by the staff member while the customer is on the phone. After the stay, there is a check out process. Additionally the owner can generate a profit report to monitor the financial status of the operation. 1.3 Definitions
  • 4.
    a. BBMS –Bed and Breakfast Management System b. Reservation – A room assigned to a guest stay for a specific date range c. Guarantee – Financial contract between the management of the bed and breakfast and a guest that a room reservation will be available to the guest d. Workflow – Sequential steps needed to accomplish a task e. Domain Object – A computer entity that holds information for a given function f. User interface – A computer graphical element that enables the user to interact with the software g. GUI – Graphical User Interface which the method by which the user interacts with the BBMS 2. References IEEE. Std 1016-1998 IEEE Recommended Practice for Software Design Descriptions. IEEE Computer Society, 1998. 3. Decomposition description
  • 5.
    Entity Relationship Diagram Thisdescribes the complete ERD for the entire BBMS. It shows the relationship between domain objects, as shown in blue, and their services, as shown in gray. Reservation Check Out
  • 6.
    Profit Report ViewCalendar room: Rooms reservation:Reservations setRoomId(integer): void setReservationId: void getPrice(double): void getReservedFlag(boolean): void getReservationStartDate(date):void getReservationEndDate(date):void MakeReservation room: Rooms reservation: Reservations setReservated (boolean): void addReservation(integer): void setGuaranteed(boolean): void putGuaranteedDate(date): void putStartDate(date): void putEndDate(date): void
  • 7.
    AddGuest reservation: Reservations guest: Guests addGuest(integer):void putFirstName(string): void putLastName(string): void putAddress(string): void putPhone(integer): void putCreditCardNumber(integer): void putCreditCartExpDate(integer): void MakePayment guest: Guests payment: Payments addPayment(integer): void putPaymentDate(date): void putTotalAmount(double):void putPaymentAmount(double): void getCreditCardNumber(integer): void chargePayment(double): void
  • 8.
    PrintReport payment: Payments getStartDate(date): void getEndDate(date):void getPaymentDate(date): void getAmount(double): void printStartDate(date): void printEndDate(date):void printProfit(double):void Rooms roomId: Integer roomRate: Double reserved: Boolean ReservationId: Double Reservations reservationId: Integer startDate: Date endDate: Date guaranteed: Boolean guarenteeDate: Date roomId: Integer guestId: Integer paymentId: Integer
  • 9.
    Guests guestId: Integer lastName: String firstName:String address: String phoneNumber: Integer creditCardNumber: Integer creditCardExpDate: Integer Payments guestId: Intiger paymentDate: Date amountPaid: Double totalAmount: Double CheckOut guest: Guests reservation: Reservations payment: Payments room: Rooms displayGuests(string): void setGuestId(integer): void getAmountOwed(double): void getCreditCardNumber(integer):void chargeAmount(double): void setRoomUnreserved(boolean): void
  • 10.
    3.1 Module decomposition ThisBBMS is comprised of 4 different components, providing specific functions of the software system. The overall design has the following functions: User Interface, Services, Domain objects, and Database. The high level architectural context diagram shows how the user interface, services, and domain objects function together and how they access the database. Architectural Context Diagram This architectural context diagram shows the 4 contexts. The first is the user interface where staff interact with the computer. The second is the software services used throughout the full operation of the BBMS. The
  • 11.

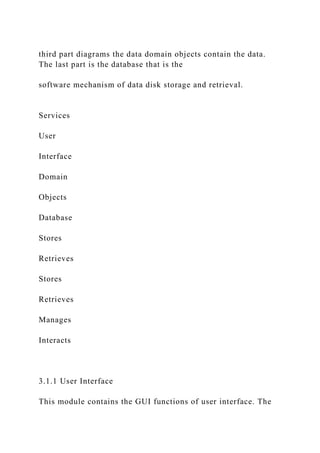

    third part diagramsthe data domain objects contain the data. The last part is the database that is the software mechanism of data disk storage and retrieval. Services User Interface Domain Objects Database Stores Retrieves Stores Retrieves Manages Interacts 3.1.1 User Interface This module contains the GUI functions of user interface. The
  • 12.
    external part ofthis system is the computer monitor, keyboard, mouse. Although not part of the GUI, a printer is also an external part for printing the profit report. Architectural Context Diagram of the User Interface 3.1.1.1 Main Menu This is the first user interface entity. It gives the user the choice of starting new reservations, checking out a guest, and printing the profit report. The Reports selection that goes to the profit report is password protected. 3.1.1.2 Calendar Lookup This displays a calendar with room reservation days in highlighted date squares on the calendar. The room is selected by a button. Additionally the daily price rate for the selected room is shown at the top of the
  • 13.
    screen. Also theprocess interfacing with this screen will check the selected room’s guaranteed reservation date and if it is expired, the room is marked and displayed as unreserved. 3.1.1.3 Room Reservation This is the starting point of making a reservation. The start and end dates can be entered manually or by a pop-up calendar button in the date boxes. The room is reserved and the user clicks the button the create the reservation and go on the entering guest data. The reservation can be canceled with the cancel button. 3.1.1.3 Guest Information Calendar Lookup Room Reservation Guest Information Guest Payment Check Out User Interface Main Menu Print Report This is where the guest name, address, and credit card information is entered. The save guest button is then
  • 14.
    clicked to goto the next screen. If the user wishes to cancel the reservation, the cancel button is clicked and the room is marked a unreserved. 3.1.1.4 Guest Payment This screen is where the user enters the guest’s payment. Also if the reservation is guaranteed the guaranteed box is clicked and the guarantee date is entered. 3.1.1.5 Finalize Payment This screen is accessed by way of the main menu Check Out button. It lists guest names by room number. The user clicks the desired guest name and the total amount of the customer’s bill is displayed. If there is any balance due the finalize payment button will atomically charge that amount to the guest’s credit card. If the is no balance due the finalize payment button only completes the stay. 3.1.2 Services This module contains the descriptions of the services required for the data processing of the BBMS
  • 15.
    functions. It providesoutput and input to the user interface and manages the domain objects. It’s functions include looking up reservation dates for rooms, making the reservation, final checkout, and the profit report. Architectural Context Diagram of the Services 3.1.2.1 CalenderLookup Service This service retrieves reservation dates for a selected room and displays the start to end dates on calendar screen. Since the user is relaying room reservation to the potential guest over the phone, the daily cost rate is also displayed on the screen for the selected room. 3.1.2.2 MakeReservation Service This service is used to reserve the selected room by setting the room’s reserved flag to true and creating a reservation record. The reservation record is populated with the start and end dates. It sets the reservation
  • 16.
    guaranteed flag anddate. This service’s logic is triggered by the Create Reservation button being clicked on the user interface screen. 3.1.2.3 AddGuest Service This service creates a guest record and populates it with the guest’s name, address, phone number, and credit card information. This logic is triggered by clicking Save Guest button on the user interface screen. Clicking Cancel on that screen will set the room reserved flag to false and deleting the reservation record. 3.1.2.4 MakePayment Service CalendarLookup ReserveRoom AddGuest MakePayment CheckOut Services ProfitLossReport This service makes a payment by the guest for reserving a room. When the payment amount is obtained, a
  • 17.
    payment record iscreated and the guest’s credit card is charged. This logic is triggered by clicking the Make Payment button on the screen. If the Cancel Reservation button is clicked, the room’s reserved flag is set to false, the customer record is deleted, and the reservation record is deleted. 3.1.2.5 CheckOut Sercvice This service is executed upon guest checkout. If there is any balance due, that amount is charged to the guest’s credit card. It sets the room’s reserved flag to false. 3.1.2.6 ProfitReport Service This service calculates the sum of the payment record amounts and prints the profit report. 3.1.3 Domain Objects This module contains the descriptions of the domain objects required for the functioning of the BBMS functions. These objects contain the data used in the 7 services.
  • 18.
    Architectural Context Diagramof the Domain Objects 3.1.3.1 Room This object contains the daily price rate of the room and the flag stating if it is reserved. 3.1.3.2 Reservation This object contains the reservation information that is assigned to a room. 3.1.3.3 Guest This object contains the guest information that is assigned to a reservation. 3.1.3.4 Payments This object contains the payments made by a guest. Room Reservation Guest Payments Domain Objects
  • 19.
    3.1.4 Database This moduledescribes the software mechanism by which data in the domain objects is stored and retrieved to the disk drive for long term storage. The database preserves the data state of the BBMS regardless of which service is current functioning. Also if the computer is shut down for maintenance, the database allows the BBMS to start backup with the same data state that was in the system before the shutdown. Architectural Context Diagram of the Database Database
  • 20.

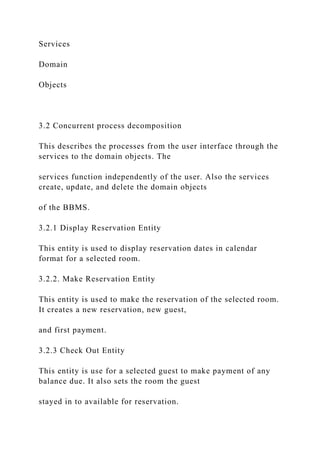

    Services Domain Objects 3.2 Concurrent processdecomposition This describes the processes from the user interface through the services to the domain objects. The services function independently of the user. Also the services create, update, and delete the domain objects of the BBMS. 3.2.1 Display Reservation Entity This entity is used to display reservation dates in calendar format for a selected room. 3.2.2. Make Reservation Entity This entity is used to make the reservation of the selected room. It creates a new reservation, new guest, and first payment. 3.2.3 Check Out Entity This entity is use for a selected guest to make payment of any balance due. It also sets the room the guest stayed in to available for reservation.
  • 21.
    3.3 Data Decomposition Thisdescribes the software entities that contain data for the operation of the BBMS. 3.3.1 Room Entity This entity holds data for determining if a room is available for reservation and also holds the daily rate price of the room. 3.3.2 Reservation Entity This entity holds the reservation data for a reserved room. 3.3.3 Guest Entity This entity holds the guest data associated to a reserved room. 3.3.4 Payments Entity This entity holds the payment data the a guest pays for the stay in the room. 4. Dependency Description
  • 22.
    Data Flow Diagram Servicefunctions create, update, and delete domain objects which have the data stored on the disk drive by the database mechanism. Services Reserve Room Check Out
  • 23.
  • 24.
    In: roomRate In: startDate In:endDate Out: roomNumber Out: reserved Out: guaranteed Out : guaranteedDate Out: startDate Out: endDate Out: reservatinId Out: name Out: Address Out: CreditCard In: name In: roomRate Out: payment In: names Out: customerId In: totalAmount In: amountDue In: creditCard In: roomNumber Out:Reserved In:payments Out: profitLoss Main Menu Database Stores
  • 25.
    Retrieves Stores Retrieves 4.1 Intermodule Dependencies Thereare 4 key modules of the BBMS. They are user interface, services, domain objects, and the database. Intermodule Dependency Diagram 4.1.1 User Interface Module This module is dependent on the service module for the user GUI operation. It is also dependent on the domain objects for data entry and display. 4.1.2 Services Module
  • 26.
    This module isdependent on the data that is contained in the domain objects. 4.1.3 Domain Objects Module This module are dependent on the services to process the data contained in it. 4.1.4 Database Module This module is dependent on the services module to store, retrieve, and delete data that is used in the BBMS. It is also dependent on the domain objects module for the actual data that is processed in the services module. User Interface Services Domain Objects Interacts Manages Database Stores
  • 27.
    Retrieves Stores Retrieves 4.2 Interprocess Dependencies InterprocessDependency Diagram 4.2.1 ViewCalendar is dependent on the MakeReservation service to display the reserved start and end dates for a selected room.
  • 28.
    4.2.2 AddGuest isdependent on the MakeReservation service to create a reservation record so it can update it with the guest ID number. 4.2.3 MakePayment is dependent on the AddGuest service to get the guest ID number for the guest payment. 4.2.4 CheckOut is dependent on the AddGuest service to get the guest name and guest ID number. It is also dependent on the MakePayment to get any amount still owed by the guest. 4.2.4 GenerateReport is dependent on the MakePayment service to get the sum of the payments made. ViewCalendar room: Rooms reservation: Reservations setRoomId(integer): void setReservationId: void getPrice(double): void getReservedFlag(boolean): void getReservationStartDate(date):void getReservationEndDate(date):void
  • 29.
    MakeReservation room: Rooms reservation: Reservations setReservated(boolean): void addReservation(integer): void setGuaranteed(boolean): void putGuaranteedDate(date): void putStartDate(date): void putEndDate(date): void AddGuest reservation: Reservations guest: Guests addGuest(integer): void putFirstName(string): void putLastName(string): void putAddress(string): void putPhone(integer): void putCreditCardNumber(integer): void putCreditCartExpDate(integer): void MakePayment
  • 30.
    guest: Guests payment: Payments addPayment(integer):void putPaymentDate(date): void putTotalAmount(double):void putPaymentAmount(double): void getCreditCardNumber(integer): void chargePayment(double): void PrintReport payment: Payments getStartDate(date): void getEndDate(date): void getPaymentDate(date): void getAmount(double): void printStartDate(date): void printEndDate(date):void printProfit(double):void CheckOut
  • 31.
    guest: Guests reservation: Reservations payment:Payments room: Rooms displayGuests(string): void setGuestId(integer): void getAmountOwed(double): void getCreditCardNumber(integer):void chargeAmount(double): void setRoomUnreserved(boolean): void PrintReport payment: Payments getStartDate(date): void getEndDate(date): void getPaymentDate(date): void getAmount(double): void printStartDate(date): void printEndDate(date):void printProfit(double):void 4.3 Data Dependencies
  • 32.
    Data dependencies areassociated with the process dependencies. Data Dependency Diagram 4.3.1 Rooms and Reservations are dependent by roomID. 4.3.2 Reservations and Guests are dependent by guestID. 4.3.3 Guests and Payments are dependent by guestID. ViewCalendar room: Rooms
  • 33.
    reservation: Reservations setRoomId(integer): void setReservationId:void getPrice(double): void getReservedFlag(boolean): void getReservationStartDate(date):void getReservationEndDate(date):void MakeReservation room: Rooms reservation: Reservations setReservated (boolean): void addReservation(integer): void setGuaranteed(boolean): void putGuaranteedDate(date): void putStartDate(date): void putEndDate(date): void AddGuest reservation: Reservations guest: Guests addGuest(integer): void putFirstName(string): void putLastName(string): void putAddress(string): void putPhone(integer): void
  • 34.
    putCreditCardNumber(integer): void putCreditCartExpDate(integer): void MakePayment guest:Guests payment: Payments addPayment(integer): void putPaymentDate(date): void putTotalAmount(double):void putPaymentAmount(double): void getCreditCardNumber(integer): void chargePayment(double): void PrintReport payment: Payments getStartDate(date): void getEndDate(date): void getPaymentDate(date): void getAmount(double): void printStartDate(date): void printEndDate(date):void printProfit(double):void
  • 35.
    Rooms roomId: Integer roomRate: Double reserved:Boolean ReservationId: Double Reservations reservationId: Integer startDate: Date endDate: Date guaranteed: Boolean guarenteeDate: Date roomId: Integer guestId: Integer paymentId: Integer Guests guestId: Integer lastName: String firstName: String address: String phoneNumber: Integer creditCardNumber: Integer creditCardExpDate: Integer
  • 36.
    Payments guestId: Intiger paymentDate: Date amountPaid:Double totalAmount: Double CheckOut guest: Guests reservation: Reservations payment: Payments room: Rooms displayGuests(string): void setGuestId(integer): void getAmountOwed(double): void getCreditCardNumber(integer):void chargeAmount(double): void setRoomUnreserved(boolean): void 5. Interface Description 5.1 Module Description The module description of the interface description is a description of the user interface.
  • 37.
    User Interface The userinterface provides the users through the use of GUI’s with the means of interacting with the BBMS software system. The functions in the user interface gives the ability to: 1. Check the selected room available by calendar display. 2. Reserve a room. 3. Enter Guest information. 4. Guarantee a reservation. 5. Make initial payment. 6. Checkout. a. Make final, if any, payment b. Automatically set the room reserved flag to available
  • 38.
    5.1.1 Main Menu Bedand Breakfast Management System Reservations
  • 39.
    Check Out Reports 5.1.2 ReservationCalendar The reservation calendar screen presents the user with a calendar display with colored boxes for the days that the selected room is reserved. The Previous and Next Month buttons bring the previous or next month
  • 40.
    into the display.The Room buttons select the room to check reservations for. At the top of the screen the daily room rate price for the selected room is displayed. If the user wants to make a reservation the Start Reservation button is clicked, otherwise Cancel returns to the main menu. Sun Mon Tue Wed Thu Fri Sat 1 2 8 15 22 29 9 16 23 30 3
  • 41.
    10 17 4 5 67 11 12 13 14 18 19 20 21 24 25 26 27 31 28 Room 1 Room 2 Room 3 Start Reservation Exit < Previous Month Next Month >
  • 42.
    Daily room rate$120.00 5.1.3 Room Reservation Entry Reservation Start Date 12/14/2014 Reservation End Date 12/16/2014 Room 1 Room 2 Room 3 Create Reservation Cancel Daily Rate $120.00 Guaranteed X Guaranteed Date 12/10/2014
  • 43.
    5.1.4 Guest DataEntry The guest data entry screen provides the user with the ability to enter the guest’s name, address, phone number, and credit card information. To save the data entered, the Save Guest button is clicked. The Cancel button returns to the main menu. Cancel Save Guest
  • 44.
    First Name Last Name Address Phone(999)999-9999 Credit Card Number 999-999-999-9999 Expiration Date 99/99/99 5.1.5 Payment Entry The payment entry screen display’s the guest’s name and the daily room price rate for the room. The Guaranteed box is clicked and the guarantee date is entered if the reservation is guaranteed. The payment amount is entered. When the Make Payment button is clicked, the guest’s credit card is charged and the
  • 45.
    payment for thatguest is stored. If Canceled Reservation is clicked the guest data is deleted from the database, the room reserved flag for that room is cleared, and the system returns to the main menu screen. John Smith Daily Room Rate $120.00 Payment Amount $360.00 Make Payment Cancel Reservation Total Amount $360.00 5.1.6 Check Out
  • 46.
    The check outscreen is displayed when the Check Out button is clicked from the main menu. A selection list of names assigned to each room is displayed. The user clicks the guest name to check out. If there is any balance still owed by the customer, the Finalize button will charge any remaining amount owed by the guest to the guest’s credit card. Also when the Finalize button is clicked, the reserved flag is automatically cleared for that room in the room database. Guest name 1 Guest name 2 Guest name 3 Room 1 Room 2
  • 47.
    Room 3 Total amount$999.99 Balance Due $999.99 Finalize Cancel 5.1.7 Profit Report The profit report screen is displayed when the Reports button of the main menu is clicked. It produces a sum of all payments made with in enter date range by month and year. When the Print button is clicked, the report is printed on the printer. The Exit button returns to the
  • 48.
    main menu. Print Starting Month 12014 Year Ending Month 12 2014 Year Exit Sum of all Payments: Month $999,999.99 5.2 Process Description This is the descriptions of the processes, known as services, interface with each other. 5.2.1 CalenderLookup Service This service interfaces with the MakeReservation service to get the room is reserved or not flag from the Rooms.
  • 49.
    5.2.2 MakeReservation Service Thisservice interfaces with the AddGuest service since the added guest makes the reservation. 5.2.3 AddGuest Service This service interfaces with the MakeReservation service since guest information is associated with the new reservation. It also interfaces with the MakePayment service since the guest that was added makes a payent forthereservatin. 5.2.4 MakePayment Service This service interfaces with the AddGuest service since the added guest makes the payment for the room reservation. 5.2.5 CheckOut Sercvice This service interfaces with the MakeReservation, AddGuest, and MakePayment services. Since it access the Rooms, Guests, Reservations, and Payments objects with data that was created and updated by these services. 5.2.6 ProfitReport Service This service interfaces with the MakePayment service. The common data object is the Payments object. The
  • 50.
    interface occurs aspayments are recorded in MakePayments and totaled in PorfitReport. 6. Detailed Design 6.1 Module Detailed Design 6.1.1 ViewCalendar Module This module is a service that uses Room and Reservation domain objects to display reservation dates in calendar format as well as the daily room price rate for a selected room. The module has 2 attributes that are shown below. 1. room: This attribute holds the select room number used to get the selected room from the Rooms. 2. Reservation: This attribute holds the reservations object The functions in this module are: 1. setRoomId(integer): This sets the room selection roomId in the rooms object to return information on that room. 2. getPrice(double): This returns the daily rate for the selected room.
  • 51.
    3. setReservationId (integer):This sets the reservation id index in the reservations object 4. getReservedFlag(boolean): This determines if a room is reserved or not. 5. getReservationStartDate(date): This gets the starting date of the reservation. 6. getReservationEndDate(date): This gets the ending date of the reservation. ViewCalendar room: Rooms reservation: Reservations setRoomId(integer): void setReservationId: void getPrice(double): void getReservedFlag(boolean): void getReservationStartDate(date):void getReservationEndDate(date):void
  • 52.
    6.1.2 MakeReservation Module Thismodule is a service that reserves a room. It gets the starting date and the ending date of the reservation. The module has 2 attributes that are shown below. 1. room: This attribute holds room data that is used to update the rooms object 2. reservation: This attribute holds the reservation data that is used to add a reservation to the reservations object. The functions in this module are: 1. setReserved(boolean): This sets the reserved flag to true in the rooms object. 2. addReservation(integer): This adds a reservation record to the reservation object with a reservation id as the reservation index value. 3. setGuaranteed(boolean): This set the guaranteed flag in the reservation record of the reservation object.
  • 53.

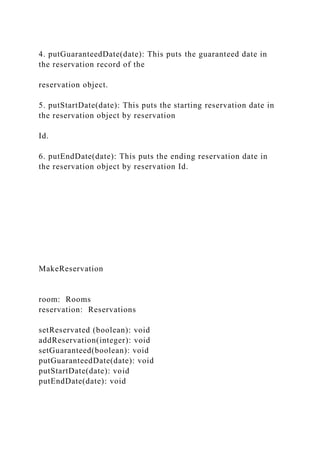

    4. putGuaranteedDate(date): Thisputs the guaranteed date in the reservation record of the reservation object. 5. putStartDate(date): This puts the starting reservation date in the reservation object by reservation Id. 6. putEndDate(date): This puts the ending reservation date in the reservation object by reservation Id. MakeReservation room: Rooms reservation: Reservations setReservated (boolean): void addReservation(integer): void setGuaranteed(boolean): void putGuaranteedDate(date): void putStartDate(date): void putEndDate(date): void
  • 54.
    6.1.3 AddGuest Module Thismodule is a service that creates and populates a guest record in the guests object. It also adds the guestId index value in the newly created reservation record. The module has 2 attributes that are shown below. 1. reservation: This attribute holds the reservation index id for the reservation record in the reservations object. 2. guest: This attribute holds the guest information used to create a new guest record in the guests object. The functions in this module are: 1. addGuest(integer): This adds a guest record to the guests object with guestId as the index value. It also puts the guest id in the guestId index value in the reservation record of the reservation object. 2. putFirstName(string): This puts the guest first name in the guest record.
  • 55.
    3. putLastName(string): Thisputs the guest last name in the guest record. 4. putAddress(string): This puts the guest address in the guest record. 5. putPhone(integer): This puts the guest phone number in the guest record. 6. putCreditCardNumber(integer): This puts the guest credit card number in the guest record. 7. putCreditExpDate(interger): This puts the guest credit card expiration date in the guest record. AddGuest reservation: Reservations guest: Guests addGuest(integer): void putFirstName(string): void putLastName(string): void putAddress(string): void putPhone(integer): void putCreditCardNumber(integer): void putCreditCartExpDate(integer): void
  • 56.
    6.1.4 MakePayment Module Thismodule is a service that creates and populates a payment record in the Payments object. It is indexed by the guest id value. The module has 2 attributes that are shown below. 1. guest: This attribute holds the credit card number from the guest record to charge the payment against. 2. payment : This attribute holds the data used to create and populate a payment record in the payments object. The functions of this module are: 1. addPayment(integer): This creates a payment record in the payments object with a guest id as the index value. 2. putPaymentDate(date): This put the date the payment is made in the payment record. The date is
  • 57.
    used for printingthe profit report month and by year. 3. putTotalAmount(double): This puts the total amount owed in the payment record. 4. putPaymentAmount(douoble): This puts the payment amount in the payment record. 5. getCreditcardNumber(integer): This gets the credit card. 6. chargePayment(double): This charges the payment against the guest’s credit card. MakePayment guest: Guests payment: Payments addPayment(integer): void putPaymentDate(date): void putTotalAmount(double):void putPaymentAmount(double): void getCreditCardNumber(integer): void chargePayment(double): void
  • 58.
    6.1.5 CheckOut Module Thismodule is a service that charges any remaining payment amount due by the guest to the guest’s credit card. It sets the room reserved flag to false. This module has 4 attributes as shown below. 1. guest: This attribute holds the guest name and guest id for the reservation index value. It also holds the credit card number if there is any remaining amount owed to be charged. 2. reservation: This attribute gets the room index number from the reservation object that is retrieved by the guest id. 3. payment: This attribute holds any remaining amount to be paid by the guest. 4. room: This attribute sets the room reserved flag to false for the room record that is retrieved from room id n the guest record. The functions of this module are: 1. displayGuests(string): This displays all the guest names by
  • 59.
    room number forguest selection in the GUI. 2. setGuestId(integer): This sets the guest id index value from the selected guest name in the GUI. 3. getAmountOwed(double): This gets any remaining amount still owed by the guest 4. getCreditCardNumber(integer): This executes if there is any remaining amount owed and gets the guest’s credit card number. 5. chargeAmount(double): This executes if there is any remaining amount owed and charges it against the guest’s cred card. 6. setRoomUnreserved(boolean): This accessed the room number indexed from the reservation record and sets the room reserved flag to false. CheckOut
  • 60.
    guest: Guests reservation: Reservations payment:Payments room: Rooms displayGuests(string): void setGuestId(integer): void getAmountOwed(double): void getCreditCardNumber(integer):void chargeAmount(double): void setRoomUnreserved(boolean): void 6.1.6 PrintReport Module This module is a service that that adds up the payments by a selection of months or by year for printing the profit report. This module has 1 attribute as shown below. 1. payment(double): This is used to adding the payments by date for a total that is to be printed in the profit report. The functions of this module are: 1. getStartDate(date): This gets the starting date of payments to be totaled from the GUI. 2. getEndDate(date): This gets the ending date of payments to
  • 61.
    be totaled fromthe GUI. 3. getPaymentDate(date): This gets the payment date to see if the payment was made within the range of dates selected in the profit report. 4. getAmount(double): This gets the amount of the payment made for the running total of payments made. 5. printStartDate(date): This prints the starting date of payments included in the report. 6. printEndDate(date): This prints the ending date of payments included in the report. 7. printProfit(double): This prints the sum of all payments made within the selected date range. PrintReport payment: Payments getStartDate(date): void getEndDate(date): void getPaymentDate(date): void getAmount(double): void printStartDate(date): void printEndDate(date):void printProfit(double):void
  • 62.

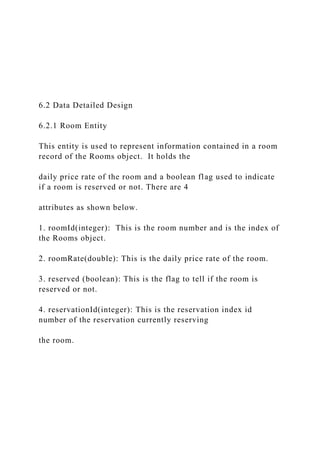

    6.2 Data DetailedDesign 6.2.1 Room Entity This entity is used to represent information contained in a room record of the Rooms object. It holds the daily price rate of the room and a boolean flag used to indicate if a room is reserved or not. There are 4 attributes as shown below. 1. roomId(integer): This is the room number and is the index of the Rooms object. 2. roomRate(double): This is the daily price rate of the room. 3. reserved (boolean): This is the flag to tell if the room is reserved or not. 4. reservationId(integer): This is the reservation index id number of the reservation currently reserving the room.
  • 63.
    Rooms roomId: Integer roomRate: double reserved:boolean reservationId: integer 6.2.2 Reservations Entity This entity is used to represent a reservation of a room. It is an added record to the Reservations object. It holds the reservation dates and guaranteed information. When a guest record is created in the Guests object Reservations is updated with the guest ID of the guest that reserved the room. When a payment record is created in the Payments object the payment ID is updated with the payment ID form the corresponding payment. There are 8 attributes as shown below. 1. reservationId(integer): This is the index value of the newly created reservation record. 2. startDate(date): This is the starting date of the reservation. 3. endDate(date): This is the ending date of the reservation. 4. guaranteed(Boolean): This is the flag to tell if the reservation is guaranteed.
  • 64.
    5. guaranteedDate(date): Thisis the date of the guarantee. 6. roomId(integer): This is the room number the reservation was made for. 7. guestId(integer): This is the index value of the guest ID that made the reservation from the Guests object. 8. paymentId(integer):This is the payment index number for the payment made for the reservation from the Payments object.
  • 65.
    Reservations reservationId: Integer startDate: Date endDate:Date guaranteed: Boolean guarenteeDate: Date roomId: Integer guestId: Integer paymentId: Integer 6.2.3 Guests Entity This entity is used to represent the information of the guest who is making the reservation. There are 6 attributes as shown below. 1. guestId(integer): This is the index number if the guest record in the Guests object. It is used in the Reservations and Payments objects. 2. lastName(string): This is the last name of the guest making the reservation. 3. firstName(string): This is the first name of the guest making the reservation. 4. address(string): This is the address of the guest making the reservation.
  • 66.

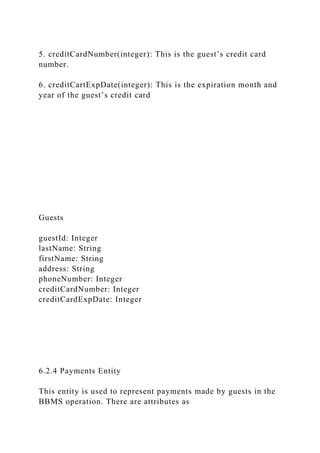

    5. creditCardNumber(integer): Thisis the guest’s credit card number. 6. creditCartExpDate(integer): This is the expiration month and year of the guest’s credit card Guests guestId: Integer lastName: String firstName: String address: String phoneNumber: Integer creditCardNumber: Integer creditCardExpDate: Integer 6.2.4 Payments Entity This entity is used to represent payments made by guests in the BBMS operation. There are attributes as
  • 67.
    shown below. 1. guestId(integer):This is the ID number of the guest making the payment. 2. paymentDate(date): This is the date that the payment was made. This date is used in the PrintReport service so a start and end range of dates can be selected. 3. amountPaid(double): This is the amount of the payment made by the guest. 4. totalAmount(double): This is the full amount the guest is to pay. It is calculated by the room rate multiplied by the number of days in the stay. Payments
  • 68.
    guestId: Intiger paymentDate: Date amountPaid:Double totalAmount: Double Scenario You have been asked to lead a software development team to build a system fulfilling the Statement of Need specified in project 1. Your team is employed by a small company. The customer wants a project that balances reasonable development cost, timely delivery, software quality, and functionality. In this project, you will work as part of team to define, refine, and proof test case descriptions for the B&B system. If you do not submit project 3 as part of a team you shall receive a zero for this project. Assume that the code for your B&B system has been developed based on the SDD whose requirements trace through the SRS to the SS. The next step is to develop a software test specification (STS) that describes the test cases that you will perform to verify correctness and validate compliance to customer requirements of your B&B system. You will select components from the Architectural Context Diagram (ACD) for the B&B system and using the derived use case and software requirements set for each software component (as detailed in project 2) write the complete set of associated white and black box test case definitions. Completing this project will require that you produce a software test specification (STS) document for the system. The objective is to produce a cookbook for testers. A tester really only needs the STS, the test environment, the test tools, the test data, and of course, the software. STS Templates Please develop your STS using the IEEE Standard for Software
  • 69.

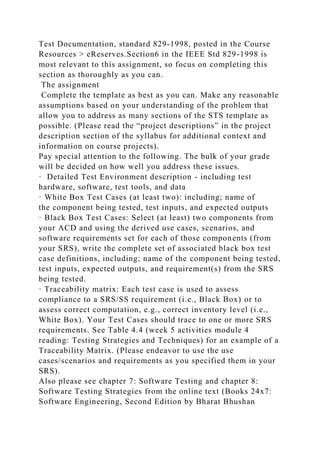

    Test Documentation, standard829-1998, posted in the Course Resources > eReserves.Section6 in the IEEE Std 829-1998 is most relevant to this assignment, so focus on completing this section as thoroughly as you can. The assignment Complete the template as best as you can. Make any reasonable assumptions based on your understanding of the problem that allow you to address as many sections of the STS template as possible. (Please read the “project descriptions” in the project description section of the syllabus for additional context and information on course projects). Pay special attention to the following. The bulk of your grade will be decided on how well you address these issues. · Detailed Test Environment description - including test hardware, software, test tools, and data · White Box Test Cases (at least two): including; name of the component being tested, test inputs, and expected outputs · Black Box Test Cases: Select (at least) two components from your ACD and using the derived use cases, scenarios, and software requirements set for each of those components (from your SRS), write the complete set of associated black box test case definitions, including; name of the component being tested, test inputs, expected outputs, and requirement(s) from the SRS being tested. · Traceability matrix: Each test case is used to assess compliance to a SRS/SS requirement (i.e., Black Box) or to assess correct computation, e.g., correct inventory level (i.e., White Box). Your Test Cases should trace to one or more SRS requirements. See Table 4.4 (week 5 activities module 4 reading: Testing Strategies and Techniques) for an example of a Traceability Matrix. (Please endeavor to use the use cases/scenarios and requirements as you specified them in your SRS). Also please see chapter 7: Software Testing and chapter 8: Software Testing Strategies from the online text (Books 24x7: Software Engineering, Second Edition by Bharat Bhushan
  • 70.

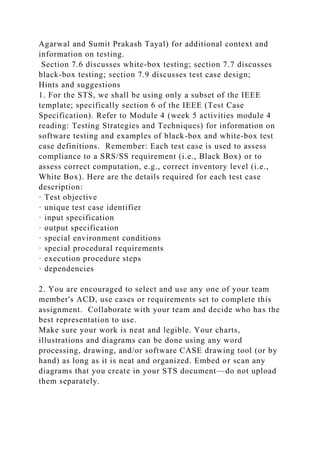

    Agarwal and SumitPrakash Tayal) for additional context and information on testing. Section 7.6 discusses white-box testing; section 7.7 discusses black-box testing; section 7.9 discusses test case design; Hints and suggestions 1. For the STS, we shall be using only a subset of the IEEE template; specifically section 6 of the IEEE (Test Case Specification). Refer to Module 4 (week 5 activities module 4 reading: Testing Strategies and Techniques) for information on software testing and examples of black-box and white-box test case definitions. Remember: Each test case is used to assess compliance to a SRS/SS requirement (i.e., Black Box) or to assess correct computation, e.g., correct inventory level (i.e., White Box). Here are the details required for each test case description: · Test objective · unique test case identifier · input specification · output specification · special environment conditions · special procedural requirements · execution procedure steps · dependencies 2. You are encouraged to select and use any one of your team member's ACD, use cases or requirements set to complete this assignment. Collaborate with your team and decide who has the best representation to use. Make sure your work is neat and legible. Your charts, illustrations and diagrams can be done using any word processing, drawing, and/or software CASE drawing tool (or by hand) as long as it is neat and organized. Embed or scan any diagrams that you create in your STS document—do not upload them separately.
  • 71.
    SRS Homework Projectfor David M. Jones Bed and Breakfast Management System SRS 1. Introduction 1.1 Purpose The purpose of this SRS document is to provide a detailed description of the Bed and Breakfast Management System. It will detail the purpose and features of this software and hardware system. It will describe what the system will do and its constraints. Also it will detail human interaction, program input and output. 1.2 Scope This system will be a Bed and Breakfast Management System. It will manage reservations and monitor expenses and profits. The design is to enable automatic reservations based on room availability by a given date. The will enable customers enter
  • 72.
    desired stay andduration dates to see what rooms are available and what the rate is. Once the start and end dates for the selected room are entered, the customer will make a reservation by paying a deposit payment for one day. The payment is made by entering a credit card number. In addition to payment information, the customer's name, address, and phone number are inputted. Reservations are held without guarantee for an agreed upon date. If the reservation is not guaranteed by that date, the reservation will be dropped. 1.3 Definitions, acronyms, and abbreviations Guest – The person paying to stay at the bed and breakfast Guarantee – A contract between the owners of the bed and breakfast and the prospective guest the the selected room will be available within the reservation dates ERD - Entity Relationship Diagram 1.4 References IEEE. IEEE Std 830-1998 IEEE Recommended Practice for Software Requirements Specifications. IEEE Computer Society, 1998. 1.5 Overview The next section, Overall Description, of this document provides an overview of this system's functionality. It describes the product functions , requirements for its operation, and expected operation outcome. The Specific Requirements section is written primarily for the development of the software for this system and details the system functionality. 2. Overall description 2.1 Product Perspective
  • 73.
    The Bed andBreakfast Management System is a self-contained system. It is a system that can be used with any Bed and Breakfast operation. It that has 2 main database structures. The first database structure is for room reservations. It has the following entities: room availability, rate, reservations, customer information. The second database structure is for financial record keeping. It has the following entities: AR, AP, GL and record the customer payments. The GL has the profit- loss report. The financial database receives input from payments. It is used for all financial transactions. It also has user input for expenses and output for monies in payments, and the profit-loss statement. There are two types of users: customer and supplier. The hardware is a network of desktop computers, a central computer that manages the databases, and an Internet web server that is a service leased from a web server company. The operating system are Windows 7 Profession for staff users, Linux for the database server of the reservation and financial systems. 2.2 Product Functions The functions of the Bed and Breakfast Management System are as follows. 2.2.1 Room reservation lookup 2.2.2 Reservation entry 2.2.3 Guest entry 2.2.4 Guest check out 2.2.5 Payment processing 2.2.6 Profit report 2.3 User characteristics The users of the BBMS are staff and managers of a small bed and breakfast operation. They have sufficient knowledge on using the Windows operating system and computer hardware.
  • 74.
    They will havetraining on operating the BBMS software. 2.4 Constraints There are no constrains other than what is needed to operate a small bed and breakfast operation. 2.5 Assumptions and dependencies In order for the BBMS to operate the following assumptions are made: 2.5.1 The business provides a computer on which the BBMS can run. 2.5.2 The business provides a telephone service with which the customer can call in to make a reservation. 3. Specific Requirements 3.1 External interface requirements The requirements are to enable the user interaction with the BBMS. 3.1.1 User interfaces 3.1.1.1 Main menu – Displays choice of making a reservation, checking a guest out, and printing the profit report. 3.1.1.2 Calendar – Displays any reservations by calendar days a room may have. 3.1.1.3 Reservations – Provides a means to make a reservation 3.1.1.4 Check out – Charges any amount owed by a selected guest and removes the reservation for the room the guest stayed in. 3.1.1.5 Profit report – Display the total of all payments made by
  • 75.
    a given rangeof months. 3.2 Objects The following is a decomposition of attributes and methods as represented in the ERD. 3.2.1 Rooms The Room attributes are: 3.2.1.1 roomNumber – The room number 3.2.1.2 dailyRate – The cost per day to stay in the room 3.2.1.3 reserved – A boolean value to indicate if a room is reserved or not 3.2.1.4 reservationId – The ID number belong to the reservation assigned to the room 3.2.2 Guests The guest attributes are: 3.2.2.1 lastName – The guest’s last name 3.2.2.2 firstName – The guest’s firstname 3.2.2.3 address – The guest’s address 3.2.2.3 phoneNumber – The guest’s telephone number 3.2.2.4 creditCardNumber – The guest’s credit card number 3.2.2.5 creditCartExpDate – The expiration date of the credit card 3.2.3 Reservations 3.2.3.1 guestId - ID number of guest who is making the reservation 3.2.3.2 roomId – The room number the reservation is made for 3.2.3.2 roomNumber – The room number the guest will stay in 3.2.3.3 startDate – The first day of the stay
  • 76.
    3.2.3.4 lastDay –The last day of the stay 3.2.3.5 guaranteed – A boolean value to indicate if the room is reserved 3.2.3.6 guaranteeDate - The date the reservation guaranteed for 3.2.4 Payments 3.2.4.1 guestId - ID number of guest who is making the payment 3.2.4.2 paymentDate – The date the payment was made 3.2.4.3 amountPaid – The amount paid for the room so far 3.2.4.4 totalAmoutn – The total amount that is payable
