This document discusses the development of smart PV window shades that can help reduce energy consumption and provide privacy and UV protection. The smart shades are powered by solar panels and use sensors to open and close automatically based on temperature, light levels, and time of day. They reduce air conditioning costs by up to 30% by blocking heat from windows. The project design uses an Arduino, battery charging module, servo motor, boost converter, temperature sensor, light sensor, and WiFi module. Future improvements include a mobile app for remote control and automatic rotation based on sunlight angle.

1. SMART PV WINDOWS
SHADES
Sarvesh Singh
RA1711005010282
EEE

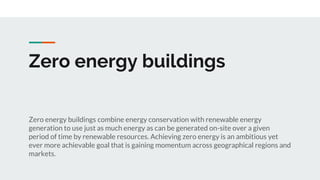

2. Zero energy buildings
Zero energy buildings combine energy conservation with renewable energy
generation to use just as much energy as can be generated on-site over a given
period of time by renewable resources. Achieving zero energy is an ambitious yet
ever more achievable goal that is gaining momentum across geographical regions and
markets.

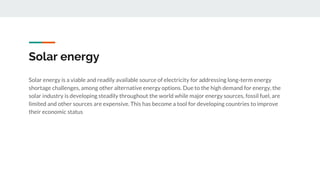

3. Solar energy
Solar energy is a viable and readily available source of electricity for addressing long-term energy
shortage challenges, among other alternative energy options. Due to the high demand for energy, the
solar industry is developing steadily throughout the world while major energy sources, fossil fuel, are
limited and other sources are expensive. This has become a tool for developing countries to improve
their economic status

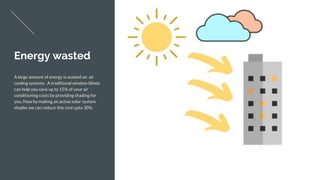

4. Energy wasted
A large amount of energy is wasted on air
cooling systems . A traditional window blinds
can help you save up to 15% of your air
conditioning costs by providing shading for
you. Now by making an active solar system
shades we can reduce this cost upto 30%.

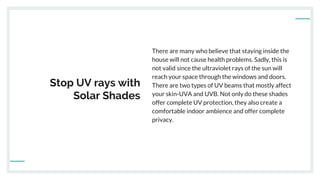

5. Stop UV rays with
Solar Shades
There are many who believe that staying inside the
house will not cause health problems. Sadly, this is
not valid since the ultraviolet rays of the sun will
reach your space through the windows and doors.
There are two types of UV beams that mostly affect
your skin-UVA and UVB. Not only do these shades
offer complete UV protection, they also create a
comfortable indoor ambience and offer complete
privacy.

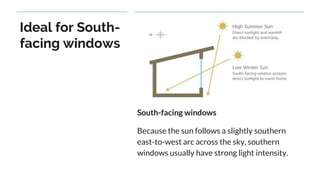

6. Ideal for South-
facing windows
South-facing windows
Because the sun follows a slightly southern
east-to-west arc across the sky, southern
windows usually have strong light intensity.

7. PROJECT DESIGN
SMART PV
WINDOWS SHADES

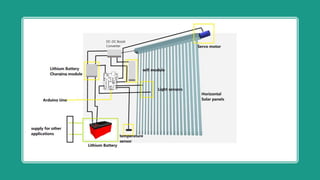

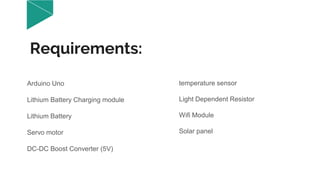

8. Requirements:
Arduino Uno
Lithium Battery Charging module
Lithium Battery
Servo motor
DC-DC Boost Converter (5V)
temperature sensor
Light Dependent Resistor
Wifi Module
Solar panel

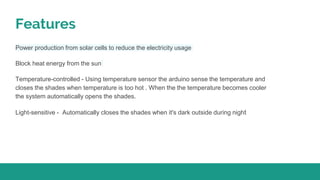

10. Features
Power production from solar cells to reduce the electricity usage
Block heat energy from the sun
Temperature-controlled - Using temperature sensor the arduino sense the temperature and
closes the shades when temperature is too hot . When the the temperature becomes cooler
the system automatically opens the shades.
Light-sensitive - Automatically closes the shades when it's dark outside during night

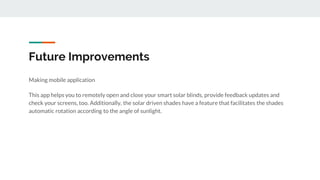

11. Future Improvements
Making mobile application
This app helps you to remotely open and close your smart solar blinds, provide feedback updates and
check your screens, too. Additionally, the solar driven shades have a feature that facilitates the shades
automatic rotation according to the angle of sunlight.
