1. IndIa VIsIon 2020
"TransformIng The naTIon InTo a deVeloped counTry”
REVOLUTIONS
Actions Speak Louder Than Words
Vishal waghmare
http://smartparking2020blog.wordpress.com

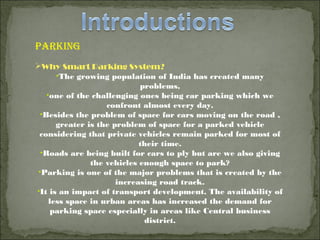

2. parKIng
Why Smart Parking System?
•The growing population of India has created many
problems,
•one of the challenging ones being car parking which we
confront almost every day.
•Besides the problem of space for cars moving on the road ,
greater is the problem of space for a parked vehicle
considering that private vehicles remain parked for most of
their time.
•Roads are being built for cars to ply but are we also giving
the vehicles enough space to park?
•Parking is one of the major problems that is created by the
increasing road track.
•It is an impact of transport development. The availability of
less space in urban areas has increased the demand for
parking space especially in areas like Central business
district.

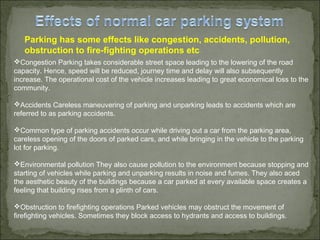

3. Parking has some effects like congestion, accidents, pollution,
obstruction to fire-fighting operations etc
Congestion Parking takes considerable street space leading to the lowering of the road
capacity. Hence, speed will be reduced, journey time and delay will also subsequently
increase. The operational cost of the vehicle increases leading to great economical loss to the
community.
Accidents Careless maneuvering of parking and unparking leads to accidents which are
referred to as parking accidents.
Common type of parking accidents occur while driving out a car from the parking area,
careless opening of the doors of parked cars, and while bringing in the vehicle to the parking
lot for parking.
Environmental pollution They also cause pollution to the environment because stopping and
starting of vehicles while parking and unparking results in noise and fumes. They also aced
the aesthetic beauty of the buildings because a car parked at every available space creates a
feeling that building rises from a plinth of cars.
Obstruction to firefighting operations Parked vehicles may obstruct the movement of
firefighting vehicles. Sometimes they block access to hydrants and access to buildings.

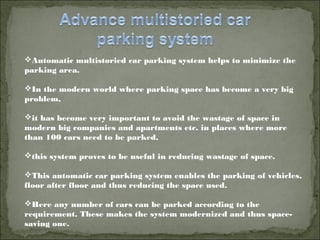

4. Automatic multistoried car parking system helps to minimize the
parking area.
In the modern world where parking space has become a very big
problem,
it has become very important to avoid the wastage of space in
modern big companies and apartments etc. in places where more
than 100 cars need to be parked,
this system proves to be useful in reducing wastage of space.
This automatic car parking system enables the parking of vehicles,
floor after floor and thus reducing the space used.
Here any number of cars can be parked according to the
requirement. These makes the system modernized and thus space-
saving one.

6. There are no traffic rules in
India (most of the time)
All the cities in India face
severe parking problems.
Though parking has
negligible effect on quality
of transport but there is
damage to the life of
engine due to parking. Due
to anonymous increase of
traffic in India,
 parking has become the
new problem along with
pollution and poor quality
roads.
 Parking regulation in the
US
 Parking is restricted or
prohibited in many streets.
Most cities are divided into
parking zones, which may be
indicated by colours.
 In some towns there are
parking regulations during
rush-hours on major
thoroughfares, where no
parking is permitted on
one or both sides of the
street at certain times
Indian City Traffic Developed city traffic

7. There are two types of
parking’s,
they are off-street
parking and the other is
on-street parking.
 Off street parking is
common in big shopping
malls and theatres and
huge offices which are
used by employees &
customers
Indian City Traffic Developed city traffic
They use
An automated (car)
parking
system (Advanced
system)
Advanced parking
systems

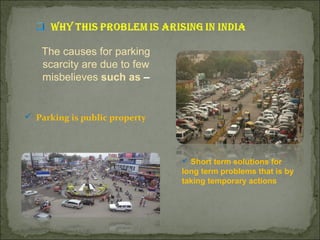

8. The causes for parking
scarcity are due to few
misbelieves such as –
 Parking is public property
 Short term solutions for
long term problems that is by
taking temporary actions

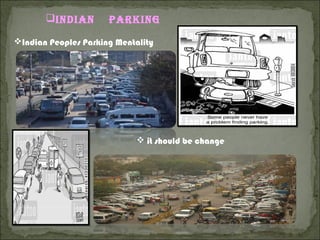

9. IndIan ParkIng
Indian Peoples Parking Mentality
 it should be change

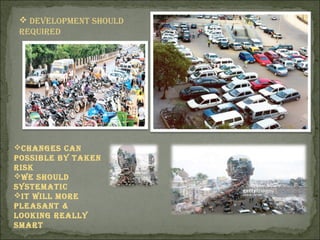

10.  develoPment should
requIred
Changes Can
PossIBle BY taken
rIsk
We should
sYstematIC
It WIll more
Pleasant &
lookIng reallY
smart

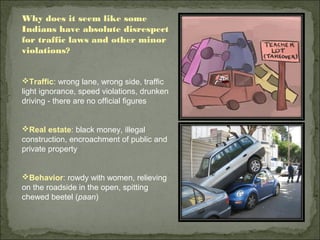

11. Why does it seem like some
Indians have absolute disrespect
for traffic laws and other minor
violations?
Traffic: wrong lane, wrong side, traffic
light ignorance, speed violations, drunken
driving - there are no official figures
Real estate: black money, illegal
construction, encroachment of public and
private property
Behavior: rowdy with women, relieving
on the roadside in the open, spitting
chewed beetel (paan)

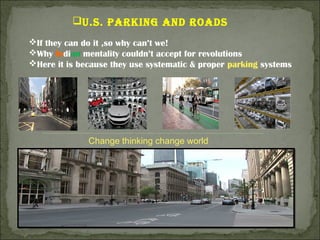

12. u.s. ParkIng and roads
If they can do it ,so why can’t we!
Why Indian mentality couldn’t accept for revolutions
Here it is because they use systematic & proper parking systems
Change thinking change world

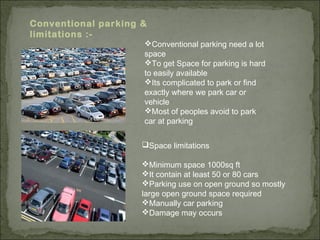

13. Conventional parking &
limitations :-
Conventional parking need a lot
space
To get Space for parking is hard
to easily available
Its complicated to park or find
exactly where we park car or
vehicle
Most of peoples avoid to park
car at parking
Space limitations
Minimum space 1000sq ft
It contain at least 50 or 80 cars
Parking use on open ground so mostly
large open ground space required
Manually car parking
Damage may occurs

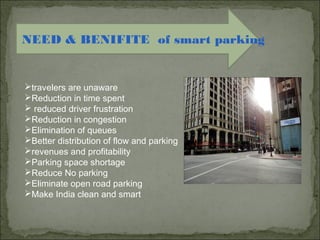

14. NEED & BENIFITE of smart parking
travelers are unaware
Reduction in time spent
 reduced driver frustration
Reduction in congestion
Elimination of queues
Better distribution of flow and parking
revenues and profitability
Parking space shortage
Reduce No parking
Eliminate open road parking
Make India clean and smart

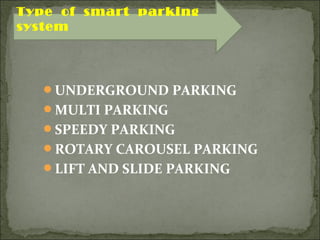

15. UNDERGROUND PARKING
MULTI PARKING
SPEEDY PARKING
ROTARY CAROUSEL PARKING
LIFT AND SLIDE PARKING
Type of smart parking
system

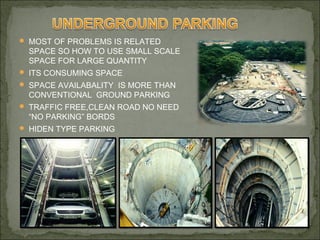

16.  MOST OF PROBLEMS IS RELATED
SPACE SO HOW TO USE SMALL SCALE
SPACE FOR LARGE QUANTITY
 ITS CONSUMING SPACE
 SPACE AVAILABALITY IS MORE THAN
CONVENTIONAL GROUND PARKING
 TRAFFIC FREE,CLEAN ROAD NO NEED
“NO PARKING” BORDS
 HIDEN TYPE PARKING

17. The Multi-Parking system sometimes
referred to as Rack and Rail type has been
designed to automatically move the
vehicles by lift which then transfers it to a
waiting cart on one of the multi- levels.
The carts then travel horizontally and
place the vehicle in its appropriate slot.
This system is suitable for middle and
large-scale buildings as well as
independent public parking garage.
The multi-parker can accommodate as
little as 20 vehicles to several thousand
units. It is therefore suitable for large scale
projects.
It can move more than 2 vehicles at the
same time for maximum efficiency.

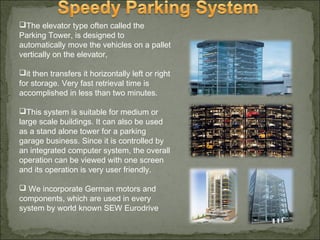

18. The elevator type often called the
Parking Tower, is designed to
automatically move the vehicles on a pallet
vertically on the elevator,
it then transfers it horizontally left or right
for storage. Very fast retrieval time is
accomplished in less than two minutes.
This system is suitable for medium or
large scale buildings. It can also be used
as a stand alone tower for a parking
garage business. Since it is controlled by
an integrated computer system, the overall
operation can be viewed with one screen
and its operation is very user friendly.
 We incorporate German motors and
components, which are used in every
system by world known SEW Eurodrive

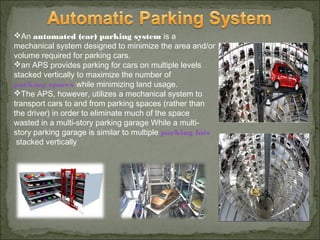

19. An automated (car) parking system is a
mechanical system designed to minimize the area and/or
volume required for parking cars.
an APS provides parking for cars on multiple levels
stacked vertically to maximize the number of
parking spaces while minimizing land usage.
The APS, however, utilizes a mechanical system to
transport cars to and from parking spaces (rather than
the driver) in order to eliminate much of the space
wasted in a multi-story parking garage While a multi-
story parking garage is similar to multiple parking lots
stacked vertically

20. Key Findings
Drivers want to know:
• the location of car park nearby
• how to reduce waiting time for car park during
holidays or peak parking hours
• how to enter the target car park without stuck
in traffic congestion
• comparison of parking fees of every car park
• the length , width , height and ground condition
of parking space
• discounts or special benefits. Example : Some
shopping malls waive the parking fees when
consumers’ purchases reach the required amount.
Sample Survey on Drivers Needs

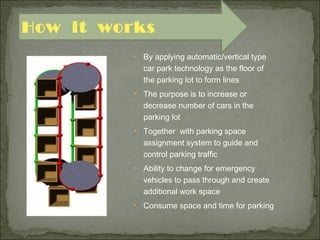

21. • By applying automatic/vertical type
car park technology as the floor of
the parking lot to form lines
• The purpose is to increase or
decrease number of cars in the
parking lot
• Together with parking space
assignment system to guide and
control parking traffic
• Ability to change for emergency
vehicles to pass through and create
additional work space
• Consume space and time for parking
How it works

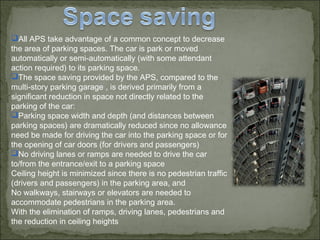

22. All APS take advantage of a common concept to decrease
the area of parking spaces. The car is park or moved
automatically or semi-automatically (with some attendant
action required) to its parking space.
The space saving provided by the APS, compared to the
multi-story parking garage , is derived primarily from a
significant reduction in space not directly related to the
parking of the car:
Parking space width and depth (and distances between
parking spaces) are dramatically reduced since no allowance
need be made for driving the car into the parking space or for
the opening of car doors (for drivers and passengers)
No driving lanes or ramps are needed to drive the car
to/from the entrance/exit to a parking space
Ceiling height is minimized since there is no pedestrian traffic
(drivers and passengers) in the parking area, and
No walkways, stairways or elevators are needed to
accommodate pedestrians in the parking area.
With the elimination of ramps, driving lanes, pedestrians and
the reduction in ceiling heights

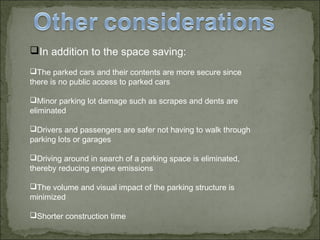

23. In addition to the space saving:
The parked cars and their contents are more secure since
there is no public access to parked cars
Minor parking lot damage such as scrapes and dents are
eliminated
Drivers and passengers are safer not having to walk through
parking lots or garages
Driving around in search of a parking space is eliminated,
thereby reducing engine emissions
The volume and visual impact of the parking structure is
minimized
Shorter construction time

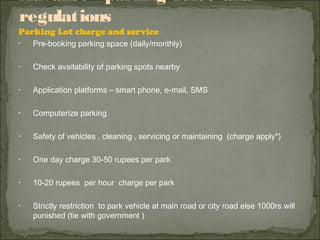

24. Advance parking rules and
regulations
Parking Lot charge and service
• Pre-booking parking space (daily/monthly)
• Check availability of parking spots nearby
• Application platforms – smart phone, e-mail, SMS
• Computerize parking
• Safety of vehicles , cleaning , servicing or maintaining (charge apply*)
• One day charge 30-50 rupees per park
• 10-20 rupees per hour charge per park
• Strictly restriction to park vehicle at main road or city road else 1000rs will
punished (tie with government )

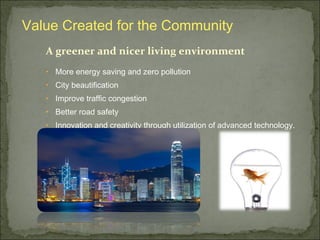

27. A greener and nicer living environment
• More energy saving and zero pollution
• City beautification
• Improve traffic congestion
• Better road safety
• Innovation and creativity through utilization of advanced technology.
Value Created for the Community

28. Space :
 One parking building have 4-5 floor each floor have capacity of 20-30 vehicles :
 80 -100 vehicles can containing in 4-5 floor building ,where minimum space
required for construct building may be 100-200sqm
 conventional open ground parking should have more space may be 1000-
1500sqm for park 100 cars or vehicles can park only
Charge (financial benefit annual only*)
 One parking 30-50 rupees then how much for 80-100 vehicles per day =4000 or
5000 rupees
 For annual benefits nearby =48000 or 50000
 this for one parking only
 Online booking apps benefits *
 Parking may made 10-15 in one city
 For make smart India whole city must required smart parking
 Minimum number of city in India 100 or 150 approximately
 Each city 15 parking 150X15=2250 parking
