Smart Mirror.pptx
- 1. Smart Mirror- ‘From yourface to our Art’ By Frontier Mirrors

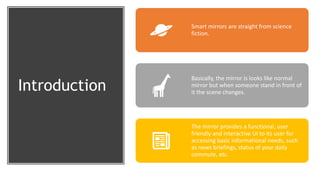

- 2. Introduction Smart mirrors arestraight from science fiction. Basically, the mirror is looks like normal mirror but when someone stand in front of it the scene changes. The mirror provides a functional, user friendly and interactive UI to its user for accessing basic informational needs, such as news briefings, status of your daily commute, etc.
- 3. The Making Components Functions Two-wayglass mirror To provide transparent and reflective surface Monitor Forms the display of mirror Raspberry Pi Forms the CPU of mirror IR Sensor To detect objects in front of the mirror Kinect Camera To click images Motion Sensor To be able to send gesture input to the raspberry pi Mircrophone For voice input Speakers For sound output LED Strips For ambient experience Depth sensor To give the software a field of depth of the surroundings( goes hand in hand with the motion sensor)
- 4.
- 5.
- 6.

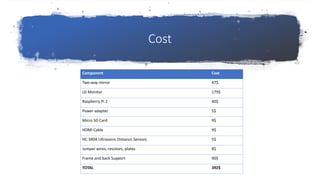

- 7. Cost Component Cost Two-way mirror47$ LG Monitor 179$ Raspberry Pi 2 40$ Power adapter 5$ Micro SD Card 9$ HDMI Cable 9$ HC-SR04 Ultrasonic Distance Sensors 5$ Jumper wires, resistors, plates 8$ Frame and back Support 90$ TOTAL 392$

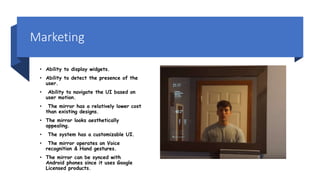

- 8. Marketing • Ability todisplay widgets. • Ability to detect the presence of the user. • Ability to navigate the UI based on user motion. • The mirror has a relatively lower cost than existing designs. • The mirror looks aesthetically appealing. • The system has a customizable UI. • The mirror operates on Voice recognition & Hand gestures. • The mirror can be synced with Android phones since it uses Google Licensed products.
- 9. Smart Mirror App Thisis the homepage of our App wherein the user can log in into his account.

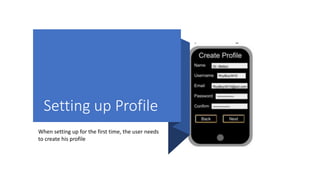

- 10. Setting up Profile Whensetting up for the first time, the user needs to create his profile

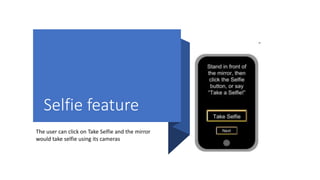

- 11. Selfie feature The usercan click on Take Selfie and the mirror would take selfie using its cameras

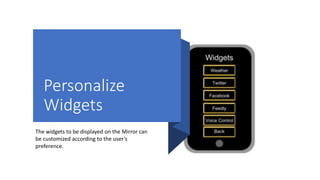

- 12. Personalize Widgets The widgets tobe displayed on the Mirror can be customized according to the user’s preference.

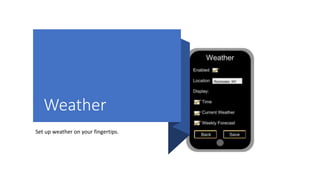

- 13. Weather Set up weatheron your fingertips.

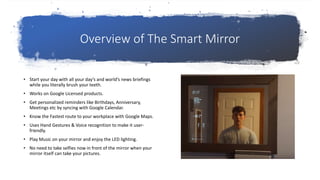

- 14. Overview of TheSmart Mirror • Start your day with all your day’s and world’s news briefings while you literally brush your teeth. • Works on Google Licensed products. • Get personalized reminders like Birthdays, Anniversary, Meetings etc by syncing with Google Calendar. • Know the Fastest route to your workplace with Google Maps. • Uses Hand Gestures & Voice recognition to make it user- friendly. • Play Music on your mirror and enjoy the LED lighting. • No need to take selfies now in front of the mirror when your mirror itself can take your pictures.
