1.
Smart
Home
Alarm
System
User
Manual
When
designing,
this
system
be
added
many
amazing
&
practical
new
features,
to
make
sure
a
better
smart
life.

2.

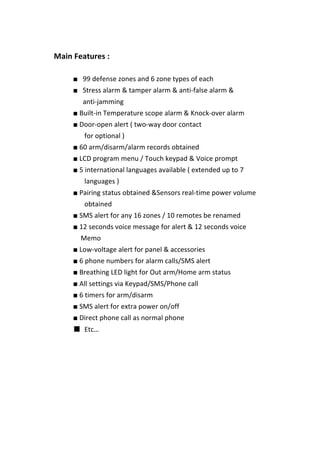

Main
Features
:
■ 99
defense
zones
and
6
zone
types
of
each
■ Stress
alarm
&
tamper
alarm
&
anti-­‐false
alarm
&
anti-­‐jamming
■
Built-­‐in
Temperature
scope
alarm
&
Knock-­‐over
alarm
■
Door-­‐open
alert
(
two-­‐way
door
contact
for
optional
)
■
60
arm/disarm/alarm
records
obtained
■
LCD
program
menu
/
Touch
keypad
&
Voice
prompt
■
5
international
languages
available
(
extended
up
to
7
languages
)
■
Pairing
status
obtained
&Sensors
real-­‐time
power
volume
obtained
■
SMS
alert
for
any
16
zones
/
10
remotes
be
renamed
■
12
seconds
voice
message
for
alert
&
12
seconds
voice
Memo
■
Low-­‐voltage
alert
for
panel
&
accessories
■
6
phone
numbers
for
alarm
calls/SMS
alert
■
Breathing
LED
light
for
Out
arm/Home
arm
status
■
All
settings
via
Keypad/SMS/Phone
call
■
6
timers
for
arm/disarm
■
SMS
alert
for
extra
power
on/off
■
Direct
phone
call
as
normal
phone
■ Etc…

3.
Panel
Diagram

4.

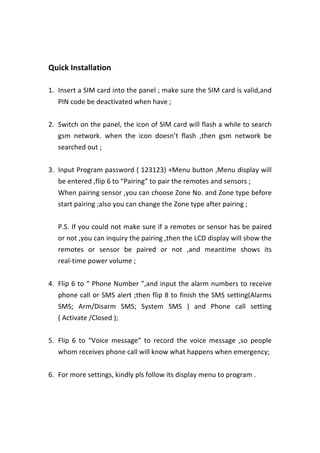

Quick
Installation
1. Insert
a
SIM
card
into
the
panel
;
make
sure
the
SIM
card
is
valid,and
PIN
code
be
deactivated
when
have
;
2. Switch
on
the
panel,
the
icon
of
SIM
card
will
flash
a
while
to
search
gsm
network.
when
the
icon
doesn’t
flash
,then
gsm
network
be
searched
out
;
3. Input
Program
password
(
123123)
+Menu
button
,Menu
display
will
be
entered
,flip
6
to
“Pairing”
to
pair
the
remotes
and
sensors
;
When
pairing
sensor
,you
can
choose
Zone
No.
and
Zone
type
before
start
pairing
;also
you
can
change
the
Zone
type
after
pairing
;
P.S.
If
you
could
not
make
sure
if
a
remotes
or
sensor
has
be
paired
or
not
,you
can
inquiry
the
pairing
,then
the
LCD
display
will
show
the
remotes
or
sensor
be
paired
or
not
,and
meantime
shows
its
real-­‐time
power
volume
;
4. Flip
6
to
“
Phone
Number
”,and
input
the
alarm
numbers
to
receive
phone
call
or
SMS
alert
;then
flip
8
to
finish
the
SMS
setting(Alarms
SMS;
Arm/Disarm
SMS;
System
SMS
)
and
Phone
call
setting
(
Activate
/Closed
);
5. Flip
6
to
“Voice
message”
to
record
the
voice
message
,so
people
whom
receives
phone
call
will
know
what
happens
when
emergency;
6. For
more
settings,
kindly
pls
follow
its
display
menu
to
program
.

5.

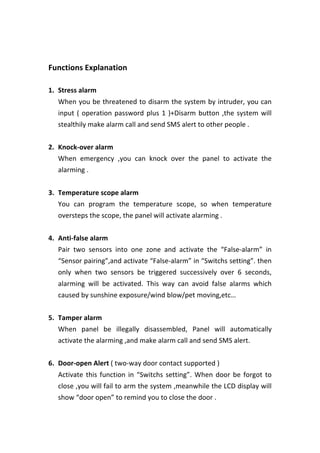

Functions
Explanation
1. Stress
alarm
When
you
be
threatened
to
disarm
the
system
by
intruder,
you
can
input
(
operation
password
plus
1
)+Disarm
button
,the
system
will
stealthily
make
alarm
call
and
send
SMS
alert
to
other
people
.
2. Knock-­‐over
alarm
When
emergency
,you
can
knock
over
the
panel
to
activate
the
alarming
.
3. Temperature
scope
alarm
You
can
program
the
temperature
scope,
so
when
temperature
oversteps
the
scope,
the
panel
will
activate
alarming
.
4. Anti-­‐false
alarm
Pair
two
sensors
into
one
zone
and
activate
the
“False-­‐alarm”
in
“Sensor
pairing”,and
activate
“False-­‐alarm”
in
“Switchs
setting”.
then
only
when
two
sensors
be
triggered
successively
over
6
seconds,
alarming
will
be
activated.
This
way
can
avoid
false
alarms
which
caused
by
sunshine
exposure/wind
blow/pet
moving,etc…
5. Tamper
alarm
When
panel
be
illegally
disassembled,
Panel
will
automatically
activate
the
alarming
,and
make
alarm
call
and
send
SMS
alert.
6. Door-­‐open
Alert
(
two-­‐way
door
contact
supported
)
Activate
this
function
in
“Switchs
setting”.
When
door
be
forgot
to
close
,you
will
fail
to
arm
the
system
,meanwhile
the
LCD
display
will
show
“door
open”
to
remind
you
to
close
the
door
.

6.
7. Voice
Memo
(12
seconds)
In
disarm
status,
long
press
9
via
panel,it
will
start
to
record
the
voice
memo
;long
press
7
via
panel
to
play
the
voice
memo
.
8. White
list
When
this
function
be
activated
,all
the
phone
numbers
you
input
are
in
white
list
by
default
.so
you
and
other
people
don’t
need
to
input
Operation
password
(
1234
)
to
receive
alarm
calls.
9. Arm/Disarm
Timers
Our
system
supports
6
timers
for
Arm/disarm
.

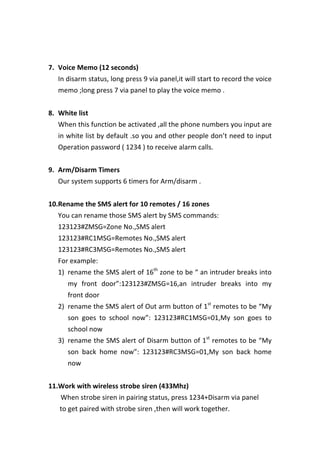

10.Rename
the
SMS
alert
for
10
remotes
/
16
zones
You
can
rename
those
SMS
alert
by
SMS
commands:
123123#ZMSG=Zone
No.,SMS
alert
123123#RC1MSG=Remotes
No.,SMS
alert
123123#RC3MSG=Remotes
No.,SMS
alert
For
example:
1) rename
the
SMS
alert
of
16th
zone
to
be
“
an
intruder
breaks
into
my
front
door”:123123#ZMSG=16,an
intruder
breaks
into
my
front
door
2) rename
the
SMS
alert
of
Out
arm
button
of
1st
remotes
to
be
“My
son
goes
to
school
now”:
123123#RC1MSG=01,My
son
goes
to
school
now
3) rename
the
SMS
alert
of
Disarm
button
of
1st
remotes
to
be
“My
son
back
home
now”:
123123#RC3MSG=01,My
son
back
home
now
11.Work
with
wireless
strobe
siren
(433Mhz)
When
strobe
siren
in
pairing
status,
press
1234+Disarm
via
panel
to
get
paired
with
strobe
siren
,then
will
work
together.

7.

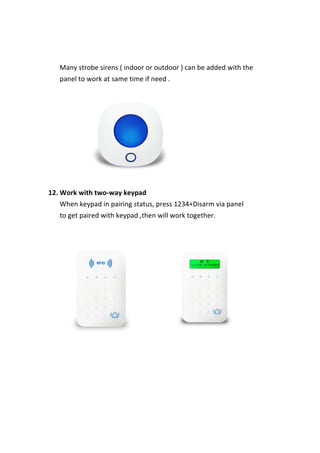

Many
strobe
sirens
(
indoor
or
outdoor
)
can
be
added
with
the
panel
to
work
at
same
time
if
need
.
12.
Work
with
two-­‐way
keypad
When
keypad
in
pairing
status,
press
1234+Disarm
via
panel
to
get
paired
with
keypad
,then
will
work
together.

8.
System
Settings
By
SMS
Commands
Besides
programming
on
panel,
this
system
can
be
finished
settings
remotely
by
SMS
commands.
Just
text
messages
to
panel
as
below,
the
correspondent
setting
will
be
finished
exactly
.
Time
for
delay
arm
:
123123#02X#
(X=00-­‐90;
60
by
default)
Time
for
delay
alarm:
123123#04X#
(X=00-­‐90;
00
by
default)
Time
for
delay
disarm:
123123#05X#
(X=00-­‐90;
00
by
default)
Siren
time:
123123#06X#
(X=00-­‐30;
01
by
default)
Backlight
:
123123#09X#
(X=000-­‐180;
030
by
default)
Built-­‐in
siren
volume:
123123#13X#
(X=0-­‐3,0-­‐mute,1-­‐low,2-­‐middle,3-­‐high;
3
by
default
)
Phone
number:
123123#41XY#
(X=
1-­‐6,Y=phone
number)
System
time:
123123#50YYMMDDHHMM#
(YY=Year;MM=Month;DD=Day;HH=Hour;MM=Minute)
Timer
for
Arm/Disarm:
123123#56XYZHHMM#
(X=1-­‐6;Y=0-­‐1,0-­‐closed,1-­‐activate;Z=1-­‐3,1-­‐Out
arm,2-­‐Home
arm,3-­‐Disarm;
)
Program
password:
123123#60X#
(X=password,
less
than
6
digit;
123123
by
default)

9.
Operation

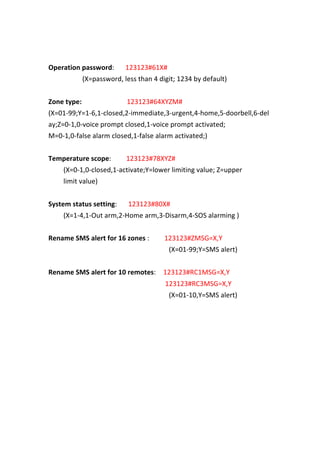

password:
123123#61X#
(X=password,
less
than
4
digit;
1234
by
default)
Zone
type:
123123#64XYZM#
(X=01-­‐99;Y=1-­‐6,1-­‐closed,2-­‐immediate,3-­‐urgent,4-­‐home,5-­‐doorbell,6-­‐del
ay;Z=0-­‐1,0-­‐voice
prompt
closed,1-­‐voice
prompt
activated;
M=0-­‐1,0-­‐false
alarm
closed,1-­‐false
alarm
activated;)
Temperature
scope:
123123#78XYZ#
(X=0-­‐1,0-­‐closed,1-­‐activate;Y=lower
limiting
value;
Z=upper
limit
value)
System
status
setting:
123123#80X#
(X=1-­‐4,1-­‐Out
arm,2-­‐Home
arm,3-­‐Disarm,4-­‐SOS
alarming
)
Rename
SMS
alert
for
16
zones
:
123123#ZMSG=X,Y
(X=01-­‐99;Y=SMS
alert)
Rename
SMS
alert
for
10
remotes:
123123#RC1MSG=X,Y
123123#RC3MSG=X,Y
(X=01-­‐10,Y=SMS
alert)

10.

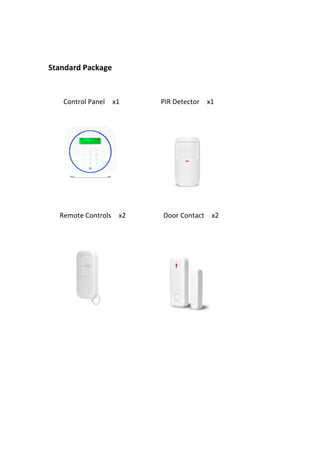

Standard
Package
Control
Panel
x1
PIR
Detector
x1
Remote
Controls
x2
Door
Contact
x2

11.

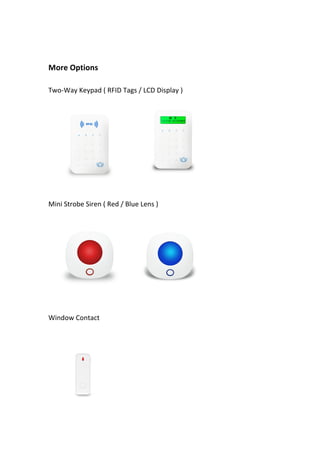

More
Options
Two-­‐Way
Keypad
(
RFID
Tags
/
LCD
Display
)
Mini
Strobe
Siren
(
Red
/
Blue
Lens
)
Window
Contact

12.

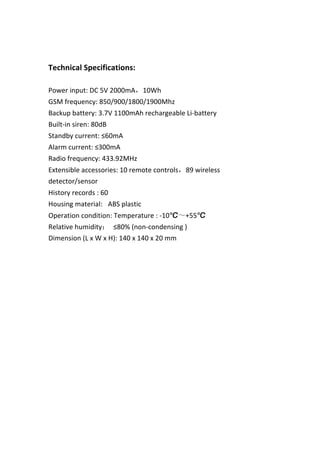

Technical
Specifications:
Power
input:
DC
5V
2000mA，10Wh
GSM
frequency:
850/900/1800/1900Mhz
Backup
battery:
3.7V
1100mAh
rechargeable
Li-­‐battery
Built-­‐in
siren:
80dB
Standby
current:
≤60mA
Alarm
current:
≤300mA
Radio
frequency:
433.92MHz
Extensible
accessories:
10
remote
controls，89
wireless
detector/sensor
History
records
:
60
Housing
material:
ABS
plastic
Operation
condition:
Temperature
:
-­‐10℃～+55℃
Relative
humidity：
≤80%
(non-­‐condensing
)
Dimension
(L
x
W
x
H):
140
x
140
x
20
mm
