SlingSecure Mobile Voice Encryption
The document outlines the SlingSecure network's approach to secure network convergence, focusing on encrypted communication between various devices across different networks, including mobile and PSTN. It details the architecture and features such as key management, authentication, and interconnection capabilities. The system supports secure voice and data communication, enabling secure applications across mobile platforms with customizable hardware and software solutions.
More Related Content
Similar to SlingSecure Mobile Voice Encryption
SlingSecure Mobile Voice Encryption
- 1.

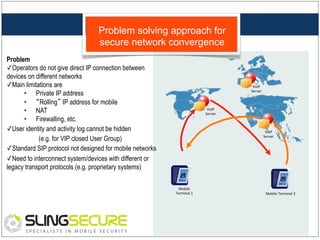

- 2. Problem solving approachfor secure network convergence Problem ✓ Operators do not give direct IP connection between devices on different networks ✓ Main limitations are • Private IP address • “Rolling” IP address for mobile • NAT • Firewalling, etc. ✓ User identity and activity log cannot be hidden (e.g. for VIP closed User Group) ✓ Standard SIP protocol not designed for mobile networks ✓ Need to interconnect system/devices with different or legacy transport protocols (e.g. proprietary systems) VoIP Server VoIP Server VoIP Server Mobile Terminal 1 Mobile Terminal 2

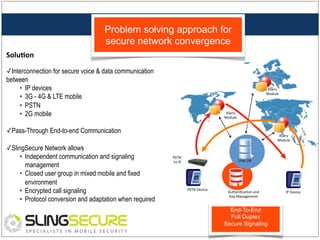

- 3. Problem solving approachfor secure network convergence Solu%on ✓ Interconnection for secure voice & data communication between • IP devices • 3G - 4G & LTE mobile • PSTN • 2G mobile XServ Module XServ Module ✓ Pass-Through End-to-end Communication ✓ SlingSecure Network allows • Independent communication and signaling management • Closed user group in mixed mobile and fixed environment • Encrypted call signaling • Protocol conversion and adaptation when required XServ Module PSTN to IP User DB PSTN Device Authen:ca:on and Key Management End-To-End Full Duplex Secure Signaling IP Device

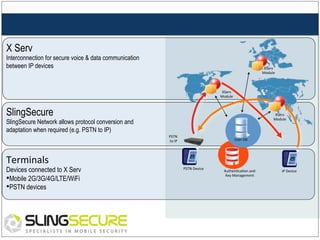

- 4. X Serv Interconnection forsecure voice & data communication between IP devices XServ Module XServ Module SlingSecure XServ Module SlingSecure Network allows protocol conversion and adaptation when required (e.g. PSTN to IP) PSTN to IP User DB Terminals Devices connected to X Serv • Mobile 2G/3G/4G/LTE/WiFi • PSTN devices PSTN Device Authen:ca:on and Key Management IP Device

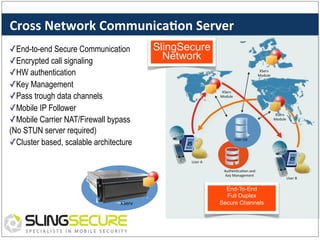

- 5. Cross Network Communica%on Server ✓ End-to-end Secure Communication ✓ Encrypted call signaling ✓ HW authentication ✓ Key Management ✓ Pass trough data channels ✓ Mobile IP Follower ✓ Mobile Carrier NAT/Firewall bypass (No STUN server required) ✓ Cluster based, scalable architecture SlingSecure Network XServ Module XServ Module XServ Module User DB User A Authen:ca:on and Key Management XServ End-To-End Full Duplex Secure Channels User B

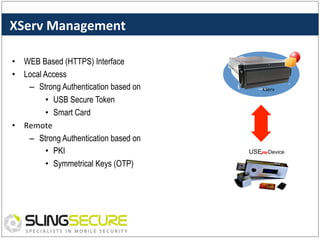

- 6. XServ Management • WEB Based (HTTPS) Interface • Local Access – Strong Authentication based on • USB Secure Token • Smart Card • Remote – Strong Authentication based on • PKI • Symmetrical Keys (OTP) XServ USEpro Device

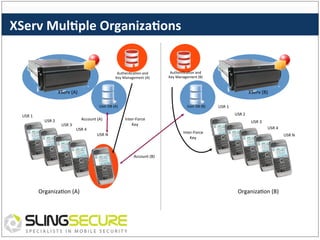

- 7. XServ Mul%ple Organiza%ons Authen:ca:on and Key Management (A) Authen:ca:on and Key Management (B) XServ (A) XServ (B) User DB (A) USR 1 USR 2 Account (A) USR 3 USR 4 User DB (B) USR 2 Inter-‐Force Key USR 3 Inter-‐Force Key USR N USR 1 USR 4 USR N Account (B) Organiza:on (A) Organiza:on (B)

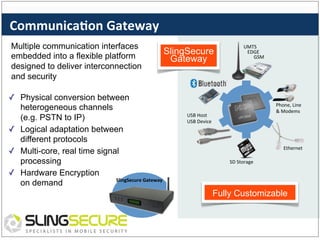

- 8. Communica%on Gateway Multiplecommunication interfaces embedded into a flexible platform designed to deliver interconnection and security SlingSecure Gateway ✓ Physical conversion between heterogeneous channels (e.g. PSTN to IP) ✓ Logical adaptation between different protocols ✓ Multi-core, real time signal processing ✓ Hardware Encryption SlingSecure Gateway on demand UMTS EDGE GSM Phone, Line & Modems USB Host USB Device Ethernet SD Storage Fully Customizable

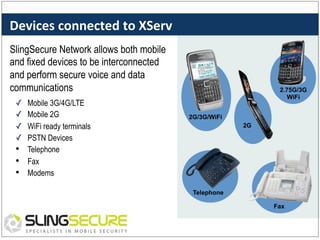

- 9. Devices connected to XServ SlingSecure Network allows both mobile and fixed devices to be interconnected and perform secure voice and data communications ✓ ✓ ✓ ✓ • • • Mobile 3G/4G/LTE Mobile 2G WiFi ready terminals PSTN Devices Telephone Fax Modems 2.75G/3G WiFi 2G/3G/WiFi 2G Telephone Fax

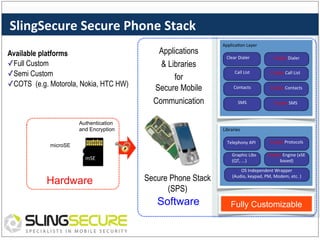

- 10. SlingSecure Secure Phone Stack Available platforms ✓ Full Custom ✓ Semi Custom ✓ COTS (e.g. Motorola, Nokia, HTC HW) Applications & Libraries for Secure Mobile Communication Authentication and Encryption Applica:on Layer Clear Dialer Crypto Dialer Call List Crypto Call List Contacts Crypto Contacts SMS Crypto SMS Libraries Crypto Protocols Graphic Libs Crypto Engine (xSE (QT, ...) based) OS Independent Wrapper (Audio, keypad, PM, Modem, etc. ) Telephony API microSE mSE Hardware Secure Phone Stack (SPS) Software Fully Customizable

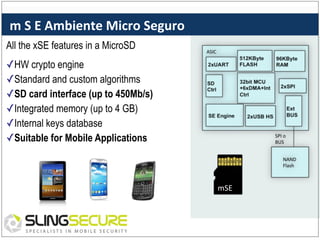

- 11. m S E Ambiente Micro Seguro All the xSE features in a MicroSD ASIC ✓ HW crypto engine ✓ Standard and custom algorithms ✓ SD card interface (up to 450Mb/s) ✓ Integrated memory (up to 4 GB) ✓ Internal keys database ✓ Suitable for Mobile Applications SPI o BUS NAND Flash mSE

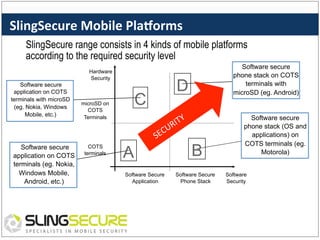

- 12. SlingSecure Mobile PlaDorms SlingSecure range consists in 4 kinds of mobile platforms according to the required security level Hardware Security Software secure application on COTS terminals with microSD (eg. Nokia, Windows Mobile, etc.) Software secure application on COTS terminals (eg. Nokia, Windows Mobile, Android, etc.) C microSD on COTS Terminals COTS terminals A Software Secure Application Software secure phone stack on COTS terminals with microSD (eg. Android) D B Software Secure Phone Stack Software secure phone stack (OS and applications) on COTS terminals (eg. Motorola) Software Security

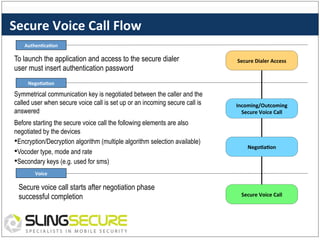

- 13. Secure Voice Call Flow Authen%ca%on To launch the application and access to the secure dialer user must insert authentication password Secure Dialer Access Nego%a%on Symmetrical communication key is negotiated between the caller and the called user when secure voice call is set up or an incoming secure call is answered Before starting the secure voice call the following elements are also negotiated by the devices • Encryption/Decryption algorithm (multiple algorithm selection available) • Vocoder type, mode and rate • Secondary keys (e.g. used for sms) Incoming/Outcoming Secure Voice Call Nego%a%on Voice Secure voice call starts after negotiation phase successful completion Secure Voice Call

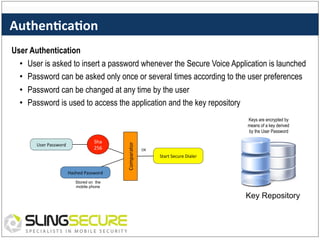

- 14. Authen%ca%on User Authentication • User is asked to insert a password whenever the Secure Voice Application is launched • Password can be asked only once or several times according to the user preferences • Password can be changed at any time by the user • Password is used to access the application and the key repository User Password Sha 256 Hashed Password Comparator Keys are encrypted by means of a key derived by the User Password OK Start Secure Dialer Stored on the mobile phone Key Repository

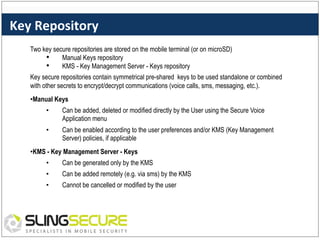

- 15. Key Repository Twokey secure repositories are stored on the mobile terminal (or on microSD) • Manual Keys repository • KMS - Key Management Server - Keys repository Key secure repositories contain symmetrical pre-shared keys to be used standalone or combined with other secrets to encrypt/decrypt communications (voice calls, sms, messaging, etc.). • Manual Keys • Can be added, deleted or modified directly by the User using the Secure Voice Application menu • Can be enabled according to the user preferences and/or KMS (Key Management Server) policies, if applicable • KMS - Key Management Server - Keys • Can be generated only by the KMS • Can be added remotely (e.g. via sms) by the KMS • Cannot be cancelled or modified by the user

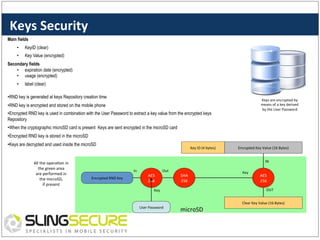

- 16. Keys Security Mainfields • KeyID (clear) • Key Value (encrypted) Secondary fields • expiration date (encrypted) • usage (encrypted) • label (clear) • RND key is generated at keys Repository creation time Keys are encrypted by means of a key derived by the User Password • RND key is encrypted and stored on the mobile phone • Encrypted RND key is used in combination with the User Password to extract a key value from the encrypted keys Repository • When the cryptographic microSD card is present Keys are sent encrypted in the microSD card • Encrypted RND key is stored in the microSD • Keys are decrypted and used inside the microSD All the opera:on in the green area are performed in the microSD, if present Key ID (4 bytes) Encrypted Key Value (16 Bytes) IN In Encrypted RND Key AES 256 Out SHA 256 AES 256 OUT Key User Password Key microSD Clear Key Value (16 Bytes)
- 17. Voice Call Key nego%a%on Symmetric keys used to encrypt/decrypt communications can be created in three different ways 1) Pre-Shared keys • two lists of pre-shared keys are available: • manual • KMS generated • One of the pre-shared keys the caller and the called user have in common, is selected at negotiation time to encrypt/decrypt the voice call 2) DH Diffie Hellman - Standard or Elliptic Curves based • A symmetrical session key is negotiated at call time • Standard DH version based on 4096 bit keys • Elliptic Curves DH version is based on 571 bit keys, Koblitz GF(2m) configuration • The final Session key is the hash of DH result 3) A combination of the first two modes • The final Session key is a combination of the two previous keys: SHA256(DH | SK) Note: A Family Key can be added to all the previous mechanisms in order to create (sub)groups

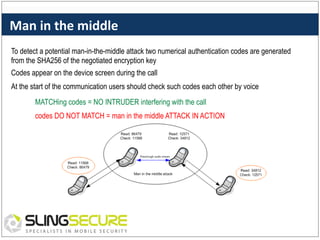

- 18. Man in the middle To detect a potential man-in-the-middle attack two numerical authentication codes are generated from the SHA256 of the negotiated encryption key Codes appear on the device screen during the call At the start of the communication users should check such codes each other by voice MATCHing codes = NO INTRUDER interfering with the call codes DO NOT MATCH = man in the middle ATTACK IN ACTION

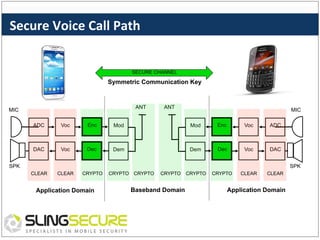

- 19. Secure Voice Call Path SECURE CHANNEL Symmetric Communication Key ANT MIC ANT MIC ADC Voc Enc Mod Mod Enc Voc ADC DAC Voc Dec Dem Dem Dec Voc DAC SPK SPK CLEAR CLEAR CRYPTO Application Domain CRYPTO CRYPTO CRYPTO Baseband Domain CRYPTO CRYPTO CLEAR CLEAR Application Domain
- 20. Applica%on Voice Processing • Access to microphone and speaker using the OS APIs • Get 8KHz/16bit (128Kbit/s) Audio Samples from Mic • Put 8KHz/16bit (128Kbit/s) Audio Samples to Speakers • Compression of Audio Samples to a GSM/UMTS suitable rate using standard or custom Vocoders • Encoding of microphone audio samples (from 128Kbit/s to ~5Kbit/s) • Decoding of speaker audio samples (from ~5Kbit/s to 128Kbit/s) • The vocoder can be exposed by the operating system or written in native language • Voice Encryption/Decryption • Encryption of encoded microphone audio samples • Decryption of encoded speaker audio samples • Cryptographic operations are performed by a dedicated HW or SW module
- 21. Voice Processing Components Get Audio Samples Audio Samples Encoding Encoded Audio Samples Encryption Send Data Audio Libraries Standard or Custom Vocoders Crypto Library Telephony API Audio Drivers MicroSD/Mass Storage Drivers Baseband COM Audio Codec and Microphone Cryptographic MicroSD Baseband Processor Application Libraries Drivers Hardware Only for HW Crypto Engine (e.g. microSD) SlingSecure provided Operating System (e.g. by phone manufacturer) * This diagram describes only the voice path from the microphone to the radio transmission

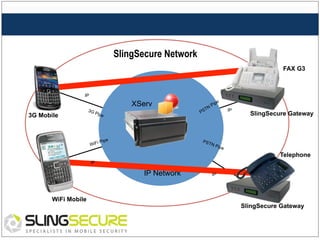

- 22. SlingSecure Network FAX G3 IP XServ IP 3GMobile i Pip WiF SlingSecure Gateway e Telephone IP IP Network WiFi Mobile IP SlingSecure Gateway

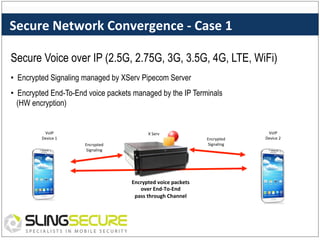

- 23. Secure Network Convergence -‐ Case 1 Secure Voice over IP (2.5G, 2.75G, 3G, 3.5G, 4G, LTE, WiFi) • Encrypted Signaling managed by XServ Pipecom Server • Encrypted End-To-End voice packets managed by the IP Terminals (HW encryption) VoIP Device 1 X Serv Encrypted Signaling Encrypted voice packets over End-‐To-‐End pass through Channel Encrypted Signaling VoIP Device 2

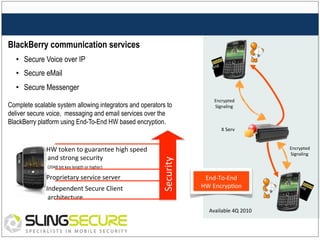

- 24. BlackBerry communication services • Secure Voice over IP • Secure eMail • Secure Messenger Complete scalable system allowing integrators and operators to deliver secure voice, messaging and email services over the BlackBerry platform using End-To-End HW based encryption. Encrypted Signaling HW token to guarantee high speed and strong security (2048 bit key length or higher) Proprietary service server Independent Secure Client architecture Security X Serv Encrypted Signaling End-‐To-‐End HW Encryp:on Available 4Q 2010

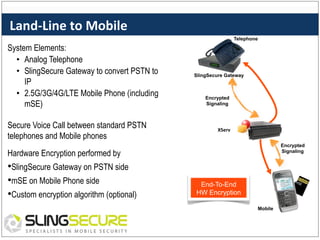

- 25. Land-‐Line to Mobile Telephone System Elements: • Analog Telephone • SlingSecure Gateway to convert PSTN to IP • 2.5G/3G/4G/LTE Mobile Phone (including mSE) Secure Voice Call between standard PSTN telephones and Mobile phones SlingSecure Gateway Encrypted Signaling XServ Encrypted Signaling Hardware Encryption performed by • SlingSecure Gateway on PSTN side • mSE on Mobile Phone side • Custom encryption algorithm (optional) End-To-End HW Encryption Mobile

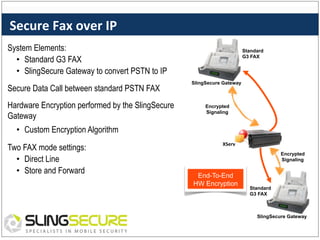

- 26. Secure Fax over IP System Elements: • Standard G3 FAX • SlingSecure Gateway to convert PSTN to IP Secure Data Call between standard PSTN FAX Hardware Encryption performed by the SlingSecure Gateway Standard G3 FAX SlingSecure Gateway Encrypted Signaling • Custom Encryption Algorithm Two FAX mode settings: • Direct Line • Store and Forward XServ Encrypted Signaling End-To-End HW Encryption Standard G3 FAX SlingSecure Gateway

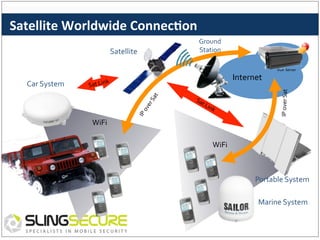

- 27. Satellite Worldwide Connec%on Satellite Internet k Sat Lin VoIP Server IP over Sat Car System Ground Station WiFi WiFi Portable System Marine System

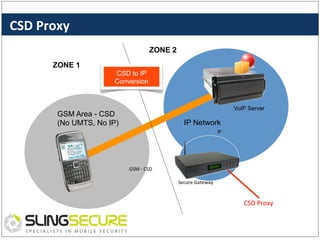

- 28. CSD Proxy ZONE2 ZONE 1 CSD to IP Conversion VoIP Server GSM Area - CSD (No UMTS, No IP) IP Network IP GSM -‐ CSD Secure Gateway CSD Proxy

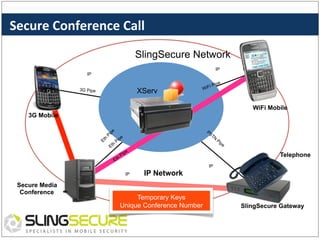

- 29. Secure Conference Call SlingSecure Network IP IP XServ 3G Pipe WiFi Mobile 3G Mobile Telephone IP IP Secure Media Conference IP Network Temporary Keys Unique Conference Number SlingSecure Gateway

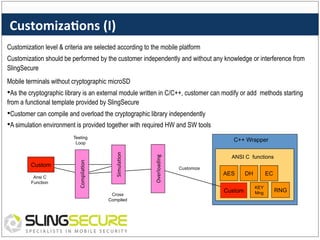

- 30. Customiza%ons (I) Customizationlevel & criteria are selected according to the mobile platform Customization should be performed by the customer independently and without any knowledge or interference from SlingSecure Mobile terminals without cryptographic microSD • As the cryptographic library is an external module written in C/C++, customer can modify or add methods starting from a functional template provided by SlingSecure • Customer can compile and overload the cryptographic library independently • A simulation environment is provided together with required HW and SW tools Cross Compiled Overloading Ansi C Function C++ Wrapper Simula:on Custom Compila:on Testing Loop ANSI C functions Customize AES Custom DH EC KEY Mng RNG

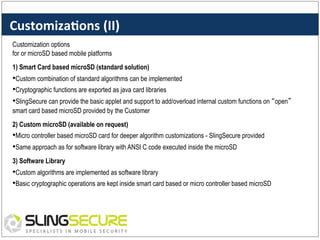

- 31. Customiza%ons (II) Customizationoptions for or microSD based mobile platforms 1) Smart Card based microSD (standard solution) • Custom combination of standard algorithms can be implemented • Cryptographic functions are exported as java card libraries • SlingSecure can provide the basic applet and support to add/overload internal custom functions on “open” smart card based microSD provided by the Customer 2) Custom microSD (available on request) • Micro controller based microSD card for deeper algorithm customizations - SlingSecure provided • Same approach as for software library with ANSI C code executed inside the microSD 3) Software Library • Custom algorithms are implemented as software library • Basic cryptographic operations are kept inside smart card based or micro controller based microSD

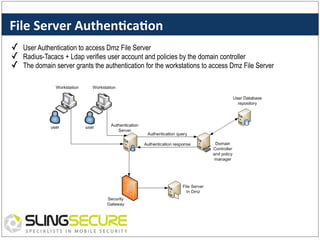

- 32. File Server Authen%ca%on ✓ ✓ ✓ User Authentication to access Dmz File Server Radius-Tacacs + Ldap verifies user account and policies by the domain controller The domain server grants the authentication for the workstations to access Dmz File Server

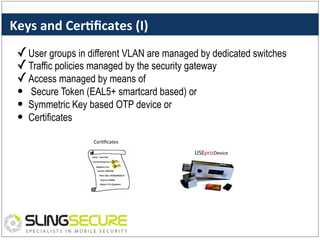

- 33. Keys and Cer%ficates (I) ✓ User groups in different VLAN are managed by dedicated switches ✓ Traffic policies managed by the security gateway ✓ Access managed by means of • Secure Token (EAL5+ smartcard based) or • Symmetric Key based OTP device or • Certificates Cer:ficates USEpro Device

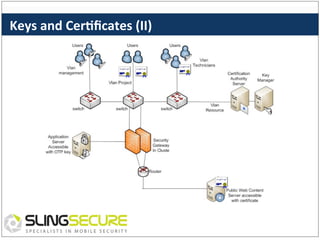

- 34. Keys and Cer%ficates (II)

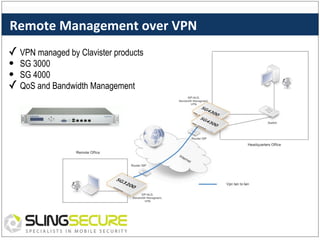

- 35. Remote Management over VPN ✓ VPN managed by Clavister products • SG 3000 • SG 4000 ✓ QoS and Bandwidth Management

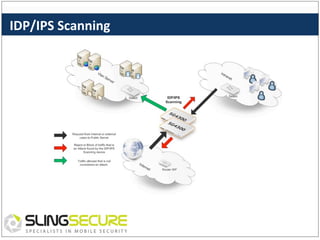

- 36.
- 37. SlingSecure products arebacked up by the support of the engineering and design team for ü Cost effectiveness ü Smooth system integration ü Timely solution delivery The high level service & support for all SlingSecure View products allows the Customer to reach the desired result with the best cost to performance ratio
