1. DETAILED ENGINEERING OF INDUSTRIAL
TELECOMMUNICATION AND SECURITY
SYSTEMS
SUBMITTED TO
ELECTRONICS DEPARTMENT
J.C. BOSE UNIVERSITY OF SCIENCE AND TECHNOLOGY, YMCA, FARIDABAD
SUBMITTED BY- RAHUL DEHARWAL
EIC- 18001009511

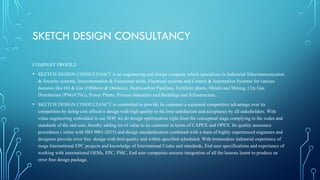

2. SKETCH DESIGN CONSULTANCY
COMPANY PROFILE:
• SKETCH DESIGN CONSULTANCY is an engineering and design company which specializes in Industrial Telecommunication
& Security systems, Instrumentation & Functional skids, Electrical systems and Control & Automation Systems for various
domains like Oil & Gas (Offshore & Onshore), Hydrocarbon Pipelines, Fertilizer plants, Metals and Mining, City Gas
Distribution (PNG/CNG), Power Plants, Process Industries and Buildings and Infrastructure.
• SKETCH DESIGN CONSULTANCY is committed to provide its customer a sustained competitive advantage over its
competitors by doing cost effective design with high quality to the best satisfaction and acceptance by all stakeholders. With
value engineering embedded in our SOP, we do design optimization right from the conceptual stage complying to the codes and
standards of the end user, thereby adding lot of value to its customer in terms of CAPEX and OPEX. Its quality assurance
procedures ( inline with ISO 9001-2015) and design standardization combined with a team of highly experienced engineers and
designers provide error free design with best quality and within specified scheduled. With tremendous industrial experience of
mega International EPC projects and knowledge of International Codes and standards, End user specifications and experience of
working with international OEMs, EPC, PMC, End user companies ensures integration of all the lessons learnt to produce an
error free design package.

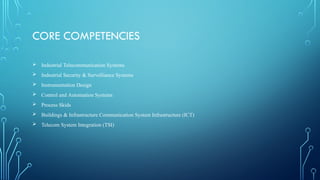

3. CORE COMPETENCIES
 Industrial Telecommunication Systems
 Industrial Security & Survelliance Systems
 Instrumentation Design
 Control and Automation Systems
 Process Skids
 Buildings & Infrastructure Communication System Infrastructure (ICT)
 Telecom System Integration (TSI)

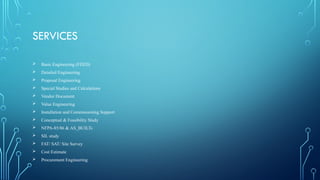

4. SERVICES
 Basic Engineering (FEED)
 Detailed Engineering
 Proposal Engineering
 Special Studies and Calculations
 Vendor Document
 Value Engineering
 Installation and Commissioning Support
 Conceptual & Feasibility Study
 NFPA-85/86 & AS_BUILTs
 SIL study
 FAT/ SAT/ Site Survey
 Cost Estimate
 Procurement Engineering

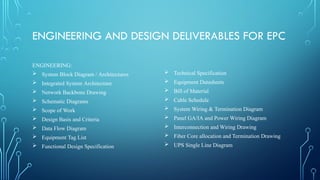

5. ENGINEERING AND DESIGN DELIVERABLES FOR EPC
ENGINEERING:
 System Block Diagram / Architectures
 Integrated System Architecture
 Network Backbone Drawing
 Schematic Diagrams
 Scope of Work
 Design Basis and Criteria
 Data Flow Diagram
 Equipment Tag List
 Functional Design Specification
 Technical Specification
 Equipment Datasheets
 Bill of Material
 Cable Schedule
 System Wiring & Termination Diagram
 Panel GA/IA and Power Wiring Diagram
 Interconnection and Wiring Drawing
 Fiber Core allocation and Termination Drawing
 UPS Single Line Diagram

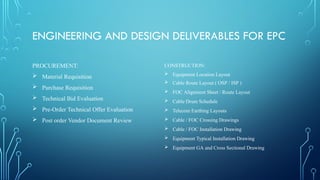

6. ENGINEERING AND DESIGN DELIVERABLES FOR EPC
PROCUREMENT:
 Material Requisition
 Purchase Requisition
 Technical Bid Evaluation
 Pre-Order Technical Offer Evaluation
 Post order Vendor Document Review
CONSTRUCTION:
 Equipment Location Layout
 Cable Route Layout ( OSP / ISP )
 FOC Alignment Sheet / Route Layout
 Cable Drum Schedule
 Telecom Earthing Layouts
 Cable / FOC Crossing Drawings
 Cable / FOC Installation Drawing
 Equipment Typical Installation Drawing
 Equipment GA and Cross Sectional Drawing

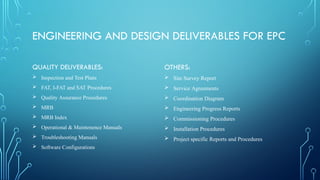

7. ENGINEERING AND DESIGN DELIVERABLES FOR EPC
QUALITY DELIVERABLES:
 Inspection and Test Plans
 FAT, I-FAT and SAT Procedures
 Quality Assurance Procedures
 MRB
 MRB Index
 Operational & Maintenence Manuals
 Troubleshooting Manuals
 Software Configurations
OTHERS:
 Site Survey Report
 Service Agreements
 Coordination Diagram
 Engineering Progress Reports
 Commissioning Procedures
 Installation Procedures
 Project specific Reports and Procedures

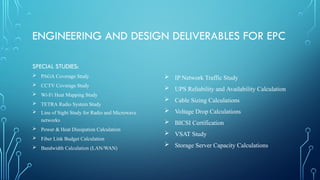

8. ENGINEERING AND DESIGN DELIVERABLES FOR EPC
SPECIAL STUDIES:
 PAGA Coverage Study
 CCTV Coverage Study
 Wi-Fi Heat Mapping Study
 TETRA Radio System Study
 Line of Sight Study for Radio and Microwave
networks
 Power & Heat Dissipation Calculation
 Fiber Link Budget Calculation
 Bandwidth Calculation (LAN/WAN)
 IP Network Traffic Study
 UPS Reliability and Availability Calculation
 Cable Sizing Calculations
 Voltage Drop Calculations
 BICSI Certification
 VSAT Study
 Storage Server Capacity Calculations

9. PROJECTS SPREAD:

10. CLIENTS

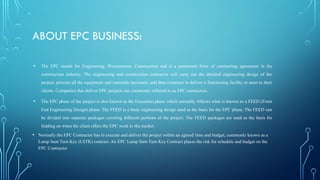

11. ABOUT EPC BUSINESS:
• The EPC stands for Engineering, Procurement, Construction and is a prominent form of contracting agreement in the
construction industry. The engineering and construction contractor will carry out the detailed engineering design of the
project, procure all the equipment and materials necessary, and then construct to deliver a functioning facility or asset to their
clients. Companies that deliver EPC projects are commonly referred to as EPC contractors.
• The EPC phase of the project is also known as the Execution phase which normally follows what is known as a FEED (Front
End Engineering Design) phase. The FEED is a basic engineering design used as the basis for the EPC phase. The FEED can
be divided into separate packages covering different portions of the project. The FEED packages are used as the basis for
bidding on when the client offers the EPC work to the market.
• Normally the EPC Contractor has to execute and deliver the project within an agreed time and budget, commonly known as a
Lump Sum Turn Key (LSTK) contract. An EPC Lump Sum Turn Key Contract places the risk for schedule and budget on the
EPC Contractor

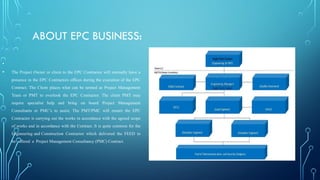

12. ABOUT EPC BUSINESS:
•
• The Project Owner or client to the EPC Contractor will normally have a
presence in the EPC Contractors offices during the execution of the EPC
Contract. The Client places what can be termed as Project Management
Team or PMT to overlook the EPC Contractor. The client PMT may
require specialist help and bring on board Project Management
Consultants or PMC’s to assist. The PMT/PMC will ensure the EPC
Contractor is carrying out the works in accordance with the agreed scope
of works and in accordance with the Contract. It is quite common for the
Engineering and Construction Contractor which delivered the FEED to
be offered a Project Management Consultancy (PMC) Contract.

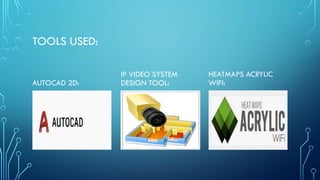

13. TOOLS USED:
AUTOCAD 2D:
IP VIDEO SYSTEM
DESIGN TOOL:
HEATMAPS ACRYLIC
WIFI:

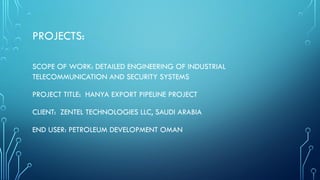

14. PROJECTS:
SCOPE OF WORK: DETAILED ENGINEERING OF INDUSTRIAL
TELECOMMUNICATION AND SECURITY SYSTEMS
PROJECT TITLE: HANYA EXPORT PIPELINE PROJECT
CLIENT: ZENTEL TECHNOLOGIES LLC, SAUDI ARABIA
END USER: PETROLEUM DEVELOPMENT OMAN

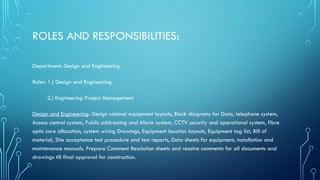

15. ROLES AND RESPONSIBILITIES:
Department: Design and Engineering
Roles: 1.) Design and Engineering
2.) Engineering Project Management
Design and Engineering: Design cabinet equipment layouts, Block diagrams for Data, telephone system,
Access control system, Public addressing and Alarm system, CCTV security and operational system, fibre
optic core allocation, system wiring Drawings, Equipment location layouts, Equipment tag list, Bill of
material, Site acceptance test procedure and test reports, Data sheets for equipment, installation and
maintenance manuals. Prepare Comment Resolution sheets and resolve comments for all documents and
drawings till final approval for construction.

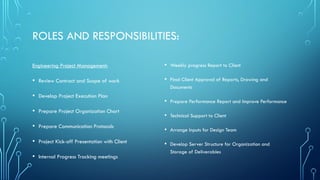

16. ROLES AND RESPONSIBILITIES:
Engineering Project Management:
• Review Contract and Scope of work
• Develop Project Execution Plan
• Prepare Project Organization Chart
• Prepare Communication Protocols
• Project Kick-off Presentation with Client
• Internal Progress Tracking meetings
• Weekly progress Report to Client
• Final Client Approval of Reports, Drawing and
Documents
• Prepare Performance Report and Improve Performance
• Technical Support to Client
• Arrange Inputs for Design Team
• Develop Server Structure for Organization and
Storage of Deliverables

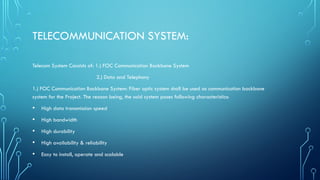

17. TELECOMMUNICATION SYSTEM:
Telecom System Consists of: 1.) FOC Communication Backbone System
2.) Data and Telephony
1.) FOC Communication Backbone System: Fiber optic system shall be used as communication backbone
system for the Project. The reason being, the said system poses following characteristics:
• High data transmission speed
• High bandwidth
• High durability
• High availability & reliability
• Easy to install, operate and scalable

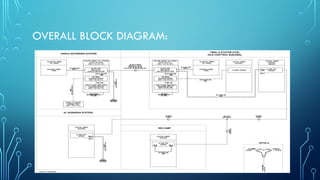

18. OVERALL BLOCK DIAGRAM:

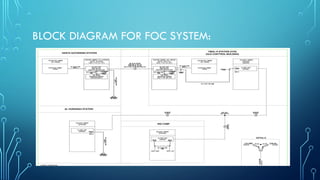

19. BLOCK DIAGRAM FOR FOC SYSTEM:

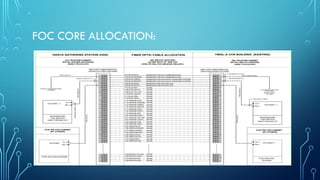

20. FOC CORE ALLOCATION:

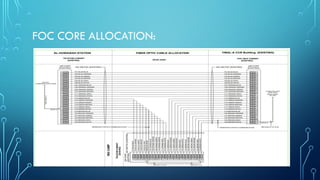

21. FOC CORE ALLOCATION:

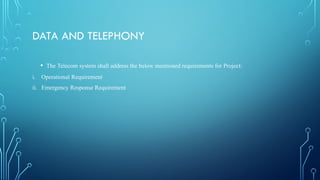

22. DATA AND TELEPHONY
• The Telecom system shall address the below mentioned requirements for Project:
i. Operational Requirement
ii. Emergency Response Requirement

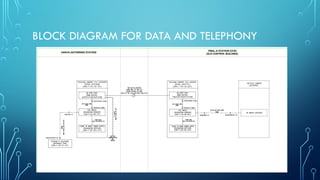

23. BLOCK DIAGRAM FOR DATA AND TELEPHONY

24. TELECOM CABLE SCHEDULE

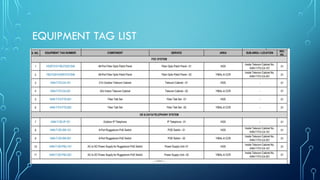

25. EQUIPMENT TAG LIST

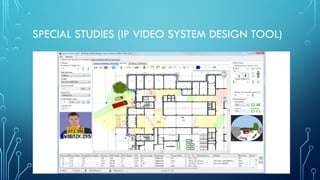

26. SPECIAL STUDIES (IP VIDEO SYSTEM DESIGN TOOL)

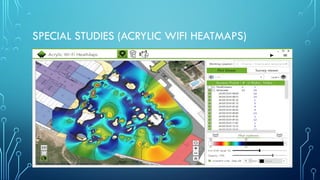

27. SPECIAL STUDIES (ACRYLIC WIFI HEATMAPS)

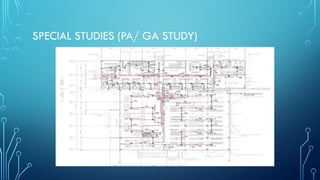

28. SPECIAL STUDIES (PA/ GA STUDY)

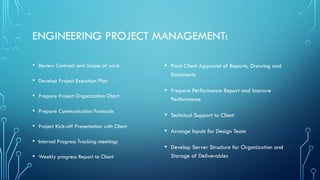

29. ENGINEERING PROJECT MANAGEMENT:
• Review Contract and Scope of work
• Develop Project Execution Plan
• Prepare Project Organization Chart
• Prepare Communication Protocols
• Project Kick-off Presentation with Client
• Internal Progress Tracking meetings
• Weekly progress Report to Client
• Final Client Approval of Reports, Drawing and
Documents
• Prepare Performance Report and Improve
Performance
• Technical Support to Client
• Arrange Inputs for Design Team
• Develop Server Structure for Organization and
Storage of Deliverables

30. WEEKLY PROGRESS REPORT

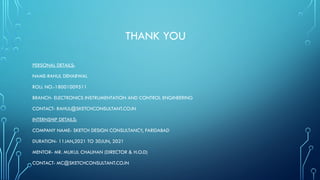

31. THANK YOU
PERSONAL DETAILS:
NAME-RAHUL DEHARWAL
ROLL NO.-18001009511
BRANCH- ELECTRONICS INSTRUMENTATION AND CONTROL ENGINEERING
CONTACT- RAHUL@SKETCHCONSULTANT.CO.IN
INTERNSHIP DETAILS:
COMPANY NAME- SKETCH DESIGN CONSULTANCY, FARIDABAD
DURATION- 11JAN,2021 TO 30JUN, 2021
MENTOR- MR. MUKUL CHAUHAN (DIRECTOR & H.O.D)
CONTACT- MC@SKETCHCONSULTANT.CO.IN
