Single page applications (SPAs) use a single web page and JavaScript to provide a fluid user experience similar to a desktop application. The document discusses building SPAs with JavaScript and ASP.NET MVC. It covers SPA architecture with a client-side application and data services, server-side design using ASP.NET Web API and Entity Framework, and JavaScript patterns like AMD and MVVM. Bundling and minification are used to reduce page load size. The SPA is bootstrapped on the initial page load to prime data and setup the presentation using various JavaScript libraries.

1. SINGLE PAGE
APPLICATIONS WITH
JAVASCRIPT AND ASP.NET
MVC4
Author: Yurii Shapovalov
Yurii_Shapovalov@epam.com

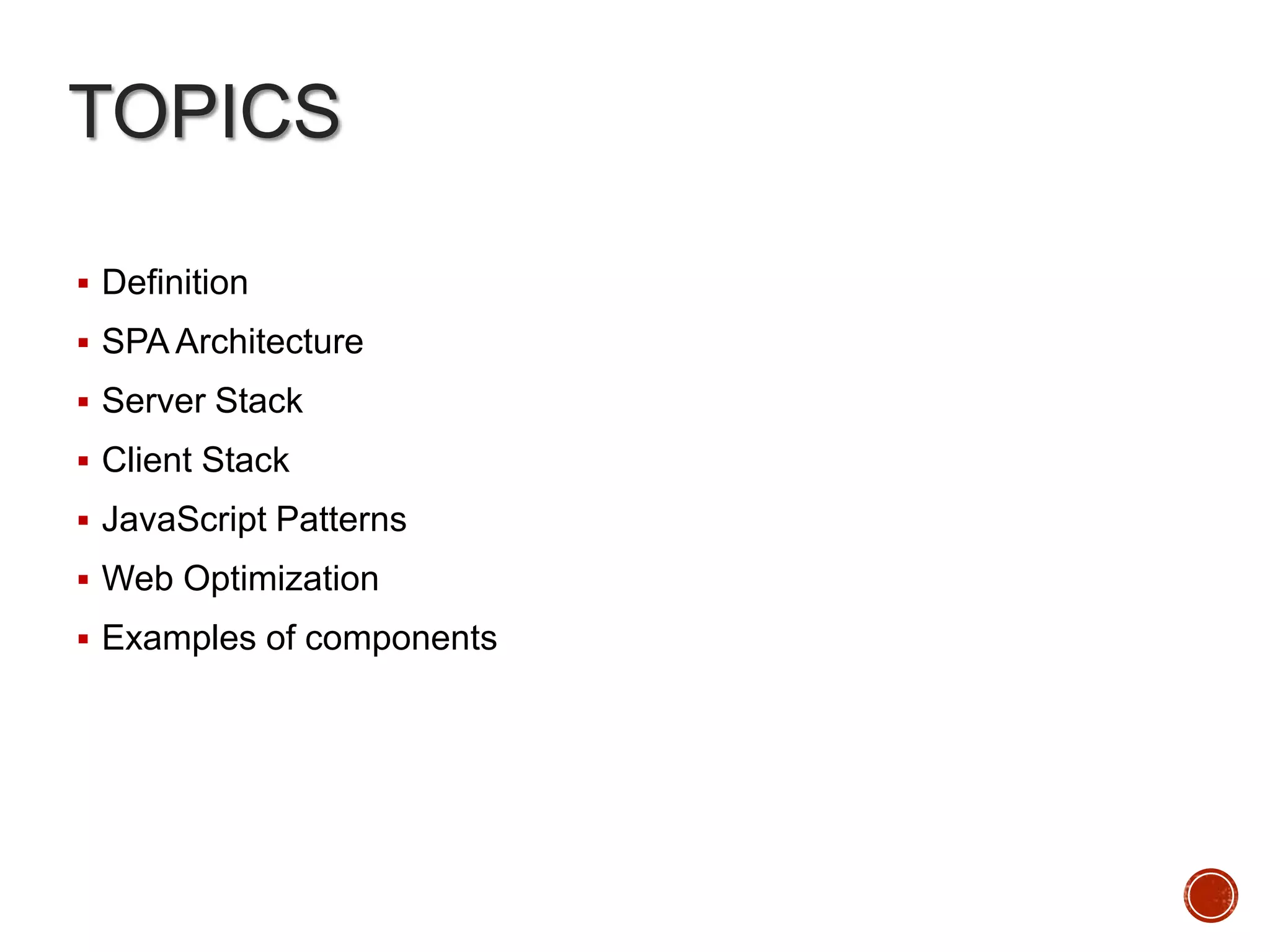

2. TOPICS
 Definition
 SPA Architecture
 Server Stack
 Client Stack
 JavaScript Patterns
 Web Optimization
 Examples of components

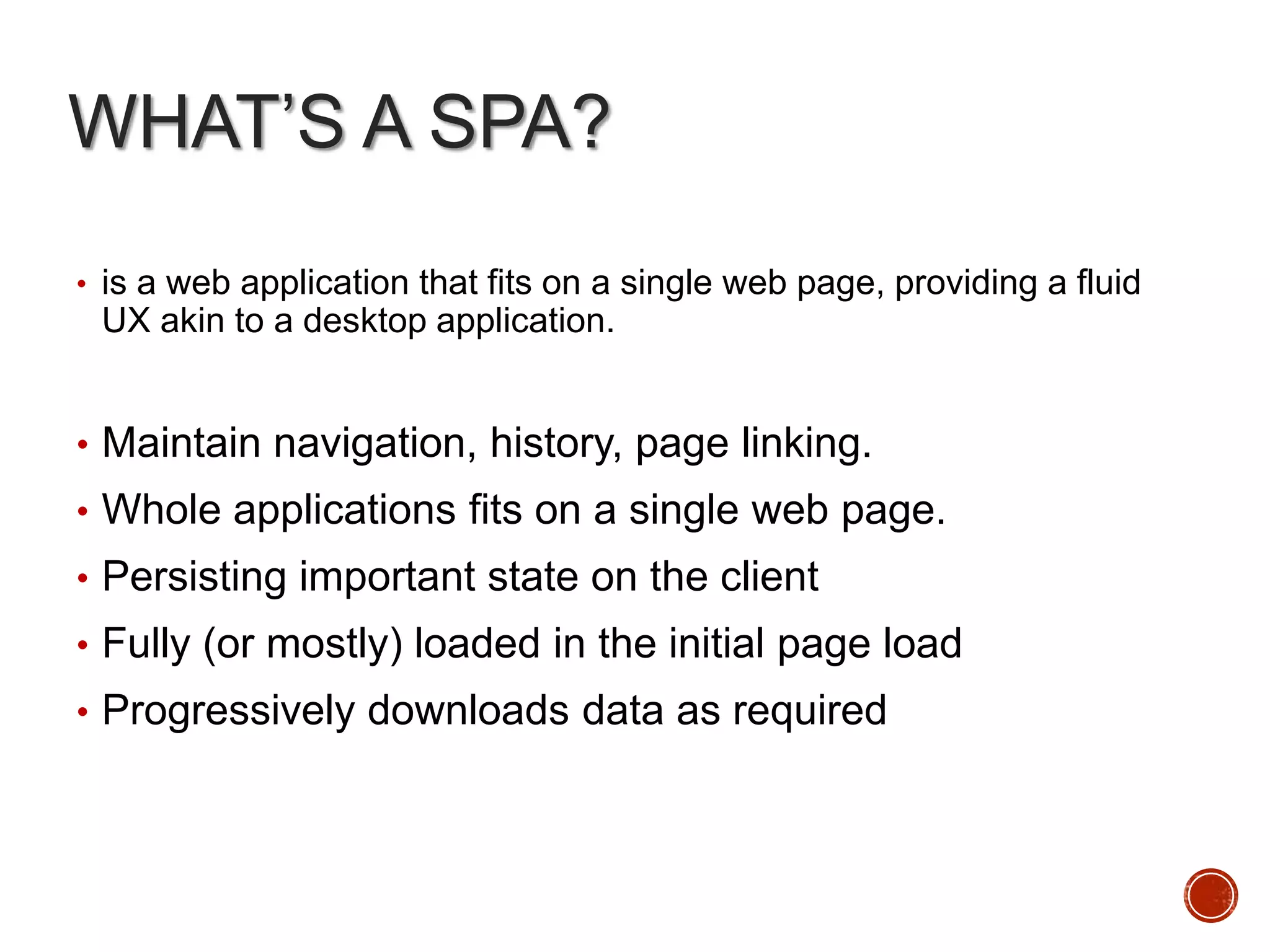

3. WHAT’S A SPA?
• is a web application that fits on a single web page, providing a fluid
UX akin to a desktop application.
• Maintain navigation, history, page linking.
• Whole applications fits on a single web page.
• Persisting important state on the client
• Fully (or mostly) loaded in the initial page load
• Progressively downloads data as required

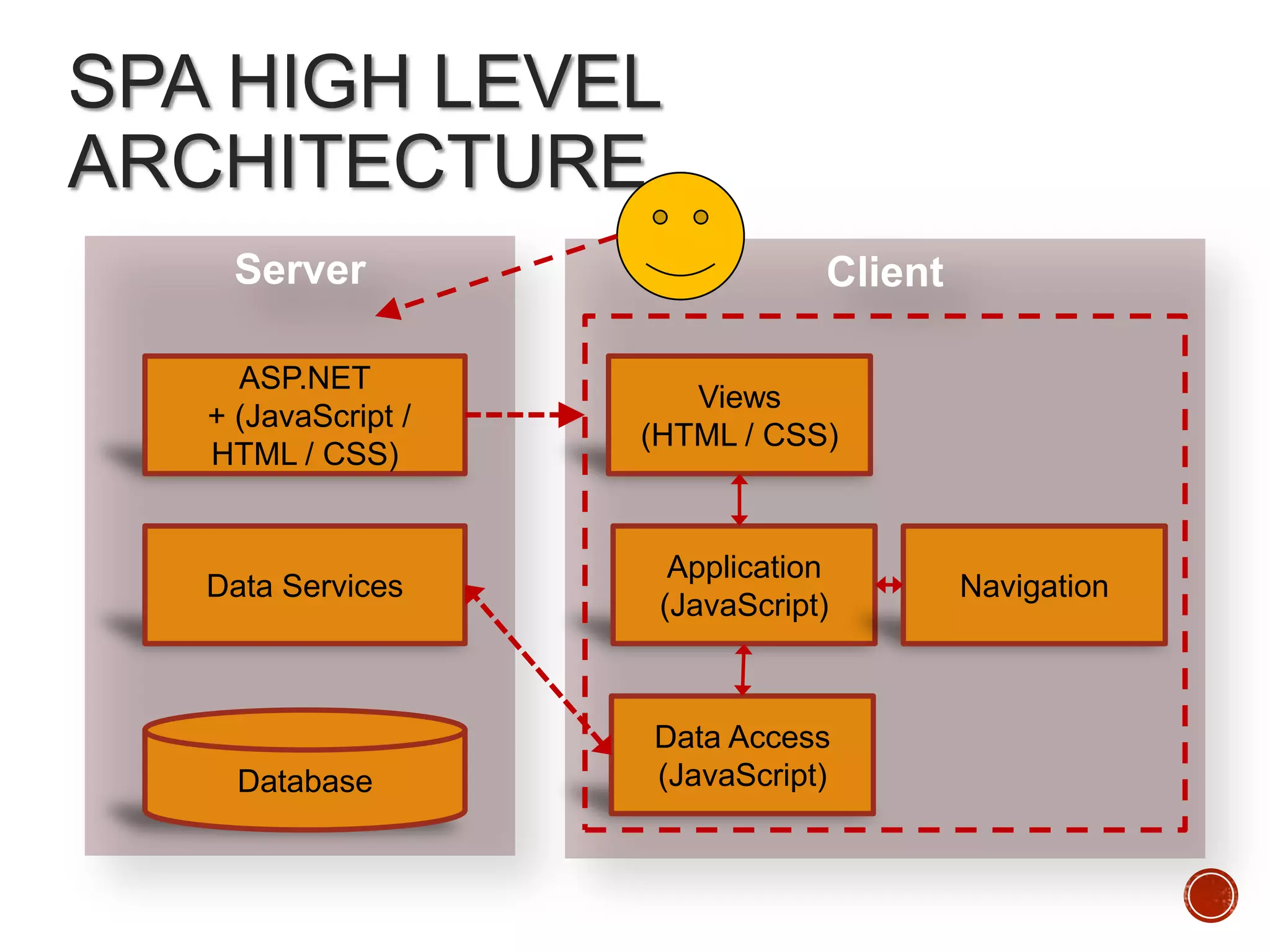

4. SPA HIGH LEVEL
ARCHITECTURE
Server
Client
ASP.NET
+ (JavaScript /
HTML / CSS)
Views
(HTML / CSS)
Data Services
Application
(JavaScript)
Database
Data Access
(JavaScript)
Navigation

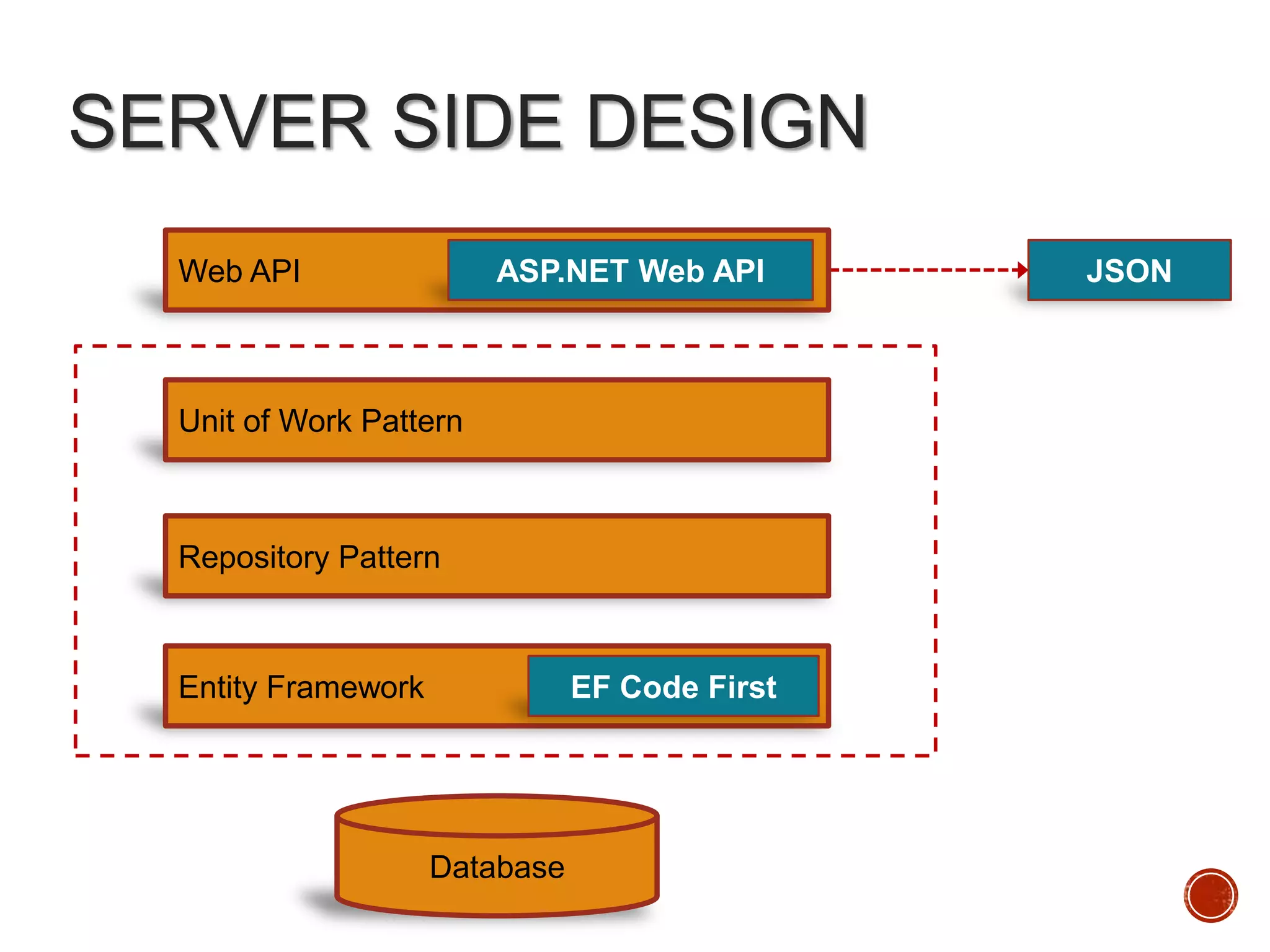

5. SERVER SIDE DESIGN
Web API
ASP.NET Web API
Unit of Work Pattern
Repository Pattern
Entity Framework
EF Code First
Database
JSON

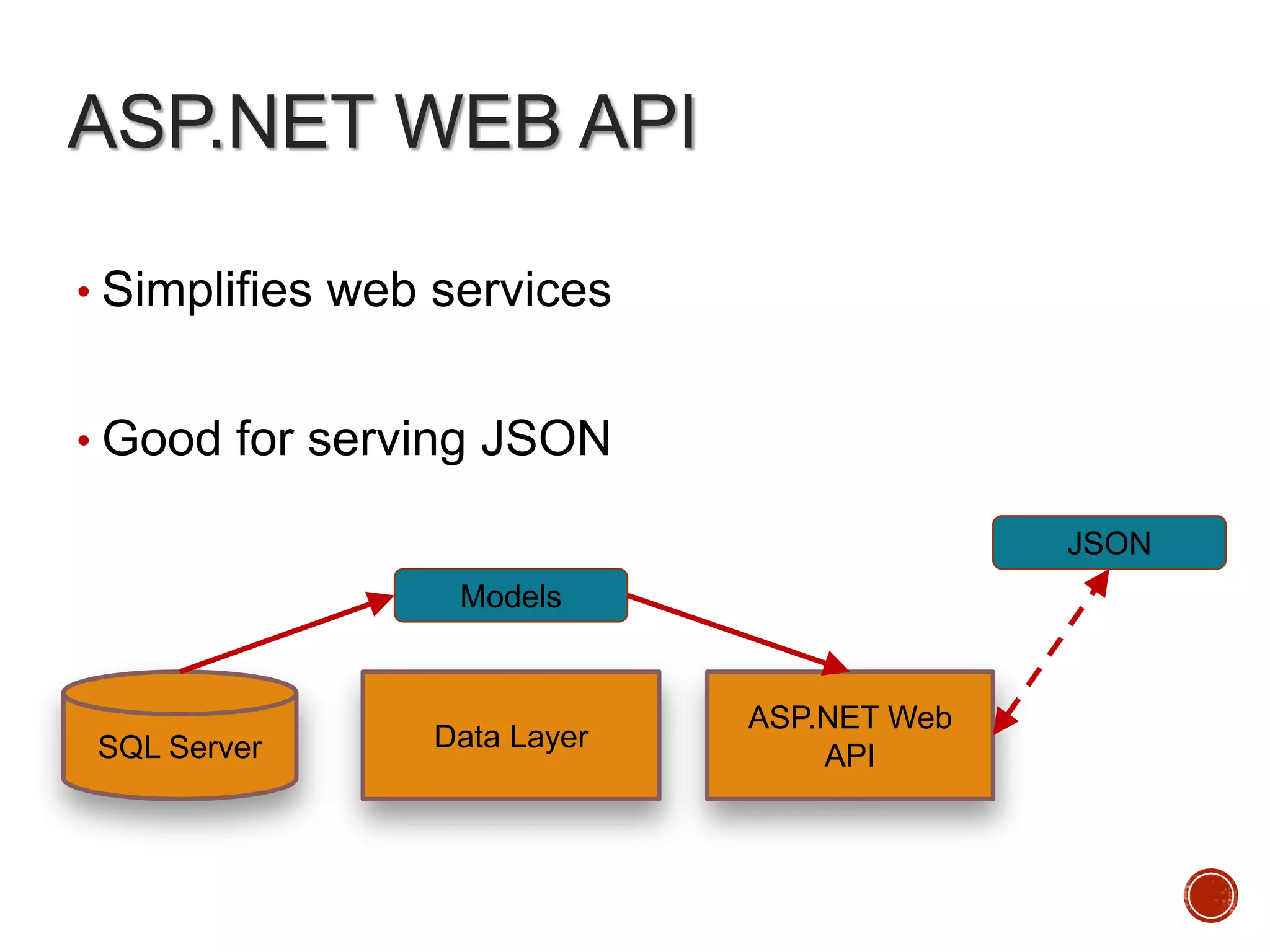

6. ASP.NET WEB API
• Simplifies web services
• Good for serving JSON
JSON
Models
SQL Server
Data Layer
ASP.NET Web
API

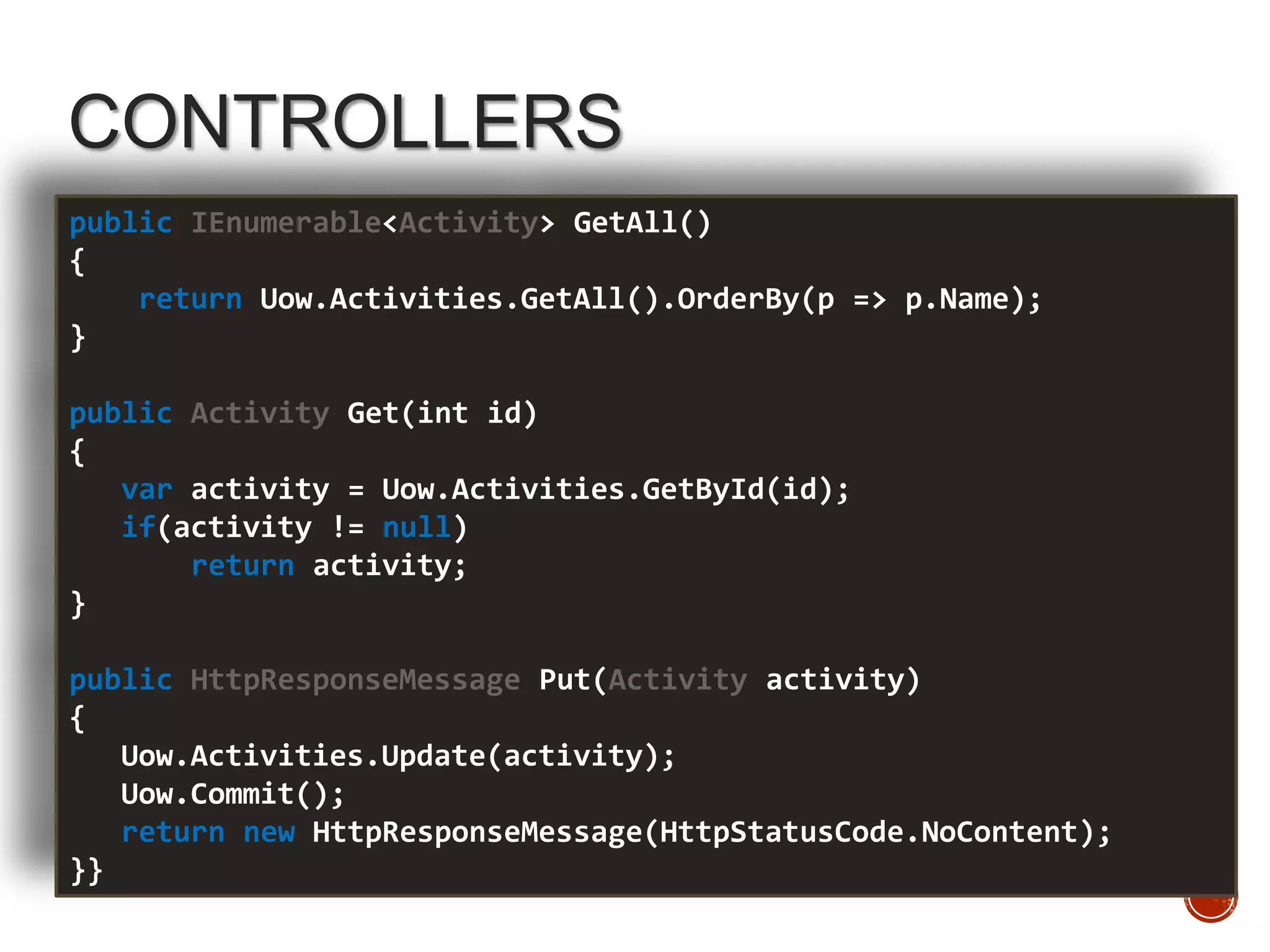

7. CONTROLLERS
public IEnumerable<Activity> GetAll()
{
return Uow.Activities.GetAll().OrderBy(p => p.Name);
}
public Activity Get(int id)
{
var activity = Uow.Activities.GetById(id);
if(activity != null)
return activity;
}
public HttpResponseMessage Put(Activity activity)
{
Uow.Activities.Update(activity);
Uow.Commit();
return new HttpResponseMessage(HttpStatusCode.NoContent);
}}

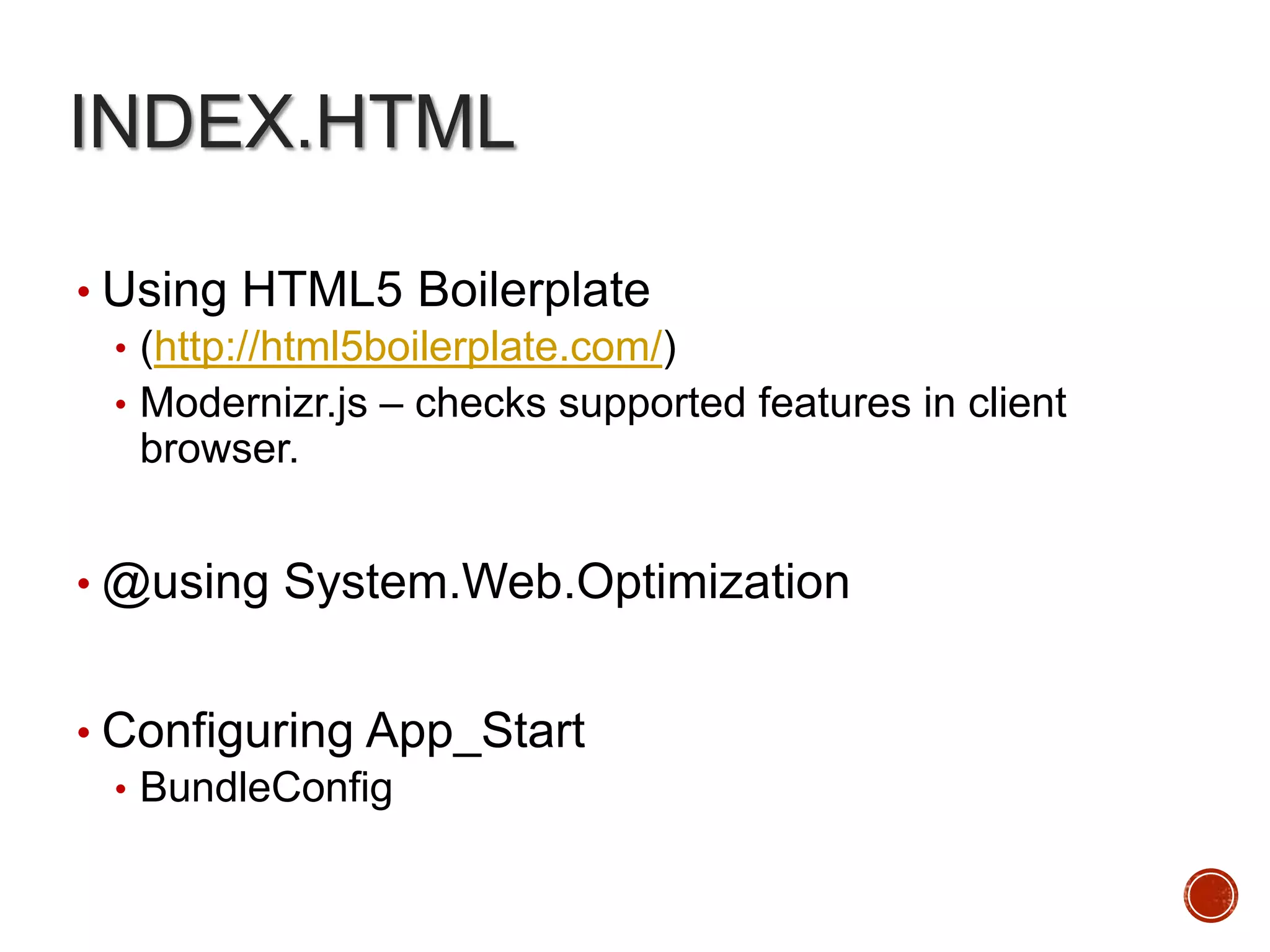

8. INDEX.HTML
• Using HTML5 Boilerplate
• (http://html5boilerplate.com/)
• Modernizr.js – checks supported features in client
browser.
• @using System.Web.Optimization
• Configuring App_Start
• BundleConfig

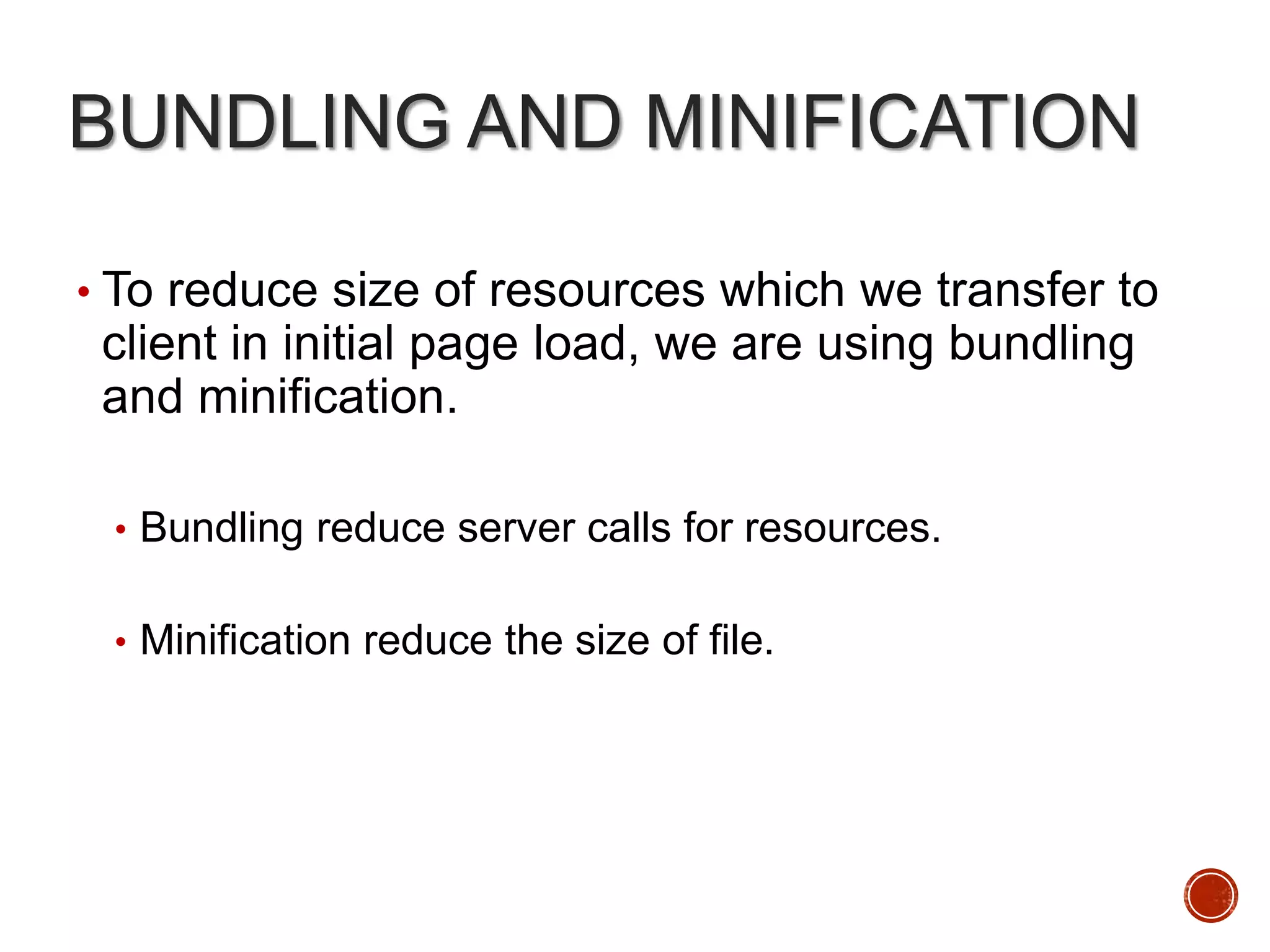

9. BUNDLING AND MINIFICATION
• To reduce size of resources which we transfer to
client in initial page load, we are using bundling
and minification.
• Bundling reduce server calls for resources.
• Minification reduce the size of file.

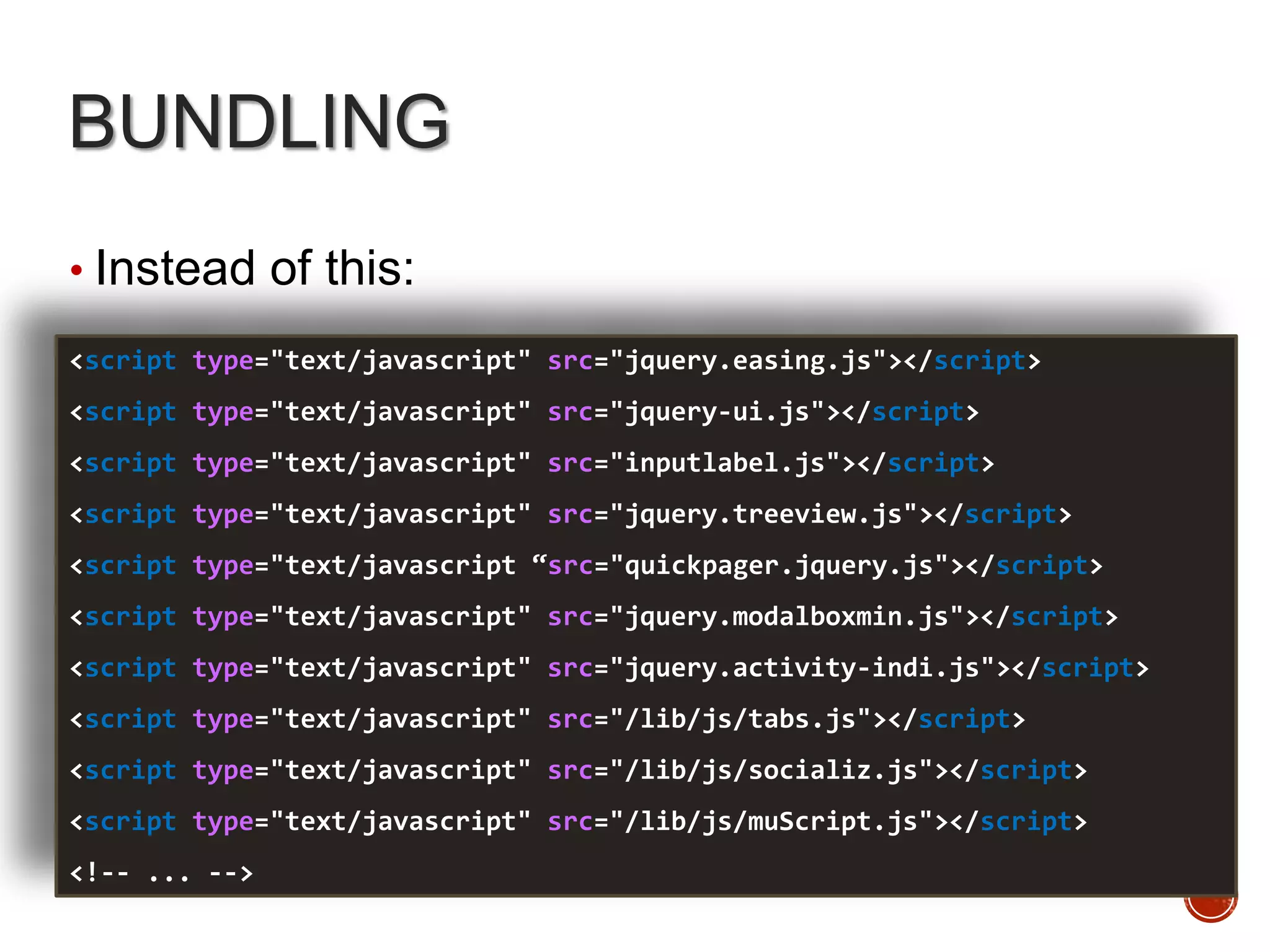

10. BUNDLING
• Instead of this:
<script type="text/javascript" src="jquery.easing.js"></script>
<script type="text/javascript" src="jquery-ui.js"></script>
<script type="text/javascript" src="inputlabel.js"></script>
<script type="text/javascript" src="jquery.treeview.js"></script>
<script type="text/javascript “src="quickpager.jquery.js"></script>
<script type="text/javascript" src="jquery.modalboxmin.js"></script>
<script type="text/javascript" src="jquery.activity-indi.js"></script>
<script type="text/javascript" src="/lib/js/tabs.js"></script>
<script type="text/javascript" src="/lib/js/socializ.js"></script>
<script type="text/javascript" src="/lib/js/muScript.js"></script>
<!-- ... -->

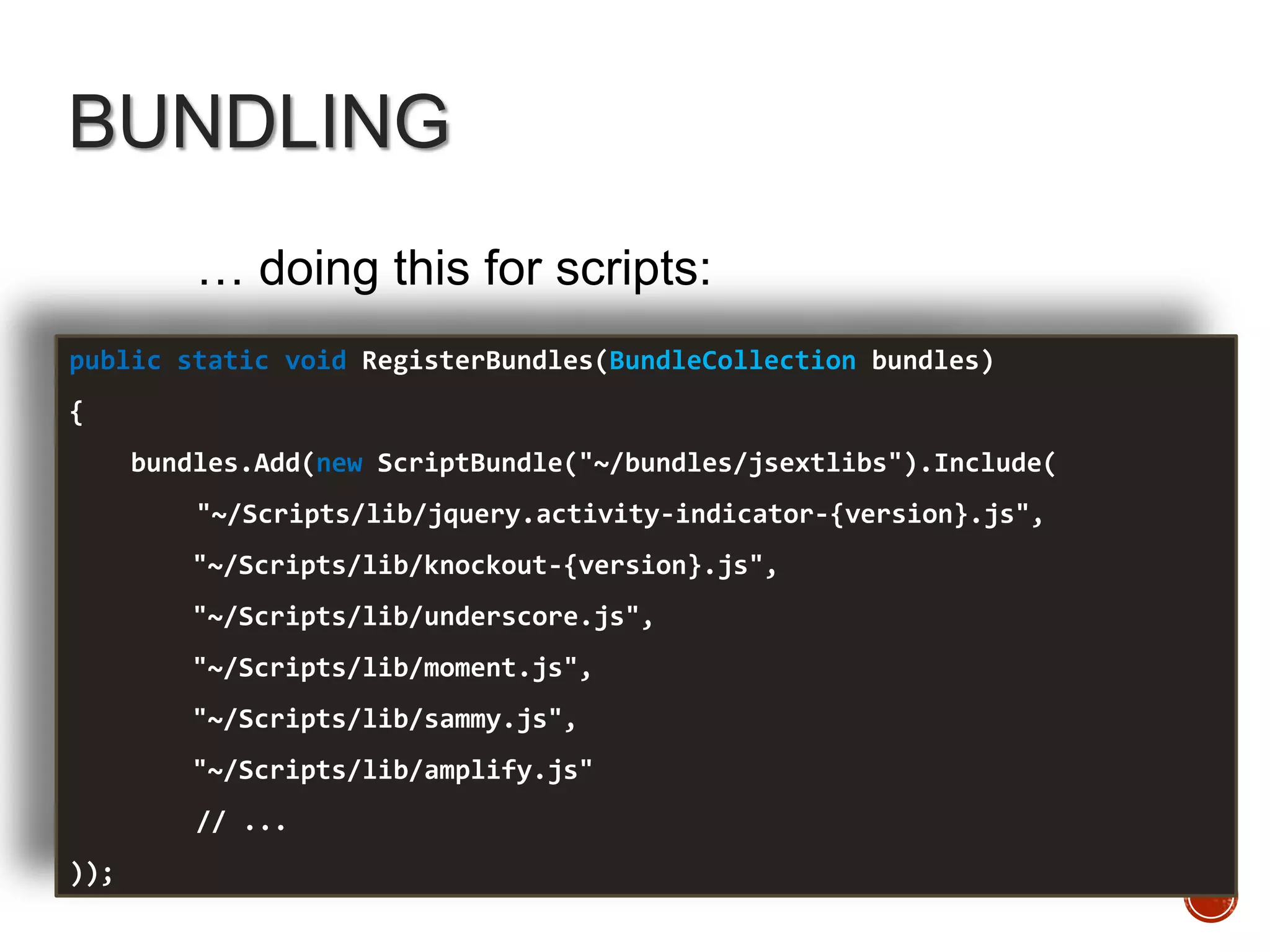

11. BUNDLING
… doing this for scripts:
public static void RegisterBundles(BundleCollection bundles)
{
bundles.Add(new ScriptBundle("~/bundles/jsextlibs").Include(
"~/Scripts/lib/jquery.activity-indicator-{version}.js",
"~/Scripts/lib/knockout-{version}.js",
"~/Scripts/lib/underscore.js",
"~/Scripts/lib/moment.js",
"~/Scripts/lib/sammy.js",
"~/Scripts/lib/amplify.js"
// ...
));

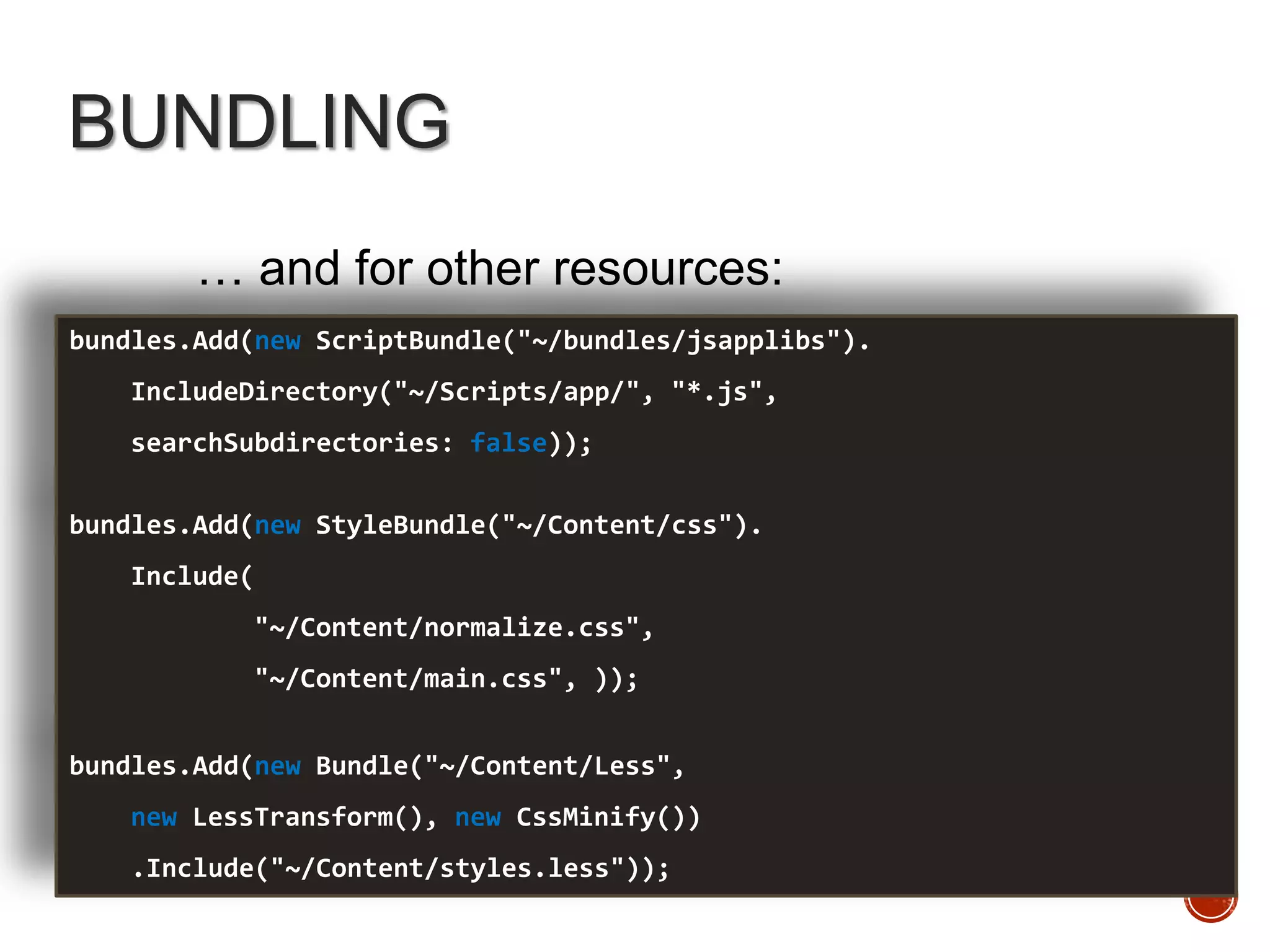

12. BUNDLING
… and for other resources:
bundles.Add(new ScriptBundle("~/bundles/jsapplibs").
IncludeDirectory("~/Scripts/app/", "*.js",
searchSubdirectories: false));
bundles.Add(new StyleBundle("~/Content/css").
Include(
"~/Content/normalize.css",
"~/Content/main.css", ));
bundles.Add(new Bundle("~/Content/Less",
new LessTransform(), new CssMinify())
.Include("~/Content/styles.less"));

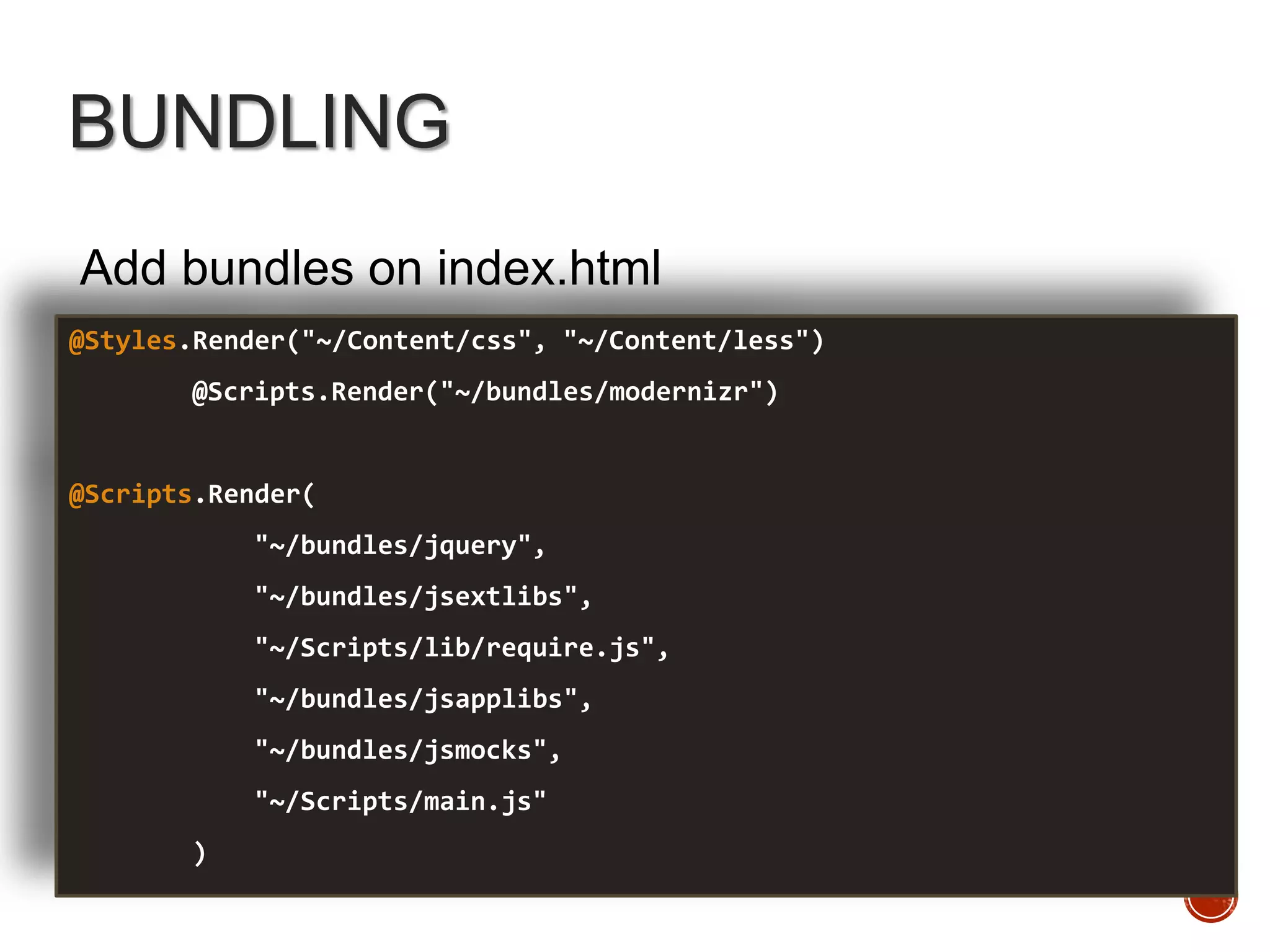

13. BUNDLING
Add bundles on index.html
@Styles.Render("~/Content/css", "~/Content/less")
@Scripts.Render("~/bundles/modernizr")
@Scripts.Render(
"~/bundles/jquery",
"~/bundles/jsextlibs",
"~/Scripts/lib/require.js",
"~/bundles/jsapplibs",
"~/bundles/jsmocks",
"~/Scripts/main.js"
)

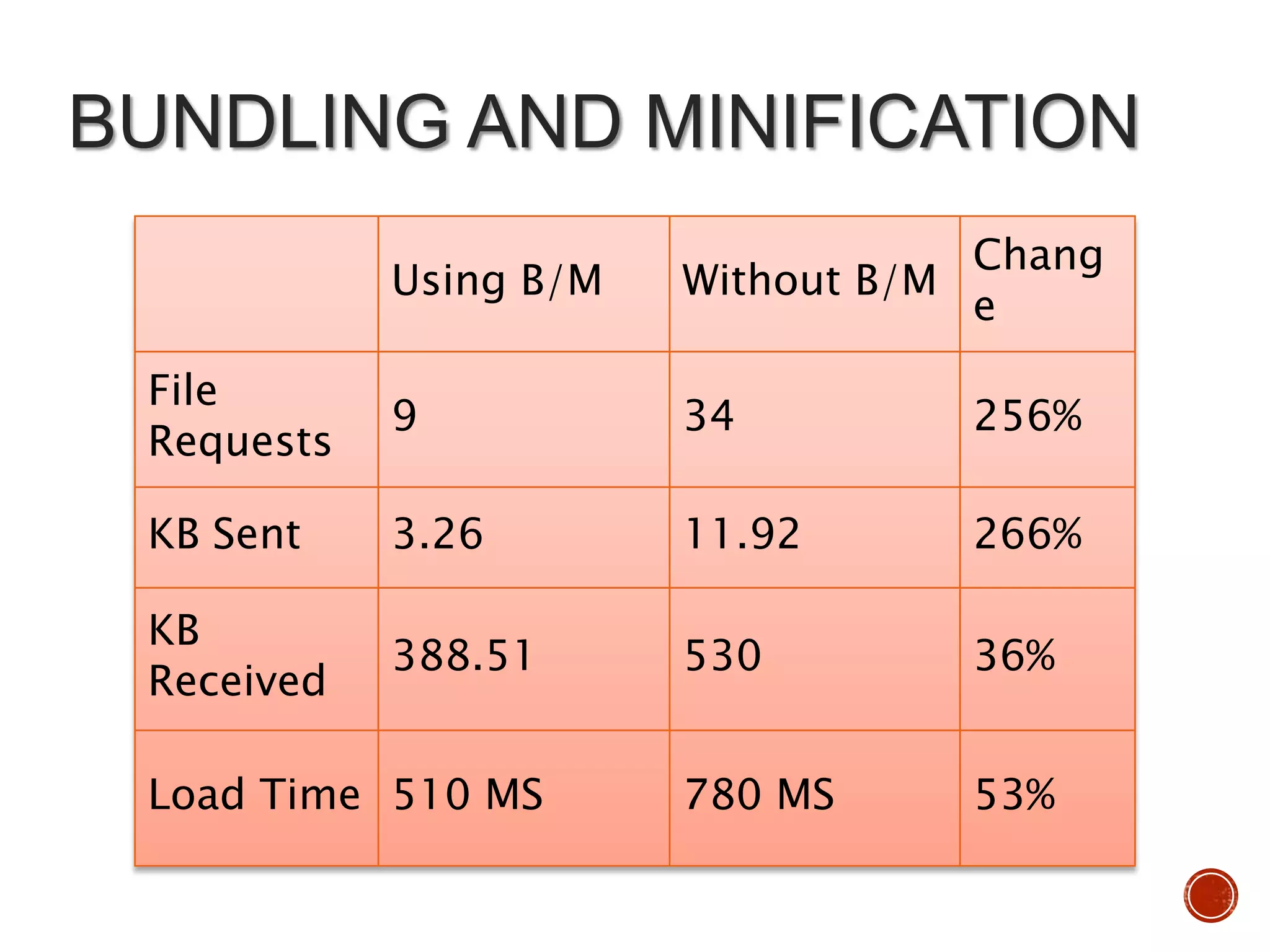

14. BUNDLING AND MINIFICATION
Using B/M
Without B/M
Chang
e
File
Requests
9
34
256%
KB Sent
3.26
11.92
266%
KB
Received
388.51
530
36%
780 MS
53%
Load Time 510 MS

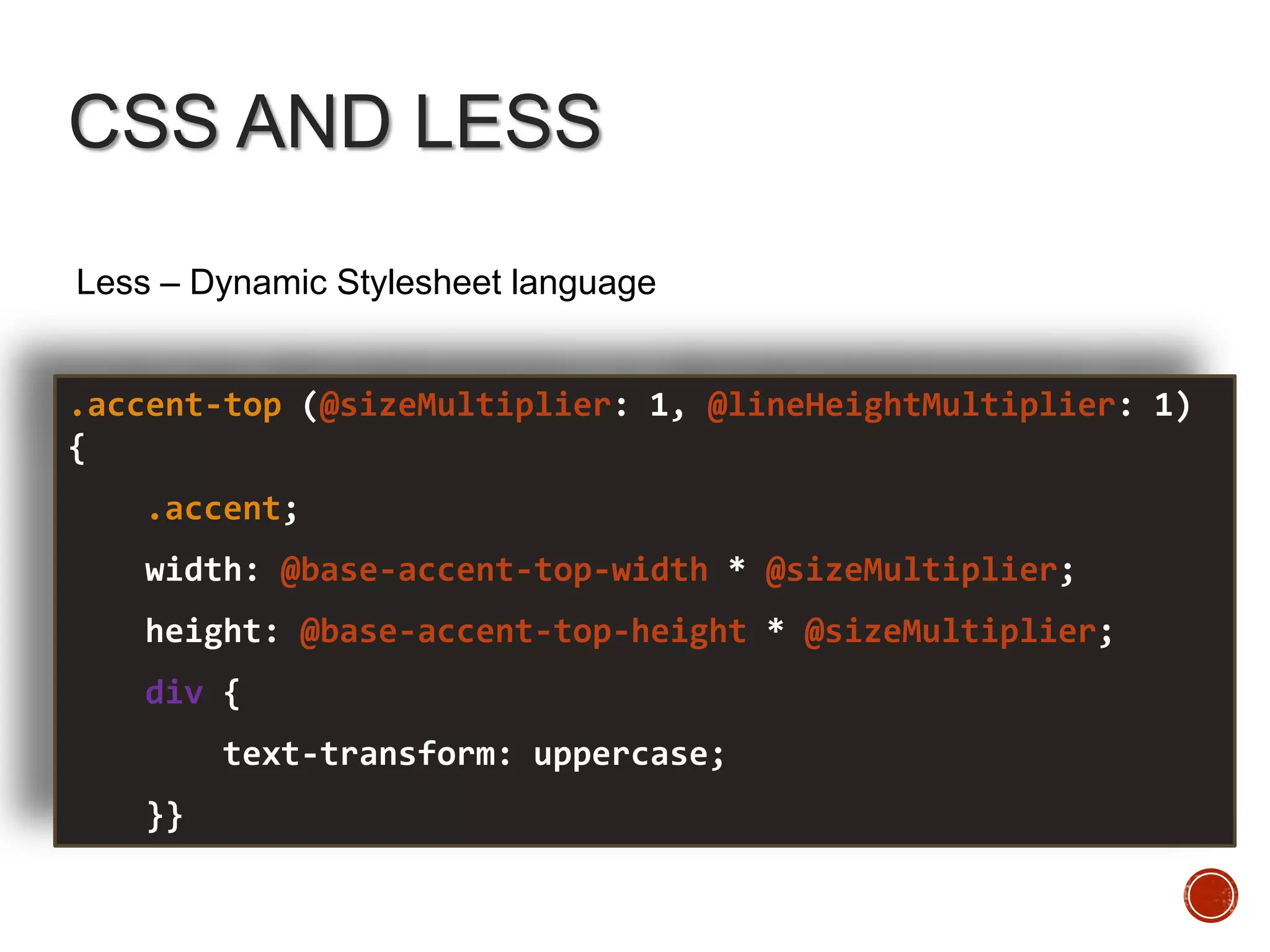

15. CSS AND LESS
Less – Dynamic Stylesheet language
.accent-top (@sizeMultiplier: 1, @lineHeightMultiplier: 1)
{
.accent;
width: @base-accent-top-width * @sizeMultiplier;
height: @base-accent-top-height * @sizeMultiplier;
div {
text-transform: uppercase;
}}

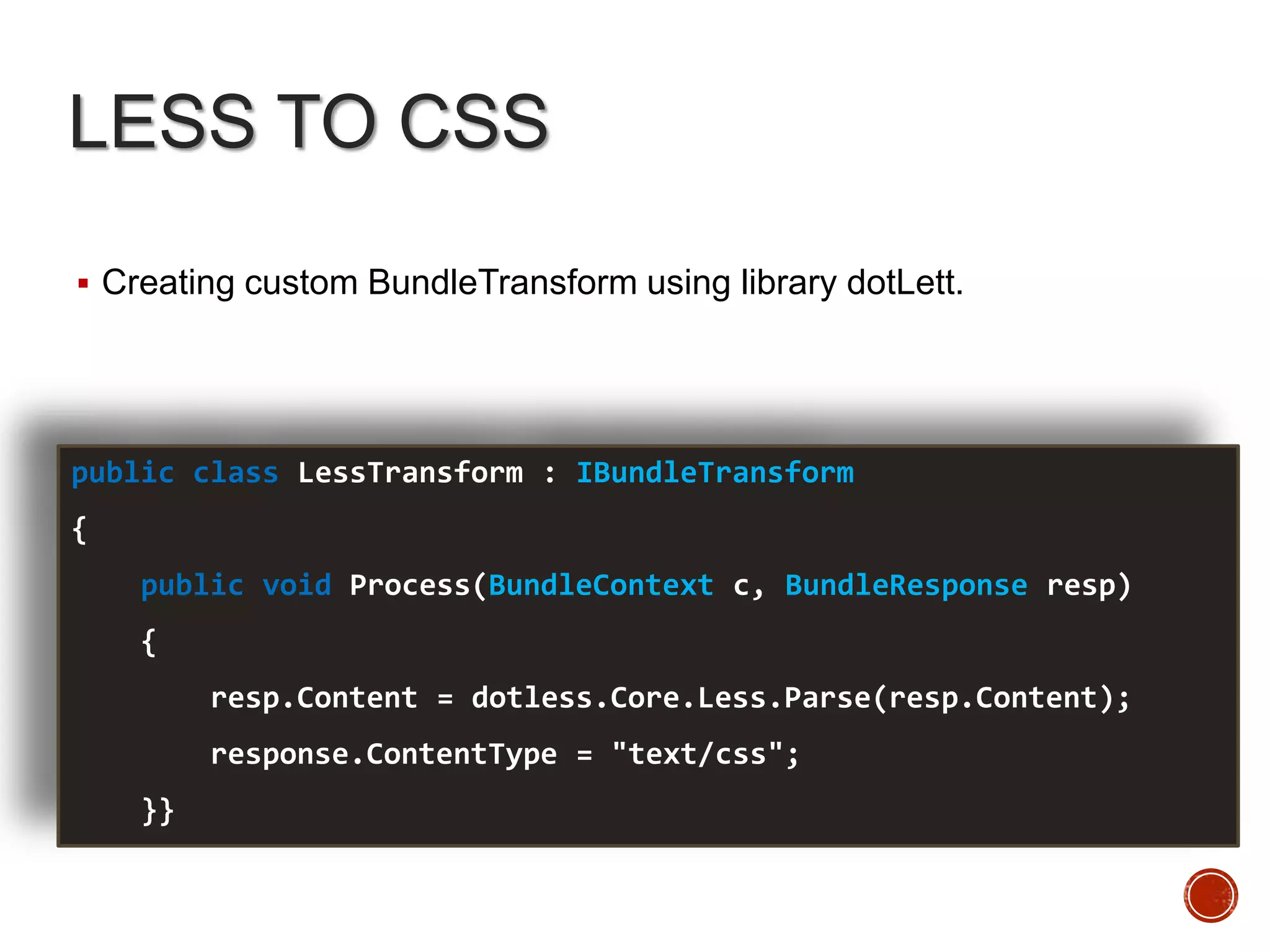

16. LESS TO CSS
 Creating custom BundleTransform using library dotLett.
public class LessTransform : IBundleTransform
{
public void Process(BundleContext c, BundleResponse resp)
{
resp.Content = dotless.Core.Less.Parse(resp.Content);
response.ContentType = "text/css";
}}

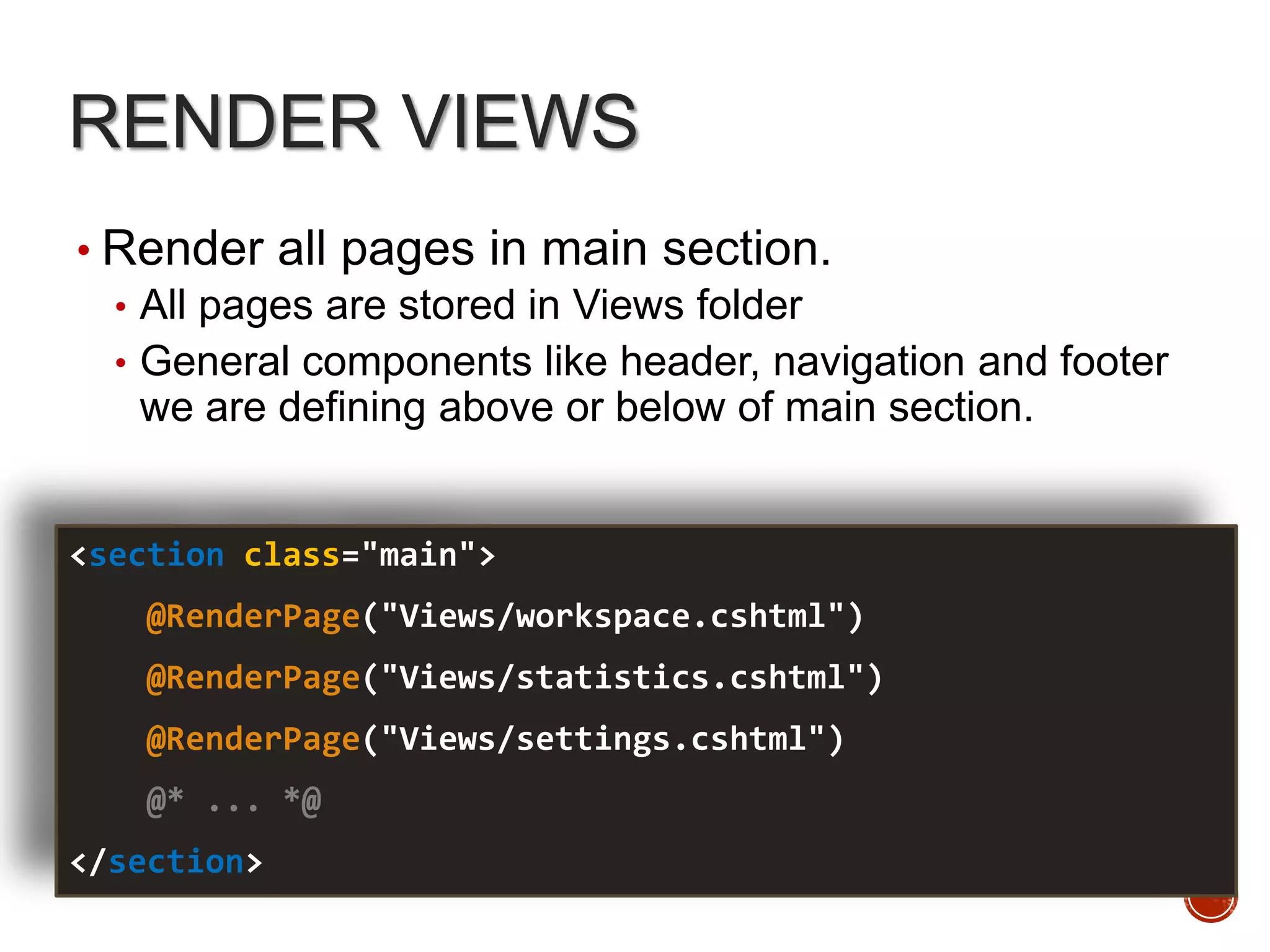

17. RENDER VIEWS
• Render all pages in main section.
• All pages are stored in Views folder
• General components like header, navigation and footer
we are defining above or below of main section.
<section class="main">
@RenderPage("Views/workspace.cshtml")
@RenderPage("Views/statistics.cshtml")
@RenderPage("Views/settings.cshtml")
@* ... *@
</section>

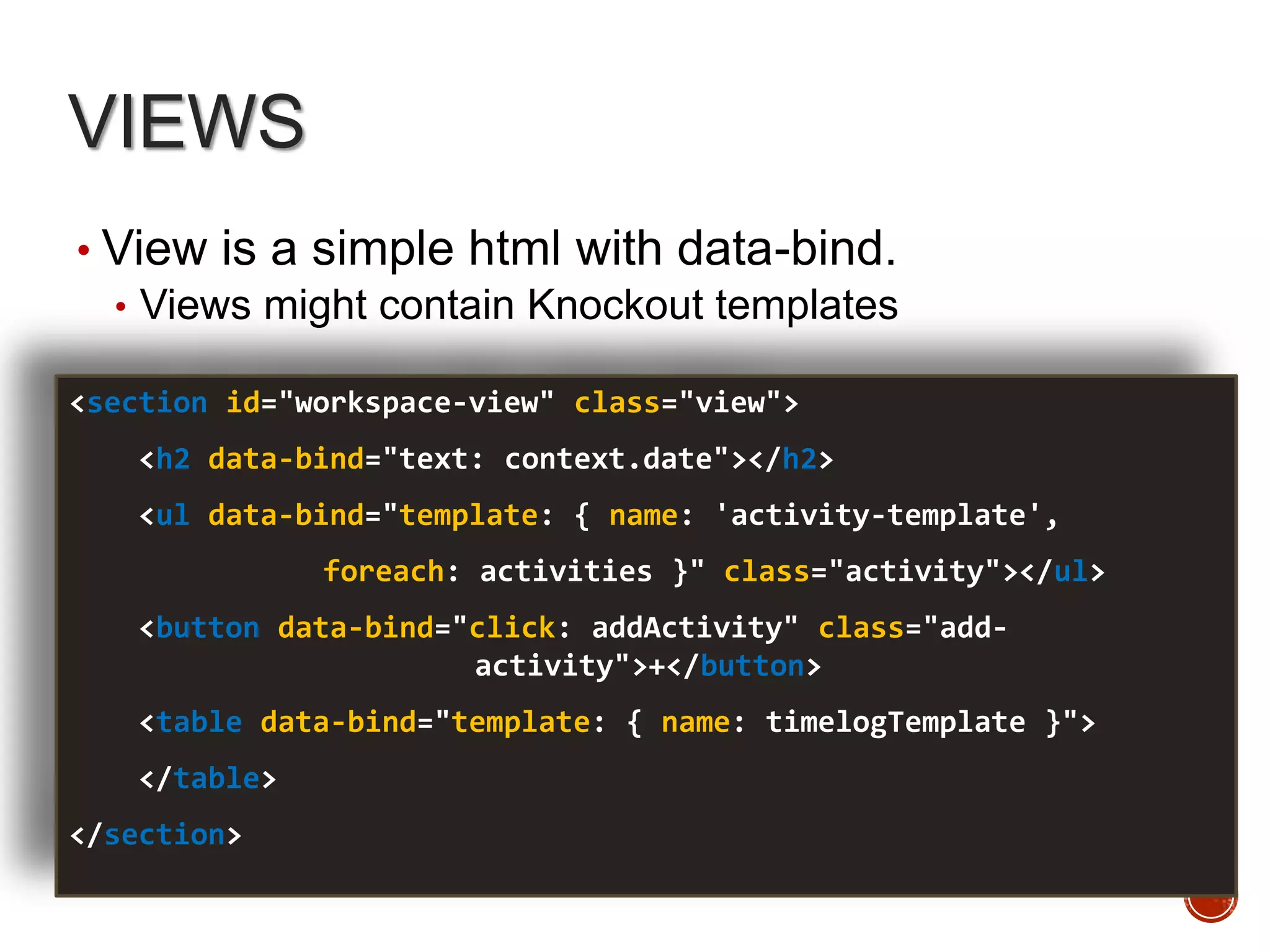

18. VIEWS
• View is a simple html with data-bind.
• Views might contain Knockout templates
<section id="workspace-view" class="view">
<h2 data-bind="text: context.date"></h2>
<ul data-bind="template: { name: 'activity-template',
foreach: activities }" class="activity"></ul>
<button data-bind="click: addActivity" class="addactivity">+</button>
<table data-bind="template: { name: timelogTemplate }">
</table>
</section>

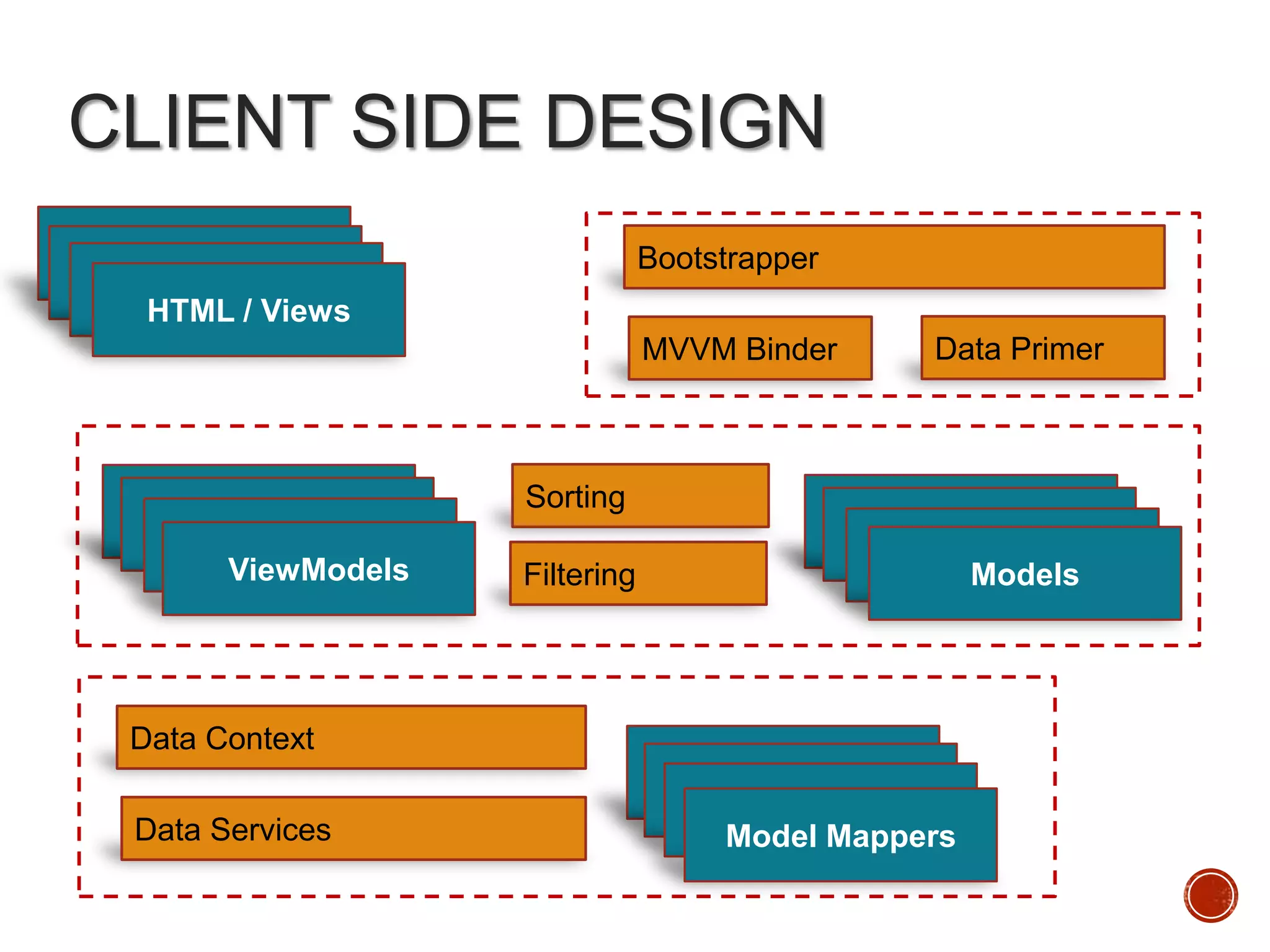

19. CLIENT SIDE DESIGN
HTML Views
HTML Views
HTML Views
HTML / Views
Bootstrapper
MVVM Binder
HTML / Views
HTML / Views
HTML / Views
ViewModels
Sorting
Filtering
Data Primer
HTML / Views
HTML / Views
HTML / Views
Models
Data Context
Data Services
Model Mappers
Model Mappers
Model Mappers
Model Mappers

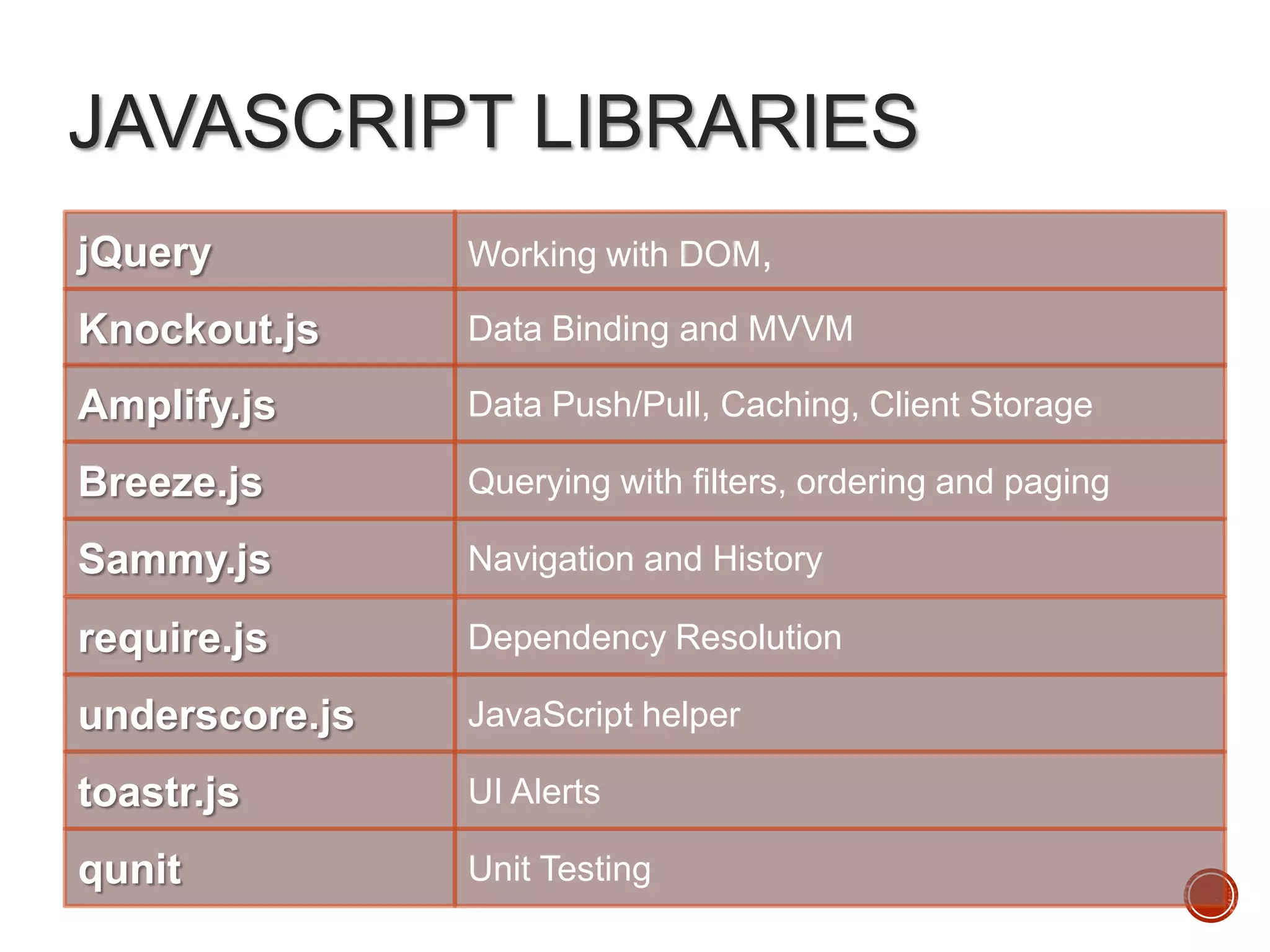

20. JAVASCRIPT LIBRARIES
jQuery
Working with DOM,
Knockout.js
Data Binding and MVVM
Amplify.js
Data Push/Pull, Caching, Client Storage
Breeze.js
Querying with filters, ordering and paging
Sammy.js
Navigation and History
require.js
Dependency Resolution
underscore.js
JavaScript helper
toastr.js
UI Alerts
qunit
Unit Testing

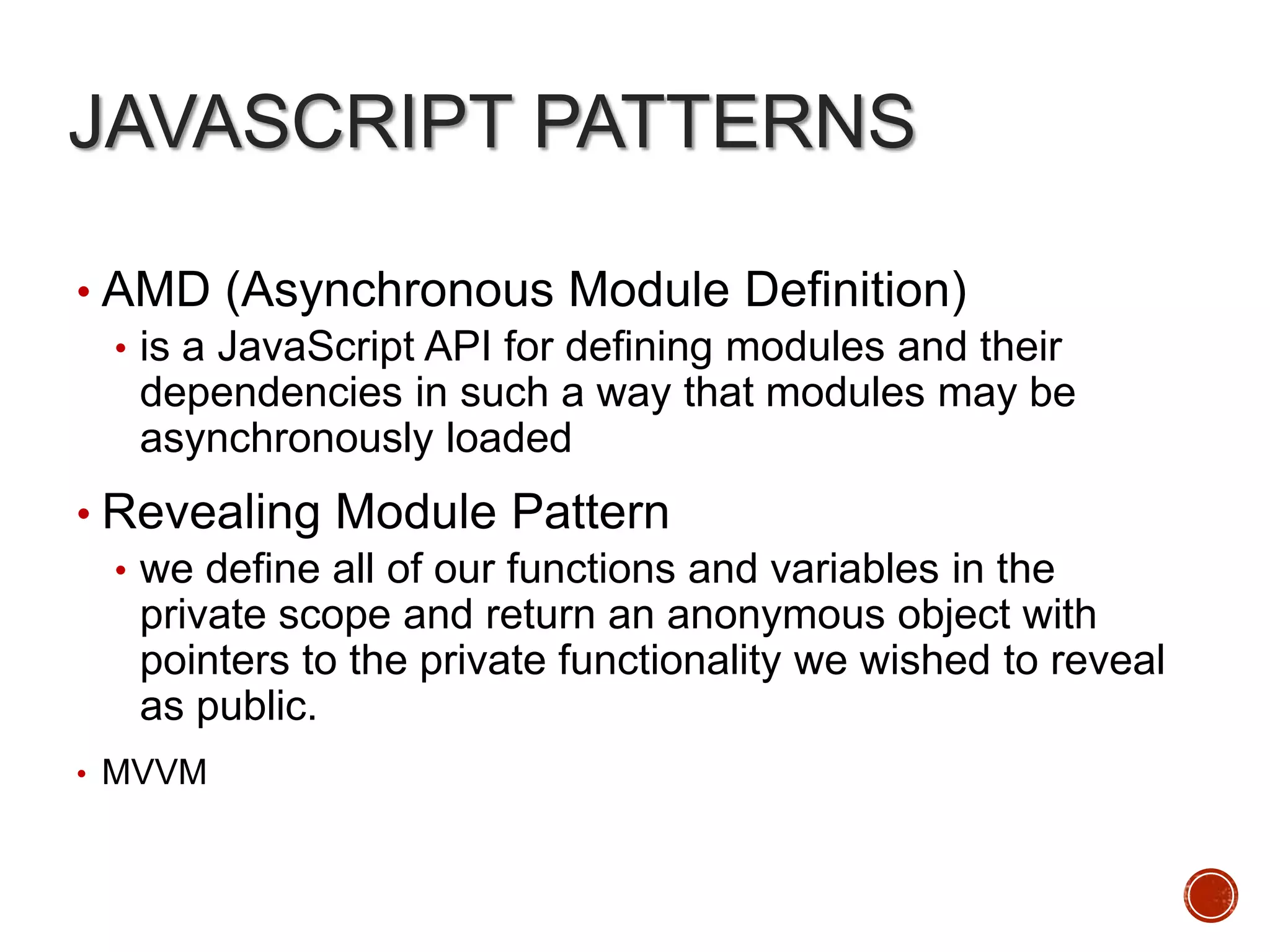

21. JAVASCRIPT PATTERNS
• AMD (Asynchronous Module Definition)
• is a JavaScript API for defining modules and their
dependencies in such a way that modules may be
asynchronously loaded
• Revealing Module Pattern
• we define all of our functions and variables in the
private scope and return an anonymous object with
pointers to the private functionality we wished to reveal
as public.
• MVVM

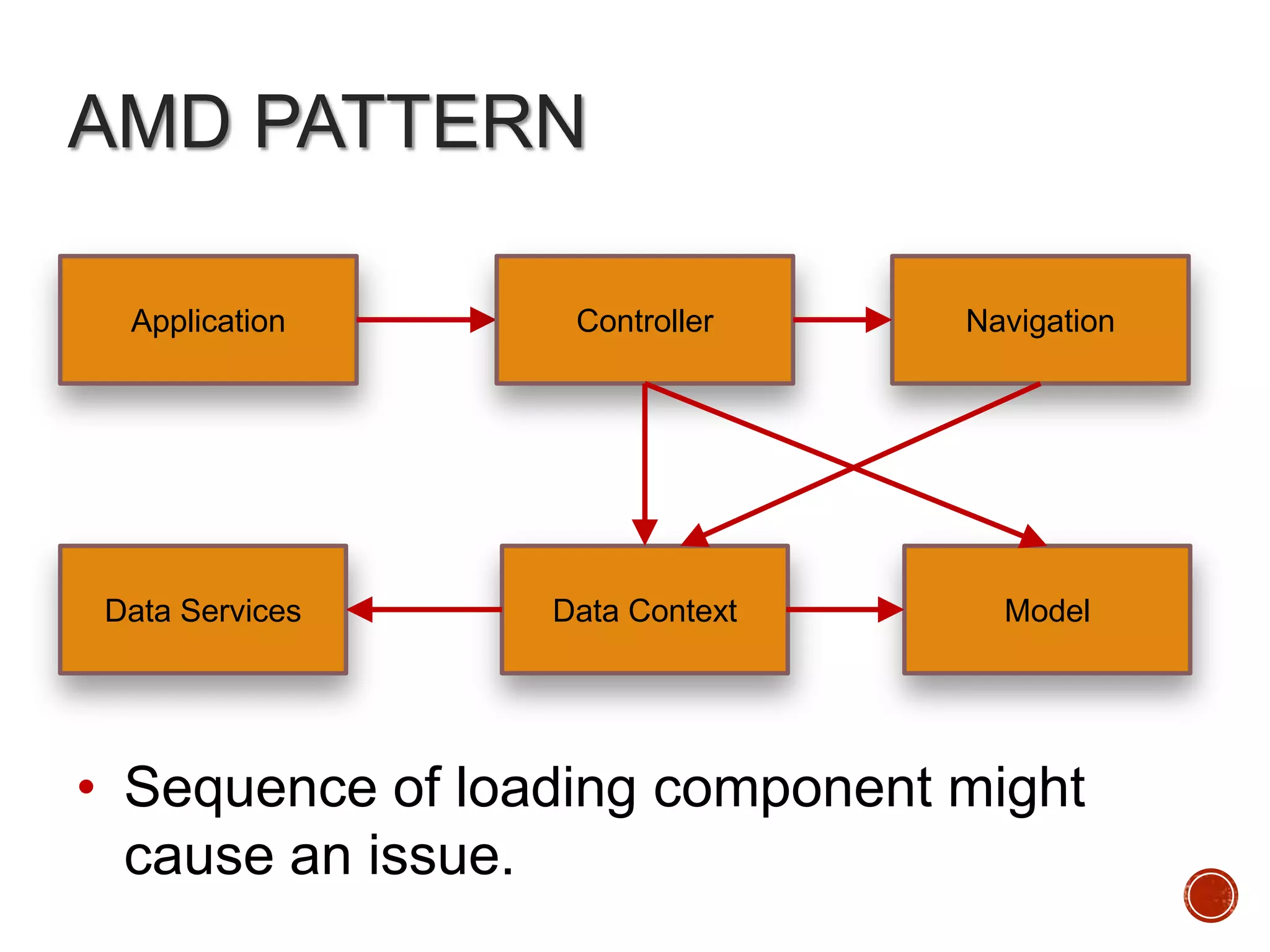

22. AMD PATTERN
Application
Controller
Navigation
Data Services
Data Context
Model
• Sequence of loading component might
cause an issue.

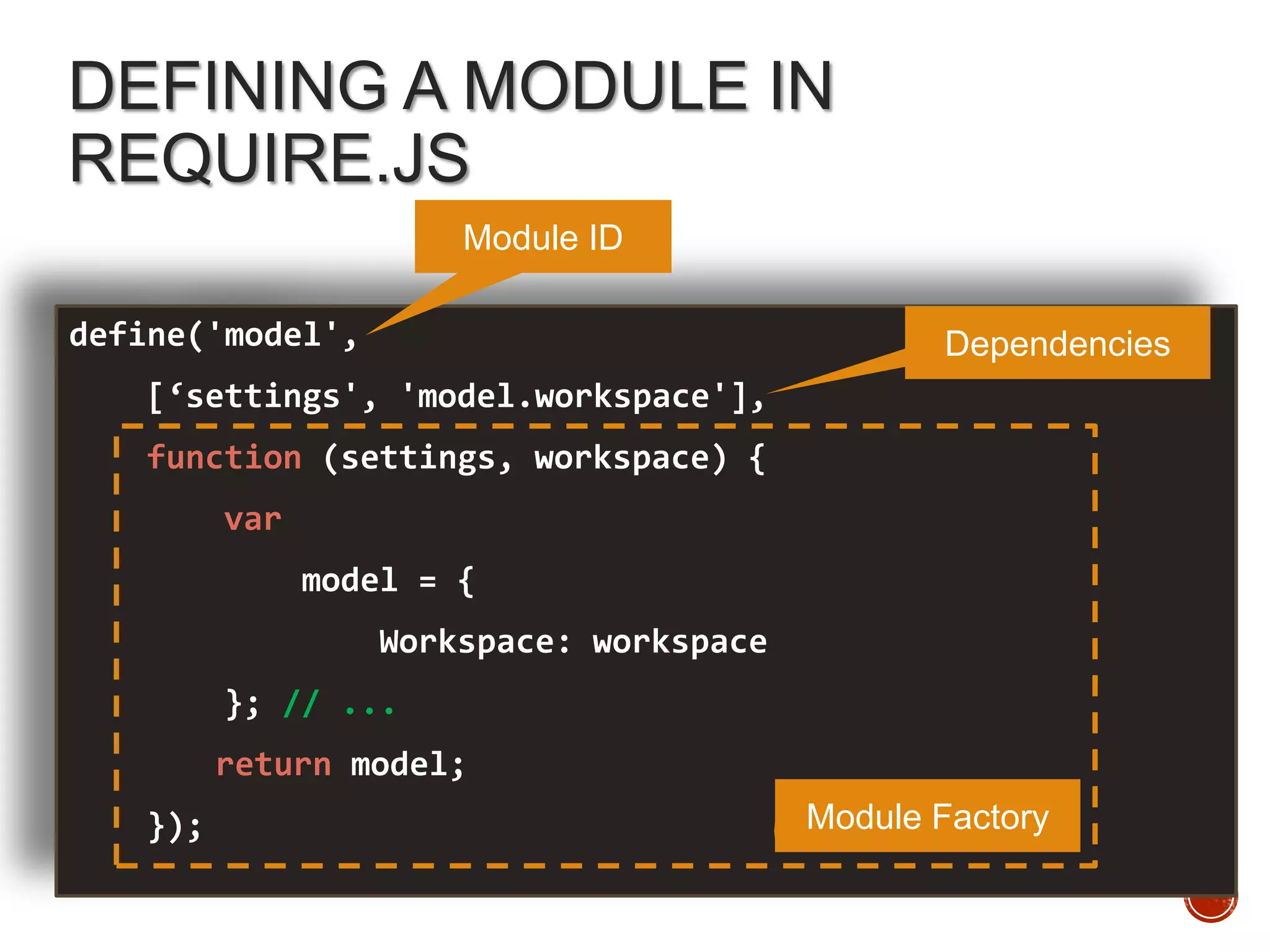

23. DEFINING A MODULE IN
REQUIRE.JS
Module ID
define('model',
Dependencies
[‘settings', 'model.workspace'],
function (settings, workspace) {
var
model = {
Workspace: workspace
}; // ...
return model;
});
Module Factory

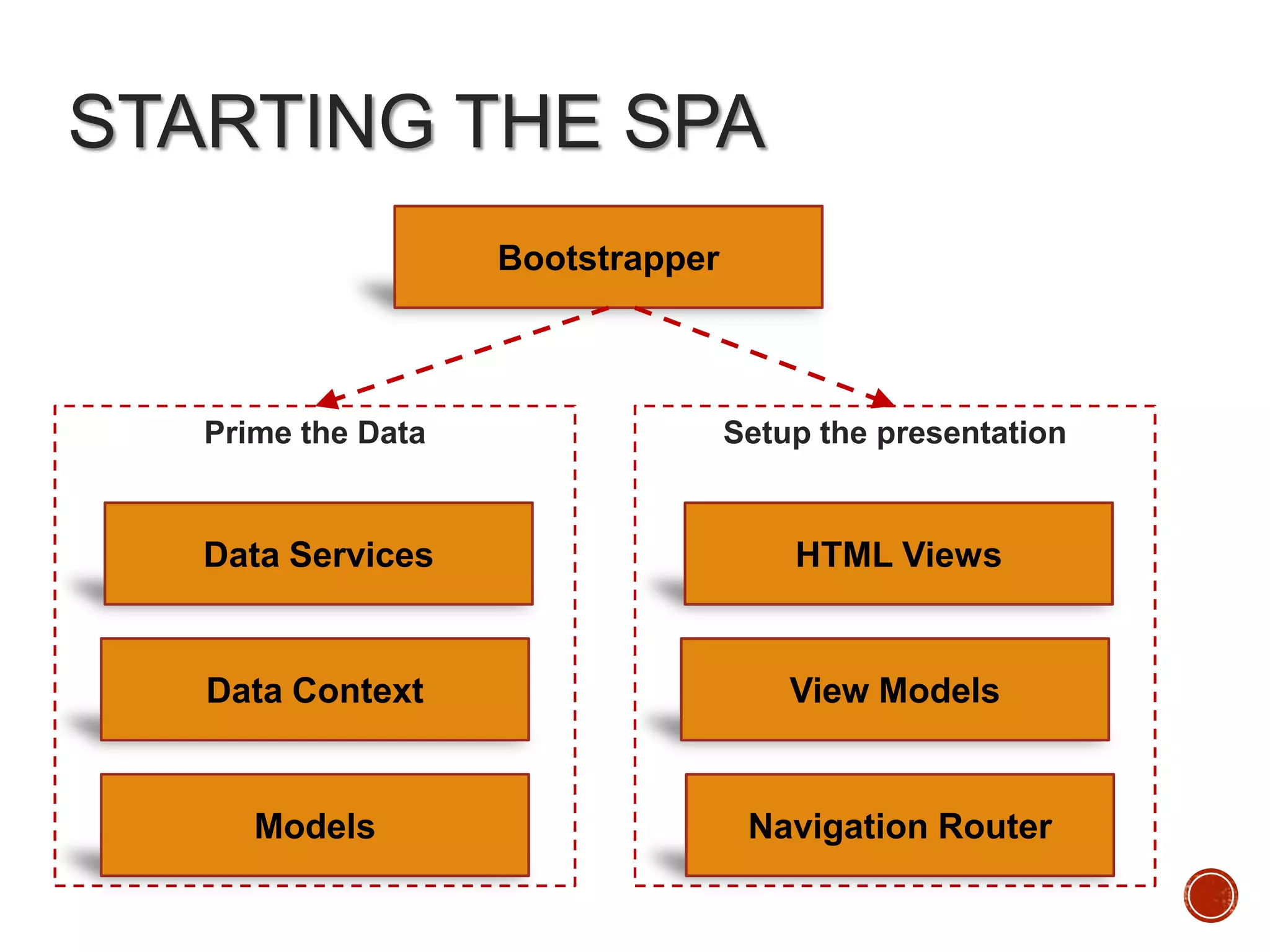

24. STARTING THE SPA
Bootstrapper
Prime the Data
Setup the presentation
Data Services
HTML Views
Data Context
View Models
Models
Navigation Router

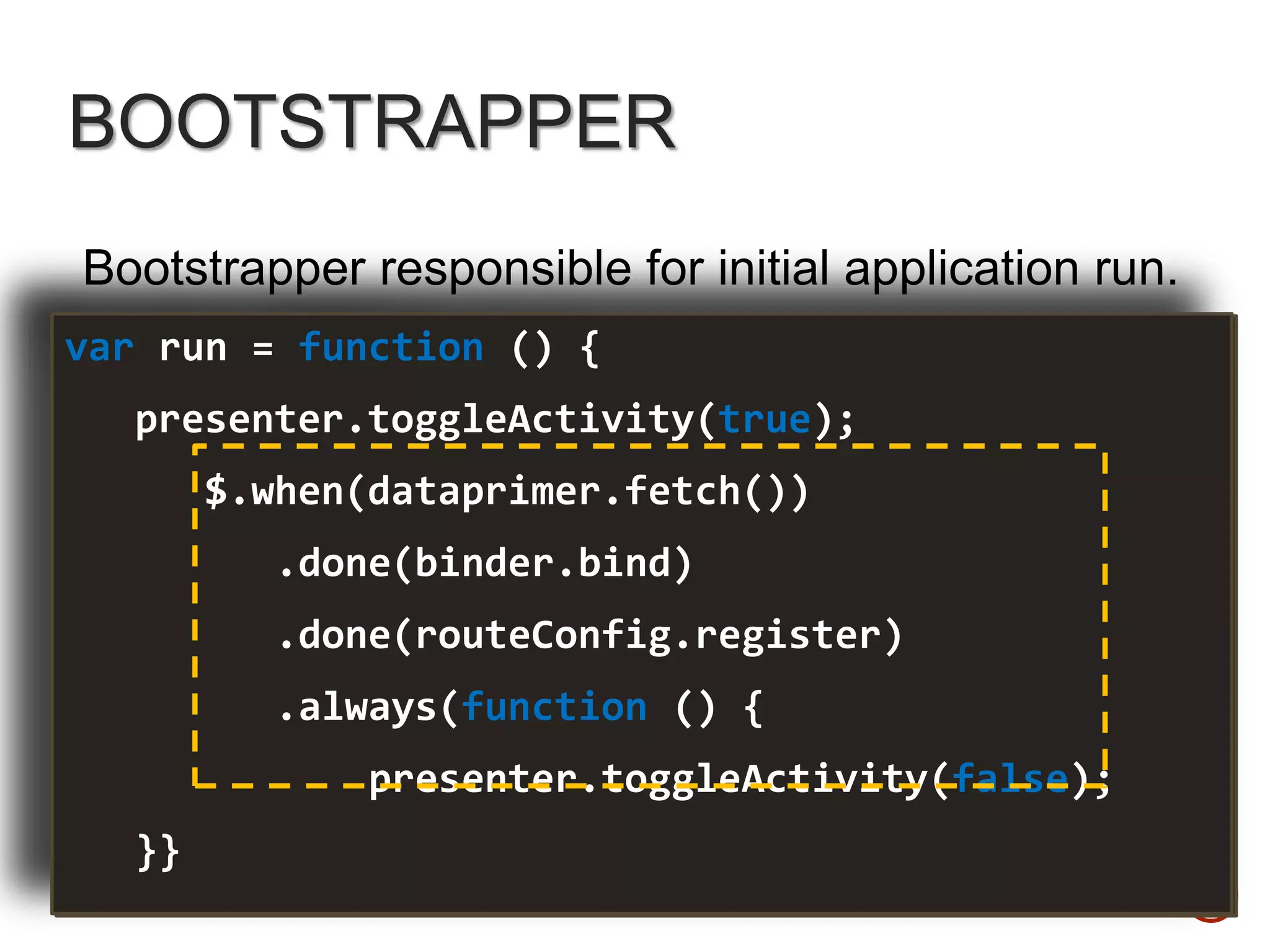

25. BOOTSTRAPPER
Bootstrapper responsible for initial application run.
define('bootstrapper',
var run = function () {
['jquery', 'route-config', 'presenter', 'dataprimer', 'binder'],
function ($, routeConfig, presenter, dataprimer, binder) {
presenter.toggleActivity(true);
var run = function () {
$.when(dataprimer.fetch())
presenter.toggleActivity(true);
$.when(dataprimer.fetch())
.done(binder.bind)
.done(binder.bind)
.done(routeConfig.register)
.done(routeConfig.register)
.always(function () {
presenter.toggleActivity(false);
.always(function () {
});
}
presenter.toggleActivity(false);
return {
run : run
}}
}});

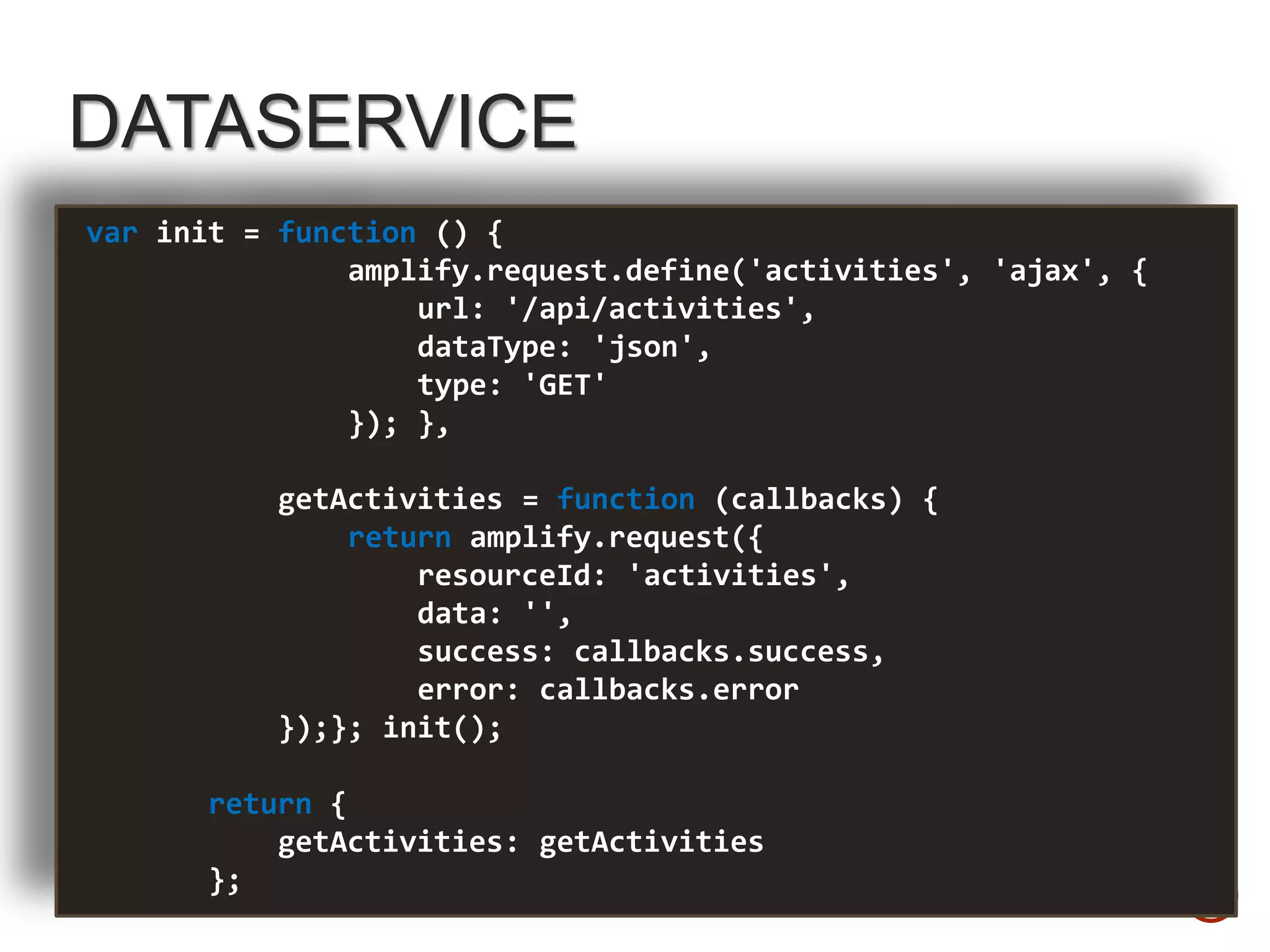

26. DATASERVICE
var init = function () {
amplify.request.define('activities', 'ajax', {
url: '/api/activities',
dataType: 'json',
type: 'GET'
}); },
getActivities = function (callbacks) {
return amplify.request({
resourceId: 'activities',
data: '',
success: callbacks.success,
error: callbacks.error
});}; init();
return {
getActivities: getActivities
};

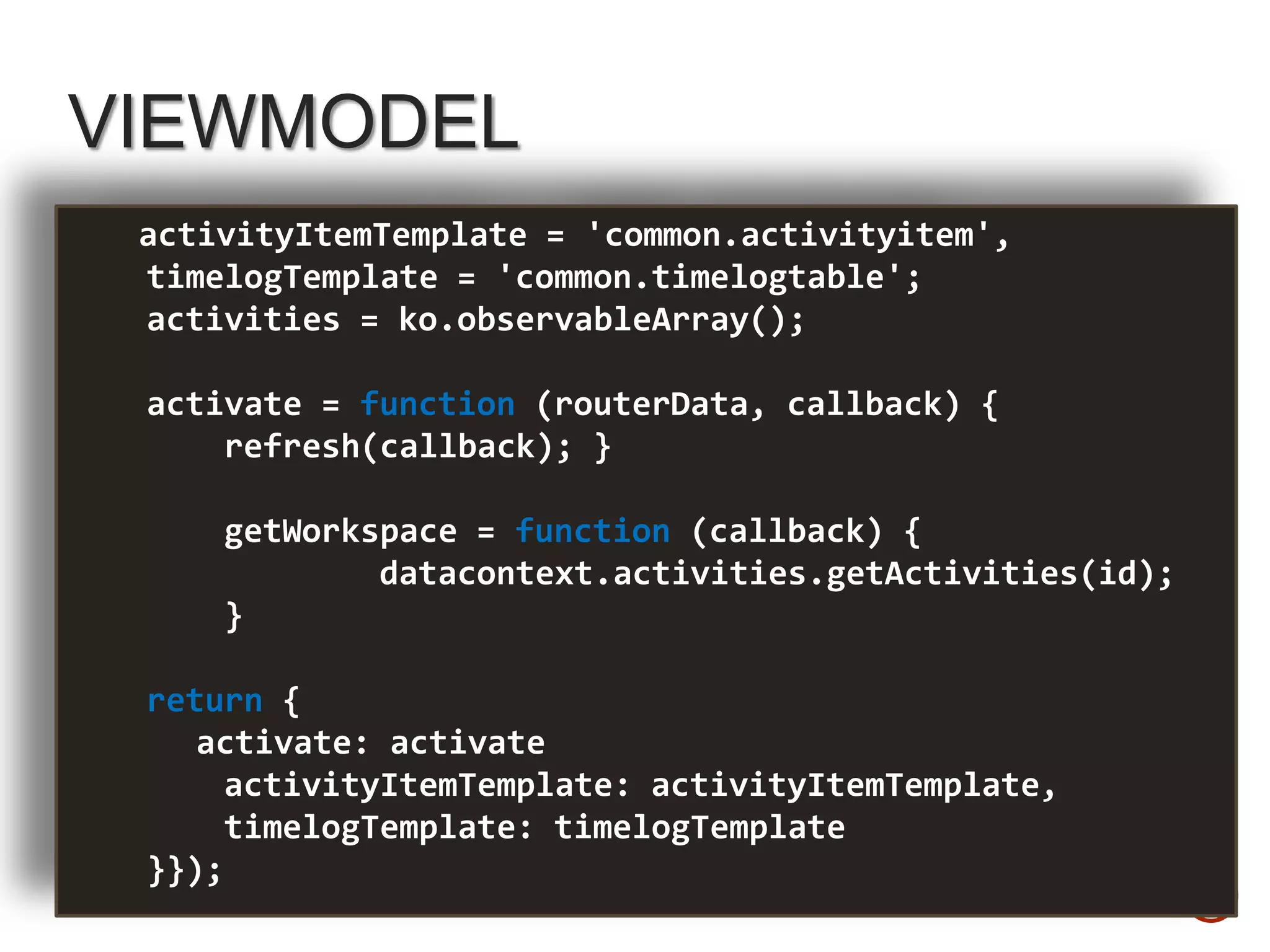

27. VIEWMODEL
activityItemTemplate = 'common.activityitem',
timelogTemplate = 'common.timelogtable';
activities = ko.observableArray();
activate = function (routerData, callback) {
refresh(callback); }
getWorkspace = function (callback) {
datacontext.activities.getActivities(id);
}
return {
activate: activate
activityItemTemplate: activityItemTemplate,
timelogTemplate: timelogTemplate
}});

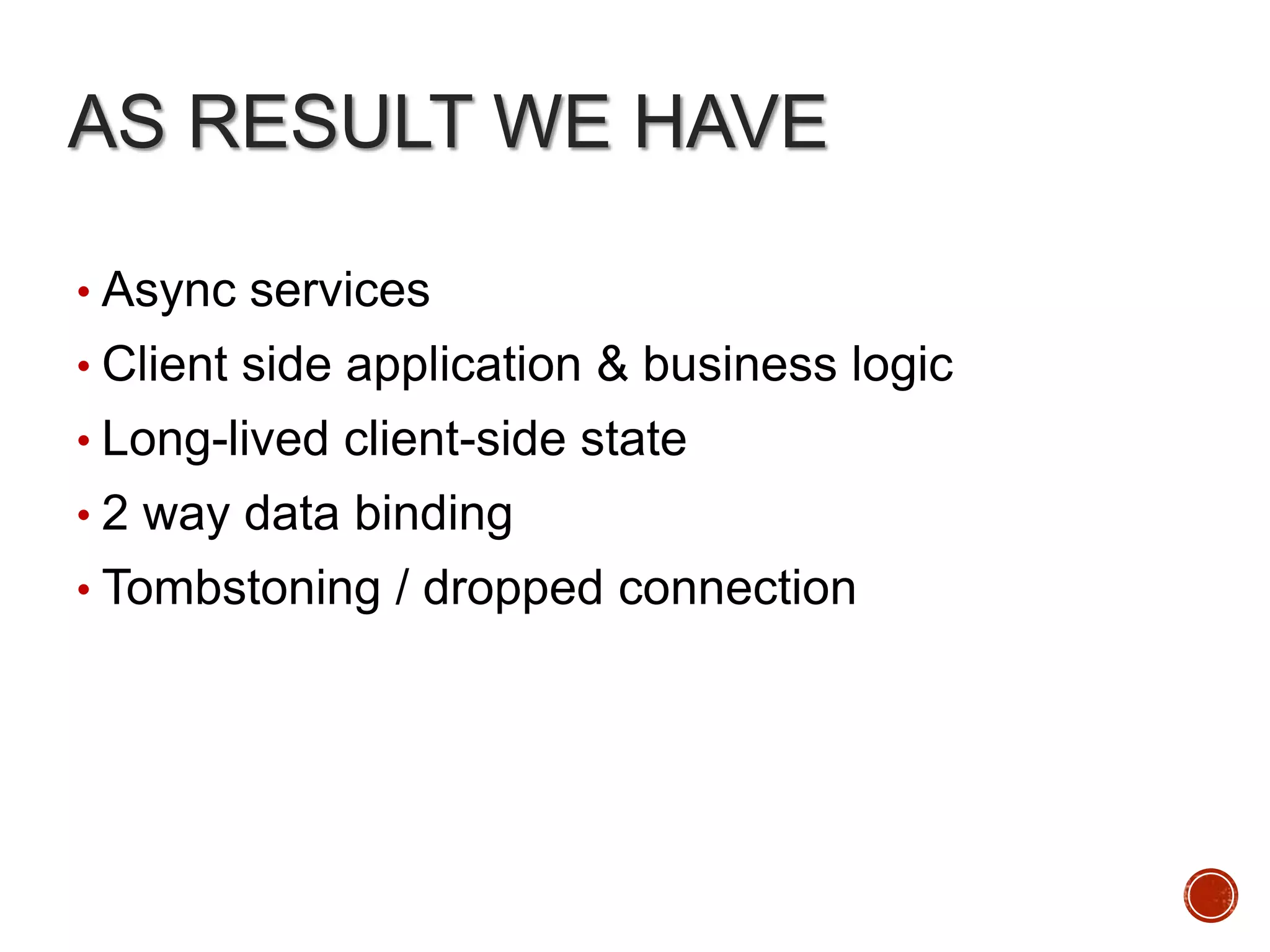

28. AS RESULT WE HAVE
• Async services
• Client side application & business logic
• Long-lived client-side state
• 2 way data binding
• Tombstoning / dropped connection

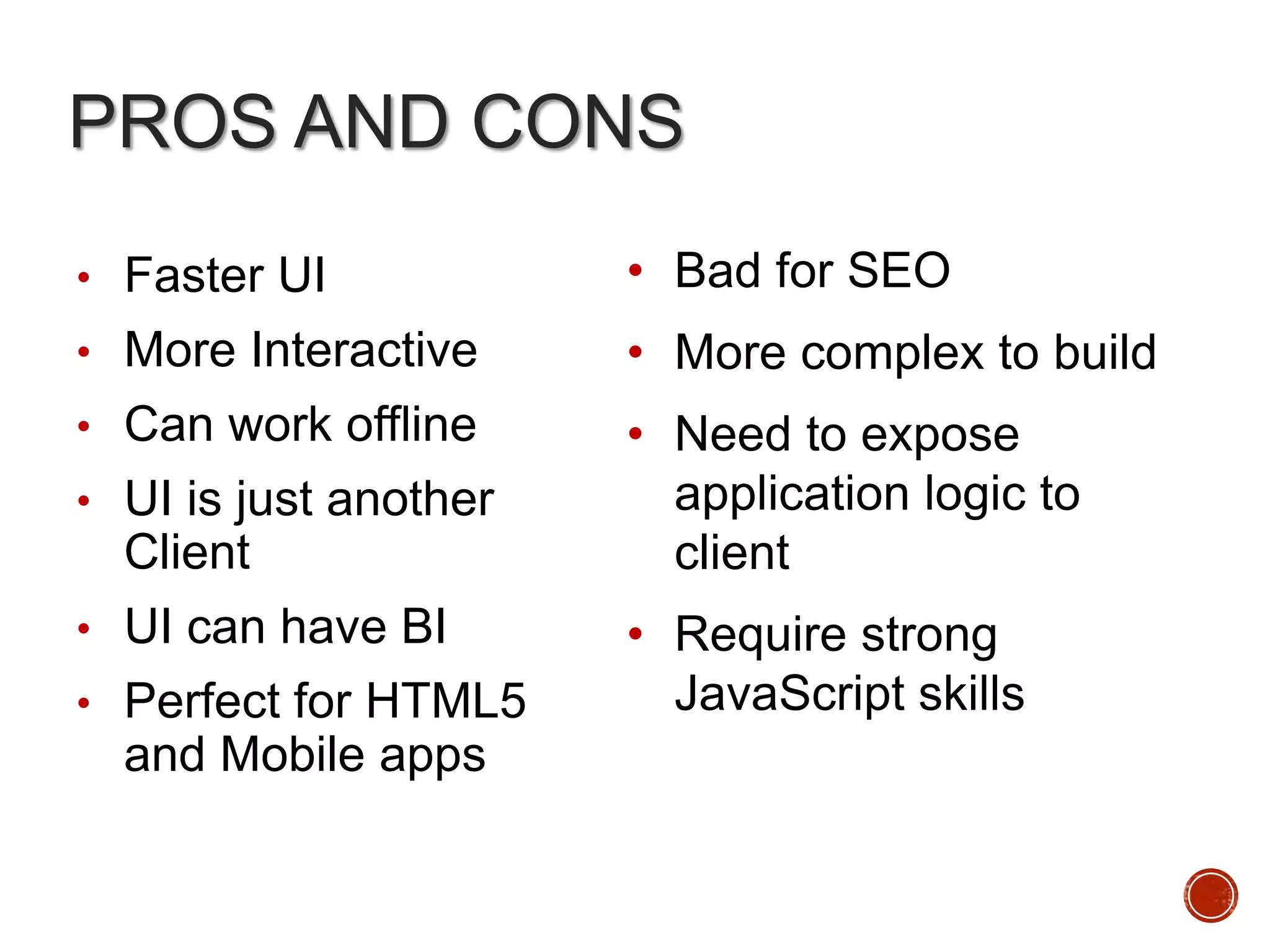

29. PROS AND CONS
• Faster UI
• Bad for SEO
• More Interactive
• More complex to build
• Can work offline
• Need to expose
application logic to
client
• UI is just another
Client
• UI can have BI
• Perfect for HTML5
and Mobile apps
• Require strong
JavaScript skills

30. QUESTIONS?
Yurii Shapovalov
Email: Yurii_Shapovalov@epam.com
Skype: Shapovalov.Yuriy
