Simware and the new SISO LSA

Real Time
Interoperable & Open Distributed
Simulation Architecture

Jose-Maria Lopez-Rodriguez
VP Business Development
jmlopez@nads.es

SimWare, an enabler of an Open LSA (Layered Simulation Architecture)

Simware provides the first truly open architecture for Distributed simulation
Allows the development of simulation systems in accordance to the SISO LSA vision.
First Simulation commercial platform fully compliant with OMG DDS standard.

(*)Based on SISO LSA Study Group TOR

© NEXTEL AEROSPACE DEFENCE & SECURITY S.L., 2012.
2 Reservados todos los derechos / All Rights Resedved

Rationale for SISO Layered Simulation Architecture

Can we exploit these…
Advances in
Data-centric
Middleware
Net-centric
interoperability

Open systems Simulation
architecture Architectures

…to improve these?
Confidential © NEXTEL AEROSPACE DEFENCE & SECURITY S.L., 2012.

Why the market needs SimWare

• Heterogeneous ecosystem of interoperability standards: different
versions of DIS, different versions of HLA, TENA, and different
vendors implementations.

• Customer spend the money developing so many custom data bridges and
gateways.

• Data Bridges and Gateways are commonly difficult to develop, upgrade
and maintain.

• No convergence of simulation architectures. No common datamodels, no
common protocols, no common data distribution mechanisms.

• Restrictions in performance. Difficult to cope with very large, WAN-
level exercises or experiments.

• No plug&play capability.

• Not seamless interoperability with Operational systems

Simware : THE IRC REVOLUTION

Interoperability Reusability

Composability

What is SimWare?

DDS based Simulation Data Bus


SimWare Middleware : HLA DataModel + DDS/DDSI wire protocol

Data Centric Sim Middleware
based on DDS

HLA data model
7
MODELER
Reservados todos los derechos / All Rights Resedved
TOOL

Simple API to help development

1. Create Simulation Create Publisher

ncware::Simulation * ncware::SimPublisher<Vector3D> * dataPublisher;
simulationExample=ncware::SimFactory::createSimulati dataPublisher=ncware::SimFactory::createPublisher<Vector3D>(simulation
on("1","airplane", Example);
ncware::TransportType::DDS_OPENSPLICE ); dataPublisher->registerInstanceName (“Boeing747”);
simulationExample->Join(); Vector3D * dataVector3D = dataPublisher->Declare( );
dataVector3D->x = 1;
dataVector3D->y = 1;
dataVector3D->z = 1;
dataPublisher ->Send (“Boeing747”, dataVector3D );
Nombre Descripción

DDS_OPENSPLICE DDS simulation

Create Subscriptor
HLA13_DMSO Simulation using DMSO HLA13
ncware::ObjectListener<Vector3D> * listenerVector3D = new
userListener();
HLA13_MAK Simulation using Mak HLA13 . ncware::SimSubscriber<Vector3D> * dataSubscriber =
ncware::SimFactory::createSubscriber<Vector3D> (simulationExample,
listenerVector3D);
dataSubscriber->Declare();
HLA13_PITCH Simulation using Pitch HLA13 .
void userListener::attribute_received (Vector3D * Data, std::string
HLA1516_NEXTEL Simulation using NADS RTI const & instanceName)
{
std::cout << “ Instance name = " << instanceName <<
HLA1516_MAK Simulation using Mak std::endl;
std::cout << " Coordinate X = " << data->x << std::endl;
HLA1516. std::cout << " Coordinate Y = " << data->y << std::endl;
std::cout << " Coordinate Z = " << data->z << std::endl;
HLA1516_PITCH Simulation using Pitch }
HLA1516

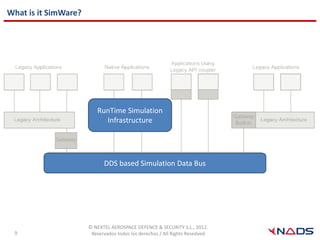

What is it SimWare?

RunTime Simulation
Infrastructure



An Open Real time Distributed runtime infrastructure
Configuration file RunTime Infrastructure
- <config>
<EJEC nid="2" id="3" name="EJEC"
Simulation
HlaFed="Aislado" HlaSom="Som.xml"
SchedFrec="25" HTime="5" GTime="3" TTime="0" engine
UTime="3" NotIni="no" NotFin="no"
NotCierre="no" Critico="si" NotGrab="si" />
- <EHOST4 nid="2" id="4" name="MOTOR1"
SchedSecuencial="si" NotIni="si" NotFin="si"
NotCierre="no" Critico="si" NotGrab="si"> Scheduler
<Mod0 nid="2" id="16"
name="Modulo_ModCIRCLE"
type="Modulo_ModCIRCLE" SchedFrec="50"
SchedOrden="0" SchedPrio="1" SchedOffset="0"
NotIni="no" NotDisc="no" NotEstab="no"
NotFin="si" NotCierre="no" Critico="si"
NotGrab="si" />
</EHOST4>
</config> Simulation
- <!-- engine

ACS

State machine

What is it SimWare?

Model Driven M&S
Development Tool

RunTime Simulation
Infrastructure



Developing simulation assets with a MDD Tool


What is it SimWare?

Model Driven M&S
Development Tool

RunTime Simulation
HLA RTI Infrastructure

GW


SimWare PowerLink


Improving interoperability


What is it SimWare?

Model Driven M&S
Development Tool

RunTime Simulation SimWare RTI
HLA RTI Infrastructure (HLA based on DDS)

GW


SimWare PowerLink


SimWare RTI : HLA1516.2000 API on top DDS/DDSI

An Open RTI:
 IEEE HLA API
 OMT DataModel
 DDS/DDSI Wire Protocol HLA Federate

SimWare RTI

HLA API

DDS DCPS

DDSI


Use Cases
SimWare in Full Life Cycle of critical and
complex systems


Uses Cases for Simware

LVC (Live-Virtual-
Constructive)
Federations

Distributed Simulation
architecture for Integration of
Training, Testing, SimWare Simulation Services in
Analisys or DDS Critical Systems
Experimentation

Agile Development of
Simulation models.
M&S Repositories


Spanish MoD new M&S infrastructure


NOGESI Project : LVC Infrastructure for CD&E in Sp MoD

Tactical C2 system Distributed
Simulation Services FAC virtual Sim

BMS Missile Sim LGB Sim
Service Service
FFT Command
service service
Sensor Sim Aircraft
SP Army C2 DDS services Service Sim Service
Interface

SimWare PowerLink SimWare Simware RTI

DDS Simulation Bus

CGF SimWare PowerLink Serious Gaming

HLA propietary network


Land Based Test Site for integration of Naval Combat Management Systems


Missile Simulator for Spanish Air Force


LVC Demostration
DDS, HLA, DIS
playing together


ETHERNET

1 2 3
Gateway
DDS-DIS
VR-FORCES SIMWARE Simulador DIS
HLA Simulation Node DDS Simulation Node DIS Simulation Node
HLA federation

Constructive Simulator eHOST 3 Basic Ships
whis is used to create new Simulation Host (eHost)
entities in a HLA Different Distributed
federation. Engines running the
simulation models.
SSN submarine
Sim Engine Sim Engine

SIMDIS will represent
VR-Forces will display all entities in
basic information of the synthetic 3D
rest of the contacts. environment.

SimDIS
SimWare SimWare
Adaptor
RTI HLA RTI HLA

MORE INFORMATION

WWW.SIMWARE.ES

Please address any questions about this presentation to:

Jose-Maria Lopez-Rodriguez
VP Business Development
jmlopez@nads.es
