An introduction to Amazon AWS SimpleDB, I gave this talk at the Ruby on Rails usergroup meeting of june 2009

1. Amazon SimpleDB
A quick intro
Paolo Negri
twitter @hungryblank

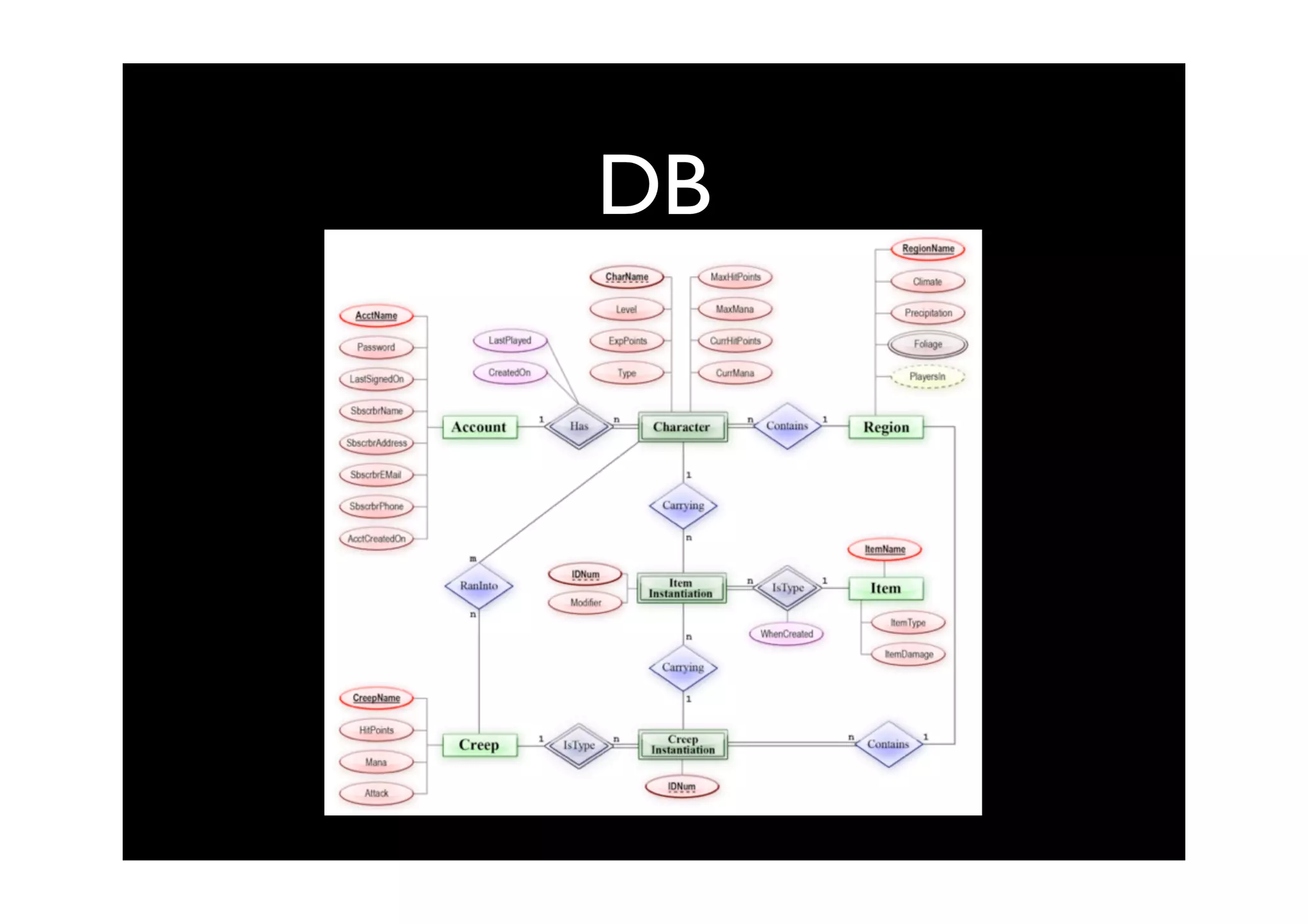

2. DB

3. DB?
•SimpleDB
•CouchDB
•MongoDB

4. DB?
http://www.flickr.com/photos/zheem/3091325244/

5. Key Value store?
http://www.flickr.com/photos/wdwbarber/1338954161/

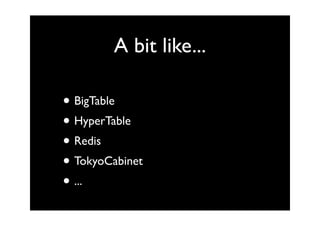

6. A bit like...
• BigTable
• HyperTable
• Redis
• TokyoCabinet
• ...

7. Different Shades
DB >
KV > http://www.flickr.com/photos/dey/11717609/

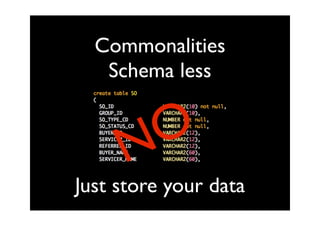

8. Commonalities
Schema less
N O
Just store your data

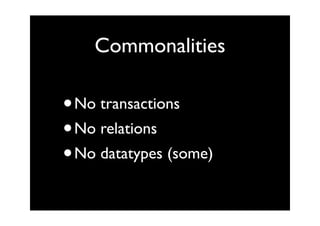

9. Commonalities
• No transactions
• No relations
• No datatypes (some)

10. 0.7 seconds to store 1 million records
Fast (TokyoCabinet)
http://www.flickr.com/photos/donsolo/1405885541/

11. Big datasets
SimpleDB 1.000.000.000
attributes/domain * 100 domains
http://www.flickr.com/photos/digitalart/2101765353/

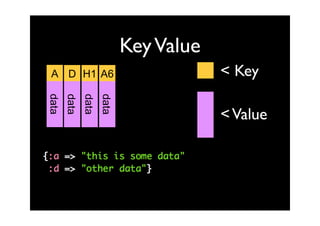

12. Key Value
A D H1 A6 < Key
data
data
data
data
< Value

13. SimpleDB
A
T W
< Key
data
data
}
Attribute >
Attribute value > < Value

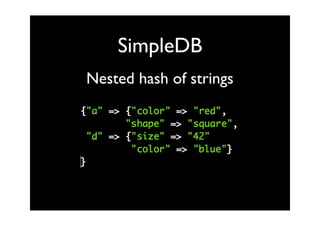

14. SimpleDB
Nested hash of strings

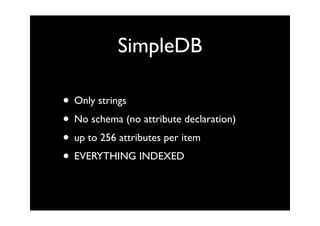

15. SimpleDB
• Only strings
• No schema (no attribute declaration)
• up to 256 attributes per item
• EVERYTHING INDEXED

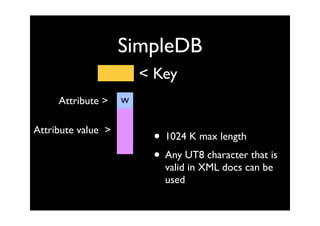

16. SimpleDB
<
Key
Attribute > W
Attribute value >
• 1024 K max length
• Any UT8 character that is
valid in XML docs can be
used

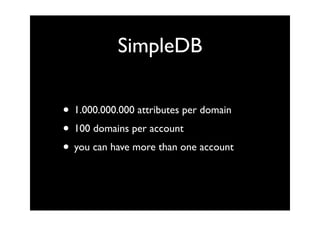

17. SimpleDB
• 1.000.000.000 attributes per domain
• 100 domains per account
• you can have more than one account

18. SimpleDB
<wtf>wtf</wtf>
SOAP protocol
http://www.flickr.com/photos/rescuedog/2242215507

19. SimpleDB
Or “REST”
http://sdb.amazonaws.com/?
AWSAccessKeyId=BLAHBLAH&Action=PutAttributes&Attribute.
0.Name=code&Attribute.
0.Value=31&DomainName=test_domain&ItemName=bar41&Sign
atureMethod=HmacSHA256&SignatureVersion=2&Timestamp=20
09-06-07T23%3A15%3A50Z&Version=2007-11-07&Signature=...

20. SimpleDB
request
REST or XML
SimpleDB Host
response
XML

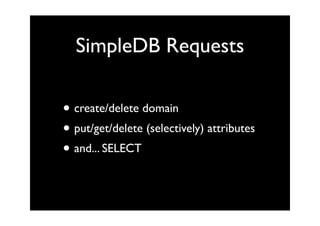

21. SimpleDB Requests
• create/delete domain
• put/get/delete (selectively) attributes
• and... SELECT

22. SimpleDB
Domain: a container of
(nested) key value
• Up to 10GB big
• Up to 1.000.000.000 attributes stored

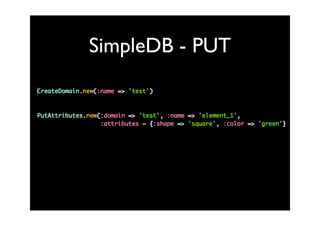

23. SimpleDB - PUT

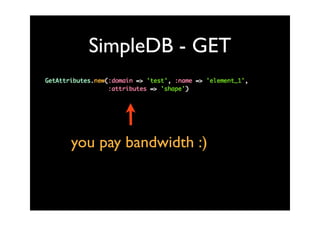

24. SimpleDB - GET
you pay bandwidth :)

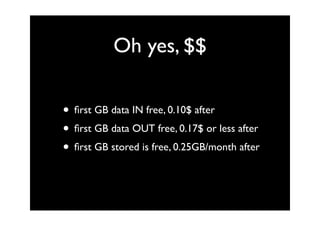

25. Oh yes, $$
• first GB data IN free, 0.10$ after
• first GB data OUT free, 0.17$ or less after
• first GB stored is free, 0.25GB/month after

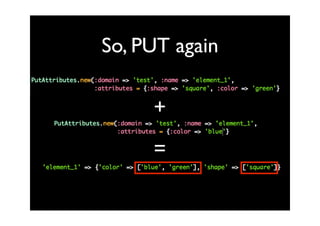

26. So, PUT again
+
=

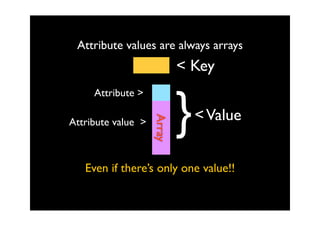

27. Attribute values are always arrays
< Key
}
Attribute >
< Value
Array
Attribute value >
Even if there’s only one value!!

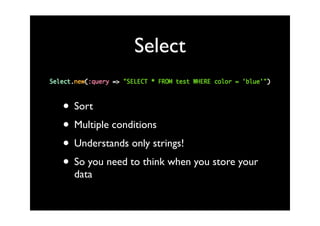

28. Select
• Sort
• Multiple conditions
• Understands only strings!
• So you need to think when you store your
data

29. Gems
• hungryblank-aws_sdb_bare (github)
very low level one to one mapping with
SimpleDB calls
• right_aws high level, active recordish api
and an hash api
• aws-sdb not any more mantained but still
working

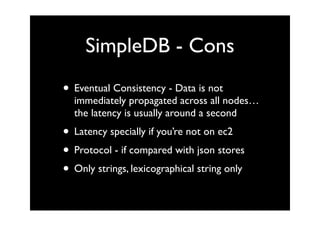

30. SimpleDB - Cons
• Eventual Consistency - Data is not
immediately propagated across all nodes…
the latency is usually around a second
• Latency specially if you’re not on ec2
• Protocol - if compared with json stores
• Only strings, lexicographical string only

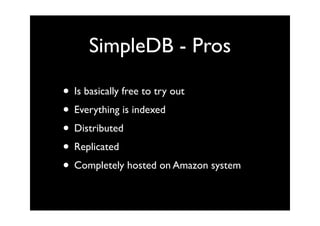

31. SimpleDB - Pros
• Is basically free to try out
• Everything is indexed
• Distributed
• Replicated
• Completely hosted on Amazon system

32. Q?
Paolo Negri
twitter @hungryblank
