Mongrel2, a short introduction
Mongrel2 is a language-agnostic web server that focuses on HTTP protocols and can be used with various programming languages. Its configuration is managed through a SQLite3 database and allows for dynamic management of server processes and handlers using the m2sh command-line tool. The server facilitates asynchronous request handling through ØMQ sockets, significantly enhancing performance and scalability.
More Related Content
Similar to Mongrel2, a short introduction
Mongrel2, a short introduction
- 1. Mongrel2 an introduction Paolo Negri - @hungryblank Berlin Ruby User Group 7th Oct 2010
- 2. 1st something about Mongrel1

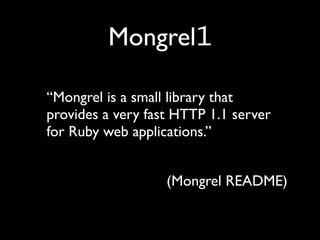

- 3. Mongrel1 “Mongrel is asmall library that provides a very fast HTTP 1.1 server for Ruby web applications.” (Mongrel README)

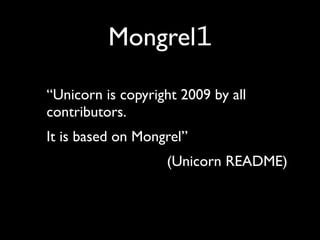

- 4. Mongrel1 “Unicorn is copyright2009 by all contributors. It is based on Mongrel” (Unicorn README)
- 5. Mongrel1 “Thin is aRuby web server that glues together 3 of the best Ruby libraries in web history: • the Mongrel parser...” (Thin homepage)

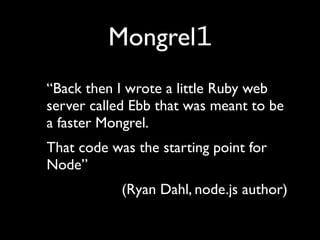

- 6. Mongrel1 “Back then Iwrote a little Ruby web server called Ebb that was meant to be a faster Mongrel. That code was the starting point for Node” (Ryan Dahl, node.js author)

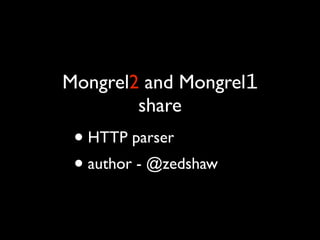

- 7. Mongrel2 and Mongrel1 share • HTTP parser • author - @zedshaw

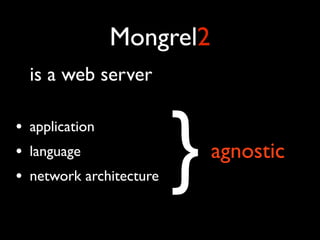

- 8. Mongrel2 is a web server • • • application language network architecture } agnostic

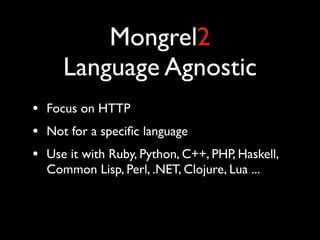

- 9. Mongrel2 Language Agnostic • Focus on HTTP • Not for a specific language • Use it with Ruby, Python, C++, PHP, Haskell, Common Lisp, Perl, .NET, Clojure, Lua ...

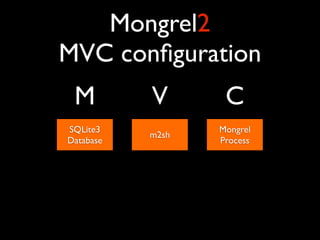

- 10. Mongrel2 MVC configuration M V C SQLite3 Mongrel m2sh Database Process

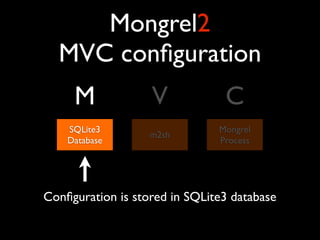

- 11. Mongrel2 MVCconfiguration M V C SQLite3 Mongrel m2sh Database Process Configuration is stored in SQLite3 database

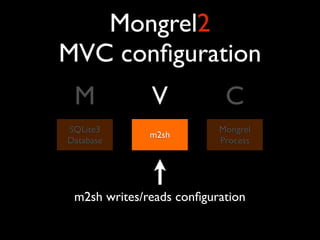

- 12. Mongrel2 MVC configuration M V C SQLite3 Mongrel m2sh Database Process m2sh writes/reads configuration

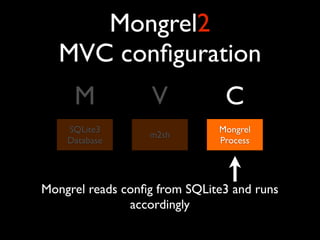

- 13. Mongrel2 MVC configuration M V C SQLite3 Mongrel m2sh Database Process Mongrel reads config from SQLite3 and runs accordingly

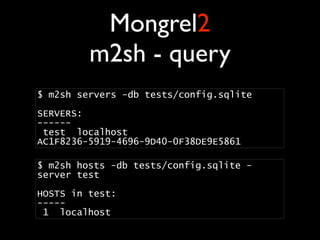

- 14. Mongrel2 m2sh - query $ m2sh servers -db tests/config.sqlite SERVERS: ------ test localhost AC1F8236-5919-4696-9D40-0F38DE9E5861 $ m2sh hosts -db tests/config.sqlite - server test HOSTS in test: ----- 1 localhost
- 15. Mongrel2 m2sh - launch/manage $ m2sh start -db tests/config.sqlite -host localhost -sudo $ m2sh reload -db tests/config.sqlite -host localhost

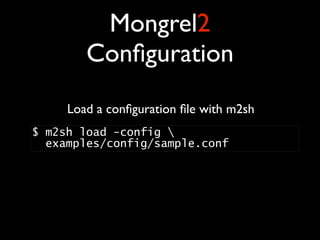

- 16. Mongrel2 Configuration Load a configuration file with m2sh $ m2sh load -config examples/config/sample.conf
- 17. Mongrel2 Configuration main = Server( uuid="f400bf85-4538-4f7a-8908-67e313d515c2", access_log="/logs/access.log", error_log="/logs/error.log", chroot="./", default_host="localhost", name="test", pid_file="/run/mongrel2.pid", port=6767, hosts = [ Host(name="localhost", routes={ '/tests/': Dir(base='tests/', index_file='index.html', default_ctype='text/plain') }) ] )

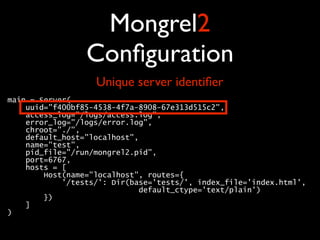

- 18. Mongrel2 Configuration Unique server identifier main = Server( uuid="f400bf85-4538-4f7a-8908-67e313d515c2", access_log="/logs/access.log", error_log="/logs/error.log", chroot="./", default_host="localhost", name="test", pid_file="/run/mongrel2.pid", port=6767, hosts = [ Host(name="localhost", routes={ '/tests/': Dir(base='tests/', index_file='index.html', default_ctype='text/plain') }) ] )

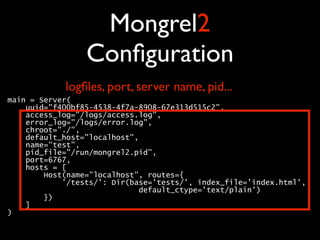

- 19. Mongrel2 Configuration logfiles, port, server name, pid... main = Server( uuid="f400bf85-4538-4f7a-8908-67e313d515c2", access_log="/logs/access.log", error_log="/logs/error.log", chroot="./", default_host="localhost", name="test", pid_file="/run/mongrel2.pid", port=6767, hosts = [ Host(name="localhost", routes={ '/tests/': Dir(base='tests/', index_file='index.html', default_ctype='text/plain') }) ] )
- 20. Mongrel2 Configuration • Server • Host • Route • Dir • Proxy • Handler

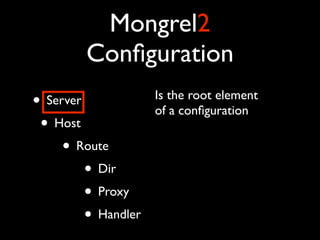

- 21. Mongrel2 Configuration • Server Is the root element of a configuration • Host • Route • Dir • Proxy • Handler

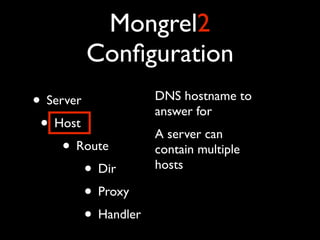

- 22. Mongrel2 Configuration • Server DNS hostname to answer for • Host A server can • Route contain multiple • Dir hosts • Proxy • Handler

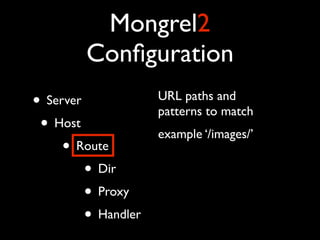

- 23. Mongrel2 Configuration • Server URL paths and patterns to match • Host example ‘/images/’ • Route • Dir • Proxy • Handler

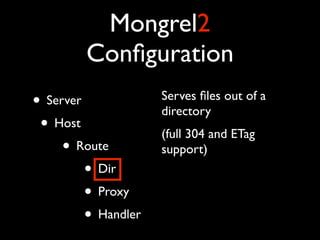

- 24. Mongrel2 Configuration • Server Serves files out of a directory • Host (full 304 and ETag • Route support) • Dir • Proxy • Handler
- 25. Mongrel2 Configuration • Server Requests matching the route are sent to • Host another HTTP server • Route • Dir • Proxy • Handler

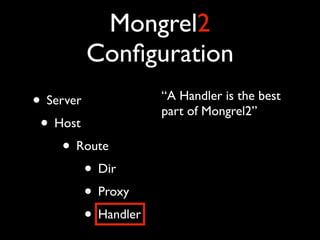

- 26. Mongrel2 Configuration • Server “A Handler is the best part of Mongrel2” • Host • Route • Dir • Proxy • Handler
- 27.
- 28.

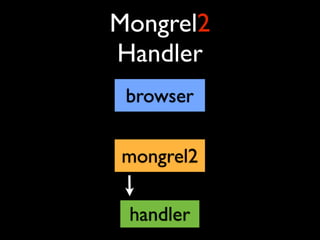

- 29.

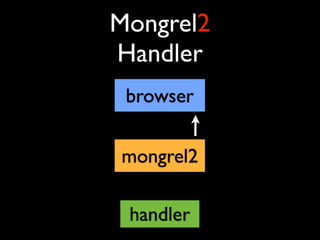

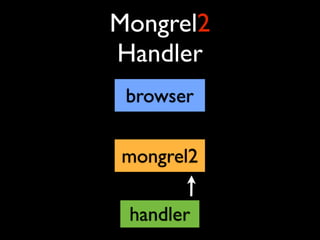

- 30.
- 31. Mongrel2 Handler • Handlers receive asynchronous requests from Mongrel2 • Handlers and Mongrel2 communicate via ØMQ sockets

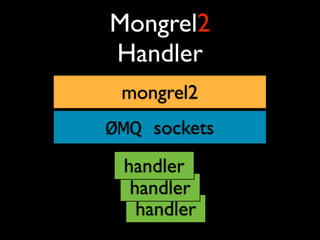

- 32. Mongrel2 Handler mongrel2 ØMQ sockets handler handler handler
- 33. Mongrel2 Handler mongrel2 Push/Pull Pub/Sub handler Requests Responses handler handler

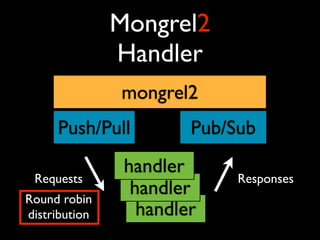

- 34. Mongrel2 Handler mongrel2 Push/Pull Pub/Sub handler Requests Responses Round robin handler distribution handler

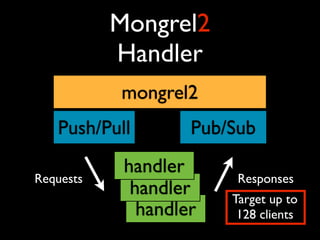

- 35. Mongrel2 Handler mongrel2 Push/Pull Pub/Sub handler Requests Responses handler Target up to handler 128 clients
- 36. Mongrel2 Handler UUID ID PATH SIZE:HEADERS,SIZE:BODY Push/Pull Pub/Sub handler Requests Responses handler handler

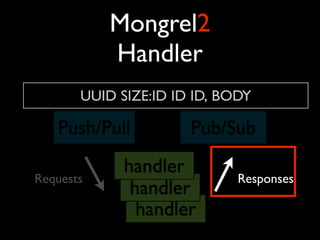

- 37. Mongrel2 Handler UUID SIZE:ID ID ID, BODY Push/Pull Pub/Sub handler Requests Responses handler handler

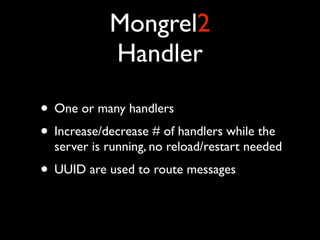

- 38. Mongrel2 Handler • One or many handlers • Increase/decrease # of handlers while the server is running, no reload/restart needed • UUID are used to route messages

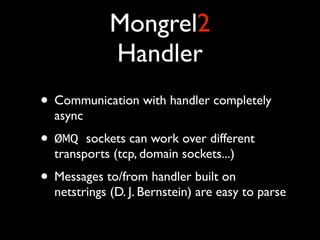

- 39. Mongrel2 Handler • Communication with handler completely async • ØMQ sockets can work over different transports (tcp, domain sockets...) • Messages to/from handler built on netstrings (D. J. Bernstein) are easy to parse

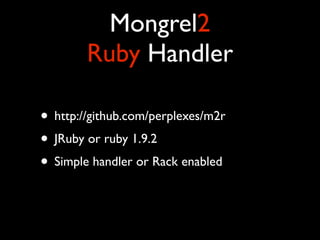

- 40. Mongrel2 Ruby Handler • http://github.com/perplexes/m2r • JRuby or ruby 1.9.2 • Simple handler or Rack enabled

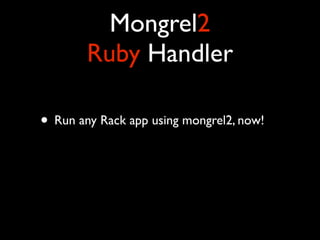

- 41. Mongrel2 Ruby Handler • Run any Rack app using mongrel2, now!
